- **Unmanaged Industrial PoE Switch:** Plug‑and‑play operation with no configuration required, ideal for industrial automation and surveillance networks. - **6‑Port Gigabit Design:** - 4 × 10/100/1000Base‑T(X) PoE P.S.E. ports (IEEE 802.3at compliant, up to 30 W per port) - 1 × 10/100/1000Base‑T(X) uplink port - 1 × 100/1000Base‑X SFP slot for fiber connectivity - **High Power PoE Capability:** Supports Power Sourcing Equipment (P.S.E.) function compliant with IEEE 802.3at, enabling direct powering of IP cameras, VoIP phones, and wireless access points. - **Dual Power Inputs:** Redundant 50–57 VDC inputs on a 6‑pin terminal block ensure uninterrupted operation during power source failure. - **Rugged Industrial Design:** Compact IP30‑rated metal enclosure with DIN‑rail and wall‑mount options; designed for vibration, shock, and electrical noise immunity. - **Wide Temperature Range:** Operates reliably from ‑40 °C to +70 °C, suitable for outdoor and factory environments. - **High Reliability:** Store‑and‑forward switching, 1K MAC address table, jumbo frame support up to 9 KB, and overload current protection. - **LED Indicators:** Comprehensive LED panel for power, fault, link/activity, and PoE status monitoring. - **DIP Switch Configuration:** - SFP port speed selection (100 Mbps or 1000 Mbps) - Power failure relay alarm enable/disable for PWR1 and PWR2 - **Compact Slim Form Factor:** Only 26.1 mm wide, ideal for space‑constrained control cabinets. - **High Immunity:** ESD protection up to 4 kV DC on Ethernet ports and surge protection up to 2 kV DC on power inputs.

Hersteller: Oring

Kategorie: Unmanaged Switches

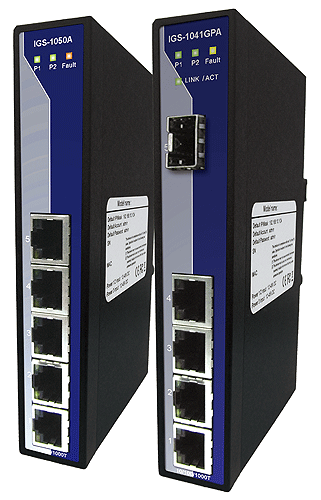

- **Port Configuration:** - 4 × 10/100/1000Base‑T(X) RJ‑45 ports (Auto MDI/MDIX) - 1 × 1000Base‑X SFP slot for fiber connectivity - **Unmanaged Operation:** Plug‑and‑play functionality with no configuration required, simplifying deployment in industrial networks. - **Dual Redundant Power Inputs:** Two independent 12–48 V DC inputs via a 6‑pin terminal block ensure continuous operation. If one power source fails, the second automatically takes over. - **Relay Alarm Output:** 1 A @ 24 V DC relay output for power failure notification, configurable via DIP switches. - **Wide Operating Temperature:** Extended industrial temperature range from **–40 °C to +70 °C**, ensuring reliable performance in extreme conditions. - **Rugged Construction:** IP30‑rated aluminum alloy housing provides mechanical protection against dust and mechanical stress. - **Compact Slim Design:** Space‑saving form factor (26 mm width) suitable for dense control cabinets. - **Mounting Flexibility:** Supports both **DIN‑rail** and **panel/wall mounting**. - **High Reliability:** Store‑and‑forward switching architecture with 1024‑entry MAC address table and IEEE 802.3x flow control for stable data transmission. - **Comprehensive LED Indicators:** Power, fault, and per‑port link/activity LEDs for quick status monitoring. - **Industrial‑grade EMC Protection:** ESD protection up to 4 kV DC on Ethernet ports and surge protection up to 2 kV DC on power inputs. - **Low Power Consumption:** Typical consumption of only **5.5 W**, optimizing energy efficiency. - **Long‑term Reliability:** Backed by a **5‑year manufacturer warranty**.

Hersteller: Oring

Kategorie: Unmanaged Switches

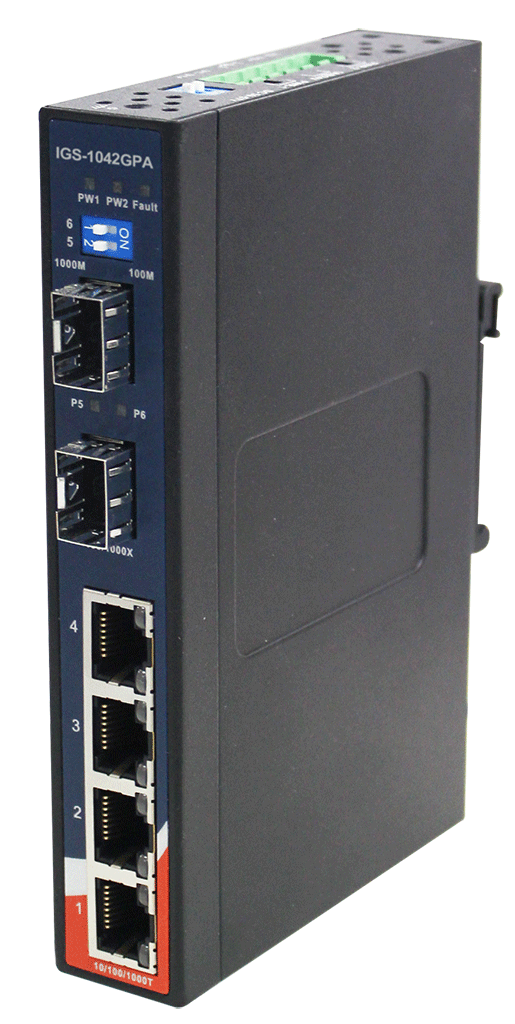

- **Unmanaged Industrial Gigabit Switch:** Plug-and-play operation with no configuration required, ideal for simple, reliable network expansion. - **Port Configuration:** - 4 × 10/100/1000Base-T RJ-45 auto-negotiation ports - 2 × 100/1000Base-X SFP slots for fiber uplinks - **Slim Type Design:** Compact enclosure suitable for space-limited control cabinets and DIN-rail installations. - **Extended Temperature Range:** Operates reliably from **-40°C to +70°C**, ensuring stable performance in extreme industrial conditions. - **IP30-Rated Metal Housing:** Durable aluminum alloy enclosure provides mechanical protection and efficient heat dissipation. - **Redundant Power Input:** Dual **12–48V DC** power inputs with **Oring diode protection** prevent power failure due to single-source loss. - **High-Speed Gigabit Performance:** Full wire-speed forwarding on all ports for high-bandwidth applications such as IP surveillance, automation, and data acquisition. - **EMI/EMC Industrial Protection:** Designed to withstand electromagnetic interference typical in industrial environments. - **Fanless Design:** Passive cooling ensures silent operation and reduces maintenance requirements. - **DIN-Rail and Wall Mountable:** Flexible mounting options for industrial control panels or enclosures. - **Plug-and-Play Operation:** No software setup or management interface required; automatically detects and adjusts to connected devices.

Hersteller: Oring

Kategorie: Unmanaged Switches

- **Five Gigabit Ethernet Ports:** Equipped with 5 × 10/100/1000Base-T(X) RJ45 ports supporting auto-negotiation and Auto MDI/MDIX for flexible network connectivity. - **Dual Redundant Power Inputs:** Supports dual DC power inputs (12–48 VDC) via a 6-pin terminal block, providing power redundancy and uninterrupted operation in case of primary power failure. - **Wide Operating Temperature Range:** Designed for extreme industrial environments with an extended operating temperature range from **-40°C to +70°C**. - **Rugged Industrial Design:** Constructed with a **slim IP30-rated aluminum alloy housing**, offering protection against dust and mechanical stress. - **Relay Output Alarm:** Integrated relay output (1A @ 24VDC) for power failure alarms, configurable via DIP switches to monitor PWR1 and PWR2 status. - **High Reliability:** Features overload current protection and reverse polarity protection to safeguard internal circuitry. - **Compact Form Factor:** Slim dimensions (26.1 × 95 × 144.3 mm) allow installation in narrow control panels or enclosures. - **Flexible Mounting Options:** Supports both **DIN-rail** and **wall/panel mounting**, with included mounting accessories. - **Comprehensive LED Indicators:** Provides clear visual status for power, fault, and port link/activity for easy diagnostics. - **Industrial-Grade EMC Protection:** Complies with EN61000-4 series standards for ESD, surge, EFT, and electromagnetic immunity. - **Long-Term Reliability:** Backed by a **5-year manufacturer warranty**.

Hersteller: Oring

Kategorie: Unmanaged Switches

- **8-Port Gigabit Ethernet Connectivity:** Eight 10/100/1000Base-TX RJ45 ports provide full-duplex, auto-negotiation, and auto-MDI/MDI-X functionality for flexible network deployment. - **Industrial-Grade Design:** Built with a **rugged IP30-rated metal housing**, the IGS-1080A is engineered to withstand vibration, shock, and extreme temperature variations typical of industrial environments. - **Slim Form Factor:** Compact dimensions (**26 × 95 × 144.5 mm**) allow installation in space-constrained control cabinets or DIN-rail enclosures. - **Wide Operating Temperature:** Designed for **-40°C to +70°C**, ensuring stable operation in both freezing and high-heat industrial conditions. - **Redundant Power Inputs:** Dual **12–48VDC** power inputs with reverse polarity protection and **2000VDC surge protection** ensure continuous operation even if one power source fails. - **Enhanced Electrical Protection:** - **ESD Protection:** 4kV DC on Ethernet ports - **Surge Protection:** 2000VDC on power input These protections safeguard the device and connected equipment from transient voltage spikes and electrostatic discharge. - **Low Power Consumption:** Typical power usage is approximately **4W**, optimizing energy efficiency for continuous operation. - **Unmanaged Plug-and-Play Operation:** No configuration required—ideal for simple, reliable network expansion in industrial systems. - **DIN-Rail Mounting:** Standard DIN-rail mounting bracket included for quick and secure installation in industrial cabinets. - **High Reliability:** Designed for 24/7 operation with **MTBF (Mean Time Between Failures)** optimized for industrial uptime.

Hersteller: Oring

Kategorie: Unmanaged Switches

- **10-Port Configuration:** - 8 × 10/100/1000Base-TX RJ45 copper ports for high-speed Ethernet connections. - 2 × 100/1000Base-X SFP slots for flexible fiber uplink or long-distance transmission. - **Unmanaged Operation:** - Plug-and-play functionality with no configuration required. - Ideal for simple network expansion or device interconnection in industrial environments. - **Industrial-Grade Design:** - Rugged **IP30-rated metal housing** ensures protection against dust and mechanical stress. - **Compact dimensions (64 × 43.5 × 103 mm)** allow installation in space-constrained control cabinets. - **Lightweight (~305 g)** for easy DIN-rail mounting. - **Wide Power Input Range:** - Supports **9–30VDC** input voltage, compatible with standard industrial power systems. - **Redundant power input (Oring design)** enhances reliability and uptime. - **Extended Temperature Range:** - Operates reliably from **-40°C to +75°C**, suitable for extreme industrial and outdoor conditions. - **Energy Efficient:** - Low power consumption of approximately **3 watts**, minimizing heat generation and energy costs. - **DIN-Rail Mounting:** - Standardized mounting system for quick installation in industrial enclosures or control panels. - **High Reliability:** - Fanless design for silent operation and reduced mechanical failure points. - Designed for continuous operation in vibration-prone or electrically noisy environments.

Hersteller: Oring

Kategorie: Unmanaged Switches

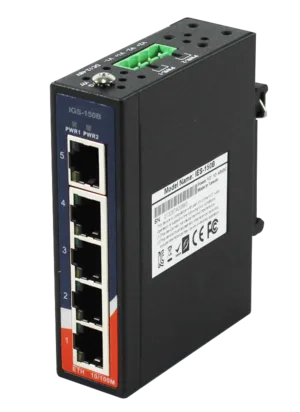

- **Unmanaged Gigabit Ethernet Switch:** 5×10/100/1000Base‑T(X) ports with auto‑negotiation and Auto MDI/MDI‑X. - **Industrial Design:** Compact, fanless, IP30‑rated metal housing for reliable operation in harsh environments. - **Extended Temperature Range:** Operates from ‑40°C to +75°C (‑40°F to +167°F). - **Dual Redundant Power Inputs:** 12–48 VDC on a 4‑pin terminal block with reverse polarity and overload current protection. - **High Performance:** - Switching bandwidth: 10 Gbps - Throughput: 7.24 Mpps @ 64‑byte packets - Switching latency: 7 µs - Jumbo frame support up to 9720 bytes - **Reliability:** MTBF of 2,556,319 hours; 5‑year warranty. - **EMC and Safety Compliance:** Meets CE, FCC, EN, UL, and IEC industrial standards. - **Flexible Mounting:** DIN‑rail and wall‑mount options included. - **LED Indicators:** Power, link/activity, and speed indicators for each port. - **Low Power Consumption:** Typical

Hersteller: Oring

Kategorie: Unmanaged Switches

- **10-Port Configuration:** 8 × 10/100/1000Base-T(X) PoE P.S.E. ports + 2 × 100/1000Base-X SFP slots for fiber uplinks. - **PoE Power Sourcing Equipment (P.S.E.):** Supports IEEE 802.3at (PoE+) standard, delivering up to 30W per port with a total power budget of 180W, enabling direct powering of IP cameras, VoIP phones, wireless access points, and other PoE-enabled devices. - **Unmanaged Operation:** Plug-and-play functionality with automatic configuration, ideal for simple network deployments without the need for software setup. - **Industrial-Grade Design:** Rugged IP30-rated metal housing ensures durability in demanding environments such as factory floors, transportation systems, and outdoor enclosures. - **Wide Operating Temperature Range:** Operates reliably from -40°C to +75°C, suitable for extreme industrial conditions. - **Redundant Power Inputs:** Dual 12–48VDC power inputs on a 6-pin terminal block provide failover protection to ensure continuous operation during power source failure. - **Enhanced Electrical Protection:** - ESD protection: 4kV DC on Ethernet ports - Surge protection: 2000V DC on power inputs - Overload current and reverse polarity protection - **Compact Slim Form Factor:** Space-saving design (26 × 95 × 144.5 mm) allows easy integration into control cabinets or limited-space installations. - **Mounting Flexibility:** Supports both DIN-rail and wall-mount installation options. - **Low Power Consumption:** Typical consumption of approximately 4–4.5W (excluding PoE load). - **Reliability Features:** Relay output alarm for power failure notification, ensuring proactive maintenance and system reliability.

Hersteller: Oring

Kategorie: Unmanaged Switches

Unmanaged industrial 5-port 10/100TX switch, DIN-rail mounting, ESD 4kV DC Ethernet ports, surge 2000VDC power, slim metal IP30 case 26*95*144,5mm, redundant dual power input, 12-48VDC, extended -40°..70°C operating temperature, ~3,5W, Oring

Hersteller: Oring

Kategorie: Unmanaged Switches

- **Eight 10/100/1000Base-T(X) Ports:** Provides eight auto-negotiating RJ45 ports supporting full/half duplex operation and Auto MDI/MDIX for flexible network connections. - **Unmanaged Operation:** Plug-and-play functionality with no configuration required, ideal for simple network expansion or device interconnection. - **Dual Redundant Power Inputs:** Supports dual 12–48VDC power inputs via a 6-pin terminal block, ensuring continuous operation in case of primary power failure. - **Wide Operating Temperature Range:** Designed for extreme industrial environments, operating reliably from **–40°C to +75°C**. - **Rugged IP30 Metal Housing:** Compact, fanless, and vibration-resistant enclosure ensures durability in industrial settings. - **Surge and ESD Protection:** 4kV ESD protection on Ethernet ports and 2000VDC surge protection on power inputs safeguard against electrical disturbances. - **Low Power Consumption:** Typical power usage of approximately 4W, optimizing energy efficiency. - **DIN-Rail and Panel Mounting:** Flexible installation options for control cabinets or industrial panels. - **Relay Output Alarm:** Configurable relay output for power failure notification, enhancing system reliability. - **Compact Design:** Slim profile (26 × 95 × 144.5 mm) allows installation in space-constrained environments. - **Long-Term Reliability:** Backed by a **5-year manufacturer warranty**.

Hersteller: Oring

Kategorie: Unmanaged Switches

- **6-Port Configuration:** 4 × 10/100Base-T(X) RJ-45 ports with PoE P.S.E. capability and 2 × 100Base-FX multi-mode fiber ports (SC connectors). - **Power over Ethernet (PoE):** Compliant with IEEE 802.3at standard, providing up to **30 W per port** and a **total power budget of 120 W**. Enables simultaneous data and power transmission over standard Ethernet cabling. - **Redundant Power Inputs:** Dual DC power inputs (50–57 VDC) ensure uninterrupted operation. Automatic failover between primary and backup power sources prevents downtime. - **Industrial-Grade Design:** IP-30 rated metal enclosure with slim form factor (26.1 × 94.9 × 144.3 mm). Designed for DIN-rail or wall mounting in space-constrained industrial cabinets. - **Wide Operating Temperature Range:** Operates reliably from **–40°C to +70°C**, suitable for extreme industrial environments. - **High Reliability:** Features overload current protection, relay output alarm for power failure, and surge protection technology. - **Plug-and-Play Operation:** Unmanaged switch design requires no configuration. Supports auto-negotiation and auto MDI/MDI-X for simplified installation. - **LED Indicators:** Provides clear visual status for power, fault, link/activity, and PoE power injection. - **Compliance and Safety:** Meets FCC Part 15, EN55022 Class A, EN60950-1 safety, and multiple IEC/EN61000-4 EMC standards.

Hersteller: Oring

Kategorie: Unmanaged Switches

- **Unmanaged Industrial PoE Switch:** 6-port configuration with 4x 10/100Base-T(X) PoE P.S.E. ports and 2x 100Base-FX single-mode fiber ports. - **PoE Power Sourcing Equipment (P.S.E.):** Supports IEEE 802.3at standard, delivering up to **30W per port** and a **total power budget of 120W**. - **Fiber Connectivity:** Two 100Base-FX single-mode SC fiber ports supporting up to **30 km transmission distance** at **1310 nm wavelength**. - **Redundant Power Inputs:** Dual DC inputs (50–57VDC) on a 6-pin terminal block ensure continuous operation during power source failure. - **Relay Output Alarm:** Configurable relay output (1A @ 24VDC) for power failure notification. - **Industrial-Grade Design:** IP-30 rated metal enclosure with slim form factor (26.1 × 94.9 × 144.3 mm). - **Wide Operating Temperature:** -40°C to +70°C for reliable performance in extreme environments. - **DIN-Rail and Wall Mounting:** Flexible installation options for industrial cabinets and enclosures. - **Surge and ESD Protection:** Built-in protection against electrical transients and surges. - **LED Indicators:** Power, fault, link/activity, and PoE status indicators for quick diagnostics. - **Store-and-Forward Switching:** Ensures reliable data transmission with error checking. - **Auto MDI/MDI-X and Auto-Negotiation:** Simplifies network setup and cable management. - **Compact and Efficient:** Low power consumption (~6.78W excluding PoE load). - **Long-Term Reliability:** 5-year manufacturer warranty.

Hersteller: Oring

Kategorie: Unmanaged Switches

- **6-Port Configuration:** 4 × 10/100Base-T(X) RJ45 ports with PoE P.S.E. capability and 2 × 100Base-FX multi-mode fiber ports (SC connectors). - **PoE Power Sourcing Equipment (P.S.E.):** Compliant with IEEE 802.3at standard, each PoE port delivers up to 30W, with a total power budget of 120W. Enables simultaneous data and power transmission over standard Ethernet cabling. - **Redundant Power Inputs:** Dual DC power inputs (24–36VDC) on a 6-pin terminal block ensure uninterrupted operation. Automatic failover between primary and backup power sources prevents downtime. - **Rugged Industrial Design:** IP-30 rated metal enclosure for protection against dust and mechanical stress. Designed for vibration, shock, and free-fall resistance per IEC60068 standards. - **Wide Operating Temperature Range:** Operates reliably from -40°C to +70°C, suitable for outdoor and factory environments. - **Compact Form Factor:** Slim housing (41 × 94.9 × 144.3 mm) optimized for DIN-rail or wall mounting in control cabinets. - **Relay Output Alarm:** Configurable relay output (1A @ 24VDC) for power failure or fault notification. - **LED Indicators:** Comprehensive LED panel for power, fault, link/activity, and PoE status monitoring. - **High Reliability:** Store-and-forward switching architecture with 2048 MAC address table and IEEE 802.3x flow control for stable data transmission. - **Surge and Overload Protection:** Built-in overload current protection and surge suppression for enhanced durability.

Hersteller: Oring

Kategorie: Unmanaged Switches

- **6‑Port Configuration:** 4 × 10/100Base‑T(X) PoE P.S.E. ports and 2 × 100Base‑FX single‑mode fiber ports. - **PoE Power Sourcing:** IEEE 802.3at compliant, up to 30 W per port, total 120 W power budget. - **Fiber Connectivity:** Two single‑mode SC fiber ports supporting 1310 nm wavelength and up to 30 km transmission distance. - **Redundant Power Inputs:** Dual 24–36 V DC inputs on a 6‑pin terminal block ensure uninterrupted operation. - **Relay Output Alarm:** Configurable relay output (1 A @ 24 V DC) for power failure or fault notification. - **Industrial‑Grade Design:** IP‑30 metal enclosure, vibration/shock‑resistant, and wide operating temperature range (‑40 °C to 70 °C). - **Auto‑Negotiation and Auto‑MDI/MDI‑X:** Simplifies connection to various Ethernet devices without crossover cables. - **Store‑and‑Forward Switching:** Ensures reliable data transmission with error checking. - **Flow Control Support:** IEEE 802.3x compliant for full‑duplex communication. - **LED Indicators:** Power, fault, link/activity, and PoE status LEDs for quick diagnostics. - **Compact Form Factor:** Slim design (41 × 94.9 × 144.3 mm) optimized for control cabinets and industrial panels. - **High Reliability:** Overload current protection, surge protection, and 5‑year manufacturer warranty.

Hersteller: Oring

Kategorie: Unmanaged Switches

- **8×10/100Base‑T(X) PoE P.S.E. Ports:** All eight RJ‑45 ports support IEEE 802.3at PoE, delivering up to 30 W per port with a total power budget of 120 W. - **IEEE Standards Compliance:** Conforms to IEEE 802.3 (10Base‑T), IEEE 802.3u (100Base‑TX), IEEE 802.3x (Flow Control), and IEEE 802.3at (PoE). - **Advanced PoE Power Boost:** Optimized for dual 24 VDC inputs, ensuring stable PoE output even under fluctuating supply conditions. - **Redundant Power Inputs:** Dual DC inputs (24–36 VDC) on a 6‑pin terminal block provide failover protection; automatic switchover ensures continuous operation. - **Wide Temperature Range:** Operates reliably from –40 °C to +70 °C, suitable for harsh industrial environments. - **Rugged Construction:** Slim, rigid IP30‑rated metal enclosure for DIN‑rail or wall mounting. - **Relay Alarm Output:** Configurable fault relay output (1 A @ 24 VDC) for power failure notifications. - **Auto‑Negotiation and Auto‑MDI/MDI‑X:** Simplifies network setup by automatically detecting link speed and cable type. - **Store‑and‑Forward Switching:** Ensures reliable data transmission with error checking and buffering. - **Low Power Consumption:** Typical consumption of 4.32 W (excluding PoE load). - **Comprehensive LED Indicators:** Power, fault, link/activity, and PoE status LEDs for quick diagnostics. - **5‑Year Warranty:** Long‑term reliability backed by ORing’s industrial‑grade warranty.

Hersteller: Oring

Kategorie: Unmanaged Switches

- **8x 10/100Base-T(X) PoE P.S.E. Ports:** All eight RJ45 ports support IEEE 802.3at PoE standard, delivering up to 30W per port. - **Total Power Budget:** 120W total PoE power output capacity (maximum 30W per port). - **Unmanaged Operation:** Plug-and-play functionality with no configuration required, ideal for simple network deployments. - **Auto-Negotiation & Auto-MDI/MDI-X:** Automatically detects link speed and cable type for seamless connectivity. - **Store-and-Forward Switching:** Ensures reliable data transmission with error checking and buffering. - **Flow Control Support:** Implements IEEE 802.3x flow control for full-duplex and backpressure for half-duplex operation. - **Redundant Power Inputs:** Dual 50–57VDC inputs on a 6-pin terminal block for uninterrupted operation. - **Power Failure Relay Alarm:** Configurable via DIP switch to trigger alarms on power input failure. - **Surge and ESD Protection:** 4kV ESD protection on Ethernet ports and 2000VDC surge protection on power input. - **Slim IP30 Metal Enclosure:** Compact 26.1mm width for space-constrained installations, with DIN-rail and wall-mount options. - **Wide Operating Temperature:** -40°C to +70°C for reliable performance in extreme industrial conditions. - **Low Power Consumption:** Typical consumption of 4.5W (excluding PoE load). - **High Reliability:** Designed for continuous operation with redundant power and fault relay output. - **Comprehensive LED Indicators:** Power, fault, link/activity, and PoE status LEDs for easy monitoring. - **Long-Term Warranty:** 5-year manufacturer warranty.

Hersteller: Oring

Kategorie: Unmanaged Switches

- **26‑Port Configuration:** 24 × 10/100Base‑T(X) RJ‑45 ports with auto‑negotiation and auto‑MDI/MDI‑X support, plus 2 × 100Base‑FX SFP slots for fiber connectivity. - **Industrial‑Grade Design:** IP‑30 rated metal housing ensures mechanical durability and protection against dust and electromagnetic interference. - **Wide Temperature Range:** Operates reliably from ‑40°C to +70°C (storage up to +85°C), suitable for outdoor cabinets, factory floors, and transportation systems. - **AC Power Input:** Universal 100–240 VAC input with overload current protection; typical power consumption 15–25 W. - **Rack‑Mountable Form Factor:** Standard 19‑inch rack‑mount design (1U height) with included mounting brackets and screws. - **Plug‑and‑Play Operation:** Unmanaged switch architecture requires no configuration; supports store‑and‑forward switching and IEEE 802.3x flow control. - **High Reliability:** Mean Time Between Failures (MTBF) of 510,613 hours and a 5‑year manufacturer warranty. - **LED Indicators:** Comprehensive front‑panel LEDs for power, link/activity, and speed status on all ports. - **Regulatory Compliance:** Meets FCC Part 15, EN55022 Class B, EN61000‑4‑2/3/4/5/6/8/11, and EN60950‑1 safety standards.

Hersteller: Oring

Kategorie: Unmanaged Switches
