1. Product Overview

Product Name: cPCIS‑2551/AC
Article Number: cPCIS‑2551/AC
Series: cPCIS‑1000/2000 Series – 3U CompactPCI Sub‑systems
Manufacturer: ADLINK Technology Inc.
Product Type: 4U CompactPCI wall‑mount chassis with integrated 6.3‑inch TFT LCD and AC power supply
Associated Components: cBP‑3206 32‑bit 6‑slot backplane, cBP‑3061 power backplane, cPWR‑1500A AC power supply
Manufacturer Address: ADLINK Technology Inc., 9F, No.166, Jian Yi Road, Chungho City, Taipei 235, Taiwan, R.O.C.
Website: [www.adlinktech.com](http://www.adlinktech.com)

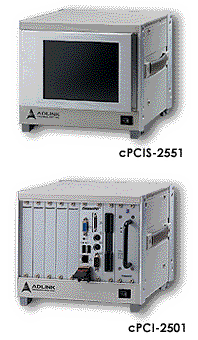

The ADLINK cPCIS‑2551/AC is a compact, industrial‑grade wall‑mount enclosure designed for 3U CompactPCI systems. It integrates a 6.3‑inch TFT LCD display, a 32‑bit 6‑slot CompactPCI backplane, and a high‑reliability AC power supply. The chassis provides a rugged, thermally optimized platform for embedded control, data acquisition, and industrial automation applications requiring CompactPCI modularity in a compact 4U form factor.

---

2. Key Features

- CompactPCI 3U/4U Architecture: Designed for 3U CompactPCI boards within a 4U‑high wall‑mount chassis, compliant with PICMG 2.0 R2.1.
- Integrated Display: Built‑in 6.3‑inch high‑brightness TFT LCD for local monitoring or user interface.
- Backplane: Equipped with a 32‑bit, 6‑slot CompactPCI backplane (model cBP‑3206) supporting one system slot and up to five peripheral slots.

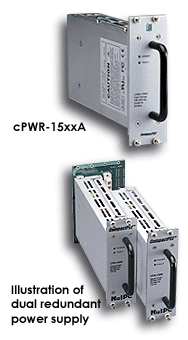

- Power System: Includes cPWR‑1500A AC power supply, providing stable regulated outputs for CompactPCI modules.
- Cooling System: Dual or quad 12 V DC brushless fans with bottom‑mounted air intake and removable filters for efficient cooling and easy maintenance.
- Mechanical Design: Rugged aluminum/steel construction with EMC shielding gaskets on front, rear, and side panels.
- Mounting Flexibility: Wall‑mount configuration with optional rack‑mount kit; suitable for industrial cabinets or control panels.
- Serviceability: Modular sub‑assemblies (LCD, PSU, backplane, fans) for quick replacement and upgrade.
- Compatibility: Supports standard CompactPCI CPU and I/O boards, compliant with PICMG 2.0 and 2.11 power interface standards.
- Environmental Robustness: Operating temperature range −10 °C to +70 °C; designed for continuous industrial operation.

---

3. Technical Specifications

| Parameter | Specification |
|----------------|------------------|
| Chassis Type | 4U wall‑mount enclosure for 3U CompactPCI boards |
| Dimensions (W×H×D) | 237 mm × 221 mm × 177 mm (nominal) |
| Material | Heavy‑gauge steel/aluminum alloy with EMC shielding |
| Backplane | cBP‑3206, 32‑bit, 6‑slot CompactPCI backplane |
| Power Supply | cPWR‑1500A AC PSU (175 W nominal) |
| Cooling | 2–4 × 12 V DC brushless fans, 60 CFM each |
| Fan Power | 12 V @ 0.43 A per fan (5.16 W rated) |
| Operating Temperature | −10 °C to +70 °C |
| Storage Temperature | −40 °C to +85 °C |
| Relative Humidity | < 95 % @ 40 °C, non‑condensing |
| EMC Shielding | Front/rear/side gaskets, compliant with EN55022 Class A |
| Weight | Approx. 0.85 kg (PSU module); total system ~6 kg |
| Display | 6.3‑inch TFT LCD, 640 × 480 pixels, 300 cd/m² brightness |
| LCD Power | +5 V @ 6 W (panel), +12 V @ 0.3 A × 2 (backlight) |
| Lamp Life | 15 000 hours typical at 25 °C |
| Backplane Dimensions | 133.35 mm × 182 mm × 3.2 mm |
| Power Input | 90–264 V AC, 47–63 Hz |
| Output Voltages | +5 V, +3.3 V, +12 V, −12 V |
| Total Output Power | 175 W continuous |
| Efficiency | 73 % typical |
| MTBF | 100 000 hours (MIL‑HDBK‑217E) |

---

4. Functionality

The cPCIS‑2551/AC serves as a self‑contained CompactPCI subsystem chassis. It houses a 3U CompactPCI backplane (cBP‑3206) that interconnects CPU and peripheral modules via a 32‑bit PCI bus. The integrated AC power supply (cPWR‑1500A) delivers regulated DC outputs to the backplane through a PICMG 2.11‑compliant 47‑pin connector. Cooling fans draw air from the bottom and exhaust it through the rear, maintaining optimal thermal conditions for high‑density boards.

The 6.3‑inch TFT LCD provides local display capability for system status, diagnostics, or operator interface. It can be driven by an optional CompactPCI LCD controller card (e.g., cPCI‑8215 or cPCI‑8217) via standard digital RGB interface.

Typical Applications:
- Industrial automation controllers
- Data acquisition and measurement systems
- Embedded computing platforms
- Communication and network control nodes
- Portable or wall‑mounted instrumentation

Compatibility:
Fully compatible with ADLINK CompactPCI CPU boards, I/O modules, and power backplanes. Supports standard CompactPCI signaling and mechanical interfaces per PICMG 2.0 R2.1.

---

5. Components & Accessories

Included Components:
- cPCIS‑2551/AC 4U wall‑mount chassis
- cBP‑3206 6‑slot 32‑bit CompactPCI backplane
- cBP‑3061 power backplane (for PSU interface)
- cPWR‑1500A AC power supply (175 W)
- Integrated 6.3‑inch TFT LCD module with inverter
- Dual or quad 12 V DC cooling fans with controller board
- EMC‑shielded front and rear panels

Optional Accessories:
- cPCI‑8215 LCD controller (C&T 69000, 2 MB RAM)
- cPCI‑8217 LCD controller (SMI chipset, 4 MB RAM)
- cPCI‑SP3E 3U slot‑panel with EMC gasket
- Rack‑mount kit (19‑inch brackets)
- Drive bay frame (cPCI‑DBF) for HDD/FDD/CD‑ROM
- Power supply frame (cPCI‑PSF) for PS2‑size PSU

Connectors:
- Standard CompactPCI J1/J2 connectors on backplane
- ATX‑style DC power connectors for auxiliary devices
- Screw terminals for external AC input (L/N/FG)
- LCD signal and power connectors (30‑pin digital RGB)

---

6. Installation & Setup

Requirements:
- AC mains input 90–264 V, 47–63 Hz
- CompactPCI CPU and I/O boards (3U form factor)
- Optional LCD controller card for display operation

Mounting Options:
- Wall‑mount via integrated brackets
- Optional 19‑inch rack‑mount kit (482.6 mm width)
- Desktop operation supported with adjustable foot stands

Configuration Steps:
1. Mount the chassis securely on wall or rack.
2. Install CompactPCI CPU and peripheral boards into the 6‑slot backplane.
3. Connect the LCD controller card to the LCD interface.
4. Connect AC mains to the PSU input terminals.
5. Verify fan operation and airflow direction.
6. Power on the system; the PSU provides +5 V, +3.3 V, +12 V, and −12 V rails to the backplane.
7. Configure BIOS and operating system on the CPU board as required.

Cooling Maintenance:
Fans and air filters are removable from the bottom for cleaning or replacement. Fan controller monitors current and provides failure detection outputs.

---

7. Performance & Capabilities

- Bus Architecture: 32‑bit CompactPCI, 33 MHz PCI signaling
- Slot Configuration: 1 system slot + 5 I/O slots
- Power Capacity: 175 W continuous output; +5 V @ 25 A, +3.3 V @ 25 A, +12 V @ 3 A, −12 V @ 1 A
- Voltage Regulation: ±3 % @ +5 V, ±5 % @ other rails
- Ripple & Noise: ≤ 100 mV p‑p
- Hold‑up Time: > 6 ms at full load
- Rise Time: < 500 ms from power‑on
- Thermal Performance: Full power operation up to 40 °C ambient with 15 CFM airflow; derated above 50 °C
- Fan Airflow: 60 CFM per fan at zero static pressure
- Acoustic Level: < 45 dBA typical
- Reliability: MTBF > 100 000 hours; MTTR < 5 minutes (modular PSU replacement)
- Limitations: Total combined +5 V and +3.3 V current ≤ 27 A; minimal load 2 A @ +5 V required for regulation.

---

8. Standards & Compliance

- CompactPCI Compliance: PICMG 2.0 R2.1 (bus and mechanical)
- Power Interface: PICMG 2.11 (47‑pin PSU connector)
- Safety Certifications: UL 1950, CSA C22.2 No. 950, EN 60950 (TÜV/VDE)
- EMI/EMC Compliance:
- EN 55022 Class A (radiated and conducted)
- EN 61000‑3‑2, EN 61000‑3‑3 (harmonics and flicker)
- EN 50082‑2 / IEC 61000‑4‑2/‑3/‑4/‑6/‑8 (immunity)
- Environmental Standards:
- Operating altitude up to 6400 m
- Relative humidity < 95 % @ 40 °C
- Mechanical Standards:
- 19‑inch rack‑mountable per IEC 60297
- Vibration: 5–55 Hz, 0.38 mm displacement, 2 cycles/axis
- Insulation Strength: Primary–Secondary 3050 Vrms; Primary–Chassis 3050 Vrms; Secondary–Chassis 500 Vrms

---

9. Additional Information

Warranty:
One‑year limited warranty from date of purchase covering defects in materials and workmanship. Warranty excludes damage from misuse, modification, or operation beyond specified limits.

Support & Service:
ADLINK provides global technical support and service through regional offices and email channels:
- General Service: service@adlink.com.tw
- NuIPC Product Support: nuipc@adlink.com.tw
- Phone: +886‑2‑8226‑5877 Fax: +886‑2‑8226‑5717

Maintenance:
- Periodically clean air filters and verify fan operation.
- Ensure proper grounding and cable connections.
- Replace PSU or fan modules using hot‑swappable procedures when applicable.

Software & Updates:
Firmware and driver updates for CompactPCI CPU boards and LCD controllers are available from ADLINK’s website.

Documentation:
Comprehensive user’s manual and mechanical drawings are provided for system integration, including pin assignments, connector layouts, and backplane schematics.

Lifecycle & Upgrade Path:
The cPCIS‑2551/AC is part of ADLINK’s modular CompactPCI ecosystem, allowing future upgrades to higher‑performance CPU blades, redundant power configurations, or extended‑temperature components without redesigning the enclosure.

---

Summary

The ADLINK cPCIS‑2551/AC is a robust, modular CompactPCI wall‑mount chassis integrating a 6.3‑inch TFT LCD, a 6‑slot 32‑bit backplane, and a 175 W AC power supply. Engineered for industrial and embedded computing environments, it offers high reliability, efficient cooling, and compliance with international safety and EMC standards. Its modular design supports flexible system configurations, making it ideal for automation, control, and instrumentation applications requiring CompactPCI performance in a compact, serviceable form factor.
