LPCI-8575
SUCHEN SIE DIE PASSENDE
INDUSTRIELLE LÖSUNG?
Entdecken Sie Embedded-, Kommunikations- und Automatisierungslösungen für Ihre Anwendung.
- Transparent PCI‑to‑PXI and PXI‑to‑PXI Extension:
Functions as a fully transparent PCI‑to‑PCI bridge, allowing remote PXI chassis to appear as local devices to the host system.
- StarFabric High‑Speed Serial Link:
Employs StarFabric serial interconnect technology with 622 Mbps LVDS signaling per pair, achieving 2.5 Gbps full‑duplex bandwidth (5 Gbps total).
- Full PCI Bandwidth Support:
Supports 32‑bit/33 MHz (132 MB/s) and 64‑bit/66 MHz (528 MB/s) PCI data throughput.
- Multi‑Chassis Expansion:
One master module (PCI‑8570 or PXI‑8570) can connect up to two slave PXI‑8570 modules, enabling star or daisy‑chain configurations.
- Hardware and Software Transparency:
No additional drivers required; compatible with all PCI‑compliant operating systems and BIOS configurations.
- Extended Distance Capability:
Shielded copper cabling supports up to 10 m between host and extension chassis.
- Robust EMI Control:
Spread‑spectrum clock generator reduces electromagnetic interference for compliance with CE and FCC Class A standards.
- Flexible Bus Operation:
Supports 33 MHz and 66 MHz PCI bus frequencies; automatic down‑clocking when non‑66 MHz devices are detected.
- Industrial‑Grade Reliability:
Designed for continuous operation in industrial automation, test, and measurement environments.
Functions as a fully transparent PCI‑to‑PCI bridge, allowing remote PXI chassis to appear as local devices to the host system.
- StarFabric High‑Speed Serial Link:
Employs StarFabric serial interconnect technology with 622 Mbps LVDS signaling per pair, achieving 2.5 Gbps full‑duplex bandwidth (5 Gbps total).
- Full PCI Bandwidth Support:
Supports 32‑bit/33 MHz (132 MB/s) and 64‑bit/66 MHz (528 MB/s) PCI data throughput.
- Multi‑Chassis Expansion:
One master module (PCI‑8570 or PXI‑8570) can connect up to two slave PXI‑8570 modules, enabling star or daisy‑chain configurations.
- Hardware and Software Transparency:
No additional drivers required; compatible with all PCI‑compliant operating systems and BIOS configurations.
- Extended Distance Capability:
Shielded copper cabling supports up to 10 m between host and extension chassis.
- Robust EMI Control:
Spread‑spectrum clock generator reduces electromagnetic interference for compliance with CE and FCC Class A standards.
- Flexible Bus Operation:
Supports 33 MHz and 66 MHz PCI bus frequencies; automatic down‑clocking when non‑66 MHz devices are detected.
- Industrial‑Grade Reliability:
Designed for continuous operation in industrial automation, test, and measurement environments.
Comprehensive Product Summary – ADLINK PXI‑8570/6U Panel with FRP and Related PCI/PXI Extension Systems
### 1. Product Overview
Product Name: PXI‑8570/6U Panel with FRP
Article Number: PXI‑8570/6U Panel w/ FRP
Associated Models: PCI‑8570, PXI‑8570, PCIS‑8580‑4S, PCIS‑8580‑13S
Series: PCI‑to‑PXI and PXI‑to‑PXI Extension Systems
Manufacturer: ADLINK Technology Inc.
Manufacturer Address: 9F, No. 166, Jian Yi Road, Chungho City, Taipei 235, Taiwan
Website: [www.adlinktech.com](http://www.adlinktech.com)
Contact: service@adlinktech.com | Tel: +886‑2‑82265877 | Fax: +886‑2‑82265717
The PXI‑8570/6U Panel with FRP is a front‑replacement panel kit designed for the PXI‑8570 module, enabling 3U‑to‑6U mechanical adaptation within PXI or CompactPCI chassis. It is part of ADLINK’s PCI/PXI‑8570 family, which provides high‑performance PCI‑to‑PXI and PXI‑to‑PXI bus extension capabilities. The system allows seamless integration of multiple PXI or CompactPCI chassis into a single logical PCI domain, supporting distributed test, measurement, and automation systems.
### 2. Key Features
- Transparent PCI‑to‑PXI and PXI‑to‑PXI Extension:
Functions as a fully transparent PCI‑to‑PCI bridge, allowing remote PXI chassis to appear as local devices to the host system.
- StarFabric High‑Speed Serial Link:
Employs StarFabric serial interconnect technology with 622 Mbps LVDS signaling per pair, achieving 2.5 Gbps full‑duplex bandwidth (5 Gbps total).
- Full PCI Bandwidth Support:
Supports 32‑bit/33 MHz (132 MB/s) and 64‑bit/66 MHz (528 MB/s) PCI data throughput.
- Multi‑Chassis Expansion:
One master module (PCI‑8570 or PXI‑8570) can connect up to two slave PXI‑8570 modules, enabling star or daisy‑chain configurations.
- Hardware and Software Transparency:
No additional drivers required; compatible with all PCI‑compliant operating systems and BIOS configurations.
- Extended Distance Capability:
Shielded copper cabling supports up to 10 m between host and extension chassis.
- Robust EMI Control:
Spread‑spectrum clock generator reduces electromagnetic interference for compliance with CE and FCC Class A standards.
- Flexible Bus Operation:
Supports 33 MHz and 66 MHz PCI bus frequencies; automatic down‑clocking when non‑66 MHz devices are detected.
- Industrial‑Grade Reliability:
Designed for continuous operation in industrial automation, test, and measurement environments.
### 3. Technical Specifications
Architecture & Compliance
- PCI Local Bus Specification: Rev. 2.2 compliant
- PCI‑to‑PCI Bridge Architecture: Rev. 1.1 compliant
- PXI Specification: Rev. 2.0 compliant
- EMC/EMI Certifications: CE, FCC Class A
Electrical Characteristics
- PCI‑8570 Power Requirements: +5 V @ 190 mA, +3.3 V @ 250 mA
- PXI‑8570 Power Requirements: +3.3 V @ 540 mA
Mechanical Dimensions
- PCI‑8570: 175 mm × 107 mm (excluding connectors)
- PXI‑8570: 160 mm × 100 mm (excluding connectors)
- PXI‑8570/6U Panel Kit: 6U front‑replacement panel for PXI‑8570 (3U‑to‑6U adaptation)
Environmental Conditions
- Operating Temperature: 0 °C – 55 °C
- Storage Temperature: −20 °C – 80 °C
- Relative Humidity: 10 % – 90 %, non‑condensing
I/O and Connectivity
- PXI‑8570: RJ‑45 connectors × 4 (for StarFabric links)
- PCIS‑8580: DVI‑D 24‑pin connector (for serial link cable)
- Maximum Cable Length: 10 m (shielded twisted‑pair copper)
### 4. Functionality
The PXI‑8570 operates as a PCI‑to‑PCI bridge using StarFabric serial interconnect technology. It converts parallel PCI transactions into serial StarFabric frames for transmission across LVDS differential pairs, then reconstructs them at the remote chassis. This architecture provides complete hardware transparency—devices in the remote PXI chassis behave as if installed directly in the host system.
Use Cases and Applications
- High‑density I/O expansion for PXI/CompactPCI systems
- Distributed test and measurement setups
- Industrial automation and control systems
- Electronic manufacturing test environments
- Harsh‑environment testing with remote chassis placement
- Multi‑chassis PXI configurations for large‑scale instrumentation
Compatibility
- Compatible with standard PCI, PXI, and CompactPCI backplanes
- Supports Windows 98/2000/XP and other OSs with native PCI support
- Works with ADLINK PXI controllers and third‑party PXI chassis
### 5. Components & Accessories
Standard Package Contents
- PCI‑8570 or PXI‑8570 module
- PXI‑8570/6U FRP front panel kit (for 3U‑to‑6U adaptation)
- ADLINK All‑in‑One Compact Disc (PXI‑8570 only)
- User’s Manual
Optional Components
- ACL‑PXIES‑2 / ACL‑PXIES‑5 / ACL‑PXIES‑10: Shielded copper cables (2 m, 5 m, 10 m)
- ACL‑PCIEXT‑2 / ACL‑PCIEXT‑5 / ACL‑PCIEXT‑10: DVI‑D extension cables for PCIS‑8580 systems
- RK‑8005: 4‑slot wall‑mount extension chassis
- RK‑8014: 13‑slot rack‑mount extension chassis
Connectors
- RJ‑45 (PXI‑8570) or DVI‑D 24‑pin (PCIS‑8580) for high‑speed serial link
- Standard PCI/PXI edge connectors for backplane interface
### 6. Installation & Setup
Pre‑Installation Handling
- Handle modules on grounded anti‑static mats.
- Use anti‑static wrist straps to prevent ESD damage.
- Inspect for physical damage before installation.
Hardware Installation
- PCI‑8570:
1. Power off the host PC (keep grounded).
2. Insert PCI‑8570 into an available PCI slot.
3. Secure with bracket screw and replace cover.
- PXI‑8570:
1. Power off PXI/CompactPCI chassis.
2. For secondary bus use, install in system slot 1.
3. For primary bus use, install in any peripheral slot except slot 1.
4. Insert module using injector/ejector handle and tighten screws.
Jumper Configuration (PXI‑8570)
- JP1 – Spread Spectrum Control:
- OFF (default): Spread spectrum disabled.
- ON: Enables spread‑spectrum clocking to reduce EMI.
- JP2 – M66EN (Bus Frequency Selection):
- Default: 66 MHz enabled (auto‑detects 33 MHz if unsupported).
- Alternate: Force 33 MHz operation.
Cabling and Configuration
- Each module has two link ports (Link 0 and Link 1), each with TX and RX pairs.
- Connect TX of primary to RX of secondary and vice versa using two shielded cables.
- Power on secondary chassis first, then the primary system.
- LED indicators confirm link status (primary dark/secondary bright = normal).
Software Installation
- Windows Plug‑and‑Play automatically detects the module.
- For Windows 98: Copy `starfab1.inf` to `C:\Windows\inf`.
- For Windows 2000/XP: Run `8570install.exe` from the ADLINK CD.
- Reboot after installation for driver initialization.
### 7. Performance & Capabilities
Data Throughput
- 32‑bit/33 MHz PCI: 132 MB/s
- 64‑bit/66 MHz PCI: 528 MB/s
Link Bandwidth
- 4 × 622 Mbps LVDS pairs per link (2.5 Gbps full‑duplex, 5 Gbps total)
Distance
- Up to 10 m between host and remote chassis using shielded copper cables
Bus Configurations
- Supported:
- 66 MHz primary / 66 MHz secondary
- 66 MHz primary / 33 MHz secondary
- 33 MHz primary / 33 MHz secondary
- Not Supported: 33 MHz primary / 66 MHz secondary
Cooling and Power (for PCIS‑8580 Chassis)
- RK‑8005: 200 W PSU, one 80 mm fan
- RK‑8014: 400 W PSU, two 120 mm fans
Limitations
- Cable length limited to 10 m for signal integrity.
- Requires proper power sequencing (secondary first).
- Not compatible with mixed 33/66 MHz primary‑secondary configurations.
### 8. Standards & Compliance
- PCI Local Bus Specification: Revision 2.2
- PCI‑to‑PCI Bridge Architecture: Revision 1.1
- PXI Specification: Revision 2.0
- EMC/EMI Compliance: CE, FCC Class A
- Safety and Environmental: Designed for industrial temperature and humidity ranges
- RoHS: Compliant (per ADLINK manufacturing standards)
These certifications ensure interoperability with standard PXI/CompactPCI systems and compliance with international electromagnetic emission regulations.
### 9. Additional Information
Warranty
- Standard two‑year limited warranty from shipment date.
- Covers manufacturing defects and normal operation failures.
- Excludes damage from misuse, improper storage, natural disasters, or unauthorized repair.
- RMA (Return Material Authorization) required for service; form available at [ADLINK RMA Portal](http://www.adlinktech.com/news/Company/RMA.doc).
Support & Maintenance
- Technical support via service@adlinktech.com.
- Firmware and driver updates available through ADLINK’s website.
- Local service centers handle warranty claims and maintenance.
Maintenance Recommendations
- Maintain clean, dust‑free environment for chassis cooling.
- Verify cable integrity periodically for high‑speed link reliability.
- Ensure proper grounding and EMI shielding in industrial installations.
Product Updates
- ADLINK reserves the right to improve design and specifications without prior notice.
- Updated manuals and drivers are periodically released to enhance compatibility and performance.
### Summary
The ADLINK PXI‑8570/6U Panel with FRP and its associated PCI/PXI‑8570 extension modules form a robust, high‑bandwidth solution for extending PCI and PXI buses across multiple chassis. Leveraging StarFabric serial interconnect technology, the system achieves up to 528 MB/s throughput with 10 m cable reach, maintaining full hardware and software transparency. Its compliance with PCI 2.2, PXI 2.0, and FCC/CE Class A standards ensures seamless integration into industrial, test, and measurement environments.
The PXI‑8570/6U FRP panel kit provides mechanical adaptability for 6U PXI chassis, complementing the electrical extension capabilities of the PCI/PXI‑8570 modules. Together, these components enable scalable, distributed PXI systems with centralized control, ideal for high‑density I/O, automated testing, and remote instrumentation applications.
### 1. Product Overview
Product Name: PXI‑8570/6U Panel with FRP
Article Number: PXI‑8570/6U Panel w/ FRP
Associated Models: PCI‑8570, PXI‑8570, PCIS‑8580‑4S, PCIS‑8580‑13S
Series: PCI‑to‑PXI and PXI‑to‑PXI Extension Systems
Manufacturer: ADLINK Technology Inc.
Manufacturer Address: 9F, No. 166, Jian Yi Road, Chungho City, Taipei 235, Taiwan
Website: [www.adlinktech.com](http://www.adlinktech.com)
Contact: service@adlinktech.com | Tel: +886‑2‑82265877 | Fax: +886‑2‑82265717
The PXI‑8570/6U Panel with FRP is a front‑replacement panel kit designed for the PXI‑8570 module, enabling 3U‑to‑6U mechanical adaptation within PXI or CompactPCI chassis. It is part of ADLINK’s PCI/PXI‑8570 family, which provides high‑performance PCI‑to‑PXI and PXI‑to‑PXI bus extension capabilities. The system allows seamless integration of multiple PXI or CompactPCI chassis into a single logical PCI domain, supporting distributed test, measurement, and automation systems.
### 2. Key Features
- Transparent PCI‑to‑PXI and PXI‑to‑PXI Extension:
Functions as a fully transparent PCI‑to‑PCI bridge, allowing remote PXI chassis to appear as local devices to the host system.
- StarFabric High‑Speed Serial Link:
Employs StarFabric serial interconnect technology with 622 Mbps LVDS signaling per pair, achieving 2.5 Gbps full‑duplex bandwidth (5 Gbps total).
- Full PCI Bandwidth Support:
Supports 32‑bit/33 MHz (132 MB/s) and 64‑bit/66 MHz (528 MB/s) PCI data throughput.
- Multi‑Chassis Expansion:
One master module (PCI‑8570 or PXI‑8570) can connect up to two slave PXI‑8570 modules, enabling star or daisy‑chain configurations.
- Hardware and Software Transparency:
No additional drivers required; compatible with all PCI‑compliant operating systems and BIOS configurations.
- Extended Distance Capability:
Shielded copper cabling supports up to 10 m between host and extension chassis.
- Robust EMI Control:
Spread‑spectrum clock generator reduces electromagnetic interference for compliance with CE and FCC Class A standards.
- Flexible Bus Operation:
Supports 33 MHz and 66 MHz PCI bus frequencies; automatic down‑clocking when non‑66 MHz devices are detected.
- Industrial‑Grade Reliability:
Designed for continuous operation in industrial automation, test, and measurement environments.
### 3. Technical Specifications
Architecture & Compliance
- PCI Local Bus Specification: Rev. 2.2 compliant
- PCI‑to‑PCI Bridge Architecture: Rev. 1.1 compliant
- PXI Specification: Rev. 2.0 compliant
- EMC/EMI Certifications: CE, FCC Class A
Electrical Characteristics
- PCI‑8570 Power Requirements: +5 V @ 190 mA, +3.3 V @ 250 mA
- PXI‑8570 Power Requirements: +3.3 V @ 540 mA
Mechanical Dimensions
- PCI‑8570: 175 mm × 107 mm (excluding connectors)
- PXI‑8570: 160 mm × 100 mm (excluding connectors)
- PXI‑8570/6U Panel Kit: 6U front‑replacement panel for PXI‑8570 (3U‑to‑6U adaptation)
Environmental Conditions
- Operating Temperature: 0 °C – 55 °C
- Storage Temperature: −20 °C – 80 °C
- Relative Humidity: 10 % – 90 %, non‑condensing
I/O and Connectivity
- PXI‑8570: RJ‑45 connectors × 4 (for StarFabric links)
- PCIS‑8580: DVI‑D 24‑pin connector (for serial link cable)
- Maximum Cable Length: 10 m (shielded twisted‑pair copper)
### 4. Functionality
The PXI‑8570 operates as a PCI‑to‑PCI bridge using StarFabric serial interconnect technology. It converts parallel PCI transactions into serial StarFabric frames for transmission across LVDS differential pairs, then reconstructs them at the remote chassis. This architecture provides complete hardware transparency—devices in the remote PXI chassis behave as if installed directly in the host system.
Use Cases and Applications
- High‑density I/O expansion for PXI/CompactPCI systems
- Distributed test and measurement setups
- Industrial automation and control systems
- Electronic manufacturing test environments
- Harsh‑environment testing with remote chassis placement
- Multi‑chassis PXI configurations for large‑scale instrumentation
Compatibility
- Compatible with standard PCI, PXI, and CompactPCI backplanes
- Supports Windows 98/2000/XP and other OSs with native PCI support
- Works with ADLINK PXI controllers and third‑party PXI chassis
### 5. Components & Accessories
Standard Package Contents

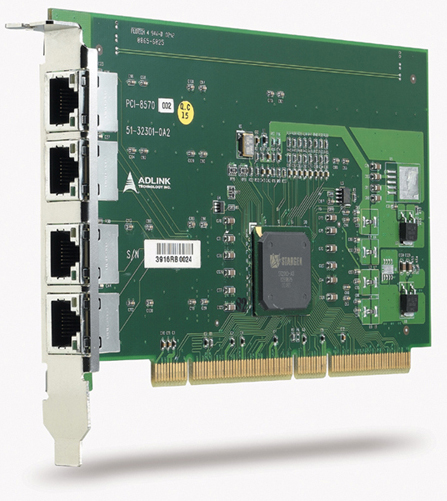

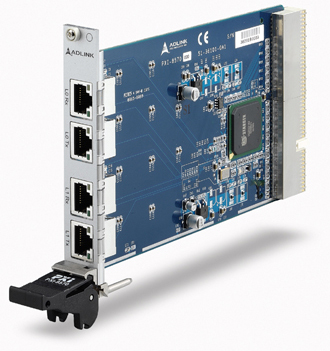

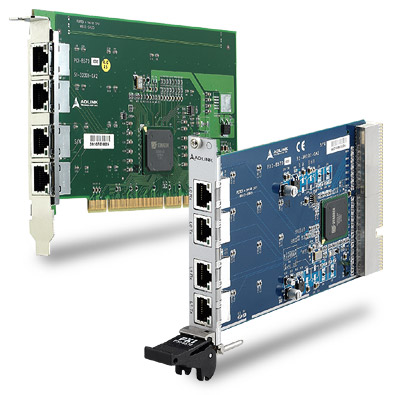

- PCI‑8570 or PXI‑8570 module
- PXI‑8570/6U FRP front panel kit (for 3U‑to‑6U adaptation)
- ADLINK All‑in‑One Compact Disc (PXI‑8570 only)
- User’s Manual
Optional Components
- ACL‑PXIES‑2 / ACL‑PXIES‑5 / ACL‑PXIES‑10: Shielded copper cables (2 m, 5 m, 10 m)
- ACL‑PCIEXT‑2 / ACL‑PCIEXT‑5 / ACL‑PCIEXT‑10: DVI‑D extension cables for PCIS‑8580 systems
- RK‑8005: 4‑slot wall‑mount extension chassis
- RK‑8014: 13‑slot rack‑mount extension chassis
Connectors
- RJ‑45 (PXI‑8570) or DVI‑D 24‑pin (PCIS‑8580) for high‑speed serial link
- Standard PCI/PXI edge connectors for backplane interface
### 6. Installation & Setup
Pre‑Installation Handling
- Handle modules on grounded anti‑static mats.
- Use anti‑static wrist straps to prevent ESD damage.
- Inspect for physical damage before installation.
Hardware Installation
- PCI‑8570:
1. Power off the host PC (keep grounded).
2. Insert PCI‑8570 into an available PCI slot.
3. Secure with bracket screw and replace cover.
- PXI‑8570:
1. Power off PXI/CompactPCI chassis.
2. For secondary bus use, install in system slot 1.
3. For primary bus use, install in any peripheral slot except slot 1.
4. Insert module using injector/ejector handle and tighten screws.
Jumper Configuration (PXI‑8570)
- JP1 – Spread Spectrum Control:
- OFF (default): Spread spectrum disabled.
- ON: Enables spread‑spectrum clocking to reduce EMI.
- JP2 – M66EN (Bus Frequency Selection):
- Default: 66 MHz enabled (auto‑detects 33 MHz if unsupported).
- Alternate: Force 33 MHz operation.
Cabling and Configuration
- Each module has two link ports (Link 0 and Link 1), each with TX and RX pairs.
- Connect TX of primary to RX of secondary and vice versa using two shielded cables.
- Power on secondary chassis first, then the primary system.
- LED indicators confirm link status (primary dark/secondary bright = normal).
Software Installation
- Windows Plug‑and‑Play automatically detects the module.
- For Windows 98: Copy `starfab1.inf` to `C:\Windows\inf`.
- For Windows 2000/XP: Run `8570install.exe` from the ADLINK CD.
- Reboot after installation for driver initialization.
### 7. Performance & Capabilities
Data Throughput
- 32‑bit/33 MHz PCI: 132 MB/s
- 64‑bit/66 MHz PCI: 528 MB/s
Link Bandwidth
- 4 × 622 Mbps LVDS pairs per link (2.5 Gbps full‑duplex, 5 Gbps total)
Distance
- Up to 10 m between host and remote chassis using shielded copper cables
Bus Configurations
- Supported:
- 66 MHz primary / 66 MHz secondary
- 66 MHz primary / 33 MHz secondary
- 33 MHz primary / 33 MHz secondary
- Not Supported: 33 MHz primary / 66 MHz secondary
Cooling and Power (for PCIS‑8580 Chassis)
- RK‑8005: 200 W PSU, one 80 mm fan
- RK‑8014: 400 W PSU, two 120 mm fans
Limitations
- Cable length limited to 10 m for signal integrity.
- Requires proper power sequencing (secondary first).
- Not compatible with mixed 33/66 MHz primary‑secondary configurations.
### 8. Standards & Compliance
- PCI Local Bus Specification: Revision 2.2
- PCI‑to‑PCI Bridge Architecture: Revision 1.1
- PXI Specification: Revision 2.0
- EMC/EMI Compliance: CE, FCC Class A
- Safety and Environmental: Designed for industrial temperature and humidity ranges
- RoHS: Compliant (per ADLINK manufacturing standards)
These certifications ensure interoperability with standard PXI/CompactPCI systems and compliance with international electromagnetic emission regulations.
### 9. Additional Information
Warranty
- Standard two‑year limited warranty from shipment date.
- Covers manufacturing defects and normal operation failures.
- Excludes damage from misuse, improper storage, natural disasters, or unauthorized repair.
- RMA (Return Material Authorization) required for service; form available at [ADLINK RMA Portal](http://www.adlinktech.com/news/Company/RMA.doc).
Support & Maintenance
- Technical support via service@adlinktech.com.
- Firmware and driver updates available through ADLINK’s website.
- Local service centers handle warranty claims and maintenance.
Maintenance Recommendations
- Maintain clean, dust‑free environment for chassis cooling.
- Verify cable integrity periodically for high‑speed link reliability.
- Ensure proper grounding and EMI shielding in industrial installations.
Product Updates
- ADLINK reserves the right to improve design and specifications without prior notice.
- Updated manuals and drivers are periodically released to enhance compatibility and performance.
### Summary
The ADLINK PXI‑8570/6U Panel with FRP and its associated PCI/PXI‑8570 extension modules form a robust, high‑bandwidth solution for extending PCI and PXI buses across multiple chassis. Leveraging StarFabric serial interconnect technology, the system achieves up to 528 MB/s throughput with 10 m cable reach, maintaining full hardware and software transparency. Its compliance with PCI 2.2, PXI 2.0, and FCC/CE Class A standards ensures seamless integration into industrial, test, and measurement environments.
The PXI‑8570/6U FRP panel kit provides mechanical adaptability for 6U PXI chassis, complementing the electrical extension capabilities of the PCI/PXI‑8570 modules. Together, these components enable scalable, distributed PXI systems with centralized control, ideal for high‑density I/O, automated testing, and remote instrumentation applications.
-
PCIS-8580.pdf
PDF Catalog
- LPCI-8575 - Low profile PCI to PCI extension Card
- PXI-8570 - PXI to PCI Extension Card
- PCI-8570 - PCI to PXI Extension Card
- ACL-PXIES-5 - PXI to PCI extension 5m cable
- ACL-PXIES-10 - PXI to PCI extension 10m cable
