- **Extended Ethernet Range:** Extends Ethernet transmission distance up to **300 meters (984 ft)** over standard UTP cable or **200 meters (656 ft)** over 24 AWG non-UTP cable. - **Flexible Transmission Modes:** Supports **2/4/8-wire auto-detecting transmission**, allowing adaptive operation depending on cable type and installation conditions. - **Auto/Manual Master-Slave Configuration:** Equipped with a **2-position DIP switch** for selecting between **Auto** and **Manual** configuration modes. - **DIP 1:** Master/Slave selection (On = Master, Off = Slave) - **DIP 2:** Auto/Manual mode (On = Manual, Off = Auto) - **Auto-Negotiation and Auto MDI/MDI-X:** The 100Base-TX Ethernet port supports **auto-negotiation** for speed and duplex mode, and **Auto MDI/MDI-X** for automatic cable type detection. - **Industrial-Grade Design:** Compact **IP-30-rated** metal housing ensures protection against dust and mechanical stress. Designed for **-40°C to +75°C** operation, suitable for extreme environments. - **Redundant Power Inputs:** Dual **12–48 VDC** power inputs via a 4-pin terminal block provide redundancy and protection against power failure. - **Low Power Consumption:** Typical power consumption is **2 Watts**, ensuring energy-efficient operation. - **Flexible Mounting Options:** Supports both **DIN-rail** and **wall-mount** installation, with kits included in the package. - **Comprehensive LED Indicators:** Dual power LEDs and link/activity indicators for both Ethernet and extender ports provide clear operational status. - **High Reliability:** Designed for rugged industrial applications with compliance to multiple **EMI/EMS** and **safety standards**.

Hersteller: Oring

Kategorie: RS485 DIN Rail IO Modules

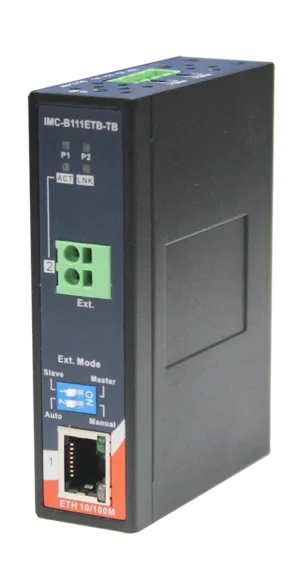

- **Extended Ethernet Range:** Extends Ethernet communication up to **300 meters (984 ft)** over UTP cable or **200 meters (656 ft)** over 24 AWG non-UTP cable, surpassing the standard 100-meter Ethernet limitation. - **Two-Wire Transmission:** Supports **2-wire transmission** for cost-effective and simplified cabling in industrial installations. - **Flexible Master/Slave Configuration:** Equipped with a **two-position DIP switch** for selecting **Master/Slave** and **Auto/Manual** operation modes. - **DIP 1:** Master (ON) / Slave (OFF) - **DIP 2:** Manual (ON) / Auto (OFF) Auto mode enables automatic negotiation between master and slave devices. - **Auto MDI/MDI-X Functionality:** The 100Base-TX RJ45 port supports **Auto MDI/MDI-X**, eliminating the need for crossover cables. - **Full/Half Duplex Support:** Ethernet port supports both **full-duplex** and **half-duplex** operation modes. - **Redundant Power Inputs:** Dual **12–48 VDC** power inputs via terminal block ensure uninterrupted operation and system reliability. - **Industrial-Grade Design:** Compact **IP-30-rated** metal enclosure provides mechanical durability and electromagnetic shielding. - **Flexible Mounting Options:** Supports both **DIN-rail** and **wall-mount** installation for versatile deployment in control cabinets or industrial panels. - **Wide Temperature Range:** Operates reliably from **-40°C to +75°C (-40°F to +167°F)**, suitable for extreme industrial environments. - **Low Power Consumption:** Typical power consumption is **2 Watts**, optimizing energy efficiency. - **Comprehensive LED Indicators:** Dual power LEDs and link/activity LEDs for both Ethernet and extender ports provide clear operational status. - **High Reliability:** Designed for continuous operation in mission-critical applications with **5-year warranty** coverage.

Hersteller: Oring

Kategorie: RS485 DIN Rail IO Modules

- **Industrial-grade design:** Fully compliant with **IEC 61850-3** and **IEEE 1613** standards for substation automation and **EN50155** for railway applications. - **Ethernet-to-fiber conversion:** Converts 10/100Base-T(X) Ethernet signals to 100Base-FX optical signals, extending communication distances and improving EMI immunity. - **Auto MDI/MDIX detection:** Automatically detects cable type, eliminating the need for crossover cables. - **LFP (Link Fault Pass-through):** Ensures network reliability by propagating link failures to the connected device, allowing immediate fault detection and system response. - **Wide operating temperature:** Designed for extreme environments with an operating range of **–40°C to +70°C** and storage range up to **–40°C to +85°C**. - **Dual redundant power inputs:** Supports **dual 100–240 VAC** inputs for high availability and power redundancy. - **Relay output alarm:** Provides a relay output for power failure alarms, enabling integration with monitoring systems. - **Rugged IP-30 metal housing:** Offers mechanical protection and electromagnetic shielding suitable for industrial environments. - **Flexible mounting:** Supports both **DIN-rail** and **wall-mount** installation options. - **Comprehensive LED indicators:** Provides visual status for power, link/activity, duplex mode, speed, LFP status, and fault conditions. - **Store-and-forward switching:** Ensures reliable data transmission with error checking and buffering. - **Overload and reverse polarity protection:** Safeguards the device and connected equipment from electrical faults. - **5-year warranty:** Long-term reliability backed by ORing’s industrial-grade quality assurance.

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

The IMC-P111P-LV includes the following primary capabilities and features: • Compliance with IEC 61850-3 and IEEE 1613 standards for electromagnetic immunity and reliability in substation automation systems. • Supports a single 10/100Base-T(X) Ethernet port with auto-negotiation and auto-MDI/MDI-X detection. • Includes one 100Base-FX SFP socket supporting a variety of SFP transceivers. • Supports Ethernet-to-fiber or Ethernet-to-SFP conversion for long-distance communication extension. • Link Fault Pass-through (LFP) capability; detects link failures and propagates signals for higher-layer fault response. • Supports full/half duplex operation on both copper and fiber interfaces. • Store-and-forward switching mechanism ensures error checking and reliable data flow. • Relay output for power failure alarm. • DIP-switch configuration for LFP mode, Ethernet speed, copper duplex mode, and fiber duplex mode. • Rugged IP-30 metal housing suitable for industrial use. • Designed for harsh environments with operating temperature from -40 to 70°C. • Supports wide DC voltage input (12–48 VDC) with triple redundant power sources. • DIN-rail and wall-mount installation options included. • LED indicators for Ethernet link/activity, speed, duplex, fiber link/activity, LFP status, fault status, and multiple power inputs. • Compliant with EN50155 Ethernet requirements for rolling stock applications. • High EMI/EMS immunity for long-term reliability.

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

- **Industrial-grade design:** Compliant with IEC 61850-3 and IEEE 1613 for substation and transportation environments. - **Ethernet-to-fiber conversion:** Converts 10/100Base-T(X) Ethernet to 100Base-FX fiber for long-distance data transmission. - **Multi-mode fiber support:** SC connector, 1310 nm wavelength, up to 2 km transmission distance. - **Wide operating temperature:** -40°C to +70°C continuous operation; storage temperature -40°C to +85°C. - **Dual redundant power inputs:** 12–48 VDC on terminal block and 12–45 VDC on power jack for LV model. - **Link Fault Pass-through (LFP):** Ensures network integrity by detecting and propagating link failures. - **Auto MDI/MDIX detection:** Eliminates the need for crossover cables. - **Full/Half duplex operation:** Configurable via DIP-switch for both Ethernet and fiber ports. - **Relay output alarm:** Provides fault indication for power failure or link issues. - **Rugged IP-30 metal housing:** Ensures mechanical durability and electromagnetic shielding. - **Flexible mounting:** Supports both DIN-rail and wall-mount installation. - **LED indicators:** Comprehensive status LEDs for power, link/activity, speed, duplex, LFP, and fault conditions. - **High reliability:** Designed for continuous operation in vibration, shock, and EMI-prone environments. - **5-year warranty:** Long-term reliability assurance from ORing Industrial Networking Corp.

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

- **Industrial-grade design:** Fully compliant with IEC 61850-3 and IEEE 1613 for substation and railway applications. - **Ethernet-to-fiber conversion:** Converts 10/100Base-T(X) copper Ethernet to 100Base-FX single-mode fiber. - **Extended fiber reach:** Supports up to **30 km** transmission distance over single-mode fiber at **1310 nm** wavelength. - **Auto MDI/MDIX detection:** Automatically detects cable type, eliminating the need for crossover cables. - **Wide operating temperature:** Operates reliably from **-40°C to +70°C**, suitable for extreme environments. - **Wide power input range:** Accepts **12–48 VDC** dual redundant power inputs for high availability. - **Link Fault Pass-through (LFP):** Provides immediate link failure detection and propagation to ensure network integrity. - **Relay output alarm:** Notifies users of power failures or link faults via configurable relay output. - **DIP-switch configuration:** Allows manual control of LFP, duplex mode, and speed settings. - **High reliability enclosure:** IP-30 rated metal housing for superior mechanical protection. - **Flexible mounting:** Supports both **DIN-rail** and **wall-mount** installation. - **LED indicators:** Comprehensive LED panel for power, link/activity, duplex, and fault status monitoring. - **Low power consumption:** Typical consumption of **10.56 W** for LV model. - **Long service life:** Backed by a **5-year warranty** from ORing Industrial Networking Corp.

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

- **IEC 61850‑3 and IEEE 1613 compliance:** Designed for power automation and substation environments requiring high EMI immunity and reliability. - **EN50155‑compliant:** Suitable for railway and rolling stock applications. - **Ethernet‑to‑Fiber Conversion:** Converts one 10/100Base‑T(X) RJ‑45 port to one 100Base‑FX SFP port. - **Auto‑Negotiation and Auto‑MDI/MDI‑X:** Simplifies installation by automatically detecting cable type and speed. - **LFP (Link Fault Pass‑Through):** Provides immediate link failure notification, allowing network management systems to respond to link loss events. - **Store‑and‑Forward Switching:** Ensures reliable data transmission with error checking and buffering. - **Full/Half Duplex Support:** Configurable via DIP‑switch for both copper and fiber interfaces. - **Relay Output Alarm:** Provides hardware alarm output for power failure events. - **Wide Operating Temperature:** ‑40 °C to +85 °C for operation in extreme industrial conditions. - **Dual High‑Voltage Power Inputs:** Redundant 100–240 VAC inputs on an 8‑pin terminal block for uninterrupted operation. - **High Reliability Construction:** IP‑30 rated metal housing with vibration, shock, and free‑fall resistance per IEC 60068 standards. - **Flexible Mounting:** Supports both DIN‑rail and wall‑mount installation. - **Comprehensive LED Indicators:** Power, link/activity, duplex, LFP, and fault status LEDs for quick diagnostics. - **5‑Year Warranty:** Long‑term reliability backed by manufacturer support.

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

• Designed for critical infrastructure: Fully compliant with IEC 61850‑3 and IEEE 1613 standards for power substations and electrical grid applications. • Supports EN50155‑compliant environments, suitable for rolling stock use. • Provides conversion between 1×10/100Base‑T(X) auto‑negotiation port and 1×100Base‑FX fiber port. • Single‑mode fiber (SS type) with SC connector, supporting long‑distance links up to 30 km at 1310 nm. • Wide operating temperature range: –40°C to 85°C for HV model. • Dual 100–240VAC power inputs for high‑voltage industrial redundancy. • LFP (Link Fault Pass‑through) support for intelligent link status forwarding. • Auto MDI/MDIX detection eliminates need for crossover cables. • Supports full/half‑duplex modes and store‑and‑forward processing. • Provides hardware DIP‑switch configuration for speed, duplex, LFP function, and fiber duplex selection. • High‑reliability IP‑30 metal housing. • Supports DIN‑rail and wall‑mount installation. • Relay output for power failure alarms (PWR‑1 or PWR‑2 loss). • Extensive EMC, EMI, shock, vibration, and free‑fall compliance.

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

- **Dual-Band IEEE 802.11 a/b/g/n WLAN:** Operates on both 2.4 GHz and 5 GHz bands, supporting up to 300 Mbps data rate. - **Gigabit Ethernet Interface:** One 10/100/1000Base-T(X) RJ45 port with auto MDI/MDIX and IEEE 802.3af PoE power input. - **Multiple Operation Modes:** Configurable as Access Point (AP), Client, Repeater, or Bridge for flexible network topologies. - **High Transmission Power:** Up to 500 mW output for extended coverage and stable connectivity in outdoor environments. - **Rugged IP67 Enclosure:** Industrial-grade waterproof and dustproof aluminum housing for outdoor installation. - **Fast Roaming (X-Roaming):** Seamless handover between access points with roaming latency under 100 ms. - **Advanced Security:** Supports WEP (64/128-bit), WPA/WPA2-PSK (TKIP/AES), and 802.1X authentication with RADIUS. - **Secure Management:** HTTPS web-based configuration interface with SNMP, Syslog, and email event notifications. - **Flexible Mounting:** Supports both wall and pole mounting with included hardware. - **Wide Temperature Range:** Operates reliably from -10°C to +75°C, suitable for industrial and outdoor use. - **Comprehensive Protocol Support:** Compatible with ARP, DHCP, DNS, HTTPs, SNMP, STP, TCP/IP, and more.

Hersteller: Oring

Kategorie: 3G/4G Access Point Router

- **Dual-Band IEEE 802.11 a/b/g/n WLAN:** Supports both 2.4 GHz and 5 GHz frequency bands with selectable operation modes. - **High-Speed Wireless Connectivity:** Delivers up to 300 Mbps data rate using 802.11n MIMO technology. - **Multiple Operation Modes:** Configurable as Access Point (AP), Client, Repeater, or Bridge for flexible network topologies. - **Industrial-Grade Design:** IP67-rated waterproof and dustproof aluminum enclosure for outdoor and industrial use. - **Power-over-Ethernet (PoE):** Fully compliant with IEEE 802.3af standard, allowing single-cable power and data transmission. - **Advanced Security:** Supports WEP (64/128-bit), WPA/WPA2-PSK (TKIP/AES), and 802.1X/RADIUS authentication. - **Fast Roaming (X-Roaming):** Seamless handover between access points with roaming latency under 100 ms. - **Secure Management:** HTTPS-based web management interface for encrypted configuration access. - **Event Notification:** Supports Syslog, Email, and SNMP Trap for proactive system monitoring. - **Flexible Mounting:** Supports both wall and pole mounting with included hardware. - **Wide Temperature Range:** Operates reliably from -10°C to +75°C, suitable for outdoor and industrial environments. - **High Transmission Power:** Up to 500 mW output for extended coverage and signal penetration. - **LED Indicators:** Multi-status LEDs for power, system, WLAN (2.4G/5G), and signal strength monitoring.

Hersteller: Oring

Kategorie: 3G/4G Access Point Router

- **26‑Port Configuration:** 24 × 10/100Base‑T(X) RJ‑45 ports with auto‑negotiation and auto‑MDI/MDI‑X support, plus 2 × 100Base‑FX SFP slots for fiber connectivity. - **Industrial‑Grade Design:** IP‑30 rated metal housing ensures mechanical durability and protection against dust and electromagnetic interference. - **Wide Temperature Range:** Operates reliably from ‑40°C to +70°C (storage up to +85°C), suitable for outdoor cabinets, factory floors, and transportation systems. - **AC Power Input:** Universal 100–240 VAC input with overload current protection; typical power consumption 15–25 W. - **Rack‑Mountable Form Factor:** Standard 19‑inch rack‑mount design (1U height) with included mounting brackets and screws. - **Plug‑and‑Play Operation:** Unmanaged switch architecture requires no configuration; supports store‑and‑forward switching and IEEE 802.3x flow control. - **High Reliability:** Mean Time Between Failures (MTBF) of 510,613 hours and a 5‑year manufacturer warranty. - **LED Indicators:** Comprehensive front‑panel LEDs for power, link/activity, and speed status on all ports. - **Regulatory Compliance:** Meets FCC Part 15, EN55022 Class B, EN61000‑4‑2/3/4/5/6/8/11, and EN60950‑1 safety standards.

Hersteller: Oring

Kategorie: Unmanaged Switches

- **Five 10/100Base‑T(X) RJ‑45 Ports:** Auto‑negotiation and Auto‑MDI/MDIX support for flexible Ethernet connectivity. - **Redundant Power Inputs:** Dual 12–48 V DC inputs on a 6‑pin terminal block ensure uninterrupted operation during power source failure. - **Industrial‑Grade Reliability:** Designed for harsh environments with an extended operating temperature range of **–40 °C to +70 °C**. - **Slim, Rugged Design:** Compact IP30‑rated metal housing (26.1 × 94.9 × 144.3 mm) suitable for dense control panels. - **High Immunity Protection:** - **ESD Protection:** 4 kV DC on Ethernet ports. - **Surge Protection:** 2 kV DC on power input. - **Low Power Consumption:** Typical power draw of approximately **4 W**. - **Lightweight Construction:** Approximate weight of **395 g**, facilitating easy DIN‑rail mounting. - **Unmanaged Plug‑and‑Play Operation:** No configuration required; ideal for simple, reliable network expansion. - **Relay Output Alarm:** Configurable fault relay output (1 A at 24 V DC) for power failure notification. - **Wide Environmental Tolerance:** Humidity range of 5 %–95 % non‑condensing; storage temperature from –40 °C to +85 °C. - **Flexible Mounting Options:** Supports both DIN‑rail and wall/panel mounting. - **Long‑Term Reliability:** Backed by a **5‑year manufacturer warranty**.

Hersteller: Oring

Kategorie: Unmanaged Switches

- **Multi-Protocol Serial Support:** Four serial ports configurable as RS232, RS422, or 4(2)-wire RS485 via DS-Tool software utility. - **Dual Ethernet Ports:** Two 10/100Base-T(X) RJ45 LAN ports for network redundancy or dual network operation. - **PoE Capability:** ETH2 port supports PoE (Power over Ethernet) with a maximum power consumption of 8W. - **Redundant Power Inputs:** Dual 12–48VDC power inputs ensure uninterrupted operation in case of power source failure. - **Fast Network Recovery:** Ethernet redundancy with recovery time under 10ms using ORing’s O-Ring technology. - **Comprehensive Event Notification:** Supports Syslog, Email, SNMP Trap, Relay output, and Beeper alerts for system events. - **Secure Communication:** SSL data encryption and SSH management for secure data transmission and configuration. - **Fixed TTY Driver for Linux:** Provides stable serial port mapping for Linux-based systems. - **Industrial-Grade Design:** Rugged metal housing with IP-30 protection, suitable for harsh industrial environments. - **Flexible Mounting Options:** DIN-rail and wall-mount installation supported. - **Wide Operating Voltage Range:** Accepts 12–48VDC input, with a maximum power consumption of 7W. - **Compact Form Factor:** Space-efficient design for control cabinets and industrial enclosures. - **Comprehensive Management Tools:** Web-based HTTPS console, SSH console, and DS-Tool for Windows NT/2000/XP/Vista 32-bit. - **Multi-Host Connectivity:** Supports up to five simultaneous host connections via Virtual COM, TCP Server, TCP Client, or UDP modes. - **Long-Term Reliability:** Backed by a 5-year manufacturer warranty.

Hersteller: Oring

Kategorie: Industrial Device Server

- **Dual Redundant Ethernet Ports:** Two 10/100Base‑TX LAN ports support redundant operation with **recovery time

Hersteller: Oring

Kategorie: Industrial Device Server

- **Dual Serial and Ethernet Interfaces:** Two RS‑232/422/485 serial ports and two 10/100Base‑T(X) Ethernet ports with auto MDI/MDI‑X support. - **High Security Communication:** Supports HTTPS, SSH, and SSL encryption for secure data transmission. IP access control and IP whitelist functions enhance network security. - **Versatile Operation Modes:** Supports Virtual COM, Serial Tunnel, TCP Server, TCP Client, and UDP modes. Enables flexible integration with various industrial and automation systems. - **Redundant Ethernet and Power Inputs:** Dual Ethernet ports support network redundancy with recovery time

Hersteller: Oring

Kategorie: Industrial Device Server

- **Multi‑Protocol Serial‑to‑Ethernet Conversion:** Supports RS‑232, RS‑422, and RS‑485 interfaces across four DB9 ports, allowing flexible integration of diverse serial devices. - **Dual Gigabit Ethernet Ports:** Two 10/100/1000Base‑T(X) RJ‑45 ports with auto MDI/MDIX for high‑speed network connectivity and redundancy. - **Versatile Operating Modes:** Virtual COM, Serial Tunnel, TCP Server, TCP Client, UDP, and Modbus Gateway (Modbus TCP/RTU/ASCII). - **Redundant Host Support:** Up to five simultaneous host connections in Virtual COM, TCP Server, or TCP Client modes; four IP ranges in UDP mode. - **Advanced Security:** SSL data encryption, HTTPS and SSH management, IP access control, and IP whitelist for secure communication. - **Event Notification System:** Real‑time alerts via Syslog, SNMP trap, relay output, and audible beeper. - **Management Tools:** Configurable through a web‑based interface, SSH console, or ORing’s Windows utility **DS‑Tool** for centralized configuration, monitoring, and firmware updates. - **Industrial‑Grade Design:** IP‑30 metal enclosure, wide operating temperature range (‑40 °C to 70 °C), and redundant 12–48 VDC power inputs ensure continuous operation in demanding environments. - **Fast Ethernet Recovery:** Ethernet redundancy and recovery time under 10 ms for mission‑critical applications. - **Comprehensive OS Support:** Compatible with Windows NT/2000/XP/2003/Vista/7 (32/64‑bit) and Linux (via fixed TTY driver).

Hersteller: Oring

Kategorie: Industrial Device Server

- **Multi‑port Serial‑to‑Ethernet Conversion:** Four independent RS‑232/422/485 serial ports with DB9 connectors enable simultaneous communication with multiple serial devices. - **Dual Ethernet Interfaces:** Two 10/100Base‑T(X) RJ‑45 ports with auto MDI/MDI‑X support provide network redundancy and fast recovery (

Hersteller: Oring

Kategorie: Industrial Device Server

- **Multi‑protocol Serial‑to‑Ethernet Conversion:** Supports RS‑232, RS‑422, and RS‑485 interfaces through a DB9 connector, enabling flexible integration with diverse serial equipment. - **Dual Ethernet Ports:** Two 10/100Base‑T(X) RJ‑45 ports with auto MDI/MDI‑X for network redundancy and fast recovery (

Hersteller: Oring

Kategorie: Industrial Device Server

- **Unmanaged Industrial PoE+ Switch:** Plug-and-play operation with no configuration required, ideal for mission-critical industrial networks. - **6-Port Design:** 4x RJ-45 copper ports (10/100/1000Base-T(X)) with PoE+ P.S.E. function and 2x SFP slots (100/1000Base-X). - **PoE+ Power Sourcing Equipment:** Compliant with **IEEE 802.3at**, delivering up to **30W per port**, suitable for powering IP cameras, wireless access points, and VoIP phones. - **Dual Redundant Power Inputs:** Supports **24–36VDC** dual inputs on a 6-pin terminal block for uninterrupted operation. - **Wide Operating Temperature:** Reliable performance from **-40°C to +70°C**, ensuring suitability for outdoor and industrial environments. - **Rugged Construction:** Compact **IP30-rated metal enclosure** with high resistance to shock, vibration, and electromagnetic interference. - **Surge and ESD Protection:** 4kV ESD protection on Ethernet ports and 2kV surge protection on power inputs. - **Slim DIN-Rail Mountable Design:** Space-efficient form factor (41 × 94.9 × 144.3 mm) for easy integration into control cabinets. - **Store-and-Forward Switching:** Ensures reliable data transmission with error checking and low latency. - **Jumbo Frame Support:** Handles Ethernet frames up to **9K bytes**, improving throughput for large data transfers. - **LED Indicators:** Comprehensive status LEDs for power, fault, link/activity, and PoE status. - **Relay Output Alarm:** Configurable fault relay for power failure notifications. - **Long-Term Reliability:** Backed by a **5-year warranty** and designed for continuous 24/7 operation.

Hersteller: Oring

Kategorie: Unmanaged Switches

- **6-Port Configuration:** - 4 × 10/100/1000Base-T(X) RJ-45 ports with PoE+ (P.S.E.) capability - 2 × 100/1000Base-X SFP slots for fiber connectivity - **PoE+ Power Sourcing Equipment (P.S.E.):** - Compliant with IEEE 802.3at standard - Up to 30 W per port, total PoE power budget of 120 W - Supports power and data transmission over standard Ethernet cabling - **Dual-Speed SFP Support:** - DIP-switch selectable 100 Mbps or 1000 Mbps operation per SFP port - Compatible with ORing SFP100 and SFP1G optical transceivers - **High Reliability and Redundancy:** - Dual 50–57 VDC power inputs on a 6-pin terminal block - Automatic failover between power sources - Relay output for power failure alarms (1 A @ 24 VDC) - **Industrial-Grade Design:** - IP30-rated metal housing - Compact dimensions for space-limited installations - DIN-rail and wall-mount options - Extended operating temperature range: -40°C to +75°C - **Network Performance:** - Store-and-forward switching architecture - Jumbo frame support up to 10 KBytes - 1K MAC address table - Auto-negotiation and auto-MDI/MDI-X support - **Comprehensive LED Indicators:** - Power (PWR1, PWR2), Fault, Link/Activity, and PoE status LEDs - Visual feedback for network and power conditions - **Electromagnetic and Safety Compliance:** - Meets CE, FCC, EN, and UL industrial standards - EMC, EMI, and environmental robustness verified

Hersteller: Oring

Kategorie: Unmanaged Switches

- **6-Port Configuration:** 4 × 10/100Base-T(X) RJ45 ports with PoE P.S.E. capability and 2 × 100Base-FX multi-mode fiber ports (SC connectors). - **PoE Power Sourcing Equipment (P.S.E.):** Compliant with IEEE 802.3at standard, each PoE port delivers up to 30W, with a total power budget of 120W. Enables simultaneous data and power transmission over standard Ethernet cabling. - **Redundant Power Inputs:** Dual DC power inputs (24–36VDC) on a 6-pin terminal block ensure uninterrupted operation. Automatic failover between primary and backup power sources prevents downtime. - **Rugged Industrial Design:** IP-30 rated metal enclosure for protection against dust and mechanical stress. Designed for vibration, shock, and free-fall resistance per IEC60068 standards. - **Wide Operating Temperature Range:** Operates reliably from -40°C to +70°C, suitable for outdoor and factory environments. - **Compact Form Factor:** Slim housing (41 × 94.9 × 144.3 mm) optimized for DIN-rail or wall mounting in control cabinets. - **Relay Output Alarm:** Configurable relay output (1A @ 24VDC) for power failure or fault notification. - **LED Indicators:** Comprehensive LED panel for power, fault, link/activity, and PoE status monitoring. - **High Reliability:** Store-and-forward switching architecture with 2048 MAC address table and IEEE 802.3x flow control for stable data transmission. - **Surge and Overload Protection:** Built-in overload current protection and surge suppression for enhanced durability.

Hersteller: Oring

Kategorie: Unmanaged Switches

- **6-Port Configuration:** 4 × 10/100Base-T(X) RJ-45 ports with PoE P.S.E. capability and 2 × 100Base-FX multi-mode fiber ports (SC connectors). - **Power over Ethernet (PoE):** Compliant with IEEE 802.3at standard, providing up to **30 W per port** and a **total power budget of 120 W**. Enables simultaneous data and power transmission over standard Ethernet cabling. - **Redundant Power Inputs:** Dual DC power inputs (50–57 VDC) ensure uninterrupted operation. Automatic failover between primary and backup power sources prevents downtime. - **Industrial-Grade Design:** IP-30 rated metal enclosure with slim form factor (26.1 × 94.9 × 144.3 mm). Designed for DIN-rail or wall mounting in space-constrained industrial cabinets. - **Wide Operating Temperature Range:** Operates reliably from **–40°C to +70°C**, suitable for extreme industrial environments. - **High Reliability:** Features overload current protection, relay output alarm for power failure, and surge protection technology. - **Plug-and-Play Operation:** Unmanaged switch design requires no configuration. Supports auto-negotiation and auto MDI/MDI-X for simplified installation. - **LED Indicators:** Provides clear visual status for power, fault, link/activity, and PoE power injection. - **Compliance and Safety:** Meets FCC Part 15, EN55022 Class A, EN60950-1 safety, and multiple IEC/EN61000-4 EMC standards.

Hersteller: Oring

Kategorie: Unmanaged Switches

- **6‑Port Configuration:** 4 × 10/100Base‑T(X) PoE P.S.E. ports and 2 × 100Base‑FX single‑mode fiber ports. - **PoE Power Sourcing:** IEEE 802.3at compliant, up to 30 W per port, total 120 W power budget. - **Fiber Connectivity:** Two single‑mode SC fiber ports supporting 1310 nm wavelength and up to 30 km transmission distance. - **Redundant Power Inputs:** Dual 24–36 V DC inputs on a 6‑pin terminal block ensure uninterrupted operation. - **Relay Output Alarm:** Configurable relay output (1 A @ 24 V DC) for power failure or fault notification. - **Industrial‑Grade Design:** IP‑30 metal enclosure, vibration/shock‑resistant, and wide operating temperature range (‑40 °C to 70 °C). - **Auto‑Negotiation and Auto‑MDI/MDI‑X:** Simplifies connection to various Ethernet devices without crossover cables. - **Store‑and‑Forward Switching:** Ensures reliable data transmission with error checking. - **Flow Control Support:** IEEE 802.3x compliant for full‑duplex communication. - **LED Indicators:** Power, fault, link/activity, and PoE status LEDs for quick diagnostics. - **Compact Form Factor:** Slim design (41 × 94.9 × 144.3 mm) optimized for control cabinets and industrial panels. - **High Reliability:** Overload current protection, surge protection, and 5‑year manufacturer warranty.

Hersteller: Oring

Kategorie: Unmanaged Switches

- **Unmanaged Industrial PoE Switch:** 6-port configuration with 4x 10/100Base-T(X) PoE P.S.E. ports and 2x 100Base-FX single-mode fiber ports. - **PoE Power Sourcing Equipment (P.S.E.):** Supports IEEE 802.3at standard, delivering up to **30W per port** and a **total power budget of 120W**. - **Fiber Connectivity:** Two 100Base-FX single-mode SC fiber ports supporting up to **30 km transmission distance** at **1310 nm wavelength**. - **Redundant Power Inputs:** Dual DC inputs (50–57VDC) on a 6-pin terminal block ensure continuous operation during power source failure. - **Relay Output Alarm:** Configurable relay output (1A @ 24VDC) for power failure notification. - **Industrial-Grade Design:** IP-30 rated metal enclosure with slim form factor (26.1 × 94.9 × 144.3 mm). - **Wide Operating Temperature:** -40°C to +70°C for reliable performance in extreme environments. - **DIN-Rail and Wall Mounting:** Flexible installation options for industrial cabinets and enclosures. - **Surge and ESD Protection:** Built-in protection against electrical transients and surges. - **LED Indicators:** Power, fault, link/activity, and PoE status indicators for quick diagnostics. - **Store-and-Forward Switching:** Ensures reliable data transmission with error checking. - **Auto MDI/MDI-X and Auto-Negotiation:** Simplifies network setup and cable management. - **Compact and Efficient:** Low power consumption (~6.78W excluding PoE load). - **Long-Term Reliability:** 5-year manufacturer warranty.

Hersteller: Oring

Kategorie: Unmanaged Switches

- **8x 10/100Base-T(X) PoE P.S.E. Ports:** All eight RJ45 ports support IEEE 802.3at PoE standard, delivering up to 30W per port. - **Total Power Budget:** 120W total PoE power output capacity (maximum 30W per port). - **Unmanaged Operation:** Plug-and-play functionality with no configuration required, ideal for simple network deployments. - **Auto-Negotiation & Auto-MDI/MDI-X:** Automatically detects link speed and cable type for seamless connectivity. - **Store-and-Forward Switching:** Ensures reliable data transmission with error checking and buffering. - **Flow Control Support:** Implements IEEE 802.3x flow control for full-duplex and backpressure for half-duplex operation. - **Redundant Power Inputs:** Dual 50–57VDC inputs on a 6-pin terminal block for uninterrupted operation. - **Power Failure Relay Alarm:** Configurable via DIP switch to trigger alarms on power input failure. - **Surge and ESD Protection:** 4kV ESD protection on Ethernet ports and 2000VDC surge protection on power input. - **Slim IP30 Metal Enclosure:** Compact 26.1mm width for space-constrained installations, with DIN-rail and wall-mount options. - **Wide Operating Temperature:** -40°C to +70°C for reliable performance in extreme industrial conditions. - **Low Power Consumption:** Typical consumption of 4.5W (excluding PoE load). - **High Reliability:** Designed for continuous operation with redundant power and fault relay output. - **Comprehensive LED Indicators:** Power, fault, link/activity, and PoE status LEDs for easy monitoring. - **Long-Term Warranty:** 5-year manufacturer warranty.

Hersteller: Oring

Kategorie: Unmanaged Switches
