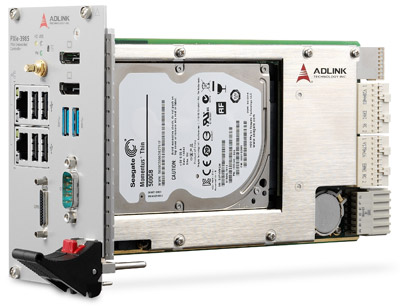

PXIe-3985 - Adlink Technology Inc.

3U PXI Express Core i7-4700EQ Controller 4GB RAM 500GB HDD

Based on Intel CPU, the PXI Embedded Controllers are specifically designed for hybrid PXI-based test systems and provide a robust and stable platform for a variety of test and measurement applications. CPU, HDD or SSD and RAM are integrated. Interface flexibility is provided by Gigabit Ethernet ports for LAN and LXI instrument control, USB ports for peripherals and instrument control, and a Micro-D GPIB port for GPIB instruments..
4.380,00 €
incl. VAT 5.212,20 €


  • 3U PXI Express Core i7-4700EQ 2.4/3.4 GHz system controller
  • supports 3.4GHz CPU clock speed in single-core turbo boost mode
  • 4GB DDR3L-1600 RAM (expandable up to 16GB)
  • 500GB 2.5" HDD (also available with SSD)
  • 2* GbE ports (1* LAN
  • 1* LXI)
  • 1* DP
  • 1* DVI
  • 2* USB 3.0 and 4* USB 2.0 ports
  • built-in GPIB (IEEE488) controller
  • Trigger I/O for advanced PXI trigger functions
  • RS232/422/485 port via DB9 connector
  • PXI-5 PXI Express hardware specification revision 1.0 compliant
  • onboard PCIe switch supporting four x4/two x8/two x16 links with 8GB/s maximum throughput
  • Adlink


  • Width: 213.2 mm
  • Height: 128.7 mm
  • Depth: 81 mm
  • Net weight: 1 kg
  • Weight: 1.24kg
  • Manufacturer: Adlink Technology Inc.
  • Country of Origin: Taiwan R.O.C.
  • Customs code: 8471 5000 000
