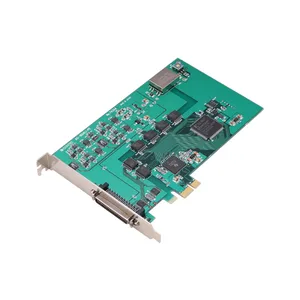

- **Bus‑Isolated Analog Output:** Four 16‑bit D/A channels with ±10 V bipolar range, isolated from the host PC by a digital isolator to enhance noise immunity and protect against ground loops. - **High‑Speed Conversion:** 10 µs conversion time per channel (100 kS/s aggregate rate) enabling precise waveform generation and real‑time control. - **Integrated Digital I/O:** Four isolated TTL‑level digital inputs and four isolated TTL‑level digital outputs (positive logic) for auxiliary control and status signaling. - **32‑bit Counter Function:** One isolated up‑count channel (1 MHz max) with gate and up‑clock inputs and a count‑match pulse output for event counting or frequency measurement. - **1 k‑Word Buffer Memory:** On‑board FIFO/RING buffer supports continuous or cyclic analog output independent of host CPU timing. - **Flexible Trigger and Clock Control:** Start/stop of sampling selectable via software command, external trigger, or specified sample count; internal or external sampling clock supported. - **Digital Filtering:** Optional 1 µs digital filter suppresses chattering and noise on external trigger, sampling clock, digital input, and counter signals. - **Safety Power‑On Design:** All analog outputs automatically reset to 0 V when power is applied, preventing transient voltages that could damage connected equipment. - **Software‑Based Calibration:** Full calibration performed via software; user can store additional adjustment data to compensate for environmental variations. - **Comprehensive Software Support:** Includes Windows and Linux drivers (API‑PAC W32), C‑LOGGER data‑logging software, and libraries for MATLAB (ML‑DAQ) and LabVIEW (VI‑DAQ). - **Compatibility:** Connector pinout and functions are compatible with the legacy PCI board DAI16‑4(LPCI)L, simplifying migration to PCI Express systems.

Hersteller: Contec

Kategorie: D/A Isolated PCIe
