- **Processor:** Intel® Core™ i5‑7440EQ, 2.9 GHz base / 3.6 GHz Turbo, 4 cores, 45 W/35 W configurable TDP (GT2 graphics). - **Memory:** Dual‑channel DDR4 SO‑DIMM, up to 32 GB, 2133/2400 MHz, non‑ECC, unbuffered. - **System Bandwidth:** Up to 16 GB/s via PCI Express 3.0 bus. - **PXI Express Link Configurations:** - 4‑link configuration: x4 × 4 × 4 × 4 - 2‑link configuration: x16 + x8 - **Storage:** Pre‑installed 240 GB SATA SSD; supports 2.5″ SATA HDD/SSD, SATA 6.0 Gb/s, AHCI mode. - **Integrated I/O Interfaces:** - 2 × Gigabit Ethernet (Intel I219‑LM + I210) - 2 × USB 3.0, 4 × USB 2.0 - 2 × DisplayPort outputs (up to 3840 × 2160 @ 60 Hz) - 1 × RS‑232/422/485 serial port (DB‑9) - 1 × GPIB (IEEE 488) Micro‑D 25‑pin connector - 1 × SMB PXI Trigger I/O connector - **Built‑in GPIB Controller:** IEEE 488 compliant, up to 1.5 MB/s transfer rate, 2 KB FIFO, NI‑488.2 compatible API. - **Trigger I/O:** Programmable routing between external SMB trigger and PXI trigger bus lines. - **Operating System:** Microsoft Windows 10 64‑bit pre‑installed; other OS support available upon request. - **Compliance:** PXI‑5 PXI Express Hardware Specification Rev. 1.0. - **Environmental Design:** Rugged 3U PXI form factor, optimized for industrial and laboratory environments.

Hersteller: Adlink Technology Inc.

Kategorie: PXIe / PXI Controller 3U

3U PXI Express Core i7-4700EQ 2.4/3.4 GHz system controller, supports 3.4GHz CPU clock speed in single-core turbo boost mode, 4GB DDR3L-1600 RAM (expandable up to 16GB), 500GB 2.5" HDD (also available with SSD), 2* GbE ports (1* LAN, 1* LXI), 1* DP, 1* DVI, 2* USB 3.0 and 4* USB 2.0 ports, built-in GPIB (IEEE488) controller, Trigger I/O for advanced PXI trigger functions, RS232/422/485 port via DB9 connector, PXI-5 PXI Express hardware specification revision 1.0 compliant, onboard PCIe switch supporting four x4/two x8/two x16 links with 8GB/s maximum throughput, Adlink

Hersteller: Adlink Technology Inc.

Kategorie: PXIe / PXI Controller 3U

3U PXI Express Gen3 Core i7-7820EQ 3.0/3.7 GHz system controller, Up to 32GB DDR4-2133/2400 RAM, One SATA 6.0 Gb/s port with a 2.5" SATA SSD/HDD bracket, 2* GbE ports (1* I219-LM + 1* I210), 2* DisplayPort output, 2* USB 3.0 and 4* USB 2.0 ports, built-in GPIB (IEEE488) controller, Trigger I/O for advanced PXI trigger functions, RS232/422/485 port via DB9 connector, Maximum system throughput up to 16 GB/s by PCI Express 3.0 Bus, Supports four links x4 or two links x16 + x8 PXI Express link capability

Hersteller: Adlink Technology Inc.

Kategorie: PXIe / PXI Controller 3U

- **High‑Performance CPU:** Intel® Core™ i7‑4700EQ, 2.4 GHz base frequency, up to 3.4 GHz Turbo Boost (quad‑core, eight threads). Integrated Intel® HD Graphics 4600 GPU for dual‑display output. - **Memory Support:** Dual‑channel DDR3L SODIMM sockets supporting up to 16 GB at 1333/1600 MHz. Non‑ECC, unbuffered memory modules supported. - **PXI Express Bus Interface:** PXI‑5 PXI Express Hardware Specification Rev. 1.0 compliant. Configurable PCIe switch supporting either four ×4 links or two ×16 + ×8 link configurations. Maximum system throughput: 8 GB/s. - **Integrated Storage:** One 2.5″ SATA 6.0 Gb/s drive bay supporting HDD or SSD. Factory‑installed 240 GB SSD (M16G/SSD configuration). - **Comprehensive I/O Connectivity:** - 2 × DisplayPort outputs (up to 3840 × 2160 @ 60 Hz). - 2 × USB 3.0 ports and 4 × USB 2.0 ports. - 2 × Gigabit Ethernet ports (Intel® I210 + I217 controllers). - 1 × RS‑232/422/485 serial port (DB‑9). - 1 × Micro‑D 25‑pin GPIB (IEEE‑488) connector. - 1 × SMB trigger I/O connector for PXI trigger bus routing. - **Trigger and Synchronization:** Programmable trigger routing between external SMB connector and PXI backplane trigger bus. Supports software‑generated triggers and advanced synchronization modes. - **Operating System Support:** Windows 7 32/64‑bit (officially supported). Other OS options available upon request. - **Environmental Robustness:** Operating temperature: 0 – 55 °C (SSD configuration). Shock tolerance: 30 G, 11 ms half‑sine pulse. Vibration: 0.5 Grms operational, 2.46 Grms non‑operational.

Hersteller: Adlink Technology Inc.

Kategorie: PXIe / PXI Controller 3U

- **High-Performance CPU:** Intel® Core™ i7-2715QE quad-core processor, 2.1 GHz base frequency, up to 3.0 GHz in Turbo Boost mode. Supports Intel® QM67 Express chipset with 5 GT/s DMI bandwidth. - **Memory Architecture:** Dual-channel DDR3 SODIMM slots supporting up to 16 GB of 1066/1333 MHz non-ECC unbuffered memory. - **Storage Options:** Integrated 2.5" SATA drive bay supporting 500 GB HDD or 240 GB SSD (SATA 3.0 Gb/s, AHCI mode). - **Display Support:** Dual independent display capability via DVI-I connector (digital DVI and analog VGA). Resolutions up to 2048×1536 @ 75 Hz. - **Comprehensive I/O Connectivity:** - 2 × USB 3.0 ports - 4 × USB 2.0 ports - 2 × Gigabit Ethernet ports (Intel® 82579LM + Intel® I210) - 1 × Micro-D 25-pin GPIB (IEEE488) controller - 1 × SMB Trigger I/O connector for PXI trigger bus routing - 1 × RS-232/422/485 serial port via DB9 - **PXI Integration:** PXI-1 Hardware Specification Rev. 2.2 compliant. Supports advanced PXI trigger functions and synchronization. - **System Throughput:** Up to 132 MB/s (PXI-1) or 16 GB/s (PXIe Gen3) system bandwidth depending on configuration. - **Reliability & Control:** Built-in programmable watchdog timer for system recovery. BIOS flash backup and CMOS clear switches for maintenance. - **Operating System Support:** Windows 7 and Windows 10 pre-installed (Win10 in this configuration).

Hersteller: Adlink Technology Inc.

Kategorie: PXIe / PXI Controller 3U

- **High-Performance Processing:** Equipped with Intel® Core™ i7-2715QE (2.1 GHz, 3.0 GHz Turbo Boost) or i7-7820EQ (3.0/3.7 GHz) processors, offering quad-core, eight-thread performance for parallel task execution. - **Memory Support:** Dual-channel DDR3 (up to 16 GB, 1333 MHz) for PXI-3980; DDR4-2133/2400 (up to 32 GB) for PXIe-3987. - **PXI/PXIe Bus Throughput:** PXI-3980 supports up to 132 MB/s system throughput; PXIe-3987 supports up to 16 GB/s via PCI Express Gen3 bus. - **Integrated I/O Interfaces:** - Dual Gigabit Ethernet ports (Intel® 82579LM + I210 controllers) - Two USB 3.0 and four USB 2.0 ports - Built-in IEEE488 GPIB controller (Micro-D 25-pin) - RS-232/422/485 serial port (DB9) - Dual DisplayPort or DVI-I + VGA outputs - Trigger I/O (SMB connector) for PXI trigger bus routing - **Storage Options:** Integrated 2.5" SATA 6.0 Gb/s interface supporting HDD or SSD (500 GB HDD or 240 GB SSD standard). - **Display Capabilities:** Dual-display support via DVI-I and VGA outputs, resolutions up to 2048×1536 @ 75 Hz. - **Rugged Design:** 3U form factor, 3-slot PXI module with robust mechanical and thermal design for industrial environments. - **Programmable Watchdog Timer:** Hardware-based system monitoring and automatic reset capability. - **Trigger and Synchronization:** Advanced PXI trigger routing functions for synchronization between PXI modules.

Hersteller: Adlink Technology Inc.

Kategorie: PXIe / PXI Controller 3U

- **High‑Performance Computing Core:** Equipped with an Intel® Core™ i7‑2715QE 2.1 GHz quad‑core processor (3.0 GHz Turbo Boost), delivering exceptional multitasking and computational throughput for demanding test and measurement workloads. - **PXI‑1 Hardware Specification Rev. 2.2 Compliant:** Ensures full compatibility with PXI and PXI Hybrid chassis, supporting both PXI and PXI Express backplanes. - **Dual‑Channel DDR3 Memory Architecture:** Supports up to 16 GB of 1333 MHz DDR3 SODIMM memory for high‑speed data processing and buffering. - **Integrated Storage Options:** Supports 2.5″ SATA drives (HDD or SSD). The PXIe‑3987/M8G/512G SSD variant includes a 512 GB solid‑state drive for enhanced reliability and faster data access. - **Comprehensive I/O Connectivity:** - 2 × USB 3.0 ports - 4 × USB 2.0 ports - 2 × Gigabit Ethernet ports (Intel® 82579LM + I210 controllers) - 1 × Micro‑D 25‑pin GPIB (IEEE 488) connector - 1 × SMB Trigger I/O connector - 1 × DVI‑I video output (supports DVI‑D and VGA dual display) - **Dual Display Support:** Simultaneous DVI and VGA output up to 2048 × 1536 @ 75 Hz. - **Advanced PXI Trigger Functionality:** Programmable Trigger I/O for routing external or software‑generated triggers to/from the PXI backplane. - **Integrated Watchdog Timer:** Hardware‑based system monitoring and automatic reset capability for system reliability. - **High System Throughput:** Up to 132 MB/s PXI bus throughput; PCIe Gen 3 link capability up to 16 GB/s for PXIe variants. - **Rugged and Reliable Design:** Designed for 0 – 55 °C operation (SSD configuration) with 30 G shock tolerance and 0.3 Grms vibration resistance.

Hersteller: Adlink Technology Inc.

Kategorie: PXIe / PXI Controller 3U

- **Processor Options:** - PXI-3930: Intel® Celeron® 2000E, dual-core, 2.20 GHz - PXIe-3987: Intel® Core™ i7-7820EQ, quad-core, 3.0 GHz (Turbo 3.7 GHz) - **Chipset:** Mobile Intel® HM86 Express Chipset - **Memory:** Dual-channel DDR3L SODIMM up to 16 GB (PXI-3930) or DDR4 up to 32 GB (PXIe-3987) - **Display Support:** Dual independent displays via DVI-I (digital/analog) and VGA outputs - **I/O Interfaces:** - 2 × USB 3.0, 4 × USB 2.0 - 2 × Gigabit Ethernet (Intel® I217 + I210 controllers) - 1 × Micro-D GPIB (IEEE 488) controller - 1 × SMB Trigger I/O connector - RS-232/422/485 via DB9 (PXIe-3987) - **Storage:** 2.5" SATA III (6 Gb/s) HDD or SSD (240 GB–512 GB options) - **PXI/PXIe Bus Throughput:** - PXI-3930: 132 MB/s (PXI-1 Rev. 2.2 compliant) - PXIe-3987: Up to 16 GB/s (PCIe Gen3 x16/x8 link capability) - **Built-in Watchdog Timer and Dual BIOS** for system reliability and recovery - **Trigger I/O Functionality:** Programmable routing between external SMB trigger and PXI backplane trigger bus - **Operating System Support:** Windows 7 x32/x64, Windows 10 x64 (factory preinstalled on PXIe-3987/M8G/512G SSD/Win10)

Hersteller: Adlink Technology Inc.

Kategorie: PXIe / PXI Controller 3U

- **Processor:** Intel® Core™ i7‑7820EQ, 3.0 GHz base / 3.7 GHz Turbo, 45 W/35 W configurable TDP, 4 cores, GT2 graphics. - **Memory:** Dual‑channel DDR4 SO‑DIMM, up to 32 GB, 2133/2400 MHz, non‑ECC, unbuffered. - **System Bandwidth:** Up to 16 GB/s via PCI Express 3.0 bus. - **PXI Express Link Configurations:** - 4‑link configuration: x4 × 4 × 4 × 4 - 2‑link configuration: x16 + x8 - **Storage:** Preinstalled 240 GB SATA 6 Gb/s SSD; supports 2.5″ HDD/SSD with AHCI. - **Integrated I/O:** - Dual Gigabit Ethernet ports (Intel® I219‑LM and I210) - Two DisplayPort outputs (up to 3840 × 2160 @ 60 Hz) - Two USB 3.0 and four USB 2.0 ports - Built‑in IEEE 488 GPIB controller (Micro‑D 25‑pin) - RS‑232/422/485 serial port (D‑sub 9) - SMB PXI Trigger I/O connector for advanced trigger routing - **Operating System:** Microsoft® Windows 10 64‑bit preinstalled; other OS support available on request. - **Compliance:** PXI‑5 PXI Express Hardware Specification Rev. 1.0. - **Environmental Robustness:** Designed for industrial and laboratory environments with extended temperature and vibration tolerance.

Hersteller: Adlink Technology Inc.

Kategorie: PXIe / PXI Controller 3U

- **Processor:** Intel® Core™ i7-2715QE (2.1 GHz, up to 3.0 GHz Turbo Boost) or Intel® Core™ i7-7820EQ (3.0/3.7 GHz for PXIe-3987). - **Chipset:** Intel® QM67 Express (PXI-3980) / Intel® QM175 (PXIe-3987). - **Memory:** Dual-channel DDR3 SODIMM up to 16 GB (1333 MHz) or DDR4 up to 32 GB (2133/2400 MHz). - **Storage:** Integrated 2.5" SATA drive bay supporting HDD (500 GB or greater) or SSD (240 GB or greater). - **Display:** Dual independent display support via DVI-I (digital/analog) and VGA; PXIe-3987 supports dual DisplayPort outputs. - **I/O Interfaces:** - 2 × USB 3.0 ports - 4 × USB 2.0 ports - 2 × Gigabit Ethernet ports (Intel® I219-LM + I210) - 1 × Micro-D GPIB (IEEE488) controller - 1 × RS-232/422/485 serial port (DB9) - 1 × SMB Trigger I/O connector - **PXI/PXIe Bus Throughput:** - PXI-3980: up to 132 MB/s - PXIe-3987: up to 16 GB/s (PCI Express Gen3 x16/x8 link capability) - **Compliance:** PXI-1 Hardware Specification Rev. 2.2 compliant. - **Operating Systems Supported:** Windows 7, Windows 10 (64-bit). - **Built-in Watchdog Timer:** Programmable system recovery mechanism. - **Trigger I/O:** Advanced PXI trigger routing and synchronization functions. - **Environmental Robustness:** Designed for 0–55°C operation (SSD configuration) and 30 G shock tolerance.

Hersteller: Adlink Technology Inc.

Kategorie: PXIe / PXI Controller 3U

- **4-Slot CompactPCI® Backplane:** Supports up to four 6U CompactPCI boards, enabling modular system configuration and expansion. - **6U Front I/O Design:** Optimized for front-accessible I/O connections, simplifying maintenance and integration in rack-mounted or benchtop systems. - **Compact and Lightweight Construction:** Weighing approximately **4.1 kg**, the chassis offers a balance between structural rigidity and portability. - **Optimized Dimensions:** With a footprint of **137 mm (H) × 330 mm (W) × 231 mm (D)**, the cPCIS-5040 provides a space-efficient enclosure suitable for confined installations. - **Power Supply Flexibility:** Delivered **without a power supply**, allowing users to select and integrate a power module that best fits their voltage and current requirements. - **Industrial-Grade Build Quality:** Designed for continuous operation in industrial environments, ensuring durability, vibration resistance, and thermal stability. - **Modular System Integration:** Compatible with ADLINK’s range of CompactPCI system controllers, peripheral boards, and backplanes, supporting scalable system architectures. - **Front I/O Accessibility:** Facilitates easy cable management and quick access to connectors, ideal for test, measurement, and control applications. - **Passive Cooling Support:** Designed to accommodate system-level cooling solutions, ensuring stable thermal performance for high-power CompactPCI boards.

Hersteller: Adlink Technology Inc.

Kategorie: PXIe PXI Chassis

- **8-Slot CompactPCI Backplane:** Supports up to eight 6U CompactPCI boards, enabling flexible system configurations for control, data processing, and communication tasks. - **6U Front I/O Design:** Optimized for front-accessible I/O modules, simplifying maintenance and integration in rack-mounted or standalone systems. - **Rugged Industrial Construction:** Built with high-quality materials to ensure durability and long-term reliability in harsh environments. - **Modular Architecture:** Allows easy customization and expansion with various CompactPCI CPU and peripheral boards. - **Optimized Airflow and Cooling:** Designed to maintain stable operating temperatures for high-performance computing modules. - **Compact Form Factor:** With dimensions of **218 mm (H) × 330 mm (W) × 231 mm (D)**, the chassis offers a balance between space efficiency and expandability. - **Lightweight Design:** Weighs approximately **5.1 kg**, making it suitable for both stationary and mobile industrial applications. - **Power Supply Flexibility:** Delivered **without a power supply**, allowing users to select and integrate a power unit that best fits their system’s voltage and current requirements. - **High Compatibility:** Fully compliant with the **PICMG 2.x CompactPCI standards**, ensuring interoperability with a wide range of CompactPCI boards and accessories. - **Industrial-Grade Reliability:** Designed for continuous operation in mission-critical environments, supporting extended temperature ranges and vibration resistance when paired with appropriate modules.

Hersteller: Adlink Technology Inc.

Kategorie: PXIe PXI Chassis

- **Integrated Display and Input Solution:** Combines a 15‑inch LCD touch‑screen monitor (1024 × 768 resolution) with a full‑size 104‑key English keyboard and integrated touchpad, providing a compact, ergonomic interface for PXI system control and monitoring. - **Portability and Protection:** The PMK‑1524 collapses into a protective configuration for transport. A two‑button release mechanism folds the keyboard against the display, safeguarding the screen during movement or storage. - **Plug‑and‑Play Integration:** Connects directly to the PXES‑2590 system controller via VGA and USB interfaces. No external power supply is required; the accessory draws power directly from the chassis. - **Industrial‑Grade Construction:** Built with a durable aluminum enclosure to withstand frequent handling and field deployment. Designed for use in laboratory, production, and mobile test environments. - **Touch‑Screen Control:** Resistive touch‑screen interface supports intuitive operation of PXI software environments and test applications. - **Factory or User Installation:** Can be factory‑mounted or installed by the user using standard tools (Torx T8 and Phillips No. 0 screwdrivers). - **Compatibility:** Fully compatible with ADLINK PXES‑2590 PXI Express chassis and controllers such as the PXIe‑3975.

Hersteller: Adlink Technology Inc.

Kategorie: PXIe PXI Chassis

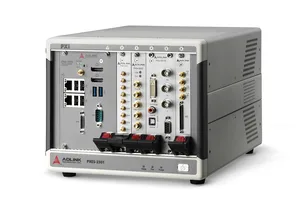

- **All‑Hybrid Slot Design:** All five peripheral slots are hybrid, supporting PXI Express, CompactPCI Express, PXI, and CompactPCI modules for maximum flexibility. - **High System Bandwidth:** Four‑link PXI Express backplane architecture provides up to **8 GB/s system bandwidth** and **2 GB/s per‑slot bandwidth** (PCIe Gen2 ×4). - **Compact 3U Half‑Rack Form Factor:** Space‑efficient chassis (220.8 × 319.6 × 177.8 mm) suitable for benchtop or rack‑mount use; optional handle and rubber foot kit for vertical orientation. - **Intelligent Chassis Management:** Integrated **ChassisWatch™** utility monitors fan speed, internal temperature, and DC voltage rails with automatic fan speed control. - **High Cooling Capacity:** Dual 100.2 CFM fans provide up to **38 W per‑slot cooling**; modular fan assembly allows easy replacement and reduced maintenance. - **Industrial‑Grade Power Supply:** 320 W AC power supply (100–240 VAC, 47–63 Hz) with automatic voltage selection and full‑load operation up to 50 °C. - **Robust Environmental Design:** Operates from 0 °C to 50 °C, withstands 30 G shock, and meets vibration standards for industrial and mobile test setups. - **Comprehensive Monitoring Utility:** Remote monitoring via SMBus interface and ADLINK’s PXI Platform Services software for real‑time chassis status and alarm thresholds. - **Compliance and Safety:** Meets EN 61326‑1, EN 61010‑1, and FCC Class A standards; RoHS and WEEE compliant.

Hersteller: Adlink Technology Inc.

Kategorie: PXIe PXI Chassis

- **PXI Express Hardware Compliance:** Fully compliant with PXI‑5 PXI Express Hardware Specification Rev. 1.0 and CompactPCI Express standards. - **Slot Configuration:** - 1 × System Slot - 1 × System Timing Slot - 7 × Hybrid Peripheral Slots (PXI Express / PXI / cPCI / cPCIe compatible) - **High Bandwidth Architecture:** - Four‑link PXI Express backplane - Up to 7 GB/s system bandwidth - Up to 2 GB/s per‑slot bandwidth - **All‑Hybrid Slot Design:** Every peripheral slot supports hybrid PXI‑5 modules, maximizing flexibility for mixed PXI and PXIe configurations. - **Intelligent Chassis Management:** - Automatic fan speed control - Real‑time monitoring of temperature, voltage, and fan speed - Remote power on/off control via SMBus or D‑SUB9 inhibit connector - **Advanced Cooling System:** Two 185.9 CFM rear fans provide 30 W per‑slot cooling capacity, maintaining stable operation up to 55 °C. - **Clock Synchronization:** Dual BNC connectors for 10 MHz reference clock input/output; supports external synchronization and phase‑locked operation. - **Power Supply:** Industrial‑grade 400 W AC power supply (100–240 VAC, 47–63 Hz) with ±3 % voltage regulation. - **Environmental Robustness:** Operates from 0 °C to 55 °C, with 30 G shock tolerance and 0.3 Grms vibration resistance. - **Status Indicators:** Front‑panel LEDs for power, fan, and temperature status. - **Optional Portability:** Compatible with PMK‑1524 15‑inch LCD/keyboard kit and trolley case for mobile test setups.

Hersteller: Adlink Technology Inc.

Kategorie: PXIe PXI Chassis

- **PXI Express Hardware Compliance:** Fully compliant with PXI‑5 PXI Express Hardware Specification Rev. 1.0 and CompactPCI Express standards. - **18‑Slot Architecture:** - 1 × System Slot - 1 × System Timing Slot - 10 × Hybrid Peripheral Slots (PXI Express, PXI, CompactPCI, CompactPCI Express compatible) - 6 × PXI Express Peripheral Slots - **Configurable PCIe Switch Fabric:** Supports two‑link (x8) or four‑link (x4) configurations, enabling flexible bandwidth allocation. - **High Bandwidth:** Up to 8 GB/s system bandwidth and up to 4 GB/s per dedicated peripheral slot using PCIe Gen2 signaling. - **Intelligent Chassis Management:** - Automatic fan speed control - Real‑time monitoring of temperature, voltage, and fan status - Remote power on/off and monitoring via RS‑232 or SMBus - **Superior Cooling System:** Three 185.9 CFM fans with filtered airflow, providing 38.2 W per‑slot cooling capacity. - **Clock Synchronization:** Dual BNC connectors for 10 MHz reference clock input/output; supports external synchronization. - **Robust Power Supply:** Industrial‑grade AC power supply delivering up to 1120 W total usable power (240 VAC input). - **Extended Operating Range:** 0 °C to 55 °C operating temperature, 10 %–90 % relative humidity (non‑condensing). - **Mechanical Design:** Compact 3U form factor with rack‑mount capability and optimized airflow for rack installations. - **Status Indicators:** Front‑panel LEDs for power, fan, and temperature status.

Hersteller: Adlink Technology Inc.

Kategorie: PXIe PXI Chassis

- **Purpose‑Built for PXES‑2780:** Designed specifically for the ADLINK PXES‑2780 18‑slot PXI Express chassis, ensuring perfect mechanical fit and alignment with chassis mounting points. - **Standard 19‑Inch Rack Compatibility:** Conforms to EIA‑310‑D rack‑mounting standards, supporting installation in standard 19‑inch racks with 3U height allocation. - **Enhanced Structural Support:** Provides rigid mechanical support for the 11.9 kg chassis, preventing vibration and mechanical stress during operation. - **Optimized Airflow and Cooling:** Maintains unobstructed airflow paths for the PXES‑2780’s triple‑fan cooling system (3 × 185.9 CFM), ensuring consistent thermal performance when rack‑mounted. - **Ease of Installation:** Includes precision‑machined brackets, mounting screws, and alignment hardware for quick integration. - **Durable Construction:** Manufactured from high‑strength steel or aluminum alloy with corrosion‑resistant surface treatment to ensure long‑term durability. - **Flexible Mounting Depth:** Adjustable rail depth accommodates various rack configurations and cable management requirements. - **Vibration and Shock Resistance:** Designed to withstand the PXES‑2780’s operational vibration tolerance (0.3 Grms, 5–500 Hz) and functional shock rating (30 G, 11 ms half‑sine pulse). - **Aesthetic Integration:** Matches the PXES‑2780 chassis finish and front‑panel design for a professional, cohesive system appearance.

Hersteller: Adlink Technology Inc.

Kategorie: PXIe PXI Chassis

- **Purpose-Built Replacement:** Designed as a direct spare or replacement fan for ADLINK PXIS-2700 and PXIS-2600 chassis systems. - **Optimized Cooling Performance:** Maintains proper airflow and temperature regulation for PXI modules, ensuring stable operation and extended component lifespan. - **High Reliability:** Built with industrial-grade bearings and materials to support continuous operation in mission-critical applications. - **Plug-and-Play Compatibility:** Matches the mechanical and electrical specifications of the original chassis fan assembly, allowing straightforward replacement without modification. - **Noise and Vibration Control:** Engineered for low acoustic noise and minimal vibration, preserving measurement accuracy and system stability. - **Durable Construction:** Designed to withstand extended use in laboratory, manufacturing, and field environments. - **Manufacturer Certified:** Genuine ADLINK component ensuring full compatibility and compliance with PXIS chassis design standards.

Hersteller: Adlink Technology Inc.

Kategorie: PXIe PXI Chassis

- **Form Factor Compatibility:** Supports **3U CompactPCI (cPCI) and PXI modules**, enabling flexible integration of modular instrumentation and control cards. - **Chassis Height:** **4U enclosure**, providing sufficient internal space for multiple modules and efficient airflow management. - **Mounting Type:** **Wall-mount design**, ideal for fixed installations in industrial, laboratory, or test environments where rack space is limited. - **Cooling System:** Integrated **cooling fans** ensure stable thermal performance and maintain optimal operating temperatures for installed modules. - **Power Supply Flexibility:** Delivered **without a built-in power unit**, allowing customization of power configurations to meet specific voltage and current requirements. - **Compact Dimensions:** **237 mm (W) × 221 mm (D) × 177 mm (H)**, offering a small footprint suitable for confined spaces or distributed test setups. - **High Mechanical Integrity:** Rigid enclosure construction provides protection against vibration, dust, and mechanical stress, ensuring long-term reliability. - **PXI/cPCI Compatibility:** Fully compatible with PXI and CompactPCI backplanes and modules, supporting a wide range of instrumentation and control applications. - **Industrial-Grade Design:** Built for continuous operation in demanding environments, with durable materials and efficient thermal management.

Hersteller: Adlink Technology Inc.

Kategorie: PXIe PXI Chassis

- **PXI and CompactPCI Compatibility:** Fully compliant with PXI Specification Rev. 2.2 and PICMG 2.0 CompactPCI standards, supporting both PXI and CompactPCI 3U modules. - **Slot Configuration:** One system controller slot and five PXI/CompactPCI peripheral slots, all equipped with PXI trigger, local bus, and 10 MHz reference clock functionality. - **Modular Power Supply:** 250 W CompactPCI power module (cPS‑H325/AC) compliant with PICMG 2.11; optional 24 V DC input module (cPS‑H325/24) for mobile or vehicular use. - **Front‑Accessible Power Module:** Hot‑swappable, front‑removable PSU design for minimal mean‑time‑to‑repair (MTTR). - **Efficient Cooling:** Dual 80 mm × 80 mm × 25 mm ball‑bearing fans providing filtered, forced‑air cooling with removable air filters. - **Mechanical Flexibility:** Desk‑top or wall‑mount installation with included mounting kit; IEEE 1101.10 mechanical packaging compliant. - **Environmental Robustness:** Designed for industrial environments with wide operating temperature range, vibration tolerance, and shock resistance. - **Electrical Protection:** Over‑temperature, over‑current, over‑load, and over‑voltage protection integrated in PSU. - **Mobility and Serviceability:** Lightweight (≈ 4.5 kg) aluminum chassis with side handles and stand feet for portability. - **Regulatory Compliance:** CE, FCC Class A, EN 60950‑1 safety, EN 55022/55024 EMC compliance.

Hersteller: Adlink Technology Inc.

Kategorie: PXIe PXI Chassis

- **PXI and CompactPCI Compatibility:** Fully compliant with PXI Specification Rev. 2.2 and PICMG 2.0 standards, supporting both PXI and CompactPCI 3U modules. - **Slot Configuration:** One system controller slot and five PXI/CompactPCI peripheral slots, all equipped with PXI‑specific features such as 10 MHz reference clock, trigger bus, local bus, and star trigger. - **Modular Power Supply:** 250 W 24 V DC CompactPCI power module (PICMG 2.11 compliant) with front‑accessible design for easy replacement and reduced MTTR. - **Cooling System:** Filtered, forced‑air cooling with two 80 × 80 × 25 mm ball‑bearing fans delivering 47.2 CFM each, ensuring stable thermal performance. - **Mechanical Design:** 4U‑height compact chassis with wall‑mount and desk‑mount options; includes wall‑mount kit and foot stands. - **Environmental Robustness:** Designed for operation from 0 °C to 50 °C and storage from –20 °C to 70 °C; shock‑resistant up to 15 G and vibration‑tested to 0.5 G RMS. - **Electrical Performance:** Typical output currents of +5 V @ 25 A, +3.3 V @ 18 A, +12 V @ 5 A, and –12 V @ 0.5 A; maximum combined output 250 W continuous, 300 W peak. - **Ease of Maintenance:** Hot‑swappable fans and modular PSU accessible from the front panel. - **Compliance:** CE, FCC Class A, EN 55022/55024, EN 60950‑1 safety certified. - **Recommended Controllers:** ADLINK PXI‑3900 or PXI‑3800 series system controllers.

Hersteller: Adlink Technology Inc.

Kategorie: PXIe PXI Chassis

- **PXI Specification Rev. 2.2 Compliance:** Ensures interoperability with PXI and CompactPCI modules. - **8‑Slot Configuration:** One system slot and seven PXI/cPCI peripheral slots for flexible system expansion. - **Intelligent Chassis Management:** Built‑in control board monitors fan speed, internal temperature, and DC voltages; supports remote monitoring and control via RS‑232. - **Automatic Fan Speed Control:** Dynamic adjustment minimizes noise and optimizes cooling. - **Extended Operating Temperature:** Stable operation from 0 °C to 55 °C verified by chamber testing. - **Low Acoustic Emission:** 41.6 dBA at minimal fan speed for quiet laboratory environments. - **Lightweight Aluminum Construction:** 5.9 kg (PXIS‑2508) for portability and durability. - **Integrated Display (PXIS‑2558T):** 8.4″ TFT LCD, 800 × 600 resolution, with resistive touch panel for direct user interaction. - **Industrial‑Grade 350 W AC Power Supply:** Universal 100–240 V AC input with multiple regulated DC outputs. - **Front‑Panel Indicators:** Power, temperature, and fan status LEDs with alarm reset functionality. - **Optional Rack‑Mount Kit:** Allows recessed installation up to 10 cm for cable and connector clearance. - **Silent Operation and Efficient Cooling:** Two 60 CFM fans with filters provide 25 W per‑slot cooling capacity. - **Remote Power Control:** Chassis can be powered on/off remotely through RS‑232 commands.

Hersteller: Adlink Technology Inc.

Kategorie: PXIe PXI Chassis

- **Form Factor:** 4U wall-mount enclosure optimized for 3U CompactPCI (cPCI) and PXI modules. - **Integrated Display:** Built-in 6.3-inch LCD panel for system status display, diagnostics, or user interface applications. - **Cooling System:** Equipped with internal cooling fans to ensure stable thermal performance and maintain optimal operating temperatures for installed modules. - **Flexible Power Integration:** Delivered without a pre-installed power unit, enabling customization of power supply configurations based on system load and environmental conditions. - **Compact Dimensions:** Space-efficient design (237 mm × 221 mm × 177 mm) suitable for wall-mounted or confined-space installations. - **High-Quality Construction:** Industrial-grade materials and mechanical design for durability, vibration resistance, and long service life. - **PXI/cPCI Compatibility:** Fully compatible with 3U CompactPCI and PXI instrumentation cards, supporting a wide range of modular test, measurement, and control applications. - **Wall-Mount Design:** Provides secure mounting options for vertical or horizontal installation on walls, panels, or equipment racks. - **Serviceability:** Easy access to internal components for maintenance, module replacement, or system upgrades. - **Manufacturer Reliability:** Designed and produced by ADLINK, a recognized leader in PXI and CompactPCI systems, ensuring compliance with industry standards and long-term support.

Hersteller: Adlink Technology Inc.

Kategorie: PXIe PXI Chassis

- **PXI Specification Compliance:** Fully compliant with PXI Specification Rev. 2.2 and CompactPCI standards, ensuring interoperability with a wide range of PXI and cPCI modules. - **Slot Configuration:** 8 total slots — one system controller slot and seven PXI/CompactPCI peripheral slots. - **Integrated Display:** 8.4" TFT LCD with 800 × 600 resolution and resistive touch panel (PXIS‑2558T only). - **Intelligent Chassis Management:** Built‑in control board monitors internal temperature, fan speed, and DC voltages; supports automatic fan speed control and remote power management via RS‑232. - **Silent Operation:** Low‑noise design with automatic fan speed regulation; acoustic emission as low as 41.6 dBA at minimal fan speed. - **Extended Temperature Range:** Reliable operation from 0 °C to 55 °C ambient temperature. - **Lightweight Construction:** Rugged aluminum‑metal chassis weighing approximately 6.4 kg. - **Industrial‑Grade Power Supply:** 350 W AC power unit with wide input range (100–240 VAC, 50–60 Hz). - **Front‑Panel Indicators:** LED indicators for power, temperature, and fan status. - **Rear I/O Support:** Rear transition module interface for PXI controllers with rear I/O capability. - **Remote Monitoring:** RS‑232 monitoring port for remote chassis status reporting and control. - **Optional Rack‑Mount Kit:** Allows flexible installation and recessed mounting up to 10 cm for integration with external connectors or mass interconnect modules. - **Low Acoustic Emission:** 41.6 dBA (min) / 47.3 dBA (max) sound pressure level, tested per ISO 7779:1999/Amd. 1:2003(E).

Hersteller: Adlink Technology Inc.

Kategorie: PXIe PXI Chassis

- **Optimized for PXIS‑2508/2558T:** Precisely engineered to fit ADLINK’s 3U 8‑slot PXI chassis models. - **Flexible Mounting Depth:** Adjustable position allows up to 10 cm recess for front‑side mechanical clearance. - **Standard 19‑inch Rack Compatibility:** Conforms to EIA‑310‑D rack standards for universal integration. - **Robust Construction:** Fabricated from lightweight aluminum alloy for strength and minimal added weight. - **Ease of Installation:** Includes pre‑drilled mounting holes and alignment guides for quick assembly. - **Enhanced Accessibility:** Maintains unobstructed access to front panel controls, indicators, and PXI slots. - **Thermal and Airflow Considerations:** Designed to preserve the chassis’ forced‑air cooling path and ventilation. - **Supports Portable and Stationary Configurations:** Enables transition from bench‑top to rack‑mounted operation without modification to the chassis. - **Corrosion‑resistant Finish:** Surface treated for durability in industrial and laboratory environments. - **Mechanical Safety:** Provides secure anchoring to prevent vibration or displacement during operation.

Hersteller: Adlink Technology Inc.

Kategorie: PXIe PXI Chassis
