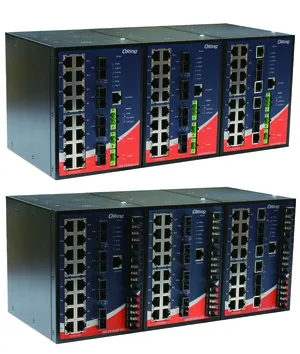

- **High‑Port Density:** 20 total ports — 16×10/100/1000Base‑T(X) RJ‑45 and 4×100Base‑FX single‑mode SC fiber ports. - **Industrial‑Grade Design:** Fully compliant with IEC 61850‑3 and IEEE 1613 for power automation and EN50155 for railway applications. - **Wide Power Input Range:** Dual redundant power inputs supporting 88–300 V DC or 100–240 V AC (HV model). - **Extended Temperature Range:** Operates reliably from −40 °C to +70 °C (−40 °F to +158 °F). - **High Reliability:** O‑Ring redundancy technology with recovery time

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

- **High‑Port Density:** 20 total ports — 16×10/100/1000Base‑T(X) RJ‑45 and 4×100Base‑FX single‑mode SC fiber ports. - **Industrial‑Grade Design:** Complies with IEC 61850‑3 and EN50155 standards for electromagnetic immunity, vibration, and shock resistance. - **Wide Operating Temperature:** ‑40 °C to +70 °C continuous operation (tested up to +85 °C). - **Dual Redundant Power Inputs:** 12–48 VDC dual input with reverse polarity and overload protection. - **High Reliability:** O‑Ring redundancy technology with recovery time

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

- **Industrial Managed Switch:** 20-port managed Ethernet switch with 16×10/100/1000Base‑T(X) RJ‑45 ports and 4×100/1000Base‑X SFP combo ports. - **High Voltage Power Input:** Dual redundant power inputs supporting 85–264 VAC or 88–373 VDC for maximum reliability. - **Rugged Design:** IP‑30 metal enclosure, fanless operation, and extended operating temperature range from ‑40 °C to +70 °C. - **Smart Grid & Railway Compliance:** Fully compliant with IEC 61850‑3, IEEE 1613, and EN50155 standards for power automation and rolling stock applications. - **Advanced Network Redundancy:** Supports O‑Ring, Open‑Ring, O‑Chain, MRP, and MSTP (RSTP/STP compatible) with recovery time

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

- **Industrial Managed Switch:** 20-port managed Ethernet switch with 16 Gigabit copper ports and 4 Gigabit combo ports (RJ-45/SFP). - **High Reliability:** Designed for power automation and railway applications, compliant with **IEC 61850-3**, **IEEE 1613**, and **EN50155** standards. - **Wide Temperature Range:** Operates from **-40°C to +70°C**, suitable for extreme industrial environments. - **Redundant Power Inputs:** Dual 12–48VDC power inputs with overload and reverse polarity protection. - **Network Redundancy:** Supports **O-Ring**, **Open-Ring**, **O-Chain**, **MRP**, and **MSTP (RSTP/STP compatible)** redundancy protocols with recovery time

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

- **High Port Density:** 20 total ports – 16 Gigabit copper (RJ‑45) and 4 Gigabit fiber (SC multimode). - **Industrial Grade Design:** Fully compliant with **IEC 61850‑3** and **IEEE 1613** for power automation and **EN50155** for railway applications. - **Wide Operating Temperature:** ‑40°C to +70°C continuous operation, suitable for harsh environments. - **Dual Redundant Power Inputs:** Supports **88–300 VDC** and **100–240 VAC** (HV model) for uninterrupted operation. - **Network Redundancy:** Supports **O‑Ring**, **Open‑Ring**, **O‑Chain**, **MRP**, and **MSTP (RSTP/STP compatible)** redundancy protocols with recovery time

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

- **Industrial Managed Switch:** 20-port managed Ethernet switch with 16 copper and 4 fiber ports. - **High Reliability:** Designed for power automation and railway applications, compliant with **IEC 61850-3**, **IEEE 1613**, and **EN50155** standards. - **Wide Operating Temperature:** -40°C to +70°C (extended range up to +75°C in some configurations). - **Dual Redundant Power Inputs:** 12–48VDC (LV model) with reverse polarity and overload protection. - **Network Redundancy:** Supports ORing’s proprietary **O-Ring** technology with recovery time

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

- **High‑Performance Industrial Networking:** 20‑port managed Gigabit switch with 16 copper and 4 fiber ports, supporting 10/100/1000 Mbps auto‑negotiation and auto‑MDI/MDI‑X. - **Rugged Design for Harsh Environments:** Fully compliant with IEC 61850‑3 and IEEE 1613 for power substation automation, and EN50155 for railway applications. - **Wide Power Range:** Dual redundant high‑voltage inputs (88–300 VDC / 100–240 VAC) with overload and reverse polarity protection. - **Extended Temperature Operation:** Reliable performance from −40 °C to +70 °C (storage −40 °C to +85 °C). - **Advanced Redundancy Protocols:** Supports O‑Ring, Open‑Ring, O‑Chain, MRP, and MSTP (RSTP/STP compatible) with recovery time

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

- **High‑Performance Industrial Networking:** 20‑port managed Gigabit Ethernet switch with 16 copper and 4 fiber ports, supporting 10/100/1000Base‑T(X) and 1000Base‑FX interfaces. - **Rugged Industrial Design:** IP‑30 rated metal enclosure, fanless operation, and extended operating temperature range from **–40 °C to +70 °C**, suitable for harsh environments such as rolling stock and substations. - **Redundant Power Inputs:** Dual DC power inputs (12–48 VDC) for the LV model, providing redundancy and protection against power failure. - **Advanced Network Redundancy:** Supports ORing’s proprietary **O‑Ring**, **Open‑Ring**, **O‑Chain**, **MRP**, and **MSTP (RSTP/STP compatible)** redundancy protocols with recovery time

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

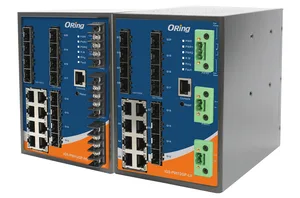

- **High Port Density:** 8 × 10/100/1000Base-T(X) RJ-45 ports and 12 × 100/1000Base-X SFP slots. - **Industrial Standards:** IEC 61850-3 and IEEE 1613 compliance for substation environments; EN50155 for railway and rolling stock applications. - **Redundancy Technologies:** - O-Ring (proprietary fast recovery

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

- **High Port Density:** 8×10/100/1000Base-T(X) RJ-45 ports and 12×100/1000Base-X SFP slots for flexible fiber/copper connectivity. - **Industrial Standards Compliance:** Certified to **IEC 61850-3**, **IEEE 1613**, and **EN50155**, ensuring electromagnetic immunity and reliability in power and transportation sectors. - **Wide Operating Temperature:** Operates from **-40°C to +75°C**, suitable for extreme environments. - **Redundant Power Inputs:** Dual **12–48VDC** inputs for LV model (HV version supports 85–264VAC / 88–373VDC). - **High Reliability:** Supports **O-Ring**, **O-Chain**, **Open-Ring**, **MRP**, and **MSTP/RSTP/STP** redundancy protocols with recovery times under **30 ms** for up to 250 nodes. - **Advanced Network Security:** Includes **802.1x authentication**, **RADIUS**, **TACACS+**, **ACL**, **HTTPS/SSH**, **SNMPv3**, and **Device Binding** for IP/MAC-port security. - **Comprehensive Management:** Managed via **Web GUI**, **Telnet**, **CLI (Console)**, and **ORing Open-Vision** centralized management software. - **QoS and Traffic Control:** IEEE 802.1p QoS, DSCP, bandwidth management, and traffic shaping for deterministic performance. - **Energy Efficiency:** Supports **IEEE 802.3az Energy-Efficient Ethernet**. - **Clock Synchronization:** Integrated **IEEE 1588v2 PTP** for precise time synchronization. - **Modbus TCP Support:** Enables integration with SCADA and industrial automation systems. - **High Security and Reliability:** DoS/DDoS prevention, storm control, and redundant ring topologies ensure continuous operation. - **Rugged Design:** IP30-rated metal enclosure, DIN-rail and wall-mountable, designed for vibration and shock resistance per **IEC60068-2-6/27/32**.

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

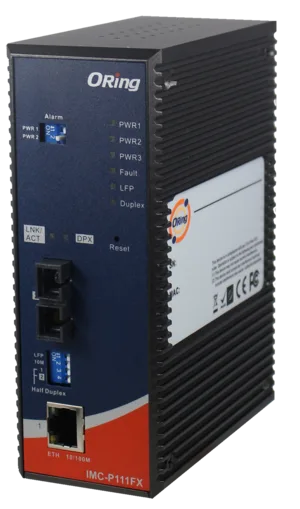

- **Industrial-grade design:** Fully compliant with **IEC 61850-3** and **IEEE 1613** standards for substation automation and **EN50155** for railway applications. - **Ethernet-to-fiber conversion:** Converts 10/100Base-T(X) Ethernet signals to 100Base-FX optical signals, extending communication distances and improving EMI immunity. - **Auto MDI/MDIX detection:** Automatically detects cable type, eliminating the need for crossover cables. - **LFP (Link Fault Pass-through):** Ensures network reliability by propagating link failures to the connected device, allowing immediate fault detection and system response. - **Wide operating temperature:** Designed for extreme environments with an operating range of **–40°C to +70°C** and storage range up to **–40°C to +85°C**. - **Dual redundant power inputs:** Supports **dual 100–240 VAC** inputs for high availability and power redundancy. - **Relay output alarm:** Provides a relay output for power failure alarms, enabling integration with monitoring systems. - **Rugged IP-30 metal housing:** Offers mechanical protection and electromagnetic shielding suitable for industrial environments. - **Flexible mounting:** Supports both **DIN-rail** and **wall-mount** installation options. - **Comprehensive LED indicators:** Provides visual status for power, link/activity, duplex mode, speed, LFP status, and fault conditions. - **Store-and-forward switching:** Ensures reliable data transmission with error checking and buffering. - **Overload and reverse polarity protection:** Safeguards the device and connected equipment from electrical faults. - **5-year warranty:** Long-term reliability backed by ORing’s industrial-grade quality assurance.

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

- **Industrial-grade design:** Compliant with IEC 61850-3 and IEEE 1613 for substation and transportation environments. - **Ethernet-to-fiber conversion:** Converts 10/100Base-T(X) Ethernet to 100Base-FX fiber for long-distance data transmission. - **Multi-mode fiber support:** SC connector, 1310 nm wavelength, up to 2 km transmission distance. - **Wide operating temperature:** -40°C to +70°C continuous operation; storage temperature -40°C to +85°C. - **Dual redundant power inputs:** 12–48 VDC on terminal block and 12–45 VDC on power jack for LV model. - **Link Fault Pass-through (LFP):** Ensures network integrity by detecting and propagating link failures. - **Auto MDI/MDIX detection:** Eliminates the need for crossover cables. - **Full/Half duplex operation:** Configurable via DIP-switch for both Ethernet and fiber ports. - **Relay output alarm:** Provides fault indication for power failure or link issues. - **Rugged IP-30 metal housing:** Ensures mechanical durability and electromagnetic shielding. - **Flexible mounting:** Supports both DIN-rail and wall-mount installation. - **LED indicators:** Comprehensive status LEDs for power, link/activity, speed, duplex, LFP, and fault conditions. - **High reliability:** Designed for continuous operation in vibration, shock, and EMI-prone environments. - **5-year warranty:** Long-term reliability assurance from ORing Industrial Networking Corp.

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

- Converts 10/100Base‑T(X) over M12 D‑coded connector to 100Base‑FX fiber. - Fully compliant with IEC 61850‑3 and IEEE 1613 standards for power substation and utility automation. - EN50155 compliant for railway and rolling stock network applications. - Ultra‑rugged M12 connectors for shock-, vibration-, and interference‑resistant operation. - Wide operating temperature: –40°C to +85°C (–40°F to +185°F). - Dual high‑voltage AC inputs: 100–240 VAC on 8‑pin terminal block for power redundancy. - Supports Link Fault Pass‑through (LFP) for link failure detection and rapid system reaction. - Store‑and‑forward switching architecture with full/half‑duplex support. - DIP switch configuration for LFP, duplex modes, speed selection, and power‑failure relay alarms. - Integrated relay output for power‑failure events. - High‑reliability IP30 rated metal enclosure. - DIN‑rail and wall‑mount installation support. - Designed specifically for harsh EMC and environmental conditions. - Supports multi‑mode fiber at 1310 nm with 2 km transmission capability (SC connector). - LED status indicators for power, link/activity, duplex, LFP status, and fault conditions.

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

- **Industrial-Grade Design:** Built for power automation and railway applications, compliant with IEC 61850-3, IEEE 1613, and EN50155 standards. - **Ethernet-to-Fiber Conversion:** Converts 10/100Base-T(X) Ethernet (M12 D-coded connector) to 100Base-FX fiber (SC connector, multi-mode). - **Extended Communication Distance:** Supports up to 2 km transmission over multi-mode fiber at 1310 nm wavelength. - **Rugged M12 Connectors:** Ensures secure, vibration-resistant connections ideal for rolling stock and substation environments. - **Wide Power Input Range:** Dual redundant DC inputs (12–48 VDC) plus auxiliary 12–45 VDC power jack for flexible power sourcing. - **Link Fault Pass-Through (LFP):** Provides immediate link failure detection and propagation to the opposite port for network fault awareness. - **DIP-Switch Configuration:** Hardware-based configuration for LFP enable/disable, Ethernet speed, duplex mode, and power alarm relay settings. - **Relay Output for Power Failure Alarm:** Supports fail-close relay circuits for power fault notifications. - **Store-and-Forward Switching:** Ensures reliable data transmission with error checking and buffering. - **Full/Half Duplex Operation:** Supports both modes with auto-negotiation. - **DIN-Rail and Wall Mounting:** Flexible installation options for industrial cabinets or enclosures. - **LED Indicators:** Comprehensive status LEDs for power, link/activity, duplex, LFP, and fault conditions. - **High Reliability:** IP-30 rated metal housing with overload and reverse polarity protection. - **Wide Temperature Operation:** -40°C to +85°C for extreme industrial environments. - **5-Year Warranty:** Long-term reliability backed by ORing Industrial Networking Corp.

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

• Designed for critical infrastructure: Fully compliant with IEC 61850‑3 and IEEE 1613 standards for power substations and electrical grid applications. • Supports EN50155‑compliant environments, suitable for rolling stock use. • Provides conversion between 1×10/100Base‑T(X) auto‑negotiation port and 1×100Base‑FX fiber port. • Single‑mode fiber (SS type) with SC connector, supporting long‑distance links up to 30 km at 1310 nm. • Wide operating temperature range: –40°C to 85°C for HV model. • Dual 100–240VAC power inputs for high‑voltage industrial redundancy. • LFP (Link Fault Pass‑through) support for intelligent link status forwarding. • Auto MDI/MDIX detection eliminates need for crossover cables. • Supports full/half‑duplex modes and store‑and‑forward processing. • Provides hardware DIP‑switch configuration for speed, duplex, LFP function, and fiber duplex selection. • High‑reliability IP‑30 metal housing. • Supports DIN‑rail and wall‑mount installation. • Relay output for power failure alarms (PWR‑1 or PWR‑2 loss). • Extensive EMC, EMI, shock, vibration, and free‑fall compliance.

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

- **Industrial-grade design:** Fully compliant with IEC 61850-3 and IEEE 1613 for substation and railway applications. - **Ethernet-to-fiber conversion:** Converts 10/100Base-T(X) copper Ethernet to 100Base-FX single-mode fiber. - **Extended fiber reach:** Supports up to **30 km** transmission distance over single-mode fiber at **1310 nm** wavelength. - **Auto MDI/MDIX detection:** Automatically detects cable type, eliminating the need for crossover cables. - **Wide operating temperature:** Operates reliably from **-40°C to +70°C**, suitable for extreme environments. - **Wide power input range:** Accepts **12–48 VDC** dual redundant power inputs for high availability. - **Link Fault Pass-through (LFP):** Provides immediate link failure detection and propagation to ensure network integrity. - **Relay output alarm:** Notifies users of power failures or link faults via configurable relay output. - **DIP-switch configuration:** Allows manual control of LFP, duplex mode, and speed settings. - **High reliability enclosure:** IP-30 rated metal housing for superior mechanical protection. - **Flexible mounting:** Supports both **DIN-rail** and **wall-mount** installation. - **LED indicators:** Comprehensive LED panel for power, link/activity, duplex, and fault status monitoring. - **Low power consumption:** Typical consumption of **10.56 W** for LV model. - **Long service life:** Backed by a **5-year warranty** from ORing Industrial Networking Corp.

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

• Fully compliant with IEC 61850-3 and IEEE 1613 standards for power substation and smart grid infrastructure • EN50155-compliant for railway and rolling-stock applications • Extends Ethernet communication via 100Base-FX single-mode fiber up to 30 km at 1310 nm • Rugged M12 D-coded Ethernet connector ensures vibration- and shock-resistant connections • Operating temperature range from -40 to 85 degrees Celsius • High-voltage dual AC power input: 100–240VAC • Supports auto-negotiation and auto-MDI/MDI-X on the LAN port • Selectable DIP-switch configurations for LFP, speed, duplex modes, and power failure alarms • LFP (Link Fault Pass-through) support for improved network diagnostic behavior • Store-and-forward switching architecture • IP-30 rated metal enclosure • Relay output for power-failure alarm event notification • Supports both DIN-rail and wall-mount installation • LED indicators for power, link/activity, duplex, fiber status, LFP, and fault conditions • Compatible with optional SFP modules (for P model), optional external power supplies, and various regional high-voltage versions

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

- **Industrial-grade design:** Fully compliant with IEC 61850-3 and IEEE 1613 for substation and railway applications. - **EN50155 compliance:** Suitable for rolling stock and railway communication systems. - **Rugged M12 connectors:** Ensures vibration-resistant and shockproof Ethernet connections. - **Wide operating temperature:** -40°C to +85°C for extreme environmental conditions. - **Dual redundant power inputs:** 12–48 VDC on terminal block plus 12–45 VDC on power jack for high reliability. - **Link Fault Pass-through (LFP):** Provides immediate link failure detection and system response. - **Auto MDI/MDI-X and auto-negotiation:** Simplifies network setup and cabling. - **Store-and-forward switching:** Guarantees reliable data transmission with error checking. - **Relay output for power failure alarm:** Enables external alerting systems for power loss events. - **Configurable DIP-switches:** Allows manual control of LFP, speed, duplex, and alarm settings. - **IP-30 metal enclosure:** Provides mechanical protection and EMI shielding. - **DIN-rail and wall-mount options:** Flexible installation for industrial cabinets or control panels. - **LED indicators:** Comprehensive status display for power, link, duplex, and fault conditions. - **High reliability:** Designed for continuous operation in mission-critical environments.

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

- **IEC 61850‑3 and IEEE 1613 compliance:** Designed for power automation and substation environments requiring high EMI immunity and reliability. - **EN50155‑compliant:** Suitable for railway and rolling stock applications. - **Ethernet‑to‑Fiber Conversion:** Converts one 10/100Base‑T(X) RJ‑45 port to one 100Base‑FX SFP port. - **Auto‑Negotiation and Auto‑MDI/MDI‑X:** Simplifies installation by automatically detecting cable type and speed. - **LFP (Link Fault Pass‑Through):** Provides immediate link failure notification, allowing network management systems to respond to link loss events. - **Store‑and‑Forward Switching:** Ensures reliable data transmission with error checking and buffering. - **Full/Half Duplex Support:** Configurable via DIP‑switch for both copper and fiber interfaces. - **Relay Output Alarm:** Provides hardware alarm output for power failure events. - **Wide Operating Temperature:** ‑40 °C to +85 °C for operation in extreme industrial conditions. - **Dual High‑Voltage Power Inputs:** Redundant 100–240 VAC inputs on an 8‑pin terminal block for uninterrupted operation. - **High Reliability Construction:** IP‑30 rated metal housing with vibration, shock, and free‑fall resistance per IEC 60068 standards. - **Flexible Mounting:** Supports both DIN‑rail and wall‑mount installation. - **Comprehensive LED Indicators:** Power, link/activity, duplex, LFP, and fault status LEDs for quick diagnostics. - **5‑Year Warranty:** Long‑term reliability backed by manufacturer support.

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

The IMC-P111P-LV includes the following primary capabilities and features: • Compliance with IEC 61850-3 and IEEE 1613 standards for electromagnetic immunity and reliability in substation automation systems. • Supports a single 10/100Base-T(X) Ethernet port with auto-negotiation and auto-MDI/MDI-X detection. • Includes one 100Base-FX SFP socket supporting a variety of SFP transceivers. • Supports Ethernet-to-fiber or Ethernet-to-SFP conversion for long-distance communication extension. • Link Fault Pass-through (LFP) capability; detects link failures and propagates signals for higher-layer fault response. • Supports full/half duplex operation on both copper and fiber interfaces. • Store-and-forward switching mechanism ensures error checking and reliable data flow. • Relay output for power failure alarm. • DIP-switch configuration for LFP mode, Ethernet speed, copper duplex mode, and fiber duplex mode. • Rugged IP-30 metal housing suitable for industrial use. • Designed for harsh environments with operating temperature from -40 to 70°C. • Supports wide DC voltage input (12–48 VDC) with triple redundant power sources. • DIN-rail and wall-mount installation options included. • LED indicators for Ethernet link/activity, speed, duplex, fiber link/activity, LFP status, fault status, and multiple power inputs. • Compliant with EN50155 Ethernet requirements for rolling stock applications. • High EMI/EMS immunity for long-term reliability.

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

Industrial Media Converter IEC-61850 1*100TX to 100FX, Smart grid IEC-61850-3 standard, SFP, extended -40°..85°C operating temperature, Dual high-voltage power input 100..240VAC, ~823gr, 54,2*106,1*145,4mm, Oring

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

Industrial Media Converter IEC-61850 1*100TX to 100FX, Smart grid IEC-61850-3 standard, SFP, extended -40°..85°C operating temperature, Dual low voltage power Input 12..48VDC, ~681gr, 54,2*106,1*145,4mm, Oring

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

The RDS‑P3000‑HV incorporates several advanced capabilities that support high‑availability networks: • IEC 61850‑3 certified industrial communication platform designed for electric power substations, smart grid deployments, and industrial control systems. • Media conversion between 1×100TX (Fast Ethernet over copper) and 100FX multimode fiber using an SC connector. • Modular rack‑mount chassis platform with 4×serial communication slots and 1×Ethernet interface slot, enabling multi‑protocol device server functionality. • Dual‑redundant wide‑range power input supporting 100–240 VAC and 100–370 VDC for high‑voltage industrial installations. • Extended operating temperature range of −40 °C to +70 °C for dependable operation in harsh industrial environments. • Rugged enclosure with industrial‑grade materials and design suitable for EMI‑intensive and vibration‑heavy settings typical of substations. • Rack‑mountable 360 × 440 × 43 mm mechanical form factor for integration into 19‑inch industrial cabinets. • Heavy‑duty construction with device weight of 6436 g, ensuring stability and durability in mission‑critical deployments. • Integrated industrial networking reliability through Oring technology (as referenced in the content), typically used for redundancy rings or fault‑tolerant network topologies.

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

• Industrial IEC 61850‑3 compliance ensures suitability for electrical substations and high‑interference environments. • Media conversion capability includes 1×100TX (copper Ethernet) to 100FX (fiber) using a single‑mode SC optical interface. • Part of a modular rack‑mount platform with four serial slots and one Ethernet slot, enabling flexible communication system design. • Supports dual 24–72 VDC power inputs (for the platform), ensuring power redundancy and resilience. • Low‑voltage 24 VDC operation for the media converter module. • Wide operational temperature specification from –40 to +70 °C for harsh‑environment deployment. • Ruggedized construction designed for shock, vibration, and electromagnetic resilience. • Large-format rack dimensions (360×440×43 mm) designed to fit industrial network chassis. • Total unit weight of 6436 g, contributing to structural stability in cabinet installations.

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

- **Four Independent Serial Ports:** Provides four configurable serial communication channels supporting RS-232, RS-422, or RS-485 standards. - **DB9 Connectors:** Each port uses a standard DB9 male connector for easy integration with industrial serial devices. - **Multi-Protocol Support:** Software-selectable communication modes allow flexible configuration per port, supporting mixed interface operation. - **High-Speed Data Transmission:** Supports baud rates up to 921.6 kbps (RS-232) and up to 3 Mbps (RS-422/485), ensuring fast and reliable data exchange. - **Industrial-Grade Design:** Built for rugged environments with extended temperature tolerance, vibration resistance, and EMI shielding. - **Plug-in Module for RDS-P3000:** Designed as a direct expansion module for the RDS-P3000 system, ensuring seamless mechanical and electrical integration. - **Isolation and Protection:** Incorporates surge protection, ESD protection (±15 kV air discharge), and isolation between channels to prevent signal interference. - **Flexible Configuration:** Each port can be independently configured via system BIOS or software utility for RS-232, RS-422, or RS-485 operation. - **Compact Form Factor:** Optimized for space-constrained installations within the RDS-P3000 chassis. - **LED Indicators:** Status LEDs for each port provide visual feedback for power and data transmission activity.
