- **Four Independent Serial Ports:** Supports four separate communication channels, each individually configurable for RS-232, RS-422, or RS-485 operation. - **RJ48 Interface:** Utilizes RJ48 connectors for secure, standardized serial communication connections, ensuring robust signal integrity and simplified cabling. - **Multi-Protocol Support:** Compatible with standard asynchronous serial communication protocols, including Modbus RTU, ASCII, and other custom serial protocols. - **Flexible Configuration:** Each port can be independently set for different baud rates, parity, stop bits, and data bits, allowing mixed communication modes within a single module. - **High-Speed Data Transmission:** Supports baud rates up to 921.6 kbps (depending on configuration and host system capabilities). - **Industrial-Grade Design:** Engineered for continuous operation in demanding industrial environments, with extended temperature tolerance and vibration resistance. - **Hot-Swappable Module:** Designed for easy installation and replacement within the RDS-P3000 chassis without requiring system shutdown. - **Compact Form Factor:** Optimized for space-constrained control cabinets and modular system architectures. - **LED Status Indicators:** Each port includes transmit (TX) and receive (RX) activity LEDs for real-time communication monitoring. - **Isolation and Protection:** Built-in electrical isolation between ports and the system bus to prevent ground loops and protect against transient voltages.

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

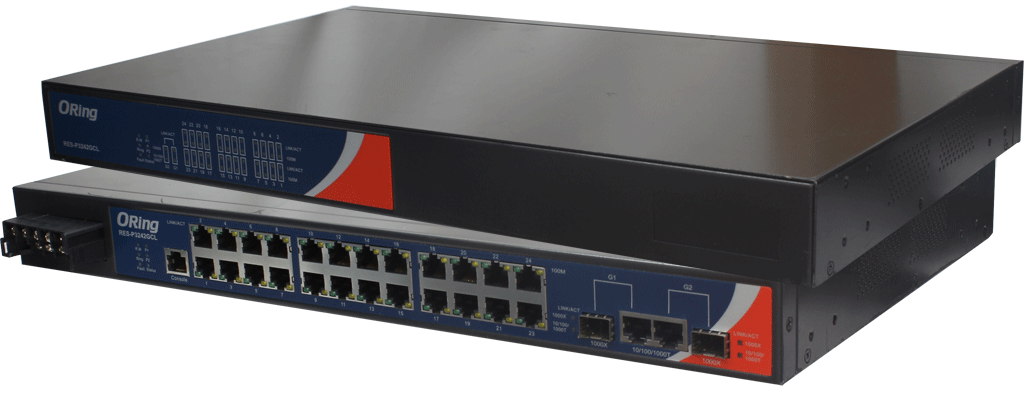

- **High‑Reliability Industrial Design:** Built for mission‑critical environments such as power substations, rolling stock, and smart grid systems. Fully compliant with IEC 61850‑3, IEEE 1613, and EN 50155 railway standards. - **Port Configuration:** 24 × 10/100Base‑T(X) RJ‑45 auto‑negotiation ports plus 2 × 100Base‑FX multimode SC fiber ports. RS‑232 serial console port for local management. - **Redundant Ethernet Ring Technology:** ORing’s proprietary **O‑Ring** redundancy provides recovery time 

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

- **High‑Density Industrial Ethernet:** 26 total ports – 24 × 10/100Base‑T(X) copper and 2 × 100Base‑FX multimode SC fiber interfaces. - **Redundant Power Inputs:** Dual 12–36 VDC isolated inputs ensure continuous operation; overload protection included. - **Ultra‑Fast Redundancy:** Proprietary **O‑Ring** technology provides recovery time

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

- **Industrial-Grade Managed Switch:** 26-port managed Ethernet switch with 24×10/100Base-TX RJ-45 ports and 2×100FX SS single-mode SC fiber ports. - **High Reliability:** Complies with IEC 61850-3 and IEEE 1613 for substation automation and EN50155 for railway applications. - **Redundant Power Inputs:** Dual 88–300VDC / 100–240VAC power inputs ensure continuous operation. - **Wide Operating Temperature:** -40°C to +70°C (extended up to +85°C for some models) for extreme environments. - **Fast Recovery Redundancy:** O-Ring technology with recovery time

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

- **High‑Density Industrial Switch:** 26‑port managed Ethernet switch with 24 × 10/100Base‑T(X) RJ‑45 ports and 2 × 100Base‑FX single‑mode SC fiber ports. - **Advanced Redundancy:** Supports ORing’s proprietary **O‑Ring** technology with recovery time

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

- **Industrial‑grade design:** Compliant with IEC 61850‑3 and IEEE 1613 for substation automation and EN50155 for railway applications. - **High port density:** 26 ports total – 24 × 10/100Base‑T(X) + 2 × Gigabit combo (RJ‑45/SFP). - **Ultra‑fast redundancy:** Proprietary **O‑Ring** technology with recovery 

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

Industrial Rack Mount Managed 26*Ethernet Port Switch, 24*10/100TX and 2*1000FX SFP combo ports, RS232 Serial Console Port, Smart Grid IEC-61850-3 standard, railway standard EN50155, IEEE 1613, extended -40°..70°C operating temperature, Dual Input Power 12..36VDC, ~3.890gr, Oring

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

- **Industrial‑grade Managed Switch:** 26‑port rack‑mount switch with 24 × Fast Ethernet and 2 × Gigabit Ethernet combo fiber ports. - **High Reliability:** Fully compliant with **IEC 61850‑3** and **IEEE 1613** for power automation and substation environments. - **Railway‑grade Compliance:** Meets **EN50155** and **EN50121‑4** standards for rolling‑stock and transportation systems. - **Redundant Ethernet Ring:** Proprietary **O‑Ring** technology with recovery time 

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

- **High‑density port configuration:** 24 × 10/100Base‑T(X) RJ‑45 ports (auto‑negotiation, auto‑MDI/MDI‑X) 2 × 1000Base‑X multimode SC fiber ports (850 nm, 50/125 µm or 62.5/125 µm fiber, up to 550 m) 1 × RS‑232 serial console port (9600 bps, 8N1) - **Industrial‑grade design:** Fully compliant with IEC 61850‑3 and IEEE 1613 for power automation and substation environments. EN50155‑certified for railway applications. Operating temperature –40 °C to +85 °C; humidity 5–95 % non‑condensing. - **Redundant Ethernet ring technology:** ORing proprietary redundancy with recovery 

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

- **High‑Density Industrial Switching:** 26 total Ethernet interfaces — 24×10/100Base‑T(X) copper ports plus 2×1000Base‑X fiber ports (single‑mode SC). - **Advanced Redundancy:** - **O‑Ring** technology with recovery time 

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

- **High‑Density Industrial Ethernet:** 24 × 10/100Base‑T(X) RJ‑45 ports with auto‑negotiation and auto‑MDI/MDI‑X, plus 2 × 1000Base‑X SC single‑mode fiber ports for long‑distance backbone connectivity. - **Advanced Redundancy:** Incorporates ORing’s proprietary **O‑Ring** technology with recovery time 

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

- **Industrial-grade design:** Engineered for power substation and utility automation environments, compliant with **IEC 61850-3** and **IEEE 1613** for electromagnetic compatibility and environmental resilience. - **High port density:** 26 total ports – 24x 10/100Base-T(X) RJ45 ports and 2x Gigabit combo ports (RJ45/SFP). - **Redundant network architecture:** - **O-Ring** technology with recovery time

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

- **Industrial-grade design:** Fully compliant with **IEC 61850-3** and **IEEE 1613**, ensuring suitability for power substation and utility automation environments. - **High port density:** 26 total ports – 24x 10/100Base-T(X) RJ45 and 2x Gigabit combo ports supporting both copper and SFP fiber modules. - **Redundant network technologies:** - **O-Ring** redundancy with recovery time

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

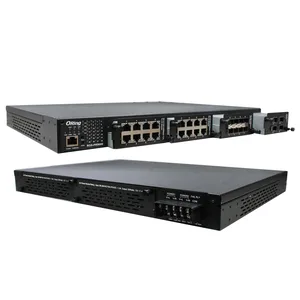

- **Industrial-Grade Design:** Compliant with IEC 61850-3 and IEEE 1613 for substation and railway environments. - **Modular Architecture:** Four-slot rack-mount design supporting up to 3 × 8-port 1G modules and 1 × 4-port 10G SFP+ module. - **High Port Density:** Up to 28 Ethernet ports (RJ-45, SFP, or 10G SFP+). - **Redundant Power Inputs:** Dual 88–264 VAC / 100–370 VDC inputs with automatic failover. - **High Reliability:** O-Ring redundancy with recovery time

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

- **Industrial-Grade Design:** Fully compliant with IEC 61850-3 and IEEE 1613 for substation and railway applications. - **Modular Architecture:** Four-slot rack-mount design supporting up to three 8-port Gigabit modules and one 4-port 10G SFP+ module. - **High Port Density:** Up to 28 ports (24 Gigabit + 4 10G SFP+). - **Redundant Power Inputs:** Dual 24/48VDC (20–72VDC) power inputs with overload protection and redundant modular design. - **High Reliability:** O-Ring redundancy technology with recovery time

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

The switch integrates high‑port‑density Gigabit Ethernet connectivity and modular flexibility into a compact rack‑mount enclosure. Its principal features include: • Sixteen 10/100/1000TX copper Ethernet ports for high‑speed data transfer and deterministic industrial networking. • One modular slot enabling customization through optional expansion modules such as fiber optics or additional copper interfaces. • Industrial‑grade managed-switch capabilities including VLAN support, QoS management, SNMP‑based monitoring, network redundancy, traffic shaping, and comprehensive security configurations. • Compliance with IEC‑61850‑3 and IEEE 1613, ensuring high EMC/EMI immunity for electrical substations and environments exposed to high‑energy transients. • High‑voltage dual power input providing wide‑range AC and DC support: 100 to 240 VAC and 100 to 370 VDC. • Extended operating temperature from –40°C to +85°C, enabling reliable operation in severe climate and industrial conditions. • RS232 serial console port for out‑of‑band management and low‑level configuration. • Robust mechanical construction with rack‑mount form factor for integration into control cabinets and 19‑inch racks. • Designed for mission‑critical uptime with redundant power, industrial firmware, and protective features suitable for utility and energy‑sector deployments.

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

- **High Port Density:** 20 Gigabit Ethernet ports, including 16 × 10/100/1000TX RJ45 ports and one modular slot for additional interface modules (e.g., fiber, SFP, or uplink modules). - **Industrial-Grade Design:** Fully compliant with **IEC 61850-3** and **IEEE 1613**, ensuring reliable operation in high EMI environments such as electrical substations. - **Wide Operating Temperature:** Designed for extreme conditions, supporting continuous operation from **-40°C to +85°C** without performance degradation. - **Redundant Power Inputs:** Dual DC power inputs (36–72VDC) with **ORing** function for power redundancy and uninterrupted operation. - **Managed Switch Capabilities:** Supports Layer 2 managed switch functions including VLANs, QoS, IGMP snooping, port trunking, and network redundancy protocols (e.g., RSTP, MSTP, ERPS). - **Serial Console Port:** Integrated **RS-232 serial console port** for local management, configuration, and diagnostics. - **Modular Expansion Slot:** One modular slot allows flexible network expansion with optional modules (e.g., additional Gigabit ports, fiber uplinks, or PoE modules). - **Rugged Construction:** Industrial-grade metal housing with rack-mount form factor for secure installation in control cabinets or network racks. - **High Reliability:** Designed for continuous operation in mission-critical systems with low MTBF and high EMI/EMC immunity. - **Compact Rack-Mount Form Factor:** Standard 1U height (44 mm) for easy integration into 19-inch rack systems.

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

- **IEC 61850-3 and IEEE 1613 Compliance:** Designed specifically for power substation and industrial automation applications, ensuring electromagnetic immunity and environmental resilience. - **High Port Density:** 16 Gigabit combo ports plus one modular slot for additional Ethernet or fiber modules. - **Redundant Network Topologies:** - **O-Ring** technology with recovery time

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

- **Industrial-Grade Design:** Built to meet IEC 61850-3 and IEEE 1613 standards for power substation environments, ensuring electromagnetic immunity, vibration resistance, and extended temperature operation. - **High Port Density:** 16 Gigabit combo ports plus one modular slot for additional Ethernet or fiber modules. - **Redundant Network Architecture:** - **O-Ring** technology with recovery time

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

• IEC 61850‑3 / IEEE 1613‑compliant for substation‑grade EMC performance • Modular chassis with **3 slots** supporting up to **24× 10/100/1000Base‑T(X)** or **100/1000Base‑X SFP** ports • Optional **4× 10G Base‑X SFP+** uplinks (depending on model variant) • Advanced Layer 3 routing: IPv4/IPv6 static routing, RIP v1/v2, OSPF, BGP, DVMRP, PIM‑SM/DM, VRRP • Full redundancy suite: **O‑Ring (

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

Industrial Layer 3 IEC-61850-3 Managed up to 28*Ports Switch, Smart Grid IEC-61850-3 standard jumbo frames 9,6kB, rack mounting 1U, ESD 4kV DC Ethernet ports, surge 2000VDC power, dual 24VDC/48VDC (20..72) power input ~46W, extended -40°..85°C operating temperature, Oring

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

Industrial Layer 3 IEC-61850-3 Managed up to 28*Ports Switch, Smart Grid IEC-61850-3 standard jumbo frames 9,6kB, rack mounting 1U, ESD 4kV DC Ethernet ports, surge 2000VDC power, dual 88..264VAC power input ~43,5W, extended -40°..85°C operating temperature, Oring

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

- **Layer 3 Managed Switching:** Supports static routing, RIP, and VRRP for network segmentation and redundancy. - **IEC 61850‑3 / IEEE 1613 Compliance:** Ensures reliable operation in high‑EMI substation and rolling‑stock environments. - **Modular Architecture:** Four slots—three for 8‑port 1 GbE modules (RJ‑45 or SFP) and one for 2/4‑port 10 GbE SFP+ module—allow flexible port configurations. - **High Availability:** - ORing proprietary redundancy (

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

The SWM‑02GP+ module adds high‑speed optical uplink capacity to the RGS‑9000 platform. Key functional attributes include: • Two 10‑Gigabit SFP+ fiber ports, suitable for long‑distance, high‑bandwidth communication across industrial, substation, and railway networks. • Fully compliant with IEC 61850‑3 and IEEE 1613 environmental and electromagnetic standards for power automation systems. • Designed for use in industrial-grade environments with extended operating temperature ranges to ensure reliability under harsh conditions. • Supports ORing’s modular concept, enabling up to one 10G SFP+ module in slot 4 of the RGS‑9000 chassis. • Hot‑swappable when the chassis is powered off (installation requires powering down per RGS‑9000 standard module installation procedure). • Compatible with fiber SFP+ modules using LC connectors, including both multimode and single‑mode fiber options, depending on the user's selected SFP+. • Optimized for high‑availability architectures requiring redundant ring topologies, especially those using O‑Ring, O‑Chain, Open‑Ring, or MSTP redundancy. • Integrates with the RGS‑9000 management environment, supporting monitoring, diagnostics, and DDM (Digital Diagnostic Monitoring, provided the SFP+ transceiver supports it). • Suited for mission‑critical applications requiring low latency, high throughput, and hardened EMI/EMC performance.

Hersteller: Oring

Kategorie: Smart Grid IEC-61850

2*10G Fiber SFP+ Module IEC-61850-3, extended -40°..70°C operating temperature, Oring

Hersteller: Oring

Kategorie: Smart Grid IEC-61850
