Comprehensive Product Summary: AHM-6051 5.7" RISC-based Human Machine Interface

---

### 1. Product Overview

Product Name: AHM-6051
Model Number: AHM-6051

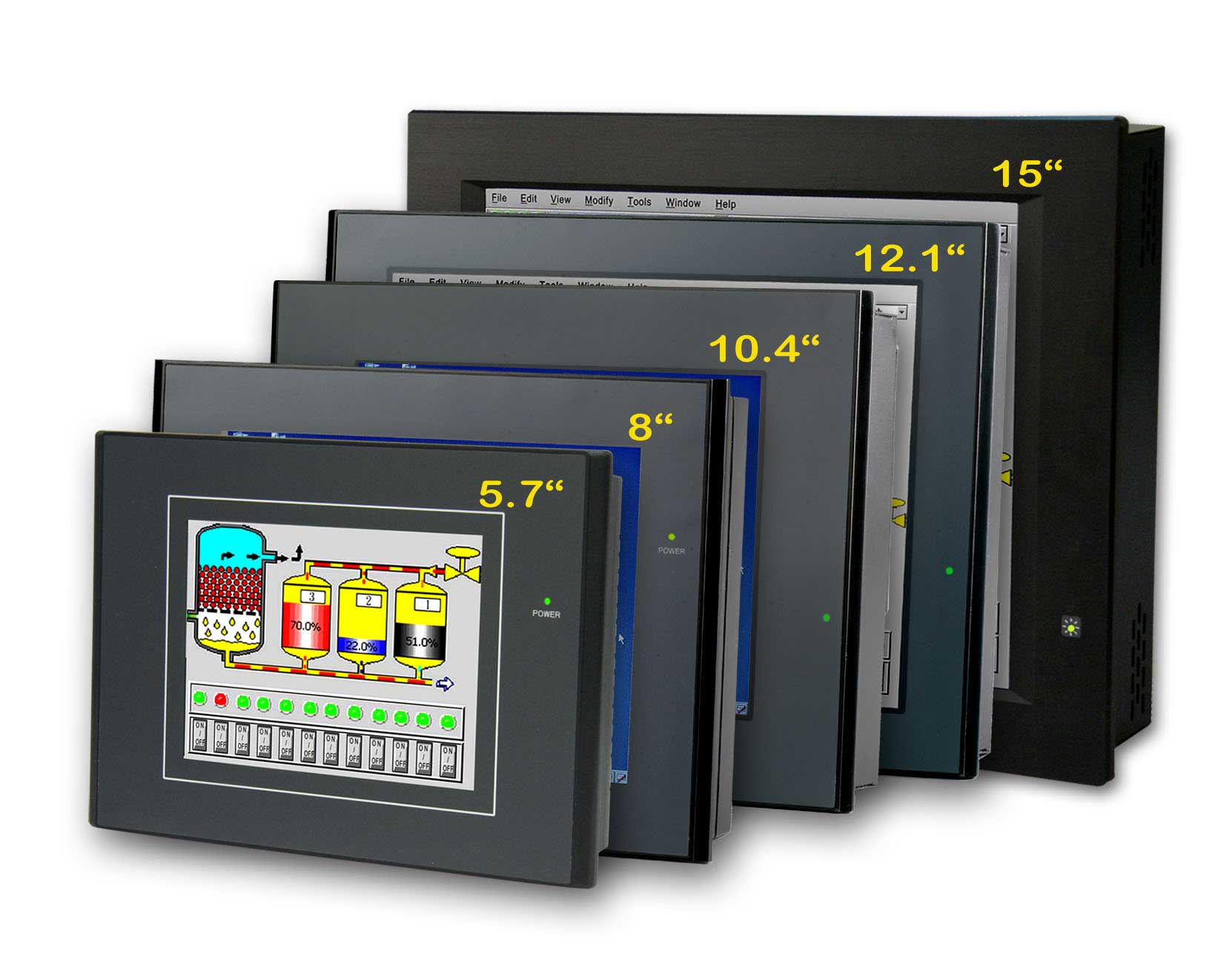

Series: AHM Series – RISC-based Human Machine Interfaces
Article Number: AHM-6051
Manufacturer: Aplex Technology Inc.

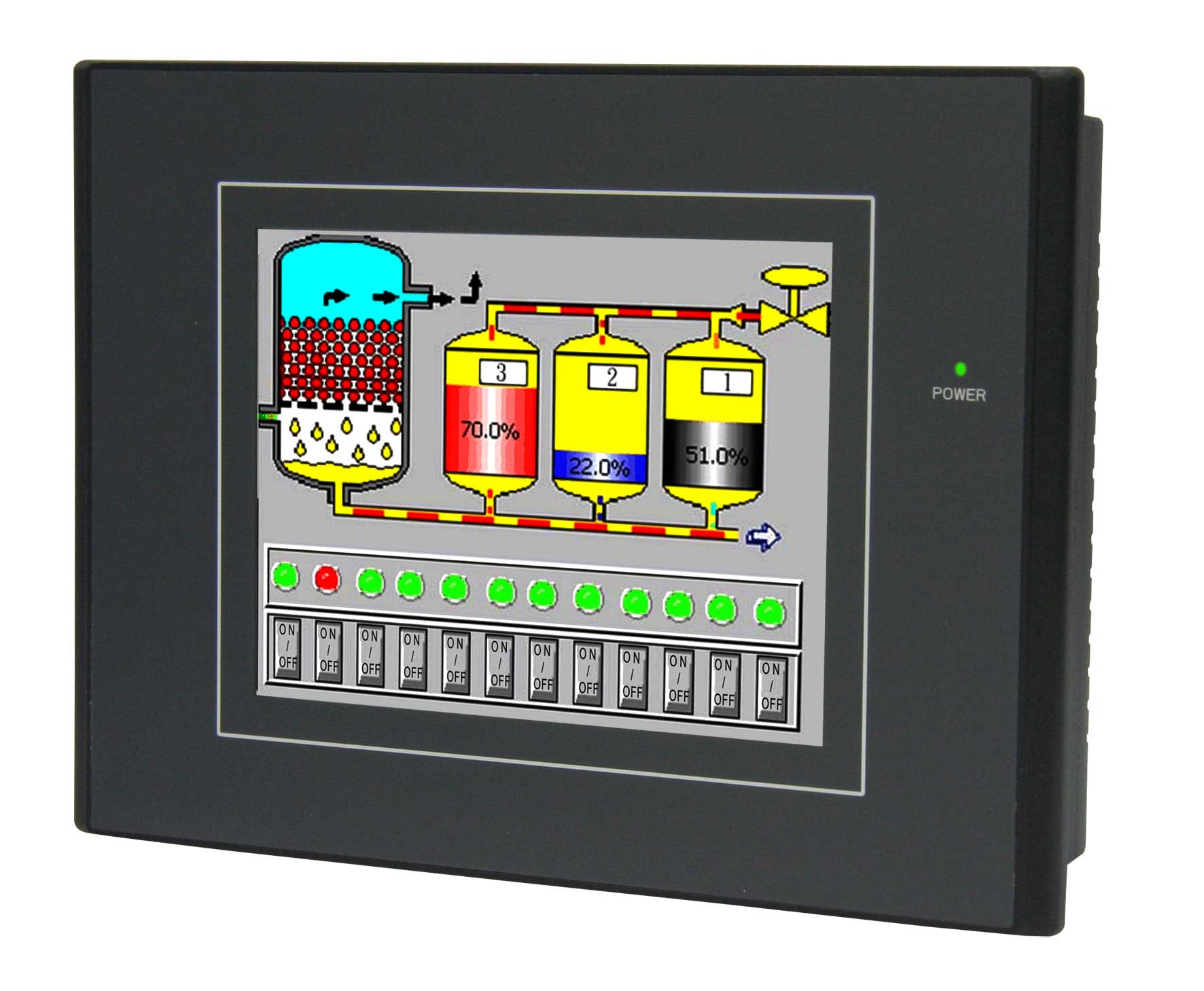

The AHM-6051 is a compact, industrial-grade Human Machine Interface (HMI) designed for embedded control, monitoring, and automation applications. Featuring a 5.7-inch display and powered by a Samsung ARM 2410 RISC processor, this HMI provides a reliable and efficient platform for industrial environments requiring stable performance, low power consumption, and robust connectivity. The unit integrates a resistive touch screen, multiple communication interfaces, and a ruggedized housing suitable for panel mounting in harsh industrial conditions.

---

### 2. Key Features

- RISC-based Architecture: Equipped with a Samsung ARM 2410 processor, the AHM-6051 delivers efficient processing performance optimized for embedded HMI applications.
- Compact 5.7-inch Display: The 5.7-inch screen provides a clear and responsive interface for operator control and monitoring tasks.
- Resistive Touch Technology: Utilizes a 4-wire analog resistive touch panel, ensuring reliable input recognition even when operated with gloves or styluses—ideal for industrial environments.
- Integrated Memory: Includes 32 MB of DRAM and 32 MB of onboard Flash memory for system operation, data storage, and application execution.
- Multiple Communication Interfaces: Offers versatile connectivity with RS-232, RS-422/485 serial ports, USB 1.1 host and client ports, and a 10 Mbps Ethernet (RJ-45) interface.
- Industrial Power Input: Operates on a stable 24 VDC power supply, suitable for industrial control panels and automation systems.
- Rugged Construction: Features a black plastic molding housing with a NEMA 4 / IP65 compliant front bezel, providing protection against dust, moisture, and industrial contaminants.
- Environmental Durability: Designed to operate in temperatures from 0°C to 50°C and withstand storage conditions from -20°C to 70°C.
- Regulatory Compliance: Meets CE and FCC Class A standards for electromagnetic compatibility and safety.
- Operating System Support: Runs Windows CE 4.2, providing a stable embedded operating environment for industrial HMI applications.

---

### 3. Technical Specifications

Display & Interface:
- Display Size: 5.7 inches
- Touch Screen Type: 4-wire analog resistive
- Display Type: TFT LCD (not explicitly stated but typical for this class)
- Input Method: Touch-based user interface

Processor & Memory:
- CPU: Samsung ARM 2410 RISC processor
- DRAM: 32 MB
- Flash Memory: 32 MB onboard

Power Requirements:
- Input Voltage: 24 VDC nominal

I/O Interfaces:
- Serial Ports:
- COM1: RS-232
- COM2: RS-422/485 (configurable)
- USB Ports:
- 1 × USB 1.1 Client
- 1 × USB 1.1 Host
- Ethernet:
- 1 × RJ-45 port (10 Mbps Base-T)

Physical Characteristics:
- Dimensions (W × H × D): 204 × 149 × 46 mm
- Cut-out Dimensions: 190 × 135 mm
- Weight: Approximately 1.0 kg
- Housing Material: Plastic molding
- Front Panel Color: Black

Environmental Specifications:
- Operating Temperature: 0°C to 50°C
- Storage Temperature: -20°C to 70°C
- Relative Humidity: 10% to 90% @ 50°C, non-condensing
- Vibration Resistance:
- 5–17 Hz, 0.1" double amplitude displacement
- 17–640 Hz, 1.5 G acceleration peak-to-peak
- Shock Resistance:
- 10–25 Hz, 2 G in X, Y, Z directions for 30 minutes
- Protection Rating: NEMA 4 / IP65 compliant front bezel

Certifications:
- CE Certified
- FCC Class A Compliant

Mounting:
- Panel Mount

Operating System:
- Windows CE 4.2 (supported only)

---

### 4. Functionality

The AHM-6051 functions as a Human Machine Interface (HMI) for industrial automation systems, providing a graphical interface between operators and machinery or control systems. It enables real-time monitoring, control, and data visualization in manufacturing, process control, and embedded system environments.

How It Works:
The device operates as a front-end interface connected to programmable logic controllers (PLCs), sensors, or industrial networks. Through its resistive touch screen, users can input commands, adjust parameters, and monitor system status. The ARM-based processor executes HMI applications under Windows CE 4.2, ensuring responsive performance and compatibility with industrial software frameworks.

Use Cases & Applications:
- Factory automation and process control panels
- Embedded control systems in machinery
- Building management and HVAC control interfaces
- Energy management and monitoring systems
- Transportation and logistics control terminals
- OEM equipment requiring integrated operator interfaces

Compatibility:
The AHM-6051 supports standard industrial communication protocols via RS-232 and RS-422/485 interfaces, allowing integration with a wide range of PLCs, sensors, and controllers. The Ethernet port enables network connectivity for remote monitoring or data exchange, while USB ports support peripheral devices such as storage drives or configuration tools.

---

### 5. Components & Accessories

Included Components:
- AHM-6051 main unit
- Panel mounting hardware (brackets, screws)
- User manual and installation guide
- Power connector terminal block

Optional Accessories (depending on configuration):
- Communication cables (RS-232, RS-485, Ethernet)
- USB peripheral devices (keyboard, mouse, storage)
- Protective front overlays or screen protectors
- Power supply adapters (24 VDC regulated)

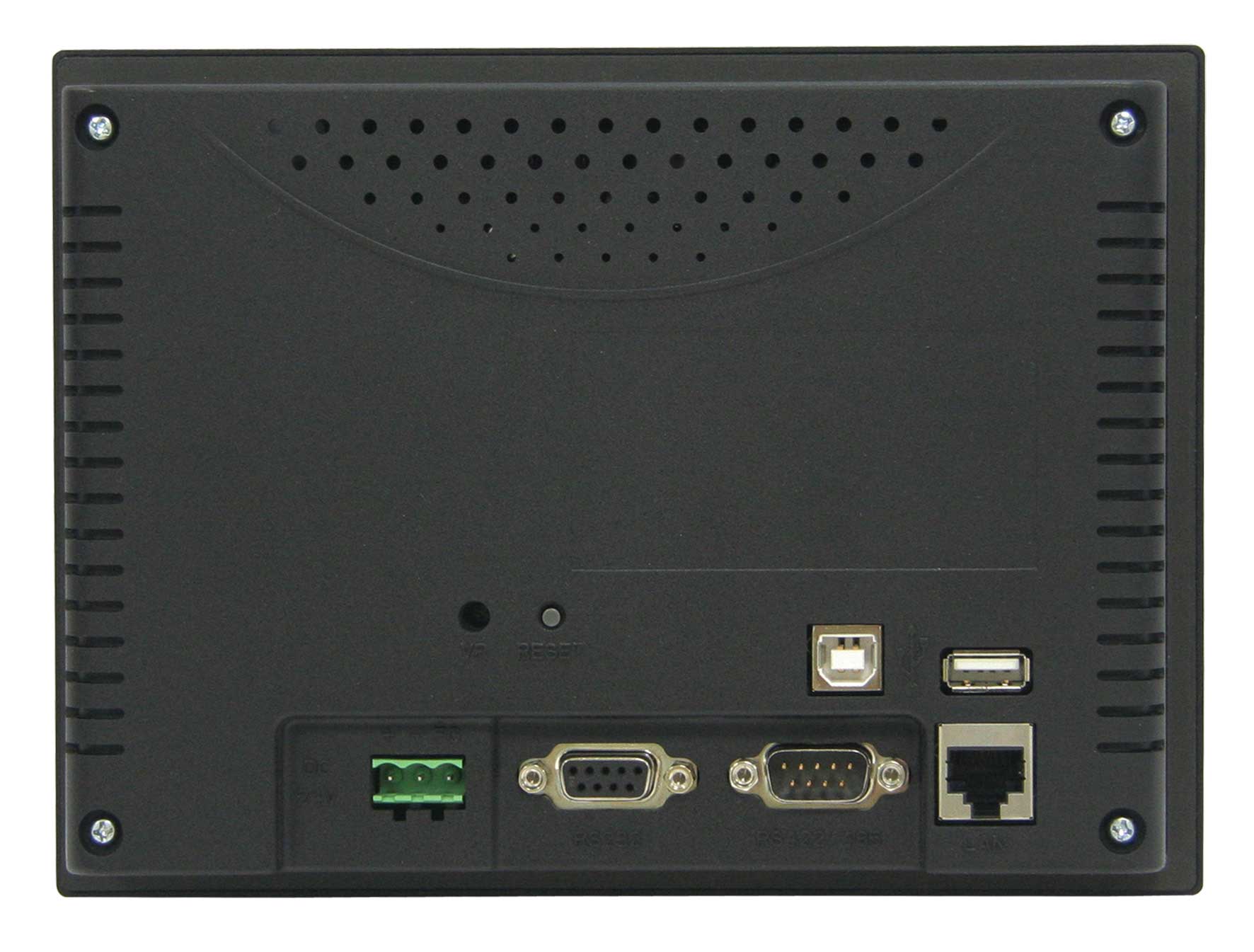

Connectors:
- COM1: DB9 connector for RS-232
- COM2: Terminal block or DB9 for RS-422/485
- Ethernet: RJ-45 connector (10 Mbps Base-T)
- USB: Standard USB Type-A (Host) and Mini-B (Client) connectors
- Power Input: Terminal block for 24 VDC supply

---

### 6. Installation & Setup

Installation Requirements:
- Power Supply: 24 VDC regulated source
- Panel Cut-out: 190 × 135 mm
- Mounting Depth: Minimum 46 mm clearance behind panel
- Environmental Conditions: 0–50°C operating temperature, non-condensing humidity

Mounting Options:
- Panel Mounting: The AHM-6051 is designed for flush installation into control panels or enclosures. The front bezel provides IP65 protection when properly mounted, ensuring resistance to dust and water ingress.
- Orientation: Typically installed in landscape orientation for optimal display readability.

Configuration:
- Initial setup is performed via the Windows CE 4.2 interface.
- Communication ports can be configured for RS-232 or RS-422/485 operation depending on the connected device.
- Network settings (IP address, subnet mask, gateway) are adjustable through the system control panel.
- USB ports can be used for firmware updates, data transfer, or peripheral connection.

---

### 7. Performance & Capabilities

Processing Performance:
The Samsung ARM 2410 RISC processor provides efficient, low-power computing suitable for real-time HMI applications. Combined with 32 MB of DRAM, it supports responsive graphical interfaces and stable multitasking under Windows CE 4.2.

Memory & Storage:
The 32 MB onboard Flash memory allows for storage of operating system files, application data, and configuration parameters. Additional data can be transferred via USB or network interfaces.

Communication Performance:
- Serial Communication: Supports standard baud rates and protocols for industrial devices.
- Ethernet Networking: 10 Mbps Base-T connection for local area network integration.
- USB Connectivity: Enables data exchange and peripheral support through USB 1.1 host/client interfaces.

Efficiency & Reliability:
The RISC architecture ensures low power consumption and minimal heat generation, contributing to long-term reliability in continuous operation. The ruggedized design and vibration/shock resistance make it suitable for demanding industrial environments.

Limitations:
- Limited to Windows CE 4.2 operating system (no support for newer OS versions).
- 10 Mbps Ethernet speed may be restrictive for high-bandwidth applications.
- Display size (5.7") may limit complex graphical interfaces.

---

### 8. Standards & Compliance

Protection Standards:
- NEMA 4 / IP65 Front Bezel: Ensures protection against dust, water jets, and industrial contaminants when properly installed.

Regulatory Compliance:
- CE Certification: Conforms to European safety, health, and environmental protection standards.
- FCC Class A Compliance: Meets U.S. Federal Communications Commission standards for electromagnetic interference in industrial environments.

Environmental & Mechanical Standards:
- Designed to withstand vibration and shock conditions typical of industrial installations.
- Complies with general industrial-grade durability and reliability requirements.

---

### 9. Additional Information

Warranty:
Typically covered by Aplex’s standard industrial product warranty (duration varies by region and distributor). The warranty covers manufacturing defects and hardware failures under normal operating conditions.

Technical Support:
Aplex provides technical documentation, driver downloads, and firmware updates through its official support channels. Assistance is available for configuration, integration, and troubleshooting.

Maintenance:
- Regular cleaning of the front panel with non-abrasive materials is recommended.
- Ensure proper ventilation and avoid exposure to excessive moisture or direct sunlight.
- Periodic inspection of connectors and mounting hardware is advised to maintain reliable operation.

Software & Updates:
- Operating system: Windows CE 4.2 (fixed support).
- Application software can be developed or deployed using standard Windows CE development tools.
- Firmware updates, if available, can be applied via USB or network interface.

Lifecycle & Reliability:
The AHM-6051 is designed for long-term industrial deployment, offering stable performance and extended operational life. Its solid-state design, absence of moving parts, and robust housing contribute to high mean time between failures (MTBF).

---

### Summary

The Aplex AHM-6051 is a 5.7-inch RISC-based Human Machine Interface engineered for industrial automation and embedded control applications. With its Samsung ARM 2410 processor, 32 MB memory, and 32 MB Flash storage, it provides a reliable and efficient platform for real-time monitoring and control. The resistive touch screen, multiple communication interfaces (RS-232, RS-422/485, USB, Ethernet), and 24 VDC power input make it versatile for integration into diverse industrial systems.

Its rugged plastic housing, IP65/NEMA 4 front bezel, and wide environmental tolerance ensure dependable operation in harsh conditions. Compliance with CE and FCC Class A standards further validates its suitability for industrial environments. Supporting Windows CE 4.2, the AHM-6051 offers a stable embedded operating environment for HMI applications, making it an ideal choice for OEMs, system integrators, and automation engineers seeking a compact, durable, and cost-effective interface solution.
