Comprehensive Product Summary – AHM-6104 Industrial Fanless Touch Panel Computer
### 1. Product Overview
Product Name: AHM-6104 Industrial Fanless Touch Panel Computer
Model Number: AHM-6104
Series: AHM Industrial Panel PC Series
Article Number: AHM-6104
Manufacturer: Aplex Technology Inc.
The AHM-6104 is a rugged, industrial-grade fanless touch panel computer designed for demanding automation, control, and monitoring environments. It integrates a 10.4-inch SVGA display with resistive touch technology, a VIA Eden processor, and a robust metal housing suitable for harsh industrial conditions. Engineered for reliability, the AHM-6104 combines compact design, low power consumption, and versatile I/O connectivity, making it ideal for embedded control systems, factory automation, and HMI (Human-Machine Interface) applications.
### 2. Key Features
- 10.4-inch SVGA Display:
High-quality 10.4" TFT LCD panel with 800×600 resolution, providing clear and sharp image output suitable for industrial visualization tasks.
- Fanless Architecture:
Passive cooling design eliminates moving parts, reducing maintenance requirements and enhancing system reliability in dusty or vibration-prone environments.
- VIA Eden Processor:
Equipped with a VIA Eden CPU running at 400 MHz (optional 733 MHz), optimized for low power consumption and stable performance in embedded applications.
- Expandable Memory:
256 MB SDRAM standard, expandable up to 512 MB, supporting efficient multitasking for industrial control software.
- Flexible Storage Options:
Supports one CompactFlash (CF) card slot and space for a 2.5" HDD, allowing both solid-state and mechanical storage configurations.
- Comprehensive I/O Connectivity:
Includes dual COM ports (RS-232 and RS-232/422/485), dual USB 1.1 ports, one 10/100 Base-T LAN port, one parallel port, stereo audio I/O, and PS/2 keyboard/mouse interface.
- Rugged Construction:
Plastic molding front panel with a black alloy bezel and metal housing ensures durability and protection against mechanical stress.
- Wide Power Input Range:
Operates on 11–28 VDC input voltage, supporting flexible power configurations in industrial environments.
- Environmental Resilience:
Designed for operation in temperatures from 0°C to 50°C and storage from 0°C to 60°C, with high humidity tolerance and vibration/shock resistance.
- Mounting Flexibility:
Supports both panel mounting and VESA 75 standard mounting options for versatile installation.
- Industrial Protection:
Front bezel rated NEMA 4 / IP65 for dust and water resistance, ensuring reliable operation in harsh industrial settings.
- Regulatory Compliance:
Meets CE and FCC Class A standards for electromagnetic compatibility and safety.
### 3. Technical Specifications
Display:
- Size: 10.4 inches (diagonal)
- Type: TFT LCD
- Resolution: 800 × 600 (SVGA)
- Brightness: 400 cd/m²
- Viewing Angle: 130° (typical)
- Backlight Lifetime: 40,000 hours (typical)
Processor (CPU):
- VIA Eden 400 MHz (optional 733 MHz)
Memory (DRAM):
- 256 MB SDRAM standard
- Expandable up to 512 MB

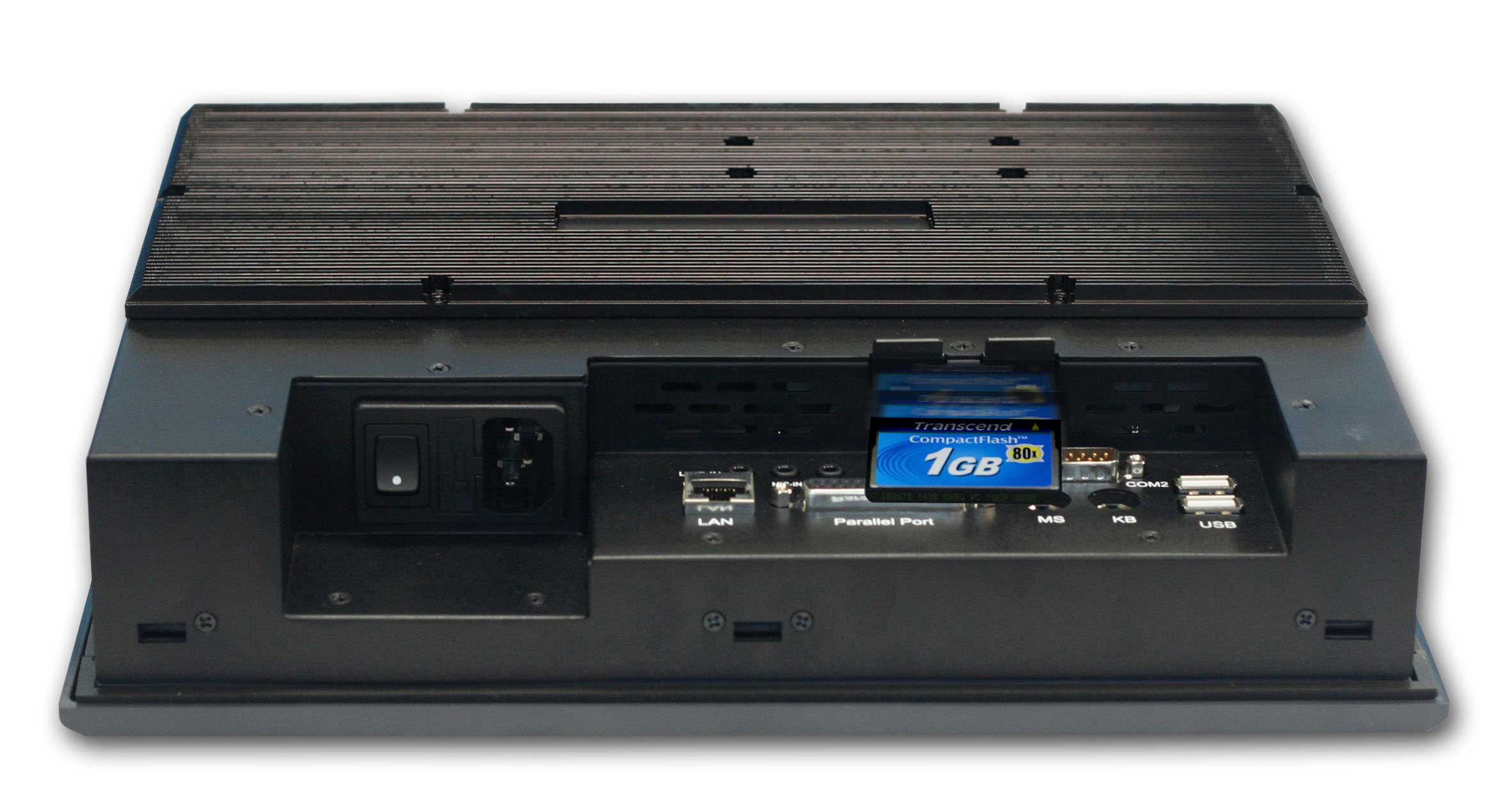

Storage:
- 1 × CompactFlash (CF) card slot
- Space for 1 × 2.5" HDD
Touch Screen:
- 4-wire analog resistive type
- Durable and responsive for industrial HMI applications
Power Input:
- 11–28 VDC (typical operation)
- AC 100–240 V adapter supported (depending on configuration)

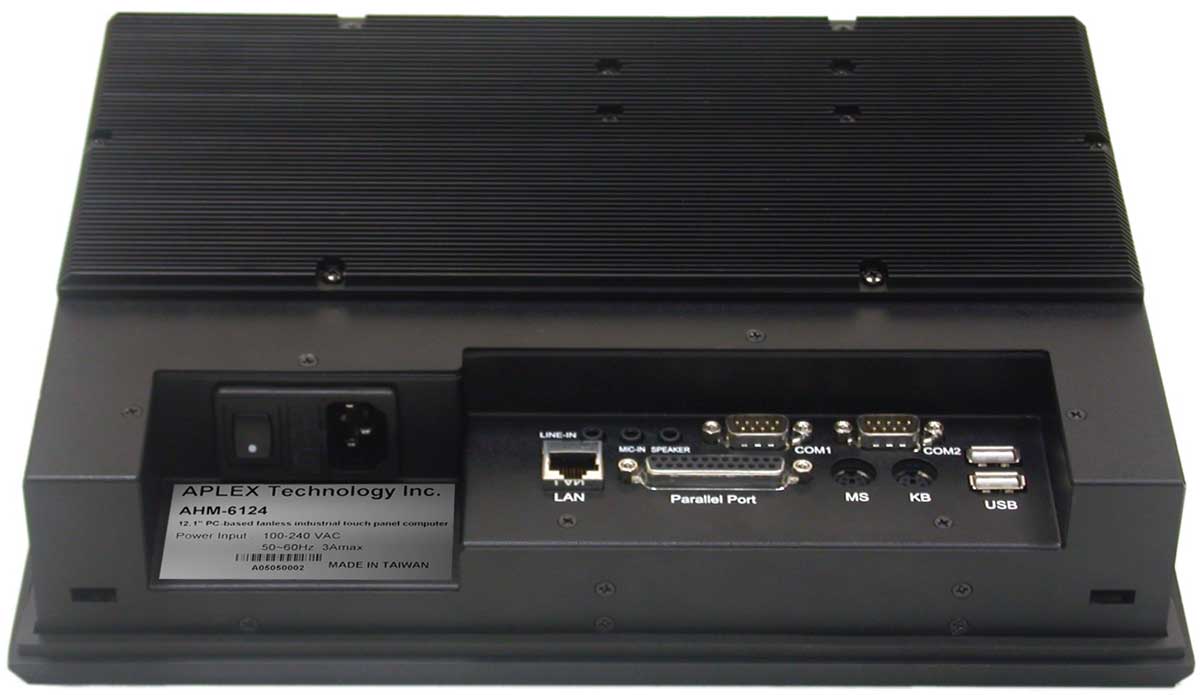

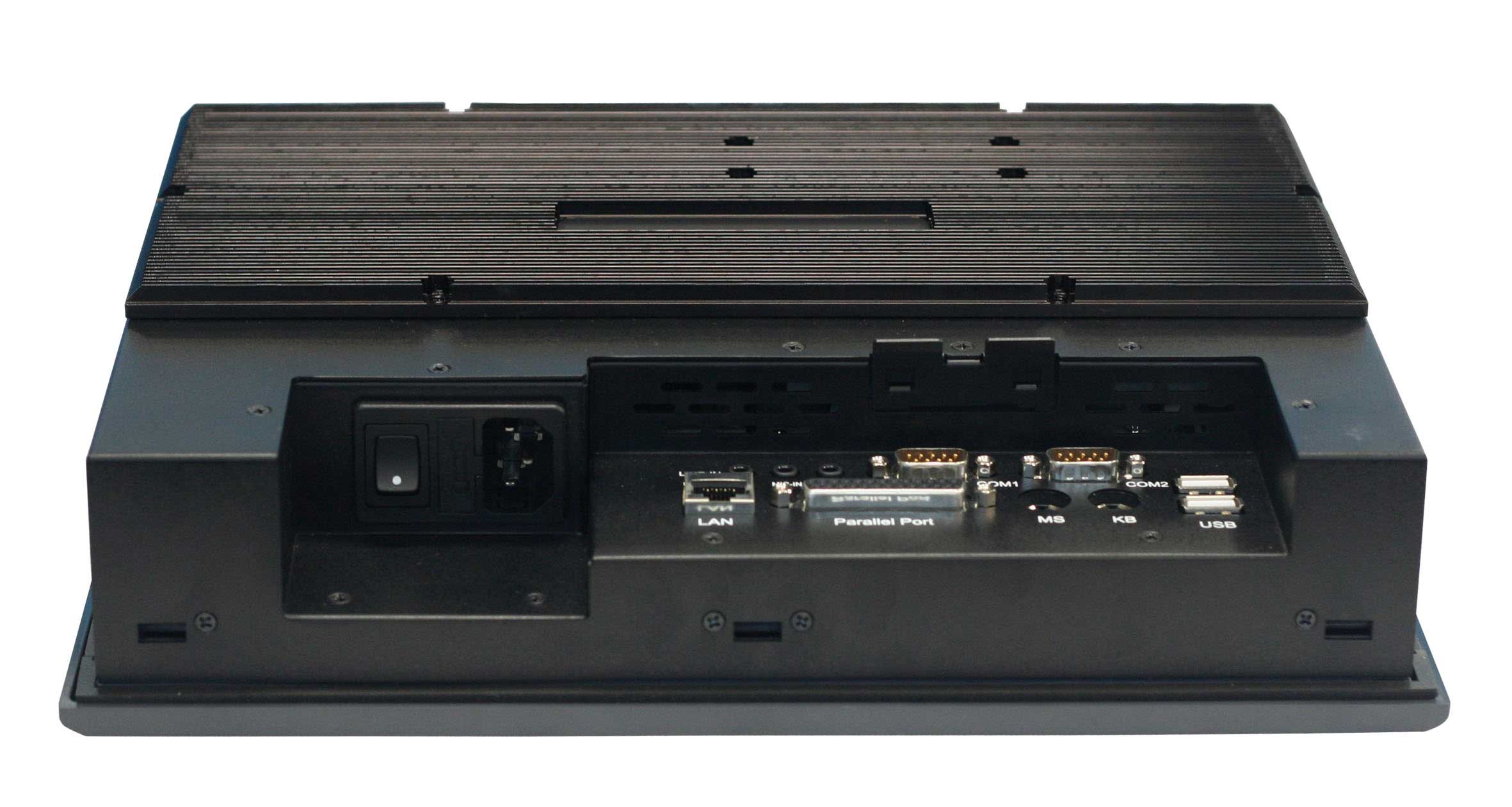

I/O Interfaces:
- 2 × COM ports:
- COM1: RS-232
- COM2: RS-232/422/485 (configurable)
- 1 × LAN port: 10/100 Base-T Ethernet
- 2 × USB 1.1 ports
- 1 × Parallel port
- 1 × Stereo audio (Mic-in, Line-in, Line-out)
- 1 × PS/2 keyboard & mouse port
- 1 × SVGA output (for external display)
Mechanical:
- Dimensions: 317 mm (W) × 243 mm (H) × 74 mm (D)
- Cut-out Dimensions: 301 mm × 227 mm
- Weight: 4.3 kg (approx. 9.48 lbs)
- Front Panel Color: Black
- Construction: Plastic molding front panel with metal housing
Environmental:
- Operating Temperature: 0°C to 50°C
- Storage Temperature: 0°C to 60°C
- Relative Humidity: 10–95% @ 40°C (non-condensing)
- Vibration Resistance:
- 5–17 Hz, 0.1" double amplitude displacement
- 17–640 Hz, 1.5G acceleration peak-to-peak
- Shock Resistance: 10G acceleration peak-to-peak (11 msec)
- Protection Rating: NEMA 4 / IP65 compliant front bezel
Certifications:
- CE Certified
- FCC Class A Compliant
Mounting Options:
- Panel Mount
- VESA 75 mm Mount
### 4. Functionality
The AHM-6104 functions as a compact, all-in-one industrial computing platform integrating display, processing, and input interfaces. Its fanless design ensures silent operation and long-term reliability in environments where dust, vibration, or temperature fluctuations are common.
Operation:
The system boots from either a CompactFlash card or a 2.5" HDD, depending on configuration. The resistive touch screen allows direct interaction with industrial control software, SCADA systems, or custom HMI applications. The VIA Eden processor provides sufficient performance for data acquisition, process visualization, and control tasks.
Use Cases and Applications:
- Factory automation and process control
- Machine interface terminals (HMI)
- Building management systems
- Kiosk and information terminals
- Transportation and logistics control panels
- Energy management and monitoring systems
- Embedded control in manufacturing lines
Compatibility:
Compatible with standard operating systems for embedded and industrial use, such as Windows Embedded, Windows XP, or Linux distributions optimized for x86 architecture. The standard I/O ports ensure easy integration with PLCs, sensors, and industrial networks.
### 5. Components & Accessories
Included Components:
- AHM-6104 main unit (panel computer)
- Mounting brackets for panel or VESA installation
- Power cable or adapter (depending on configuration)
- User manual and installation guide
Optional Accessories:
- 2.5" HDD or SSD for extended storage
- CompactFlash card for solid-state operation
- External keyboard and mouse (PS/2 or USB)
- Wall-mount or arm-mount kits (VESA 75 compatible)
- Additional I/O expansion modules (if supported by configuration)
Connectors:
- Standard industrial-grade connectors for COM, LAN, USB, and power input
- Audio jacks for microphone, line-in, and line-out
- VGA connector for external display output
### 6. Installation & Setup
Requirements:
- Power supply: 11–28 VDC regulated input
- Mounting surface or bracket compatible with panel cut-out (301 × 227 mm) or VESA 75 mm pattern
- Environmental conditions within specified operating range
Mounting Options:
- Panel Mount: Secured from the rear using mounting brackets, suitable for control cabinets or operator panels.
- VESA 75 Mount: Compatible with standard VESA 75 mm mounting arms or stands for flexible positioning.
Configuration:
- Install storage media (CF card or HDD) as required.
- Connect power, network, and peripheral interfaces.
- Load operating system and application software.
- Calibrate the resistive touch screen using the provided utility.
Setup Notes:
Ensure adequate ventilation around the unit despite its fanless design. Avoid exposure to direct sunlight or moisture beyond IP65-rated front protection.
### 7. Performance & Capabilities
Processing Performance:
The VIA Eden 400 MHz processor provides stable, low-power performance suitable for control and monitoring applications. Optional 733 MHz configuration offers enhanced responsiveness for more demanding tasks.
Memory and Storage:
Expandable SDRAM up to 512 MB supports multitasking and smooth operation of industrial software. The dual storage option (CF + HDD) allows flexible data management—CF for OS and HDD for data logging or application storage.
Display Performance:
The 10.4" SVGA display delivers 400 cd/m² brightness and a 130° viewing angle, ensuring visibility in various lighting conditions. The 40,000-hour backlight life ensures long-term usability.
Touch Interface:
The 4-wire resistive touch screen provides accurate input even when operated with gloves, making it ideal for industrial environments.
Network and Communication:
Integrated 10/100 Base-T Ethernet ensures reliable network connectivity for SCADA systems or remote monitoring. Dual serial ports (RS-232 and RS-232/422/485) enable communication with PLCs, sensors, and legacy equipment.
Audio and Peripheral Support:
Built-in stereo audio ports and PS/2 interface allow multimedia or operator feedback integration.
Efficiency and Reliability:
Fanless operation minimizes dust ingress and mechanical wear. The wide DC input range and rugged construction ensure stable performance under fluctuating power and environmental conditions.
Limitations:
Due to its embedded design and low-power CPU, the AHM-6104 is not intended for high-end computing or graphics-intensive applications. It is optimized for control, monitoring, and data acquisition tasks.
### 8. Standards & Compliance
Protection and Safety Standards:
- Front Bezel: NEMA 4 / IP65 compliant, providing protection against dust and water jets.
- Construction: Industrial-grade materials ensuring mechanical robustness and electrical safety.
Regulatory Compliance:
- CE Certification: Conforms to European safety, health, and environmental protection standards.
- FCC Class A Compliance: Meets U.S. Federal Communications Commission standards for electromagnetic interference in industrial environments.
Industry Standards:
- VESA 75 Mounting Standard: Ensures compatibility with a wide range of industrial mounting solutions.
- Environmental Testing: Complies with vibration and shock resistance standards for industrial-grade equipment.
### 9. Additional Information
Warranty:
Typically supplied with a standard manufacturer’s warranty (duration dependent on region and distributor), covering defects in materials and workmanship under normal industrial use.
Support:
Aplex provides technical documentation, driver downloads, and firmware updates through its official support channels. Integration support and customization services are available for OEM and system integrator customers.
Maintenance:
Minimal maintenance required due to fanless design. Periodic cleaning of the front panel and inspection of connectors is recommended. The resistive touch screen may require recalibration over time for optimal accuracy.
Software Updates:
Compatible with standard embedded operating systems; firmware and BIOS updates can be applied via CF card or USB interface as provided by the manufacturer.
Serviceability:
Modular internal design allows easy access to memory and storage components for upgrades or replacement.
Lifecycle and Reliability:
Designed for long-term availability and stable operation in industrial environments, with a typical backlight life of 40,000 hours and robust mechanical construction ensuring extended service life.
### Summary
The Aplex AHM-6104 Industrial Fanless Touch Panel Computer is a compact, durable, and energy-efficient solution for industrial automation and control applications. Featuring a 10.4-inch SVGA resistive touch display, VIA Eden processor, and comprehensive I/O connectivity, it delivers reliable performance in harsh environments. Its fanless design, IP65-rated front bezel, and wide DC input range make it suitable for continuous operation in manufacturing, process control, and embedded system deployments. With flexible mounting options, compliance with CE/FCC standards, and long operational life, the AHM-6104 stands as a dependable choice for industrial HMI and embedded computing applications.
### 1. Product Overview
Product Name: AHM-6104 Industrial Fanless Touch Panel Computer
Model Number: AHM-6104
Series: AHM Industrial Panel PC Series
Article Number: AHM-6104
Manufacturer: Aplex Technology Inc.
The AHM-6104 is a rugged, industrial-grade fanless touch panel computer designed for demanding automation, control, and monitoring environments. It integrates a 10.4-inch SVGA display with resistive touch technology, a VIA Eden processor, and a robust metal housing suitable for harsh industrial conditions. Engineered for reliability, the AHM-6104 combines compact design, low power consumption, and versatile I/O connectivity, making it ideal for embedded control systems, factory automation, and HMI (Human-Machine Interface) applications.
### 2. Key Features
- 10.4-inch SVGA Display:
High-quality 10.4" TFT LCD panel with 800×600 resolution, providing clear and sharp image output suitable for industrial visualization tasks.
- Fanless Architecture:
Passive cooling design eliminates moving parts, reducing maintenance requirements and enhancing system reliability in dusty or vibration-prone environments.
- VIA Eden Processor:
Equipped with a VIA Eden CPU running at 400 MHz (optional 733 MHz), optimized for low power consumption and stable performance in embedded applications.
- Expandable Memory:
256 MB SDRAM standard, expandable up to 512 MB, supporting efficient multitasking for industrial control software.
- Flexible Storage Options:
Supports one CompactFlash (CF) card slot and space for a 2.5" HDD, allowing both solid-state and mechanical storage configurations.
- Comprehensive I/O Connectivity:
Includes dual COM ports (RS-232 and RS-232/422/485), dual USB 1.1 ports, one 10/100 Base-T LAN port, one parallel port, stereo audio I/O, and PS/2 keyboard/mouse interface.
- Rugged Construction:
Plastic molding front panel with a black alloy bezel and metal housing ensures durability and protection against mechanical stress.
- Wide Power Input Range:
Operates on 11–28 VDC input voltage, supporting flexible power configurations in industrial environments.
- Environmental Resilience:
Designed for operation in temperatures from 0°C to 50°C and storage from 0°C to 60°C, with high humidity tolerance and vibration/shock resistance.
- Mounting Flexibility:
Supports both panel mounting and VESA 75 standard mounting options for versatile installation.
- Industrial Protection:
Front bezel rated NEMA 4 / IP65 for dust and water resistance, ensuring reliable operation in harsh industrial settings.
- Regulatory Compliance:
Meets CE and FCC Class A standards for electromagnetic compatibility and safety.
### 3. Technical Specifications
Display:
- Size: 10.4 inches (diagonal)
- Type: TFT LCD
- Resolution: 800 × 600 (SVGA)
- Brightness: 400 cd/m²
- Viewing Angle: 130° (typical)
- Backlight Lifetime: 40,000 hours (typical)
Processor (CPU):
- VIA Eden 400 MHz (optional 733 MHz)
Memory (DRAM):
- 256 MB SDRAM standard
- Expandable up to 512 MB
Storage:
- 1 × CompactFlash (CF) card slot
- Space for 1 × 2.5" HDD
Touch Screen:
- 4-wire analog resistive type
- Durable and responsive for industrial HMI applications
Power Input:
- 11–28 VDC (typical operation)
- AC 100–240 V adapter supported (depending on configuration)
I/O Interfaces:
- 2 × COM ports:
- COM1: RS-232
- COM2: RS-232/422/485 (configurable)
- 1 × LAN port: 10/100 Base-T Ethernet
- 2 × USB 1.1 ports
- 1 × Parallel port
- 1 × Stereo audio (Mic-in, Line-in, Line-out)
- 1 × PS/2 keyboard & mouse port
- 1 × SVGA output (for external display)
Mechanical:
- Dimensions: 317 mm (W) × 243 mm (H) × 74 mm (D)
- Cut-out Dimensions: 301 mm × 227 mm
- Weight: 4.3 kg (approx. 9.48 lbs)
- Front Panel Color: Black
- Construction: Plastic molding front panel with metal housing
Environmental:
- Operating Temperature: 0°C to 50°C
- Storage Temperature: 0°C to 60°C
- Relative Humidity: 10–95% @ 40°C (non-condensing)
- Vibration Resistance:
- 5–17 Hz, 0.1" double amplitude displacement
- 17–640 Hz, 1.5G acceleration peak-to-peak
- Shock Resistance: 10G acceleration peak-to-peak (11 msec)
- Protection Rating: NEMA 4 / IP65 compliant front bezel
Certifications:
- CE Certified
- FCC Class A Compliant
Mounting Options:
- Panel Mount
- VESA 75 mm Mount
### 4. Functionality
The AHM-6104 functions as a compact, all-in-one industrial computing platform integrating display, processing, and input interfaces. Its fanless design ensures silent operation and long-term reliability in environments where dust, vibration, or temperature fluctuations are common.
Operation:
The system boots from either a CompactFlash card or a 2.5" HDD, depending on configuration. The resistive touch screen allows direct interaction with industrial control software, SCADA systems, or custom HMI applications. The VIA Eden processor provides sufficient performance for data acquisition, process visualization, and control tasks.
Use Cases and Applications:
- Factory automation and process control
- Machine interface terminals (HMI)
- Building management systems
- Kiosk and information terminals
- Transportation and logistics control panels
- Energy management and monitoring systems
- Embedded control in manufacturing lines
Compatibility:
Compatible with standard operating systems for embedded and industrial use, such as Windows Embedded, Windows XP, or Linux distributions optimized for x86 architecture. The standard I/O ports ensure easy integration with PLCs, sensors, and industrial networks.
### 5. Components & Accessories
Included Components:
- AHM-6104 main unit (panel computer)
- Mounting brackets for panel or VESA installation
- Power cable or adapter (depending on configuration)
- User manual and installation guide
Optional Accessories:
- 2.5" HDD or SSD for extended storage
- CompactFlash card for solid-state operation
- External keyboard and mouse (PS/2 or USB)
- Wall-mount or arm-mount kits (VESA 75 compatible)
- Additional I/O expansion modules (if supported by configuration)
Connectors:
- Standard industrial-grade connectors for COM, LAN, USB, and power input
- Audio jacks for microphone, line-in, and line-out
- VGA connector for external display output
### 6. Installation & Setup
Requirements:
- Power supply: 11–28 VDC regulated input
- Mounting surface or bracket compatible with panel cut-out (301 × 227 mm) or VESA 75 mm pattern
- Environmental conditions within specified operating range
Mounting Options:
- Panel Mount: Secured from the rear using mounting brackets, suitable for control cabinets or operator panels.
- VESA 75 Mount: Compatible with standard VESA 75 mm mounting arms or stands for flexible positioning.
Configuration:
- Install storage media (CF card or HDD) as required.
- Connect power, network, and peripheral interfaces.
- Load operating system and application software.
- Calibrate the resistive touch screen using the provided utility.
Setup Notes:
Ensure adequate ventilation around the unit despite its fanless design. Avoid exposure to direct sunlight or moisture beyond IP65-rated front protection.
### 7. Performance & Capabilities
Processing Performance:
The VIA Eden 400 MHz processor provides stable, low-power performance suitable for control and monitoring applications. Optional 733 MHz configuration offers enhanced responsiveness for more demanding tasks.
Memory and Storage:
Expandable SDRAM up to 512 MB supports multitasking and smooth operation of industrial software. The dual storage option (CF + HDD) allows flexible data management—CF for OS and HDD for data logging or application storage.
Display Performance:
The 10.4" SVGA display delivers 400 cd/m² brightness and a 130° viewing angle, ensuring visibility in various lighting conditions. The 40,000-hour backlight life ensures long-term usability.
Touch Interface:
The 4-wire resistive touch screen provides accurate input even when operated with gloves, making it ideal for industrial environments.
Network and Communication:
Integrated 10/100 Base-T Ethernet ensures reliable network connectivity for SCADA systems or remote monitoring. Dual serial ports (RS-232 and RS-232/422/485) enable communication with PLCs, sensors, and legacy equipment.
Audio and Peripheral Support:
Built-in stereo audio ports and PS/2 interface allow multimedia or operator feedback integration.
Efficiency and Reliability:
Fanless operation minimizes dust ingress and mechanical wear. The wide DC input range and rugged construction ensure stable performance under fluctuating power and environmental conditions.
Limitations:
Due to its embedded design and low-power CPU, the AHM-6104 is not intended for high-end computing or graphics-intensive applications. It is optimized for control, monitoring, and data acquisition tasks.
### 8. Standards & Compliance
Protection and Safety Standards:
- Front Bezel: NEMA 4 / IP65 compliant, providing protection against dust and water jets.
- Construction: Industrial-grade materials ensuring mechanical robustness and electrical safety.
Regulatory Compliance:
- CE Certification: Conforms to European safety, health, and environmental protection standards.
- FCC Class A Compliance: Meets U.S. Federal Communications Commission standards for electromagnetic interference in industrial environments.
Industry Standards:
- VESA 75 Mounting Standard: Ensures compatibility with a wide range of industrial mounting solutions.
- Environmental Testing: Complies with vibration and shock resistance standards for industrial-grade equipment.
### 9. Additional Information
Warranty:
Typically supplied with a standard manufacturer’s warranty (duration dependent on region and distributor), covering defects in materials and workmanship under normal industrial use.
Support:
Aplex provides technical documentation, driver downloads, and firmware updates through its official support channels. Integration support and customization services are available for OEM and system integrator customers.
Maintenance:
Minimal maintenance required due to fanless design. Periodic cleaning of the front panel and inspection of connectors is recommended. The resistive touch screen may require recalibration over time for optimal accuracy.
Software Updates:
Compatible with standard embedded operating systems; firmware and BIOS updates can be applied via CF card or USB interface as provided by the manufacturer.
Serviceability:
Modular internal design allows easy access to memory and storage components for upgrades or replacement.
Lifecycle and Reliability:
Designed for long-term availability and stable operation in industrial environments, with a typical backlight life of 40,000 hours and robust mechanical construction ensuring extended service life.
### Summary
The Aplex AHM-6104 Industrial Fanless Touch Panel Computer is a compact, durable, and energy-efficient solution for industrial automation and control applications. Featuring a 10.4-inch SVGA resistive touch display, VIA Eden processor, and comprehensive I/O connectivity, it delivers reliable performance in harsh environments. Its fanless design, IP65-rated front bezel, and wide DC input range make it suitable for continuous operation in manufacturing, process control, and embedded system deployments. With flexible mounting options, compliance with CE/FCC standards, and long operational life, the AHM-6104 stands as a dependable choice for industrial HMI and embedded computing applications.
-
AHM-6104.pdf
PDF Catalog
Kein Zubehör vorhanden.
