Comprehensive Product Summary – AHM-6121 12.1" RISC-based Human Machine Interface

---

### 1. Product Overview

Product Name: AHM-6121
Model Number: AHM-6121
Series: AHM Series – RISC-based Human Machine Interfaces
Article Number: AHM-6121
Manufacturer: Aplex Technology Inc.

The Aplex AHM-6121 is a 12.1-inch RISC-based Human Machine Interface (HMI) designed for industrial automation, process control, and embedded system applications. It integrates a high-performance ARM9-based Intel XScale PXA255 processor operating at 400 MHz, providing a balance of low power consumption and reliable computational performance. The unit features a 12.1-inch SVGA (800 × 600) display with a 4-wire analog resistive touchscreen, housed in a robust enclosure combining a plastic molded front panel and a metal rear housing. The AHM-6121 supports Windows CE 4.2 and Windows CE 5.0 operating systems, offering a flexible and stable platform for industrial control and monitoring applications.

---

### 2. Key Features

- 12.1-inch SVGA Display: 800 × 600 resolution TFT LCD providing clear, bright visuals suitable for industrial environments.
- RISC-based Architecture: Powered by an Intel XScale PXA255 400 MHz ARM9 processor for efficient, low-power operation.
- Touch Interface: 4-wire analog resistive touchscreen for precise input and control, even when operated with gloves.
- Memory Configuration: 128 MB DRAM, 1 MB SRAM with battery backup, and 32 MB onboard Flash memory for OS storage.
- Expandable Storage: CompactFlash (CF) slot available for application software and data storage expansion.
- Comprehensive I/O Connectivity:
- COM1: RS-232/422/485 (configurable)
- COM2: RS-232
- 1 × PS/2 port for keyboard and mouse
- 1 × 10/100 LAN port
- USB 1.1 Client and USB 1.1 Host ports
- External VGA output
- Audio I/O: Speaker out and microphone input
- Flexible Power Input: Wide DC input range from 11 VDC to 28 VDC for compatibility with various industrial power systems.
- Mounting Options: Supports both panel mounting and VESA 75 mm mounting standards.
- Rugged Design: NEMA 4 / IP65 compliant front bezel for dust and water resistance.
- Environmental Durability: Designed to operate in temperatures from 0°C to 50°C and withstand vibration and shock conditions typical of industrial environments.
- Certifications: Meets CE and FCC Class A standards for electromagnetic compatibility and safety compliance.

---

### 3. Technical Specifications

Display:
- Size: 12.1 inches (diagonal)
- Resolution: 800 × 600 pixels (SVGA)
- Type: TFT LCD
- Touchscreen: 4-wire analog resistive

Processor:
- CPU: Intel XScale PXA255 (ARM9 architecture)
- Clock Speed: 400 MHz

Memory:
- DRAM: 128 MB
- SRAM: 1 MB with battery backup
- Flash Memory: 32 MB onboard for OS storage
- Expansion: CompactFlash (CF) slot for application software

Power:
- Input Voltage: 11–28 VDC
- Power Type: DC input

I/O Interfaces:
- Serial Ports:
- COM1: RS-232/422/485 (software selectable)
- COM2: RS-232
- USB Ports:
- 1 × USB 1.1 Client
- 1 × USB 1.1 Host
- LAN: 1 × 10/100 Mbps Ethernet port
- PS/2: 1 × port for keyboard and mouse
- VGA: 1 × external VGA output
- Audio: 1 × speaker out, 1 × microphone input
- Storage: 1 × CompactFlash slot

Construction:
- Front Panel: Plastic molding
- Rear Housing: Metal
- Color: Black

Dimensions & Weight:
- Dimensions (W × H × D): 317 × 243 × 50 mm
- Cut-out Dimensions: 303 × 230 mm
- Weight: Approximately 3.06 kg

Environmental Specifications:
- Operating Temperature: 0°C to 50°C
- Storage Temperature: -20°C to 60°C
- Relative Humidity: 10–90% @ 50°C, non-condensing
- Vibration Resistance:
- 5–17 Hz, 0.1" double amplitude displacement
- 17–640 Hz, 1.5 G acceleration peak-to-peak
- Shock Resistance: 10–25 Hz, 2 G in X, Y, Z directions for 30 minutes
- Protection Rating: NEMA 4 / IP65 compliant front bezel

Certifications:
- CE Certified
- FCC Class A Compliant

Mounting Options:
- Panel Mount
- VESA 75 mm Mount

Operating System Support:
- Microsoft Windows CE 4.2
- Microsoft Windows CE 5.0

---

### 4. Functionality

The Aplex AHM-6121 functions as a versatile Human Machine Interface designed to bridge operators and industrial control systems. It provides real-time visualization, control, and data interaction for automation processes. The 12.1-inch resistive touchscreen allows intuitive operation, enabling users to monitor system parameters, input commands, and adjust settings directly on the display.

The device’s ARM9-based architecture ensures efficient processing for embedded applications, while the Windows CE operating system provides a stable and customizable environment for HMI software, SCADA clients, or proprietary control applications. The integrated communication interfaces—serial, Ethernet, USB, and VGA—facilitate connectivity with PLCs, sensors, controllers, and external displays.

Typical Use Cases and Applications:
- Industrial automation and process control
- Machine operation panels
- Building management systems
- Embedded control terminals
- Factory monitoring and data acquisition systems
- Transportation and logistics control interfaces
- Energy management and utility monitoring

Compatibility:
The AHM-6121 is compatible with a wide range of industrial communication protocols via its serial and Ethernet interfaces. It supports integration with PLCs, industrial PCs, and networked control systems. The Windows CE environment allows deployment of custom HMI applications developed in standard embedded development frameworks.

---

### 5. Components & Accessories

Included Components:
- AHM-6121 main unit
- Mounting brackets for panel or VESA installation
- Power connector terminal block
- User manual and documentation

Optional Accessories:
- CompactFlash memory cards for application storage
- External keyboard and mouse (via PS/2 port)
- External display (via VGA output)
- USB peripherals (barcode scanners, USB drives, etc.)
- Audio accessories (microphone, speakers)

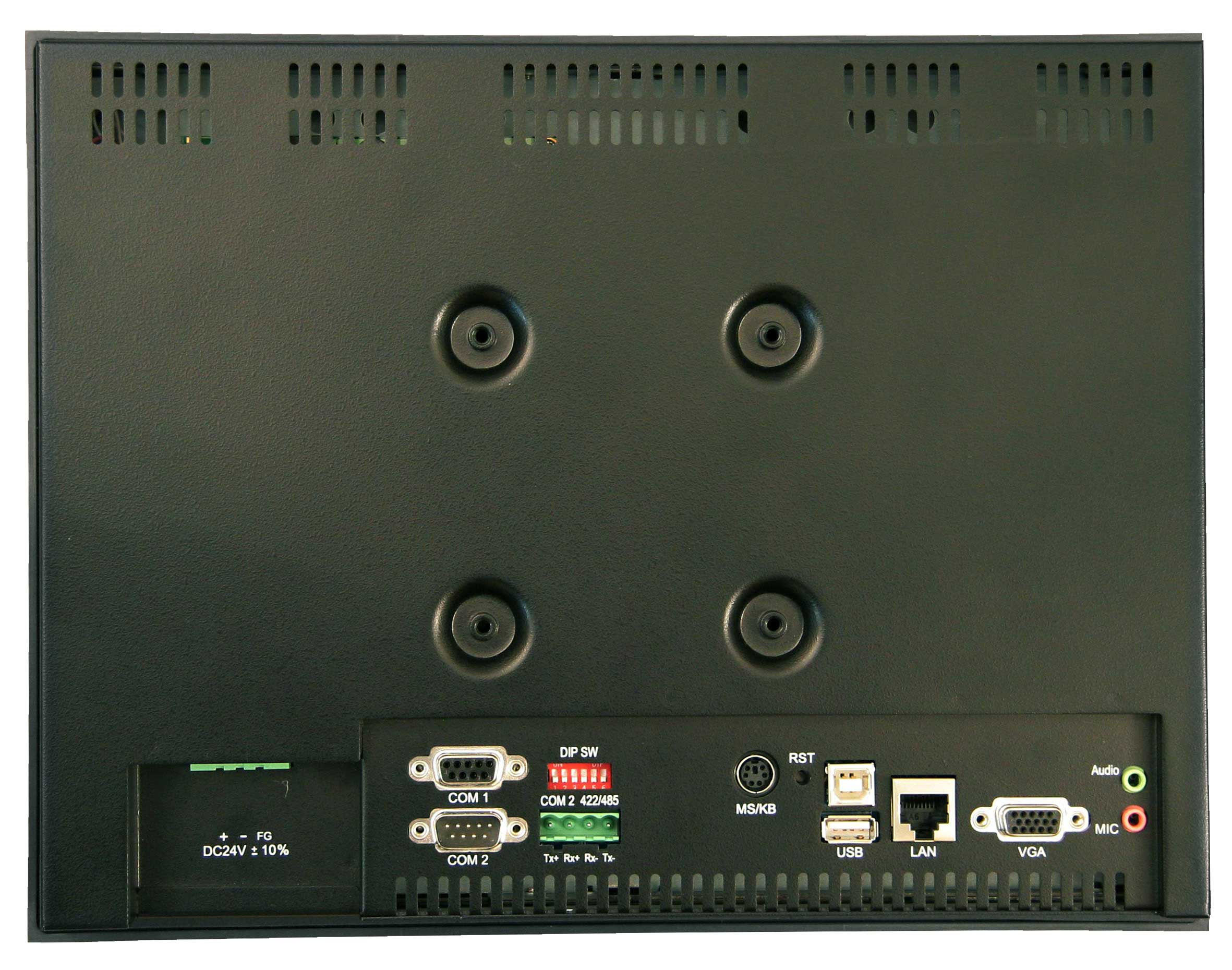

Connectors and Ports:
- COM1 (RS-232/422/485) – DB9 connector
- COM2 (RS-232) – DB9 connector
- LAN (RJ-45) – 10/100 Mbps Ethernet
- USB 1.1 Host and Client – Type A and Mini-B connectors
- PS/2 – Mini-DIN connector
- VGA – D-sub 15-pin connector
- Audio – 3.5 mm jacks for mic and speaker
- CF Slot – accessible for storage expansion

---

### 6. Installation & Setup

Installation Requirements:
- DC power supply within 11–28 VDC range
- Proper panel cut-out: 303 × 230 mm
- Mounting clearance for 317 × 243 × 50 mm overall dimensions

Mounting Options:
- Panel Mounting: The unit can be flush-mounted into control panels using the provided brackets, ensuring a sealed front interface compliant with NEMA 4 / IP65 standards.
- VESA 75 Mounting: Compatible with standard VESA 75 mm mounts for flexible installation on arms, stands, or wall brackets.

Setup Procedure:
1. Prepare the panel cut-out according to specified dimensions.
2. Insert the HMI into the cut-out and secure it using the mounting brackets.
3. Connect the DC power input (11–28 VDC).
4. Attach communication cables (RS-232/422/485, Ethernet, USB, etc.) as required.
5. Power on the device and configure the operating system (Windows CE 4.2 or 5.0).
6. Install or deploy HMI application software via CompactFlash or USB interface.

Configuration:
- Serial port modes can be configured via software for RS-232, RS-422, or RS-485 communication.
- Network settings can be adjusted through the Windows CE interface for LAN connectivity.
- Touchscreen calibration and display settings are accessible through the OS control panel.

---

### 7. Performance & Capabilities

Processing Performance:
The Intel XScale PXA255 400 MHz processor delivers efficient performance for embedded HMI tasks, supporting real-time data visualization and control logic execution with low latency.

Memory and Storage:
128 MB DRAM ensures smooth multitasking and responsive operation, while the 32 MB onboard Flash provides reliable OS storage. The CF slot allows for additional application and data storage, enabling flexible deployment of complex HMI software.

Display and Input:
The 12.1-inch SVGA display offers a clear and bright interface for operators, while the 4-wire resistive touchscreen ensures accurate input even in industrial environments where gloves are used.

Connectivity and Communication:
Dual serial ports, Ethernet, USB, and VGA interfaces provide extensive connectivity options for integration with industrial networks, external devices, and peripheral equipment.

Power Efficiency:
The wide DC input range (11–28 VDC) and low-power RISC architecture make the AHM-6121 suitable for energy-conscious installations and mobile or remote systems.

Environmental Performance:
Designed for industrial reliability, the unit operates within 0–50°C and withstands vibration and shock conditions typical of factory and field environments. The IP65-rated front bezel ensures protection against dust and water ingress.

Limitations:
- USB 1.1 interface limits data transfer speed compared to newer USB standards.
- Display resolution (800 × 600) may be modest for high-density graphical applications.
- Windows CE environment may restrict compatibility with modern software frameworks.

---

### 8. Standards & Compliance

Protection and Safety Standards:
- NEMA 4 / IP65 Front Bezel: Ensures protection against dust, water splashes, and industrial contaminants.
- CE Certification: Complies with European safety, health, and environmental protection standards.
- FCC Class A Compliance: Meets U.S. Federal Communications Commission standards for electromagnetic interference in industrial environments.

Environmental and Mechanical Standards:
- Designed to meet industrial vibration and shock resistance requirements.
- Complies with standard panel and VESA mounting dimensions for interoperability with industrial enclosures and mounting systems.

Operating System Standards:
- Supports Microsoft Windows CE 4.2 and 5.0, both widely used in embedded and industrial control systems for their stability and real-time capabilities.

---

### 9. Additional Information

Warranty:
Typically supplied with a standard manufacturer’s warranty (duration dependent on region and distributor), covering defects in materials and workmanship under normal operating conditions.

Technical Support:
Aplex provides technical documentation, driver support, and firmware updates for the AHM-6121. Users can access configuration guides, OS images, and software utilities through the manufacturer’s support portal.

Maintenance:
- Regular cleaning of the front panel with non-abrasive materials to maintain IP65 protection.
- Periodic inspection of connectors and cables to ensure reliable communication.
- Firmware and OS updates can be applied via CompactFlash or USB interface.

Software Updates and Customization:
The Windows CE platform allows for custom application development and deployment. Users can update or replace HMI software, integrate third-party SCADA clients, or develop proprietary control interfaces using standard embedded development tools.

Lifecycle and Reliability:
The AHM-6121 is engineered for long-term industrial operation, with components selected for durability and extended availability. Its fanless design minimizes mechanical wear and reduces maintenance requirements.

---

### Summary

The Aplex AHM-6121 is a robust, RISC-based 12.1-inch Human Machine Interface designed for industrial and embedded control applications. Combining an ARM9-based Intel XScale PXA255 processor, resistive touchscreen, and comprehensive I/O connectivity, it delivers reliable performance in demanding environments. Its rugged construction, wide power input range, and compliance with CE, FCC, and IP65 standards make it suitable for a wide range of automation, monitoring, and control systems. Supporting Windows CE 4.2 and 5.0, the AHM-6121 provides a stable and flexible platform for custom HMI and SCADA applications, ensuring long-term reliability and ease of integration in industrial settings.
