Comprehensive Product Summary – AHM-6125-XGA Fanless Panel PC
### 1. Product Overview
Product Name: AHM-6125-XGA
Model Number: AHM-6125-XGA

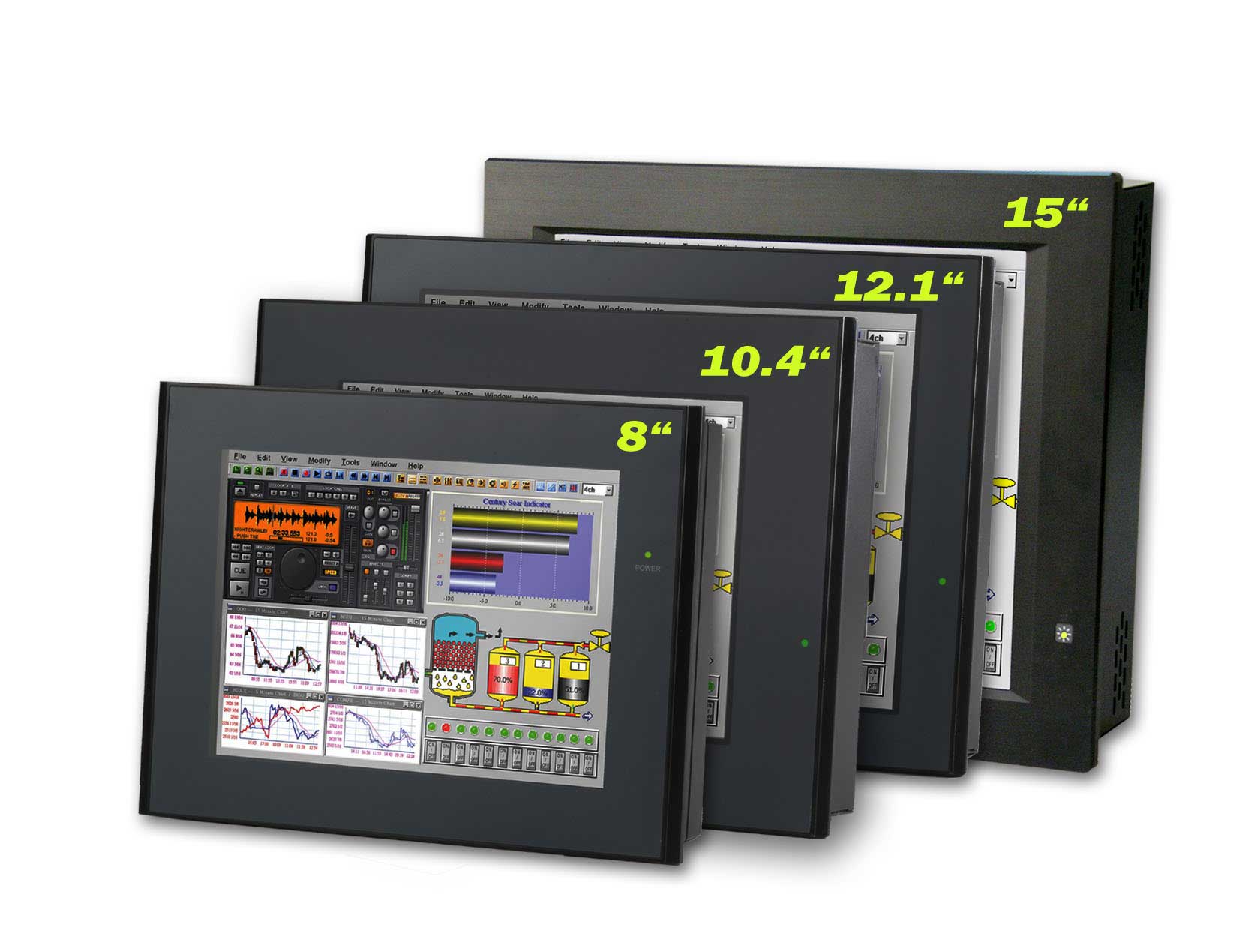

Series: AHM Industrial Panel PC Series
Article Number: AHM-6125-XGA
Manufacturer: Aplex Technology Inc.
The Aplex AHM-6125-XGA is a 12.1-inch fanless industrial panel PC designed for embedded control, automation, and industrial HMI (Human Machine Interface) applications. It integrates a Celeron M 1GHz processor, a resistive touch screen, and a durable plastic front bezel with a metal housing, ensuring reliability in demanding environments. The system supports flexible mounting options, wide-range DC power input, and multiple I/O interfaces, making it suitable for factory automation, process monitoring, and industrial control systems.
### 2. Key Features
- 12.1-inch XGA TFT LCD Display:
Resolution of 1024 × 768 pixels, providing clear and sharp image quality for industrial visualization tasks.
- Fanless Design:
The system operates silently and reliably without active cooling, reducing maintenance and improving durability in dusty or vibration-prone environments.
- Intel® Celeron® M Processor (1.0GHz / 1.5GHz):
Energy-efficient CPU optimized for embedded and industrial computing applications.
- Resistive Touch Screen Interface:
4-wire analog resistive touch panel allows precise input control, suitable for gloved or stylus operation in industrial settings.
- Flexible Storage Options:
Supports one 2.5" HDD and one CompactFlash (CF) card slot, providing both solid-state and mechanical storage flexibility.
- Comprehensive I/O Connectivity:
Includes 2 x COM ports (RS-232 and RS-232/422/485), 1 x 10/100 Mbps LAN, 2 x USB 2.0, 1 x Parallel port, Audio I/O, and PS/2 keyboard/mouse interfaces. Optional COM3 and VGA ports are available for extended connectivity.
- Wide DC Power Input Range (11–28VDC):
Enables deployment in diverse industrial power environments without additional converters.
- Rugged Construction:
Plastic molding front panel combined with a metal chassis ensures mechanical strength and resistance to vibration and shock.
- Environmental Resilience:
Operating temperature range of 0°C to 50°C, storage temperature range of -20°C to 60°C, and humidity tolerance up to 90% non-condensing.
- Mounting Flexibility:
Supports panel mount and VESA 75 mounting standards for easy integration into control panels or machinery.
- Compliance and Protection:
Front bezel rated NEMA 4 / IP65, ensuring protection against dust and water ingress. Certified for CE and FCC Class A compliance.
### 3. Technical Specifications

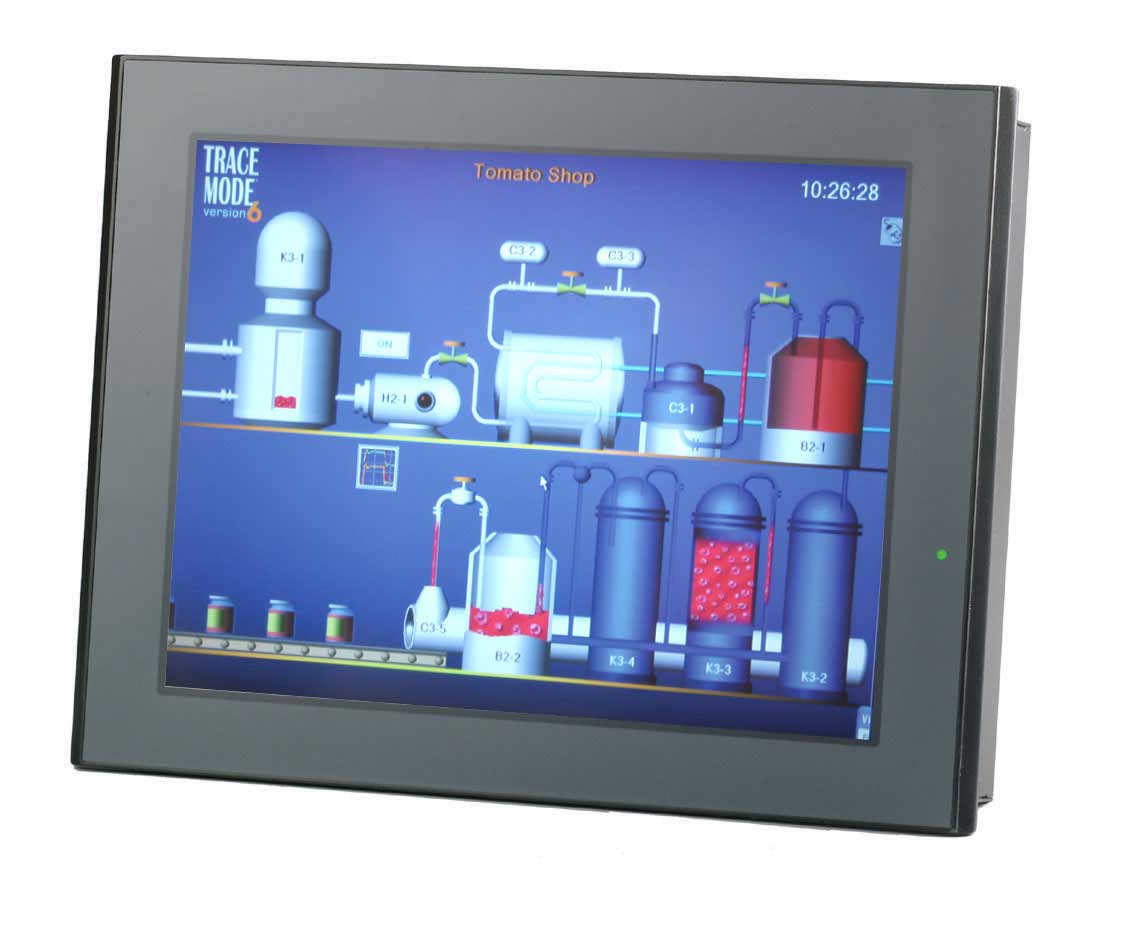

Display:
- Size: 12.1 inches (diagonal)
- Resolution: 1024 × 768 (XGA)
- Brightness: 300 cd/m²
- Viewing Angle: 120° (horizontal) / 95° (vertical)
- Backlight Lifetime: 50,000 hours (typical)
- Display Mode: TFT LCD
- Touch Type: 4-wire analog resistive
Processor (CPU):
- Intel® Celeron® M 1.0GHz (standard) / 1.5GHz (optional)
Memory (DRAM):
- 1 × SO-DIMM socket
- Supports DDR 200/266 SDRAM up to 1GB maximum capacity
Storage:
- 1 × 2.5" HDD bay
- 1 × CompactFlash (CF) card slot
Power Input:
- DC 11–28V wide-range input
- Power consumption optimized for low-heat, fanless operation

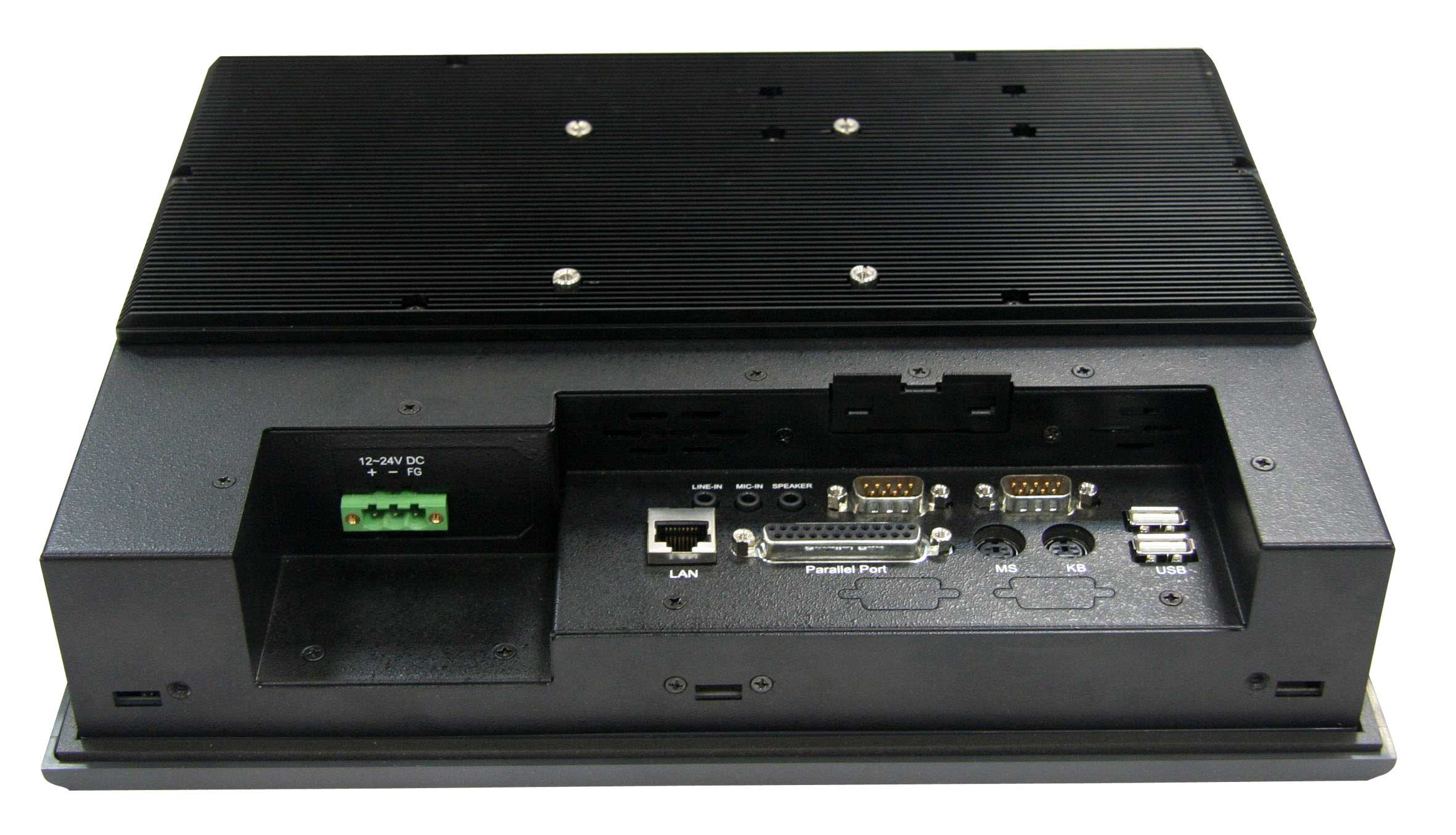

I/O Interfaces:
- 2 × COM ports:
- COM1: RS-232
- COM2: RS-232/422/485 (configurable)
- 1 × LAN port (10/100 Mbps Ethernet)
- 2 × USB 2.0 ports
- 1 × Parallel port
- 1 × Audio (Mic-in, Line-in, Line-out)
- 2 × PS/2 ports (Keyboard and Mouse)
- Optional: COM3, VGA output
Construction:
- Front Panel: Plastic molding
- Housing: Metal chassis
- Color: Black
Dimensions:
- Width: 317 mm
- Height: 243 mm
- Depth: 74 mm
Cut-out Dimensions:
- 303 mm × 229 mm
Weight:
- Approximately 4.08 kg
### 4. Functionality
The AHM-6125-XGA functions as a compact, integrated industrial computing platform combining display, processing, and input capabilities in a single unit. It is designed for HMI, SCADA, and embedded control applications where reliability, low noise, and environmental resistance are critical.
Operation:
The system boots from either the internal HDD or CompactFlash card, running standard operating systems such as Windows Embedded, Linux, or other x86-compatible platforms. The resistive touch screen provides direct user interaction with industrial control software, enabling operators to monitor processes, input commands, and visualize data in real time.
Use Cases and Applications:
- Factory automation and process control
- Machine interface terminals
- Building management systems
- Kiosk and information terminals
- Transportation and logistics control panels
- Energy and utility monitoring systems
Compatibility:
The AHM-6125-XGA supports standard PC interfaces and can integrate with PLCs, sensors, and industrial networks via serial, Ethernet, or USB connections. It is compatible with a wide range of industrial software platforms and communication protocols.
### 5. Components & Accessories
Included Components:
- AHM-6125-XGA main unit
- Mounting brackets for panel or VESA 75 installation
- Power connector (DC input terminal)
- User manual and documentation
Optional Accessories:
- Additional COM3 port module
- External VGA output module
- 2.5" HDD or SSD (user-supplied or factory-installed)
- CompactFlash storage card
- Power adapter (11–28VDC external supply)
- Wall or arm mount kits compatible with VESA 75 standard
Connectors:
- Standard industrial-grade connectors for serial, USB, and LAN ports
- Audio jacks for microphone, line-in, and line-out
- PS/2 connectors for keyboard and mouse
- DC power input terminal block
### 6. Installation & Setup
Requirements:
- DC power source within 11–28V range
- Appropriate cut-out dimensions (303 × 229 mm) for panel mounting
- Compatible operating system and drivers for touch and I/O interfaces
Mounting Options:
- Panel Mount: Secured from the rear using mounting brackets for flush integration into control panels or enclosures.
- VESA 75 Mount: Compatible with standard 75 × 75 mm VESA mounting arms or brackets for flexible positioning.
Configuration:
- BIOS accessible for hardware configuration and boot device selection
- Touch screen calibration via software utility
- Serial port mode (RS-232/422/485) selectable through BIOS or jumper settings
- Network configuration through standard Ethernet settings
Setup Process:
1. Mount the unit securely using the chosen method.
2. Connect DC power input (11–28V).
3. Attach peripheral devices (keyboard, mouse, LAN, USB, serial).
4. Install operating system and drivers.
5. Calibrate touch screen and configure communication ports.
### 7. Performance & Capabilities
Processing Performance:
The Intel Celeron M processor provides a balance between performance and power efficiency, suitable for industrial control and HMI applications that require stable, continuous operation rather than high computational throughput.
Memory and Storage:
With up to 1GB DDR SDRAM and dual storage options (HDD and CF), the system supports both real-time data logging and embedded OS deployment.
Display Performance:
The 12.1" XGA display offers high brightness (300 cd/m²) and wide viewing angles (120°/95°), ensuring visibility in various lighting conditions. The 50,000-hour backlight life supports long-term operation in 24/7 environments.
Touch Responsiveness:
The 4-wire resistive touch panel provides accurate input even with gloves, making it ideal for industrial operators.
Network and Communication:
10/100 Mbps Ethernet ensures reliable connectivity for SCADA systems, remote monitoring, or data acquisition networks. Dual serial ports with RS-232/422/485 support enable integration with legacy and modern industrial devices.
Environmental Performance:
- Operating Temperature: 0°C to 50°C
- Storage Temperature: -20°C to 60°C
- Humidity: 10–90% @ 50°C non-condensing
- Vibration Resistance:
- 5–17Hz, 0.1" double amplitude displacement
- 17–640Hz, 1.5G acceleration peak-to-peak
- Shock Resistance:
- 10–25Hz, 2G in X, Y, Z directions for 30 minutes
Limitations:
- Limited memory capacity (up to 1GB) restricts use with high-demand applications.
- No built-in wireless connectivity (Wi-Fi or Bluetooth).
- Fanless design limits CPU performance scalability due to thermal constraints.
### 8. Standards & Compliance
Ingress Protection:
- Front Bezel: NEMA 4 / IP65 compliant, providing protection against dust, dirt, and water jets from any direction.
Certifications:
- CE (Conformité Européenne): Meets European safety and electromagnetic compatibility standards.
- FCC Class A: Complies with U.S. Federal Communications Commission regulations for industrial and commercial environments.
Industry Standards:
- VESA 75 Mounting Standard: Ensures compatibility with a wide range of mounting accessories.
- RoHS Compliance (implied by manufacturer standards): Restriction of hazardous substances in electronic equipment.
These certifications and standards confirm that the AHM-6125-XGA meets industrial-grade reliability, safety, and environmental protection requirements.
### 9. Additional Information
Warranty:
Typically covered by Aplex’s standard industrial product warranty (duration varies by region and distributor, commonly 1–2 years). Warranty covers manufacturing defects and hardware failures under normal operating conditions.
Support:
Aplex provides technical documentation, driver downloads, and firmware updates through its official support channels. Integration support and customization options are available for OEM and system integrator customers.
Maintenance:
- Fanless design minimizes maintenance requirements.
- Periodic cleaning of the front panel and connectors recommended to maintain IP65 protection.
- Storage devices (HDD/CF) can be replaced or upgraded as needed.
Software & Firmware Updates:
- BIOS updates available for enhanced hardware compatibility.
- Touch screen calibration and driver updates provided for major operating systems.
- Compatible with Windows Embedded, Windows XP/7 (embedded versions), and Linux distributions for industrial use.
Lifecycle & Reliability:
- Designed for long-term availability and stable supply chain support.
- Industrial-grade components ensure extended MTBF (Mean Time Between Failures).
- Backlight rated for 50,000 hours ensures consistent display performance over years of continuous operation.
### Summary
The Aplex AHM-6125-XGA is a robust, fanless 12.1-inch industrial panel PC engineered for reliability, flexibility, and ease of integration in industrial automation environments. Its combination of Intel Celeron M processing, resistive touch interface, wide power input range, and comprehensive I/O connectivity makes it a versatile solution for HMI, control, and monitoring applications. With IP65 front protection, CE/FCC compliance, and VESA/panel mounting options, it delivers dependable performance in harsh industrial conditions while maintaining a compact and serviceable design.
End of Product Summary – AHM-6125-XGA Fanless Panel PC
### 1. Product Overview
Product Name: AHM-6125-XGA
Model Number: AHM-6125-XGA
Series: AHM Industrial Panel PC Series
Article Number: AHM-6125-XGA
Manufacturer: Aplex Technology Inc.
The Aplex AHM-6125-XGA is a 12.1-inch fanless industrial panel PC designed for embedded control, automation, and industrial HMI (Human Machine Interface) applications. It integrates a Celeron M 1GHz processor, a resistive touch screen, and a durable plastic front bezel with a metal housing, ensuring reliability in demanding environments. The system supports flexible mounting options, wide-range DC power input, and multiple I/O interfaces, making it suitable for factory automation, process monitoring, and industrial control systems.
### 2. Key Features
- 12.1-inch XGA TFT LCD Display:
Resolution of 1024 × 768 pixels, providing clear and sharp image quality for industrial visualization tasks.
- Fanless Design:
The system operates silently and reliably without active cooling, reducing maintenance and improving durability in dusty or vibration-prone environments.
- Intel® Celeron® M Processor (1.0GHz / 1.5GHz):
Energy-efficient CPU optimized for embedded and industrial computing applications.
- Resistive Touch Screen Interface:
4-wire analog resistive touch panel allows precise input control, suitable for gloved or stylus operation in industrial settings.
- Flexible Storage Options:
Supports one 2.5" HDD and one CompactFlash (CF) card slot, providing both solid-state and mechanical storage flexibility.
- Comprehensive I/O Connectivity:
Includes 2 x COM ports (RS-232 and RS-232/422/485), 1 x 10/100 Mbps LAN, 2 x USB 2.0, 1 x Parallel port, Audio I/O, and PS/2 keyboard/mouse interfaces. Optional COM3 and VGA ports are available for extended connectivity.
- Wide DC Power Input Range (11–28VDC):
Enables deployment in diverse industrial power environments without additional converters.
- Rugged Construction:
Plastic molding front panel combined with a metal chassis ensures mechanical strength and resistance to vibration and shock.
- Environmental Resilience:
Operating temperature range of 0°C to 50°C, storage temperature range of -20°C to 60°C, and humidity tolerance up to 90% non-condensing.
- Mounting Flexibility:
Supports panel mount and VESA 75 mounting standards for easy integration into control panels or machinery.
- Compliance and Protection:
Front bezel rated NEMA 4 / IP65, ensuring protection against dust and water ingress. Certified for CE and FCC Class A compliance.
### 3. Technical Specifications
Display:
- Size: 12.1 inches (diagonal)
- Resolution: 1024 × 768 (XGA)
- Brightness: 300 cd/m²
- Viewing Angle: 120° (horizontal) / 95° (vertical)
- Backlight Lifetime: 50,000 hours (typical)
- Display Mode: TFT LCD
- Touch Type: 4-wire analog resistive
Processor (CPU):
- Intel® Celeron® M 1.0GHz (standard) / 1.5GHz (optional)
Memory (DRAM):
- 1 × SO-DIMM socket
- Supports DDR 200/266 SDRAM up to 1GB maximum capacity
Storage:
- 1 × 2.5" HDD bay
- 1 × CompactFlash (CF) card slot
Power Input:
- DC 11–28V wide-range input
- Power consumption optimized for low-heat, fanless operation
I/O Interfaces:
- 2 × COM ports:
- COM1: RS-232
- COM2: RS-232/422/485 (configurable)
- 1 × LAN port (10/100 Mbps Ethernet)
- 2 × USB 2.0 ports
- 1 × Parallel port
- 1 × Audio (Mic-in, Line-in, Line-out)
- 2 × PS/2 ports (Keyboard and Mouse)
- Optional: COM3, VGA output
Construction:
- Front Panel: Plastic molding
- Housing: Metal chassis
- Color: Black
Dimensions:
- Width: 317 mm
- Height: 243 mm
- Depth: 74 mm
Cut-out Dimensions:
- 303 mm × 229 mm
Weight:
- Approximately 4.08 kg
### 4. Functionality
The AHM-6125-XGA functions as a compact, integrated industrial computing platform combining display, processing, and input capabilities in a single unit. It is designed for HMI, SCADA, and embedded control applications where reliability, low noise, and environmental resistance are critical.
Operation:
The system boots from either the internal HDD or CompactFlash card, running standard operating systems such as Windows Embedded, Linux, or other x86-compatible platforms. The resistive touch screen provides direct user interaction with industrial control software, enabling operators to monitor processes, input commands, and visualize data in real time.
Use Cases and Applications:
- Factory automation and process control
- Machine interface terminals
- Building management systems
- Kiosk and information terminals
- Transportation and logistics control panels
- Energy and utility monitoring systems
Compatibility:
The AHM-6125-XGA supports standard PC interfaces and can integrate with PLCs, sensors, and industrial networks via serial, Ethernet, or USB connections. It is compatible with a wide range of industrial software platforms and communication protocols.
### 5. Components & Accessories
Included Components:
- AHM-6125-XGA main unit
- Mounting brackets for panel or VESA 75 installation
- Power connector (DC input terminal)
- User manual and documentation
Optional Accessories:
- Additional COM3 port module
- External VGA output module
- 2.5" HDD or SSD (user-supplied or factory-installed)
- CompactFlash storage card
- Power adapter (11–28VDC external supply)
- Wall or arm mount kits compatible with VESA 75 standard
Connectors:
- Standard industrial-grade connectors for serial, USB, and LAN ports
- Audio jacks for microphone, line-in, and line-out
- PS/2 connectors for keyboard and mouse
- DC power input terminal block
### 6. Installation & Setup
Requirements:
- DC power source within 11–28V range
- Appropriate cut-out dimensions (303 × 229 mm) for panel mounting
- Compatible operating system and drivers for touch and I/O interfaces
Mounting Options:
- Panel Mount: Secured from the rear using mounting brackets for flush integration into control panels or enclosures.
- VESA 75 Mount: Compatible with standard 75 × 75 mm VESA mounting arms or brackets for flexible positioning.
Configuration:
- BIOS accessible for hardware configuration and boot device selection
- Touch screen calibration via software utility
- Serial port mode (RS-232/422/485) selectable through BIOS or jumper settings
- Network configuration through standard Ethernet settings
Setup Process:
1. Mount the unit securely using the chosen method.
2. Connect DC power input (11–28V).
3. Attach peripheral devices (keyboard, mouse, LAN, USB, serial).
4. Install operating system and drivers.
5. Calibrate touch screen and configure communication ports.
### 7. Performance & Capabilities
Processing Performance:
The Intel Celeron M processor provides a balance between performance and power efficiency, suitable for industrial control and HMI applications that require stable, continuous operation rather than high computational throughput.
Memory and Storage:
With up to 1GB DDR SDRAM and dual storage options (HDD and CF), the system supports both real-time data logging and embedded OS deployment.
Display Performance:
The 12.1" XGA display offers high brightness (300 cd/m²) and wide viewing angles (120°/95°), ensuring visibility in various lighting conditions. The 50,000-hour backlight life supports long-term operation in 24/7 environments.
Touch Responsiveness:
The 4-wire resistive touch panel provides accurate input even with gloves, making it ideal for industrial operators.
Network and Communication:
10/100 Mbps Ethernet ensures reliable connectivity for SCADA systems, remote monitoring, or data acquisition networks. Dual serial ports with RS-232/422/485 support enable integration with legacy and modern industrial devices.
Environmental Performance:
- Operating Temperature: 0°C to 50°C
- Storage Temperature: -20°C to 60°C
- Humidity: 10–90% @ 50°C non-condensing
- Vibration Resistance:
- 5–17Hz, 0.1" double amplitude displacement
- 17–640Hz, 1.5G acceleration peak-to-peak
- Shock Resistance:
- 10–25Hz, 2G in X, Y, Z directions for 30 minutes
Limitations:
- Limited memory capacity (up to 1GB) restricts use with high-demand applications.
- No built-in wireless connectivity (Wi-Fi or Bluetooth).
- Fanless design limits CPU performance scalability due to thermal constraints.
### 8. Standards & Compliance
Ingress Protection:
- Front Bezel: NEMA 4 / IP65 compliant, providing protection against dust, dirt, and water jets from any direction.
Certifications:
- CE (Conformité Européenne): Meets European safety and electromagnetic compatibility standards.
- FCC Class A: Complies with U.S. Federal Communications Commission regulations for industrial and commercial environments.
Industry Standards:
- VESA 75 Mounting Standard: Ensures compatibility with a wide range of mounting accessories.
- RoHS Compliance (implied by manufacturer standards): Restriction of hazardous substances in electronic equipment.
These certifications and standards confirm that the AHM-6125-XGA meets industrial-grade reliability, safety, and environmental protection requirements.
### 9. Additional Information
Warranty:
Typically covered by Aplex’s standard industrial product warranty (duration varies by region and distributor, commonly 1–2 years). Warranty covers manufacturing defects and hardware failures under normal operating conditions.
Support:
Aplex provides technical documentation, driver downloads, and firmware updates through its official support channels. Integration support and customization options are available for OEM and system integrator customers.
Maintenance:
- Fanless design minimizes maintenance requirements.
- Periodic cleaning of the front panel and connectors recommended to maintain IP65 protection.
- Storage devices (HDD/CF) can be replaced or upgraded as needed.
Software & Firmware Updates:
- BIOS updates available for enhanced hardware compatibility.
- Touch screen calibration and driver updates provided for major operating systems.
- Compatible with Windows Embedded, Windows XP/7 (embedded versions), and Linux distributions for industrial use.
Lifecycle & Reliability:
- Designed for long-term availability and stable supply chain support.
- Industrial-grade components ensure extended MTBF (Mean Time Between Failures).
- Backlight rated for 50,000 hours ensures consistent display performance over years of continuous operation.
### Summary
The Aplex AHM-6125-XGA is a robust, fanless 12.1-inch industrial panel PC engineered for reliability, flexibility, and ease of integration in industrial automation environments. Its combination of Intel Celeron M processing, resistive touch interface, wide power input range, and comprehensive I/O connectivity makes it a versatile solution for HMI, control, and monitoring applications. With IP65 front protection, CE/FCC compliance, and VESA/panel mounting options, it delivers dependable performance in harsh industrial conditions while maintaining a compact and serviceable design.
End of Product Summary – AHM-6125-XGA Fanless Panel PC
-
AHM-6125.pdf
PDF Catalog
Kein Zubehör vorhanden.
