Comprehensive Product Summary: AHM-6151 15" RISC-based Human Machine Interface

---

### 1. Product Overview

Product Name: AHM-6151
Model Number: AHM-6151
Series: AHM Series – RISC-based Human Machine Interfaces
Article Number: AHM-6151
Manufacturer: Aplex Technology Inc.

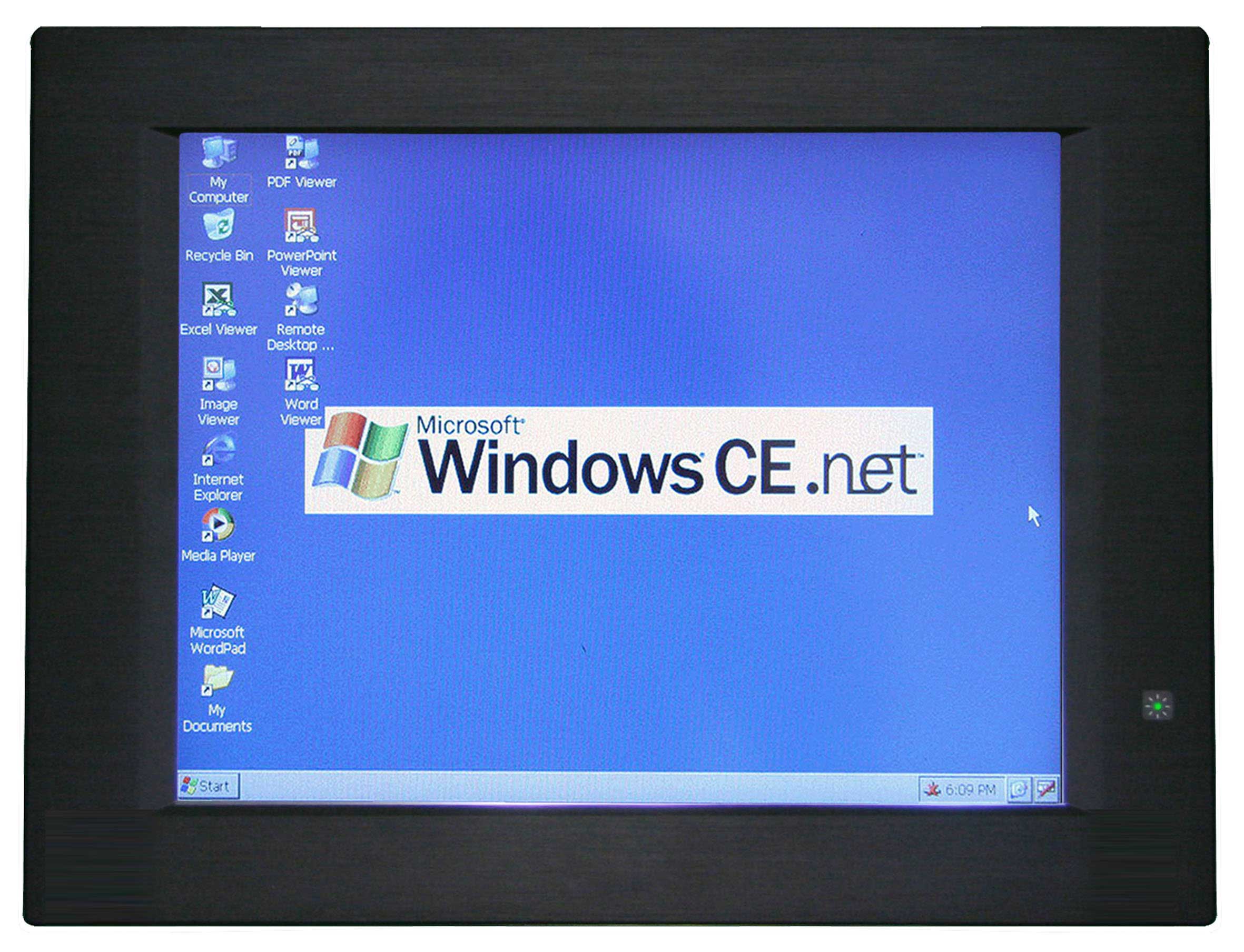

The Aplex AHM-6151 is a 15-inch RISC-based Human Machine Interface (HMI) designed for industrial automation, control, and monitoring applications. It integrates a high-performance ARM9-based Intel XScale PXA255 processor operating at 400 MHz, offering a balance between processing efficiency and low power consumption. The device features a 15-inch XGA (1024 × 768) TFT LCD display with a 4-wire analog resistive touchscreen, providing a responsive and durable interface for industrial environments. The AHM-6151 supports Windows CE 4.2 and Windows CE 5.0 operating systems, ensuring compatibility with a wide range of embedded and industrial control software.

---

### 2. Key Features

- 15-inch XGA Display: High-resolution 1024 × 768 TFT LCD panel for clear visualization of process data and control interfaces.
- RISC-based Architecture: Powered by an Intel XScale PXA255 400 MHz ARM9 CPU, optimized for embedded control and low power operation.
- Robust Memory Configuration: Equipped with 128 MB DRAM, 1 MB SRAM with battery backup, and 32 MB onboard Flash memory for OS storage.
- Expandable Storage: CompactFlash (CF) slot available for application software and data storage expansion.
- Comprehensive I/O Connectivity:
- COM1: RS-232/422/485 (configurable)
- COM2: RS-232
- 1 × PS/2 port for keyboard and mouse
- 1 × 10/100 LAN port
- USB 1.1 Client and USB 1.1 Host ports
- External VGA output
- Audio I/O: Speaker out and microphone input
- Touch Interface: 4-wire analog resistive touchscreen for precise input control.
- Industrial-grade Construction: Plastic molding front panel with metal housing for durability and electromagnetic shielding.
- Flexible Mounting Options: Supports both panel mounting and VESA 75 mm mounting standards.
- Wide Power Input Range: Operates from 11 to 28 VDC, suitable for various industrial power systems.
- Environmental Resilience: Designed for operation in temperatures from 0°C to 50°C and storage from -20°C to 60°C.
- Compliance and Protection: NEMA 4 / IP65 compliant front bezel for dust and water resistance; CE and FCC Class A certified.

---

### 3. Technical Specifications

Display:
- Size: 15 inches (diagonal)
- Resolution: 1024 × 768 (XGA)
- Type: TFT LCD
- Touchscreen: 4-wire analog resistive

Processor:
- CPU: Intel XScale PXA255 (ARM9 architecture)
- Clock Speed: 400 MHz

Memory:
- DRAM: 128 MB
- SRAM: 1 MB with battery backup
- Flash Memory: 32 MB onboard (for OS)
- Expansion: CompactFlash (CF) slot for application software

Power:
- Input Voltage: 11–28 VDC
- Power Type: DC input

I/O Interfaces:
- Serial Ports:
- COM1: RS-232/422/485 (software selectable)
- COM2: RS-232
- USB:
- 1 × USB 1.1 Client
- 1 × USB 1.1 Host
- LAN: 1 × 10/100 Mbps Ethernet port
- PS/2: 1 × combined keyboard/mouse port
- VGA: 1 × external VGA output
- Audio: 1 × speaker out, 1 × microphone input
- Storage: 1 × CF slot

Physical Characteristics:
- Dimensions: 409 mm (W) × 309 mm (H) × 56 mm (D)
- Cut-out Dimensions: 392 mm × 292 mm
- Weight: Approximately 3.06 kg (some documentation lists 7.18 kg; likely gross shipping weight)
- Front Panel Color: Black
- Construction: Plastic molding front panel with metal housing

Environmental Specifications:
- Operating Temperature: 0°C to 50°C
- Storage Temperature: -20°C to 60°C
- Relative Humidity: 10% to 90% @ 50°C, non-condensing
- Vibration Resistance:
- 5–17 Hz, 0.1" double amplitude displacement
- 17–640 Hz, 1.5 G acceleration peak-to-peak
- Shock Resistance: 10–25 Hz, 2 G (X, Y, Z directions, 30 minutes each)
- Protection Rating: NEMA 4 / IP65 compliant front bezel

Certifications:
- CE Certified
- FCC Class A Compliant

---

### 4. Functionality

The Aplex AHM-6151 functions as a Human Machine Interface (HMI) for industrial control systems, enabling operators to monitor, control, and interact with machinery, production lines, and automation processes. The device’s RISC-based architecture ensures efficient processing for embedded applications, while the Windows CE operating system provides a stable and flexible platform for custom HMI software, SCADA clients, and control applications.

Typical Use Cases:
- Factory automation and process control
- Machine operation panels
- Building management systems
- Energy monitoring and control
- Transportation and logistics terminals
- Embedded control systems in manufacturing equipment

Compatibility:
- Compatible with Windows CE 4.2 and Windows CE 5.0 operating systems
- Supports standard industrial communication protocols via RS-232/422/485 interfaces
- Ethernet connectivity allows integration into networked control systems
- USB and CF interfaces support peripheral expansion and data transfer

---

### 5. Components & Accessories

Included Components:
- AHM-6151 main unit
- Resistive touchscreen integrated with display
- Power input terminal block
- Mounting brackets for panel or VESA 75 installation
- User documentation and installation guide

Optional Accessories:
- CompactFlash memory cards for application storage
- External keyboard and mouse (via PS/2 port)
- External display (via VGA output)
- USB peripherals (e.g., barcode scanners, USB drives)
- Audio accessories (microphone, speakers)

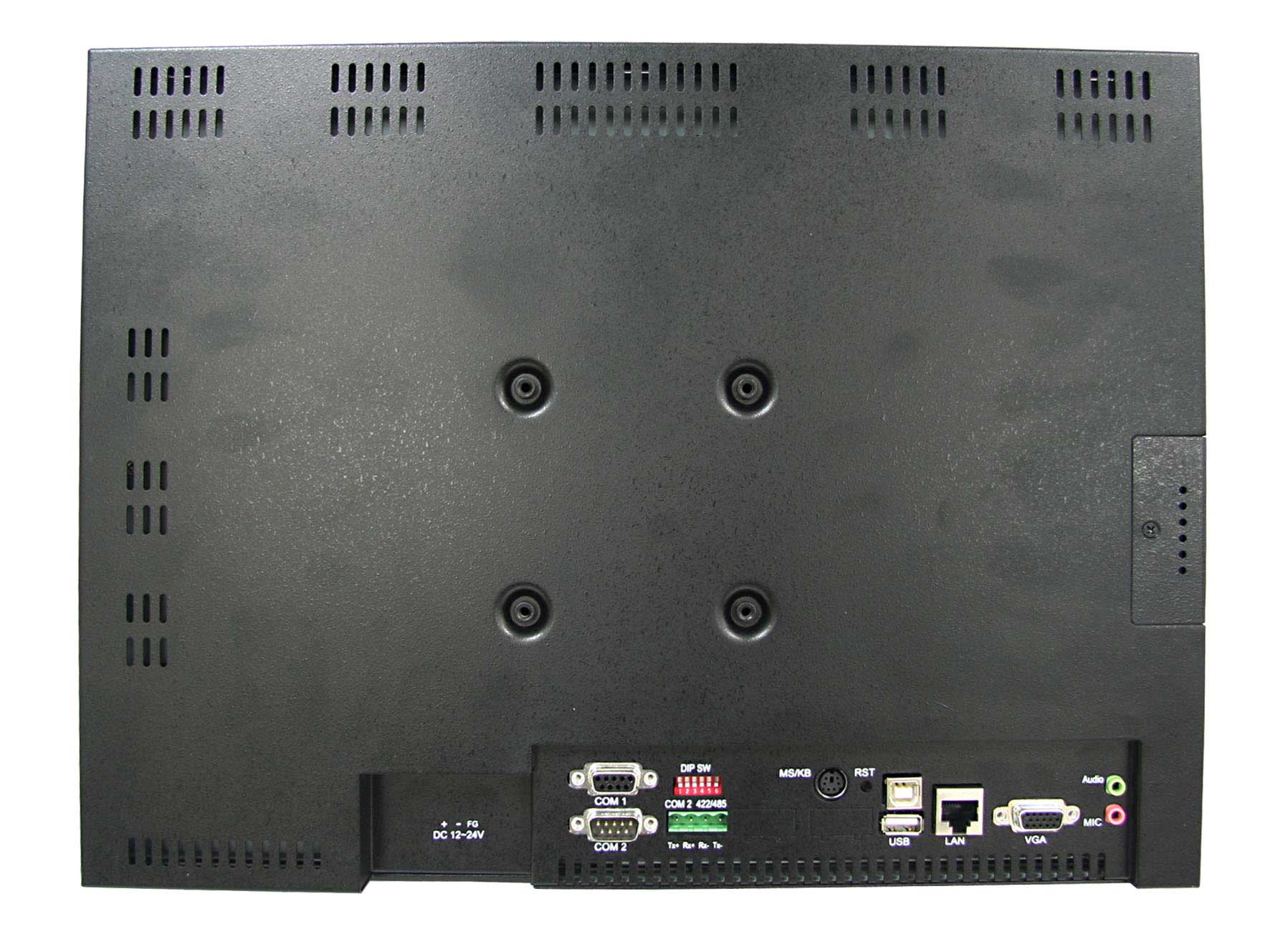

Connectors and Ports:
- Power input terminal (11–28 VDC)
- COM1 and COM2 serial connectors
- RJ-45 Ethernet port
- USB Type-A (Host) and USB Type-B (Client)
- PS/2 mini-DIN connector
- VGA D-Sub 15-pin connector
- 3.5 mm audio jacks for mic and speaker

---

### 6. Installation & Setup

Mounting Options:
- Panel Mounting: Designed for flush installation into control panels using the specified cut-out dimensions (392 × 292 mm).
- VESA Mounting: Compatible with VESA 75 mm standard for mounting on arms, brackets, or stands.

Power Requirements:
- Operates on DC voltage between 11 and 28 VDC.
- Recommended to use a regulated power supply with proper grounding.

Setup Procedure:
1. Prepare the panel cut-out according to the specified dimensions.
2. Insert the HMI unit into the cut-out and secure it using the provided mounting brackets.
3. Connect the DC power input to the terminal block.
4. Attach communication cables (RS-232/422/485, Ethernet, USB, etc.) as required.
5. Install CompactFlash card if additional storage or application software is needed.
6. Power on the device and configure the operating system (Windows CE 4.2 or 5.0).
7. Load and configure HMI or SCADA software as per application requirements.

Configuration:
- Serial port modes (RS-232/422/485) can be configured via software.
- Network settings (IP address, subnet, gateway) are adjustable through the Windows CE interface.
- Touchscreen calibration is performed through the OS control panel.

---

### 7. Performance & Capabilities

Processing Performance:
- The Intel XScale PXA255 400 MHz CPU provides efficient performance for real-time control and graphical interface rendering.
- Optimized for low power consumption and high reliability in continuous operation environments.

Memory and Storage:
- 128 MB DRAM ensures smooth multitasking and responsive interface performance.
- 32 MB Flash memory stores the operating system, while the CF slot allows for additional application and data storage.
- Battery-backed 1 MB SRAM preserves critical data during power interruptions.

Display and Input:
- The 15-inch XGA display delivers sharp and clear visuals suitable for detailed process monitoring.
- The resistive touchscreen supports gloved operation, ideal for industrial settings.

Connectivity and Communication:
- Dual serial ports with multi-protocol support enable integration with PLCs, sensors, and controllers.
- Ethernet port supports networked control and remote monitoring.
- USB ports allow for peripheral connectivity and data exchange.
- External VGA output extends display capabilities to larger monitors or projectors.

Reliability and Durability:
- Designed for 24/7 operation in industrial environments.
- IP65-rated front bezel protects against dust and water ingress.
- Withstands vibration and shock conditions typical of factory and machinery installations.

Limitations:
- USB 1.1 interface limits data transfer speed compared to modern USB standards.
- Windows CE platform may restrict compatibility with newer software ecosystems.
- Display brightness and viewing angles are not specified, which may affect outdoor readability.

---

### 8. Standards & Compliance

Protection and Safety Standards:
- NEMA 4 / IP65 Front Bezel: Ensures protection against dust, dirt, and water jets, suitable for industrial and factory environments.

Regulatory Compliance:
- CE Certification: Conforms to European safety, health, and environmental protection standards.
- FCC Class A Compliance: Meets U.S. Federal Communications Commission standards for electromagnetic interference in industrial environments.

Industry Standards:
- VESA 75 Mounting Standard: Ensures compatibility with standard mounting brackets and arms.
- RS-232/422/485 Communication Standards: Supports widely used industrial serial communication protocols.
- Ethernet IEEE 802.3 Compliance: Ensures reliable network connectivity.

---

### 9. Additional Information

Operating System Support:
- Windows CE 4.2
- Windows CE 5.0

Warranty and Support:
- Standard manufacturer warranty (typically 1–2 years, depending on region and distributor).
- Technical support available through Aplex Technology’s service network.
- Firmware and OS updates provided as applicable for supported Windows CE versions.

Maintenance:
- Periodic cleaning of the front panel and touchscreen recommended to maintain responsiveness.
- Ensure proper ventilation and avoid exposure to excessive moisture or vibration beyond specified limits.
- Backup of configuration and application data via CF card or network recommended.

Serviceability:
- Modular design allows for easy replacement of CF card and accessible I/O ports.
- Battery-backed SRAM ensures data retention during maintenance or power loss.

Software Updates and Integration:
- Supports custom HMI software development under Windows CE environment.
- Compatible with standard industrial communication libraries and protocols.
- Integration possible with PLCs, SCADA systems, and industrial networks via serial or Ethernet interfaces.

---

### Summary

The Aplex AHM-6151 is a robust, RISC-based 15-inch Human Machine Interface engineered for industrial automation and embedded control applications. Combining a durable construction, versatile connectivity, and reliable performance, it serves as a dependable operator interface for a wide range of industrial systems. Its ARM9-based Intel XScale processor, resistive touchscreen, and Windows CE operating system provide a stable and efficient platform for real-time monitoring and control. With compliance to NEMA 4/IP65, CE, and FCC Class A standards, the AHM-6151 is well-suited for demanding environments where reliability, flexibility, and long-term availability are critical.
