1. Product Overview

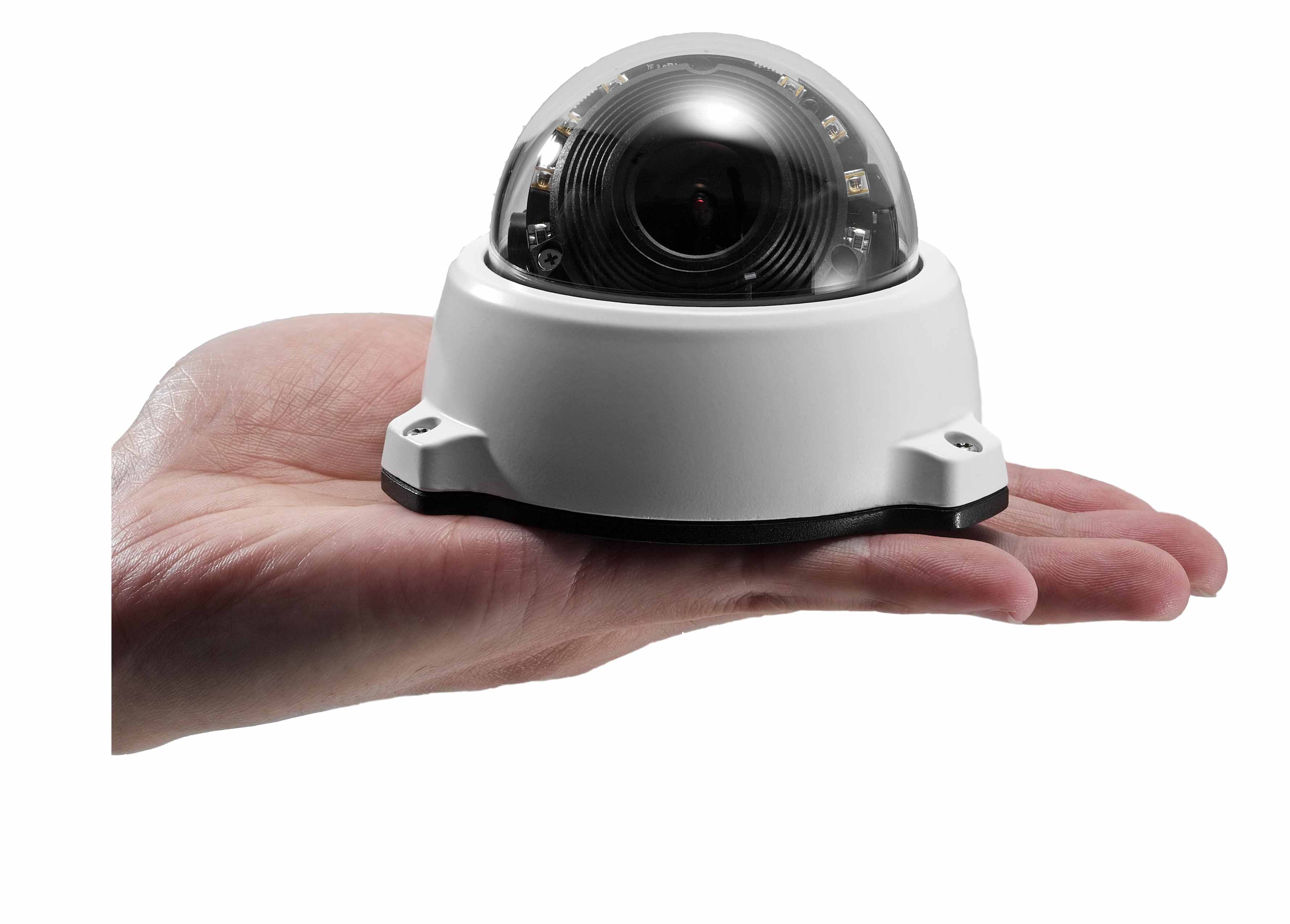

Product Name: 2M 3× Zoom Mini PTZ PoE HDMI AutoTrack IP65 Sony Dome Web Cam
Model: ANC-3420MB
Series: ANC-34xxMB Mini PTZ Dome Series
Article Number: ANC-3420MB
Manufacturer: Not explicitly stated (ANC Series – typically associated with professional-grade IP surveillance and imaging systems)
The ANC-3420MB is a compact, high-performance mini PTZ (Pan-Tilt-Zoom) dome camera designed for professional surveillance, monitoring, and automated tracking applications. It integrates a Sony image sensor, 3× optical zoom, PoE (Power over Ethernet) capability, HDMI output, and IP65-rated weatherproof housing, making it suitable for both indoor and outdoor environments. The camera delivers Full HD 1080p (1920×1080) resolution and supports auto-tracking and auto-zoom functions for intelligent subject detection and motion-based tracking.
2. Key Features
- High-Definition Imaging: Equipped with a Sony 2-megapixel sensor, the ANC-3420MB captures crisp, detailed video at a maximum resolution of 1920×1080 pixels.
- 3× Optical Zoom: Integrated precision zoom lens allows close-up inspection without loss of image quality, ideal for monitoring wide areas or focusing on specific subjects.
- Mini PTZ Design: Compact dome form factor with pan, tilt, and zoom capabilities for flexible coverage and discreet installation.
- Auto-Tracking & Auto-Zoom: Intelligent motion detection and tracking algorithms automatically follow moving subjects, adjusting zoom dynamically for optimal framing.
- PoE (Power over Ethernet): Simplifies installation by combining power and data transmission over a single Ethernet cable, reducing wiring complexity.
- HDMI Output: Direct digital video output for local display or integration with HDMI-based monitoring systems.
- Outdoor-Ready (IP65): Weatherproof housing ensures reliable operation in outdoor environments, protecting against dust, rain, and moisture.
- Sony Sensor Technology: Delivers superior low-light performance, color accuracy, and dynamic range, ensuring clear imaging in diverse lighting conditions.
- Compact Dome Form Factor: Designed for unobtrusive installation on ceilings, walls, or poles, suitable for both commercial and residential applications.
- Auto-Focus and Auto-Exposure: Maintains sharpness and optimal brightness automatically during zoom or movement.
- Network-Enabled: Supports IP-based streaming and remote control via standard network protocols.
3. Technical Specifications
- Image Sensor: Sony 2.0 Megapixel CMOS sensor
- Effective Resolution: 1920 × 1080 (Full HD 1080p)
- Optical Zoom: 3× optical zoom lens
- Digital Zoom: Typically up to 4× (depending on firmware configuration)
- Lens Type: Motorized zoom lens with auto-focus
- Pan Range: Approx. 0°–355° (continuous rotation possible depending on configuration)
- Tilt Range: Approx. -10° to +90°
- Pan/Tilt Speed: Variable speed control for smooth tracking (typical range 0.1°–100°/s)
- Minimum Illumination: 0.05 Lux (Color), 0.01 Lux (B/W with IR enhancement, if available)
- Video Compression: H.264 / H.265 / MJPEG (depending on firmware)
- Frame Rate: Up to 30 fps @ 1920×1080
- Network Interface: RJ45 10/100 Mbps Ethernet port (PoE supported)
- Power Supply: IEEE 802.3af PoE (Power over Ethernet)
- Power Consumption: ≤10 W (typical)
- Video Output: HDMI Type-A port for direct display connection
- Ingress Protection: IP65 (dust-tight and water-resistant)
- Operating Temperature: -20°C to +55°C (typical outdoor range)
- Housing Material: Aluminum alloy dome with polycarbonate bubble cover
- Dimensions: Approx. Ø120 mm × 90 mm (D × H)
- Weight: Approx. 600–800 g (depending on mounting bracket)
- Color: White or metallic gray (standard finish)
4. Functionality
The ANC-3420MB operates as a network-connected PTZ dome camera capable of autonomous subject tracking and remote control. The integrated auto-tracking function uses motion detection algorithms to identify moving objects within the field of view and automatically adjust pan, tilt, and zoom to maintain focus on the target.
Use Cases & Applications:
- Security & Surveillance: Ideal for perimeter monitoring, parking lots, building entrances, and public spaces.
- Retail & Commercial Monitoring: Tracks customer movement, monitors queues, and provides analytics-ready video streams.
- Industrial & Logistics: Monitors production lines, warehouses, and loading docks with automated tracking of personnel or vehicles.
- Education & Conference Recording: Auto-tracking of speakers or presenters in classrooms, auditoriums, or meeting rooms.
- Smart City & Traffic Monitoring: Tracks vehicles or pedestrians in outdoor environments.
Compatibility:
- Compatible with standard ONVIF network protocols for integration with NVRs, VMS platforms, and third-party IP camera systems.
- HDMI output allows direct connection to monitors, recorders, or video switchers.
- PoE support ensures compatibility with PoE switches and injectors compliant with IEEE 802.3af standards.
5. Components & Accessories
Included Items:
- ANC-3420MB Mini PTZ Dome Camera Unit
- Mounting bracket or base plate (depending on package)
- Waterproof cable gland for Ethernet connection
- Quick installation guide and documentation
- Screws and anchors for mounting
Optional Accessories:
- Wall-mount or ceiling-mount brackets (various angles and lengths)
- Junction box for cable management
- PoE injector (if PoE switch not available)
- HDMI cable (for direct display connection)
- Weatherproof housing extensions or sunshields (for extreme outdoor conditions)
Connectors:
- RJ45 Ethernet port (PoE)
- HDMI output port
- Power input (optional DC 12V, if not using PoE)
- Reset button (for factory reset or firmware recovery)
6. Installation & Setup
Requirements:
- PoE-enabled network switch or PoE injector (IEEE 802.3af compliant)
- Network cable (Cat5e or higher recommended)
- Mounting surface capable of supporting camera weight
- Compatible NVR, VMS, or network monitoring software
Mounting Options:
- Ceiling Mount: Standard dome installation for indoor or sheltered outdoor use.
- Wall Mount: Using optional bracket for angled viewing.
- Pole Mount: With additional adapter for outdoor surveillance.
Configuration:
- Connect Ethernet cable to PoE switch or injector.
- Access camera via web interface using default IP address.
- Configure network settings, video resolution, and streaming parameters.
- Calibrate auto-tracking sensitivity and zoom behavior.
- Integrate with NVR or VMS via ONVIF or RTSP stream.
Setup Tools:
- Web browser (Chrome, Edge, or IE for legacy systems)
- Firmware configuration utility (if provided by manufacturer)
- HDMI monitor for local setup and alignment
7. Performance & Capabilities
The ANC-3420MB delivers Full HD 1080p video with smooth frame rates and precise PTZ control. The 3× optical zoom lens provides flexible coverage, allowing both wide-area surveillance and detailed close-ups. The Sony sensor ensures excellent image clarity, low noise, and accurate color reproduction even under challenging lighting conditions.
Speed & Responsiveness:
- Fast pan/tilt response for real-time tracking
- Smooth zoom transitions with minimal focus delay
- Auto-focus and exposure adjustments during motion
Capacity & Efficiency:
- Efficient H.264/H.265 compression reduces bandwidth and storage requirements
- PoE power delivery minimizes infrastructure complexity
- Supports continuous operation in outdoor environments
Limitations:
- Optical zoom limited to 3× (suitable for short- to medium-range monitoring)
- IP65 rating protects against rain and dust but not full submersion (not IP67)
- Requires stable network connection for optimal streaming performance
8. Standards & Compliance
- Ingress Protection: IP65 (IEC 60529 standard)
- Power Standard: IEEE 802.3af PoE compliant
- Video Standards: HDMI 1.4 or higher (depending on firmware)
- Network Protocols: ONVIF, RTSP, TCP/IP, HTTP, DHCP, NTP, FTP, SMTP (typical for IP cameras)
- Safety & EMC Compliance: CE, FCC, and RoHS (typical for professional surveillance equipment)
- Environmental Compliance: Lead-free, RoHS-compliant materials
These certifications ensure compatibility with global surveillance infrastructure and adherence to safety and environmental regulations.
9. Additional Information
Warranty:
- Standard manufacturer warranty (typically 1–2 years, depending on region and distributor) covering defects in materials and workmanship.
Support:
- Firmware updates and configuration tools available via manufacturer’s support portal.
- Technical documentation, installation manuals, and SDKs for system integrators.
- Remote technical assistance for setup and troubleshooting.
Maintenance:
- Periodic cleaning of dome cover to maintain image clarity.
- Firmware updates recommended for performance improvements and security patches.
- Regular inspection of mounting hardware and cable seals for outdoor installations.
Software & Updates:
- Web-based interface for configuration and firmware management.
- Optional integration with third-party VMS platforms for advanced analytics.
- Auto-tracking algorithm updates may be provided via firmware revisions.
### Summary
The ANC-3420MB 2M 3× Zoom Mini PTZ PoE HDMI AutoTrack IP65 Sony Dome Web Cam is a versatile, compact, and intelligent surveillance camera engineered for professional-grade monitoring applications. Combining Sony imaging technology, auto-tracking intelligence, PoE connectivity, and HDMI output, it delivers a balance of performance, reliability, and ease of installation. Its IP65-rated housing ensures durability in outdoor environments, while its 3× optical zoom and PTZ control provide flexible coverage for dynamic monitoring scenarios.
Ideal for security, industrial, educational, and commercial use, the ANC-3420MB offers a robust solution for users seeking high-quality imaging, automated tracking, and simplified network integration in a compact dome form factor.
