Comprehensive Product Summary – APC-3762 Industrial Fanless Panel PC

---

### 1. Product Overview

Product Name: APC-3762
Model Number: APC-3762
Series: APC-3000 Series Industrial Panel PCs
Article Number: APC-3762
Manufacturer: Aplex Technology Inc.

The APC-3762 is a 17-inch SXGA Industrial Fanless Panel PC designed for demanding industrial automation, control, and monitoring applications. It combines a rugged mechanical design with flexible expansion capabilities, offering two PCI slots for system customization. Engineered for reliability in harsh environments, the APC-3762 features a fanless architecture, IP65-rated front panel protection, and a wide DC power input range. It is part of Aplex’s APC series, known for its robust construction, long lifecycle components, and versatile configuration options suitable for factory automation, process control, and embedded system integration.

---

### 2. Key Features

- 17-inch SXGA TFT LCD Display:
High-resolution 1280 × 1024 display providing clear, detailed visualization for industrial HMI and SCADA applications.

- Fanless Design:
Passive cooling ensures silent operation, reduced maintenance, and improved reliability in dusty or vibration-prone environments.

- Processor:
Equipped with an Intel® Celeron® M 1.0 GHz processor, optimized for low power consumption and stable performance in embedded systems.

- Memory Support:
One DDR SODIMM socket supporting up to 1 GB of system memory.

- Expansion Capability:
Two PCI expansion slots allow integration of additional I/O, communication, or control cards for system customization.

- Touchscreen Option:
Optional resistive touchscreen for intuitive user interaction and control.

- Rugged Construction:

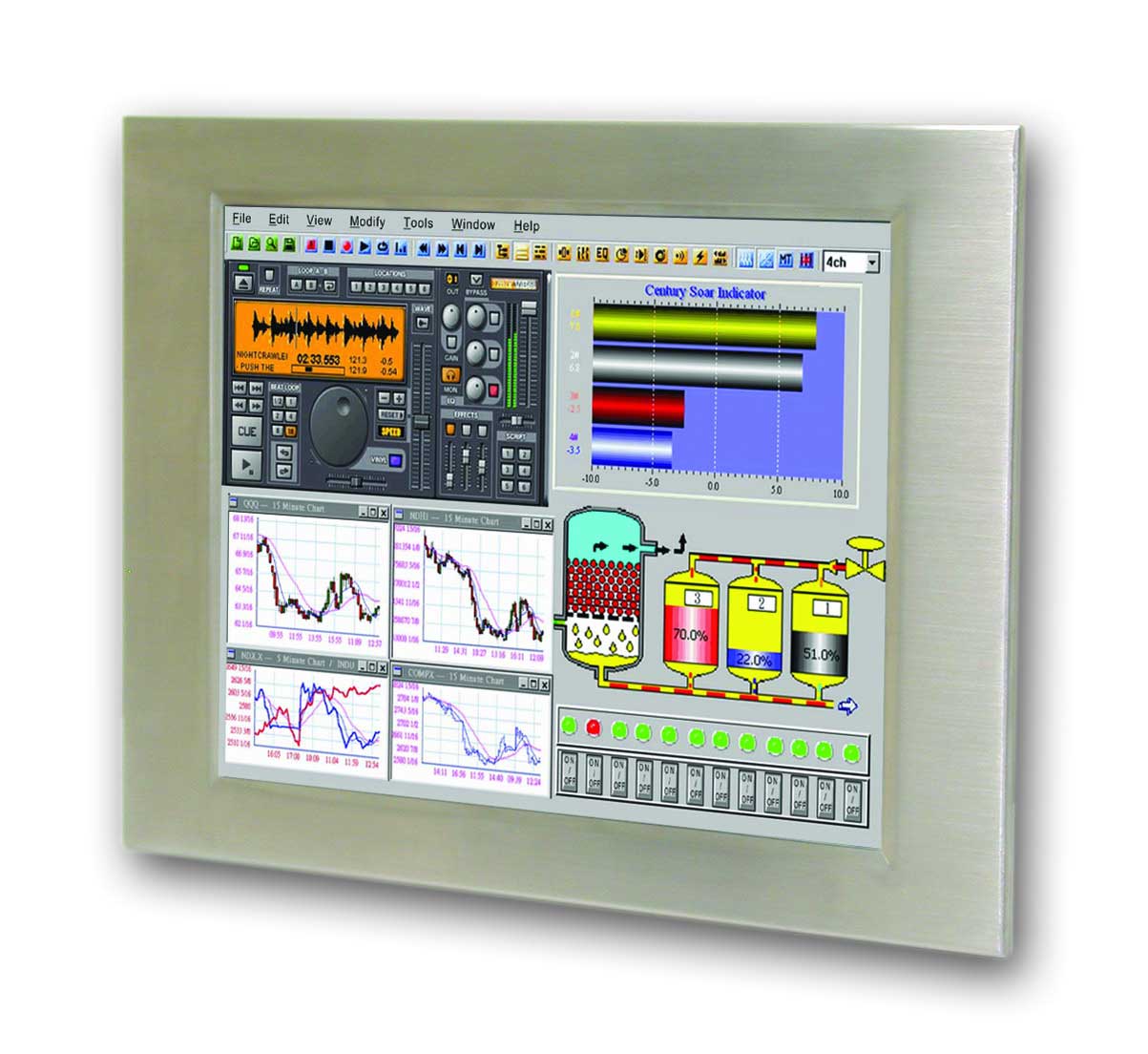

Heavy-duty steel chassis with optional stainless steel front bezel for enhanced corrosion resistance and hygiene-critical environments.

- Front Panel Protection:
IP65 / NEMA 4 compliant front bezel, protecting against dust and water ingress.

- Comprehensive I/O Connectivity:
- 2 × USB 2.0 ports
- 4 × COM ports (serial interfaces)
- 1 × LAN port (Ethernet)
- 1 × CompactFlash (CF) slot
- Space for 1 × 2.5" HDD and 1 × slim-type CD drive

- Flexible Power Input:
Wide-range DC input from 11 V to 28 V, suitable for industrial power systems.

- Mounting Compatibility:
Supports panel mounting and VESA 75 standard for flexible installation.

- Environmental Tolerance:
Operating temperature range from 0°C to 50°C and storage temperature from -10°C to 75°C.

---

### 3. Technical Specifications

Display:
- Size: 17 inches (diagonal)
- Type: TFT LCD
- Resolution: 1280 × 1024 (SXGA)
- Brightness: 300 cd/m²
- Backlight Lifetime: 50,000 hours
- Optional Touchscreen: 5-wire resistive type

Processor & Memory:
- CPU: Intel® Celeron® M 1.0 GHz
- Memory: 1 × DDR SODIMM socket, up to 1 GB

Storage Options:
- 1 × 2.5" HDD bay
- 1 × Slim-type CD-ROM drive bay
- 1 × CompactFlash (CF) slot

Expansion Slots:
- 2 × PCI slots

I/O Interfaces:
- 2 × USB 2.0 ports
- 4 × COM ports (RS-232/422/485 configurable depending on model)
- 1 × LAN port (10/100 Mbps Ethernet)

Power:
- Input Voltage: DC 11–28 V
- Power Consumption: Optimized for low power operation (exact wattage dependent on configuration)

Mechanical Construction:
- Chassis: Heavy-duty steel
- Front Bezel: Aluminum or optional stainless steel
- Mounting: Panel mount / VESA 75 compatible
- Dimensions (W × H × D): 457 × 355 × 114 mm
- Cut-out Dimensions: 420 × 329 mm
- Weight: Approximately 8.99 kg (~9 kg)

Environmental Conditions:
- Operating Temperature: 0°C to 50°C
- Storage Temperature: -10°C to 75°C
- Relative Humidity: 10%–90% (non-condensing)

Protection Rating:
- Front Panel: IP65 / NEMA 4 compliant

Certifications:
- CE Certified
- FCC Class A Compliant

---

### 4. Functionality

The APC-3762 functions as a fully integrated industrial computing platform, combining display, processing, and I/O in a single ruggedized enclosure. It is designed for continuous operation in industrial environments where reliability, durability, and expandability are critical.

How It Works:
The system operates as a panel-mounted industrial PC. The embedded Intel Celeron M processor handles control logic, data acquisition, and visualization tasks. The integrated 17-inch SXGA display provides real-time graphical interfaces for operators, while the optional resistive touchscreen enables direct interaction with control software. The fanless design uses passive heat dissipation through the chassis, eliminating moving parts and reducing maintenance.

Use Cases & Applications:
- Factory automation and process control
- Human-Machine Interface (HMI) terminals
- Machine vision and inspection systems
- Building automation and facility management
- Transportation and logistics control panels
- Energy management and monitoring systems
- Food and pharmaceutical production (with stainless steel front option)

Compatibility:
The APC-3762 supports standard operating systems used in industrial environments, including Windows Embedded, Linux, and other x86-compatible platforms. Its PCI expansion slots allow integration with specialized I/O cards, motion controllers, or communication interfaces.

---

### 5. Components & Accessories

Included Components:
- APC-3762 main unit (panel PC)
- Mounting brackets for panel installation
- Power connector terminal block
- User manual and driver CD

Optional Accessories:
- Resistive touchscreen module
- Stainless steel front bezel
- 2.5" HDD or SSD (user-supplied or factory-installed)
- Slim-type CD-ROM or DVD-ROM drive
- CompactFlash storage card
- PCI expansion cards (e.g., additional serial ports, fieldbus interfaces, data acquisition modules)
- VESA 75 mounting kit

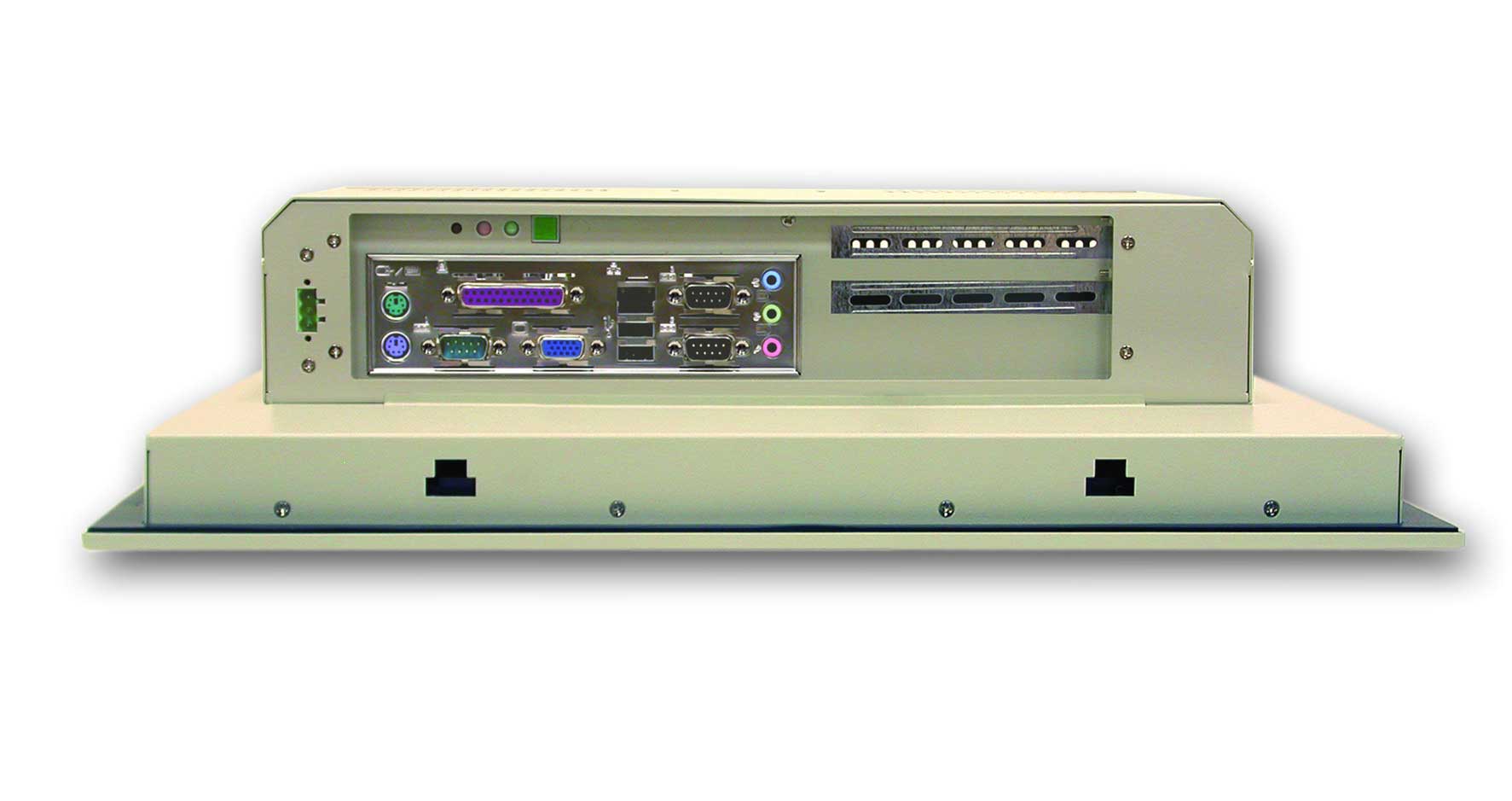

Connectors & Interfaces:
- USB: 2 × USB 2.0 Type-A ports
- Serial: 4 × DB9 COM ports
- Ethernet: 1 × RJ45 LAN port
- Power: DC terminal block input (11–28 VDC)
- Expansion: 2 × PCI slots accessible internally

---

### 6. Installation & Setup

Installation Requirements:
- Cut-out dimension: 420 × 329 mm for panel mounting
- Clearance depth: Minimum 114 mm behind the panel surface
- Power supply: Regulated DC source within 11–28 V range

Mounting Options:
- Panel Mount: Standard configuration using included brackets for flush installation in control panels or enclosures.
- VESA 75 Mount: Optional mounting pattern for arm or wall installation, suitable for flexible positioning in operator stations.

Configuration & Setup:
1. Secure the unit into the panel cut-out using the provided mounting brackets.
2. Connect DC power input to the terminal block.
3. Attach peripheral devices via USB, COM, and LAN ports.
4. Install storage devices (HDD, CF card, or optical drive) as required.
5. Load the desired operating system and drivers from the included media.
6. Calibrate the touchscreen (if equipped) and configure system parameters.

The fanless design simplifies installation by eliminating the need for ventilation clearance or fan maintenance.

---

### 7. Performance & Capabilities

Processing Performance:
The Intel Celeron M 1.0 GHz processor provides stable, energy-efficient performance suitable for industrial control, data logging, and visualization tasks. While not intended for high-end computing, it delivers reliable operation for embedded and automation workloads.

Memory & Storage:
With up to 1 GB DDR memory and multiple storage options (HDD, CF, CD-ROM), the system supports flexible data handling and software deployment.

Display Performance:
The 17-inch SXGA display offers 300 cd/m² brightness, ensuring visibility in typical factory lighting conditions. The 50,000-hour backlight lifetime supports long-term operation with minimal maintenance.

Expansion & Connectivity:
Two PCI slots enable system customization for specialized industrial interfaces, while multiple COM ports and USB connections provide broad peripheral compatibility.

Power Efficiency:
The wide DC input range (11–28 V) allows direct connection to industrial power systems, minimizing the need for external adapters. The fanless design further reduces power consumption and noise.

Limitations:
- Limited memory capacity (up to 1 GB) restricts use with resource-intensive applications.
- Single-core processor may not support advanced multitasking or high-performance computing.
- Display brightness (300 cd/m²) may be insufficient for direct sunlight environments.

---

### 8. Standards & Compliance

Protection & Safety Standards:
- IP65 / NEMA 4 Front Panel: Dust-tight and protected against water jets, suitable for washdown or dusty environments.
- CE Certification: Conforms to European safety and electromagnetic compatibility standards.
- FCC Class A Compliance: Meets U.S. electromagnetic emission standards for industrial equipment.

Environmental & Mechanical Standards:
- Designed for industrial-grade reliability and continuous operation.
- Complies with standard panel-mount and VESA 75 mechanical interfaces.

Quality Assurance:
Each unit undergoes factory testing for vibration, temperature, and electrical stability to ensure consistent performance in industrial conditions.

---

### 9. Additional Information

Warranty:
Standard manufacturer warranty (typically 1–2 years, depending on region and configuration) covering defects in materials and workmanship.

Technical Support:
Aplex provides comprehensive technical support, including driver updates, documentation, and configuration assistance. Support is available through authorized distributors and the Aplex technical service portal.

Maintenance:
- Fanless design minimizes maintenance requirements.
- Periodic cleaning of the front panel and inspection of connectors recommended.
- Storage devices (HDD/CF) may require replacement based on usage cycles.

Software & Firmware Updates:
Compatible with standard operating systems; BIOS and driver updates are available from Aplex’s official website to ensure long-term compatibility and security.

Lifecycle & Availability:
The APC-3762 is built with long-term availability components, ensuring consistent supply for industrial OEMs and system integrators. Its modular design allows for future upgrades or replacements within the same mechanical footprint.

---

### Summary

The Aplex APC-3762 is a 17-inch SXGA fanless industrial panel PC engineered for reliability, flexibility, and durability in industrial automation environments. With its Intel Celeron M 1.0 GHz processor, two PCI expansion slots, and IP65-rated front panel, it provides a robust platform for HMI, control, and monitoring applications. The combination of fanless operation, wide DC input, and rugged steel construction ensures dependable performance in harsh conditions. Optional features such as a resistive touchscreen and stainless steel bezel make it adaptable to a wide range of industrial and hygienic applications.

In summary, the APC-3762 delivers a balanced blend of performance, expandability, and environmental resilience—ideal for system integrators and industrial users seeking a long-life, maintenance-free panel PC solution.
