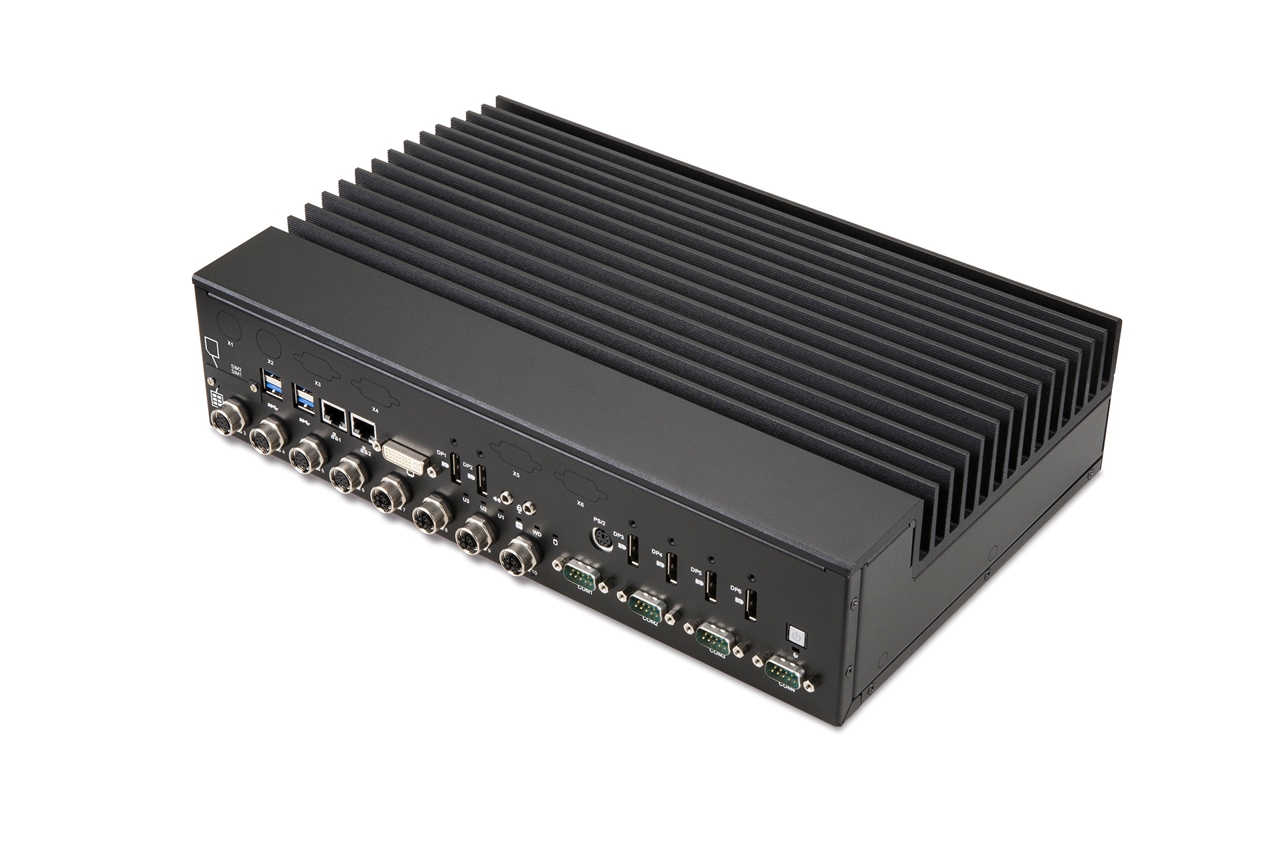

Comprehensive Product Summary – AVA-5500 Series AI-Enabled Video Analytics Platform

---

### 1. Product Overview

Product Name: AVA-5500 Series
Models: AVA-5500, AVA-5510, AVA-5520
Series: AI-Enabled Video Analytics Platform for Railway Applications
Article Number: AVA-5500 Series
Manufacturer: ADLINK Technology Inc.
Part Numbers:
- AVA-5500/6820/16G
- AVA-5500/7820/32G/P3000
- AVA-5510/6820/16G/P1000
- AVA-5520/6820/16G/P3000
- AVA-5520/7820/32G/P5000

Product Type: Rugged, fanless AIoT computing platform with integrated NVIDIA Quadro® GPU for real-time video and graphics analytics in railway and transportation environments.
Compliance: EN50155-certified for railway applications, designed for both onboard and wayside deployment.

---

### 2. Key Features

- High-Performance Processing:
Equipped with 6th/7th Gen Intel® Core™ i7 processors (Skylake/Kaby Lake), including i7-6820EQ (2.8GHz) and i7-7820EQ (3.0GHz).
- GPU Acceleration:
Supports NVIDIA Quadro® MXM 3.1 Type A/B modules (P1000, P2000, P3000, P5000) on PCI Express x16, enabling up to 6.4 TFLOPS peak performance.
- Rugged Fanless Design:
Convection-cooled, fanless chassis suitable for harsh railway environments; compliant with EN50155, EN50121-3-2, EN50124-1, EN50153, and EN45545-2.
- Rich I/O Connectivity:
- 8x M12 GbE ports (4x PoE Class 2, 7W each)
- 4x RS-422/485 serial ports (2kVrms isolation)
- 4x USB 3.0 ports (plus 2x M12 USB 2.0 on AVA-5510)
- 1x DVI-I, 4x lockable DisplayPorts
- Audio I/O (Mic-in, Line-out)
- Flexible Storage Options:
- 2x or 4x 2.5" SATA 6.0 Gb/s drive bays (model dependent)
- 1x M.2 2280 SATA slot
- 1x CFast socket (externally accessible)
- Wireless & Expansion:
- 2x Mini PCIe slots for GNSS/3G/4G/WLAN modules
- 2x USIM slots for cellular connectivity
- Optional CAN/MVB bus via Mini PCIe add-on module
- Wide DC Input Range:
- AVA-5500/5510: 24VDC, 36VDC, 72VDC, 110VDC (16.8–137.5V range)
- AVA-5520: 12VDC nominal input
- AIoT Edge Computing:
Designed for real-time video analytics, passenger information systems, intrusion detection, and onboard surveillance.
- Board Management:
ADLINK SEMA 3.0 for watchdog, hardware monitoring, runtime statistics, and failsafe dual BIOS.

---

### 3. Technical Specifications

Processor:
- Intel® Core™ i7-6820EQ (2.8GHz, 4 cores, 8 threads)
- Intel® Core™ i7-7820EQ (3.0GHz, 4 cores, 8 threads)

Memory:
- Dual-channel DDR4-2133 SDRAM, up to 32GB via dual SODIMM sockets.

Graphics:
- Integrated Intel® HD Graphics (2x DisplayPort, 1x DVI-I)
- NVIDIA Quadro® MXM GPU (4x DisplayPort, lockable)
- P1000: 512 CUDA cores, 1.8 TFLOPS, 4GB GDDR5
- P2000: 768 CUDA cores, 2.3 TFLOPS, 4GB GDDR5
- P3000: 1280 CUDA cores, 3.9 TFLOPS, 6GB GDDR5
- P5000 (AVA-5520 only): 2048 CUDA cores, 6.4 TFLOPS, 16GB GDDR5

Storage:
- AVA-5500/5520: 2x 2.5" SATA bays
- AVA-5510: 4x 2.5" SATA bays
- 1x M.2 2280 SATA slot
- 1x CFast socket (external)

Dimensions & Weight:
- AVA-5500/5520: 360mm (W) × 225.1mm (D) × 88.8mm (H)
- AVA-5510: 360mm (W) × 225.1mm (D) × 105.4mm (H)
- Weight: 6.3 kg

Mounting: Wall mount (brackets included).
Cooling: Fanless, passive convection.
Enclosure Rating: IP4X.

---

### 4. Functionality

Operation:
The AVA-5500 Series functions as an AI-enabled edge computing platform for real-time video analytics. It integrates CPU and GPU processing to handle high-resolution video streams, object detection, and predictive analytics in railway environments.

Use Cases:
- Passenger information and infotainment systems
- Train station and onboard surveillance
- Intrusion and hazard detection
- Predictive maintenance and operational monitoring

Compatibility:
Supports Windows 8/10 and Ubuntu 16.04. Compatible with NVIDIA CUDA and AI frameworks for deep learning inference at the edge.

---

### 5. Components & Accessories

Included:
- AVA-5500 Series main unit
- Wall-mount bracket and screw pack

Optional Accessories:
- Factory-installed industrial-grade SSD (single/dual 256GB)
- Mini PCIe 3G/Wi-Fi/BT/GPS wireless kits
- Mini PCIe CAN bus kit (Innodisk EMUC-B202-W2)
- Starter cable kits:
- AVA-5500/5520: 4x PoE M12(X) to RJ-45, 4x M12(A) to RJ-45, PS/2 Y cable, M12(S) to DC power cable
- AVA-5510: same as above plus 2x M12(A) to USB 2.0 Type A cables

Connectors:
- 8x M12 GbE (4x PoE)
- 4x RS-422/485 DB9
- 4x USB 3.0 Type A
- 2x M12 USB 2.0 (AVA-5510 only)
- 1x DVI-I, 4x DisplayPort
- 2x RJ-45 GbE
- 2x USIM slots
- Audio I/O (Mic-in, Line-out)
- 4x antenna cutouts

---

### 6. Installation & Setup

Requirements:
- Qualified personnel for installation
- Proper grounding before power connection
- DC power input via 4-pin M12 S-coded connector

Mounting:
Attach wall-mount brackets using provided screws; ensure surface supports 6.3 kg weight.

Configuration:
- BIOS setup via <Del> key
- Boot device selection and display configuration adjustable in BIOS
- USIM cards accessible from front panel
- M.2, Mini PCIe, and CFast modules installable via bottom cover access

Power Input:
- AVA-5500/5510: 24V/36V/72V/110VDC (16.8–137.5V range)
- AVA-5520: 12VDC nominal

Protection:
- Over-voltage shutdown at 161V
- Under-voltage lockout below 14V
- Over-temperature protection at 125°C

---

### 7. Performance & Capabilities

Power Consumption:
- AVA-5500/6820/8G/P1000: ~149W
- AVA-5500/6820/8G/P3000: ~158W
- AVA-5520/6820/32G/P5000: ~177W

Operating Temperature:
- AVA-5500/5510:
- OT1: -25°C to +55°C (P3000)
- OT3: -25°C to +70°C (P1000)
- AVA-5520:
- -25°C to +70°C (P1000)
- 0°C to +55°C (P3000/P5000)

Storage Temperature: -40°C to +85°C
Humidity: EN 50125-1 compliant (EN 60068-2-78, 40°C)
Vibration: EN61373:2010, Category 1 Class B
Shock: EN61373:2010, Category 1 Class A & B

Efficiency:
Fanless thermal design ensures reliable operation in vibration-prone, high-temperature railway environments.

Limitations:
GPU module selection affects operating temperature range; MXM modules must be factory-installed.

---

### 8. Standards & Compliance

Railway Standards:
- EN50155: Railway applications – Electronic equipment used on rolling stock
- EN50121-3-2: EMC for railway applications
- EN50124-1: Insulation coordination
- EN50153: Safety for electrical equipment
- EN45545-2: Fire protection

Environmental & Safety:
- RoHS and WEEE compliant
- UL 94V-0 flame rating (AVA-5520)
- California Proposition 65 compliant

EMC & ESD:
- EN61000-4-2 (ESD): Air 15kV, Contact 8kV
- EN61000-4-5 (Surge): 2.5kV protection

Certifications:
EN50155, EN50121-3-2, EN45545-2, EN50124-1, EN50153, UL 94V-0 (AVA-5520).

---

### 9. Additional Information

Warranty & Support:
- Manufacturer: ADLINK Technology Inc.
- Global support network with regional offices in Taiwan, USA, China, and Germany.
- Technical assistance via [Ask an Expert](http://askanexpert.adlinktech.com).

Maintenance:
- Fanless design minimizes maintenance.
- Replaceable CR2032 coin cell battery (optional rechargeable golden cap).
- Regular inspection of connectors and grounding recommended.

Software & Updates:
- BIOS: AMI UEFI with dual failsafe BIOS.
- ADLINK SEMA 3.0 for system monitoring and remote management.
- Supports Windows 8/10 and Ubuntu 16.04; compatible with AI frameworks (CUDA, TensorRT).

Environmental Responsibility:
Compliant with EU RoHS and WEEE directives; designed for minimal environmental impact and recyclable materials.

---

### Summary

The ADLINK AVA-5500 Series represents a robust, railway-grade AI-enabled video analytics platform engineered for edge computing in transportation environments. Combining Intel® Core™ i7 CPUs with NVIDIA Quadro® GPUs, it delivers high-performance AI inference and video processing capabilities in a fanless, EN50155-compliant chassis. Its modular design supports multiple storage configurations, wide-range DC inputs, and extensive I/O connectivity, making it ideal for onboard surveillance, passenger information systems, and predictive maintenance applications. With comprehensive compliance to railway and safety standards, the AVA-5500 Series ensures reliable, long-term operation in demanding field conditions.
