1. Product Overview

Product Name: cPCI-3510D
Model: cPCI-3510D/4700E/M4
Series: cPCI-3510 Series (3U CompactPCI CPU Blades)
Article Number: cPCI-3510D
Manufacturer: ADLINK Technology Inc.

The ADLINK cPCI-3510D is a high-performance 3U CompactPCI® CPU blade designed for embedded computing, industrial automation, and mission-critical applications. It integrates Intel® 4th generation Core™ i7 processor technology with the Intel® QM87 chipset, providing exceptional processing power, advanced I/O connectivity, and robust system management features. The cPCI-3510D variant is an 8HP (two-slot) configuration optimized for balanced performance, expandability, and thermal efficiency, making it suitable for demanding environments requiring reliability, scalability, and long lifecycle support.

---

2. Key Features

- High-Performance Intel® Core™ Processor:
Equipped with a quad-core Intel® Core™ i7-4700EQ processor (6MB cache, up to 3.4GHz, 47/37W cTDP), offering advanced computing performance with Intel® Hyper-Threading, Turbo Boost, VT-x, VT-d, and vPro technologies.

- Robust Chipset Integration:
Utilizes the Intel® QM87 Platform Controller Hub (PCH), ensuring stable operation, extended I/O support, and compatibility with industrial-grade peripherals.

- ECC Memory Support:
Onboard 4GB DDR3L-1600 ECC soldered SDRAM ensures data integrity and system stability in mission-critical applications.

- Comprehensive I/O Connectivity:
Includes dual Gigabit Ethernet ports, one USB 3.0 port, two USB 2.0 ports, one RS-232/422/485 serial port, DVI-I video output, PS/2 keyboard/mouse interface, and audio line-in/line-out ports.

- Flexible Storage Options:
Supports onboard SATA 6Gb/s connector for 2.5” HDD/SSD, CFast socket, and optional onboard 32GB SSD (via adapter board replacement).

- Advanced Graphics Capability:
Integrated Intel® HD Graphics engine supports DVI-I output up to 2048×1536 @75Hz and analog output up to 1920×1200 @60Hz.

- CompactPCI® Compliance:
Fully compliant with PICMG 2.0 R3.0, PICMG 2.1 Hot Swap R2.0, PICMG 2.9 System Management R1.0, and PICMG 2.30 CompactPCI PlusIO standards.

- System Management & Monitoring:
Features hardware monitoring via IPMI, watchdog timer, and optional TPM security module.

- Ruggedized Design:
Designed for extended temperature operation (-20°C to +70°C standard, -40°C to +85°C with cTDP adjustment), high shock and vibration tolerance, and 95% non-condensing humidity resistance.

---

3. Technical Specifications

Processor & Chipset:
- CPU: Intel® Core™ i7-4700EQ, 4 cores, 8 threads, 6MB cache, up to 3.4GHz
- Alternate CPU Option: Intel® Core™ i5-4402E, dual-core, 3MB cache, up to 2.7GHz
- Chipset: Intel® QM87 PCH
- Thermal Design Power (TDP): 47W (adjustable to 37W via cTDP)

Memory:
- Type: DDR3L-1600 ECC SDRAM
- Capacity: 4GB soldered onboard (up to 8GB supported)
- ECC Support: Yes

Graphics:
- Integrated Intel® HD Graphics (processor-based)
- DVI-I output (digital + analog switchable)
- Resolution:
- Digital: up to 2048×1536 @75Hz (32-bit color)
- Analog: up to 1920×1200 @60Hz

Storage:
- 1× SATA 6Gb/s connector for 2.5” HDD/SSD
- 1× CFast socket
- Optional onboard 32GB SSD (replaces CFast adapter board)
- RTM (Rear Transition Module) support for 3× SATA connectors (RAID 0/1/5/10)

I/O Interfaces (Front Panel):
- 2× RJ-45 Gigabit Ethernet ports (Intel® I217LM + I210 controllers)
- 1× USB 3.0 port
- 2× USB 2.0 ports
- 1× RS-232/422/485 serial port (DB9)
- 1× DVI-I video output
- 1× PS/2 keyboard/mouse port
- 1× Line-in and 1× Line-out audio ports

Rear I/O (via RTM):
- 2× Gigabit Ethernet ports
- 2× USB 2.0 ports
- 2× COM ports
- 3× SATA connectors
- 1× VGA output

Bus Interface:
- CompactPCI® 32-bit, 33/66MHz, 3.3V or 5V universal signaling
- Supports system slot (master) or peripheral slot (satellite mode) operation

BIOS:
- AMI EFI BIOS, 64Mbit SPI Flash memory

Indicators:
- Power (green), Watchdog Timer (amber), Storage Drive (blue), Overheat (red), General Purpose (yellow)

Mechanical:
- Form Factor: 3U CompactPCI® (8HP width)
- Dimensions: 100mm (H) × 160mm (D) × 40.2mm (W)
- Weight: ~713.55g (with heatsink)

Environmental:
- Operating Temperature: -20°C to +70°C (standard), -40°C to +85°C (with cTDP adjustment)
- Storage Temperature: -50°C to +100°C
- Humidity: 95% non-condensing
- Shock: 20g peak-to-peak, 11ms duration (non-operating)
- Vibration: 2g random, 5–500Hz (operating)

Certifications:
- CE, FCC

---

4. Functionality

The cPCI-3510D functions as a high-performance CPU blade within a CompactPCI® system, serving as the central processing unit for embedded and industrial computing platforms. It can operate as a system slot master or as a peripheral blade in satellite mode, providing flexibility in system architecture.

Use Cases & Applications:
- Industrial automation and control systems
- Military and aerospace computing platforms
- Transportation and railway control systems
- Medical imaging and instrumentation
- Telecommunications and network infrastructure
- Test and measurement systems (PXI-compatible)

Compatibility:
- Fully compatible with CompactPCI® backplanes (PICMG 2.0/2.1/2.9/2.30)
- Supports integration with ADLINK rear transition modules (cPCI-R3P00, cPCI-R3P00T)
- Compatible with Windows 7/8 (32/64-bit), Red Hat Enterprise Linux 6.4, Fedora 18, and Wind River VxWorks 6.9

Operation:
The board’s Intel® Core™ processor and QM87 chipset manage system resources, I/O, and memory. The integrated graphics engine drives high-resolution displays, while the onboard Ethernet controllers provide redundant or segmented network connectivity. The watchdog timer and hardware monitor ensure system reliability and fault tolerance in continuous operation environments.

---

5. Components & Accessories

Included Components:
- cPCI-3510D CPU blade (8HP)
- Heatsink assembly
- DVI-I front panel connector
- CFast socket
- SATA connector for 2.5” drive
- Audio and PS/2 connectors

Optional Accessories:
- Rear Transition Modules:
- *cPCI-R3P00:* 8HP RTM with 2× GbE, 2× COM, 2× USB 2.0, 3× SATA, VGA (50mm depth)
- *cPCI-R3P00T:* 8HP RTM with same I/O, 80mm depth

- Display Adapter Cables:
- DP-DVI cable (included with cPCI-3510G, optional for D variant)
- DP-VGA cable
- DP-HDMI cable

- Storage Options:
- Optional onboard 32GB SSD (replaces CFast adapter board)
- External SATA drives via RTM

Connectors:
- CompactPCI® J1/J2 connectors (HM type)
- Front panel RJ-45, USB, DVI-I, DB9, PS/2, and audio jacks

---

6. Installation & Setup

Requirements:
- Compatible CompactPCI® chassis with 3U slots
- 3.3V or 5V signaling backplane
- Adequate airflow for thermal management (especially under high TDP operation)

Mounting Options:
- Installs directly into CompactPCI® backplane slots (system or peripheral)
- 8HP front panel width occupies two slots

Configuration:
- BIOS configurable via AMI EFI interface
- Supports boot from SATA, CFast, or onboard SSD
- Watchdog timer and hardware monitoring configurable via system management interface
- Optional TPM module can be enabled for secure boot and encryption

Setup Steps:
1. Insert the cPCI-3510D into the CompactPCI® chassis slot.
2. Connect front panel I/O (Ethernet, USB, DVI, COM, audio, PS/2).
3. Attach storage devices via SATA or CFast.
4. Power on and access BIOS for configuration.
5. Install desired operating system and drivers.

---

7. Performance & Capabilities

Processing Performance:
- Quad-core Intel® Core™ i7-4700EQ delivers up to 3.4GHz with Turbo Boost, supporting parallel processing and virtualization.
- ECC memory ensures data reliability under heavy computational loads.

Graphics Performance:
- Integrated Intel® HD Graphics supports high-resolution DVI-I output and multi-display configurations (up to three independent displays on other variants).

Networking:
- Dual Gigabit Ethernet ports provide redundancy or network segmentation.
- Intel® AMT 9.0 support enables remote management and diagnostics.

Storage Performance:
- SATA 6Gb/s interface supports high-speed SSDs and HDDs.
- RAID 0/1/5/10 supported via RTM for data redundancy and performance optimization.

Efficiency & Reliability:
- Adjustable TDP allows balancing performance and thermal constraints.
- Hardware watchdog and IPMI monitoring enhance uptime and fault recovery.

Limitations:
- Memory capacity limited to 8GB onboard.
- Expansion limited to available CompactPCI® slots and optional PMC/XMC modules (not on D variant).

---

8. Standards & Compliance

Industry Standards:
- PICMG 2.0 CompactPCI® R3.0
- PICMG 2.1 Hot Swap R2.0
- PICMG 2.9 System Management R1.0
- PICMG 2.30 CompactPCI PlusIO

Electrical & Environmental Compliance:
- CE and FCC certified for electromagnetic compatibility and safety.
- Designed for industrial-grade environmental conditions (temperature, shock, vibration).

System Management:
- IPMI-based hardware monitoring for CPU temperature, system temperature, and DC voltages.
- Watchdog timer supports system reset and NMI with programmable intervals (1–65535 seconds or minutes).

Security:
- Optional Atmel TPM AT97SC3204 module for hardware-based encryption and secure boot.

---

9. Additional Information

Warranty & Support:
- Standard ADLINK warranty (typically 2 years, extendable depending on region and configuration).
- Technical support available through ADLINK’s global service network.
- Firmware and BIOS updates provided via ADLINK support portal.

Maintenance:
- Minimal maintenance required; periodic cleaning of heatsink and connectors recommended.
- BIOS and firmware updates can be applied via USB or network interface.

Lifecycle & Availability:
- Designed for long-term availability and lifecycle support typical of industrial and embedded markets.
- Backward compatibility with existing CompactPCI® infrastructure ensures investment protection.

Ordering Information:
- cPCI-3510D/4700E/M4: 3U CompactPCI blade with Intel® Core™ i7-4700EQ, 4GB DDR3L-1600 ECC, DVI, 2× GbE, 1× USB 3.0, 2× USB 2.0, 1× COM, PS/2 KB/MS, Line-in/Line-out, CFast socket, SATA connector.

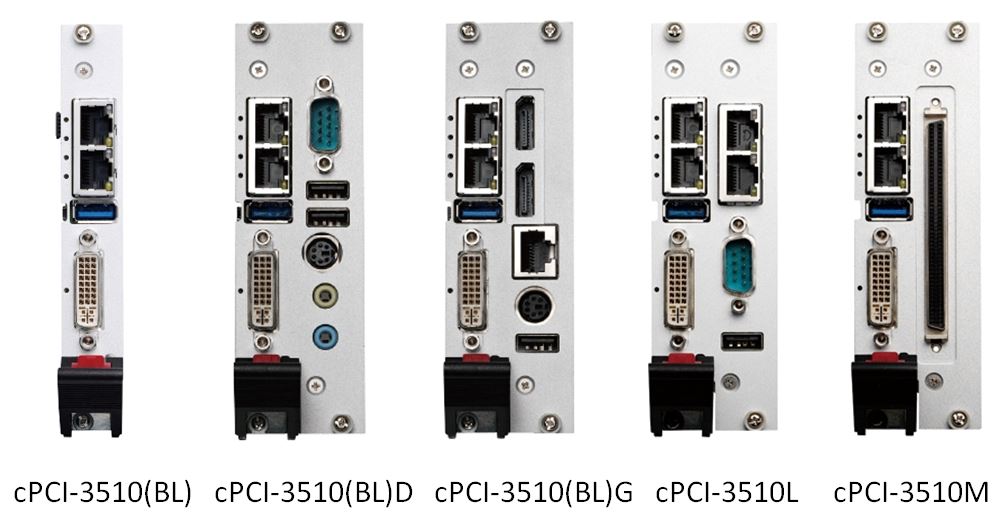

Related Models:
- cPCI-3510 (4HP, base model)
- cPCI-3510G (8HP, with DisplayPort outputs)
- cPCI-3510L (8HP, with 4× GbE)
- cPCI-3510M (8HP, multi-display variant)
- cPCI-3510P (12HP, with PMC/XMC expansion)
- cPCI-3510S (8HP, with 8GB memory and PMC/XMC)

Rear Transition Modules:
- cPCI-R3P00 (50mm depth)
- cPCI-R3P00T (80mm depth)

Summary:
The ADLINK cPCI-3510D is a robust, high-performance CompactPCI® CPU blade engineered for industrial and embedded computing environments requiring reliability, scalability, and extended lifecycle support. With its Intel® Core™ i7-4700EQ processor, ECC memory, comprehensive I/O, and compliance with multiple PICMG standards, it delivers exceptional performance for control, automation, and data acquisition systems. Its rugged design, wide temperature range, and flexible configuration options make it an ideal choice for mission-critical applications across industrial, defense, and transportation sectors.
