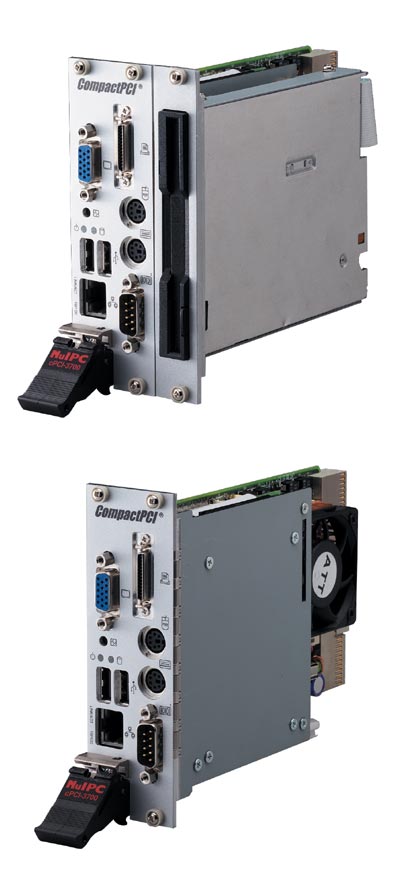

Comprehensive Product Summary: ADLINK cPCI‑3700 CompactPCI CPU Card
### 1. Product Overview
Product Name: cPCI‑3700
Model: cPCI‑3700
Series: NuIPC 3U CompactPCI All‑in‑One CPU Module
Article Number: cPCI‑3700
Manufacturer: ADLINK Technology Inc.
Manufacturer Address: 9F, No. 166, Jian Yi Road, Chungho City, Taipei 235, Taiwan, R.O.C.
Website: [www.adlink.com.tw](http://www.adlink.com.tw)
Support Contacts:
- General Service: service@adlink.com.tw
- NuIPC Technical Support: nuipc@adlink.com.tw
- Telephone: +886‑2‑82265877
- Fax: +886‑2‑82265717
Product Description:
The ADLINK cPCI‑3700 is a 3U CompactPCI CPU card designed for industrial and embedded computing applications. It integrates an Intel Socket‑370 processor, Intel 440BX AGPset chipset, VGA controller, memory, storage interfaces, and multiple I/O ports into a compact, ruggedized form factor. The board is engineered for high reliability in harsh environments and supports both front and rear I/O configurations.
### 2. Key Features
- Processor Support: Intel Celeron 300–533 MHz (Socket 370), optional Pentium III‑500E/550E.
- Chipset: Intel 440BX AGPset with integrated PCI EIDE controller and real‑time clock.
- Memory: One 144‑pin SO‑DIMM socket supporting up to 128 MB SDRAM with ECC.
- Graphics: C&T 69000 VGA chipset with 2 MB embedded SDRAM; supports simultaneous CRT and LCD output up to 1280 × 1024 @ 8 bpp.
- Storage Interfaces:
- One internal EIDE interface (Ultra DMA/33) with default 2.1 GB HDD.
- One 3.5″ FDD (360 KB–1.44 MB) on standard version.
- DiskOnChip socket supporting 2 MB–144 MB flash storage and boot capability.
- I/O Interfaces:
- Two RS‑232 serial ports (COM1 front, COM2 rear).
- One high‑speed parallel port (SPP/ECP/EPP).
- Two USB 1.0 connectors.
- PS/2 keyboard and mouse connectors.
- IrDA interface header.
- Watchdog Timer: 16‑level programmable timer (0–30 s) for system recovery.
- Hardware Monitoring: Onboard sensors for CPU temperature, voltage, and fan speed with alarm function.
- Power Management: BIOS‑controlled green function with keyboard/mouse wake‑up.
- Form Factor: 3U CompactPCI (100 × 160 mm PCB).
- Operating Environment: 0 °C – 60 °C, 5 % – 95 % RH.
- BIOS: Award Plug‑and‑Play BIOS with Flash EEPROM (256 KB) for updates, DMI support, and Year 2000 compliance.
### 3. Technical Specifications
| Category | Specification |
|---------------|------------------|
| Processor Socket | Socket 370 PGA |
| Supported CPUs | Intel Celeron 300–533 MHz; optional Pentium III 500E/550E |
| Bus Speed | 66 MHz |
| Chipset | Intel 440BX AGPset |
| Cache | Integrated in CPU |
| Memory Socket | 1 × 144‑pin SO‑DIMM |
| Max Memory | 128 MB SDRAM (ECC supported) |
| BIOS | Award PnP BIOS, Flash EEPROM 256 KB |
| DMI Support | Yes, for hardware inventory and management |
| I/O Controller | Winbond W83977TF |
| Serial Ports | 2 × RS‑232 (16550 UART compatible) |
| Parallel Port | 1 × SPP/ECP/EPP |
| USB Ports | 2 × USB 1.0 pin‑headers |
| Video Controller | C&T 69000 VGA chipset (2 MB SDRAM) |
| Video Output | CRT and LCD simultaneous display |
| Max Resolution | 1280 × 1024 @ 8 bpp |
| Storage Interfaces | 1 × EIDE (Ultra DMA/33), 1 × FDD, 1 × DiskOnChip socket |
| Watchdog Timer | 16 levels, 0–30 s intervals, ±20 % tolerance |
| Power Supply | +5 V and +12 V inputs via CompactPCI connector |
| Environmental | 0 °C – 60 °C operating; 5 % – 95 % RH non‑condensing |
| PCB Layers | 8‑layer industrial grade |
| Dimensions (PCB) | 100 × 160 mm (3.94 × 6.3 in) |
| Full Assembly Dimensions | 128 × 160 × 60 mm (3‑slot version) |
| Weight | Approx. 0.4 kg (depending on configuration) |
### 4. Functionality
The cPCI‑3700 functions as a self‑contained CPU module for CompactPCI systems. It integrates processing, memory, storage, and I/O subsystems on a single board, enabling it to serve as the system controller in industrial automation, telecommunications, and embedded computing environments.
Operation:
- The Socket 370 CPU interfaces with the Intel 440BX chipset, which manages memory, PCI bus, and peripheral control.
- The onboard VGA controller drives both CRT and LCD displays simultaneously.
- The EIDE interface supports standard 2.5″ HDDs or DiskOnChip flash modules for solid‑state storage.
- The watchdog timer monitors system activity and automatically resets the system if a fault occurs.
- Hardware monitoring sensors track temperature, voltage, and fan speed, triggering alarms when thresholds are exceeded.
Use Cases & Applications:
- Industrial control and monitoring systems.
- Embedded computing in transportation or defense.
- Telecommunications base stations.
- CompactPCI‑based test and measurement systems.
- Legacy system upgrades requiring ISA/PCI compatibility.
Compatibility:
- Fully compliant with CompactPCI 3U mechanical and electrical standards.
- Supports Windows 95/98/NT 4.0 operating systems with dedicated VGA and IDE drivers.
- Compatible with standard PS/2 keyboards, mice, and VGA monitors.
### 5. Components & Accessories
Package Contents:
- cPCI‑3700 CPU module.
- User’s Manual.
- 1 × Diskette (Intel PCI IDE Driver & Flash Memory Utility).
- 2 × Diskettes (C&T 69000 VGA Drivers).
- 1 × Diskette (System Monitor Utility).
- 1 × ADLINK All‑in‑One CD (software and documentation).
Onboard Connectors:
- USB Headers: 2 × 4‑pin (Vcc, USB‑, USB+, GND).
- Parallel Port: 25‑pin header (SPP/ECP/EPP modes).
- Serial Ports: COM1 (DB‑9 front), COM2 (rear I/O).
- PS/2 Keyboard Connector: 6‑pin mini‑DIN.
- PS/2 Mouse Connector: 6‑pin mini‑DIN.
- VGA CRT Connector: 15‑pin D‑Sub (standard VGA pinout).
- IrDA Header: 5‑pin (+5 V, IrRX, IrTX, GND).
- EIDE Connector: 40‑pin header (Ultra DMA/33).
- Floppy Drive Connector: 26‑pin header (360 KB–2.88 MB FDD).
- CPU Fan Power Connector: 3‑pin (+12 V, GND, Tach).
- CompactPCI Backplane Connector: A–E rows for PCI signals and power.
Optional Add‑Ons:
- DiskOnChip flash modules (2 MB–144 MB).
- Alternative CPU options (Celeron 466 MHz, Pentium III 500E/550E).
- Extended temperature versions upon request.
### 6. Installation & Setup
CPU Installation:
- Align the Socket 370 CPU notch with the socket key and insert gently.
- Ensure firm contact between CPU and heatsink; attach fan to J6 (12 V 3‑pin).
- Verify CPU frequency via DSW1 (1–8) DIP switch settings (300–533 MHz).
Memory Installation:
- One SO‑DIMM socket supports 16 MB–128 MB SDRAM.
- Default configuration includes 64 MB SDRAM.
Jumper Settings:
- JP5: Clear CMOS (1‑2 Normal, 2‑3 Clear).
- JP6: DiskOnChip BIOS Address Select (D0000–DFFFF).
- DSW1: CPU frequency multiplier selector (4.5×–8× for 66 MHz bus).
Watchdog Timer Configuration:
- Enable via I/O port 0443H; disable via 0441H.
- 16 programmable levels (0–30 s timeout).
Mounting & Integration:
- Designed for 3U CompactPCI chassis (100 × 160 mm card size).
- Connect to CompactPCI backplane via J1/J2 connectors.
- Front panel provides VGA, COM1, USB, and PS/2 ports.
Software Setup:
- Install Intel PIIX Bus Master IDE drivers for Windows 95.
- Install C&T 69000 VGA drivers for Windows 95/98/NT 4.0.
- Use System Monitor Utility for hardware status monitoring.
### 7. Performance & Capabilities
Processing Performance:
- Intel Celeron 400 MHz (default) with optional 466 MHz or Pentium III 500E/550E.
- 66 MHz front‑side bus ensures stable operation for industrial tasks.
Memory Performance:
- SDRAM up to 128 MB with ECC support for data integrity.
Graphics Performance:
- C&T 69000 VGA controller with 2 MB SDRAM supports 1280 × 1024 resolution.
- Simultaneous CRT and LCD display capability for operator interfaces.
Storage Performance:
- Ultra DMA/33 EIDE interface supports modern 2.5″ HDDs and DOMs.
- DiskOnChip flash provides solid‑state boot option for rugged applications.
Reliability & Monitoring:
- 16‑level watchdog timer prevents system hangs.
- Hardware monitoring for temperature, voltage, and fan speed with alarms.
- BIOS power management reduces energy consumption and heat.
Limitations:
- Memory limited to 128 MB SDRAM.
- USB 1.0 only (no high‑speed USB 2.0 support).
- 66 MHz bus restricts maximum CPU frequency to 533 MHz.
### 8. Standards & Compliance
- CompactPCI Standard: Compliant with PICMG 2.0 R2.1 (3U form factor).
- USB Specification: Compliant with USB 1.0.
- BIOS Compliance: Award PnP BIOS with DMI and ACPI power management.
- Environmental Compliance: Designed for industrial temperature range (0–60 °C).
- Electrical Safety: Meets industrial EMC and safety requirements for embedded systems.
- Year 2000 Compliance: BIOS verified for Y2K compatibility (NSTL tested).
### 9. Additional Information
Warranty & Support:
ADLINK provides comprehensive technical support and customer service through regional offices and email contacts. Warranty terms cover manufacturing defects and hardware failures under normal use. Customers are encouraged to register their product for prompt service and updates.
Maintenance:
- Keep CPU heatsink and fan clean to ensure proper cooling.
- Periodically check fan rotation and temperature via System Monitor Utility.
- Update BIOS using Flash EEPROM utility from ADLINK CD when available.
Software Utilities:
- System Monitor Utility: Displays CPU temperature, fan speed, voltage, and system status with alarm thresholds.
- Bus Master IDE Driver: Optimizes EIDE performance under Windows 95.
- VGA Drivers: Support Windows 95/98/NT 4.0 for C&T 69000 chipset.
Update & Upgrade Options:
- BIOS updates available via ADLINK support site.
- CPU and memory upgrades possible within Socket 370 and 128 MB limit.
- Optional DiskOnChip modules for solid‑state boot enhancements.
Documentation & Resources:
- User’s Manual (Rev. 1.00, Oct 20 1999).
- BIOS Configuration Guide (PDF on ADLINK CD).
- Driver installation instructions for Windows 95/98/NT 4.0.
### Summary
The ADLINK cPCI‑3700 is a robust, all‑in‑one 3U CompactPCI CPU card that integrates Intel Socket 370 processing power, graphics, storage, and I/O in a compact industrial form factor. With its Intel 440BX chipset, C&T 69000 VGA controller, and comprehensive I/O set, it is ideal for embedded and industrial applications requiring reliability, expandability, and long‑term availability. The board’s hardware monitoring, watchdog timer, and BIOS management features ensure stable operation in demanding environments, while its CompactPCI compliance enables seamless integration into modular systems.
### 1. Product Overview
Product Name: cPCI‑3700
Model: cPCI‑3700
Series: NuIPC 3U CompactPCI All‑in‑One CPU Module
Article Number: cPCI‑3700
Manufacturer: ADLINK Technology Inc.
Manufacturer Address: 9F, No. 166, Jian Yi Road, Chungho City, Taipei 235, Taiwan, R.O.C.
Website: [www.adlink.com.tw](http://www.adlink.com.tw)
Support Contacts:
- General Service: service@adlink.com.tw
- NuIPC Technical Support: nuipc@adlink.com.tw
- Telephone: +886‑2‑82265877
- Fax: +886‑2‑82265717
Product Description:
The ADLINK cPCI‑3700 is a 3U CompactPCI CPU card designed for industrial and embedded computing applications. It integrates an Intel Socket‑370 processor, Intel 440BX AGPset chipset, VGA controller, memory, storage interfaces, and multiple I/O ports into a compact, ruggedized form factor. The board is engineered for high reliability in harsh environments and supports both front and rear I/O configurations.
### 2. Key Features
- Processor Support: Intel Celeron 300–533 MHz (Socket 370), optional Pentium III‑500E/550E.
- Chipset: Intel 440BX AGPset with integrated PCI EIDE controller and real‑time clock.
- Memory: One 144‑pin SO‑DIMM socket supporting up to 128 MB SDRAM with ECC.
- Graphics: C&T 69000 VGA chipset with 2 MB embedded SDRAM; supports simultaneous CRT and LCD output up to 1280 × 1024 @ 8 bpp.
- Storage Interfaces:
- One internal EIDE interface (Ultra DMA/33) with default 2.1 GB HDD.
- One 3.5″ FDD (360 KB–1.44 MB) on standard version.
- DiskOnChip socket supporting 2 MB–144 MB flash storage and boot capability.
- I/O Interfaces:
- Two RS‑232 serial ports (COM1 front, COM2 rear).
- One high‑speed parallel port (SPP/ECP/EPP).
- Two USB 1.0 connectors.
- PS/2 keyboard and mouse connectors.
- IrDA interface header.
- Watchdog Timer: 16‑level programmable timer (0–30 s) for system recovery.
- Hardware Monitoring: Onboard sensors for CPU temperature, voltage, and fan speed with alarm function.
- Power Management: BIOS‑controlled green function with keyboard/mouse wake‑up.
- Form Factor: 3U CompactPCI (100 × 160 mm PCB).
- Operating Environment: 0 °C – 60 °C, 5 % – 95 % RH.
- BIOS: Award Plug‑and‑Play BIOS with Flash EEPROM (256 KB) for updates, DMI support, and Year 2000 compliance.
### 3. Technical Specifications
| Category | Specification |
|---------------|------------------|
| Processor Socket | Socket 370 PGA |
| Supported CPUs | Intel Celeron 300–533 MHz; optional Pentium III 500E/550E |
| Bus Speed | 66 MHz |
| Chipset | Intel 440BX AGPset |
| Cache | Integrated in CPU |
| Memory Socket | 1 × 144‑pin SO‑DIMM |
| Max Memory | 128 MB SDRAM (ECC supported) |
| BIOS | Award PnP BIOS, Flash EEPROM 256 KB |
| DMI Support | Yes, for hardware inventory and management |
| I/O Controller | Winbond W83977TF |
| Serial Ports | 2 × RS‑232 (16550 UART compatible) |
| Parallel Port | 1 × SPP/ECP/EPP |
| USB Ports | 2 × USB 1.0 pin‑headers |
| Video Controller | C&T 69000 VGA chipset (2 MB SDRAM) |
| Video Output | CRT and LCD simultaneous display |
| Max Resolution | 1280 × 1024 @ 8 bpp |
| Storage Interfaces | 1 × EIDE (Ultra DMA/33), 1 × FDD, 1 × DiskOnChip socket |
| Watchdog Timer | 16 levels, 0–30 s intervals, ±20 % tolerance |
| Power Supply | +5 V and +12 V inputs via CompactPCI connector |
| Environmental | 0 °C – 60 °C operating; 5 % – 95 % RH non‑condensing |
| PCB Layers | 8‑layer industrial grade |
| Dimensions (PCB) | 100 × 160 mm (3.94 × 6.3 in) |
| Full Assembly Dimensions | 128 × 160 × 60 mm (3‑slot version) |
| Weight | Approx. 0.4 kg (depending on configuration) |
### 4. Functionality
The cPCI‑3700 functions as a self‑contained CPU module for CompactPCI systems. It integrates processing, memory, storage, and I/O subsystems on a single board, enabling it to serve as the system controller in industrial automation, telecommunications, and embedded computing environments.
Operation:
- The Socket 370 CPU interfaces with the Intel 440BX chipset, which manages memory, PCI bus, and peripheral control.
- The onboard VGA controller drives both CRT and LCD displays simultaneously.
- The EIDE interface supports standard 2.5″ HDDs or DiskOnChip flash modules for solid‑state storage.
- The watchdog timer monitors system activity and automatically resets the system if a fault occurs.
- Hardware monitoring sensors track temperature, voltage, and fan speed, triggering alarms when thresholds are exceeded.
Use Cases & Applications:
- Industrial control and monitoring systems.
- Embedded computing in transportation or defense.
- Telecommunications base stations.
- CompactPCI‑based test and measurement systems.
- Legacy system upgrades requiring ISA/PCI compatibility.
Compatibility:
- Fully compliant with CompactPCI 3U mechanical and electrical standards.
- Supports Windows 95/98/NT 4.0 operating systems with dedicated VGA and IDE drivers.
- Compatible with standard PS/2 keyboards, mice, and VGA monitors.
### 5. Components & Accessories
Package Contents:
- cPCI‑3700 CPU module.
- User’s Manual.
- 1 × Diskette (Intel PCI IDE Driver & Flash Memory Utility).
- 2 × Diskettes (C&T 69000 VGA Drivers).
- 1 × Diskette (System Monitor Utility).
- 1 × ADLINK All‑in‑One CD (software and documentation).
Onboard Connectors:
- USB Headers: 2 × 4‑pin (Vcc, USB‑, USB+, GND).
- Parallel Port: 25‑pin header (SPP/ECP/EPP modes).
- Serial Ports: COM1 (DB‑9 front), COM2 (rear I/O).
- PS/2 Keyboard Connector: 6‑pin mini‑DIN.
- PS/2 Mouse Connector: 6‑pin mini‑DIN.
- VGA CRT Connector: 15‑pin D‑Sub (standard VGA pinout).
- IrDA Header: 5‑pin (+5 V, IrRX, IrTX, GND).
- EIDE Connector: 40‑pin header (Ultra DMA/33).
- Floppy Drive Connector: 26‑pin header (360 KB–2.88 MB FDD).
- CPU Fan Power Connector: 3‑pin (+12 V, GND, Tach).
- CompactPCI Backplane Connector: A–E rows for PCI signals and power.
Optional Add‑Ons:
- DiskOnChip flash modules (2 MB–144 MB).
- Alternative CPU options (Celeron 466 MHz, Pentium III 500E/550E).
- Extended temperature versions upon request.
### 6. Installation & Setup
CPU Installation:
- Align the Socket 370 CPU notch with the socket key and insert gently.
- Ensure firm contact between CPU and heatsink; attach fan to J6 (12 V 3‑pin).
- Verify CPU frequency via DSW1 (1–8) DIP switch settings (300–533 MHz).
Memory Installation:
- One SO‑DIMM socket supports 16 MB–128 MB SDRAM.
- Default configuration includes 64 MB SDRAM.
Jumper Settings:
- JP5: Clear CMOS (1‑2 Normal, 2‑3 Clear).
- JP6: DiskOnChip BIOS Address Select (D0000–DFFFF).
- DSW1: CPU frequency multiplier selector (4.5×–8× for 66 MHz bus).
Watchdog Timer Configuration:
- Enable via I/O port 0443H; disable via 0441H.
- 16 programmable levels (0–30 s timeout).
Mounting & Integration:
- Designed for 3U CompactPCI chassis (100 × 160 mm card size).
- Connect to CompactPCI backplane via J1/J2 connectors.
- Front panel provides VGA, COM1, USB, and PS/2 ports.
Software Setup:
- Install Intel PIIX Bus Master IDE drivers for Windows 95.
- Install C&T 69000 VGA drivers for Windows 95/98/NT 4.0.
- Use System Monitor Utility for hardware status monitoring.
### 7. Performance & Capabilities
Processing Performance:
- Intel Celeron 400 MHz (default) with optional 466 MHz or Pentium III 500E/550E.
- 66 MHz front‑side bus ensures stable operation for industrial tasks.
Memory Performance:
- SDRAM up to 128 MB with ECC support for data integrity.
Graphics Performance:
- C&T 69000 VGA controller with 2 MB SDRAM supports 1280 × 1024 resolution.
- Simultaneous CRT and LCD display capability for operator interfaces.
Storage Performance:
- Ultra DMA/33 EIDE interface supports modern 2.5″ HDDs and DOMs.
- DiskOnChip flash provides solid‑state boot option for rugged applications.
Reliability & Monitoring:
- 16‑level watchdog timer prevents system hangs.
- Hardware monitoring for temperature, voltage, and fan speed with alarms.
- BIOS power management reduces energy consumption and heat.
Limitations:
- Memory limited to 128 MB SDRAM.
- USB 1.0 only (no high‑speed USB 2.0 support).
- 66 MHz bus restricts maximum CPU frequency to 533 MHz.
### 8. Standards & Compliance
- CompactPCI Standard: Compliant with PICMG 2.0 R2.1 (3U form factor).
- USB Specification: Compliant with USB 1.0.
- BIOS Compliance: Award PnP BIOS with DMI and ACPI power management.
- Environmental Compliance: Designed for industrial temperature range (0–60 °C).
- Electrical Safety: Meets industrial EMC and safety requirements for embedded systems.
- Year 2000 Compliance: BIOS verified for Y2K compatibility (NSTL tested).
### 9. Additional Information
Warranty & Support:
ADLINK provides comprehensive technical support and customer service through regional offices and email contacts. Warranty terms cover manufacturing defects and hardware failures under normal use. Customers are encouraged to register their product for prompt service and updates.
Maintenance:
- Keep CPU heatsink and fan clean to ensure proper cooling.
- Periodically check fan rotation and temperature via System Monitor Utility.
- Update BIOS using Flash EEPROM utility from ADLINK CD when available.
Software Utilities:
- System Monitor Utility: Displays CPU temperature, fan speed, voltage, and system status with alarm thresholds.
- Bus Master IDE Driver: Optimizes EIDE performance under Windows 95.
- VGA Drivers: Support Windows 95/98/NT 4.0 for C&T 69000 chipset.
Update & Upgrade Options:
- BIOS updates available via ADLINK support site.
- CPU and memory upgrades possible within Socket 370 and 128 MB limit.
- Optional DiskOnChip modules for solid‑state boot enhancements.
Documentation & Resources:
- User’s Manual (Rev. 1.00, Oct 20 1999).
- BIOS Configuration Guide (PDF on ADLINK CD).
- Driver installation instructions for Windows 95/98/NT 4.0.
### Summary
The ADLINK cPCI‑3700 is a robust, all‑in‑one 3U CompactPCI CPU card that integrates Intel Socket 370 processing power, graphics, storage, and I/O in a compact industrial form factor. With its Intel 440BX chipset, C&T 69000 VGA controller, and comprehensive I/O set, it is ideal for embedded and industrial applications requiring reliability, expandability, and long‑term availability. The board’s hardware monitoring, watchdog timer, and BIOS management features ensure stable operation in demanding environments, while its CompactPCI compliance enables seamless integration into modular systems.
-
CP3700 Manual.PDF
Manual
Kein Zubehör vorhanden.
