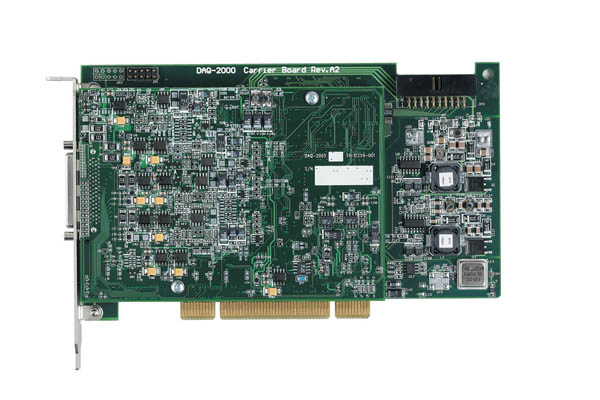

DAQ-2208
PCI AD Card 3MS/s 12bit 96chan 1024W FIFO
1736,00 EUR
inkl. Umsatzsteuer 2.065,84 EUR
- High Channel Density:
96 single-ended (SE) or 48 differential (DI) analog input channels, with software-selectable mixed-mode operation.
- High-Speed Sampling:
Maximum sampling rate of 3 mega-samples per second (3 MS/s) with 12-bit resolution and no missing codes.
- Flexible Input Ranges:
Bipolar ranges: ±10 V, ±5 V, ±2.5 V, ±2 V, ±1.25 V, ±1 V, ±0.5 V, ±0.25 V, ±0.2 V, ±0.05 V
Unipolar ranges: 0–10 V, 0–5 V, 0–4 V, 0–2.5 V, 0–1 V, 0–0.5 V, 0–0.4 V, 0–0.1 V
- Programmable Gain:
Selectable gains of ×1, ×2, ×4, ×5, ×8, ×10, ×20, ×40, ×50, and ×200.
- Auto Calibration:
Fully automatic calibration with onboard 5.000 V reference (±2 ppm/°C), ensuring long-term accuracy and stability.
- FIFO Buffer:
1 k-sample (1024-word) onboard A/D FIFO for efficient data buffering.
- Triggering Options:
Supports software, external digital, external analog, and SSI (System Synchronization Interface) triggers.
Trigger modes include pre-trigger, post-trigger, middle-trigger, delay-trigger, and repeated trigger.
- Digital I/O:
24-channel TTL-compatible programmable digital I/O (8255 PIO).
- Synchronization:
Multiple card synchronization via SSI bus or PXI trigger bus for multi-card, multi-channel systems.
- Software & OS Support:
Compatible with Windows 7/8 (x86/x64) and Linux.
Supported development environments: LabVIEW, MATLAB, C/C++, Visual Basic, Visual Studio.NET.
- Plug-and-Play PCI Interface:
32-bit PCI bus, 3.3 V/5 V signaling, automatic resource configuration (IRQ, DMA).
96 single-ended (SE) or 48 differential (DI) analog input channels, with software-selectable mixed-mode operation.
- High-Speed Sampling:
Maximum sampling rate of 3 mega-samples per second (3 MS/s) with 12-bit resolution and no missing codes.
- Flexible Input Ranges:
Bipolar ranges: ±10 V, ±5 V, ±2.5 V, ±2 V, ±1.25 V, ±1 V, ±0.5 V, ±0.25 V, ±0.2 V, ±0.05 V
Unipolar ranges: 0–10 V, 0–5 V, 0–4 V, 0–2.5 V, 0–1 V, 0–0.5 V, 0–0.4 V, 0–0.1 V
- Programmable Gain:
Selectable gains of ×1, ×2, ×4, ×5, ×8, ×10, ×20, ×40, ×50, and ×200.
- Auto Calibration:
Fully automatic calibration with onboard 5.000 V reference (±2 ppm/°C), ensuring long-term accuracy and stability.
- FIFO Buffer:
1 k-sample (1024-word) onboard A/D FIFO for efficient data buffering.
- Triggering Options:
Supports software, external digital, external analog, and SSI (System Synchronization Interface) triggers.
Trigger modes include pre-trigger, post-trigger, middle-trigger, delay-trigger, and repeated trigger.
- Digital I/O:
24-channel TTL-compatible programmable digital I/O (8255 PIO).
- Synchronization:
Multiple card synchronization via SSI bus or PXI trigger bus for multi-card, multi-channel systems.
- Software & OS Support:
Compatible with Windows 7/8 (x86/x64) and Linux.
Supported development environments: LabVIEW, MATLAB, C/C++, Visual Basic, Visual Studio.NET.
- Plug-and-Play PCI Interface:
32-bit PCI bus, 3.3 V/5 V signaling, automatic resource configuration (IRQ, DMA).
Comprehensive Product Summary: ADLINK DAQ-2208 PCI Data Acquisition Card
### 1. Product Overview
Product Name: DAQ-2208
Model: DAQ-2208
Series: DAQ-/DAQe-/PXI-2200 Series
Article Number: DAQ-2208
Manufacturer: ADLINK Technology Inc.
Product Type: PCI-based Analog-to-Digital (A/D) Data Acquisition Card
Form Factor: 32-bit PCI Bus Interface (3.3 V / 5 V compatible)
Product Category: High-Density, High-Speed Analog Input Data Acquisition Card
The ADLINK DAQ-2208 is a high-performance, 12-bit, 3 MS/s analog input data acquisition card designed for PCI bus systems. It belongs to ADLINK’s DAQ-2200 series, which includes PCI (DAQ-), PCI Express (DAQe-), and PXI (PXI-) variants. The DAQ-2208 model specifically supports 96 single-ended or 48 differential analog input channels, making it ideal for high-channel-count applications requiring fast sampling and precise analog signal measurement.
### 2. Key Features
- High Channel Density:
96 single-ended (SE) or 48 differential (DI) analog input channels, with software-selectable mixed-mode operation.
- High-Speed Sampling:
Maximum sampling rate of 3 mega-samples per second (3 MS/s) with 12-bit resolution and no missing codes.
- Flexible Input Ranges:
Bipolar ranges: ±10 V, ±5 V, ±2.5 V, ±2 V, ±1.25 V, ±1 V, ±0.5 V, ±0.25 V, ±0.2 V, ±0.05 V
Unipolar ranges: 0–10 V, 0–5 V, 0–4 V, 0–2.5 V, 0–1 V, 0–0.5 V, 0–0.4 V, 0–0.1 V
- Programmable Gain:
Selectable gains of ×1, ×2, ×4, ×5, ×8, ×10, ×20, ×40, ×50, and ×200.
- Auto Calibration:
Fully automatic calibration with onboard 5.000 V reference (±2 ppm/°C), ensuring long-term accuracy and stability.
- FIFO Buffer:
1 k-sample (1024-word) onboard A/D FIFO for efficient data buffering.
- Triggering Options:
Supports software, external digital, external analog, and SSI (System Synchronization Interface) triggers.
Trigger modes include pre-trigger, post-trigger, middle-trigger, delay-trigger, and repeated trigger.
- Digital I/O:
24-channel TTL-compatible programmable digital I/O (8255 PIO).
- Synchronization:
Multiple card synchronization via SSI bus or PXI trigger bus for multi-card, multi-channel systems.
- Software & OS Support:
Compatible with Windows 7/8 (x86/x64) and Linux.
Supported development environments: LabVIEW, MATLAB, C/C++, Visual Basic, Visual Studio.NET.
- Plug-and-Play PCI Interface:
32-bit PCI bus, 3.3 V/5 V signaling, automatic resource configuration (IRQ, DMA).
### 3. Technical Specifications
Analog Input (AI):
- Channels: 96 SE or 48 DI (software-selectable mixed mode)
- Resolution: 12-bit, no missing codes
- Sampling Rate: Up to 3 MS/s (single channel)
- Channel Gain Queue: 1024 configurations
- Input Coupling: DC
- Input Impedance: 1 GΩ / 100 pF
- Overvoltage Protection: ±30 V (power on), ±15 V (power off)
- Offset Error: ±2 mV typical
- Gain Error: ±0.06% of full-scale range (FSR)
- Common Mode Voltage Range: ±11 V
- CMRR: 90 dB typical (DC–60 Hz)
- Settling Time: 1 µs to 0.1% error (typical)
- Bandwidth: Up to 2 MHz small-signal (-3 dB)
- FIFO Buffer: 1 k-sample (1024 words)
Digital I/O (DIO):
- Channels: 24 programmable I/O lines (8255 PIO)
- Logic Levels: TTL-compatible (5 V)
- Input Voltage: Low ≤ 0.8 V, High ≥ 2.0 V
- Output Voltage: Low ≤ 0.5 V @ 8 mA, High ≥ 2.7 V @ 400 µA
- Data Transfer: Programmed I/O
Triggering:
- Sources: Software, external analog, external digital, SSI bus
- Modes: Pre-trigger, post-trigger, middle-trigger, delay-trigger, repeated trigger
- External Analog Trigger Input: ±10 V range, 8-bit resolution, 400 kHz bandwidth
- External Digital Trigger: TTL/CMOS compatible, 10 ns minimum pulse width
General:
- Auto Calibration: Yes (+5 V reference, ±2 ppm/°C)
- Dimensions: 175 mm × 107 mm (excluding connectors)
- Connectors: Two 68-pin VHDCI female connectors
- Operating Temperature: 0°C to 55°C
- Storage Temperature: -20°C to 70°C
- Humidity: 5–95%, non-condensing
- Power Requirements: +5 V @ 0.95 A typical
- Weight: Approx. 300 g (typical board weight)
### 4. Functionality
The DAQ-2208 performs high-speed analog-to-digital conversion for multiple analog input channels. It supports both single-ended and differential input configurations, allowing flexible signal acquisition from various sensors and transducers. The card’s programmable gain amplifiers and input ranges enable precise measurement of signals from millivolt to tens of volts.
Use Cases & Applications:
- Automotive and aerospace testing
- Automated test equipment (ATE)
- Process control and industrial automation
- Biomedical and biotech instrumentation
- Laboratory data logging and signal analysis
- Transient signal measurement and waveform capture
Compatibility:
- PCI bus systems (32-bit, 3.3 V/5 V)
- Compatible with ADLINK terminal boards and cables (DIN-68S-01, ACL-10568-1)
- Software integration with LabVIEW, MATLAB, and ADLINK’s D2K-DASK libraries
### 5. Components & Accessories
Included Items:
- DAQ-2208 PCI Data Acquisition Card
- ADLINK All-in-One Software CD (drivers, SDKs, utilities)
- Software Installation Guide
- User’s Manual (PDF)
Optional Accessories:
- Terminal Boards: DIN-68S-01, ACL-10568-1
- Cables: ACL-SSI-2/3/4 (for synchronization)
- Connector Type: Dual 68-pin VHDCI female connectors (AMP-787254-1 compatible)
### 6. Installation & Setup
System Requirements:
- Available PCI slot (32-bit, 3.3 V or 5 V)
- Supported OS: Windows 7/8 (x86/x64), Linux
- Minimum CPU: Pentium-class or higher
- Recommended RAM: ≥ 512 MB
Installation Steps:
1. Power off the host PC and discharge static electricity.
2. Insert the DAQ-2208 into an available PCI slot.
3. Secure the card and reconnect system power.
4. Install drivers from the ADLINK All-in-One CD.
5. Verify installation using ADLINK’s PCI_SCAN utility.
6. Configure channels, gains, and trigger modes via software.
Mounting Options:
Standard PCI slot mounting; no external power required.
Plug-and-play configuration—no jumpers or DIP switches.
### 7. Performance & Capabilities
- Sampling Rate: 3 MS/s maximum (single channel)
- Resolution: 12-bit (no missing codes)
- Input Range Accuracy: ±0.03% post-calibration
- Noise Level: <1 LSB RMS typical
- FIFO Buffer: 1024 samples for continuous acquisition
- DMA Support: Scatter-gather bus-mastering DMA for high-speed data transfer
- Synchronization: Multi-card synchronization via SSI or PXI trigger bus
- Latency: Sub-microsecond trigger response
- Limitations:
- No analog output (AO) or timer/counter functions on DAQ-2208 (available on other models)
- Requires external terminal boards for signal breakout
### 8. Standards & Compliance
- Bus Interface: PCI Local Bus Specification 2.2 compliant
- PXI Compliance (for PXI variant): PXI Specification Rev. 2.2
- Electrical Safety: Designed for industrial and laboratory environments
- EMC Compliance: Meets CE and FCC Class A requirements
- Operating Systems: Windows 7/8 (x86/x64), Linux kernel 2.4.x and later
- Software Drivers: D2K-DASK (Windows), D2K-DASK/X (Linux)
- Supported APIs: LabVIEW, MATLAB, Visual Studio, C/C++, Visual Basic
### 9. Additional Information
Warranty:
- Standard 2-year limited warranty (1 year in China)
- Covers manufacturing defects and hardware failures under normal use
- Excludes damage from misuse, static discharge, or unauthorized repair
Support & Maintenance:
- Global technical support via ADLINK regional offices
- Free driver and firmware updates available at [www.adlinktech.com](http://www.adlinktech.com)
- Calibration recommended every 12–24 months for optimal accuracy
- Auto-calibration utility included in software package
Service Contacts:
- ADLINK Technology Inc. (Taiwan HQ):
9F, No. 166 Jian Yi Road, Chungho City, Taipei Hsien 235, Taiwan
Tel: +886-2-8226-5877 | Fax: +886-2-8226-5717
Email: service@adlinktech.com
- ADLINK Technology America, Inc.:
8900 Research Drive, Irvine, CA 92618, USA
Toll-Free: +1-866-4-ADLINK | Fax: +1-949-727-2099
Email: info@adlinktech.com
- ADLINK Technology Europe:
Nord Carree 3, 40477 Düsseldorf, Germany
Toll-Free: +49-211-4955552 | Fax: +49-211-4955557
Email: emea@adlinktech.com
Maintenance & Calibration:
- Auto-calibration supported via onboard reference
- User calibration constants stored in EEPROM
- Recommended warm-up time: 15 minutes before calibration
- Calibration constants can be saved for multiple environments
Software Utilities:
- AD-Logger: Data logging and visualization tool
- DAQ-LVIEW PnP: LabVIEW driver package
- D2K-DASK: Windows driver and SDK
- D2K-DASK/X: Linux shared library driver
- DAQBench: ActiveX control suite for custom GUI development
### Summary
The ADLINK DAQ-2208 is a robust, high-density PCI data acquisition card engineered for demanding measurement and automation applications. With 96 analog input channels, 12-bit resolution, and a 3 MS/s sampling rate, it delivers exceptional performance for multi-channel signal acquisition. Its flexible input ranges, programmable gains, and comprehensive triggering options make it suitable for a wide range of industrial, scientific, and research environments. The card’s auto-calibration, scatter-gather DMA, and synchronization capabilities ensure reliable, high-speed data throughput with minimal CPU overhead. Supported by extensive software tools and cross-platform drivers, the DAQ-2208 integrates seamlessly into modern test and measurement systems, providing a scalable and precise data acquisition solution.
### 1. Product Overview
Product Name: DAQ-2208
Model: DAQ-2208
Series: DAQ-/DAQe-/PXI-2200 Series
Article Number: DAQ-2208
Manufacturer: ADLINK Technology Inc.
Product Type: PCI-based Analog-to-Digital (A/D) Data Acquisition Card
Form Factor: 32-bit PCI Bus Interface (3.3 V / 5 V compatible)
Product Category: High-Density, High-Speed Analog Input Data Acquisition Card
The ADLINK DAQ-2208 is a high-performance, 12-bit, 3 MS/s analog input data acquisition card designed for PCI bus systems. It belongs to ADLINK’s DAQ-2200 series, which includes PCI (DAQ-), PCI Express (DAQe-), and PXI (PXI-) variants. The DAQ-2208 model specifically supports 96 single-ended or 48 differential analog input channels, making it ideal for high-channel-count applications requiring fast sampling and precise analog signal measurement.
### 2. Key Features
- High Channel Density:
96 single-ended (SE) or 48 differential (DI) analog input channels, with software-selectable mixed-mode operation.
- High-Speed Sampling:
Maximum sampling rate of 3 mega-samples per second (3 MS/s) with 12-bit resolution and no missing codes.
- Flexible Input Ranges:
Bipolar ranges: ±10 V, ±5 V, ±2.5 V, ±2 V, ±1.25 V, ±1 V, ±0.5 V, ±0.25 V, ±0.2 V, ±0.05 V
Unipolar ranges: 0–10 V, 0–5 V, 0–4 V, 0–2.5 V, 0–1 V, 0–0.5 V, 0–0.4 V, 0–0.1 V
- Programmable Gain:
Selectable gains of ×1, ×2, ×4, ×5, ×8, ×10, ×20, ×40, ×50, and ×200.
- Auto Calibration:
Fully automatic calibration with onboard 5.000 V reference (±2 ppm/°C), ensuring long-term accuracy and stability.
- FIFO Buffer:
1 k-sample (1024-word) onboard A/D FIFO for efficient data buffering.
- Triggering Options:
Supports software, external digital, external analog, and SSI (System Synchronization Interface) triggers.
Trigger modes include pre-trigger, post-trigger, middle-trigger, delay-trigger, and repeated trigger.
- Digital I/O:
24-channel TTL-compatible programmable digital I/O (8255 PIO).
- Synchronization:
Multiple card synchronization via SSI bus or PXI trigger bus for multi-card, multi-channel systems.
- Software & OS Support:
Compatible with Windows 7/8 (x86/x64) and Linux.
Supported development environments: LabVIEW, MATLAB, C/C++, Visual Basic, Visual Studio.NET.
- Plug-and-Play PCI Interface:
32-bit PCI bus, 3.3 V/5 V signaling, automatic resource configuration (IRQ, DMA).
### 3. Technical Specifications
Analog Input (AI):
- Channels: 96 SE or 48 DI (software-selectable mixed mode)
- Resolution: 12-bit, no missing codes
- Sampling Rate: Up to 3 MS/s (single channel)
- Channel Gain Queue: 1024 configurations
- Input Coupling: DC
- Input Impedance: 1 GΩ / 100 pF
- Overvoltage Protection: ±30 V (power on), ±15 V (power off)
- Offset Error: ±2 mV typical
- Gain Error: ±0.06% of full-scale range (FSR)
- Common Mode Voltage Range: ±11 V
- CMRR: 90 dB typical (DC–60 Hz)
- Settling Time: 1 µs to 0.1% error (typical)
- Bandwidth: Up to 2 MHz small-signal (-3 dB)
- FIFO Buffer: 1 k-sample (1024 words)
Digital I/O (DIO):
- Channels: 24 programmable I/O lines (8255 PIO)
- Logic Levels: TTL-compatible (5 V)
- Input Voltage: Low ≤ 0.8 V, High ≥ 2.0 V
- Output Voltage: Low ≤ 0.5 V @ 8 mA, High ≥ 2.7 V @ 400 µA
- Data Transfer: Programmed I/O
Triggering:
- Sources: Software, external analog, external digital, SSI bus
- Modes: Pre-trigger, post-trigger, middle-trigger, delay-trigger, repeated trigger
- External Analog Trigger Input: ±10 V range, 8-bit resolution, 400 kHz bandwidth
- External Digital Trigger: TTL/CMOS compatible, 10 ns minimum pulse width
General:
- Auto Calibration: Yes (+5 V reference, ±2 ppm/°C)
- Dimensions: 175 mm × 107 mm (excluding connectors)
- Connectors: Two 68-pin VHDCI female connectors
- Operating Temperature: 0°C to 55°C
- Storage Temperature: -20°C to 70°C
- Humidity: 5–95%, non-condensing
- Power Requirements: +5 V @ 0.95 A typical
- Weight: Approx. 300 g (typical board weight)
### 4. Functionality
The DAQ-2208 performs high-speed analog-to-digital conversion for multiple analog input channels. It supports both single-ended and differential input configurations, allowing flexible signal acquisition from various sensors and transducers. The card’s programmable gain amplifiers and input ranges enable precise measurement of signals from millivolt to tens of volts.
Use Cases & Applications:
- Automotive and aerospace testing
- Automated test equipment (ATE)
- Process control and industrial automation
- Biomedical and biotech instrumentation
- Laboratory data logging and signal analysis
- Transient signal measurement and waveform capture
Compatibility:
- PCI bus systems (32-bit, 3.3 V/5 V)
- Compatible with ADLINK terminal boards and cables (DIN-68S-01, ACL-10568-1)
- Software integration with LabVIEW, MATLAB, and ADLINK’s D2K-DASK libraries
### 5. Components & Accessories
Included Items:
- DAQ-2208 PCI Data Acquisition Card
- ADLINK All-in-One Software CD (drivers, SDKs, utilities)
- Software Installation Guide
- User’s Manual (PDF)
Optional Accessories:
- Terminal Boards: DIN-68S-01, ACL-10568-1
- Cables: ACL-SSI-2/3/4 (for synchronization)
- Connector Type: Dual 68-pin VHDCI female connectors (AMP-787254-1 compatible)
### 6. Installation & Setup
System Requirements:
- Available PCI slot (32-bit, 3.3 V or 5 V)
- Supported OS: Windows 7/8 (x86/x64), Linux
- Minimum CPU: Pentium-class or higher
- Recommended RAM: ≥ 512 MB
Installation Steps:
1. Power off the host PC and discharge static electricity.
2. Insert the DAQ-2208 into an available PCI slot.
3. Secure the card and reconnect system power.
4. Install drivers from the ADLINK All-in-One CD.
5. Verify installation using ADLINK’s PCI_SCAN utility.
6. Configure channels, gains, and trigger modes via software.
Mounting Options:
Standard PCI slot mounting; no external power required.
Plug-and-play configuration—no jumpers or DIP switches.
### 7. Performance & Capabilities
- Sampling Rate: 3 MS/s maximum (single channel)
- Resolution: 12-bit (no missing codes)
- Input Range Accuracy: ±0.03% post-calibration
- Noise Level: <1 LSB RMS typical
- FIFO Buffer: 1024 samples for continuous acquisition
- DMA Support: Scatter-gather bus-mastering DMA for high-speed data transfer
- Synchronization: Multi-card synchronization via SSI or PXI trigger bus
- Latency: Sub-microsecond trigger response
- Limitations:
- No analog output (AO) or timer/counter functions on DAQ-2208 (available on other models)
- Requires external terminal boards for signal breakout
### 8. Standards & Compliance
- Bus Interface: PCI Local Bus Specification 2.2 compliant
- PXI Compliance (for PXI variant): PXI Specification Rev. 2.2
- Electrical Safety: Designed for industrial and laboratory environments
- EMC Compliance: Meets CE and FCC Class A requirements
- Operating Systems: Windows 7/8 (x86/x64), Linux kernel 2.4.x and later
- Software Drivers: D2K-DASK (Windows), D2K-DASK/X (Linux)
- Supported APIs: LabVIEW, MATLAB, Visual Studio, C/C++, Visual Basic
### 9. Additional Information
Warranty:
- Standard 2-year limited warranty (1 year in China)
- Covers manufacturing defects and hardware failures under normal use
- Excludes damage from misuse, static discharge, or unauthorized repair
Support & Maintenance:
- Global technical support via ADLINK regional offices
- Free driver and firmware updates available at [www.adlinktech.com](http://www.adlinktech.com)
- Calibration recommended every 12–24 months for optimal accuracy
- Auto-calibration utility included in software package
Service Contacts:
- ADLINK Technology Inc. (Taiwan HQ):
9F, No. 166 Jian Yi Road, Chungho City, Taipei Hsien 235, Taiwan
Tel: +886-2-8226-5877 | Fax: +886-2-8226-5717
Email: service@adlinktech.com
- ADLINK Technology America, Inc.:
8900 Research Drive, Irvine, CA 92618, USA
Toll-Free: +1-866-4-ADLINK | Fax: +1-949-727-2099
Email: info@adlinktech.com
- ADLINK Technology Europe:
Nord Carree 3, 40477 Düsseldorf, Germany
Toll-Free: +49-211-4955552 | Fax: +49-211-4955557
Email: emea@adlinktech.com
Maintenance & Calibration:
- Auto-calibration supported via onboard reference
- User calibration constants stored in EEPROM
- Recommended warm-up time: 15 minutes before calibration
- Calibration constants can be saved for multiple environments
Software Utilities:
- AD-Logger: Data logging and visualization tool
- DAQ-LVIEW PnP: LabVIEW driver package
- D2K-DASK: Windows driver and SDK
- D2K-DASK/X: Linux shared library driver
- DAQBench: ActiveX control suite for custom GUI development
### Summary
The ADLINK DAQ-2208 is a robust, high-density PCI data acquisition card engineered for demanding measurement and automation applications. With 96 analog input channels, 12-bit resolution, and a 3 MS/s sampling rate, it delivers exceptional performance for multi-channel signal acquisition. Its flexible input ranges, programmable gains, and comprehensive triggering options make it suitable for a wide range of industrial, scientific, and research environments. The card’s auto-calibration, scatter-gather DMA, and synchronization capabilities ensure reliable, high-speed data throughput with minimal CPU overhead. Supported by extensive software tools and cross-platform drivers, the DAQ-2208 integrates seamlessly into modern test and measurement systems, providing a scalable and precise data acquisition solution.
-
DAQ_DAQe_PXI-2208_Datasheet_en_2.pdf
PDF Catalog
- DIN-68S-01 - 68pin SCSI-II termination board DIN rail w/o cable
- ACL-10568-1 - SCSI-VHDCI cable 1m for DAQ series
- ACL-10568-2 - SCSI-VHDCI cable 2m for DAQ series
- ACL-10568-3 - SCSI-VHDCI cable 3m for DAQ series
