1. Product Overview
Product Name: DIN-814P-A40
Model Number: DIN-814P-A40
Series: DIN-814P Series
Article Number: DIN-814P-A40
Manufacturer: Adlink Technology Inc.
Product Type: DIN rail-mounted termination panel for servo amplifier systems
Associated Equipment: Panasonic MINAS A4 Servo Amplifier Series

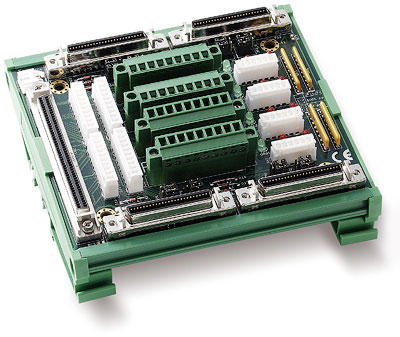

The Adlink DIN-814P-A40 is a specialized termination panel designed for integration with Panasonic MINAS A4 servo amplifiers. It provides a structured, reliable interface for 100-pin SCSI-II connections, enabling efficient signal routing and secure connectivity between servo amplifiers and control systems. Engineered for industrial automation environments, the DIN-814P-A40 offers robust mechanical construction, compact dimensions, and compatibility with standard DIN rail mounting systems.

---

2. Key Features
- Dedicated Interface Panel: Specifically designed for Panasonic MINAS A4 servo amplifier systems, ensuring full electrical and mechanical compatibility.
- 100-pin SCSI-II Termination Board: Provides a high-density, shielded connection interface for servo control signals, feedback lines, and I/O communication.
- DIN Rail Mounting: Supports standard DIN rail installation for quick, secure, and organized panel integration within control cabinets.
- Compact Form Factor: With dimensions of 123 × 107 × 44 mm, the panel fits efficiently into space-constrained automation enclosures.
- Industrial-Grade Construction: Built for durability and long-term reliability in demanding industrial environments.
- Cable-Free Configuration: Delivered without the ACL-102100-1 cable, allowing users to select or fabricate custom cable assemblies based on system requirements.
- Optimized Signal Integrity: The SCSI-II interface ensures stable, low-noise signal transmission between the servo amplifier and control hardware.
- Plug-and-Play Integration: Simplifies wiring and reduces installation time by providing a preconfigured termination interface.
- Manufacturer Quality Assurance: Produced by Adlink, a recognized manufacturer of industrial computing and automation components, ensuring adherence to high-quality standards.

---

3. Technical Specifications
- Product Name: DIN-814P-A40
- Manufacturer: Adlink Technology Inc.
- Compatible Device: Panasonic MINAS A4 Servo Amplifier
- Interface Type: 100-pin SCSI-II termination board
- Mounting Type: DIN rail (standard 35 mm rail)
- Cable: Not included (compatible with ACL-102100-1 cable assembly)
- Dimensions: 123 mm (L) × 107 mm (W) × 44 mm (H)
- Weight: Approx. 0.3–0.5 kg (typical, depending on configuration)
- Material: Industrial-grade PCB with reinforced mounting frame; metal or high-strength polymer housing suitable for DIN rail attachment
- Color: Standard industrial finish (typically green PCB with metallic or neutral housing)
- Connector Type: 100-pin SCSI-II male/female connector (depending on configuration)
- Operating Temperature Range: Typically 0°C to +55°C (industrial environment standard)
- Storage Temperature Range: -20°C to +70°C
- Humidity Tolerance: 10–90% RH, non-condensing
- Electrical Characteristics:
- Signal type: Differential and single-ended servo control signals
- Termination impedance: Standard SCSI-II compliant
- Voltage rating: Compatible with servo amplifier signal levels (typically 5V logic)
- Compliance: Designed to meet industrial EMC and safety standards (details in section 8)

---

4. Functionality
The DIN-814P-A40 serves as a termination and interface panel between a Panasonic MINAS A4 servo amplifier and the control system or motion controller. It provides a structured connection point for the amplifier’s 100-pin SCSI-II interface, simplifying wiring and ensuring reliable signal transmission.

How It Works:
- The servo amplifier’s 100-pin connector is interfaced through the DIN-814P-A40 termination board.
- The board routes control, feedback, and I/O signals to designated terminals or connectors for integration with the control system.
- The DIN rail mounting allows the panel to be securely installed within a control cabinet, maintaining organized cable management and easy access for maintenance.
- The termination board ensures proper impedance matching and signal integrity, minimizing electrical noise and interference.

Use Cases and Applications:
- Industrial automation systems utilizing Panasonic MINAS A4 servo drives
- Motion control panels for robotics, CNC machinery, and automated production lines
- Servo amplifier test benches and diagnostic setups
- Retrofit or upgrade projects requiring standardized servo amplifier interfacing
- OEM equipment integration where compact, DIN-mounted termination panels are required

Compatibility:
- Fully compatible with Panasonic MINAS A4 servo amplifier series
- Supports standard 100-pin SCSI-II cable assemblies (e.g., ACL-102100-1)
- Can be integrated with Adlink motion control cards and other industrial controllers supporting SCSI-II servo interfaces

---

5. Components & Accessories
Included Items:
- DIN-814P-A40 termination panel (main unit)
- Integrated 100-pin SCSI-II connector
- DIN rail mounting clips or brackets (factory-installed or included)
- Terminal labeling or identification markings for signal mapping

Optional Accessories:
- Cable Assembly: ACL-102100-1 (not included) – 100-pin SCSI-II cable for connection between the servo amplifier and the termination panel
- Mounting Hardware: Additional DIN rail clips or end stops for secure installation
- Protective Covers: Optional dust or EMI shielding covers for enhanced environmental protection
- Documentation: Installation guide, wiring diagram, and pinout reference (typically provided by manufacturer or distributor)

Connectors and Interfaces:
- 1 × 100-pin SCSI-II connector (primary interface)
- Terminal blocks or pin headers for signal breakout (depending on configuration)
- Grounding terminal for chassis or system ground connection

---

6. Installation & Setup
Requirements:
- Standard 35 mm DIN rail for mounting
- Compatible Panasonic MINAS A4 servo amplifier
- Appropriate SCSI-II cable (ACL-102100-1 or equivalent)
- Control cabinet or enclosure with sufficient space (minimum 123 × 107 × 44 mm clearance)

Mounting Options:
- Snap-on DIN rail installation for quick setup
- Optional screw mounting for additional stability in high-vibration environments

Configuration Steps:
1. Mount the DIN-814P-A40 securely onto the DIN rail.
2. Connect the 100-pin SCSI-II cable from the Panasonic MINAS A4 servo amplifier to the panel’s connector.
3. Route and secure signal cables to the corresponding control system terminals.
4. Verify grounding and shielding connections to minimize electrical noise.
5. Power up the system and perform signal integrity checks or servo amplifier diagnostics.

Installation Notes:
- Ensure proper orientation of the SCSI-II connector to prevent pin misalignment.
- Maintain adequate spacing between adjacent components for ventilation and cable routing.
- Follow Panasonic and Adlink installation guidelines for servo amplifier wiring and grounding.

---

7. Performance & Capabilities
Signal Handling:
- Supports high-speed servo control signals with minimal latency.
- Maintains signal integrity across all 100 channels through impedance-controlled PCB traces.
- Designed for low crosstalk and high noise immunity in industrial environments.

Capacity:
- Accommodates full 100-pin SCSI-II signal mapping for complex servo control systems.
- Suitable for multi-axis servo configurations when used in conjunction with multiple panels.

Efficiency:
- Reduces wiring complexity by consolidating multiple signal lines into a single standardized interface.
- Simplifies maintenance and troubleshooting through organized terminal labeling.

Limitations:
- Cable (ACL-102100-1) not included; must be sourced separately.
- Designed specifically for Panasonic MINAS A4 series; not universally compatible with other servo amplifier models.
- Passive termination board – does not provide active signal conditioning or amplification.

Reliability:
- Industrial-grade design ensures long operational life under continuous use.
- Mechanical stability maintained through DIN rail mounting and robust housing materials.

---

8. Standards & Compliance
Certifications and Compliance:
- Designed in accordance with industrial automation standards for electrical safety and EMC performance.
- Complies with SCSI-II interface specifications (ANSI X3.131-1994).
- Meets RoHS (Restriction of Hazardous Substances) directives for environmental compliance.
- Manufactured under ISO 9001 quality management system.
- Compatible with CE marking requirements for industrial control equipment.

Industry Standards:
- DIN rail mounting standard: EN 60715 (35 mm rail)
- Connector standard: SCSI-II (100-pin, half-pitch)
- Electrical safety: IEC 61010-1 (applicable to control equipment)
- EMC compliance: EN 61000-6-2 / EN 61000-6-4 (industrial immunity and emissions)

---

9. Additional Information
Warranty:
- Standard manufacturer warranty (typically 1 year, depending on region and distributor).
- Covers defects in materials and workmanship under normal operating conditions.

Support:
- Technical documentation, wiring diagrams, and pinout charts available from Adlink or authorized distributors.
- Customer support provided through Adlink’s global service network.
- Firmware or software updates not applicable (passive hardware component).

Maintenance:
- Minimal maintenance required; periodic inspection recommended for connector integrity and cleanliness.
- Ensure connectors are free from dust and oxidation for optimal signal performance.
- Replace cable assemblies if signs of wear or damage are observed.

Updates and Revisions:
- Product specifications subject to change based on manufacturer updates or compatibility enhancements.
- Users should verify the latest datasheet and installation manual before deployment.

Environmental Considerations:
- Designed for use in controlled industrial environments.
- Avoid exposure to excessive moisture, vibration, or corrosive substances.
- Dispose of electronic components in accordance with local environmental regulations.

---

Summary
The Adlink DIN-814P-A40 is a precision-engineered DIN rail-mounted termination panel tailored for Panasonic MINAS A4 servo amplifiers. Featuring a 100-pin SCSI-II interface, it provides a reliable, organized, and efficient connection solution for servo control systems. With compact dimensions of 123 × 107 × 44 mm, robust industrial construction, and compliance with international standards, the DIN-814P-A40 ensures dependable performance in automation, robotics, and motion control applications.

Its design emphasizes ease of installation, signal integrity, and system compatibility, making it an essential component for engineers and integrators seeking a professional-grade interface solution for Panasonic servo systems.
