High‑Performance Managed Switching
- 6 × 10/100Base‑T(X) RJ‑45 ports with auto‑negotiation and auto‑MDI/MDI‑X.
- 2 × 1000Base‑LX single‑mode fiber ports (9/125 µm, up to 30 km).
- Store‑and‑forward switching architecture with 8 K MAC address table.
- IEEE 802.3x full‑duplex flow control and back‑pressure half‑duplex control.
- Forwarding rate up to 148,800 pps per port.
Ultra‑Fast Redundancy
- ELITE‑Ring™ self‑healing Ethernet ring redundancy with < 10 ms recovery time.
- Supports STP (IEEE 802.1D) and RSTP (IEEE 802.1W) for network resilience.
- Ring Coupling and Dual‑Homing topologies for multi‑ring and redundant uplink configurations.
Advanced Network Management
- Managed via Web browser, Telnet, RS‑232 console, SNMP V1/V2c/V3, or SUNIX Commander Pro Windows utility.
- Supports CLI (Command Line Interface) for text‑based configuration.
- Auto‑Topology Map visualization in SUNIX Commander for real‑time network monitoring.
- Group configuration, firmware upgrade, and backup/restore via TFTP or local utility.
Comprehensive Layer 2 Features
- IEEE 802.1Q VLAN tagging and port‑based VLANs.
- GVRP (GARP VLAN Registration Protocol) for dynamic VLAN management.
- QoS/ToS prioritization (IEEE 802.1p/1Q, DiffServ) for deterministic traffic control.
- Port Trunking (IEEE 802.3ad LACP) for bandwidth aggregation and redundancy.
- IGMP Snooping V1/V2/V3 and GMRP for multicast optimization.
- RMON Groups 1, 2, 3, 9 for remote monitoring and statistics.
Industrial‑Grade Reliability
- Redundant dual 12–48 V DC power inputs with reverse polarity and surge protection.
- ESD protection: 4 kV DC on Ethernet ports.
- Surge protection: 2 kV DC on power inputs.
- Operating temperature: 0 °C – 60 °C (standard), extended models – 40 °C – 80 °C.
- IP30 aluminum enclosure, DIN‑rail and wall‑mountable.
- Relay output alarm for power or link failure events.
Security & Access Control
- IEEE 802.1X port‑based authentication with RADIUS server integration.
- HTTPS/SSL and SSH for encrypted management sessions.
- Port Security (MAC binding) and IP Security (management access control).
- RADIUS authentication, authorization, and accounting.
- MAC filtering and blacklist for traffic isolation.
Diagnostics & Alerts
- Configurable relay output and email/SNMP trap notifications for power or link faults.
- Syslog and SMTP event logging.
- Port mirroring for traffic analysis.
- Broadcast storm protection and port break alarms.
- 6 × 10/100Base‑T(X) RJ‑45 ports with auto‑negotiation and auto‑MDI/MDI‑X.
- 2 × 1000Base‑LX single‑mode fiber ports (9/125 µm, up to 30 km).
- Store‑and‑forward switching architecture with 8 K MAC address table.
- IEEE 802.3x full‑duplex flow control and back‑pressure half‑duplex control.
- Forwarding rate up to 148,800 pps per port.
Ultra‑Fast Redundancy
- ELITE‑Ring™ self‑healing Ethernet ring redundancy with < 10 ms recovery time.
- Supports STP (IEEE 802.1D) and RSTP (IEEE 802.1W) for network resilience.
- Ring Coupling and Dual‑Homing topologies for multi‑ring and redundant uplink configurations.
Advanced Network Management
- Managed via Web browser, Telnet, RS‑232 console, SNMP V1/V2c/V3, or SUNIX Commander Pro Windows utility.
- Supports CLI (Command Line Interface) for text‑based configuration.
- Auto‑Topology Map visualization in SUNIX Commander for real‑time network monitoring.
- Group configuration, firmware upgrade, and backup/restore via TFTP or local utility.
Comprehensive Layer 2 Features
- IEEE 802.1Q VLAN tagging and port‑based VLANs.
- GVRP (GARP VLAN Registration Protocol) for dynamic VLAN management.
- QoS/ToS prioritization (IEEE 802.1p/1Q, DiffServ) for deterministic traffic control.
- Port Trunking (IEEE 802.3ad LACP) for bandwidth aggregation and redundancy.
- IGMP Snooping V1/V2/V3 and GMRP for multicast optimization.
- RMON Groups 1, 2, 3, 9 for remote monitoring and statistics.
Industrial‑Grade Reliability
- Redundant dual 12–48 V DC power inputs with reverse polarity and surge protection.
- ESD protection: 4 kV DC on Ethernet ports.
- Surge protection: 2 kV DC on power inputs.
- Operating temperature: 0 °C – 60 °C (standard), extended models – 40 °C – 80 °C.
- IP30 aluminum enclosure, DIN‑rail and wall‑mountable.
- Relay output alarm for power or link failure events.
Security & Access Control
- IEEE 802.1X port‑based authentication with RADIUS server integration.
- HTTPS/SSL and SSH for encrypted management sessions.
- Port Security (MAC binding) and IP Security (management access control).
- RADIUS authentication, authorization, and accounting.
- MAC filtering and blacklist for traffic isolation.
Diagnostics & Alerts
- Configurable relay output and email/SNMP trap notifications for power or link faults.
- Syslog and SMTP event logging.
- Port mirroring for traffic analysis.
- Broadcast storm protection and port break alarms.
Comprehensive Product Summary – SUNIX ESW‑8062‑GS Managed Industrial Ethernet Switch
### 1. Product Overview

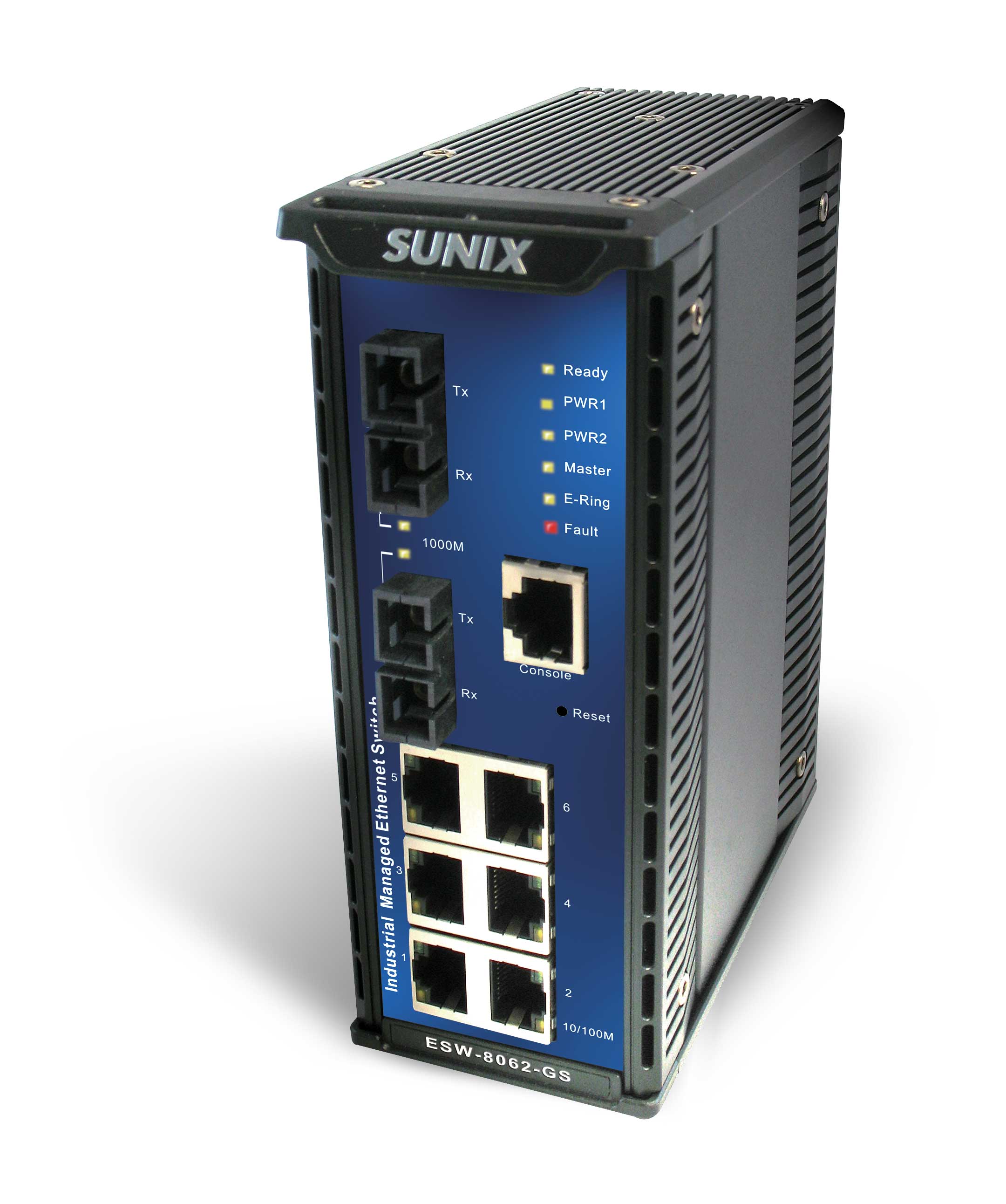

Product Name: SUNIX ESW‑8062‑GS
Model: ESW‑8062‑GS
Series: ESW‑8062‑xx Series (Managed Industrial Ethernet Switches)
Article Number: ESW‑8062‑GS
Manufacturer: SUNIX Co., Ltd.
Product Category: Managed Industrial Ethernet Switch – 6 × 10/100Base‑T(X) + 2 × 1000Base‑LX (Single‑Mode Fiber) Ports
The SUNIX ESW‑8062‑GS is a fully managed, industrial‑grade Ethernet switch designed for mission‑critical automation and control networks. It provides six 10/100Base‑T(X) copper ports and two 1000Base‑LX single‑mode fiber ports, supporting long‑distance communication up to 30 km. The switch integrates SUNIX’s proprietary ELITE‑Ring™ redundancy technology, achieving network recovery times of less than 10 milliseconds across up to 50 interconnected units. Built for harsh industrial environments, it features redundant power inputs, high electromagnetic immunity, and a rugged IP30 aluminum enclosure suitable for DIN‑rail or wall mounting.
### 2. Key Features
High‑Performance Managed Switching
- 6 × 10/100Base‑T(X) RJ‑45 ports with auto‑negotiation and auto‑MDI/MDI‑X.
- 2 × 1000Base‑LX single‑mode fiber ports (9/125 µm, up to 30 km).
- Store‑and‑forward switching architecture with 8 K MAC address table.
- IEEE 802.3x full‑duplex flow control and back‑pressure half‑duplex control.
- Forwarding rate up to 148,800 pps per port.
Ultra‑Fast Redundancy
- ELITE‑Ring™ self‑healing Ethernet ring redundancy with < 10 ms recovery time.
- Supports STP (IEEE 802.1D) and RSTP (IEEE 802.1W) for network resilience.
- Ring Coupling and Dual‑Homing topologies for multi‑ring and redundant uplink configurations.
Advanced Network Management
- Managed via Web browser, Telnet, RS‑232 console, SNMP V1/V2c/V3, or SUNIX Commander Pro Windows utility.
- Supports CLI (Command Line Interface) for text‑based configuration.
- Auto‑Topology Map visualization in SUNIX Commander for real‑time network monitoring.
- Group configuration, firmware upgrade, and backup/restore via TFTP or local utility.
Comprehensive Layer 2 Features
- IEEE 802.1Q VLAN tagging and port‑based VLANs.
- GVRP (GARP VLAN Registration Protocol) for dynamic VLAN management.
- QoS/ToS prioritization (IEEE 802.1p/1Q, DiffServ) for deterministic traffic control.
- Port Trunking (IEEE 802.3ad LACP) for bandwidth aggregation and redundancy.
- IGMP Snooping V1/V2/V3 and GMRP for multicast optimization.
- RMON Groups 1, 2, 3, 9 for remote monitoring and statistics.
Industrial‑Grade Reliability
- Redundant dual 12–48 V DC power inputs with reverse polarity and surge protection.
- ESD protection: 4 kV DC on Ethernet ports.
- Surge protection: 2 kV DC on power inputs.
- Operating temperature: 0 °C – 60 °C (standard), extended models – 40 °C – 80 °C.
- IP30 aluminum enclosure, DIN‑rail and wall‑mountable.
- Relay output alarm for power or link failure events.
Security & Access Control
- IEEE 802.1X port‑based authentication with RADIUS server integration.
- HTTPS/SSL and SSH for encrypted management sessions.
- Port Security (MAC binding) and IP Security (management access control).
- RADIUS authentication, authorization, and accounting.
- MAC filtering and blacklist for traffic isolation.
Diagnostics & Alerts
- Configurable relay output and email/SNMP trap notifications for power or link faults.
- Syslog and SMTP event logging.
- Port mirroring for traffic analysis.
- Broadcast storm protection and port break alarms.
### 3. Technical Specifications
| Parameter | Specification |
|----------------|------------------|
| Ethernet Ports | 6 × 10/100Base‑T(X) RJ‑45 (auto‑negotiation, auto‑MDI/MDI‑X) |
| Fiber Ports | 2 × 1000Base‑LX (single‑mode, 9/125 µm, up to 30 km) |
| Alarm Contact | 1 × configurable relay output, 1 A @ 24 V DC |
| Switching Method | Store‑and‑forward |
| MAC Address Table | 8 K entries |
| Flow Control | IEEE 802.3x full‑duplex, back‑pressure half‑duplex |
| Forwarding Rate | 148,800 pps per port |
| Power Input | Dual 12–48 V DC (nominal 24 V DC) |
| Power Consumption | ≤ 9 W max |
| Protection | Reverse polarity, surge (2 kV DC), ESD (4 kV DC) |
| Dimensions (D × W × H) | 56.5 × 110 × 150 mm |
| Weight | Approx. 1.0 kg |
| Enclosure | IP30 aluminum housing |
| Mounting | DIN‑rail and wall‑mount |
| Operating Temperature | 0 °C – 60 °C (standard) / – 40 °C – 80 °C (extended) |
| Storage Temperature | – 40 °C – 85 °C |
| Humidity | 5 % – 95 % RH (non‑condensing) |
| MTBF | 830,000 hours |
| Warranty | 5 years |
### 4. Functionality
Operational Overview
The ESW‑8062‑GS functions as a managed Layer 2 Ethernet switch optimized for industrial automation networks. It interconnects PLCs, HMIs, sensors, and controllers over copper and fiber links, ensuring deterministic communication and minimal downtime. The switch supports redundant ring topologies via ELITE‑Ring™, automatically rerouting traffic within 10 ms upon link failure.
Use Cases & Applications
- Factory automation and process control networks.
- Transportation systems (railway, ITS, traffic control).
- Building automation and energy management.
- Power substations and utility monitoring.
- Oil, gas, and hazardous‑location communication networks.
Compatibility
- Fully compliant with IEEE 802.3/802.3u/802.3z/802.3ad/802.1D/802.1W/802.1Q/802.1p/802.1X standards.
- Interoperable with third‑party managed switches and SNMP‑based network management systems.
- Supports standard fiber connectors (SC/ST) and copper cabling up to 100 m (Cat 5e/6).
### 5. Components & Accessories
Included Items
- ESW‑8062‑GS managed switch unit.
- DIN‑rail mounting kit.
- Wall‑mount bracket set.
- Fiber port protective lids (for unused ports).
- Quick Installation Guide and CD (drivers, user manual, SUNIX Commander utility).
Optional Accessories
- RJ‑45‑to‑DB9 console cable for RS‑232 management.
- External 24 V DC power supply (if not provided by system).
- Fiber transceivers and connector options (SC/ST) for various distances.
- Replacement terminal block connectors.
Connectors
- 7‑pin removable terminal block for dual DC inputs and relay output.
- DC jack for alternative power input.
- RJ‑45 console port for serial configuration.
### 6. Installation & Setup
Requirements
- Power supply: 12–48 V DC, 1 A @ 12 V minimum.
- Mounting surface or DIN‑rail compliant with EN 50022.
- Proper grounding to minimize EMI/RFI interference.
Mounting Options
- DIN‑Rail: Snap‑on installation for control cabinets.
- Wall Mount: Bracket attachment for flat surfaces.
Configuration Interfaces
1. Web Browser: Access via 192.168.1.1 (default), user admin/admin.
2. Telnet Console: Text‑based configuration over LAN.
3. RS‑232 Serial Console: 9600 bps, 8‑N‑1 settings.
4. SUNIX Commander Pro: Windows utility for multi‑device management.
5. SNMP: Integration with NMS platforms (v1/v2c/v3).
Initial Setup Steps
- Connect power and network cables.
- Assign IP address manually or via DHCP.
- Configure VLANs, redundancy, and security policies.
- Save configuration to flash memory to retain settings after reboot.
### 7. Performance & Capabilities
Switching Performance
- Wire‑speed forwarding on all ports.
- Store‑and‑forward latency < 10 µs.
- 8 K MAC address table with automatic learning and aging.
Redundancy & Recovery
- ELITE‑Ring™: < 10 ms recovery across ≤ 300 switches.
- RSTP/STP: IEEE 802.1W/D compliant for mesh or tree topologies.
- Dual‑Homing: Redundant uplink to two independent networks.
- Ring Coupling: Interconnects multiple rings for distributed systems.
Traffic Management
- QoS/ToS: 8:4:2:1 weighted fair queuing or strict priority scheduling.
- Rate Limiting: 100 kbps – 102,400 kbps (Fast Ethernet) / 256,000 kbps (Gigabit).
- Port Trunking: Up to 4 ports per trunk group, static or LACP dynamic.
- VLANs: Up to 4094 IDs, tagged/untagged, access/trunk/hybrid modes.
- IGMP Snooping: Efficient multicast filtering for industrial protocols.
- RMON: Real‑time traffic statistics and remote monitoring.
Security & Access Control
- IEEE 802.1X authentication with RADIUS.
- HTTPS/SSH encrypted management.
- Port Security: MAC binding to prevent unauthorized access.
- IP Security: Restrict management to specific IP addresses.
- MAC Filtering: Block traffic to defined MAC addresses.
- Broadcast Storm Control: Prevents network flooding.
Diagnostics & Monitoring
- SNMP Traps: Cold/warm start, link up/down, topology change.
- Syslog/SMTP: Event logging and email alerts.
- Relay Output: Hardware alarm for power or link failure.
- Port Mirroring: TX/RX monitoring for analysis.
- Statistics: TX/RX counters, error packets, collisions.
- Auto‑Topology Map: Visual network layout via SUNIX Commander.
Limitations
- Layer 2 switching only (no Layer 3 routing).
- Fiber distance limited to 30 km (single‑mode LX).
- Management limited to SUNIX Commander or standard SNMP tools.
### 8. Standards & Compliance
IEEE Standards
- IEEE 802.3 (10Base‑T)
- IEEE 802.3u (100Base‑TX)
- IEEE 802.3z (1000Base‑LX)
- IEEE 802.3ad (Link Aggregation)
- IEEE 802.3x (Flow Control)
- IEEE 802.1D (Spanning Tree Protocol)
- IEEE 802.1W (Rapid Spanning Tree Protocol)
- IEEE 802.1Q (VLAN Tagging)
- IEEE 802.1p (QoS Priority)
- IEEE 802.1X (Port‑Based Network Access Control)
Protocols Supported
- IGMP V1/V2/V3, GVRP, GMRP
- SNMP V1/V2c/V3
- DHCP Server/Client, BootP, TFTP, SNTP, SMTP, RARP
- RMON Groups 1, 2, 3, 9
Safety & Environmental Compliance
- UL 60950, UL 508, CAN/CSA C22.2 No. 60950
- UL/cUL Class I Division 2 (Hazardous Location)
- FCC Part 15 Class A, CISPR (EN55022) Class A, CE EMC
- IEC 60068‑2‑27 (Shock)
- IEC 60068‑2‑32 (Free‑fall)
- IEC 60068‑2‑6 (Vibration)
- EN 61000‑4‑2/3/4/5/6 (ESD, RS, EFT, Surge, CS)
- EN 61000‑4‑8/11/12 (Power frequency magnetic field and voltage dips)
Environmental Ratings
- IP30 protection class.
- Operating humidity 5 % – 95 % (non‑condensing).
- Extended temperature models available for – 40 °C to 80 °C.
### 9. Additional Information
Warranty & Support
- Warranty: 5 years limited hardware warranty.
- MTBF: 830,000 hours (calculated).
- Technical Support: info@sunix‑ncci.com.tw
- Website: [www.sunix‑ncci.com.tw](http://www.sunix-ncci.com.tw)
Maintenance
- Configuration backup via TFTP or SUNIX Commander.
- Firmware upgrade through Web UI, CLI, or TFTP.
- Periodic inspection of power and fiber connections recommended.
- “Save to Flash” required after configuration changes to retain settings.
Software Updates
- Firmware and management utility updates available from SUNIX support portal.
- SUNIX Commander Pro supports group firmware upgrades and configuration cloning.
Product Return Procedure
- Obtain Product Return Agreement (PRA) from authorized dealer.
- Complete Problem Report Form with serial number and issue description.
- Return product in anti‑static packaging with PRA label attached.
### Summary
The SUNIX ESW‑8062‑GS is a robust, feature‑rich managed Ethernet switch engineered for industrial automation networks requiring high reliability, deterministic performance, and secure management. With six 10/100 Mbps copper ports and two 1000 Mbps single‑mode fiber uplinks, it supports long‑distance communication and redundant ring topologies with sub‑10 ms recovery. Its comprehensive management suite—spanning SNMP, CLI, Web, and Windows utility—enables flexible configuration and monitoring. Compliance with major IEEE and safety standards, combined with rugged mechanical design and extended environmental tolerance, makes the ESW‑8062‑GS ideal for continuous 24/7 operation in demanding industrial, transportation, and utility environments.
### 1. Product Overview
Product Name: SUNIX ESW‑8062‑GS
Model: ESW‑8062‑GS
Series: ESW‑8062‑xx Series (Managed Industrial Ethernet Switches)
Article Number: ESW‑8062‑GS
Manufacturer: SUNIX Co., Ltd.
Product Category: Managed Industrial Ethernet Switch – 6 × 10/100Base‑T(X) + 2 × 1000Base‑LX (Single‑Mode Fiber) Ports
The SUNIX ESW‑8062‑GS is a fully managed, industrial‑grade Ethernet switch designed for mission‑critical automation and control networks. It provides six 10/100Base‑T(X) copper ports and two 1000Base‑LX single‑mode fiber ports, supporting long‑distance communication up to 30 km. The switch integrates SUNIX’s proprietary ELITE‑Ring™ redundancy technology, achieving network recovery times of less than 10 milliseconds across up to 50 interconnected units. Built for harsh industrial environments, it features redundant power inputs, high electromagnetic immunity, and a rugged IP30 aluminum enclosure suitable for DIN‑rail or wall mounting.
### 2. Key Features
High‑Performance Managed Switching
- 6 × 10/100Base‑T(X) RJ‑45 ports with auto‑negotiation and auto‑MDI/MDI‑X.
- 2 × 1000Base‑LX single‑mode fiber ports (9/125 µm, up to 30 km).
- Store‑and‑forward switching architecture with 8 K MAC address table.
- IEEE 802.3x full‑duplex flow control and back‑pressure half‑duplex control.
- Forwarding rate up to 148,800 pps per port.
Ultra‑Fast Redundancy
- ELITE‑Ring™ self‑healing Ethernet ring redundancy with < 10 ms recovery time.
- Supports STP (IEEE 802.1D) and RSTP (IEEE 802.1W) for network resilience.
- Ring Coupling and Dual‑Homing topologies for multi‑ring and redundant uplink configurations.
Advanced Network Management
- Managed via Web browser, Telnet, RS‑232 console, SNMP V1/V2c/V3, or SUNIX Commander Pro Windows utility.
- Supports CLI (Command Line Interface) for text‑based configuration.
- Auto‑Topology Map visualization in SUNIX Commander for real‑time network monitoring.
- Group configuration, firmware upgrade, and backup/restore via TFTP or local utility.
Comprehensive Layer 2 Features
- IEEE 802.1Q VLAN tagging and port‑based VLANs.
- GVRP (GARP VLAN Registration Protocol) for dynamic VLAN management.
- QoS/ToS prioritization (IEEE 802.1p/1Q, DiffServ) for deterministic traffic control.
- Port Trunking (IEEE 802.3ad LACP) for bandwidth aggregation and redundancy.
- IGMP Snooping V1/V2/V3 and GMRP for multicast optimization.
- RMON Groups 1, 2, 3, 9 for remote monitoring and statistics.
Industrial‑Grade Reliability
- Redundant dual 12–48 V DC power inputs with reverse polarity and surge protection.
- ESD protection: 4 kV DC on Ethernet ports.
- Surge protection: 2 kV DC on power inputs.
- Operating temperature: 0 °C – 60 °C (standard), extended models – 40 °C – 80 °C.
- IP30 aluminum enclosure, DIN‑rail and wall‑mountable.
- Relay output alarm for power or link failure events.
Security & Access Control
- IEEE 802.1X port‑based authentication with RADIUS server integration.
- HTTPS/SSL and SSH for encrypted management sessions.
- Port Security (MAC binding) and IP Security (management access control).
- RADIUS authentication, authorization, and accounting.
- MAC filtering and blacklist for traffic isolation.
Diagnostics & Alerts
- Configurable relay output and email/SNMP trap notifications for power or link faults.
- Syslog and SMTP event logging.
- Port mirroring for traffic analysis.
- Broadcast storm protection and port break alarms.
### 3. Technical Specifications
| Parameter | Specification |
|----------------|------------------|
| Ethernet Ports | 6 × 10/100Base‑T(X) RJ‑45 (auto‑negotiation, auto‑MDI/MDI‑X) |
| Fiber Ports | 2 × 1000Base‑LX (single‑mode, 9/125 µm, up to 30 km) |
| Alarm Contact | 1 × configurable relay output, 1 A @ 24 V DC |
| Switching Method | Store‑and‑forward |
| MAC Address Table | 8 K entries |
| Flow Control | IEEE 802.3x full‑duplex, back‑pressure half‑duplex |
| Forwarding Rate | 148,800 pps per port |
| Power Input | Dual 12–48 V DC (nominal 24 V DC) |
| Power Consumption | ≤ 9 W max |
| Protection | Reverse polarity, surge (2 kV DC), ESD (4 kV DC) |
| Dimensions (D × W × H) | 56.5 × 110 × 150 mm |
| Weight | Approx. 1.0 kg |
| Enclosure | IP30 aluminum housing |
| Mounting | DIN‑rail and wall‑mount |
| Operating Temperature | 0 °C – 60 °C (standard) / – 40 °C – 80 °C (extended) |
| Storage Temperature | – 40 °C – 85 °C |
| Humidity | 5 % – 95 % RH (non‑condensing) |
| MTBF | 830,000 hours |
| Warranty | 5 years |
### 4. Functionality
Operational Overview
The ESW‑8062‑GS functions as a managed Layer 2 Ethernet switch optimized for industrial automation networks. It interconnects PLCs, HMIs, sensors, and controllers over copper and fiber links, ensuring deterministic communication and minimal downtime. The switch supports redundant ring topologies via ELITE‑Ring™, automatically rerouting traffic within 10 ms upon link failure.
Use Cases & Applications
- Factory automation and process control networks.
- Transportation systems (railway, ITS, traffic control).
- Building automation and energy management.
- Power substations and utility monitoring.
- Oil, gas, and hazardous‑location communication networks.
Compatibility
- Fully compliant with IEEE 802.3/802.3u/802.3z/802.3ad/802.1D/802.1W/802.1Q/802.1p/802.1X standards.
- Interoperable with third‑party managed switches and SNMP‑based network management systems.
- Supports standard fiber connectors (SC/ST) and copper cabling up to 100 m (Cat 5e/6).
### 5. Components & Accessories
Included Items
- ESW‑8062‑GS managed switch unit.
- DIN‑rail mounting kit.
- Wall‑mount bracket set.
- Fiber port protective lids (for unused ports).
- Quick Installation Guide and CD (drivers, user manual, SUNIX Commander utility).
Optional Accessories
- RJ‑45‑to‑DB9 console cable for RS‑232 management.
- External 24 V DC power supply (if not provided by system).
- Fiber transceivers and connector options (SC/ST) for various distances.
- Replacement terminal block connectors.
Connectors
- 7‑pin removable terminal block for dual DC inputs and relay output.
- DC jack for alternative power input.
- RJ‑45 console port for serial configuration.
### 6. Installation & Setup
Requirements
- Power supply: 12–48 V DC, 1 A @ 12 V minimum.
- Mounting surface or DIN‑rail compliant with EN 50022.
- Proper grounding to minimize EMI/RFI interference.
Mounting Options
- DIN‑Rail: Snap‑on installation for control cabinets.
- Wall Mount: Bracket attachment for flat surfaces.
Configuration Interfaces
1. Web Browser: Access via 192.168.1.1 (default), user admin/admin.
2. Telnet Console: Text‑based configuration over LAN.
3. RS‑232 Serial Console: 9600 bps, 8‑N‑1 settings.
4. SUNIX Commander Pro: Windows utility for multi‑device management.
5. SNMP: Integration with NMS platforms (v1/v2c/v3).
Initial Setup Steps
- Connect power and network cables.
- Assign IP address manually or via DHCP.
- Configure VLANs, redundancy, and security policies.
- Save configuration to flash memory to retain settings after reboot.
### 7. Performance & Capabilities
Switching Performance
- Wire‑speed forwarding on all ports.
- Store‑and‑forward latency < 10 µs.
- 8 K MAC address table with automatic learning and aging.
Redundancy & Recovery
- ELITE‑Ring™: < 10 ms recovery across ≤ 300 switches.
- RSTP/STP: IEEE 802.1W/D compliant for mesh or tree topologies.
- Dual‑Homing: Redundant uplink to two independent networks.
- Ring Coupling: Interconnects multiple rings for distributed systems.
Traffic Management
- QoS/ToS: 8:4:2:1 weighted fair queuing or strict priority scheduling.
- Rate Limiting: 100 kbps – 102,400 kbps (Fast Ethernet) / 256,000 kbps (Gigabit).
- Port Trunking: Up to 4 ports per trunk group, static or LACP dynamic.
- VLANs: Up to 4094 IDs, tagged/untagged, access/trunk/hybrid modes.
- IGMP Snooping: Efficient multicast filtering for industrial protocols.
- RMON: Real‑time traffic statistics and remote monitoring.
Security & Access Control
- IEEE 802.1X authentication with RADIUS.
- HTTPS/SSH encrypted management.
- Port Security: MAC binding to prevent unauthorized access.
- IP Security: Restrict management to specific IP addresses.
- MAC Filtering: Block traffic to defined MAC addresses.
- Broadcast Storm Control: Prevents network flooding.
Diagnostics & Monitoring
- SNMP Traps: Cold/warm start, link up/down, topology change.
- Syslog/SMTP: Event logging and email alerts.
- Relay Output: Hardware alarm for power or link failure.
- Port Mirroring: TX/RX monitoring for analysis.
- Statistics: TX/RX counters, error packets, collisions.
- Auto‑Topology Map: Visual network layout via SUNIX Commander.
Limitations
- Layer 2 switching only (no Layer 3 routing).
- Fiber distance limited to 30 km (single‑mode LX).
- Management limited to SUNIX Commander or standard SNMP tools.
### 8. Standards & Compliance
IEEE Standards
- IEEE 802.3 (10Base‑T)
- IEEE 802.3u (100Base‑TX)
- IEEE 802.3z (1000Base‑LX)
- IEEE 802.3ad (Link Aggregation)
- IEEE 802.3x (Flow Control)
- IEEE 802.1D (Spanning Tree Protocol)
- IEEE 802.1W (Rapid Spanning Tree Protocol)
- IEEE 802.1Q (VLAN Tagging)
- IEEE 802.1p (QoS Priority)
- IEEE 802.1X (Port‑Based Network Access Control)
Protocols Supported
- IGMP V1/V2/V3, GVRP, GMRP
- SNMP V1/V2c/V3
- DHCP Server/Client, BootP, TFTP, SNTP, SMTP, RARP
- RMON Groups 1, 2, 3, 9
Safety & Environmental Compliance
- UL 60950, UL 508, CAN/CSA C22.2 No. 60950
- UL/cUL Class I Division 2 (Hazardous Location)
- FCC Part 15 Class A, CISPR (EN55022) Class A, CE EMC
- IEC 60068‑2‑27 (Shock)
- IEC 60068‑2‑32 (Free‑fall)
- IEC 60068‑2‑6 (Vibration)
- EN 61000‑4‑2/3/4/5/6 (ESD, RS, EFT, Surge, CS)
- EN 61000‑4‑8/11/12 (Power frequency magnetic field and voltage dips)
Environmental Ratings
- IP30 protection class.
- Operating humidity 5 % – 95 % (non‑condensing).
- Extended temperature models available for – 40 °C to 80 °C.
### 9. Additional Information
Warranty & Support
- Warranty: 5 years limited hardware warranty.
- MTBF: 830,000 hours (calculated).
- Technical Support: info@sunix‑ncci.com.tw
- Website: [www.sunix‑ncci.com.tw](http://www.sunix-ncci.com.tw)
Maintenance
- Configuration backup via TFTP or SUNIX Commander.
- Firmware upgrade through Web UI, CLI, or TFTP.
- Periodic inspection of power and fiber connections recommended.
- “Save to Flash” required after configuration changes to retain settings.
Software Updates
- Firmware and management utility updates available from SUNIX support portal.
- SUNIX Commander Pro supports group firmware upgrades and configuration cloning.
Product Return Procedure
- Obtain Product Return Agreement (PRA) from authorized dealer.
- Complete Problem Report Form with serial number and issue description.
- Return product in anti‑static packaging with PRA label attached.
### Summary
The SUNIX ESW‑8062‑GS is a robust, feature‑rich managed Ethernet switch engineered for industrial automation networks requiring high reliability, deterministic performance, and secure management. With six 10/100 Mbps copper ports and two 1000 Mbps single‑mode fiber uplinks, it supports long‑distance communication and redundant ring topologies with sub‑10 ms recovery. Its comprehensive management suite—spanning SNMP, CLI, Web, and Windows utility—enables flexible configuration and monitoring. Compliance with major IEEE and safety standards, combined with rugged mechanical design and extended environmental tolerance, makes the ESW‑8062‑GS ideal for continuous 24/7 operation in demanding industrial, transportation, and utility environments.
-
EthernetSwitches.pdf
PDF Catalog
-
ESW-8062-xx_Series.pdf
Manual
Kein Zubehör vorhanden.
