1. Product Overview

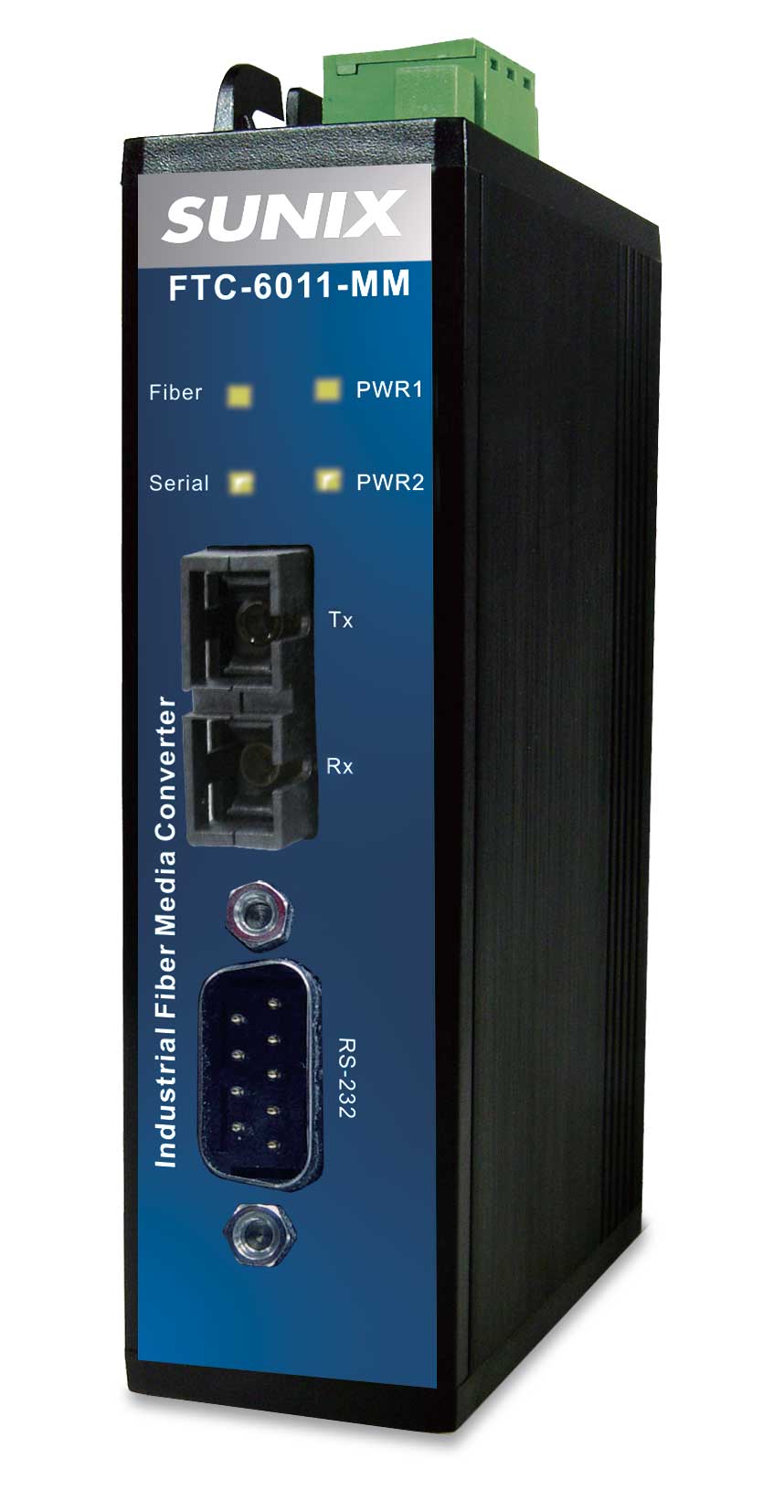

The FTC‑6011 is an industrial‑grade RS‑232/422/485 to fiber media converter engineered by SUNIX for long‑distance serial communication, immunity to electrical noise, and deployment in harsh industrial environments. It belongs to the SUNIX FTS/FTD/FTC‑6011 Fiber Serial Media Converter Series, with the FTC‑6011 variant serving as the unified multi‑interface model supporting RS‑232, RS‑422, and RS‑485 on a single unit. The product is identified by the article number FTC‑6011 and is part of SUNIX’s Industrial Networking, Control & Communication portfolio.

2. Key Features

The FTC‑6011 provides long‑distance serial‑to‑fiber conversion with advanced protection features and automatic interface optimization. Key capabilities include:

• Multi‑protocol serial support: RS‑232, RS‑422, and RS‑485 (2‑wire and 4‑wire)
• Auto‑Detect & Switch for RS‑422/485 interfaces
• SUNIX AHDC/CS™ Auto Hardware Direction Control / Carrier Sense for RS‑485 signaling
• Auto baud rate detection supporting dynamic environments and device changes
• Fiber communication range up to 80 km depending on fiber type
• Surge protection: 600 W power surge protection
• 15 kV embedded ESD protection
• 2.5 kV optical isolation
• Redundant dual‑input power system with reverse polarity protection
• Aluminum IP30 industrial enclosure designed for vibration, shock, and extreme temperature resistance
• DIN rail and wall‑mount installation options
• Wide operating temperature range (-20 to 75°C, extended -40 to 80°C per series specifications)

3. Technical Specifications

Physical Characteristics:
• Dimensions: 30 × 68.5 × 105 mm (W × D × H)
• Casing material: Alloy (aluminum) and ABS
• Protection rating: IP30

Electrical Specifications:
• Power input: 12–48 V DC
• Power consumption: <2.4 W, 200 mA @ 12 V (series spec lists 1A @ 12 VDC for max configuration)
• Reverse polarity protection: Yes
• Power surge protection: 600 W
• Embedded ESD protection: 15 kV

Serial Interface:
• Supported: RS‑232 / RS‑422 / RS‑485
• Signal sets:
– RS‑232: TxD, RxD, GND
– RS‑422: TxD+, TxD‑, RxD+, RxD‑, GND
– RS‑485 4‑Wire: TxD+, TxD‑, RxD+, RxD‑, GND
– RS‑485 2‑Wire: Data+, Data‑, GND
• Baud rate: 75 bps up to 921.6 Kbps (product listing also cites 460.8 Kbps for some modes)
• Auto baud rate detection: Supported
• Auto RTS Signal Control (ARSC): Supported

Fiber Interface:
• Fiber connector: Standard SC (ST optional)
• Fiber modes:
– Multi‑mode (50/125 µm): Standard 2 km
– Single‑mode (9/125 µm): Standard 30 km
• Maximum distance supported by series: Up to 80 km

Environmental Specifications:
• Operating temperature: -20 to 75°C (series supports -40 to 80°C for extended models)
• Storage temperature: -40 to 85°C
• Operating humidity: 5% to 95% RH

4. Functionality

The FTC‑6011 converts serial communication signals (RS‑232/422/485) into optical fiber signals, enabling long‑distance, noise‑immune data transmission. The Auto‑Identify and Auto‑Switch capabilities allow the unit to automatically determine the connected serial protocol without manual configuration. Auto baud detection further simplifies interoperability when devices operate at varying communication speeds.

The device uses SUNIX AHDC/CS™ technology for automatic RS‑485 2‑wire directional control, eliminating the need for software‑based flow control. Fiber transmission significantly enhances immunity to electrical interference, lightning, electromagnetic noise, and ground potential differences.

Primary Use Cases include:
• Industrial automation and control systems
• Remote equipment monitoring
• Factory communication networks
• SCADA systems
• Electrical substations and high‑EMI environments
• Long‑distance industrial serial links (up to 80 km)

5. Components & Accessories

Included Components:
• FTC‑6011 media converter unit
• DIN rail mounting kit
• Wall mount bracket

Connectors:
• Serial: Removable 3‑pin terminal block for RS‑232/422/485
• Power:
– 12~48 V DC terminal block input
– DC jack input (redundant)
• Fiber: SC port (other connectors such as ST available upon request)

Optional Accessories:
• Alternative fiber connector types (ST, custom configurations)
• External DC power supply
• Fiber patch cables (multi‑mode or single‑mode)

6. Installation & Setup

Installation options include DIN rail mounting for control cabinets or wall mounting for fixed infrastructure. The rugged IP30 metal case provides stability and durability in environments with vibration, shocks, or temperature variations.

Setup involves:
• Connecting power through the terminal block or DC jack
• Selecting RS‑422/485 mode through DIP switches
• Connecting the serial interface
• Attaching the appropriate fiber cable (SC multi‑mode or single‑mode)
• Automatic detection of baud rate and RS‑422/485 mode minimizes configuration

No software drivers are required, and the device automatically negotiates direction control for RS‑485.

7. Performance & Capabilities

The FTC‑6011 delivers industrial‑grade communication performance across long distances.

Key performance characteristics:
• Baud rate support up to 921.6 Kbps (460.8 Kbps for legacy modes)
• Fiber transmission distances from 2 km (multi‑mode) to 30 km (single‑mode standard) and up to 80 km for long‑haul applications
• High noise immunity due to optical isolation and fiber transmission
• Efficient power usage (<2.4 W) for low‑energy industrial environments
• 2.5 kV isolation protecting both sides of the communication link

Limitations:
• Fiber connector options (SC/ST) may require consultation for specific types
• Does not include Ethernet capability (serial to fiber only)

8. Standards & Compliance

Regulatory and Industry Certifications:
• EMC compliance:
– FCC Part 15
– CISPR (EN55022) Class A
– CE certified
• Safety approvals:
– UL60950
– CAN/CSA‑C22.2 No. 60950
• Environmental:
– IEC60068‑2‑27 (shock)
– IEC60068‑2‑32 (drop)
– IEC60068‑2‑6 (vibration)
• Protection: IP30 enclosure

These certifications confirm suitability for industrial, commercial, and mission‑critical applications.

9. Additional Information

Warranty:
• 5‑year manufacturer warranty

Maintenance:
• No firmware updates required
• Periodic inspection recommended for fiber connectors and terminal blocks
• Passive cooling design eliminates fan maintenance

Support:
• SUNIX provides technical documentation, compatibility consultation, and fiber connector customization (ST, SC, etc.)
• Support available for extended‑range fiber setups and multi‑converter serial networks

---
