Comprehensive Product Summary – HSL-DO32-M-N (HSL 32-Channel NPN Sinking Output Daughter Board)

---

### 1. Product Overview

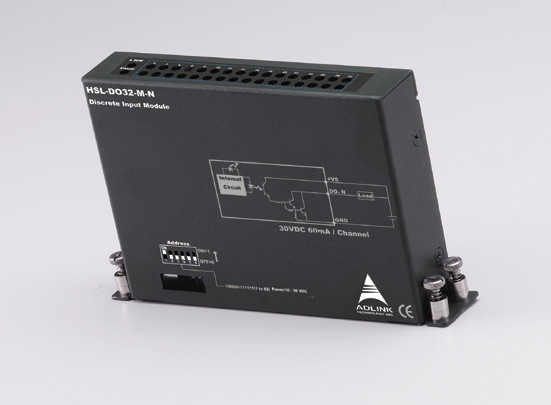

Product Name: HSL 32-Channel NPN Sinking Output Daughter Board
Model Number: HSL-DO32-M-N
Series: HSL (High Speed Link for Industry Automation Solutions)
Article Number: HSL-DO32-M-N
Manufacturer: ADLINK Technology Inc.
Product Type: Discrete Output Daughter Board for HSL System
Product Category: Industrial Automation I/O Expansion Module

The HSL-DO32-M-N is a robust, high-performance 32-channel discrete output daughter board designed for use within ADLINK’s HSL (High Speed Link) industrial automation system. It provides NPN sinking transistor outputs, enabling reliable digital control of external devices such as relays, solenoids, and indicator lamps. The board is engineered for industrial environments, featuring a metal cover for durability and electromagnetic protection.

---

### 2. Key Features

- 32 Discrete Output Channels: Provides 32 independent NPN sinking outputs for flexible digital control.
- High-Speed Communication: Designed for ADLINK’s HSL system, ensuring fast, deterministic data exchange between controllers and I/O modules.
- Robust Industrial Design: Metal enclosure enhances mechanical strength and EMI shielding.
- Flexible Power Input: Operates from a wide external DC supply range of +10V to +30V.
- LED Indicators:
- Red LED: Active DC power status
- Green LED: Link status (communication)
- Yellow LEDs: Individual discrete output channel activity
- Compact Form Factor: Optimized for DIN-rail mounting with compatible terminal bases.
- Configurable Addressing: DIP switch settings allow flexible address allocation within the HSL network.
- Fast Response Time: Typical ON/OFF switching time of 2 ms maximum, suitable for high-speed automation tasks.
- Low Power Consumption: Typical power draw of 1.8 W, ensuring energy-efficient operation.
- Compatibility: Works seamlessly with multiple terminal base options, including HSL-TB32-DO-DIN, HSL-TB32-U-DIN, and HSL-TB64-DIN.
- High Reliability: Industrial-grade components and design ensure long-term stability and low maintenance.

---

### 3. Technical Specifications

| Parameter | Specification |
|----------------|-------------------|
| Model | HSL-DO32-M-N |
| Output Type | NPN Sinking Transistor Outputs |
| Number of Channels | 32 |
| Switching Capacity (per channel) | -60 mA at 24 V DC (with TB32-U or TB64) / -300 mA at 24 V DC (with TB32-DO) |
| Response Time (ON/OFF) | 2 ms maximum (each) |
| External Power Supply | +10 V to +30 V DC |
| Power Consumption | 1.8 W |
| Weight | 72 g |
| Operating Voltage Range | 10–30 V DC |
| LED Indicators | Power (Red), Link (Green), Output Status (Yellow) |
| Dimensions (Board Only) | 100 mm × 78.2 mm |
| Dimensions (with HSL-TB32-DO-DIN) | 126 mm × 120.1 mm × 107.3 mm |
| Dimensions (with HSL-TB64-DIN) | 168.7 mm × 120.1 mm × 107.3 mm |
| Mounting Type | DIN-rail compatible (via terminal base) |
| Communication Interface | RS-422 differential signaling (TX+/TX-, RX+/RX-) |
| Environmental Protection | Metal cover for shielding and durability |
| Operating Temperature Range | Industrial standard (not explicitly stated, typically 0–60°C) |
| Compliance | CE, RoHS (implied by ADLINK industrial standards) |

---

### 4. Functionality

The HSL-DO32-M-N functions as a discrete output expansion module within the HSL (High Speed Link) distributed I/O system. It receives digital output commands from a host controller or HSL master module via an RS-422 communication interface. Each of the 32 output channels can independently switch external loads by sinking current to ground, making it ideal for controlling devices that require NPN-type outputs.

Typical Use Cases:
- Industrial automation control systems
- Machine tool control and monitoring
- Process automation and factory equipment
- PLC and motion control system expansion
- Signal output for alarms, indicators, and actuators

Operation Principle:
Each output channel uses an NPN transistor that connects the load to ground when activated. The external load is powered by an external DC supply (10–30 V), and the board’s outputs sink current to complete the circuit. The board’s internal circuitry ensures isolation and protection for each channel, while LED indicators provide real-time visual feedback of output states.

Compatibility:
- HSL-TB32-DO-DIN: 32-channel terminal base specifically for NPN sinking outputs.
- HSL-TB32-U-DIN: Universal 32-channel terminal base for general use.
- HSL-TB64-DIN: 64-channel terminal base supporting dual-slot configurations (Slot I / Slot II).

---

### 5. Components & Accessories

Included Components:
- HSL-DO32-M-N daughter board
- Metal protective cover
- RS-422 communication connectors (TX+/TX-, RX+/RX-)
- DIP switch for address configuration
- LED indicators for power, link, and output status

Optional Accessories / Terminal Bases:
1. HSL-TB32-DO-DIN:
- 32-channel I/O terminal base for NPN sinking outputs
- DIN-rail mountable
- Provides screw terminals for field wiring

2. HSL-TB32-U-DIN:
- Universal 32-channel terminal base
- DIN-rail mountable
- Compatible with both NPN and PNP daughter boards

3. HSL-TB64-DIN:
- 64-channel terminal base supporting two daughter boards (Slot I and Slot II)
- DIN-rail mountable
- Provides extended I/O density for large systems

Connectors and Pin Assignments:
- JP3 / JP4 Connectors:
- Provide access to discrete output channels (DO0–DO31)
- Include external power (+VS), ground (GND), and RS-422 communication lines
- Pin assignments clearly labeled for simplified wiring and maintenance

---

### 6. Installation & Setup

Mounting Requirements:
- The HSL-DO32-M-N is designed for installation on a DIN-rail via a compatible terminal base (HSL-TB32-DO-DIN, HSL-TB32-U-DIN, or HSL-TB64-DIN).
- Ensure adequate ventilation and clearance for heat dissipation.

Power Requirements:
- External DC power supply: +10 V to +30 V DC
- Typical consumption: 1.8 W
- Connect external power to the +VS and GND terminals on the terminal base.

Address Configuration:
- DIP switch settings determine the module’s address within the HSL network.
- The module occupies two consecutive address allocations, starting from an odd-numbered address.
- Switch bit 1 must always be set to ON.
- Example address configurations:
- `100000` → Address 1, 2
- `110000` → Address 3, 4
- … up to `101111` → Address 61, 62

Wiring Guidelines:
- Connect discrete output channels (DO0–DO31) to external loads according to the terminal base pinout.
- Ensure correct polarity and load current ratings.
- Use shielded cables for RS-422 communication lines to minimize noise.

Startup Procedure:
1. Mount the terminal base securely on the DIN rail.
2. Attach the HSL-DO32-M-N daughter board to the terminal base.
3. Connect external power and communication lines.
4. Configure DIP switch address settings.
5. Power on the system and verify LED indicators for proper operation.

---

### 7. Performance & Capabilities

Switching Performance:
- Each output channel supports up to -60 mA at 24 V DC (standard) or -300 mA at 24 V DC (with TB32-DO terminal base).
- Fast switching response of 2 ms (ON/OFF) ensures precise timing control in automation applications.

Electrical Characteristics:
- NPN sinking configuration allows direct interfacing with sourcing-type loads.
- Wide input voltage tolerance (10–30 V DC) supports diverse industrial power systems.
- Low power consumption (1.8 W) minimizes heat generation and energy usage.

Reliability and Durability:
- Industrial-grade components ensure long operational life.
- Metal enclosure provides mechanical protection and EMI shielding.
- LED indicators facilitate quick diagnostics and maintenance.

Limitations:
- Designed for DC loads only (not suitable for AC switching).
- Maximum per-channel current limited to 60 mA or 300 mA depending on terminal base.
- Requires proper grounding and shielding for optimal performance in noisy environments.

---

### 8. Standards & Compliance

Certifications and Compliance:
- Manufactured by ADLINK Technology Inc., a certified industrial automation equipment provider.
- Complies with industrial EMC and safety standards (CE, RoHS compliance implied).
- Designed according to HSL (High Speed Link) communication protocol standards for distributed I/O systems.
- Meets DIN-rail mounting mechanical standards for industrial enclosures.

Industry Standards Supported:
- RS-422 differential communication standard for noise-immune data transmission.
- NPN transistor output standard for compatibility with sourcing-type loads.
- DIN 43880 mechanical form factor compliance for modular installation.

---

### 9. Additional Information

Ordering Information:
- HSL-DO32-DB-N: 32-Channel Discrete NPN Sinking Output Daughter Board
- HSL-DO32-DB-P: 32-Channel Discrete PNP Sourcing Output Daughter Board

Compatible Terminal Bases:
- HSL-TB32-DO-DIN: 32-CH I/O Terminal Base for NPN sinking outputs
- HSL-TB32-U-DIN: 32-CH Universal I/O Terminal Base
- HSL-TB64-DIN: 64-CH I/O Terminal Base supporting dual-slot configuration

Warranty & Support:
- Standard ADLINK industrial warranty (duration per regional policy).
- Technical support available via:
- Service Email: service@adlink.com.tw
- Technical Assistance: NuDAM@adlink.com.tw
- Website: [www.adlink.com.tw](http://www.adlink.com.tw)
- Telephone: +886-2-82265877
- Fax: +886-2-82265717

Maintenance:
- Periodic inspection of terminal connections and power supply recommended.
- Keep module free from dust and moisture.
- Verify LED indicators for normal operation during routine maintenance.

Product Notes:
- Specifications and contents are subject to change without prior notice.
- HSL® is a registered trademark of ADLINK Technology Inc.
- Other product names and brands are trademarks or registered trademarks of their respective owners.

Document Reference: AM-HSLDBIO003-E1.00

---

### Summary

The ADLINK HSL-DO32-M-N is a high-performance, industrial-grade 32-channel NPN sinking output daughter board engineered for distributed I/O control within the HSL (High Speed Link) automation system. It combines robust construction, flexible configuration, and high-speed communication to deliver reliable digital output control in demanding industrial environments. With its wide voltage range, fast response, and modular compatibility with multiple terminal bases, the HSL-DO32-M-N provides a scalable and efficient solution for modern factory automation, process control, and machine integration applications.

Its combination of industrial durability, fast linking technology, and comprehensive diagnostic indicators makes it a preferred choice for engineers seeking dependable discrete output expansion in distributed control architectures.
