Comprehensive Product Summary – IDS‑1011W Industrial Wireless Device Server

---

### 1. Product Overview

Product Name: IDS‑1011W
Article Number: IDS‑1011W
Series: IDS‑1000 Industrial Wireless Device Server Series
Model Type: WLAN 802.11b/g to 1×RS‑232 LAN Device Server
Manufacturer: SUNIX Co., Ltd.
Product Category: Industrial Wireless Serial Device Server

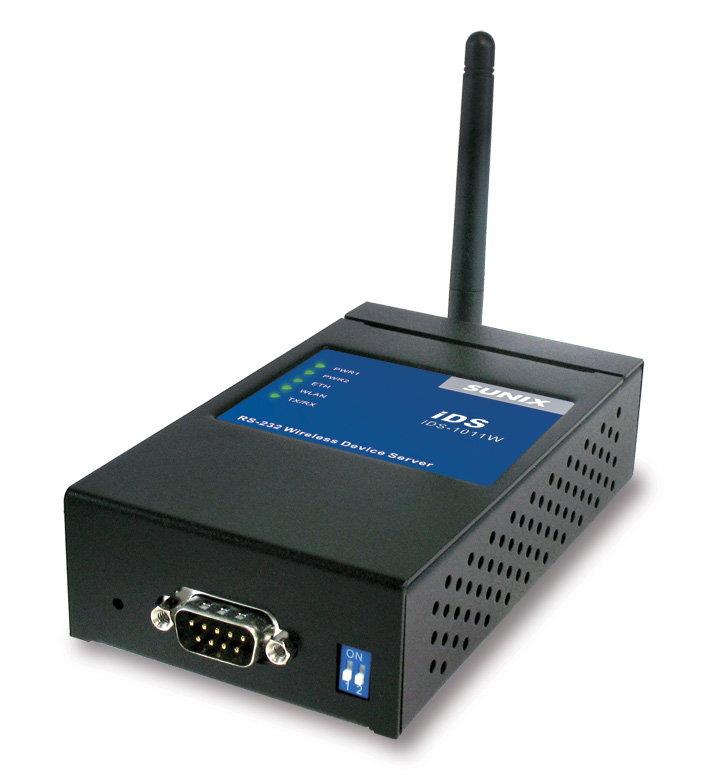

The SUNIX IDS‑1011W is a compact, industrial‑grade wireless device server designed to connect legacy RS‑232 serial equipment to modern Ethernet and WLAN networks. It provides a seamless bridge between serial communication and TCP/IP‑based network infrastructures, supporting both wired 10/100Base‑T(X) Ethernet and IEEE 802.11b/g wireless LAN connectivity. The device is engineered for industrial automation, process control, and remote monitoring applications where reliable serial‑to‑network communication is required without extensive cabling.

---

### 2. Key Features

- Wireless Connectivity: Supports IEEE 802.11b/g WLAN standards with data rates up to 54 Mbps.
- Serial Interface: One RS‑232 port with DB9 male connector, supporting baud rates from 110 bps to 460.8 kbps.
- Dual Network Interfaces: 1×10/100 Mbps Ethernet port (RJ‑45) with auto‑negotiation and 1.5 kV magnetic isolation.
- Multiple Operation Modes: Virtual COM, TCP Server, TCP Client, UDP, and Serial Tunnel modes for flexible integration.
- Advanced Security: WEP 64/128‑bit, WPA, WPA2, and 802.1X authentication with TKIP/AES encryption; SSID broadcast disable.
- Industrial‑Grade Design: Metal IP30 enclosure, DIN‑rail and wall‑mount options, wide operating temperature range (‑10 °C ~ 55 °C).
- Redundant Power Inputs: Dual 12–48 V DC inputs via terminal block and DC jack with reverse polarity protection.
- High Reliability: 15 kV ESD protection on serial lines, MTBF > 200,000 hours, and compliance with IEC shock/vibration standards.
- Comprehensive Management: Configuration via Web console (HTTPS), Serial console, or IDS‑Tools Windows utility.
- Event Notification: Syslog, SNMP trap, email alerts, and audible beeper for system events.
- Cross‑Platform Support: Windows NT/2000/XP/2003/Vista COM drivers and Linux TTY drivers.
- Warranty: 5‑year manufacturer warranty.

---

### 3. Technical Specifications

Network Interface
- Ethernet: 1 × 10/100Base‑T(X) RJ‑45 port (auto‑negotiation)
- Protection: 1.5 kV magnetic isolation
- Supported Protocols: ICMP, IP, TCP, UDP, DHCP, BOOTP, ARP/RARP, DNS, SNMP MIB II, HTTPS, SSL, SSH

Wireless Interface
- Standards: IEEE 802.11b/g (DSSS/OFDM)
- Frequency Bands:
- FCC (US): 2.412 – 2.462 GHz (11 channels)
- CE/ETSI (EU): 2.412 – 2.472 GHz (13 channels)
- Data Rates:
- 802.11b – 1/2/5.5/11 Mbps
- 802.11g – 6/9/12/18/24/36/48/54 Mbps
- Transmission Power: 16 dBm
- Receiver Sensitivity:
- –81 dBm @ 11 Mbps (PER < 8%)
- –64 dBm @ 54 Mbps (PER < 10%)
- Antenna Connector: Reverse SMA (2 dBi antenna included)
- Network Mode: Client mode
- Security: WEP 64/128‑bit, WPA/WPA2, 802.11i, 802.1X, TKIP/AES, SSID broadcast disable

Serial Communication
- Interface: 1 × RS‑232 (DB9 Male)
- Baud Rate: 110 bps – 460.8 kbps
- Data Bits: 5, 6, 7, 8
- Parity: None, Odd, Even, Mark, Space
- Stop Bits: 1, 1.5, 2
- Flow Control: XON/XOFF, RTS/CTS, DTR/DSR
- RS‑232 Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
- ESD Protection: 15 kV

Power Requirements
- Input Voltage: 12 – 48 V DC (dual inputs)
- Connectors: 3‑pin removable terminal block + DC jack
- Reverse Polarity Protection: Yes
- Power Consumption: Max 7 W

Environmental Conditions
- Operating Temperature: –10 °C ~ 55 °C
- Storage Temperature: –20 °C ~ 85 °C
- Operating Humidity: 5 % ~ 95 % RH (non‑condensing)

Mechanical
- Dimensions (W × D × H): 72 × 31 × 125 mm (without connectors)
- Enclosure: Metal, IP30 protection
- Mounting: DIN‑rail and wall‑mount kits included
- Weight: Approx. 0.5 kg

Regulatory Compliance
- EMI: FCC Part 15, CISPR (EN55022) Class A
- EMS: EN61000‑4‑2 (ESD), EN61000‑4‑3 (RS), EN61000‑4‑4 (EFT), EN61000‑4‑5 (Surge Level 3), EN61000‑4‑6 (CS Level 3)
- Shock: IEC 60068‑2‑27
- Vibration: IEC 60068‑2‑6
- Freefall: IEC 60068‑2‑32

---

### 4. Functionality

The IDS‑1011W functions as a wireless serial device server, enabling transparent data communication between serial devices and Ethernet/WLAN networks. It converts RS‑232 data streams into TCP/IP packets, allowing remote access, monitoring, and control of serial equipment over LAN or Wi‑Fi.

Operating Modes:
- Virtual COM Mode: Maps the serial port to a virtual COM port on a host PC, supporting up to 5 simultaneous connections.
- TCP Server Mode: Waits for incoming TCP connections from clients; supports up to 5 concurrent sessions.
- TCP Client Mode: Initiates a TCP connection to a specified server upon startup or data transmission.
- UDP Mode: Enables unicast or multicast communication for low‑latency data exchange.
- Serial Tunnel Mode: Creates a transparent serial link between two IDS devices over IP.

Use Cases:
- Industrial automation and SCADA systems
- Remote PLC or sensor monitoring
- Serial‑to‑Ethernet integration for legacy equipment
- Wireless data acquisition in manufacturing or utilities
- Mobile or temporary installations where cabling is impractical

Compatibility:
- Operating Systems: Windows NT/2000/XP/2003/Vista, Linux (TTY drivers)
- Network Infrastructure: Compatible with standard 802.11b/g access points and 10/100 Mbps Ethernet switches/routers.

---

### 5. Components & Accessories

Included Items:
- IDS‑1011W device server unit
- 2 dBi antenna (with reverse SMA connector)
- DIN‑rail mount kit (pre‑installed)
- Wall‑mount bracket and screws
- Quick Installation Guide (QIG)
- Software CD with IDS‑Tools utility and drivers

Optional Accessories:
- External power adapter (12–48 V DC, not included)
- Replacement antenna or high‑gain antenna options
- Serial cables (DB9 male to female)
- Extended DIN‑rail mounting hardware

Connectors:
- 1 × DB9 male (serial RS‑232)
- 1 × RJ‑45 Ethernet port
- 1 × Reverse SMA antenna connector
- 1 × 3‑pin terminal block (PWR1)
- 1 × DC jack (PWR2)
- 1 × Reset button (factory default restore)

---

### 6. Installation & Setup

Mounting Options:
- DIN‑Rail Installation:
1. Tilt the unit and hook the metal spring onto the DIN rail.
2. Push until a “click” confirms secure mounting.
- Wall Mounting:
1. Remove the DIN‑rail kit.
2. Attach the wall mount panel using the provided screws.
3. Fix the unit to the wall surface.

Power Connection:
Connect 12–48 V DC to either the 3‑pin terminal block or DC jack. Both inputs can be used for redundancy.

Network Configuration:
- Default IP address: 192.168.1.1
- Configuration methods:
- IDS‑Tools Utility: Device discovery, IP assignment, firmware update, and group management.
- Web Console (HTTPS): Access via browser for system, network, and serial settings.
- Serial Console (SSH): Command‑line configuration for advanced users.

Wireless Setup:
- Select Infrastructure mode (through AP) or Ad‑hoc mode (peer‑to‑peer).
- Configure SSID, channel, and security profile (WEP/WPA/WPA2/802.1X).
- Disable SSID broadcast for enhanced security.

LED Indicators:
- PWR1/PWR2: Green = active; Red blinking = IP conflict or DHCP failure.
- ETH: Green (100 Mbps), Amber (10 Mbps) link/activity.
- WLAN: Green = good signal; Amber = weak signal.
- TX/RX: Green = transmit; Red = receive.

---

### 7. Performance & Capabilities

- Wireless Throughput: Up to 54 Mbps (802.11g)
- Serial Speed: 110 bps – 460.8 kbps
- Simultaneous Connections: Up to 5 hosts (Virtual COM or TCP Server mode)
- Power Consumption: ≤ 7 W (max)
- MTBF: ≥ 200,000 hours
- Latency Optimization: Selectable performance modes (Throughput or Latency)
- Event Warning: Syslog, Email, SNMP Trap, Beeper
- Redundancy: Dual power inputs ensure continuous operation during power failure.
- Security Profiles: WEP/WPA/WPA2/802.1X with TKIP/AES encryption for industrial data protection.

Limitations:
- Single RS‑232 port only (no RS‑422/485 support).
- WLAN client mode only (no AP function).
- Power adapter not included in standard package.

---

### 8. Standards & Compliance

Wireless Standards:
- IEEE 802.11b (2.4 GHz, 11 Mbps, DSSS)
- IEEE 802.11g (2.4 GHz, 54 Mbps, OFDM)

Network Protocols:
ICMP, IP, TCP, UDP, DHCP, BOOTP, ARP/RARP, DNS, SNMP MIB II, HTTPS, SSL, SSH

Security Standards:
- WEP 64/128‑bit encryption
- WPA/WPA2 with TKIP/AES
- IEEE 802.1X authentication with RADIUS support
- SSID broadcast disable for network concealment

EMC and Safety Compliance:
- FCC Part 15 Class A
- CISPR (EN55022) Class A
- EN61000‑4‑2 (ESD)
- EN61000‑4‑3 (RS)
- EN61000‑4‑4 (EFT)
- EN61000‑4‑5 (Surge Level 3)
- EN61000‑4‑6 (CS Level 3)
- IEC 60068‑2‑27 (Shock)
- IEC 60068‑2‑6 (Vibration)
- IEC 60068‑2‑32 (Freefall)

Environmental Protection:
- IP30 metal enclosure
- Operating humidity 5–95 % (non‑condensing)

---

### 9. Additional Information

Warranty: 5 years manufacturer warranty.
MTBF: ≥ 200,000 hours (industrial grade reliability).
Maintenance:
- Firmware updates via IDS‑Tools or Web interface.
- Configuration backup and restore supported (export/import).
- Reset button for factory defaults (press 5 seconds).

Support & Resources:
- Technical Support Email: info@sunix.com.tw
- Website: [www.sunix.com.tw](http://www.sunix.com.tw)
- Documentation: User Manual, Quick Install Guide, and IDS‑Tools software available online.

Maintenance Best Practices:
- Ensure adequate ventilation and avoid exposure to moisture.
- Use surge‑protected power sources in industrial environments.
- Regularly update firmware to maintain security and performance.

---

### Summary

The SUNIX IDS‑1011W is a robust, single‑port RS‑232 to WLAN/Ethernet device server engineered for industrial and commercial environments requiring reliable wireless serial communication. It combines high‑speed 802.11b/g connectivity, comprehensive security, and flexible configuration options in a compact, metal‑enclosed form factor. With dual power redundancy, 15 kV ESD protection, and multi‑protocol support, the IDS‑1011W ensures dependable operation in demanding applications such as factory automation, process control, and remote equipment management. Its long‑term reliability, extensive configuration tools, and 5‑year warranty make it a cost‑effective and future‑proof solution for integrating serial devices into modern IP networks.
