Comprehensive Product Summary – SUNIX IDS‑3042P Industrial Serial Device Server

---

### 1. Product Overview

Product Name: Industrial Serial Device Server
Model: IDS‑3042P
Series: IDS 3000 Series (Industrial Device Servers with PoE)
Article Number: IDS‑3042P
Manufacturer: SUNIX Co., Ltd.
Product Type: 4‑Port RS‑232/422/485 to Dual 10/100Base‑TX Ethernet PoE PD Device Server
Category: Industrial Networking and Communication Equipment

The SUNIX IDS‑3042P is a high‑performance industrial device server designed to connect up to four serial devices (RS‑232, RS‑422, or RS‑485) to an Ethernet network. It integrates dual redundant 10/100Base‑TX LAN ports with Power over Ethernet (PoE) PD functionality, providing robust, secure, and flexible serial‑to‑Ethernet communication for industrial automation, data acquisition, and remote device management applications.

---

### 2. Key Features

- Multi‑Protocol Serial Connectivity: Supports four independent serial ports configurable as RS‑232, RS‑422, or 2/4‑wire RS‑485.
- Dual Ethernet Ports with Redundancy: Two 10/100Base‑TX RJ‑45 ports provide network redundancy or daisy‑chain switch mode with recovery time under 10 ms.
- PoE PD Functionality: IEEE 802.3af‑compliant Power Device (PD) on Ethernet Port 2 (ETH2) allows power delivery via network cable, eliminating the need for a separate power adapter.
- High Security: HTTPS, SSL, SSH, WEP/WPA/WPA2, 802.1X, Radius, and TKIP encryption ensure secure data transmission and management.
- Flexible Operation Modes: Virtual COM, TCP Server, TCP Client, UDP, and Serial Tunnel modes for versatile integration with existing systems.
- Advanced Event Notification: Supports Syslog, E‑mail, SNMP trap, relay output, and beeper alerts for system events and fault conditions.
- Redundant Power Inputs: Dual 12–48 V DC inputs on a 6‑pin removable terminal block with reverse polarity protection.
- Industrial‑Grade Design: Rugged IP30 metal enclosure, DIN‑rail or wall‑mount installation, and wide operating temperature range (‑10 °C to 55 °C).
- Comprehensive Software Suite: IDS‑Tools utility for Windows enables device discovery, configuration, firmware updates, and monitoring.
- Cross‑Platform Drivers: Virtual COM drivers for Windows NT/2000/XP/2003/Vista and fixed TTY drivers for Linux.
- High Reliability: MTBF ≥ 200,000 hours, 15 kV ESD protection, and 1.5 kV magnetic isolation on Ethernet ports.
- Simultaneous Multi‑Host Access: Up to five concurrent connections per serial port for Virtual COM, TCP Server, or TCP Client modes.

---

### 3. Technical Specifications

Serial Communication
- Ports: 4 × RS‑232/422/485 (configurable per port)
- Connector Type: DB9 Male
- Baud Rate: 110 bps – 460.8 kbps
- Data Bits: 5, 6, 7, 8
- Parity: Odd, Even, None, Mark, Space
- Stop Bits: 1, 1.5, 2
- Flow Control: XON/XOFF, RTS/CTS, DTR/DSR
- RS‑232 Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
- RS‑422 Signals: TxD+, TxD‑, RxD+, RxD‑, GND
- RS‑485 (4‑wire): TxD+, TxD‑, RxD+, RxD‑, GND
- RS‑485 (2‑wire): Data+, Data‑, GND
- ESD Protection: 15 kV
- Isolation: 2.5 kV DC

Ethernet Interface
- Ports: 2 × RJ‑45 10/100Base‑TX (auto‑negotiation, auto MDI/MDI‑X)
- Redundancy: Dual LAN with < 10 ms recovery time
- Protection: 1.5 kV magnetic isolation
- Protocols Supported: ICMP, IP, TCP, UDP, DHCP, BOOTP, ARP/RARP, DNS, SNMP MIB II, HTTPS, SSL, SSH

Power over Ethernet (PoE)
- PoE Port: ETH2
- Standard: IEEE 802.3af PD compliant
- Power Consumption: 8 W max
- Protection: Overload and short‑circuit protection
- Isolation Voltage: 1000 V DC min
- Isolation Resistance: ≥ 100 MΩ

Power Supply
- Input Voltage: 12 – 48 V DC (dual redundant inputs)
- Connector: 6‑pin removable terminal block
- Reverse Polarity Protection: Yes
- Power Consumption: 7 W max
- Relay Output: 1 × configurable relay output (1 A @ 24 V DC)

Environmental Conditions
- Operating Temperature: ‑10 °C to 55 °C
- Storage Temperature: ‑20 °C to 85 °C
- Operating Humidity: 5 % – 95 % RH (non‑condensing)

Mechanical Design
- Dimensions (W × D × H): 52 × 106 × 144 mm (without connectors)
- Enclosure: Metal housing, IP30 protection
- Mounting Options: DIN‑rail or wall‑mount
- Weight: Approx. 0.9 kg

Regulatory Compliance
- EMI: FCC Part 15, CISPR (EN55022) Class A
- EMS: EN61000‑4‑2 (ESD), EN61000‑4‑3 (RS), EN61000‑4‑4 (EFT), EN61000‑4‑5 (Surge Level 3), EN61000‑4‑6 (CS Level 3)
- Shock: IEC 60068‑2‑27
- Vibration: IEC 60068‑2‑6
- Free‑Fall: IEC 60068‑2‑32

---

### 4. Functionality

The IDS‑3042P acts as a bridge between serial devices and Ethernet networks, enabling remote access, monitoring, and control of legacy serial equipment over IP. Each serial port can be independently configured for interface type and communication mode.

Supported Operation Modes:
- Virtual COM Mode: Maps serial ports to virtual COM ports on Windows hosts, allowing existing applications to communicate over Ethernet without modification.
- TCP Server Mode: Waits for incoming TCP connections from clients; supports up to five simultaneous connections.
- TCP Client Mode: Initiates TCP connections to predefined servers on startup or upon data transmission.
- UDP Mode: Enables unicast or multicast data transmission for low‑latency applications.
- Serial Tunnel Mode: Couples two IDS devices to create a transparent serial link over Ethernet.

Use Cases and Applications:
- Industrial automation and PLC communication
- SCADA and data acquisition systems
- Remote monitoring of sensors, meters, and controllers
- POS terminals, digital signage, and medical measurement devices
- Access control, card readers, and security systems
- Integration of legacy serial devices into modern IP networks

Compatibility:
- Operating Systems: Windows NT/2000/XP/2003/Vista, Linux (TTY driver)
- Network Integration: Supports NAT pass‑through for management across routers and different IP domains.
- Management Interfaces: Web (HTTPS), SSH console, Serial console, and IDS‑Tools utility.

---

### 5. Components & Accessories

Included Items:
- IDS‑3042P main unit
- DIN‑rail mounting kit (pre‑installed)
- Wall‑mounting kit with screws
- Quick Installation Guide (QIG)
- Software CD containing IDS‑Tools utility and drivers
- Dust cover for unused ports

Optional Accessories:
- External 12–48 V DC power adapter (not included by default)
- Replacement DIN‑rail or wall‑mount brackets
- Serial communication cables (DB9 male‑to‑female or terminal block adapters)

Connectors:

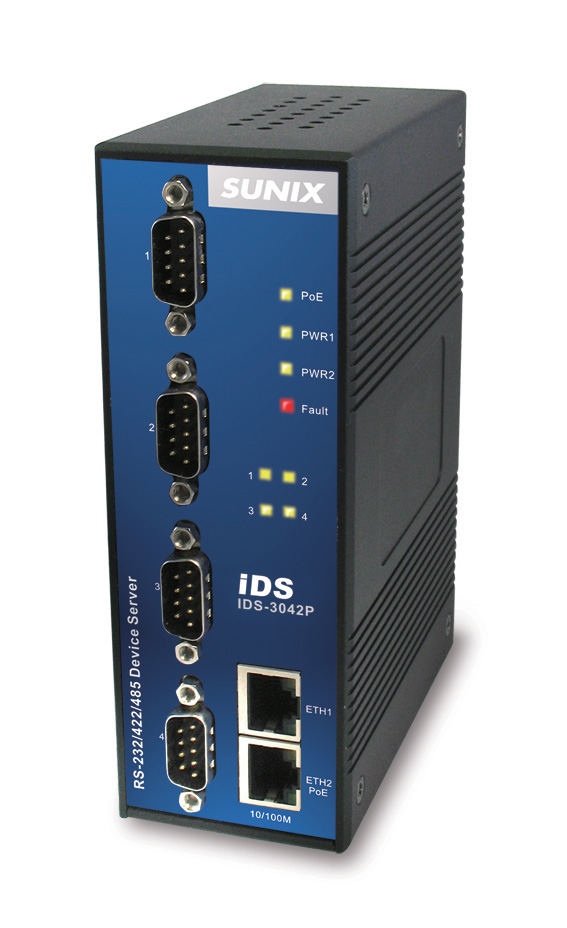

- Front Panel: 4 × DB9 M serial ports, 2 × RJ‑45 LAN ports
- Bottom Panel: 6‑pin terminal block for dual power inputs and relay output, reset button
- LED Indicators: PoE, PWR1, PWR2, Fault, Serial TX/RX, Ethernet Link/Activity

---

### 6. Installation & Setup

Mounting Options:
- DIN‑Rail Installation:
1. Align the metal spring clip with the DIN‑rail.
2. Press until a “click” confirms secure attachment.
- Wall‑Mount Installation:
1. Remove the DIN‑rail bracket.
2. Attach the wall‑mount panel using six M3 × 5 screws.
3. Mount the assembly on a flat surface.

Power Connection:
- Connect 12–48 V DC to PWR1 and/or PWR2 terminals.
- Alternatively, supply power via PoE on ETH2.
- The relay output can be wired for external alarm signaling.

Network Configuration:
- Default IP address: 192.168.1.1
- Supports DHCP/BOOTP or static IP assignment.
- Configuration via IDS‑Tools, web browser (HTTPS), or SSH console.

Software Setup:
- Install IDS‑Tools on a Windows PC.
- Discover devices automatically on the network.
- Configure serial parameters, IP settings, and operation modes.
- Map virtual COM ports or define TCP/UDP connections.
- Save and export configuration profiles for batch deployment.

Reset Function:
- Press and hold the reset button for 5 seconds to restore factory defaults.

---

### 7. Performance & Capabilities

- Network Redundancy: Automatic failover between dual Ethernet ports within 10 ms ensures uninterrupted communication.
- Multi‑Host Connectivity: Up to 5 simultaneous connections per serial port for data redundancy and multi‑system access.
- Data Throughput: Optimized for both high‑speed (throughput mode) and low‑latency (latency mode) operation.
- Reliability: Continuous operation supported by redundant power inputs and PoE capability.
- Security: Encrypted management sessions via HTTPS and SSH; access control lists and password protection prevent unauthorized access.
- Event Management: Real‑time alerts for power failure, Ethernet link change, login failure, IP conflict, or serial signal changes (DCD, DSR, RI, CTS).
- Diagnostics: Syslog and SNMP trap reporting, plus LED indicators for quick status verification.
- Limitations: Maximum serial speed 460.8 kbps; operating temperature limited to 55 °C; external power adapter not included.

---

### 8. Standards & Compliance

Electrical and Safety Standards:
- IEEE 802.3 (10Base‑T) / IEEE 802.3u (100Base‑TX)
- IEEE 802.3af (Power over Ethernet PD)
- IEC 60068‑2‑27 (Shock), ‑2‑6 (Vibration), ‑2‑32 (Free‑fall)

Electromagnetic Compatibility (EMC):
- FCC Part 15 Class A
- CISPR (EN55022) Class A
- EN61000‑4‑2 (ESD)
- EN61000‑4‑3 (Radiated Susceptibility)
- EN61000‑4‑4 (Electrical Fast Transient)
- EN61000‑4‑5 (Surge Level 3)
- EN61000‑4‑6 (Conducted Susceptibility Level 3)

Environmental Protection:
- IP30 metal enclosure for industrial environments
- Operating humidity 5 – 95 % (non‑condensing)

Quality and Reliability:
- MTBF ≥ 200,000 hours
- 5‑year manufacturer warranty

---

### 9. Additional Information

Warranty & Support:
- Warranty Period: 5 years limited hardware warranty.
- Technical Support: Available via info@sunix.com.tw
- Website: [www.sunix.com.tw](http://www.sunix.com.tw)
- Documentation: Comprehensive user manual, quick installation guide, and online resources.

Maintenance:
- Periodic inspection of power and network connections recommended.
- Firmware updates available through IDS‑Tools or web interface.
- Configuration backup and restore supported via export/import functions.

Firmware & Software Updates:
- Group firmware update supported for multiple devices.
- IDS‑Tools provides wizards for Virtual COM setup, serial tunnel configuration, and IP assignment.
- Secure firmware upgrade via HTTPS or local file upload.

Operational Indicators:
- PoE LED: Green = PoE active; Red blinking = IP conflict/DHCP failure.
- PWR1/PWR2 LEDs: Green = power active; Red blinking = network error.
- Fault LED: Red = system fault.
- Serial LEDs: Green = transmit; Red = receive.
- Ethernet LEDs: Green (100 Mbps) / Amber (10 Mbps) link and activity.

Event Notification Options:
- Syslog server logging
- SNMP trap to up to four servers
- E‑mail alerts via SMTP server
- Relay output for external alarm systems
- Audible beeper for local fault indication

Security Management:
- Password‑protected web and console access
- Accessible IP filter for host whitelisting
- Encrypted sessions via HTTPS and SSH
- NAT pass‑through for remote management

Network Management:
- SNMP MIB II support for integration with network management systems
- Auto IP report and device discovery via IDS‑Tools
- DHCP/BOOTP client or static IP configuration

Reliability Enhancements:
- Dual redundant power inputs and PoE ensure continuous operation during power failures.
- Fast Ethernet failover (< 10 ms) maintains network availability.
- Relay output and fault LED provide immediate failure notification.

---

### Summary

The SUNIX IDS‑3042P is a robust, feature‑rich industrial serial‑to‑Ethernet device server engineered for mission‑critical communication environments. It combines four configurable serial ports, dual redundant Ethernet interfaces, and IEEE 802.3af PoE PD capability in a compact, IP30‑rated metal enclosure. With advanced redundancy, security, and management features, it ensures reliable data transmission and remote accessibility for industrial automation, SCADA, and control systems.

Its flexible configuration options—Virtual COM, TCP/UDP, and Serial Tunnel—allow seamless integration with both legacy and modern network infrastructures. The IDS‑Tools software simplifies deployment, monitoring, and firmware management, while comprehensive event notification and security mechanisms safeguard network integrity.

Designed for long‑term reliability, the IDS‑3042P meets stringent industrial standards for EMC, shock, and vibration, and carries a 5‑year warranty backed by SUNIX’s global support network. This device server represents a complete, scalable solution for extending serial communication over Ethernet with maximum uptime, security, and performance.
