Comprehensive Product Summary: ORing IDS‑342+ Industrial Device Server

---

### 1. Product Overview

Product Name: Industrial Device Server
Model: IDS‑342+
Series: IDS‑312(+)/322(+)/342(+) Industrial Device Server Series
Article Number: IDS‑342+
Manufacturer: ORing Industrial Networking Corp.
Manufacturer Website: [www.oring-networking.com](http://www.oring-networking.com)
Contact:
- Headquarters: 3F., No.542‑2, Jhongjheng Rd., Sindian District, New Taipei City 231, Taiwan, R.O.C.
- Tel: +886‑2‑2218‑1066
- Fax: +886‑2‑2218‑1014
- Email (Support): support@oring-networking.com
- Email (Sales): sales@oring-networking.com

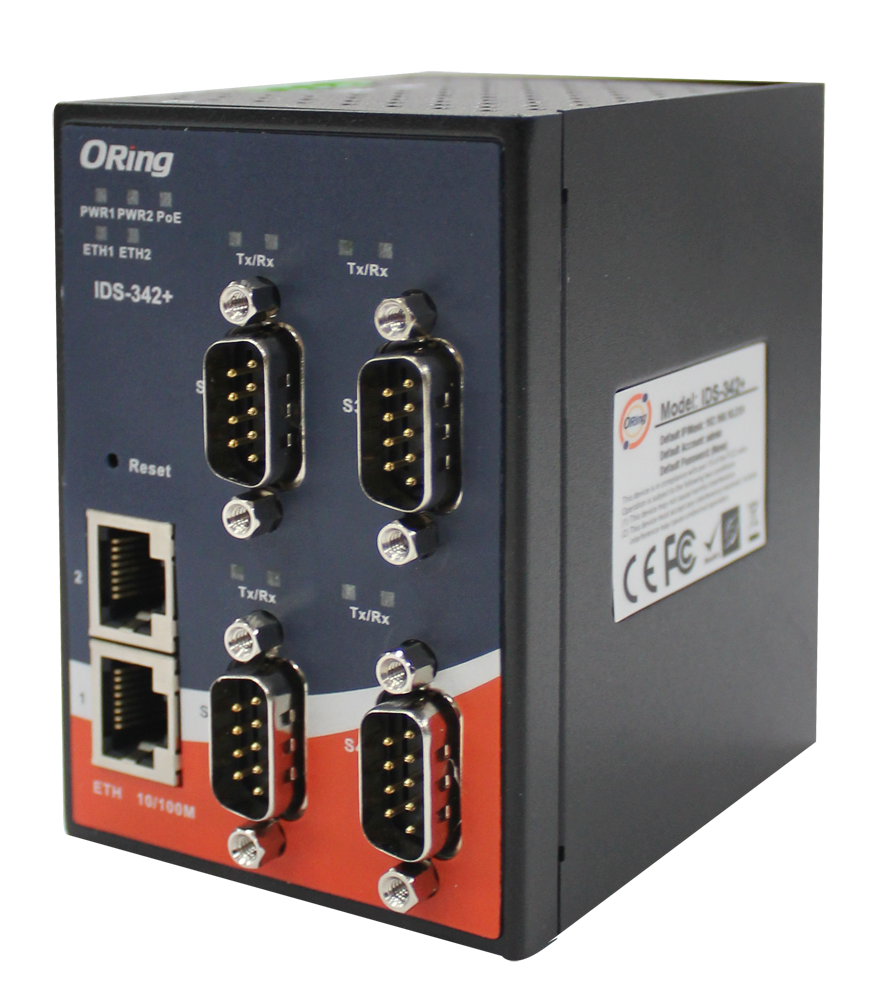

The ORing IDS‑342+ is a high‑performance industrial device server designed to connect up to four serial devices (RS‑232/422/485) to Ethernet networks via two 10/100Base‑T(X) LAN ports, one of which supports IEEE 802.3af Power‑over‑Ethernet (PoE PD). It provides robust serial‑to‑Ethernet conversion, redundant power inputs, and advanced management and security features for mission‑critical industrial automation, transportation, and control applications.

---

### 2. Key Features

- Multi‑port Serial Connectivity: Four DB9 serial ports supporting RS‑232, RS‑422, and RS‑485 (2‑wire/4‑wire) modes.
- Dual Ethernet Interfaces: Two 10/100Base‑T(X) RJ‑45 ports with auto MDI/MDI‑X; one port supports IEEE 802.3af PoE PD.
- Redundant Power Inputs: Dual 12–48 VDC inputs on a 6‑pin terminal block for high availability.
- High Security: Supports HTTPS, SSH, and SSL encryption, IP access control, and IP whitelist for secure data transmission.
- Flexible Operation Modes: Virtual COM, Serial Tunnel, TCP Server, TCP Client, and UDP modes for versatile integration.
- Event Notification: System events can trigger Syslog, SNMP trap, email alerts, relay output, or audible beeper.
- Fast Ethernet Redundancy: Network recovery time < 10 ms ensures minimal downtime.
- Industrial‑grade Design: IP‑30 metal enclosure, DIN‑rail and wall‑mount options, and wide temperature tolerance.
- Comprehensive Management: Configurable via Web interface, Windows DS‑Tool utility, Telnet, SSH, or SNMP.
- PoE Power Device: IEEE 802.3af‑compliant PoE PD input with overload and short‑circuit protection.
- Fixed TTY Driver for Linux: Enables stable serial device mapping in Linux environments.
- QoS and NAT Support: Application‑based QoS management and NAT pass‑through for remote management.
- Multi‑host Redundancy: Supports up to five simultaneous host connections for data redundancy.

---

### 3. Technical Specifications

Physical Ports
- Ethernet: 2 × 10/100Base‑T(X) RJ‑45, auto MDI/MDI‑X
- PoE: IEEE 802.3af‑compliant PD on ETH1
- Isolation Voltage: 1000 VDC min
- Isolation Resistance: 10⁸ Ω min
- Overload & short‑circuit protection

Serial Ports
- Connector: 4 × DB9 male
- Operation Modes: RS‑232 / RS‑422 / RS‑485 (2‑wire or 4‑wire)
- Baud Rate: 110 bps – 460.8 kbps
- Data Bits: 7, 8
- Parity: None, Odd, Even, Mark, Space
- Stop Bits: 1, 1.5, 2
- Flow Control: XON/XOFF, RTS/CTS, DTR/DSR
- RS‑232 Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND

Network Protocols Supported
ICMP, IP, TCP, UDP, DHCP, BOOTP, SSH, DNS, SNMP v1/v2c, HTTPS, SMTP

LED Indicators
- PWR1/PWR2/PoE: Green – Power on and functioning
- ETH1/ETH2: Green – Link/Activity at 100 Mbps
- TX/RX: Red – Receiving data; Green – Transmitting data
- PoE: Green – Power supplied via Ethernet

Power
- Input Voltage: Dual 12–48 VDC (redundant)
- Power Consumption: 4.32 W (typical)
- Protection: Overload and reverse polarity protection

Physical Characteristics
- Enclosure: IP‑30 rated metal housing
- Dimensions: 66 (W) × 81 (D) × 95 (H) mm
- Weight: 384 g
- Mounting: DIN‑rail or wall‑mount

Environmental
- Operating Temperature: –40 °C to 70 °C (–40 °F to 158 °F)
- Storage Temperature: –40 °C to 85 °C (–40 °F to 185 °F)
- Humidity: 5 % – 95 %, non‑condensing

Regulatory Approvals
- EMI: FCC Part 15, CISPR (EN55022) Class A
- EMS: EN61000‑4‑2 (ESD), ‑4‑3 (RS), ‑4‑4 (EFT), ‑4‑5 (Surge), ‑4‑6 (CS), ‑4‑8, ‑4‑11
- Shock: IEC60068‑2‑27
- Free Fall: IEC60068‑2‑32
- Vibration: IEC60068‑2‑6
- Safety: EN60950‑1

Warranty: 5 years

---

### 4. Functionality

The IDS‑342+ functions as a serial‑to‑Ethernet gateway, enabling legacy serial devices to communicate over modern IP networks. Each serial port can be independently configured for RS‑232, RS‑422, or RS‑485 operation, allowing flexible integration with PLCs, sensors, meters, and controllers.

Supported Operation Modes:
- Virtual COM: Maps serial ports to virtual COM ports on Windows hosts, supporting up to 5 simultaneous connections.
- TCP Server: Waits for incoming TCP connections from hosts; supports 5 concurrent sessions.
- TCP Client: Initiates TCP connections to remote servers on startup or upon data transmission.
- UDP: Enables unicast or multicast data exchange for low‑latency communication.
- Serial Tunnel: Creates transparent serial‑to‑serial links over Ethernet.

Use Cases & Applications:
- Industrial automation and SCADA systems
- Building management and HVAC control
- Transportation and traffic monitoring
- Energy and utility data acquisition
- Remote serial device management over IP networks

Compatibility:
- Operating Systems: Windows NT/2000/XP/2003/Vista (32/64‑bit), Windows 7 (32/64‑bit), Linux (via fixed TTY driver)
- Network Integration: Compatible with standard Ethernet switches, routers, and PoE infrastructure

---

### 5. Components & Accessories

Included Items:
- IDS‑342+ device server unit
- DIN‑rail mounting kit
- Wall‑mount brackets
- 6‑pin terminal block for power and relay connections
- Quick installation guide and documentation

Optional Accessories:
- External DC power supply (12–48 VDC)
- Ethernet cables (Cat 5/5e UTP)
- DB9 serial cables (RS‑232/422/485)

Connectors:
- Ethernet: RJ‑45 (10/100Base‑T(X))
- Serial: DB9 male × 4
- Power/Relay: 6‑pin terminal block

---

### 6. Installation & Setup

Mounting Options:
- DIN‑rail: Attach the included DIN‑rail kit to the rear panel and snap onto a standard 35 mm DIN‑rail.
- Wall‑mount: Use the provided L‑shaped brackets and screws to secure the unit to a flat surface.

Wiring Guidelines:
- Disconnect power before wiring.
- Use separate routing for power and signal cables to minimize EMI.
- Ground the device properly using the grounding screw on the top panel.
- Connect redundant power inputs (PWR1 and PWR2) to independent DC sources for reliability.

Ethernet Cabling:
- 10BASE‑T: Cat 3/4/5 UTP, 100 m max
- 100BASE‑TX: Cat 5 UTP, 100 m max
- Supports auto MDI/MDI‑X for direct PC or switch connection.

Serial Port Wiring:
- DB9 pin assignments support RS‑232, RS‑422, and RS‑485 configurations.
- Ensure correct signal mapping (TxD/RxD, RTS/CTS, etc.) for connected equipment.

Configuration Interfaces:
- DS‑Tool (Windows Utility): Device discovery, configuration, firmware update, and monitoring.
- Web Interface: Accessible via browser (default IP 192.168.10.2 or 192.168.10.1).
- Telnet/SSH Console: Command‑line configuration and diagnostics.
- SNMP: Remote monitoring and event management.

---

### 7. Performance & Capabilities

- Serial Throughput: Up to 460.8 kbps per port.
- Network Redundancy: Ethernet recovery time < 10 ms.
- Multi‑host Support: Up to 5 simultaneous TCP connections per serial port.
- Data Buffer: 4 KB per port with configurable flush intervals and delimiters.
- QoS Management: Application‑based prioritization for critical data.
- Event Handling: Configurable notifications for hardware resets, login failures, IP changes, and port status.
- Reliability: Dual power inputs and PoE ensure continuous operation during power interruptions.
- Security: SSL/TLS encryption, SSH access, and IP filtering prevent unauthorized access.
- Limitations: Maximum 4 serial ports; Ethernet limited to 100 Mbps per port.

---

### 8. Standards & Compliance

Electrical & Safety:
- EN60950‑1 (Safety of IT Equipment)
- IEEE 802.3af (Power‑over‑Ethernet PD)

Electromagnetic Compatibility:
- FCC Part 15 Class A
- CISPR 22 (EN55022) Class A
- EN61000‑4‑2 (ESD)
- EN61000‑4‑3 (Radiated Susceptibility)
- EN61000‑4‑4 (EFT/Burst)
- EN61000‑4‑5 (Surge)
- EN61000‑4‑6 (Conducted Susceptibility)
- EN61000‑4‑8 (Magnetic Field Immunity)
- EN61000‑4‑11 (Dip/Interruption Immunity)

Environmental & Mechanical:
- IEC60068‑2‑27 (Shock)
- IEC60068‑2‑32 (Free Fall)
- IEC60068‑2‑6 (Vibration)

Ingress Protection: IP‑30

These certifications ensure the IDS‑342+ meets industrial‑grade reliability and safety standards for deployment in harsh environments.

---

### 9. Additional Information

Warranty: 5 years from invoice date, covering defects in materials and workmanship.
Support: Technical assistance available via email and online resources.
Maintenance:
- Periodic inspection of power and network connections recommended.
- Firmware updates available through ORing’s website; upgrade via DS‑Tool or Web interface.
- Configuration backup and restore supported through Web or DS‑Tool utilities.

Firmware & Software Updates:
- Latest firmware downloadable from ORing’s support portal.
- DS‑Tool utility provides group firmware update and configuration management for multiple devices.

Event Logging & Diagnostics:
- Syslog integration for centralized log collection.
- SNMP traps and email alerts for proactive fault detection.
- Local and remote reboot options (cold/warm start).

Security Management:
- User authentication with configurable passwords.
- IP access control lists and filtering.
- HTTPS/SSH for encrypted management sessions.

Lifecycle & Reliability:
- Designed for continuous 24/7 operation in industrial environments.
- Mean Time Between Failures (MTBF) optimized through redundant power and robust components.

---

### Summary

The ORing IDS‑342+ Industrial Device Server is a compact, rugged, and feature‑rich serial‑to‑Ethernet gateway engineered for demanding industrial networking applications. With four configurable RS‑232/422/485 ports, dual 10/100 Mbps Ethernet interfaces (including PoE PD), and redundant 12–48 VDC power inputs, it ensures reliable connectivity between legacy serial equipment and modern IP networks.

Its advanced management suite—including DS‑Tool, Web, Telnet, SSH, and SNMP—provides flexible configuration and monitoring options. Security is reinforced through HTTPS, SSH, SSL encryption, and IP access control. The device’s event notification system (Syslog, SNMP trap, email, relay, and beeper) enhances operational awareness and fault response.

Certified to industrial EMC, safety, and environmental standards, the IDS‑342+ delivers high reliability, fast redundancy (< 10 ms), and long‑term durability in harsh conditions. With a 5‑year warranty and comprehensive support, it is an ideal solution for industrial automation, transportation, energy, and remote monitoring systems requiring secure, redundant, and efficient serial‑to‑Ethernet communication.
