Comprehensive Product Summary – IGPS‑9080‑24V Industrial Managed 8‑Port Gigabit PoE Switch

---

### 1. Product Overview

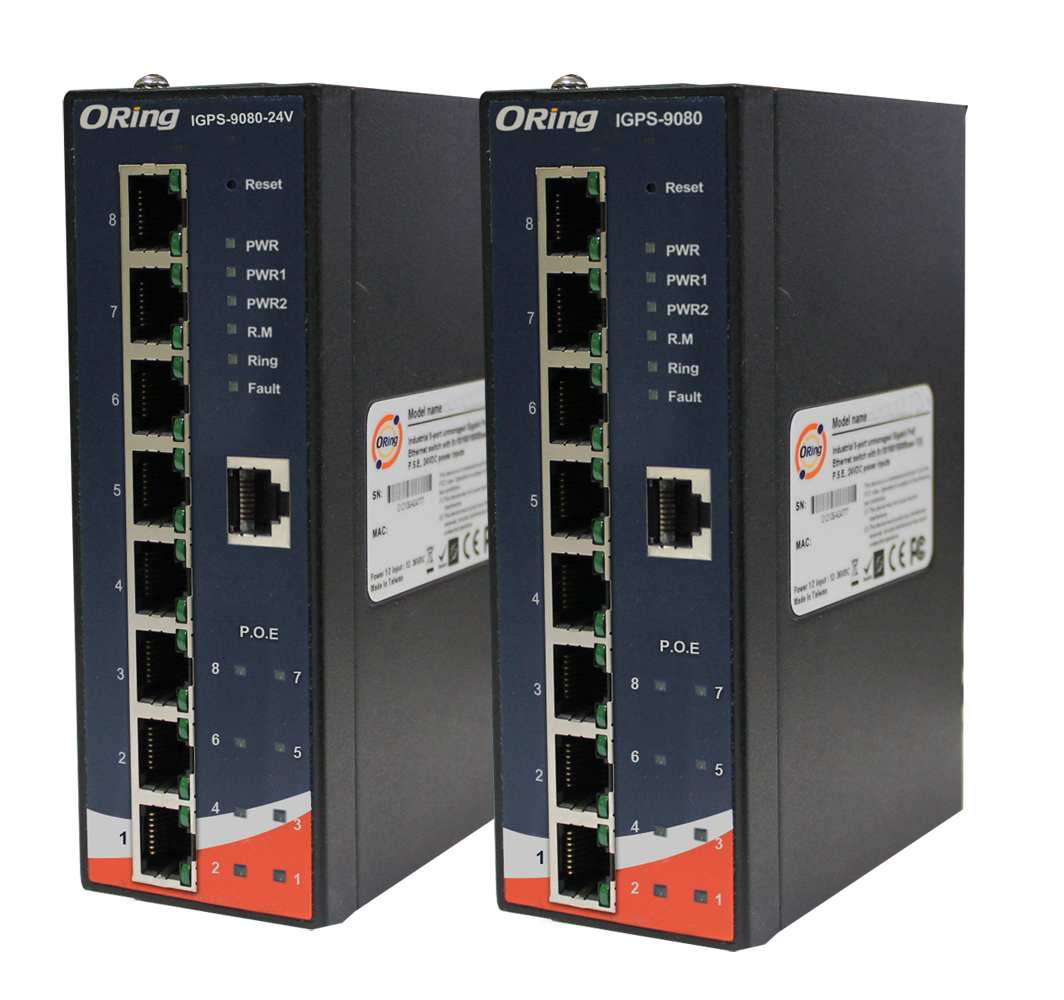

Product Name: Industrial Managed 8×1000TX PoE PSE Switch
Model: IGPS‑9080‑24V
Series: IGPS‑9080 Series
Article Number: IGPS‑9080‑24V
Manufacturer: ORing Industrial Networking Corp., New Taipei City, Taiwan
Version: V0.1

The IGPS‑9080‑24V is a rugged, fully managed industrial Gigabit Ethernet switch designed for high‑availability networks in harsh environments. It provides eight 10/100/1000Base‑T(X) Power Sourcing Equipment (P.S.E.) ports compliant with IEEE 802.3at, supporting up to 30 W per port. The unit operates on 12–57 V DC dual redundant power inputs and is optimized for mission‑critical automation, surveillance, and control systems requiring deterministic performance, PoE power delivery, and advanced redundancy.

---

### 2. Key Features

- Gigabit PoE Power: Eight RJ‑45 ports supporting 10/100/1000Base‑T(X) with IEEE 802.3at PoE (up to 30 W per port, total 240 W).
- Redundant Networking:
- O‑Ring proprietary ring recovery (< 30 ms over 250 nodes).
- Open‑Ring interoperability with third‑party ring technologies.
- O‑Chain multi‑ring redundancy topology.
- MRP (IEC 62439‑2) Media Redundancy Protocol support.
- MSTP/RSTP/STP compatibility for standard redundancy.
- Advanced Management: Web GUI, Telnet, CLI (RS‑232 console), and Windows utility Open‑Vision for centralized monitoring.
- Security: HTTPS/SSH, SNMP v3, RADIUS/TACACS+, 802.1x authentication, ACLs, DoS/DDoS prevention, and ORing’s Device Binding (IP/MAC/port lock).
- Industrial Design: IP‑30 metal enclosure, DIN‑rail and wall‑mount options, extended ‑40 °C to 70 °C operation.
- Energy Efficiency: IEEE 802.3az Energy‑Efficient Ethernet.
- Time Synchronization: IEEE 1588v2 Precision Time Protocol (PTP) for deterministic control (supported on this model).
- Diagnostics & Alerts: Fault relay output (1 A @ 24 V DC), LED indicators, system log, e‑mail/SNMP/Syslog alerts.
- Network Protocols: IPv6, Modbus TCP, DHCP Server/Client/Relay, IGMP v2/v3 snooping, QoS, VLAN 802.1Q, LLDP.
- Reliability: Dual DC power inputs with overload protection, fast recovery, and 5‑year warranty.

---

### 3. Technical Specifications

Ports:
- 8 × 10/100/1000Base‑T(X) RJ‑45 Auto MDI/MDI‑X with PoE PSE

Ethernet Standards:
IEEE 802.3 (10Base‑T), 802.3u (100Base‑TX), 802.3ab (1000Base‑T), 802.3x (flow control), 802.3ad (LACP), 802.1p (CoS), 802.1Q (VLAN), 802.1w (RSTP), 802.1s (MSTP), 802.1x (authentication), 802.1AB (LLDP), 802.3az (EEE), 802.3at (PoE 30 W/port), IEEE 1588v2 (PTP).

Performance:
- Switching bandwidth: 16 Gbps
- Switching latency: 7 µs
- MAC address table: 8 K
- Priority queues: 8
- Jumbo frame: 9.6 KB
- VLANs: 256 max
- IGMP multicast groups: 128 per VLAN
- Store‑and‑forward architecture

PoE Power:
- Per‑port output: 30 W max
- Total output: 240 W max
- Power budget: 60 W @ 12 V input / 120 W @ 24 V input

Power Input:
- Dual DC inputs 12–57 V DC on 6‑pin terminal block
- Typical consumption: 12 W (excluding PoE load)
- Overload protection: Present
- Reverse polarity protection: Present

Physical Characteristics:
- Enclosure: IP‑30 metal housing
- Dimensions: 54.1 (W) × 106.1 (D) × 145.4 (H) mm (2.13 × 4.18 × 5.72 in)
- Weight: ≈ 779 g

Environmental:
- Operating temperature: ‑40 °C to 70 °C (‑40 °F to 158 °F)
- Storage temperature: ‑40 °C to 85 °C (‑40 °F to 185 °F)
- Humidity: 5 % – 95 % non‑condensing

Regulatory Compliance:
- EMI: FCC Part 15 Class A, EN 55022 Class A
- EMS: EN 61000‑4‑2 (ESD), ‑3 (RS), ‑4 (EFT), ‑5 (Surge), ‑6 (CS), ‑8, ‑11
- Shock: IEC 60068‑2‑27
- Vibration: IEC 60068‑2‑6
- Free Fall: IEC 60068‑2‑32
- Safety: EN 60950‑1

Warranty: 5 years

---

### 4. Functionality and Applications

Operation Principle:
The IGPS‑9080‑24V functions as a managed Layer 2 switch with integrated PoE PSE capability. It transmits both data and electrical power over standard Cat 5/5e/6 UTP cables up to 100 m, powering devices such as IP cameras, VoIP phones, wireless APs, and PLC controllers. The switch supports redundant ring topologies ensuring sub‑30 ms recovery, making it ideal for automation and surveillance networks requiring continuous uptime.

Use Cases:
- Industrial automation and SCADA networks
- IP video surveillance and NVR systems
- Transportation and railway communication systems
- Power substations and utility monitoring
- Oil, gas, and mining field networks
- Smart city and outdoor PoE deployments

Compatibility:
Interoperable with standard Ethernet devices, IEEE 802.3at/af PoE PDs, and third‑party managed switches supporting MSTP or MRP. Supports IPv4/IPv6 stack and Modbus TCP for integration with industrial controllers.

---

### 5. Components & Accessories

Included in Package:
- IGPS‑9080‑24V switch × 1
- ORing Tools CD × 1 (software and manuals)
- Quick Installation Guide × 1
- DIN‑rail mount kit × 1
- Wall‑mount kit × 2
- RS‑232 console cable (RJ‑45 to DB‑9) × 1

Optional Accessories:
- Open‑Vision M500: Windows‑based network management suite for up to 500 devices.

Connectors:
- 8 × RJ‑45 Ethernet ports (Auto MDI/MDI‑X)
- 1 × RS‑232 console port (RJ‑45)
- 6‑pin terminal block for dual DC power inputs and fault relay

Relay Output: 1 A @ 24 V DC for fault alarm signaling.

---

### 6. Installation & Setup

Mounting Options:
- DIN‑Rail: Attach the included kit to the rear panel and slide onto standard DIN rail until it clicks securely.
- Wall‑Mount: Use the provided plates and screws to fix the unit to a flat surface (6 screws required).

Power Wiring:
- Connect dual redundant DC inputs (PWR1 and PWR2) to the terminal block (V+, V–).
- Tighten wire‑clamp screws to prevent loosening.
- Ground the unit to reduce EMI.

Network Cabling:
- 10BASE‑T: Cat 3/4/5 UTP (100 m max)
- 100BASE‑TX: Cat 5 UTP (100 m max)
- 1000BASE‑T: Cat 5e or better (100 m max)

Console Connection:
- RS‑232 RJ‑45 to DB‑9 female cable, 115200 bps, 8‑N‑1.

Initial Configuration:
- Default IP: 192.168.10.1
- Subnet Mask: 255.255.255.0
- Gateway: 192.168.10.254
- Username/Password: admin/admin

Reset Button:
- Press 2–3 s to reboot; press 5 s to restore factory defaults.

---

### 7. Performance & Capabilities

Switching Performance:
- 16 Gbps non‑blocking fabric ensures wire‑speed forwarding.
- Store‑and‑forward architecture with 7 µs latency.
- 8 priority queues for QoS traffic management.

PoE Performance:
- IEEE 802.3at compliant PSE delivering up to 30 W per port.
- Total power budget up to 240 W (120 W @ 24 V input).
- PoE scheduling and auto‑ping for remote device reboot.

Redundancy & Recovery:
- O‑Ring recovery < 30 ms over 250 nodes.
- O‑Chain multi‑ring redundancy for complex topologies.
- MRP and MSTP for standard redundant networks.

Security & Access Control:
- 802.1x port‑based authentication, RADIUS/TACACS+ integration.
- ACL filtering by MAC/IP/port/protocol.
- Device Binding (IP/MAC/port lock).
- DoS/DDoS auto‑prevention with hardware‑based blocking.
- HTTPS/SSH encrypted management.

Quality of Service (QoS):
- 802.1p priority tagging, DiffServ/ToS support.
- Application‑based QoS by TCP/UDP port number.
- IP‑based bandwidth management and rate limiting.

Network Management:
- SNMP v1/v2c/v3, RMON, LLDP, DHCP Server/Relay, SMTP alerts.
- Modbus TCP for industrial integration.
- Open‑Vision software for topology view and central monitoring.

Limitations:
- No fiber uplink ports (SFP not included).
- PoE budget depends on input voltage (60 W @ 12 V, 120 W @ 24 V).

---

### 8. Standards & Compliance

Ethernet and Network Protocols:
IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3ad, 802.1p, 802.1Q, 802.1w, 802.1s, 802.1x, 802.1AB, 802.3az, 802.3at, IEEE 1588v2.

Redundancy Protocols: O‑Ring, Open‑Ring, O‑Chain, MRP (IEC 62439‑2), MSTP (RSTP/STP compatible).

Environmental & Safety Compliance:
- FCC Part 15 Class A, EN 55022 Class A (EMI)
- EN 61000‑4‑2/3/4/5/6/8/11 (EMS)
- IEC 60068‑2‑27/‑6/‑32 (Shock, Vibration, Free Fall)
- EN 60950‑1 (Safety)

Energy Efficiency: IEEE 802.3az Energy‑Efficient Ethernet.

Industrial Grade: IP‑30 enclosure, ‑40 °C to 70 °C operation, redundant power inputs.

---

### 9. Additional Information

Warranty & Support:
- 5‑year limited hardware warranty.
- Technical support via support@oring‑networking.com.
- Firmware updates and Open‑Vision software available from www.oring‑networking.com.

Maintenance:
- Periodic inspection of power connections and grounding recommended.
- Firmware upgrade via Web GUI or TFTP.
- Configuration backup/restore supported (XML format).

Manufacturer Contact:
ORing Industrial Networking Corp.
3F., No. 542‑2, Jhongjheng Rd., Sindian District, New Taipei City 231, Taiwan
Tel: +886‑2‑2218‑1066   Fax: +886‑2‑2218‑1014
Website: www.oring‑networking.com

---

### Summary

The IGPS‑9080‑24V is a high‑performance, industrial‑grade managed Gigabit PoE switch engineered for reliability, security, and flexibility in demanding environments. With eight Gigabit PoE ports, advanced redundancy (O‑Ring < 30 ms), IEEE 1588v2 time sync, and comprehensive management features, it ensures continuous operation of critical systems. Its rugged IP‑30 design, ‑40 °C to 70 °C temperature range, and dual redundant power inputs make it ideal for industrial automation, transportation, and surveillance applications requiring both data and power delivery over Ethernet.
