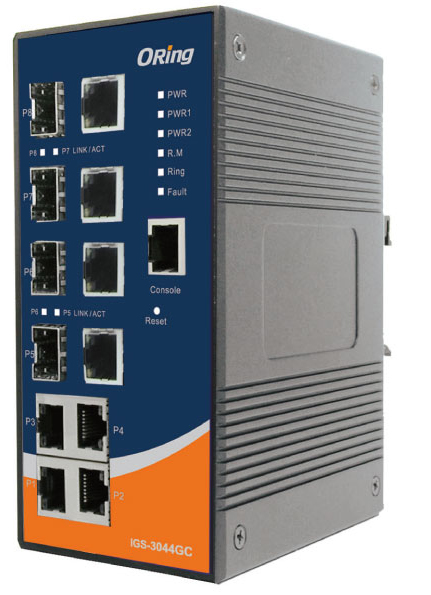

Comprehensive Product Summary – ORing IGS‑3044GC Industrial Managed Ethernet Switch

---

### 1. Product Overview

Product Name: Industrial Managed Ethernet Switch
Model: IGS‑3044GC
Series: IGS‑3044GC/GP Series
Article Number: IGS‑3044GC
Manufacturer: ORing Industrial Networking Corp.
Manufacturer Website: [www.oring-networking.com](http://www.oring-networking.com)
Contact:
- Headquarters: 4F., No.3, Lane 235, Baociao Rd., Sindian City, Taipei County 23145, Taiwan, R.O.C.
- Tel: +886‑2‑2918‑3036
- Fax: +886‑2‑2918‑3084
- Email: support@oring-networking.com / sales@oring-networking.com

The ORing IGS‑3044GC is a rugged, fully managed industrial Ethernet switch designed for mission‑critical applications in harsh environments. It provides advanced Layer 2 management, redundancy, and security features suitable for factory automation, transportation, power utilities, and other industrial networking infrastructures.

---

### 2. Key Features

- High‑Performance Industrial Design:
8 Gigabit ports total — 4 × 10/100/1000Base‑T(X) RJ‑45 ports and 4 × Gigabit combo ports (10/100/1000Base‑T(X) + 100/1000Base‑X SFP).
- Ultra‑Fast Redundant Ethernet Ring:
ORing’s proprietary O‑Ring technology provides recovery time <10 ms across up to 250 connected units.
- Comprehensive Redundancy Protocols:
Supports O‑Ring, Open‑Ring, O‑Chain, MRP (IEC 62439), RSTP (802.1w), MSTP (802.1s), and STP (802.1D).
- Advanced Management Interfaces:
Web‑based GUI, Telnet, RS‑232 console (CLI), SNMP v1/v2c/v3, and ORing’s Open‑Vision/Super‑View network management software.
- Enhanced Security:
802.1x port‑based access control, MAC‑based port security, IP Guard, RADIUS authentication, SNMPv3 encryption, and management access control (HTTP/Telnet/SNMP).
- Comprehensive VLAN & QoS:
IEEE 802.1Q VLAN tagging (up to 4096 VLANs), GVRP, QinQ double tagging, and 802.1p QoS with four priority queues.
- Multicast Optimization:
IGMP Snooping (v1/v2/v3), MVR (Multicast VLAN Registration), and static multicast filtering.
- Time Synchronization:
SNTP and IEEE 1588 PTP client for precise clock synchronization.
- Event & Alarm System:
Fault relay output, SYSLOG, SMTP email alerts, and LED indicators for power, ring, and fault conditions.
- Industrial‑Grade Reliability:
IP‑30 metal enclosure, dual 12–48 V DC redundant power inputs, wide operating temperature range (‑40 °C to 70 °C), and high EMC immunity.

---

### 3. Technical Specifications

Physical Ports
- 4 × 10/100/1000Base‑T(X) RJ‑45 (Auto MDI/MDIX)
- 4 × Gigabit combo ports (10/100/1000Base‑T(X) + 100/1000Base‑X SFP)
- 1 × RS‑232 console port (RJ‑45 connector, 9600 bps, 8‑N‑1)

Switching Performance
- Switching bandwidth: 16 Gbps
- Switching latency: 7 µs (store‑and‑forward)
- MAC address table: 8192 entries
- Priority queues: 4
- VLANs supported: 4096
- IGMP multicast groups: 1024

Power
- Dual DC inputs: 12 – 48 V DC via 6‑pin terminal block
- Power consumption: typ. 25 W
- Overload and reverse polarity protection: Yes

Mechanical
- Enclosure: IP‑30 rated metal housing
- Dimensions (W × D × H): 74.3 × 109.2 × 153.6 mm (2.93 × 4.30 × 6.05 in)
- Weight: approx. 1075 g

Environmental
- Operating temperature: ‑40 °C to 70 °C (IGS‑3044GP) / ‑10 °C to 60 °C (IGS‑3044GC)
- Storage temperature: ‑40 °C to 85 °C
- Humidity: 5 % – 95 % non‑condensing

Reliability
- MTBF: 214,978 hours
- Warranty: 5 years

Regulatory Compliance
- EMI: FCC Part 15 Class A, EN 55022 Class A
- EMS: EN 61000‑4‑2 (ESD), ‑4‑3 (RS), ‑4‑4 (EFT), ‑4‑5 (Surge), ‑4‑6 (CS), ‑4‑8, ‑4‑11
- Safety: EN 60950‑1
- Shock/Vibration/Free Fall: IEC 60068‑2‑27 / ‑6 / ‑32

---

### 4. Functionality

Operation & Management
The IGS‑3044GC operates as a fully managed Layer 2 switch. Configuration and monitoring can be performed through:
- Web Interface: Embedded HTML/Java‑based GUI accessible via standard browsers.
- CLI: Command‑line interface via RS‑232 console or Telnet.
- SNMP: v1/v2c/v3 with RMON and trap support.
- Software Integration: Compatible with ORing’s Open‑Vision and Super‑View network management suites for centralized control.

Use Cases & Applications
- Factory automation and process control networks
- Intelligent transportation systems (ITS)
- Power substations and utilities
- Oil, gas, and mining operations
- Surveillance and security networks
- Any mission‑critical Ethernet infrastructure requiring redundancy and ruggedness

Compatibility
- Supports standard Ethernet protocols (IEEE 802.3 series)
- Interoperable with third‑party switches via STP/RSTP/MSTP and Open‑Ring
- SFP slots accept standard 100/1000 Mbps fiber transceivers (multi‑mode or single‑mode, LC connector)

---

### 5. Components & Accessories

Included Items
- IGS‑3044GC switch unit
- DIN‑rail mounting kit (pre‑installed)
- Wall‑mount bracket
- Console cable (DB‑9 female to RJ‑45)
- Quick installation guide and documentation

Optional Accessories
- SFP transceivers (100/1000 Mbps, MM/SM)
- External DC power supplies (12–48 V DC)
- ORing Open‑Vision network management software license

Connectors
- Power: 6‑pin terminal block (dual DC inputs + relay output + ground)
- Ethernet: RJ‑45 × 8 (4 standard + 4 combo)
- SFP: 4 slots for 100/1000Base‑X modules
- Console: RJ‑45 (serial RS‑232)

---

### 6. Installation & Setup

Mounting Options
- DIN‑Rail: Standard 35 mm rail mounting (kit included).
- Wall‑Mount: Optional bracket for vertical or horizontal installation.

Power Connection
Connect dual DC inputs (PWR1 and PWR2) to independent power sources for redundancy. The relay output can be wired to external alarms for fault indication.

Configuration Steps
1. Connect management PC via console or Ethernet.
2. Default IP: 192.168.10.1 / Subnet: 255.255.255.0 / Gateway: 192.168.10.254.
3. Default credentials: admin / admin.
4. Access via web browser or Telnet to configure VLANs, redundancy, QoS, and security.
5. Save configuration to flash memory to retain settings after reboot.

Cabling
- Copper: Cat 5/5e UTP, 100 m max.
- Fiber: SFP modules support MM (850 nm, 0–550 m) and SM (1310/1550 nm) fibers.
- Console: RS‑232 DB‑9 to RJ‑45 cable (9600 bps, 8‑N‑1).

---

### 7. Performance & Capabilities

Switching & Throughput
- 16 Gbps non‑blocking switching fabric
- Store‑and‑forward architecture with 7 µs latency
- 8 Gigabit ports for high‑bandwidth data transfer

Redundancy & Recovery
- O‑Ring: < 10 ms recovery over 250 nodes
- MRP: IEC 62439 compliant (typical 80 ms recovery)
- Dual Homing & Coupling Ring: for multi‑ring topologies
- O‑Chain: connects multiple rings for compound redundant networks

Traffic Management
- QoS: 802.1p priority queues (4 levels) with weighted fair or strict priority scheduling
- Rate Limiting: Ingress/Egress per‑port control
- Port Trunking: Static or LACP (802.3ad) aggregation
- VLAN: Port‑based and 802.1Q tagged VLANs with QinQ support

Security & Access Control
- 802.1x authentication with RADIUS server integration
- MAC filtering and blacklist functions
- IP Guard for IP/MAC/port binding and anti‑spoofing
- SNMPv3 encryption and user access control

Diagnostics & Monitoring
- Port statistics, MAC tables, traffic counters
- Port mirroring for packet capture
- System event logs (SYSLOG and local)
- Ping utility for connectivity testing

Limitations
- Layer 2 switching only (no Layer 3 routing)
- Maximum 8192 MAC entries
- Power consumption up to 25 W under full load

---

### 8. Standards & Compliance

IEEE Ethernet Standards
- 802.3 (10Base‑T)
- 802.3u (100Base‑TX/FX)
- 802.3z (1000Base‑X)
- 802.3ab (1000Base‑T)
- 802.3x (Flow Control)
- 802.3ad (Link Aggregation Control Protocol)
- 802.1D (STP)
- 802.1w (RSTP)
- 802.1s (MSTP)
- 802.1p (Class of Service)
- 802.1Q (VLAN Tagging)
- 802.1x (Authentication)
- 802.1AB (LLDP)

Environmental & Safety Compliance
- EMI: FCC Part 15 Class A, EN 55022 Class A
- EMS: EN 61000‑4‑2/‑3/‑4/‑5/‑6/‑8/‑11
- Safety: EN 60950‑1
- Mechanical: IEC 60068‑2‑27 (Shock), ‑6 (Vibration), ‑32 (Free Fall)

Industrial Protection
- IP‑30 enclosure for dust protection
- ESD protection 4 kV DC on Ethernet ports
- Surge protection 2 kV DC on power inputs

---

### 9. Additional Information

Warranty & Support
- Standard 5‑year limited hardware warranty covering defects in materials and workmanship.
- ORing provides repair or replacement for defective units within the warranty period.
- Warranty excludes damage from misuse, improper installation, or unauthorized modifications.

Maintenance & Updates
- Firmware upgrade via TFTP or web interface.
- Configuration backup and restore supported through TFTP or local file.
- Auto Provision feature for automatic firmware/configuration updates on boot.

Monitoring & Alerts
- SYSLOG client/server for event logging.
- SMTP email notification for critical events.
- Fault relay output (1 A @ 24 V DC) for external alarm integration.
- LED indicators for Power (PWR1/PWR2/PWR3), Ring Master, Ring Status, and Fault.

Software Utilities
- Open‑Vision: Comprehensive network management software for multi‑switch configuration and monitoring.
- Super‑View: Lightweight utility for device discovery and status overview.

Management Security
- Configurable admin password and user accounts.
- IP‑based management access control for HTTP, Telnet, and SNMP.
- SNMP trap and email alerts for authentication failures and topology changes.

Maintenance Tools
- Port statistics and traffic monitoring for diagnostics.
- MAC address table aging and manual flush functions.
- Factory reset and system reboot options via web or CLI.

---

### Summary

The ORing IGS‑3044GC is a high‑reliability, fully managed industrial Ethernet switch engineered for demanding environments requiring continuous network availability. With eight Gigabit interfaces, advanced redundancy mechanisms (O‑Ring < 10 ms recovery), and comprehensive management and security capabilities, it ensures robust performance in automation, transportation, and energy systems. Its rugged IP‑30 enclosure, dual DC power inputs, and wide temperature tolerance make it ideal for deployment in harsh industrial conditions.

Key Advantages:
- Ultra‑fast redundant ring recovery (< 10 ms)
- Dual redundant power inputs (12–48 V DC)
- Wide temperature operation (‑40 °C to 70 °C)
- Advanced Layer 2 management and security
- Comprehensive event notification and diagnostics
- Long MTBF (> 214,000 hours) and 5‑year warranty

The IGS‑3044GC delivers industrial‑grade reliability, flexible management, and high‑speed connectivity, making it a cornerstone component for resilient Ethernet infrastructures in modern industrial networks.
