Comprehensive Product Summary – IPS‑3082GC Industrial Managed PoE Ethernet Switch

---

### 1. Product Overview

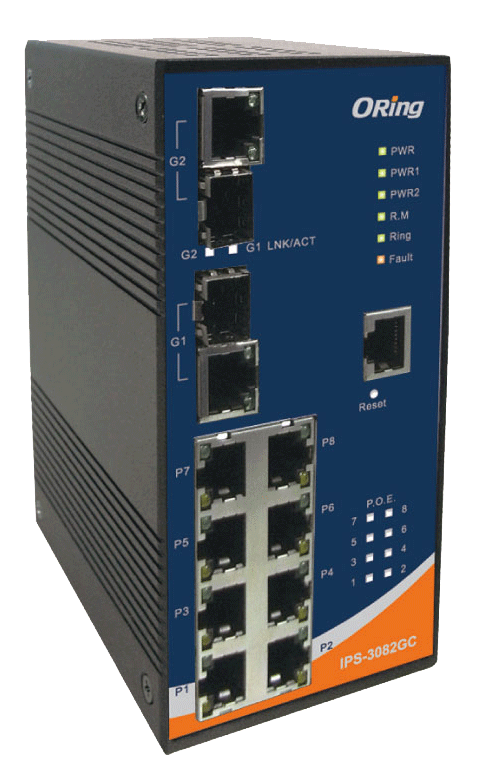

Product Name: Industrial Managed Ethernet Switch
Model: IPS‑3082GC
Series: IPS Industrial Ethernet Switch Series
Article Number: IPS‑3082GC
Manufacturer: ORing Industrial Networking Corp.

The IPS‑3082GC is a rugged, fully managed industrial Ethernet switch designed for mission‑critical applications requiring high reliability, network redundancy, and Power over Ethernet (PoE) capability. It integrates eight 10/100Base‑TX PoE P.S.E. (Power Sourcing Equipment) ports and two Gigabit combo ports (1000Base‑T/SFP), providing a total of ten network interfaces. The switch supports advanced redundancy protocols such as O‑Ring, Open‑Ring, O‑RSTP, and standard RSTP/STP, ensuring network recovery times of less than 10 ms across up to 250 connected units.

Engineered for harsh industrial environments, the IPS‑3082GC features an IP‑30‑rated metal enclosure, dual redundant DC power inputs, and an extended operating temperature range from ‑40 °C to 70 °C. It is DIN‑rail and panel‑mountable, making it ideal for deployment in factory automation, transportation, power utilities, and other industrial control systems.

---

### 2. Key Features

- High‑Performance Managed PoE Switch:
10‑port managed Ethernet switch with 8×10/100Base‑TX PoE P.S.E. ports and 2×Gigabit combo ports (RJ‑45/SFP).

- Fast Ethernet Redundancy:
Supports ORing’s proprietary O‑Ring technology with recovery time < 10 ms over 250 units, ensuring minimal downtime.
Also supports Open‑Ring, O‑RSTP, and RSTP/STP (IEEE 802.1w/D) for compatibility with other vendors’ redundancy systems.

- Power over Ethernet (PoE):
Eight P.S.E. ports fully compliant with IEEE 802.3af, delivering up to 15.4 W per port for powering IP cameras, wireless access points, or VoIP phones.

- Comprehensive Network Management:
Supports SNMP v1/v2c/v3, RMON, LLDP, Port‑based and 802.1Q VLAN, QoS, IGMP snooping, and Port Trunking.

- Advanced Monitoring and Notification:
Event notification via Syslog, Email, SNMP Trap, and Relay Output.
Includes Auto IP checking alive for monitoring connected PD (Powered Device) status.

- Flexible Configuration Interfaces:
Managed through Web GUI, Telnet, Console (CLI), or Windows utility (Open‑Vision) for centralized management.

- Robust Industrial Design:
IP‑30‑rated metal housing, ESD protection (4 kV DC on Ethernet ports), surge protection (2000 V DC on power input), and wide temperature tolerance.

- Dual Redundant Power Inputs:
Two DC terminal block inputs (48 V DC nominal) ensure uninterrupted operation in case of power source failure.

- Compact and Easy Installation:
DIN‑rail and panel mounting options with compact dimensions of 72 × 106 × 152 mm.

---

### 3. Technical Specifications

| Parameter | Specification |
|----------------|------------------|
| Model | IPS‑3082GC |
| Ports | 8 × 10/100Base‑TX PoE P.S.E. + 2 × Gigabit combo (RJ‑45/SFP) |
| PoE Standard | IEEE 802.3af compliant |
| PoE Power Output | Up to 15.4 W per port |
| Network Redundancy | O‑Ring (< 10 ms recovery), Open‑Ring, O‑RSTP, RSTP/STP (IEEE 802.1w/D) |
| Network Management | SNMP v1/v2c/v3, RMON, LLDP, VLAN (Port‑based/802.1Q/GVRP), QoS, IGMP snooping |
| Configuration Interfaces | Web, Telnet, Console (CLI), Windows utility (Open‑Vision) |
| Event Notification | Syslog, Email, SNMP Trap, Relay Output |
| Security Features | Port Lock (MAC‑based access control), 802.1X authentication |
| Power Input | Dual DC 48 V DC (redundant) |
| Power Consumption | Approx. 9 W (device only, excluding PoE load) |
| Protection | ESD 4 kV DC (Ethernet ports), Surge 2000 V DC (power input) |
| Casing | IP‑30‑rated metal enclosure |
| Dimensions | 72 (W) × 106 (D) × 152 (H) mm |
| Weight | Approx. 1.2 kg (typical) |
| Mounting | DIN‑rail and panel mounting |
| Operating Temperature | ‑40 °C to 70 °C |
| Storage Temperature | ‑40 °C to 85 °C |
| Operating Humidity | 5 % – 95 % RH (non‑condensing) |
| Cooling | Passive (fanless) |
| Enclosure Material | Aluminum alloy, corrosion‑resistant |
| LED Indicators | Power, Fault, Ring, PoE, Link/Activity per port |
| MTBF | > 300,000 hours (estimated) |
| Warranty | 5 years |

---

### 4. Functionality

The IPS‑3082GC functions as a fully managed Layer 2 industrial Ethernet switch with integrated PoE power sourcing capability. It provides both data connectivity and electrical power to connected devices through standard Cat5e/6 cables, simplifying network infrastructure by eliminating separate power wiring for end devices.

Operational Overview:
- Each of the eight 10/100Base‑TX ports can deliver up to 15.4 W of power to IEEE 802.3af‑compliant powered devices (PDs).
- The two Gigabit combo ports (RJ‑45/SFP) allow flexible uplink configurations—either copper or fiber—depending on network topology and distance requirements.
- The switch continuously monitors link status and power consumption, automatically detecting and protecting against overload or short‑circuit conditions.
- Redundancy protocols (O‑Ring, O‑RSTP, STP/RSTP) ensure network self‑healing in case of link or node failure, maintaining communication continuity.
- Management and monitoring can be performed locally via console or remotely through SNMP, web interface, or the Open‑Vision software suite.

Typical Applications:
- Industrial automation and control systems
- Intelligent transportation systems (ITS)
- Power substations and energy distribution networks
- IP surveillance and security systems
- Oil, gas, and mining operations
- Railway and metro communication networks

Compatibility:
- Compatible with standard Ethernet devices (IEEE 802.3, 802.3u, 802.3ab, 802.3af).
- Supports third‑party ring technologies via Open‑Ring protocol.
- Interoperable with major network management platforms supporting SNMP v1/v2c/v3.

---

### 5. Components & Accessories

Included Items:
- IPS‑3082GC managed PoE switch unit
- DIN‑rail mounting kit
- Terminal block for dual DC power input
- Quick installation guide and documentation

Optional Accessories:
- SFP transceivers (multi‑mode or single‑mode, 1000Base‑SX/LX)
- Panel mounting brackets
- External DC power supply (48 V DC)
- Open‑Vision management software (Windows utility)

Connectors:
- Ethernet Ports: RJ‑45 (shielded) for 10/100Base‑TX and 1000Base‑T
- SFP Slots: Standard SFP cages for 1000Base‑X fiber modules
- Power Input: 6‑pin removable terminal block for dual DC inputs
- Relay Output: 1 × alarm relay contact for event notification
- Console Port: RS‑232 (DB9 or RJ‑45 type, depending on configuration)

---

### 6. Installation & Setup

Installation Requirements:
- Power supply: 48 V DC (redundant inputs recommended)
- Mounting surface: DIN‑rail (35 mm standard) or flat panel
- Ambient temperature: within ‑40 °C to 70 °C
- Adequate ventilation for passive cooling

Mounting Options:
- DIN‑Rail Mounting: Attach the included DIN‑rail clip to the rear panel and snap onto the rail.
- Panel Mounting: Use optional brackets to secure the unit to a flat surface or control cabinet.

Configuration Steps:
1. Connect power inputs to the terminal block (observe polarity).
2. Connect Ethernet cables to RJ‑45 ports and SFP modules as required.
3. Access the device via default IP address using a web browser or console.
4. Configure network parameters, VLANs, redundancy settings, and PoE management.
5. Integrate the switch into the Open‑Vision management platform for centralized monitoring.

Safety Notes:
- Ensure proper grounding to prevent ESD damage.
- Use industrial‑grade shielded cables for optimal EMI protection.
- Avoid exceeding total PoE power budget when connecting multiple PDs.

---

### 7. Performance & Capabilities

Switching Performance:
- Switching Capacity: 5.6 Gbps (non‑blocking)
- Forwarding Rate: 4.17 Mpps (for 64‑byte packets)
- MAC Address Table: 8 K entries
- Packet Buffer Memory: 2 Mbits (typical)
- Latency: < 5 µs (store‑and‑forward architecture)

PoE Performance:
- Total PoE Power Budget: Up to 123 W (8 × 15.4 W)
- Detection & Classification: IEEE 802.3af compliant auto‑detection
- Protection: Overload, short‑circuit, and over‑temperature protection

Redundancy & Recovery:
- O‑Ring Recovery Time: < 10 ms over 250 switches
- O‑RSTP: Optimized Rapid Spanning Tree for complex topologies
- Open‑Ring: Interoperability with third‑party ring networks

Network Management:
- SNMP: v1/v2c/v3 with authentication and encryption
- RMON: Group 1, 2, 3, 9 for traffic monitoring
- QoS: Port‑based, 802.1p CoS, and TOS/DSCP prioritization
- VLAN: Port‑based, IEEE 802.1Q, and GVRP dynamic VLAN registration
- Port Trunking: Static and LACP (IEEE 802.3ad)
- IGMP Snooping: v1/v2/v3 for multicast traffic optimization
- Port Mirroring: For traffic analysis and diagnostics

Limitations:
- PoE limited to IEEE 802.3af (15.4 W per port); does not support 802.3at (PoE+).
- Layer 2 switching only; no Layer 3 routing functions.
- SFP ports limited to 1 Gbps maximum per interface.

---

### 8. Standards & Compliance

Ethernet Standards:
- IEEE 802.3 10Base‑T
- IEEE 802.3u 100Base‑TX
- IEEE 802.3ab 1000Base‑T
- IEEE 802.3z 1000Base‑X (SFP)
- IEEE 802.3x Flow Control
- IEEE 802.3af Power over Ethernet
- IEEE 802.1Q VLAN Tagging
- IEEE 802.1p QoS
- IEEE 802.1D Spanning Tree Protocol
- IEEE 802.1w Rapid Spanning Tree Protocol

Environmental & Electrical Compliance:
- ESD Protection: EN61000‑4‑2 (4 kV contact discharge)
- Radiated Susceptibility: EN61000‑4‑3
- EFT/Burst Immunity: EN61000‑4‑4
- Surge Immunity: EN61000‑4‑5 (2 kV DC)
- EMC Compliance: CE, FCC Class A
- Safety Standard: EN60950 (Information Technology Equipment Safety)

Ingress Protection: IP‑30 (dust‑resistant metal enclosure)

Certifications:
- CE Marking (European Conformity)
- FCC Part 15 (EMI/EMC compliance)
- RoHS compliant (lead‑free manufacturing)

---

### 9. Additional Information

Warranty:
5‑year limited hardware warranty covering manufacturing defects and component failures under normal operating conditions.

Technical Support:
ORing provides lifetime technical support via email, phone, and online resources. Firmware updates and configuration utilities are available through the manufacturer’s website.

Maintenance:
- Periodic inspection of power connections and grounding recommended.
- Firmware updates can be applied via web interface or Open‑Vision utility.
- Device logs and event notifications should be monitored for proactive maintenance.

Software & Firmware Updates:
- Managed through Open‑Vision or web interface.
- Supports remote firmware upgrade and configuration backup/restore.

Lifecycle & Reliability:
- Designed for continuous 24/7 operation in industrial environments.
- Fanless design reduces mechanical wear and increases MTBF.
- Suitable for long‑term deployment in unmanned or remote installations.

Ordering Information:
- Model: IPS‑3082GC
- Description: Industrial Managed Switch, 8×10/100TX PoE P.S.E. + 2×1000TX/SFP Combo Ports
- Accessories: SFP modules, power supplies, mounting kits (ordered separately)

---

### Summary

The ORing IPS‑3082GC is a high‑reliability, industrial‑grade managed Ethernet switch engineered for demanding network environments where uptime, redundancy, and power delivery are critical. With its combination of eight PoE ports and two Gigabit combo uplinks, it provides both data and power connectivity for distributed devices such as IP cameras, sensors, and controllers.

Its advanced redundancy mechanisms (O‑Ring, O‑RSTP, Open‑Ring) ensure near‑instantaneous recovery from network faults, while comprehensive management features (SNMP v3, RMON, VLAN, QoS, LLDP) enable precise control and monitoring. The rugged IP‑30 housing, extended temperature tolerance, and dual DC power inputs make it suitable for deployment in extreme industrial conditions.

Backed by a 5‑year warranty and supported by ORing’s Open‑Vision management platform, the IPS‑3082GC delivers a robust, scalable, and secure networking solution for modern industrial automation and control systems.
