Comprehensive Product Summary: MezIO-G4 – 4-Port Gigabit Ethernet MezIO™ Module
### 1. Product Overview
Product Name: MezIO-G4
Model Number: MezIO-G4
Series: MezIO™ Modular Expansion Series
Article Number: MezIO-G4
Manufacturer: Neousys Technology, Inc.
Product Type: Interchangeable expansion module providing four Gigabit Ethernet (GigE) ports
Compatible Systems: Nuvo-7160GC, Nuvo-7164GC, Nuvo-7000E/P/DE, Nuvo-5095GC, Nuvo-5000E/P Series
The MezIO-G4 is a modular I/O expansion solution designed by Neousys Technology to extend the networking capabilities of its embedded and industrial computing platforms. As part of the MezIO™ ecosystem, the G4 module integrates seamlessly with supported Nuvo-series embedded controllers, offering four independent Gigabit Ethernet ports powered by Intel® I210 controllers. It is engineered for high-performance data communication, industrial reliability, and flexible system integration, making it ideal for machine vision, industrial automation, and network-intensive applications.
### 2. Key Features
- Four Independent Gigabit Ethernet Ports:
Equipped with four Intel® I210 Ethernet controllers, each port supports full Gigabit throughput for high-speed data transfer and network redundancy.
- High-Performance Networking:
Supports 9.5 kB jumbo frames, enabling efficient large-packet data transmission and reducing CPU overhead in high-bandwidth applications.
- Industrial-Grade Design:
Built for rugged environments, the MezIO-G4 ensures stable operation in embedded systems deployed in industrial, transportation, and automation sectors.
- Seamless Integration with Nuvo Platforms:
Designed specifically for Neousys’ Nuvo-series embedded controllers, ensuring plug-and-play compatibility and unified system management.
- Flexible Cabling:
Compatible with CAT-5e or CAT-6 Ethernet cables up to 100 meters, supporting standard industrial networking infrastructure.
- Modular Expandability:
As part of the MezIO™ modular system, the G4 can be easily interchanged or combined with other MezIO modules (e.g., USB, serial, digital I/O, PoE+) to customize system functionality.
- Optional PoE+ Variant (MezIO-G4P):
A related model, the MezIO-G4P, adds IEEE 802.3at-2009 PoE+ capability, delivering up to 25.5 W per port for powering cameras, sensors, or other PoE devices.
### 3. Technical Specifications
| Parameter | Specification |
|----------------|-------------------|
| Model | MezIO-G4 |
| Ethernet Ports | 4x Gigabit Ethernet (GigE) ports |
| Ethernet Controller | 4x Intel® I210 controllers |
| Supported Frame Size | Up to 9.5 kB jumbo frame |
| PoE Capability | Not supported (see MezIO-G4P for PoE+) |
| Cable Type | CAT-5e or CAT-6 |
| Maximum Cable Length | 100 meters |
| Interface Type | MezIO™ modular interface (proprietary Neousys connection) |
| Compatibility | Nuvo-7160GC, Nuvo-7164GC, Nuvo-7000E/P/DE, Nuvo-5095GC, Nuvo-5000E/P |
| Operating System Support | Windows and Linux (via Intel® I210 driver support) |
| Power Requirements | Supplied via MezIO interface from host system |
| Physical Construction | Industrial-grade PCB with shielded RJ-45 connectors |
| Dimensions / Weight | Compact module form factor (dimensions consistent with MezIO standard, typically ~100 mm x 70 mm x 20 mm; weight < 200 g) |
| Operating Temperature | Matches host system range (typically -25°C to +70°C) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 10%–90%, non-condensing |
### 4. Functionality
The MezIO-G4 functions as a modular network expansion card that adds four independent Gigabit Ethernet interfaces to compatible Neousys embedded systems. Each port operates through a dedicated Intel® I210 controller, ensuring consistent throughput and low-latency communication across all channels.
How It Works:
The module connects to the host system via the proprietary MezIO™ interface, which provides both data and power connections. Once installed, the host operating system recognizes the four Intel® I210 network interfaces, allowing standard driver installation and configuration. The module supports advanced Ethernet features such as VLAN tagging, link aggregation, and jumbo frames, depending on the host system’s configuration.
Use Cases and Applications:
- Machine Vision Systems: Connect multiple GigE cameras for synchronized image acquisition.
- Industrial Automation: Interface with PLCs, sensors, and controllers over Ethernet.
- Network Redundancy: Provide multiple network paths for fault-tolerant communication.
- Edge Computing: Enable high-bandwidth data transfer between distributed devices.
- Surveillance and Security: Support multiple IP cameras or networked sensors.
Compatibility:
The MezIO-G4 is compatible with a range of Neousys embedded platforms, including:
- Nuvo-7160GC / Nuvo-7164GC (GPU computing platforms)
- Nuvo-7000E/P/DE (industrial controllers)
- Nuvo-5095GC / Nuvo-5000E/P (compact embedded systems)
### 5. Components & Accessories
Included Components:
- MezIO-G4 module (4x Gigabit Ethernet ports)
- Mounting screws and hardware for secure installation
- Quick installation guide or documentation
Optional Accessories:
- MezIO-G4P: PoE+ variant with IEEE 802.3at-2009 compliance (up to 25.5 W per port)
- CAT-5e/CAT-6 Ethernet cables: Up to 100 m supported
- System-specific mounting brackets: Depending on host chassis
- Other MezIO modules: For additional I/O expansion (USB, serial, digital I/O, etc.)
Connectors:
- 4x RJ-45 Gigabit Ethernet connectors (shielded)
- 1x proprietary MezIO interface connector to host system
### 6. Installation & Setup
Requirements:
- Compatible Neousys system with available MezIO slot
- Appropriate driver support (Intel® I210 Ethernet driver)
- CAT-5e or CAT-6 Ethernet cables

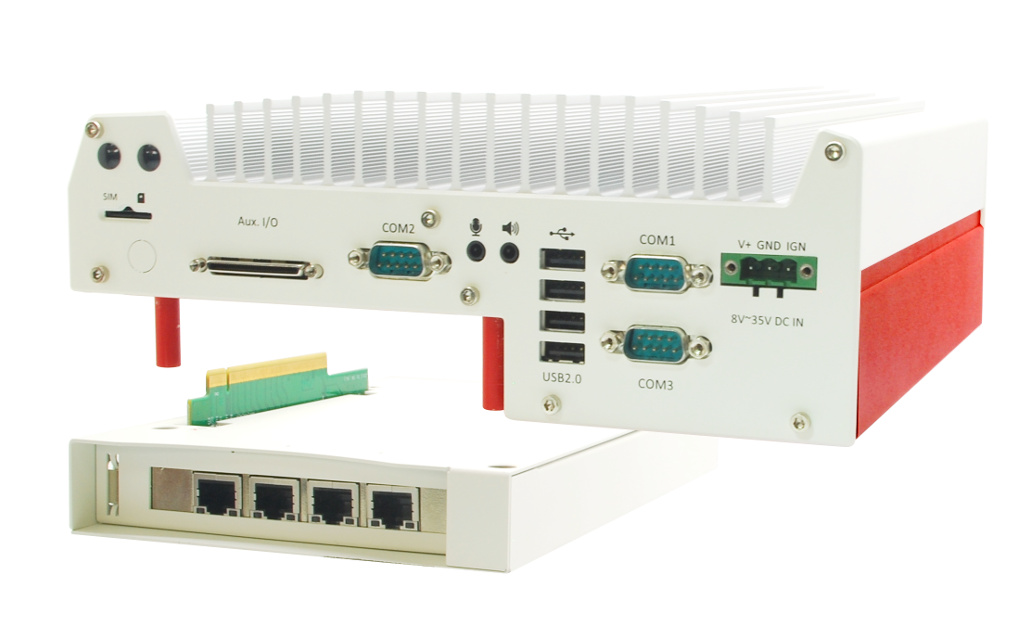

Installation Steps:
1. Power off the host system and disconnect external power sources.
2. Remove the system’s expansion bay cover to access the MezIO slot.
3. Align the MezIO-G4 module with the slot and secure it using the provided screws.
4. Connect the internal MezIO interface cable (if applicable).
5. Reassemble the chassis and power on the system.
6. Install the Intel® I210 network drivers under the desired operating system.
7. Configure network settings (IP address, VLAN, link aggregation, etc.) as required.
Mounting Options:
- Direct internal mounting within Nuvo-series chassis
- Secured via screw-lock mechanism to ensure vibration resistance
Configuration:
- Managed through standard OS network configuration tools
- Supports advanced Ethernet features (jumbo frames, flow control, etc.)
### 7. Performance & Capabilities
Network Throughput:
Each port supports full-duplex Gigabit Ethernet operation (1 Gbps per port), providing an aggregate bandwidth of up to 4 Gbps across all interfaces.
Jumbo Frame Support:
Up to 9.5 kB frame size, improving efficiency for large data transfers such as video streaming or bulk data acquisition.
Latency and Reliability:
Intel® I210 controllers are known for low-latency performance and robust driver support, ensuring stable and predictable network behavior.
Efficiency:
Hardware-based checksum offloading and interrupt moderation reduce CPU load, optimizing system performance for real-time applications.
Limitations:
- No Power over Ethernet (PoE) capability (use MezIO-G4P for PoE+ support)
- Limited to 100-meter cable length per Ethernet standard
- Requires compatible Neousys system with MezIO interface
Environmental Performance:
Designed to operate within the same environmental specifications as the host system, ensuring consistent performance in industrial conditions.
### 8. Standards & Compliance
Ethernet Standards:
- IEEE 802.3 (10BASE-T)
- IEEE 802.3u (100BASE-TX)
- IEEE 802.3ab (1000BASE-T)
- IEEE 802.3x (Flow Control)
- IEEE 802.1Q (VLAN tagging)
- IEEE 802.3az (Energy Efficient Ethernet)
PoE Standard (for G4P variant):
- IEEE 802.3at-2009 (PoE+), up to 25.5 W per port
Regulatory Compliance:
- CE, FCC, and RoHS compliant (in accordance with Neousys product line standards)
- Designed and manufactured under ISO 9001 quality management system
Industry Standards:
- Compatible with industrial Ethernet protocols and network topologies
- Supports standard TCP/IP, UDP, and real-time Ethernet communication
### 9. Additional Information
Warranty:
Typically covered under Neousys’ standard 3-year limited warranty, providing repair or replacement for manufacturing defects.
Technical Support:
Neousys offers comprehensive technical support, including:
- Driver and firmware updates
- Integration assistance for Nuvo-series systems
- Online documentation and FAQs
Maintenance:
- Periodic inspection of connectors and cables recommended
- Firmware updates available through Neousys support portal
- No user-serviceable internal components; maintenance handled by authorized service centers
Product Lifecycle and Updates:
The MezIO-G4 is part of Neousys’ long-term support (LTS) product line, ensuring availability and compatibility for extended industrial deployments. Firmware and driver updates are periodically released to maintain compatibility with new operating systems and hardware revisions.
Related Products in the MezIO™ Family:
- MezIO-G4P: 4-Port GigE with PoE+ capability
- MezIO-U4: 4-Port USB 3.0 expansion module
- MezIO-C180/C181: 8-Port RS-232/422/485 communication modules
- MezIO-D230/D220: 32/16-Channel isolated digital I/O modules
- MezIO-V20: 16-mode ignition power control module for in-vehicle systems
- MezIO-R10/R11/R12: Storage and I/O combination modules supporting SATA and digital I/O
Manufacturer Contact:
- Neousys Technology, Inc.
Website: [www.neousys-tech.com](https://www.neousys-tech.com)
Headquarters: Taipei, Taiwan
Support Email: support@neousys-tech.com
### Summary
The Neousys MezIO-G4 is a robust, high-performance 4-port Gigabit Ethernet expansion module designed for industrial and embedded computing applications. Leveraging Intel® I210 controllers, it delivers reliable, low-latency network connectivity with support for jumbo frames and advanced Ethernet features. Its modular design allows seamless integration with Neousys’ Nuvo-series systems, enabling flexible system configuration for diverse industrial use cases such as machine vision, automation, and edge computing.
For applications requiring Power over Ethernet, the MezIO-G4P variant extends functionality with IEEE 802.3at PoE+ compliance, providing up to 25.5 W per port. Together, these modules exemplify Neousys’ commitment to modular, scalable, and industrial-grade computing solutions.
### 1. Product Overview
Product Name: MezIO-G4
Model Number: MezIO-G4
Series: MezIO™ Modular Expansion Series
Article Number: MezIO-G4
Manufacturer: Neousys Technology, Inc.
Product Type: Interchangeable expansion module providing four Gigabit Ethernet (GigE) ports
Compatible Systems: Nuvo-7160GC, Nuvo-7164GC, Nuvo-7000E/P/DE, Nuvo-5095GC, Nuvo-5000E/P Series
The MezIO-G4 is a modular I/O expansion solution designed by Neousys Technology to extend the networking capabilities of its embedded and industrial computing platforms. As part of the MezIO™ ecosystem, the G4 module integrates seamlessly with supported Nuvo-series embedded controllers, offering four independent Gigabit Ethernet ports powered by Intel® I210 controllers. It is engineered for high-performance data communication, industrial reliability, and flexible system integration, making it ideal for machine vision, industrial automation, and network-intensive applications.
### 2. Key Features
- Four Independent Gigabit Ethernet Ports:
Equipped with four Intel® I210 Ethernet controllers, each port supports full Gigabit throughput for high-speed data transfer and network redundancy.
- High-Performance Networking:
Supports 9.5 kB jumbo frames, enabling efficient large-packet data transmission and reducing CPU overhead in high-bandwidth applications.
- Industrial-Grade Design:
Built for rugged environments, the MezIO-G4 ensures stable operation in embedded systems deployed in industrial, transportation, and automation sectors.
- Seamless Integration with Nuvo Platforms:
Designed specifically for Neousys’ Nuvo-series embedded controllers, ensuring plug-and-play compatibility and unified system management.
- Flexible Cabling:
Compatible with CAT-5e or CAT-6 Ethernet cables up to 100 meters, supporting standard industrial networking infrastructure.
- Modular Expandability:
As part of the MezIO™ modular system, the G4 can be easily interchanged or combined with other MezIO modules (e.g., USB, serial, digital I/O, PoE+) to customize system functionality.
- Optional PoE+ Variant (MezIO-G4P):
A related model, the MezIO-G4P, adds IEEE 802.3at-2009 PoE+ capability, delivering up to 25.5 W per port for powering cameras, sensors, or other PoE devices.
### 3. Technical Specifications
| Parameter | Specification |
|----------------|-------------------|
| Model | MezIO-G4 |
| Ethernet Ports | 4x Gigabit Ethernet (GigE) ports |
| Ethernet Controller | 4x Intel® I210 controllers |
| Supported Frame Size | Up to 9.5 kB jumbo frame |
| PoE Capability | Not supported (see MezIO-G4P for PoE+) |
| Cable Type | CAT-5e or CAT-6 |
| Maximum Cable Length | 100 meters |
| Interface Type | MezIO™ modular interface (proprietary Neousys connection) |
| Compatibility | Nuvo-7160GC, Nuvo-7164GC, Nuvo-7000E/P/DE, Nuvo-5095GC, Nuvo-5000E/P |
| Operating System Support | Windows and Linux (via Intel® I210 driver support) |
| Power Requirements | Supplied via MezIO interface from host system |
| Physical Construction | Industrial-grade PCB with shielded RJ-45 connectors |
| Dimensions / Weight | Compact module form factor (dimensions consistent with MezIO standard, typically ~100 mm x 70 mm x 20 mm; weight < 200 g) |
| Operating Temperature | Matches host system range (typically -25°C to +70°C) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 10%–90%, non-condensing |
### 4. Functionality
The MezIO-G4 functions as a modular network expansion card that adds four independent Gigabit Ethernet interfaces to compatible Neousys embedded systems. Each port operates through a dedicated Intel® I210 controller, ensuring consistent throughput and low-latency communication across all channels.
How It Works:
The module connects to the host system via the proprietary MezIO™ interface, which provides both data and power connections. Once installed, the host operating system recognizes the four Intel® I210 network interfaces, allowing standard driver installation and configuration. The module supports advanced Ethernet features such as VLAN tagging, link aggregation, and jumbo frames, depending on the host system’s configuration.
Use Cases and Applications:
- Machine Vision Systems: Connect multiple GigE cameras for synchronized image acquisition.
- Industrial Automation: Interface with PLCs, sensors, and controllers over Ethernet.
- Network Redundancy: Provide multiple network paths for fault-tolerant communication.
- Edge Computing: Enable high-bandwidth data transfer between distributed devices.
- Surveillance and Security: Support multiple IP cameras or networked sensors.
Compatibility:
The MezIO-G4 is compatible with a range of Neousys embedded platforms, including:
- Nuvo-7160GC / Nuvo-7164GC (GPU computing platforms)
- Nuvo-7000E/P/DE (industrial controllers)

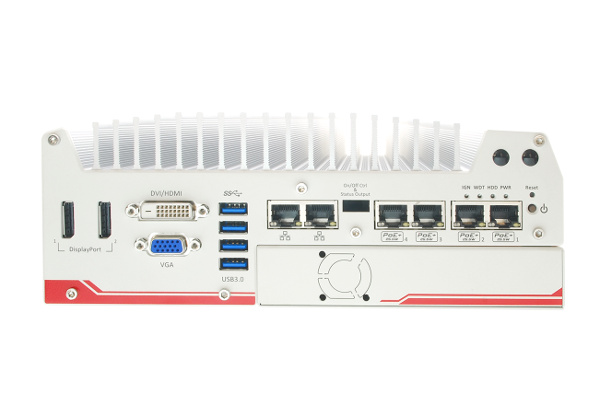

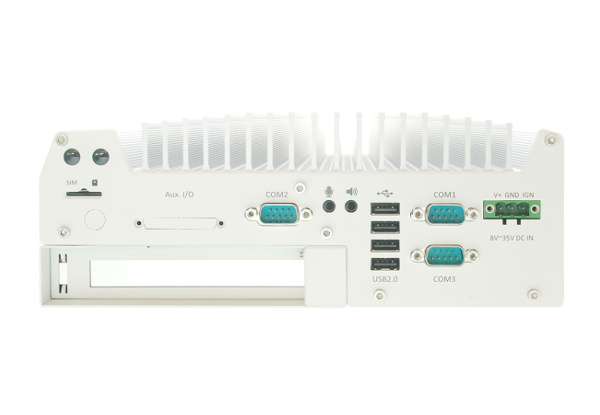

- Nuvo-5095GC / Nuvo-5000E/P (compact embedded systems)
### 5. Components & Accessories
Included Components:
- MezIO-G4 module (4x Gigabit Ethernet ports)
- Mounting screws and hardware for secure installation
- Quick installation guide or documentation
Optional Accessories:
- MezIO-G4P: PoE+ variant with IEEE 802.3at-2009 compliance (up to 25.5 W per port)
- CAT-5e/CAT-6 Ethernet cables: Up to 100 m supported
- System-specific mounting brackets: Depending on host chassis
- Other MezIO modules: For additional I/O expansion (USB, serial, digital I/O, etc.)
Connectors:
- 4x RJ-45 Gigabit Ethernet connectors (shielded)
- 1x proprietary MezIO interface connector to host system
### 6. Installation & Setup
Requirements:
- Compatible Neousys system with available MezIO slot
- Appropriate driver support (Intel® I210 Ethernet driver)
- CAT-5e or CAT-6 Ethernet cables
Installation Steps:
1. Power off the host system and disconnect external power sources.

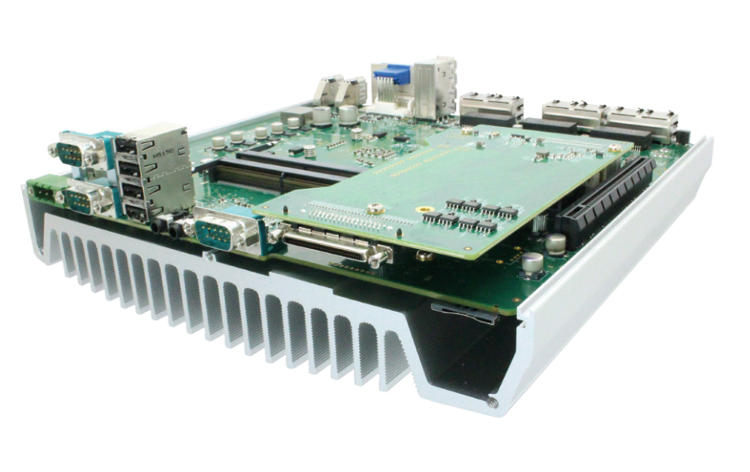

2. Remove the system’s expansion bay cover to access the MezIO slot.
3. Align the MezIO-G4 module with the slot and secure it using the provided screws.
4. Connect the internal MezIO interface cable (if applicable).
5. Reassemble the chassis and power on the system.
6. Install the Intel® I210 network drivers under the desired operating system.
7. Configure network settings (IP address, VLAN, link aggregation, etc.) as required.
Mounting Options:
- Direct internal mounting within Nuvo-series chassis
- Secured via screw-lock mechanism to ensure vibration resistance
Configuration:
- Managed through standard OS network configuration tools
- Supports advanced Ethernet features (jumbo frames, flow control, etc.)
### 7. Performance & Capabilities
Network Throughput:
Each port supports full-duplex Gigabit Ethernet operation (1 Gbps per port), providing an aggregate bandwidth of up to 4 Gbps across all interfaces.
Jumbo Frame Support:
Up to 9.5 kB frame size, improving efficiency for large data transfers such as video streaming or bulk data acquisition.
Latency and Reliability:
Intel® I210 controllers are known for low-latency performance and robust driver support, ensuring stable and predictable network behavior.
Efficiency:
Hardware-based checksum offloading and interrupt moderation reduce CPU load, optimizing system performance for real-time applications.
Limitations:
- No Power over Ethernet (PoE) capability (use MezIO-G4P for PoE+ support)
- Limited to 100-meter cable length per Ethernet standard
- Requires compatible Neousys system with MezIO interface
Environmental Performance:
Designed to operate within the same environmental specifications as the host system, ensuring consistent performance in industrial conditions.
### 8. Standards & Compliance
Ethernet Standards:
- IEEE 802.3 (10BASE-T)
- IEEE 802.3u (100BASE-TX)
- IEEE 802.3ab (1000BASE-T)
- IEEE 802.3x (Flow Control)
- IEEE 802.1Q (VLAN tagging)
- IEEE 802.3az (Energy Efficient Ethernet)
PoE Standard (for G4P variant):
- IEEE 802.3at-2009 (PoE+), up to 25.5 W per port
Regulatory Compliance:
- CE, FCC, and RoHS compliant (in accordance with Neousys product line standards)
- Designed and manufactured under ISO 9001 quality management system
Industry Standards:
- Compatible with industrial Ethernet protocols and network topologies
- Supports standard TCP/IP, UDP, and real-time Ethernet communication
### 9. Additional Information
Warranty:
Typically covered under Neousys’ standard 3-year limited warranty, providing repair or replacement for manufacturing defects.
Technical Support:
Neousys offers comprehensive technical support, including:
- Driver and firmware updates
- Integration assistance for Nuvo-series systems
- Online documentation and FAQs
Maintenance:
- Periodic inspection of connectors and cables recommended
- Firmware updates available through Neousys support portal
- No user-serviceable internal components; maintenance handled by authorized service centers
Product Lifecycle and Updates:
The MezIO-G4 is part of Neousys’ long-term support (LTS) product line, ensuring availability and compatibility for extended industrial deployments. Firmware and driver updates are periodically released to maintain compatibility with new operating systems and hardware revisions.
Related Products in the MezIO™ Family:
- MezIO-G4P: 4-Port GigE with PoE+ capability
- MezIO-U4: 4-Port USB 3.0 expansion module
- MezIO-C180/C181: 8-Port RS-232/422/485 communication modules
- MezIO-D230/D220: 32/16-Channel isolated digital I/O modules
- MezIO-V20: 16-mode ignition power control module for in-vehicle systems
- MezIO-R10/R11/R12: Storage and I/O combination modules supporting SATA and digital I/O
Manufacturer Contact:
- Neousys Technology, Inc.
Website: [www.neousys-tech.com](https://www.neousys-tech.com)
Headquarters: Taipei, Taiwan
Support Email: support@neousys-tech.com
### Summary
The Neousys MezIO-G4 is a robust, high-performance 4-port Gigabit Ethernet expansion module designed for industrial and embedded computing applications. Leveraging Intel® I210 controllers, it delivers reliable, low-latency network connectivity with support for jumbo frames and advanced Ethernet features. Its modular design allows seamless integration with Neousys’ Nuvo-series systems, enabling flexible system configuration for diverse industrial use cases such as machine vision, automation, and edge computing.
For applications requiring Power over Ethernet, the MezIO-G4P variant extends functionality with IEEE 802.3at PoE+ compliance, providing up to 25.5 W per port. Together, these modules exemplify Neousys’ commitment to modular, scalable, and industrial-grade computing solutions.
-
MezIO_Datasheet.pdf
PDF Catalog
Kein Zubehör vorhanden.
