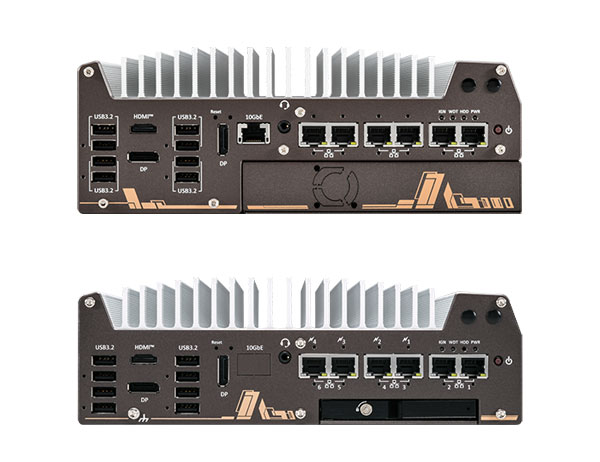

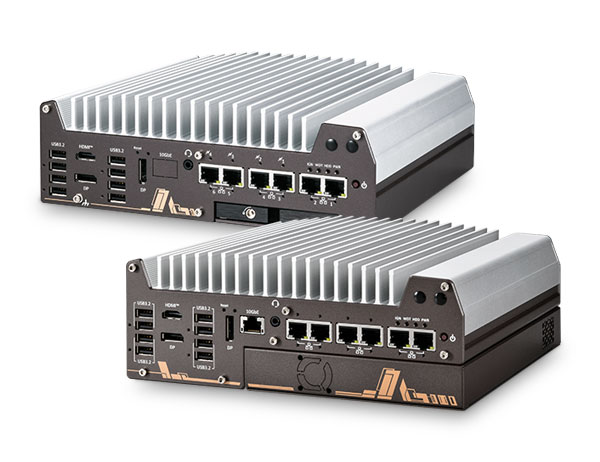

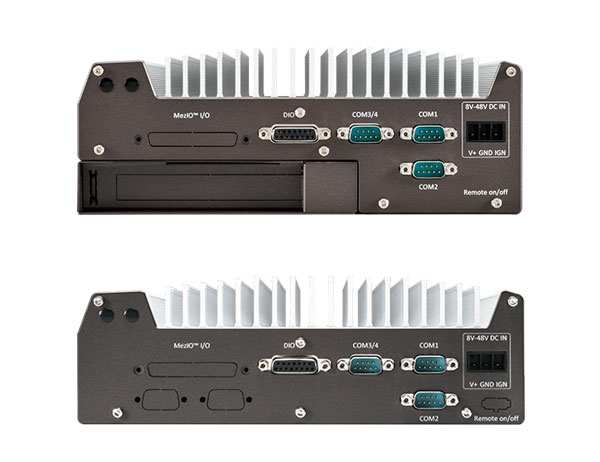

Nuvo-11002LP
Low-profile fanless embedded PC with Intel Core Ultra 200S and 2.5-inch HDD tray.
Low-profile rugged fanless embedded computer supporting Intel Core Ultra 200S LGA1851 35W/65W CPUs, Intel H810 chipset, up to 128GB DDR5-6400, 1x 2.5GbE plus 1x GbE, up to 2x USB 3.2 Gen2, 2x USB 3.2 Gen1 and 4x USB 2.0, 4 isolated DI and 4 isolated DO, HDMI, 2x DisplayPort, 2x software-programmable RS-232/422/485 and 2x RS-232, hot-swappable 2.5-inch HDD/SSD tray, internal SATA, 2x mini-PCIe, and MezIO interface.
- CPU Support Intel Core Ultra 200S series processors, LGA 1851, 35W and 65W TDP
- Supported CPU SKUs Core Ultra 9 285/285T; Core Ultra 7 265/265T; Core Ultra 5 245/245T
- Chipset Intel H810 Platform Controller Hub
- Graphics Integrated Intel Xe LPG Graphics
- AI Engine Integrated neural processing unit
- Maximum Memory 128 GB
- Memory Type non-ECC DDR5-6400 SDRAM, dual SODIMM
- Mini PCI Express 2x full-size mini PCI Express socket
- MezIO Expansion 1x MezIO expansion port
- Ethernet Ports 1x 2.5GbE by I226-IT and 1x Gigabit Ethernet by I219-LM
- Ethernet Connector Feature Screw-lock
- USB Ports 2x USB 3.2 Gen2; 2x USB 3.2 Gen1; 4x USB 2.0
- Isolated Digital Input Channels 4 channels
- Isolated Digital Output Channels 4 channels
- Digital I/O 4 isolated DI; 4 isolated DO
- HDMI Output 1x HDMI, up to 3840 x 2160
- DisplayPort Output 2x DisplayPort, up to 3840 x 2160
- Software Programmable Serial Ports 2x RS-232/422/485 (COM1/2)
- RS-232 Ports 2x RS-232 (COM3/4)
- Audio Interface 1x 3.5 mm jack for mic-in and speaker-out
- Drive Bay 1x hot-swappable 2.5-inch HDD/SSD tray
- Internal SATA Port 1x internal 2.5-inch SATA port, RAID 0/1
- DC Input Range 8 to 48 VDC
- Ignition Power Control Optional
- Remote Control Connector 1x 10-pin wafer connector for remote on/off and status LED output
- Dimensions 240 x 225 x 79 mm
- Weight 3.36 kg
- Mounting Wall-mount standard; DIN-rail mount optional
- Form Factor Low-profile wall-mount fanless embedded computer
- Connector Screw-lock Ethernet; Type-A USB; HDMI; DisplayPort; 3-pin terminal block DC input; 3.5 mm audio jack
- Dimensions 240 x 225 x 79 mm
- Operating Temperature with 35W CPU -25 to 70 °C
- Operating Temperature with 65W CPU -25 to 50 °C
- Storage Temperature -40 to 85 °C
- Humidity 10% to 90%, non-condensing
- Vibration MIL-STD-810H, Method 514.8, Category 4
- Shock MIL-STD-810H, Method 516.8, Procedure I
- Operating Temperature -25°C to 70°C (35W); -25°C to 50°C (65W configured as 35W TDP)
- EMC CE/FCC Class A, according to EN 55032 and EN 55035
- Bus Interface 2x mini-PCIe; 1x MezIO expansion port
- Resolution Up to 3840 x 2160
- Key Features Intel Core Ultra 200S support; low-profile fanless design; dual Ethernet; hot-swappable 2.5-inch HDD tray; isolated DIO; MezIO expansion; DDR5-6400
