• CPU Support Intel Core Ultra 200S series processors, LGA 1851, 35W and 65W TDP
• Supported CPU SKUs Core Ultra 9 285/285T; Core Ultra 7 265/265T; Core Ultra 5 245/245T
• Chipset Intel Q870 Platform Controller Hub
• Graphics Integrated Intel Xe LPG Graphics
• AI Engine Integrated neural processing unit
• AMT Support Intel vPro / AMT 16.0
• TPM dTPM 2.0
• Maximum Memory 128 GB
• Memory Type non-ECC DDR5-6400 SDRAM, dual SODIMM
• PCIe Cassette Slot 1x PCIe x16 slot, Gen4, 16 lanes
• Mini PCI Express 2x full-size mini PCI Express socket
• MezIO Expansion 1x MezIO expansion port
• Internal USB 2.0 1x USB 2.0 Type-A internal
• USB Ports 8x USB 3.2 Gen2
• Ethernet Ports 5x 2.5GbE by I226-IT and 1x Gigabit Ethernet by I219-LM
• 10GbE Option 1x optional 10GBASE-T Ethernet
• Ethernet Connector Feature Screw-lock
• PoE Option Optional IEEE 802.3at PoE+ PSE for Port 3 to Port 6, 100W total power budget
• Isolated Digital Input Channels 4 channels
• Isolated Digital Output Channels 4 channels
• Digital I/O 4 isolated DI; 4 isolated DO
• HDMI Output 1x HDMI, up to 3840 x 2160
• DisplayPort Output 2x DisplayPort, up to 3840 x 2160

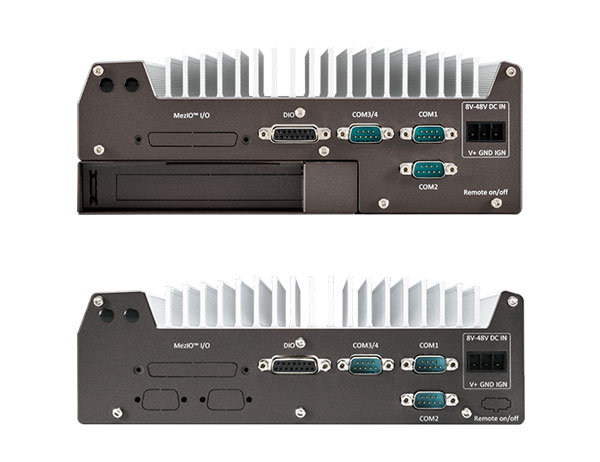

• Software Programmable Serial Ports 2x RS-232/422/485 (COM1/2)
• RS-232 Ports 2x RS-232 (COM3/4)
• Audio Interface 1x 3.5 mm jack for mic-in and speaker-out
• M.2 NVMe Slot 1x M.2 2280 M key NVMe socket, PCIe Gen5 x4
• NVMe Performance Read/write speeds over 11000 MB/s MB/s
• SATA Ports 2x internal SATA ports for 2.5-inch HDD/SSD, RAID 0/1
• DC Input Range 8 to 48 VDC
• Ignition Power Control Optional
• Remote Control Connector 1x 10-pin wafer connector for remote on/off and status LED output
• Dimensions 240 x 225 x 90 mm
• Weight 3.58 kg
• Mounting Wall-mount standard; DIN-rail mount optional

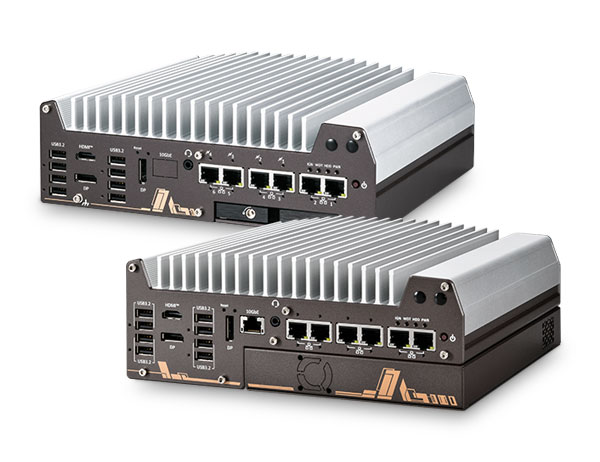

• Form Factor Wall-mount fanless embedded computer

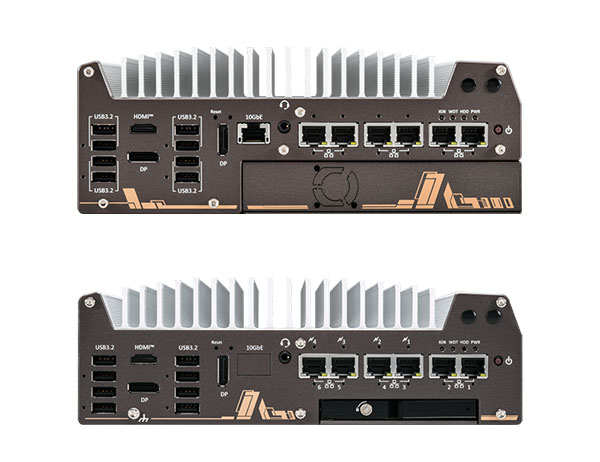

• Connector Screw-lock Ethernet; Type-A USB; HDMI; DisplayPort; 3-pin terminal block DC input; 3.5 mm audio jack
• Dimensions 240 x 225 x 90 mm
• Operating Temperature with 35W CPU -25 to 70 °C
• Operating Temperature with 65W CPU -25 to 50 °C
• 10GbE Temperature Limit Operational up to 60°C ambient
• Storage Temperature -40 to 85 °C
• Humidity 10% to 90%, non-condensing
• Vibration MIL-STD-810H, Method 514.8, Category 4
• Shock MIL-STD-810H, Method 516.8, Procedure I
• Operating Temperature -25°C to 70°C (35W); -25°C to 50°C (65W configured as 35W TDP); 10G LAN up to 60°C
• EMC CE/FCC Class A, according to EN 55032 and EN 55035
• Bus Interface 1x PCIe Gen4 x16 Cassette; 2x mini-PCIe; 1x MezIO expansion port
• Resolution Up to 3840 x 2160
• Key Features Intel Core Ultra 200S support; fanless operation; 5x 2.5GbE plus 1x GbE; optional 10GbE; optional PoE+; 8x USB 3.2 Gen2; isolated DIO; PCIe Cassette; MezIO expansion; AMT 16.0
