Nuvo-2610VTC

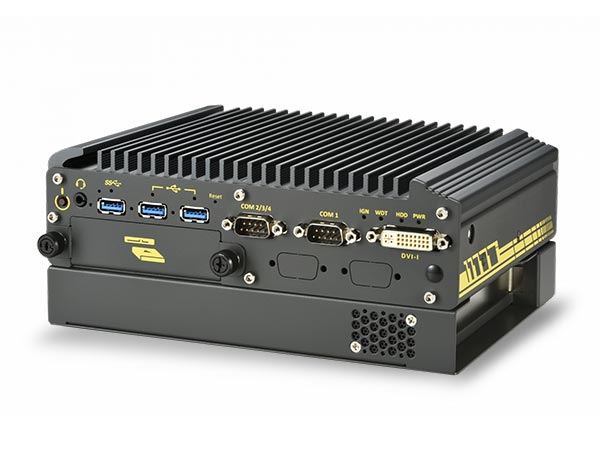

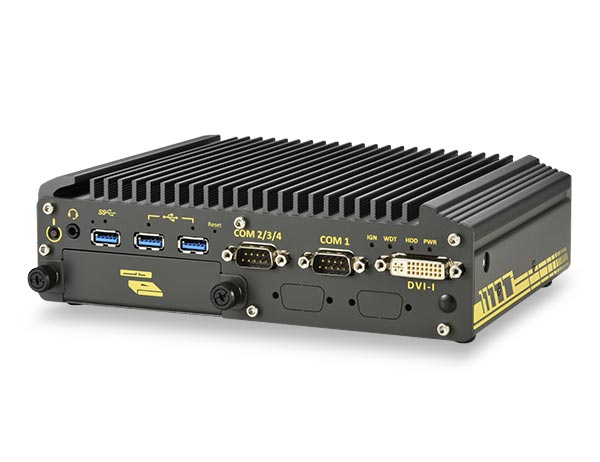

Intel Atom x6425E fanless vehicle computer with four M12 PoE+ ports and front-accessible HDD tray.
Intel Atom x6425E quad-core processor, 2.0/3.0 GHz, 12 W; integrated Intel UHD Graphics; up to 32 GB DDR4-3200 via one SODIMM. Four Intel I210 Gigabit Ethernet M12 X-coded PoE+ ports provide up to 25.5 W per port and a 100 W total budget. Storage includes an M.2 2280 SATA socket and a front-accessible 2.5-inch SATA HDD/SSD tray supporting drives up to 15 mm high and 5 TB. Two full-size mini-PCIe sockets and one M.2 3042/3052 B-key socket support expansion. Includes isolated serial and digital I/O, 8–35 VDC ignition-controlled input and fanless operation from -40 to 70°C. Specification-table dimensions: 205 × 155 × 58 mm; weight: 1.9 kg.
- Processor Intel Atom x6425E, Elkhart Lake, quad-core, 2.0/3.0 GHz, 12 W
- Graphics Integrated Intel UHD Graphics
- Maximum Memory 32 GB DDR4-3200 SDRAM via one SODIMM socket
- Trusted Platform Module fTPM 2.0 support

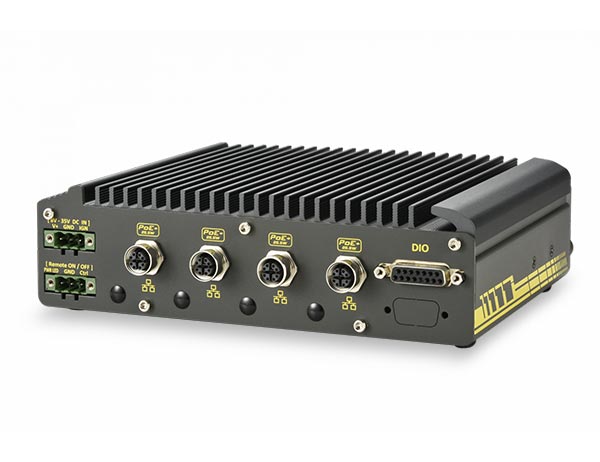

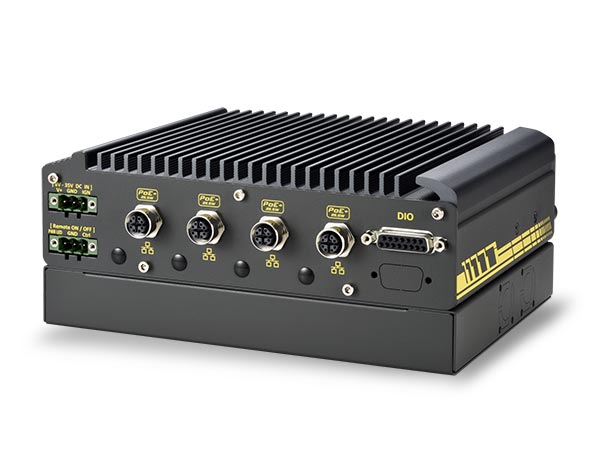

- Ethernet Ports 4 Gigabit Ethernet ports using Intel I210 controllers and M12 X-coded connectors
- PoE Standard and Power Budget IEEE 802.3at PoE+ PSE; maximum 25.5 W per port; 100 W total budget
- Display Outputs VGA and DVI dual display outputs via DVI-I
- USB Ports 1x USB 3.1 Gen1 and 2x USB 2.0, all with screw-lock
- Serial Ports COM1: isolated RS-485 with 15 kV ESD protection; COM2/3/4: three 3-wire RS-232 ports, or COM2 configured as RS-422/485
- Audio Connector One 3.5 mm jack for microphone input and speaker output
- Digital I/O Channels 4 isolated DI and 4 isolated DO
- Digital I/O 4 isolated digital inputs; 4 isolated digital outputs
- Mini-PCIe Sockets Two full-size sockets: one with PCIe and USB 2.0 signals, one with USB 2.0 signal; supports WiFi, CAN and GNSS modules
- Mobile Broadband Socket One M.2 3042/3052 B-key socket with USB 3.1 and USB 2.0 for 4G/5G modules; dual internal micro-SIM sockets
- Internal SSD Socket One M.2 2280 M-key socket; SATA interface only
- Front-Accessible Drive Tray One 2.5-inch SATA HDD/SSD tray; maximum drive height 15 mm; capacity up to 5 TB
- DC Input and Ignition Control 8–35 VDC via 3-pin pluggable terminal block; IGN/GND/V+; built-in ignition power control
- Remote Control and Power LED Output One 3-pin pluggable terminal block for remote control and PWR LED output
- Dimensions 205 × 155 × 58, W × D × H mm
- Weight 1.9 kg
- Mounting Options Damping bracket supplied by default; optional wall mounting
- Form Factor Fanless embedded vehicle computer
- Connector 4x M12 X-coded GbE; 1x DVI-I; 1x USB 3.1 Gen1; 2x USB 2.0; serial and DIO ports; 1x 3.5 mm audio jack; 2x 3-pin terminal blocks
- Dimensions 205 × 155 × 58 mm (W × D × H; specification table)
- Operating Temperature -40 to 70; fanless; wide-temperature HDD or SSD required for sub-zero operation °C
- Storage Temperature -40 to 85 °C
- Relative Humidity 10–90, non-condensing %
- Vibration Compliance Operating: MIL-STD-810G Method 514.7 Category 4; IEC 61373:2010 Category 1 Class B, body mounted
- Shock Compliance Operating: MIL-STD-810G Method 516.7 Procedure I; IEC 61373:2010 Category 1 Class B, body mounted
- Operating Temperature -40 to 70°C; wide-temperature HDD or SSD required below 0°C
- EMC and Vehicle Certification E-Mark; EN 50121 (EN 50155 EMC); CE/FCC Class A according to EN 55032 and EN 55035
- Railway Temperature Class EN 50155 Class OT4
- Front Panel Indicators IGN, WDT, HDD and PWR
- Key Features Intel Atom x6425E quad-core; fanless cooling; 4x M12 Gigabit PoE+; 100 W total PoE+ budget; front-accessible 15 mm HDD/SSD tray; M.2 SATA storage; 4G/5G module support; isolated DIO; ignition power control; E-Mark certified
- Previous-Generation CPU Performance Comparison Series delivers 1.8x the CPU performance of Nuvo-2510VTC
- Optional Ethernet Cables Cbl-M12X8M-RJ45-CAT5e-500CM: 5 m; Cbl-M12X8M-RJ45-CAT5e-1000CM: 10 m; both M12 8-pole X-coded to RJ45, CAT5e
- Optional Power Adapters PA-120W-OW: 120 W, 20 V/6 A; PA-160W-OW: 160 W, 20 V/8 A; both AC/DC, 18 AWG/120 cm leads, terminal-block cord ends, -30 to 70°C operation
- Optional Wall Mounting Kit Wmkit-Nuvo-2600; includes wall mounting brackets and screws; supports Nuvo-2600 and Nuvo-2610VTC series
- Bus Interface 2x full-size mini-PCIe; M.2 B-key USB 3.1/2.0; M.2 M-key SATA
- Accessories Cbl-M12X8M-RJ45-CAT5e-500CM, Cbl-M12X8M-RJ45-CAT5e-1000CM, PA-120W-OW, PA-160W-OW, Wmkit-Nuvo-2600
-
