Intel Atom x6425E vehicle computer with four M12 PoE+ ports and a PCIe expansion Cassette.
Intel Atom x6425E vehicle computer with four M12 PoE+ ports and a PCIe expansion Cassette. Intel Atom x6425E vehicle computer with four M12 PoE+ ports and a PCIe expansion Cassette. Intel Atom x6425E vehicle computer with four M12 PoE+ ports and a PCIe expansion Cassette. Intel Atom x6425E vehicle computer with four M12 PoE+ ports and a PCIe expansion Cassette.

Nuvo-2612VTC

Intel Atom x6425E vehicle computer with four M12 PoE+ ports and a PCIe expansion Cassette.
Angebot anfragen
  • Hersteller Neousys Technology
  • Kategorie: Industrial Computers

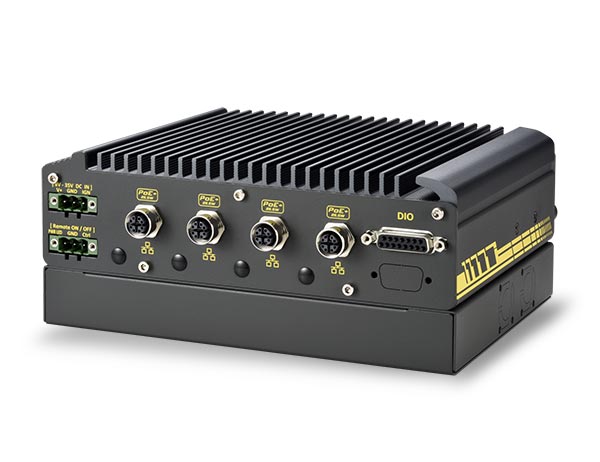

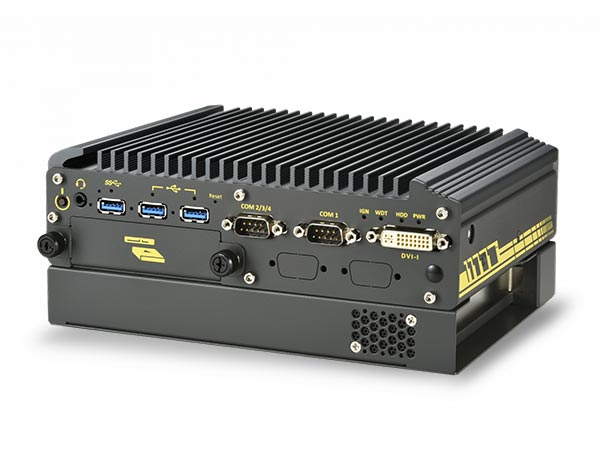

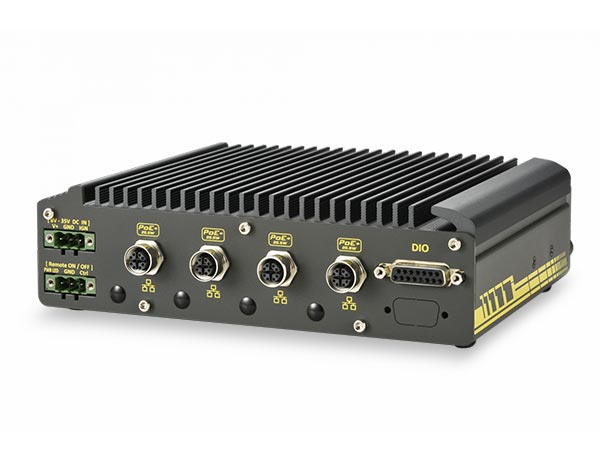

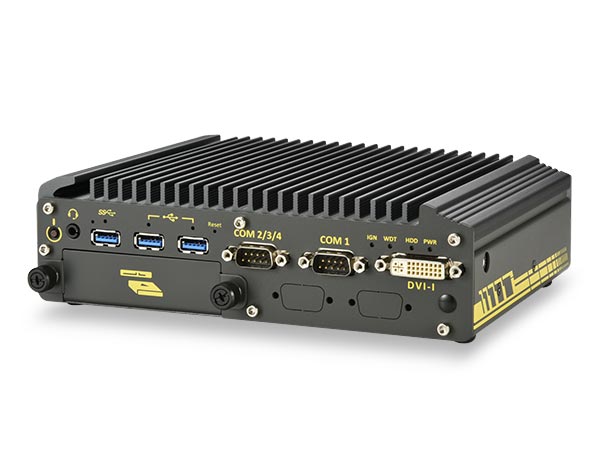

  • Der Nuvo-2612VTC ist ein robuster, lüfterloser Fahrzeugcomputer mit Intel Atom x6425E und einer PCIe-Cassette. Ihr PCIe-x4-Steckplatz mit Gen3-x2-Anbindung kann einen KI-Beschleuniger mit angepasster Kühllösung aufnehmen und ermöglicht intelligente Videoanalyse oder Datenaufzeichnung mit Wahrnehmungsfunktionen. Vier M12-Gigabit-PoE+-Ports verbinden Netzwerkgeräte. Für Daten stehen ein frontseitiger 2,5-Zoll-Einschub für Laufwerke bis 15 mm Höhe und ein M.2-SATA-Steckplatz bereit. Der Rechner unterstützt bis zu 32 GB DDR4, 8–35 VDC mit Zündungssteuerung und lüfterlosen Betrieb bei -40 bis 70 °C.
Intel Atom x6425E quad-core processor, 2.0/3.0 GHz, 12 W; Intel UHD Graphics; up to 32 GB DDR4-3200 via one SODIMM. Four Intel I210 Gigabit Ethernet M12 X-coded PoE+ ports provide up to 25.5 W per port and a 100 W total budget. A single-slot Cassette contains one PCIe x4 slot with Gen3 x2 signaling for expansion, including AI accelerators with a tailored thermal solution. Includes M.2 2280 SATA storage, a front-accessible 2.5-inch SATA tray for drives up to 15 mm and 5 TB, two mini-PCIe sockets and an M.2 3042/3052 B-key socket. Supports 8–35 VDC ignition-controlled input and -40 to 70°C fanless operation. Specification-table dimensions: 205 × 155 × 86 mm; page 2 drawing indicates 88 mm height. Weight: 2.3 kg.
  • Processor Intel Atom x6425E, Elkhart Lake, quad-core, 2.0/3.0 GHz, 12 W
  • Graphics Integrated Intel UHD Graphics
  • Maximum Memory 32 GB DDR4-3200 SDRAM via one SODIMM socket
  • Trusted Platform Module fTPM 2.0 support
  • Ethernet Ports 4 Gigabit Ethernet ports using Intel I210 controllers and M12 X-coded connectors
  • PoE Standard and Power Budget IEEE 802.3at PoE+ PSE; maximum 25.5 W per port; 100 W total budget
  • Display Outputs VGA and DVI dual display outputs via DVI-I
  • USB Ports 1x USB 3.1 Gen1 and 2x USB 2.0, all with screw-lock
  • Serial Ports COM1: isolated RS-485 with 15 kV ESD protection; COM2/3/4: three 3-wire RS-232 ports, or COM2 configured as RS-422/485
  • Audio Connector One 3.5 mm jack for microphone input and speaker output
  • Digital I/O Channels 4 isolated DI and 4 isolated DO
  • Digital I/O 4 isolated digital inputs; 4 isolated digital outputs
  • PCIe Expansion Slot One physical PCIe x4 slot with Gen3 two-lane signaling in a single-slot Cassette
  • AI Accelerator Support Cassette can accommodate an AI accelerator with a tailor-made thermal solution for video analytics or perception-capable data logging
  • Mini-PCIe Sockets Two full-size sockets: one with PCIe and USB 2.0 signals, one with USB 2.0 signal; supports WiFi, CAN and GNSS modules
  • Mobile Broadband Socket One M.2 3042/3052 B-key socket with USB 3.1 and USB 2.0 for 4G/5G modules; dual internal micro-SIM sockets
  • Internal SSD Socket One M.2 2280 M-key socket; SATA interface only
  • Front-Accessible Drive Tray One 2.5-inch SATA HDD/SSD tray; maximum drive height 15 mm; capacity up to 5 TB
  • DC Input and Ignition Control 8–35 VDC via 3-pin pluggable terminal block; IGN/GND/V+; built-in ignition power control
  • Remote Control and Power LED Output One 3-pin pluggable terminal block for remote control and PWR LED output
  • Dimensions 205 × 155 × 86, W × D × H, in specification table; page 2 drawing shows height 88 mm
  • Weight 2.3 kg
  • Mounting Options Damping bracket supplied by default; optional wall mounting
  • Form Factor Fanless embedded vehicle computer with single-slot PCIe Cassette
  • Connector 4x M12 X-coded GbE; 1x DVI-I; 1x USB 3.1 Gen1; 2x USB 2.0; serial and DIO ports; 1x 3.5 mm audio jack; 2x 3-pin terminal blocks
  • Dimensions 205 × 155 × 86 mm (W × D × H; specification table); drawing shows 88 mm height
  • Operating Temperature -40 to 70; fanless; wide-temperature HDD or SSD required for sub-zero operation °C
  • Storage Temperature -40 to 85 °C
  • Relative Humidity 10–90, non-condensing %
  • Vibration Compliance Operating: MIL-STD-810G Method 514.7 Category 4; IEC 61373:2010 Category 1 Class B, body mounted
  • Shock Compliance Operating: MIL-STD-810G Method 516.7 Procedure I; IEC 61373:2010 Category 1 Class B, body mounted
  • Operating Temperature -40 to 70°C; wide-temperature HDD or SSD required below 0°C
  • EMC and Vehicle Certification E-Mark; EN 50121 (EN 50155 EMC); CE/FCC Class A according to EN 55032 and EN 55035
  • Railway Temperature Class EN 50155 Class OT4
  • Front Panel Indicators IGN, WDT, HDD and PWR
  • Key Features Intel Atom x6425E quad-core; single-slot PCIe Cassette; PCIe Gen3 x2 signaling; AI accelerator expansion support; fanless cooling; 4x M12 Gigabit PoE+; 100 W total PoE+ budget; front-accessible 15 mm HDD/SSD tray; ignition power control; E-Mark certified
  • Previous-Generation CPU Performance Comparison Series delivers 1.8x the CPU performance of Nuvo-2510VTC
  • Optional Ethernet Cables Cbl-M12X8M-RJ45-CAT5e-500CM: 5 m; Cbl-M12X8M-RJ45-CAT5e-1000CM: 10 m; both M12 8-pole X-coded to RJ45, CAT5e
  • Optional Power Adapters PA-120W-OW: 120 W, 20 V/6 A; PA-160W-OW: 160 W, 20 V/8 A; both AC/DC, 18 AWG/120 cm leads, terminal-block cord ends, -30 to 70°C operation
  • Optional Wall Mounting Kit Wmkit-Nuvo-2600; includes wall mounting brackets and screws; supports Nuvo-2600 and Nuvo-2610VTC series
  • Bus Interface 1x PCIe x4 slot, Gen3 x2 signaling; 2x full-size mini-PCIe; M.2 B-key USB 3.1/2.0; M.2 M-key SATA
  • Accessories Cbl-M12X8M-RJ45-CAT5e-500CM, Cbl-M12X8M-RJ45-CAT5e-1000CM, PA-120W-OW, PA-160W-OW, Wmkit-Nuvo-2600
