- Intel® 3rd‑Gen Core™ i7/i5 CPU Support:
Compatible with Intel® Core™ i7‑3610QE (2.3/3.3 GHz, 6 MB cache) and i5‑3610ME (2.7/3.3 GHz, 3 MB cache), offering high‑performance quad‑core processing for video analytics and real‑time encoding.
- Fanless Thermal Design:
Neousys’ patented fanless architecture ensures silent operation and reliable performance in harsh environments, supporting wide‑temperature operation from ‑25 °C to +60 °C at full CPU load.
- 8× IEEE 802.3at PoE+ Ports:
Each port delivers up to 25.5 W with per‑port power on/off control and a total power budget of 80 W, enabling direct connection and powering of IP cameras (bullet, dome, or PTZ).
- Integrated RAID Storage:
Four internal SATA ports for 2.5" HDD/SSD with RAID 0/1/5/10 support. Two drives are accessible via easy‑swap trays for simplified maintenance.
- Wide‑Range DC Input (8–35 V):
Built‑in 3‑pin terminal block input with ignition power control for in‑vehicle or field deployment.
- Rich I/O Connectivity:
Includes 1× Intel® 82579LM GbE port (non‑PoE, AMT‑enabled), 2× USB 3.0, 2× USB 2.0, 2× RS‑232/422/485, 1× VGA, 2× DVI‑D, PS/2, audio I/O, and CFast socket.
- Dual Independent Display:
Intel® HD Graphics 4000 supports up to two simultaneous displays via DVI‑D and VGA outputs.
- Ignition Power Control:
MCU‑based ignition management with configurable on/off delay, low‑battery protection, and hard‑off timeout for automotive applications.
- Rugged Reliability:
Vibration resistance up to 5 Grms (IEC 60068‑2‑64) and shock resistance up to 50 Grms (IEC 60068‑2‑27) with SSD.
- Compact, Industrial‑Grade Chassis:
Aluminum alloy enclosure, wall‑mountable, 240 × 255 × 70 mm, 5 kg.
Compatible with Intel® Core™ i7‑3610QE (2.3/3.3 GHz, 6 MB cache) and i5‑3610ME (2.7/3.3 GHz, 3 MB cache), offering high‑performance quad‑core processing for video analytics and real‑time encoding.
- Fanless Thermal Design:
Neousys’ patented fanless architecture ensures silent operation and reliable performance in harsh environments, supporting wide‑temperature operation from ‑25 °C to +60 °C at full CPU load.
- 8× IEEE 802.3at PoE+ Ports:
Each port delivers up to 25.5 W with per‑port power on/off control and a total power budget of 80 W, enabling direct connection and powering of IP cameras (bullet, dome, or PTZ).
- Integrated RAID Storage:
Four internal SATA ports for 2.5" HDD/SSD with RAID 0/1/5/10 support. Two drives are accessible via easy‑swap trays for simplified maintenance.
- Wide‑Range DC Input (8–35 V):
Built‑in 3‑pin terminal block input with ignition power control for in‑vehicle or field deployment.
- Rich I/O Connectivity:
Includes 1× Intel® 82579LM GbE port (non‑PoE, AMT‑enabled), 2× USB 3.0, 2× USB 2.0, 2× RS‑232/422/485, 1× VGA, 2× DVI‑D, PS/2, audio I/O, and CFast socket.
- Dual Independent Display:
Intel® HD Graphics 4000 supports up to two simultaneous displays via DVI‑D and VGA outputs.
- Ignition Power Control:
MCU‑based ignition management with configurable on/off delay, low‑battery protection, and hard‑off timeout for automotive applications.
- Rugged Reliability:
Vibration resistance up to 5 Grms (IEC 60068‑2‑64) and shock resistance up to 50 Grms (IEC 60068‑2‑27) with SSD.
- Compact, Industrial‑Grade Chassis:
Aluminum alloy enclosure, wall‑mountable, 240 × 255 × 70 mm, 5 kg.

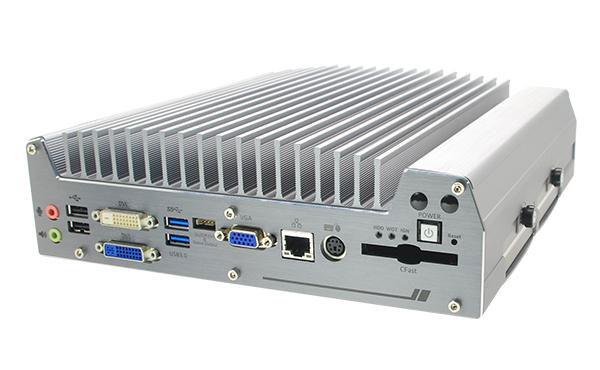

Comprehensive Product Summary – Nuvo‑3608VR Fanless Surveillance System
### 1. Product Overview
Product Name: Nuvo‑3608VR
Model / Article Number: Nuvo‑3608VR
Series: Nuvo‑3616VR / 3608VR Series
Manufacturer: Neousys Technology Inc.
Product Type: Fanless Surveillance System with 8× PoE+ Ports and RAID 0/1/5/10 Support
The Nuvo‑3608VR is a ruggedized, fanless surveillance platform designed for industrial, mobile, and stationary video monitoring applications. It integrates Intel® 3rd‑Generation Core™ i7/i5 processors, the Intel® QM77 chipset, and eight IEEE 802.3at PoE+ ports for direct IP camera connectivity. The system supports up to four 2.5" SATA drives with hardware RAID capability, providing a compact yet powerful solution for network video recording (NVR) and advanced video analytics.
### 2. Key Features
- Intel® 3rd‑Gen Core™ i7/i5 CPU Support:
Compatible with Intel® Core™ i7‑3610QE (2.3/3.3 GHz, 6 MB cache) and i5‑3610ME (2.7/3.3 GHz, 3 MB cache), offering high‑performance quad‑core processing for video analytics and real‑time encoding.
- Fanless Thermal Design:
Neousys’ patented fanless architecture ensures silent operation and reliable performance in harsh environments, supporting wide‑temperature operation from ‑25 °C to +60 °C at full CPU load.
- 8× IEEE 802.3at PoE+ Ports:
Each port delivers up to 25.5 W with per‑port power on/off control and a total power budget of 80 W, enabling direct connection and powering of IP cameras (bullet, dome, or PTZ).
- Integrated RAID Storage:
Four internal SATA ports for 2.5" HDD/SSD with RAID 0/1/5/10 support. Two drives are accessible via easy‑swap trays for simplified maintenance.
- Wide‑Range DC Input (8–35 V):
Built‑in 3‑pin terminal block input with ignition power control for in‑vehicle or field deployment.
- Rich I/O Connectivity:
Includes 1× Intel® 82579LM GbE port (non‑PoE, AMT‑enabled), 2× USB 3.0, 2× USB 2.0, 2× RS‑232/422/485, 1× VGA, 2× DVI‑D, PS/2, audio I/O, and CFast socket.
- Dual Independent Display:
Intel® HD Graphics 4000 supports up to two simultaneous displays via DVI‑D and VGA outputs.
- Ignition Power Control:
MCU‑based ignition management with configurable on/off delay, low‑battery protection, and hard‑off timeout for automotive applications.
- Rugged Reliability:
Vibration resistance up to 5 Grms (IEC 60068‑2‑64) and shock resistance up to 50 Grms (IEC 60068‑2‑27) with SSD.
- Compact, Industrial‑Grade Chassis:
Aluminum alloy enclosure, wall‑mountable, 240 × 255 × 70 mm, 5 kg.
### 3. Technical Specifications
| Category | Specification |
|---------------|-------------------|
| Processor Support | Intel® Core™ i7‑3610QE (2.3/3.3 GHz, 6 MB cache) / Intel® Core™ i5‑3610ME (2.7/3.3 GHz, 3 MB cache) |
| Chipset | Intel® QM77 PCH with AMT & RAID support |
| Graphics | Integrated Intel® HD Graphics 4000 |
| Memory | 2× 204‑pin SO‑DIMM DDR3 1333/1600 MHz, up to 16 GB |
| Ethernet | 1× Intel® 82579LM GbE port (AMT support, non‑PoE) |
| PoE+ Ports | 8× IEEE 802.3at (25.5 W each), 80 W total budget, per‑port power control |
| Video Outputs | 1× VGA (2048×1536), 2× DVI‑D (1920×1200) |
| USB | 2× USB 3.0, 2× USB 2.0 |
| Serial Ports | 2× RS‑232/422/485 software‑selectable (COM1 & COM2) |
| Audio | 1× Mic‑in, 1× Speaker‑out (Realtek ALC262 Codec) |
| Keyboard/Mouse | 1× 6‑pin Mini‑DIN PS/2 |
| Storage | 4× SATA ports for 2.5" HDD/SSD (RAID 0/1/5/10), 1× CFast socket |
| Expansion | 2× Mini PCIe slots (1 with USIM socket for 3G/4G modules) |
| Power Input | 8–35 V DC via 3‑pin terminal block (V+, GND, IGN) |
| Power Consumption | i7‑3610QE: 74.2 W (3.09 A @ 24 V); i5‑3610ME: 55.1 W (2.30 A @ 24 V) |
| Dimensions | 240 mm (W) × 255 mm (D) × 70 mm (H) |
| Weight | 5.0 kg |
| Mounting | Wall‑mount brackets included |
| Operating Temperature | ‑25 °C to +60 °C (@ 100% CPU load) |
| Storage Temperature | ‑40 °C to +85 °C |
| Humidity | 10–90% non‑condensing |
| Vibration | 5 Grms (5–500 Hz, 3 axes, SSD installed) |
| Shock | 50 Grms (half‑sine 11 ms, SSD installed) |
| EMC Compliance | CE/FCC Class A (EN 55022 & EN 55024) |
### 4. Functionality
The Nuvo‑3608VR functions as a high‑performance network video recorder and analytics platform. It connects directly to up to eight IP cameras via PoE+ ports, supplying both data and power through standard CAT‑5/6 cabling. Each port supports IEEE 802.3at PSE operation with automatic device detection and per‑port power control via Neousys’ API.
The system’s Intel® QM77 chipset enables hardware RAID for data redundancy or performance optimization. Combined with up to 16 GB DDR3 RAM and Intel® HD Graphics 4000, it supports real‑time video decoding, encoding, and analytic workloads such as motion detection, facial recognition, or object tracking.
Use Cases:
- Stationary or mobile surveillance (public transport, fleet, or facility monitoring)
- Industrial video analytics and machine vision
- Smart city and traffic management systems
- Security NVR deployments requiring rugged, fanless operation
Compatibility:
Supports Windows XP/7/8 (32/64‑bit), Ubuntu, Debian, Fedora, and CentOS Linux distributions. Intel® AMT allows remote management and Wake‑on‑LAN control.
### 5. Components & Accessories
Included Items:
- Nuvo‑3608VR main unit
- Wall‑mounting brackets and M4 screws
- 3‑pin pluggable terminal block for DC input
- Neousys Drivers & Utilities DVD
- Foot pads and assorted mounting screws
Optional Accessories:
- PA‑280W‑OW: 280 W AC/DC adapter (24 V/11.67 A, ‑30 °C to +60 °C operation, 16 AWG cable, 100 cm length, terminal block output).
Expansion Options:
- Mini‑PCIe modules (Wi‑Fi, 3G/4G/LTE, GPS, RAID controller, DOM storage)
- External antennas via SMA connectors
### 6. Installation & Setup
Power Requirements:
8–35 V DC input via 3‑pin terminal block (V+, GND, IGN). Ensure correct polarity and voltage before connection. Supports vehicle ACC ignition signal (12 V or 24 V).
Mounting Options:
Standard wall‑mount brackets allow horizontal or vertical installation. For optimal heat dissipation, mount vertically with fins oriented for natural convection.
Storage Installation:
Four SATA ports support 2.5" HDD/SSD. Two drives are internally mounted; two are accessible via front easy‑swap trays (non‑hot‑swappable). RAID configuration is set via BIOS or Intel RAID utility (CTRL‑I menu).
Memory Installation:
Two 204‑pin SO‑DIMM slots accept DDR3 modules up to 8 GB each.
Ignition Control Wiring:
Connect vehicle battery + to V+, battery – to GND, and ACC line to IGN. The MCU manages power‑on/off delays and battery protection.
Software Setup:
Drivers and utilities are provided on DVD with “one‑click” installation for Windows. Manual installation is supported for Linux systems.
### 7. Performance & Capabilities
- Processing Power: Quad‑core Intel® i7/i5 CPUs deliver multi‑threaded performance for real‑time video processing.
- Memory Bandwidth: Dual‑channel DDR3 1600 MHz supports up to 25.6 GB/s throughput.
- Storage Throughput: SATA 3 Gb/s interfaces with RAID 0/5/10 provide high I/O bandwidth for multi‑stream recording.
- PoE Power Delivery: 25.5 W per port (80 W total), sufficient for 8 PoE+ IP cameras.
- Graphics Capability: Intel® HD 4000 supports dual 1080p displays and hardware video acceleration.
- Environmental Endurance: Operates at full load from ‑25 °C to +60 °C; resists vibration and shock per IEC standards.
- Power Efficiency: Typical consumption 55–74 W depending on CPU and configuration.
- Limitations: Easy‑swap SATA trays are not hot‑pluggable; system must be powered off for drive replacement.
### 8. Standards & Compliance
- PoE Standard: IEEE 802.3at (PoE+) compliant PSE ports.
- Environmental Testing: IEC 60068‑2‑64 (vibration) and IEC 60068‑2‑27 (shock).
- EMC Compliance: CE and FCC Class A (EN 55022 & EN 55024).
- E‑Mark Certification: Approved for in‑vehicle applications.
- Safety and Reliability: Low‑power standby mode (< 2 mW) for ignition control; battery‑low shutdown protection.
### 9. Additional Information
Warranty & Support:
Neousys Technology provides standard manufacturer warranty and technical support for hardware and software components. Driver updates and utilities are available via the official website (www.neousys‑tech.com).
Maintenance:
- Periodically check terminal block connections and mounting screws.
- Ensure adequate airflow around the chassis for passive cooling.
- Use wide‑temperature HDD or SSD for sub‑zero operation.
Software Utilities:
- WDT_DIO Library: Provides API for watchdog timer and per‑port PoE control.
- RAID Configuration Utility: Intel RAID Option ROM (CTRL‑I) for volume setup.
- AMT Configuration: Remote management via Intel® Active Management Technology.
Firmware and BIOS Features:
- Configurable COM port modes (RS‑232/422/485).
- SATA controller modes (IDE/AHCI/RAID).
- Wake‑on‑LAN and Power‑on‑after‑failure options.
- Ignition control parameters (power‑on/off delay, hard‑off timeout, battery threshold).
- Watchdog timer for boot security and system recovery.
Operating System Support:
- Windows XP/7/8 (32/64‑bit)
- Ubuntu 10.10 or later, Debian 6.0+, Fedora 14+, CentOS 6.4+
- Linux kernel ≥ 2.6.19 recommended for AHCI/RAID support
Lifecycle and Embedded Support:
Compatible with Intel® Embedded Roadmap processors (7‑year lifecycle 2013–2019), ensuring long‑term availability for industrial deployments.
### Summary
The Neousys Nuvo‑3608VR is a robust, fanless surveillance computer engineered for demanding video recording and analytics environments. With eight PoE+ ports, RAID‑capable storage, and wide‑temperature operation, it bridges the gap between industrial reliability and high‑performance computing. Its flexible I/O, ignition control, and remote management capabilities make it ideal for transportation, security, and industrial automation applications requiring continuous, unattended operation in harsh conditions.
