Nuvo-5006LP - Neousys

Beschreibung

• Intel Core i3/i5/i7 Skylake low-profile fanless barebone system with Intel Q170 chipset
• up to 32GB DDR4 SODIMM (2 slots)
• AMT 11.0 and TPM 2.0 support
• 1* internal 2,5" SATA III HDD/SSD

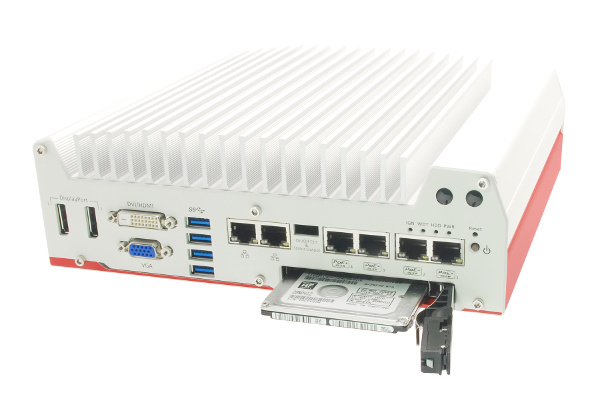

• 1* external 2,5" SATA III HDD/SSD in hot-swappable HDD tray
• RAID 0/1 support
• 1* Intel I219 and 5* Intel I210 GbE ports
• optional 4* PoE+ P.S.E. functionality compliant to IEEE802.3at for GbE ports 3-6 (total power budget 80W)
• Intel HD Graphics 530 with VGA/DVI-D/2*DisplayPort
• 4K2K support on DP ports
• 2* Mini-PCIe expansion slots (1* with front-accessible SIM card socket
• 1* with internal SIM card socket)
• MezIO expansion interface for Neousys MezIO modules
• 4* USB 3.0 (via native XHCI controller) and 4* USB 2.0 ports
• 2* RS232/422/485 (software-programmable) and 1* RS232 ports
• 1* Mic in and 1* Speaker out
• operating temperature -25°...+70°C (35W TDP) or -25°...+50°C (65/51W TDP) @100% CPU load
• vibration resistance up to 5Grms (5-500Hz 3 axes with SSD according to IEC60068-2-64)
• shock resistance up to 50Grms (half-sine 11ms duration with SSD according to IEC60068-2-27)
• power supply 8..35 VDC built in (120W AC/DC adapter optional)
• 240*225*77mm
• 3,1kg (including 2.5" HDD and 1* DDR3 SODIMM RAM)
• Neousys
