Comprehensive Product Summary – Nuvo-5104VTC Fanless In-Vehicle Controller

---

### 1. Product Overview

Product Name: Nuvo-5104VTC
Model: Nuvo-5104VTC
Series: Nuvo-5100VTC Series
Article Number: Nuvo-5104VTC
Manufacturer: Neousys Technology Inc.

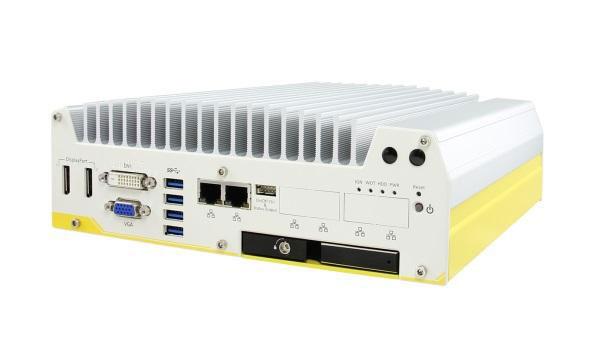

The Nuvo-5104VTC is a rugged, fanless in-vehicle embedded controller designed for demanding automotive, railway, and mobile computing applications. It belongs to the Nuvo-5100VTC series, which includes models with 4 or 8 PoE+ ports. The Nuvo-5104VTC variant features four RJ45 PoE+ ports and is optimized for vehicle-based surveillance, fleet management, and intelligent transportation systems. Manufactured by Neousys Technology, the system integrates Intel® 6th Generation Core™ processors, the Intel® Q170 chipset, and a wide range of I/O interfaces to deliver high performance, reliability, and environmental resilience.

---

### 2. Key Features

- Intel® 6th-Gen Core™ i7/i5/i3 CPU Support:
Supports LGA1151 processors including i7-6700TE, i5-6500TE, and i3-6100TE, offering up to 3.4 GHz clock speed and 35W TDP for high-performance computing in compact, fanless form.

- Fanless, Wide-Temperature Operation:
Operates reliably from -40°C to +70°C without active cooling, ideal for harsh in-vehicle or outdoor environments.

- Power over Ethernet (PoE+) Capability:
Four IEEE 802.3at (25.5W) Gigabit PoE+ ports via RJ45 connectors, each powered by Intel® I210 controllers, enabling direct connection and powering of IP cameras or sensors.

- Comprehensive I/O Connectivity:
Includes 2x Gigabit Ethernet, 4x USB 3.0, 4x USB 2.0, 3x COM ports (RS-232/422/485), 1x CAN 2.0 bus, 4x isolated digital inputs and outputs, and audio I/O.

- Multiple Display Outputs:
Supports triple independent displays via VGA, DVI-D, and dual DisplayPort interfaces, with resolutions up to 4096×2304.

- Flexible Storage and RAID Support:
Dual 2.5” SATA drive bays (one internal, one hot-swappable) supporting RAID 0/1 configurations for redundancy or performance.

- Expansion and Wireless Communication:
Four full-size mini-PCIe sockets with SIM card support for 3G/4G/Wi-Fi/GPS modules, including one mSATA-compatible slot.

- Ignition Power Control:
MCU-based ignition control with configurable on/off delays, low battery protection, and smart power management for automotive integration.

- Rugged Mechanical Design:
Compact aluminum chassis (240×225×79 mm) with patented damping bracket for vibration resistance up to 5 Grms and shock tolerance up to 50 Grms.

- Wide DC Input Range:
Accepts 8–35 VDC via a 3-pin pluggable terminal block, supporting ignition signal input and remote power control.

---

### 3. Technical Specifications

Processor Support:
- Intel® Core™ i7-6700TE (8MB cache, 2.4/3.4 GHz, 35W TDP)
- Intel® Core™ i5-6500TE (6MB cache, 2.3/3.3 GHz, 35W TDP)
- Intel® Core™ i3-6100TE (4MB cache, 2.7 GHz, 35W TDP)

Chipset: Intel® Q170 Platform Controller Hub
Graphics: Integrated Intel® HD Graphics 530
Memory: 2× DDR4 SO-DIMM slots, up to 32 GB DDR4-2133 SDRAM
Storage:
- 1× internal 2.5” SATA HDD/SSD
- 1× hot-swappable 2.5” SATA HDD/SSD tray (RAID 0/1 support)
- 1× full-size mSATA (mux with mini-PCIe)

Expansion:
- 4× full-size mini-PCIe sockets (1× panel-accessible SIM, 1× internal SIM/mSATA, 2× internal USB signal sockets)

I/O Interfaces:
- Ethernet: 2× Gigabit Ethernet (Intel® I219 + I210)
- PoE+: 4× IEEE 802.3at (25.5W) RJ45 ports (Intel® I210)
- USB: 4× USB 3.0, 4× USB 2.0
- Serial: 2× RS-232/422/485 (COM1, COM3), 1× RS-232 (COM2)
- Video: 1× VGA, 1× DVI-D, 2× DisplayPort (up to 4K2K)
- Audio: 1× Mic-in, 1× Speaker-out
- CAN Bus: 1× CAN 2.0 port
- Isolated DIO: 4× isolated DI, 4× isolated DO (2500 Vrms isolation)
- Remote Control: 10-pin wafer connector for on/off and status LED output

Power Input: 8–35 VDC via 3-pin terminal block
Ignition Control: Configurable on/off delay, low battery detection, smart off-delay
Dimensions: 240 mm (W) × 225 mm (D) × 79 mm (H)
Weight: 3.3 kg
Mounting: Standard damping bracket or optional DIN-rail kit
Operating Temperature: -40°C to +70°C (with SSD)
Storage Temperature: -40°C to +85°C
Humidity: 10–90%, non-condensing
Vibration: 5 Grms, 5–500 Hz, 3 axes (IEC60068-2-64)
Shock: 50 Grms, 11 ms half-sine (IEC60068-2-27)
Power Consumption:
- i7-6700TE: 49.2W (2.05A @ 24V)
- i5-6500TE: 47.8W (1.99A @ 24V)
- i3-6100TE: 39.4W (1.64A @ 24V)

---

### 4. Functionality

The Nuvo-5104VTC functions as a high-performance embedded controller for in-vehicle and mobile computing. It integrates processing, networking, and power management in a single ruggedized unit.

Use Cases:
- Mobile NVR (Network Video Recorder) for vehicle surveillance
- Fleet management and telematics systems
- Railway and public transport control systems
- Industrial automation and remote monitoring
- Edge computing for AI-based video analytics

Operation:
The system powers on via ignition signal, front power button, external switch, or Wake-on-LAN. The ignition control MCU manages power sequencing, ensuring safe startup and shutdown synchronized with vehicle ignition. The PoE+ ports power IP cameras or sensors directly, while the CAN bus and DIO interfaces enable communication with vehicle subsystems and sensors.

Compatibility:
Supports Windows 7/8/10 (x64), Windows Embedded Standard 7, and major Linux distributions (Ubuntu, Debian, CentOS, Fedora, OpenSUSE). Drivers and utilities are provided via Neousys’ installation DVD.

---

### 5. Components & Accessories

Included Items:
- Nuvo-5104VTC main unit
- Damping bracket with shock-absorbing grommets
- 3-pin power terminal block
- Key for HDD tray
- HDD thermal pad (for uninstalled drives)
- Screw pack
- Neousys Drivers & Utilities DVD

Optional Accessories:
- DINRAIL-O: DIN-rail mounting kit
- PA-120W-OW: 120W AC/DC power adapter (20V/6A, -30°C to +70°C)
- C-M12-RJ45-LAN-5M / 10M: M12 (8-pole X-coded) to RJ45 CAT6 cables (5m or 10m)

---

### 6. Installation & Setup

Requirements:
- DC power source (8–35VDC)
- Compatible CPU, memory, and storage modules
- Proper grounding and ESD precautions

Mounting Options:
- Standard anti-vibration damping bracket (horizontal installation recommended)
- Wall-mount configuration using M4 screws
- Optional DIN-rail mounting for cabinet integration

Configuration Steps:
1. Install CPU and memory modules (LGA1151 socket, DDR4 SO-DIMM).
2. Mount internal or external 2.5” SATA drives.
3. Connect DC power and ignition signal via terminal block.
4. Configure BIOS for SATA mode (AHCI/RAID), ignition control, and COM port modes.
5. Install operating system and drivers.
6. Optionally configure AMT, TPM, and watchdog timer functions.

Ignition Control Setup:
Rotary switch or BIOS configuration allows selection of 16 modes (0–15) with customizable power-on/off delays (from 160 ms to 2 hours) and hard-off timeouts. Smart off-delay and low-battery protection ensure safe operation in vehicles.

---

### 7. Performance & Capabilities

Processing Performance:
Powered by Intel® Skylake CPUs, the system delivers strong CPU and GPU performance for real-time video processing, analytics, and control applications.

Networking:
Dedicated PCIe lanes for each PoE+ port ensure full Gigabit throughput. Two additional GbE ports support data backhaul or redundancy.

Storage Performance:
Supports SATA 6 Gb/s and RAID 0/1 for high-speed or redundant data storage. Hot-swappable drive tray allows field replacement without downtime.

Power Efficiency:
Operates efficiently across 8–35VDC input range with ignition control minimizing idle power draw (<2 mW in standby). Each PoE+ port supplies up to 25.5W, compliant with IEEE 802.3at.

Environmental Robustness:
Designed for extreme conditions, the system withstands vibration (5 Grms) and shock (50 Grms) per IEC standards. Fanless design eliminates moving parts, enhancing reliability.

Limitations:
When using CPUs above 35W TDP, maximum ambient temperature is limited to 50°C. For sub-zero operation, SSDs or wide-temperature HDDs are required.

---

### 8. Standards & Compliance

Certifications:
- CE/FCC Class A (EN 55022, EN 55024, EN 55032)
- E-Mark (automotive compliance)
- EN 50155 / EN 50121-3-2 / EN 61373 (railway standards)
- RoHS compliant

Industry Standards:
- IEEE 802.3at PoE+
- CAN 2.0A/B
- SATA III (6 Gb/s)
- USB 3.0 / 2.0
- DisplayPort 1.2, DVI-D, VGA
- TPM 2.0, AMT 11.0

Regulatory Notes:
The Nuvo-5104VTC meets European and international EMC and safety standards for industrial and vehicular environments. Proper installation and use of CE-compliant cables are required to maintain certification.

---

### 9. Additional Information

Warranty & Support:
Neousys provides a standard limited warranty covering manufacturing defects. Firmware, BIOS, and driver updates are available through the official website. Technical support is accessible via regional offices in Taiwan, the USA, and China.

Maintenance:
- Only qualified personnel should service the system.
- Disconnect power before servicing.
- Use ESD protection when handling internal components.
- Keep ventilation surfaces clean and unobstructed.

Software & Updates:
- Drivers and utilities provided on DVD or downloadable from Neousys.
- WDT_DIO driver package enables watchdog, DIO, PoE control, and ignition APIs.
- BIOS updates and AMT configuration supported for remote management.

Contact Information:
- Headquarters: Neousys Technology Inc., New Taipei City, Taiwan
- Americas: Neousys Technology America Inc., Northbrook, IL, USA
- China: Neousys Technology (China) Ltd., Shanghai

Website: [www.neousys-tech.com](https://www.neousys-tech.com)
Email: sales@neousys-tech.com

---

### Summary

The Nuvo-5104VTC is a robust, fanless in-vehicle controller engineered for mission-critical mobile computing. Combining Intel® 6th-Gen Core™ processing power, wide-temperature operation, and extensive I/O—including 4× PoE+ RJ45 ports, CAN bus, and isolated DIO—it provides a reliable platform for vehicle-based surveillance, fleet management, and industrial automation. Its ignition power control, RAID storage, and rugged mechanical design ensure dependable performance in harsh environments. Certified for CE/FCC and E-Mark compliance, the Nuvo-5104VTC exemplifies Neousys’ commitment to high-quality embedded computing solutions for transportation and industrial sectors.
