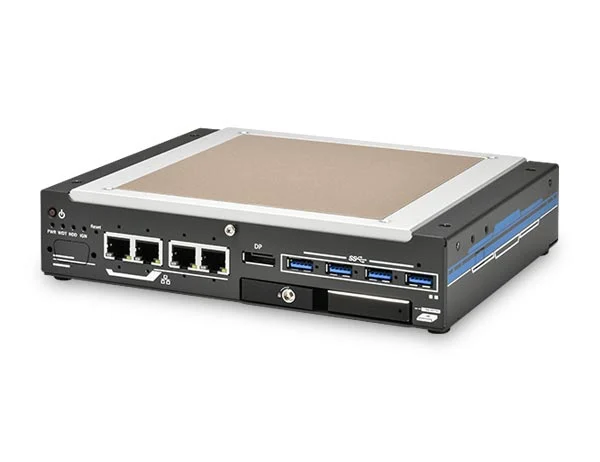

Nuvo-9531-FT
Compact fanless computer with flattop heatsink, 4x 2.5GbE and hot-swappable storage.
Low-profile fanless embedded computer supporting Intel 14th/13th/12th-Gen LGA1700 processors with 65W or 35W TDP. It provides up to 32GB DDR4-3200, four 2.5GbE ports, four USB 3.2 Gen1 ports, isolated 4-channel DI and 4-channel DO, VGA and DisplayPort, an M.2 2280 PCIe Gen4 x4 NVMe socket, and a hot-swappable 2.5-inch HDD/SSD tray. The 212 x 165 x 45 mm system accepts 8–48V DC and operates fanlessly from -25°C to 60°C under the specified conditions.
- Supported Processor Generations Intel Core 14th, 13th and 12th generation
- Processor Socket LGA1700
- Supported Processor TDP 35 or 65 W
- Maximum Processor Configuration Up to 24 cores / 32 threads
- Chipset Intel H610E platform controller hub
- Maximum Memory 32 GB
- Memory Type Non-ECC DDR4-3200 SDRAM
- Memory Slots 1x SODIMM
- Ethernet Ports 4x 2.5GBASE-T
- Ethernet Controller Intel I226-IT
- PoE Support Optional IEEE 802.3at PoE+ PSE on 4 Ethernet ports
- PoE Power Budget 100 W
- USB 3.2 Ports 4x USB 3.2 Gen1 with screw-lock
- USB 3.2 Data Rate 5 Gbps
- USB 2.0 Ports 2
- Isolated Digital Input Channels 4 channels
- Isolated Digital Output Channels 4 channels
- Digital I/O 4-channel isolated DI and 4-channel isolated DO
- VGA Outputs 1
- Maximum VGA Resolution 1920 x 1200 pixels
- DisplayPort Outputs 1
- Maximum DisplayPort Resolution 4096 x 2304 pixels
- NVMe Socket 1x M.2 2280 M key, PCIe Gen4 x4
- Maximum NVMe Transfer Speed 7000 MB/s
- Removable Drive Bay 1x hot-swappable 2.5-inch HDD/SSD tray for 7mm drives
- Mini PCI Express Sockets 2x full-size with internal SIM sockets
- M.2 E Key Socket 1x M.2 2230 E key
- M.2 E Key Module Support WiFi 5, WiFi 6 or Google Edge TPU
- Programmable Serial Port 1x software-programmable RS-232/422/485
- Additional Serial Ports 3x 3-wire RS-232 or 1x RS-422/485
- Audio Connector 1x 3.5mm mic-in and speaker-out jack
- DC Input Range 8–48 V DC
- DC Input Connector 3-pin pluggable terminal block
- Ignition Power Control Optional
- Dimensions 212 x 165 x 45 mm
- Weight 2.4 kg
- Cooling Design Fanless flattop heatsink

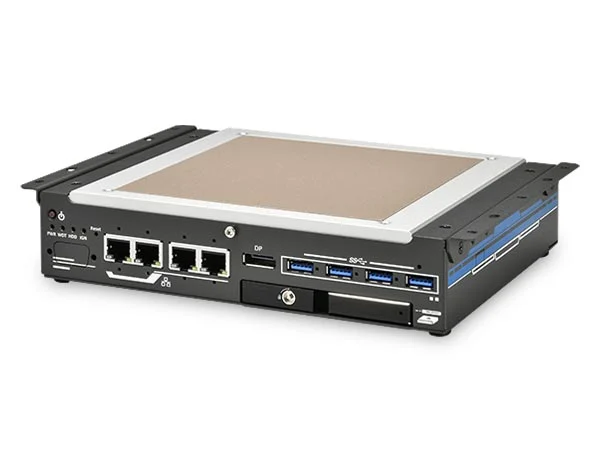

- Mounting Optional wall mount
- Form Factor Low-profile fanless embedded computer with flattop heatsink

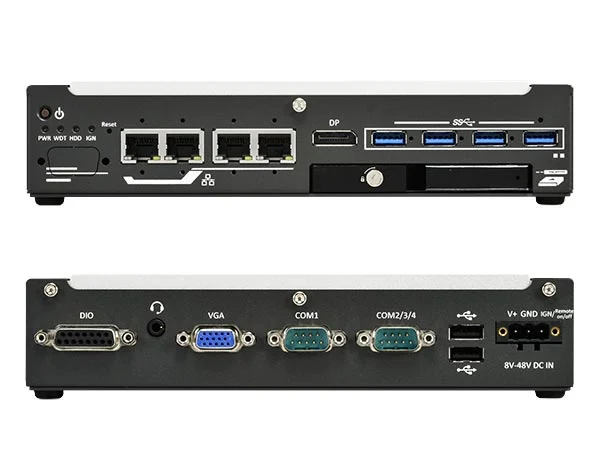

- Connector 4x RJ45 2.5GbE; 4x USB 3.2 Gen1; 2x USB 2.0; VGA; DisplayPort; COM; DIO; 3.5mm audio; 3-pin DC terminal block
- Dimensions 212 x 165 x 45 mm
- Operating Temperature -25 to 60 °C
- Storage Temperature -40 to 85 °C
- Relative Humidity 10 to 90, non-condensing %
- Vibration Standard MIL-STD-810H Method 514.8 Category 4
- Shock Standard MIL-STD-810H Method 516.8 Procedure I
- Operating Temperature -25°C to 60°C
- EMC Compliance CE/FCC Class A; EN 55032 and EN 55035
- TPM Support dTPM 2.0 with 35W CPU
- Bus Interface 2x full-size mini PCI Express; 1x M.2 2230 E key; 1x M.2 2280 M key PCIe Gen4 x4
- Resolution VGA up to 1920 x 1200; DisplayPort up to 4096 x 2304
- Key Features Intel 14th/13th/12th-Gen LGA1700 CPU support; flattop passive heatsink; -25°C to 60°C fanless operation; 4x 2.5GbE; optional 4-port PoE+ PSE; 4x screw-lock USB 3.2 Gen1; M.2 PCIe Gen4 x4 NVMe; hot-swappable 2.5-inch drive tray; isolated 4-DI/4-DO; dual display; optional ignition control
- Accessories PA-160W-OW, PA-280W-ET2, Wmkit-Nuvo-9531-FT
-
nuvo-9531-ft-catalog-faea6fa0.pdf PDF Catalog
- PA-160W-OW - 160W AC/DC power adapter 20V/8A
- PA-280W-ET2 - 280W AC/DC power adapter 24V/11.67A 16AWG
- Wmkit-Nuvo-9531-FT - Accessory for Nuvo-9531-FT
