- 8-inch Color TFT LCD Panel: Provides clear, vibrant image quality suitable for industrial and commercial display applications.
- Analog VGA Input: Standard VGA interface for easy connection to PCs, embedded controllers, and industrial computers.
- High Brightness: 400 cd/m² luminance ensures excellent visibility in various lighting conditions, including bright indoor environments.
- Open Frame Design: Facilitates easy integration into kiosks, control panels, and custom housings.
- OSD (On-Screen Display) Control: Allows users to adjust display parameters such as brightness, contrast, and color settings directly through an intuitive interface.
- Optional Input Interfaces: Expandable connectivity options including DVI, S-Video, RCA, and touch screen interfaces (RS-232 or USB).
- Durable Construction: Built with a steel chassis and front panel for enhanced mechanical strength and long-term reliability.
- Compact Dimensions: 219.5 mm (W) × 144.5 mm (H) × 44.5 mm (D), optimized for embedded and space-constrained installations.
- Wide Operating Temperature Range: Designed to operate reliably from 0°C to 50°C, suitable for most indoor industrial environments.
- Regulatory Compliance: Meets CE and FCC Class A standards for electromagnetic compatibility and safety.
- Analog VGA Input: Standard VGA interface for easy connection to PCs, embedded controllers, and industrial computers.
- High Brightness: 400 cd/m² luminance ensures excellent visibility in various lighting conditions, including bright indoor environments.
- Open Frame Design: Facilitates easy integration into kiosks, control panels, and custom housings.
- OSD (On-Screen Display) Control: Allows users to adjust display parameters such as brightness, contrast, and color settings directly through an intuitive interface.
- Optional Input Interfaces: Expandable connectivity options including DVI, S-Video, RCA, and touch screen interfaces (RS-232 or USB).
- Durable Construction: Built with a steel chassis and front panel for enhanced mechanical strength and long-term reliability.
- Compact Dimensions: 219.5 mm (W) × 144.5 mm (H) × 44.5 mm (D), optimized for embedded and space-constrained installations.
- Wide Operating Temperature Range: Designed to operate reliably from 0°C to 50°C, suitable for most indoor industrial environments.
- Regulatory Compliance: Meets CE and FCC Class A standards for electromagnetic compatibility and safety.
Comprehensive Product Summary: OPD-1080 8" Open Frame Color TFT LCD Display Kit (VGA)
### 1. Product Overview
Product Name: OPD-1080 8" Open Frame Color TFT LCD Display Kit (VGA)
Model Number: OPD-1080
Series: OPD Open Frame Display Series
Article Number: OPD-1080
Manufacturer: Aplex Technology Inc.

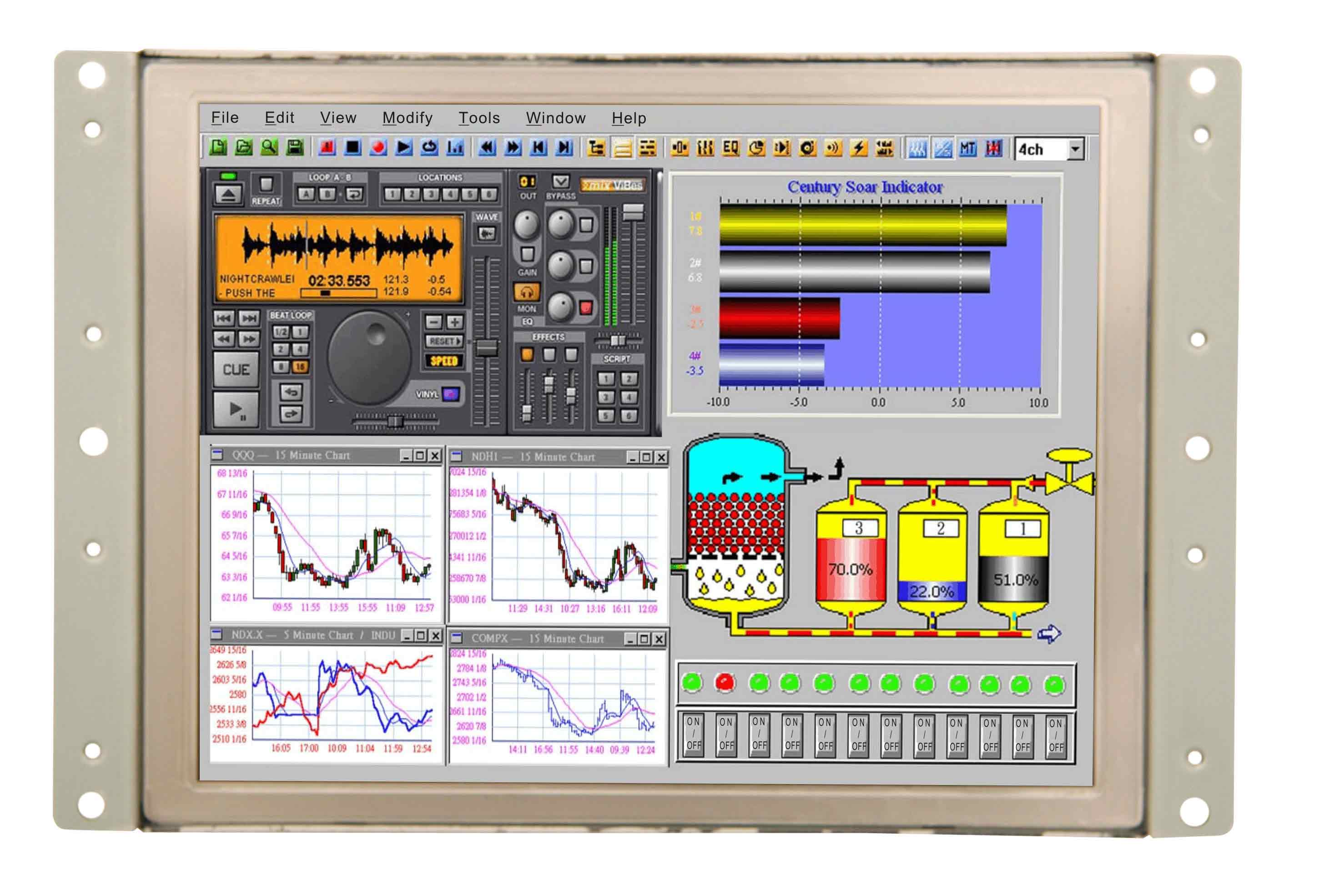

The Aplex OPD-1080 is a compact, industrial-grade 8-inch open-frame color TFT LCD display kit designed for embedded, kiosk, and industrial control applications. It combines robust mechanical construction with high-quality visual performance and flexible connectivity options. The display is engineered for integration into custom enclosures or systems where space efficiency, durability, and reliable image reproduction are critical.
### 2. Key Features
- 8-inch Color TFT LCD Panel: Provides clear, vibrant image quality suitable for industrial and commercial display applications.
- Analog VGA Input: Standard VGA interface for easy connection to PCs, embedded controllers, and industrial computers.
- High Brightness: 400 cd/m² luminance ensures excellent visibility in various lighting conditions, including bright indoor environments.
- Open Frame Design: Facilitates easy integration into kiosks, control panels, and custom housings.
- OSD (On-Screen Display) Control: Allows users to adjust display parameters such as brightness, contrast, and color settings directly through an intuitive interface.
- Optional Input Interfaces: Expandable connectivity options including DVI, S-Video, RCA, and touch screen interfaces (RS-232 or USB).
- Durable Construction: Built with a steel chassis and front panel for enhanced mechanical strength and long-term reliability.
- Compact Dimensions: 219.5 mm (W) × 144.5 mm (H) × 44.5 mm (D), optimized for embedded and space-constrained installations.
- Wide Operating Temperature Range: Designed to operate reliably from 0°C to 50°C, suitable for most indoor industrial environments.
- Regulatory Compliance: Meets CE and FCC Class A standards for electromagnetic compatibility and safety.
### 3. Technical Specifications
Display Type: 8-inch Color TFT LCD
Display Format: Open Frame Kit
Brightness: 400 cd/m²
Aspect Ratio: 4:3 (typical for 8-inch industrial displays)
Viewing Angle: Not specified (typical range for TFT panels: 140° H / 120° V)
Resolution: VGA-compatible (supports standard VGA resolutions via analog input)
Mechanical Specifications:
- Construction: Steel chassis and front panel
- Dimensions: 219.5 mm (W) × 144.5 mm (H) × 44.5 mm (D)
- Mounting Type: Open frame (for integration into custom enclosures or panel mounts)
- Weight: Not specified (estimated ~1.0–1.5 kg typical for 8" steel-framed displays)
Power Input:
- Voltage: DC 12V only
- Connector Type: 1 × DC power input (rear panel)
Environmental Specifications:
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
- Storage Temperature: -20°C to 60°C (-4°F to 140°F)
- Relative Humidity: 10% to 90% @ 40°C, non-condensing (without touch screen)
- Vibration Resistance: 1G peak, 5–500 Hz (random vibration)
- Shock Resistance: 15G peak acceleration, 11 ms duration
Certifications: CE / FCC Class A
### 4. Functionality
The OPD-1080 functions as a versatile display module for embedded and industrial systems. It receives video signals through its analog VGA input and renders them on an 8-inch TFT LCD panel with high brightness and color fidelity. The integrated OSD (On-Screen Display) control enables users to fine-tune display parameters directly, ensuring optimal image quality for different applications.
Use Cases and Applications:
- Industrial Automation: Integration into control panels, machine interfaces, and monitoring systems.
- Kiosk Systems: Ideal for public information terminals, ticketing machines, and interactive displays.
- Embedded Systems: Suitable for OEMs developing custom computing or display solutions.
- Point-of-Sale (POS) Terminals: Compact form factor fits retail and service environments.
- Testing and Measurement Equipment: Provides a reliable visual interface for instrumentation.
Compatibility:
- Compatible with standard VGA output devices including PCs, industrial computers, and embedded controllers.
- Optional interfaces (DVI, S-Video, RCA) expand compatibility with multimedia and legacy video sources.
- Optional touch screen interface supports RS-232 or USB connectivity for interactive applications.
### 5. Components & Accessories
Included Components:
- OPD-1080 8" Open Frame TFT LCD Display Module
- Integrated OSD control buttons (typically located on the rear or side panel)
- 1 × DC power input connector
- 1 × VGA input connector
Optional Accessories / Add-ons:
- DVI Input Module: For digital video signal input.
- S-Video Input: For analog video sources such as cameras or video players.
- RCA Input: For composite video input compatibility.
- Touch Screen Kit: Available with RS-232 or USB interface options for interactive control.
- Mounting Brackets or Frame Kits: For integration into custom housings or enclosures.
- Power Adapter (12V DC): External power supply unit (if not included).

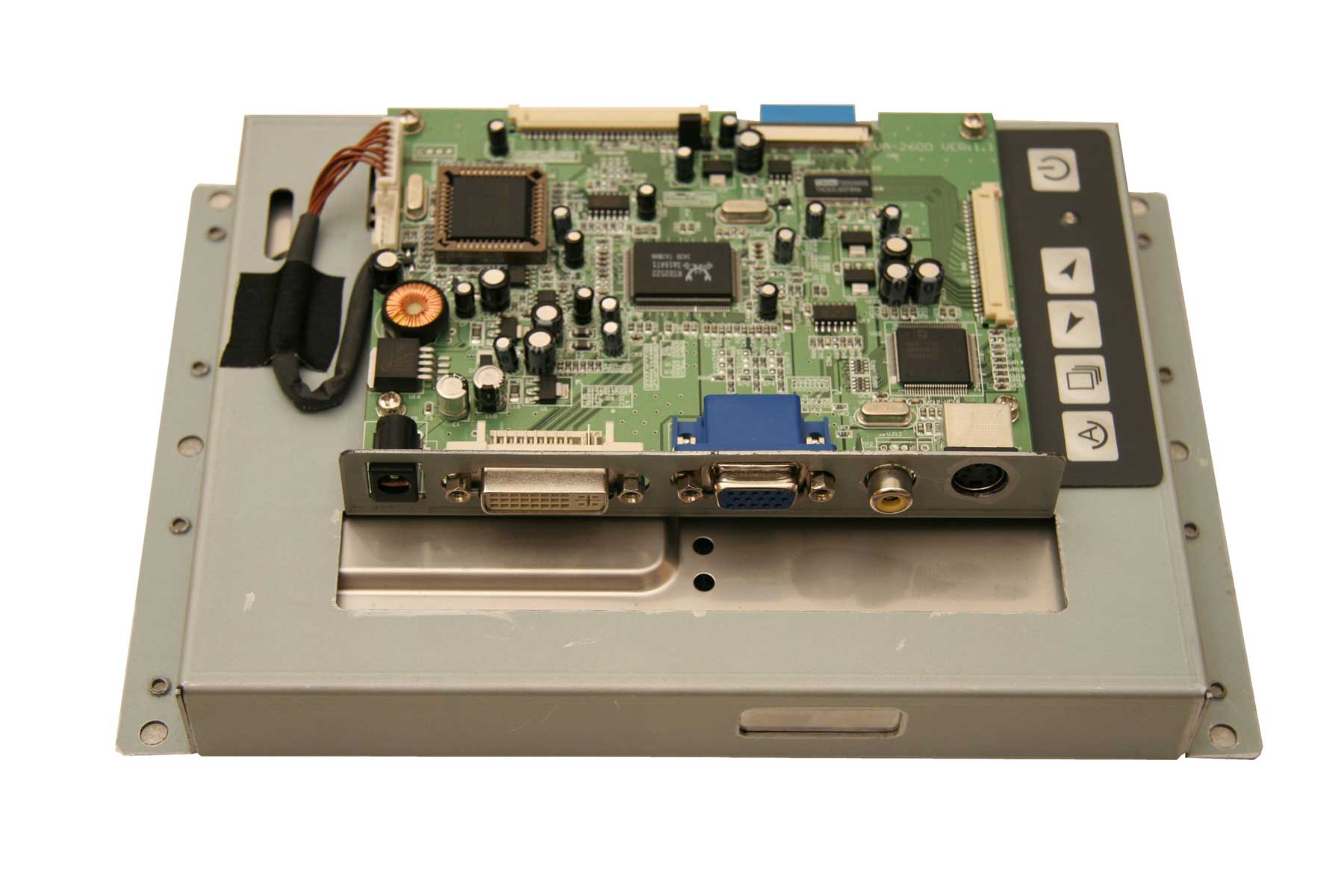

Rear Panel I/O Connectors:
- 1 × DC Power Input
- 1 × VGA Input
- Optional: DVI, S-Video, RCA, Touch (RS-232 or USB)
### 6. Installation & Setup
Installation Requirements:
- Power Supply: 12V DC regulated power source.
- Video Source: Device with VGA output (or optional DVI/S-Video/RCA depending on configuration).
- Mounting Environment: Suitable for integration into kiosks, control panels, or embedded systems with adequate ventilation.
Mounting Options:
- Open frame design allows flexible mounting using brackets, screws, or custom enclosures.
- Can be installed behind protective glass or within a front bezel for enhanced protection.
Configuration:
- Connect the VGA cable from the video source to the VGA input port.
- Connect the DC 12V power supply to the power input jack.
- Use OSD controls to adjust brightness, contrast, and display alignment.
- For optional touch screen models, connect the RS-232 or USB cable to the host system and install the appropriate driver.
Setup Notes:
- Ensure proper grounding and shielding to minimize electromagnetic interference.
- Avoid exposure to direct sunlight or high humidity during installation.
- Verify that the operating temperature range (0–50°C) is maintained for optimal performance.
### 7. Performance & Capabilities
Display Performance:
- Brightness: 400 cd/m² ensures clear visibility even under bright ambient lighting.
- Color Reproduction: High-quality TFT panel provides accurate color rendering for graphical interfaces.
- Response Time: Typical for industrial TFT panels (not specified, estimated 8–12 ms).
- Contrast Ratio: Not specified (typical range 500:1 to 700:1 for similar displays).
Electrical Performance:
- Power Consumption: Not specified (estimated 10–15 W typical for 8" TFT with backlight).
- Input Signal: Analog VGA (RGB) 0.7 Vp-p, 75 Ω impedance.
Operational Capabilities:
- Stable performance under vibration and shock conditions typical of industrial environments.
- Reliable operation across a wide temperature range.
- Long operational life due to robust construction and quality components.
Limitations:
- No built-in audio output.
- Limited to VGA resolution unless optional digital input modules are installed.
- Touch functionality available only as an optional feature.
### 8. Standards & Compliance
Certifications:
- CE (Conformité Européenne): Ensures compliance with European safety, health, and environmental protection standards.
- FCC Class A: Meets U.S. Federal Communications Commission standards for electromagnetic interference (EMI) in industrial and commercial environments.
Industry Standards Compliance:
- VGA signal compatibility with standard PC and industrial video outputs.
- Designed to meet industrial-grade mechanical and environmental durability standards.
Environmental Compliance:
- RoHS (Restriction of Hazardous Substances) compliance is typically observed in Aplex products (though not explicitly stated).
- Designed for non-condensing humidity environments to prevent internal condensation damage.
### 9. Additional Information
Warranty:
- Standard manufacturer warranty (typically 1–2 years depending on region and distributor).
- Covers defects in materials and workmanship under normal operating conditions.
Support & Maintenance:
- Technical support available through Aplex authorized service centers and distributors.
- Firmware or OSD configuration updates may be provided for enhanced compatibility or performance.
- Routine maintenance includes cleaning the display surface with non-abrasive materials and ensuring proper ventilation.
Product Lifecycle & Availability:
- Designed for long-term availability to support industrial and OEM applications.
- Replacement parts and accessories available through Aplex’s supply chain network.
Serviceability:
- Modular design allows easy replacement of display or controller components.
- Accessible rear connectors simplify maintenance and integration.
Documentation & Resources:
- User manual and installation guide provided by Aplex.
- Technical datasheets available for system integrators and OEM developers.
- Optional driver packages for touch screen models (RS-232/USB).
### Summary
The Aplex OPD-1080 is a robust, high-performance 8-inch open-frame color TFT LCD display kit engineered for industrial and embedded applications. Featuring 400 cd/m² brightness, VGA input, and steel chassis construction, it delivers reliable visual performance in demanding environments. Its compact dimensions (219.5 × 144.5 × 44.5 mm) and 12V DC power input make it ideal for integration into kiosks, control systems, and custom enclosures.
With optional DVI, S-Video, RCA, and touch screen interfaces, the OPD-1080 offers flexible connectivity and adaptability to diverse system requirements. Compliance with CE and FCC Class A standards ensures electromagnetic safety and reliability. Designed for long-term industrial use, the OPD-1080 combines durability, performance, and configurability—making it a dependable choice for OEMs, system integrators, and industrial automation professionals seeking a compact, high-quality display solution.
