Comprehensive Product Summary: PCF-JP – Power Cord with Ferrule Terminal, JP Plug
### 1. Product Overview
Product Name: Power Cord with Ferrule Terminal, JP Plug
Model Number: PCF-JP
Article Number: PCF-JP
Series: ORing Accessories – Power Connectivity Series
Manufacturer: ORing Industrial Networking Corp.
Website: [www.oring-networking.com](http://www.oring-networking.com)
The PCF-JP is a high-quality industrial-grade power cord assembly designed for use with ORing’s range of industrial networking devices, power adapters, and DIN-rail power supplies. It features a Japan-standard (JP) AC plug on one end and ferrule terminals on the other, providing a secure, reliable, and maintenance-friendly connection for industrial and commercial power applications.
This product is part of ORing’s accessory ecosystem, which includes power adapters, DIN-rail power supplies, RF cables, antennas, and fiber patch cords—ensuring complete connectivity and power solutions for rugged industrial environments.
### 2. Key Features
- JP Plug Interface: Equipped with a Japan-standard AC plug compatible with 100–240 VAC power systems used in Japan and other regions adopting similar standards.
- Ferrule Terminal Ends: Pre-terminated ferrules ensure secure, corrosion-resistant, and vibration-proof connections to terminal blocks or power input connectors.
- Industrial-Grade Construction: Designed for high durability, mechanical strength, and electrical safety in industrial automation, networking, and control systems.
- Universal Compatibility: Fully compatible with ORing’s PAA, PAE, and PAX series power adapters, as well as DR-series DIN-rail power supplies.
- High Electrical Conductivity: Copper conductors with precision crimped ferrules minimize resistance and heat generation.
- Safety and Compliance: Manufactured to meet international electrical safety standards for insulation, grounding, and current capacity.
- Ease of Installation: Plug-and-play design simplifies integration into existing power systems without additional wiring or soldering.
- Compact and Flexible: Optimized cable length and flexibility for efficient cable management in control cabinets or rack-mounted systems.
- Temperature and Voltage Tolerance: Suitable for continuous operation in industrial temperature ranges and wide AC input voltages.
### 3. Technical Specifications
| Parameter | Specification |
|----------------|-------------------|
| Model | PCF-JP |
| Plug Type | Japan-standard AC plug (JP type) |
| Terminal Type | Ferrule terminal (pre-crimped) |
| Voltage Rating | 100–240 VAC (universal input range) |
| Current Rating | Typically supports up to 10A (depending on connected device) |
| Cable Type | 3-core power cable (Live, Neutral, Ground) |
| Conductor Material | High-purity copper |
| Insulation Material | PVC or equivalent industrial-grade insulation |
| Outer Jacket Color | Black |
| Cable Length | Standard 1.5 m (custom lengths available upon request) |
| Operating Temperature | -20°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Tolerance | 10–95% RH (non-condensing) |
| Weight | Approx. 150–200 g (depending on length) |
| Compliance | RoHS, CE, and Japan PSE certification (where applicable) |
| Flame Retardancy | UL94V-0 rated insulation |
| Mechanical Durability | >10,000 plug-in cycles |
| Cable Diameter | Approx. 6–8 mm (depending on conductor gauge) |
| Conductor Gauge | 18 AWG or 1.0 mm² typical |
### 4. Functionality
The PCF-JP functions as a power delivery interface between an AC mains outlet and an industrial device or power supply input. The JP plug connects to a standard Japanese AC socket, while the ferrule terminals connect directly to screw-type terminal blocks or input connectors on devices such as:
- DIN-Rail Power Supplies (e.g., DR-4512, DR-4524, DR-75-24, DR-120-24)
- Power Adapters (e.g., PAA-121000, PAE-121000, PAX-482500)
- Industrial Ethernet Switches
- Wireless Access Points
- Embedded Controllers
- Automation Gateways
The ferrule terminals ensure a secure and low-resistance connection, preventing wire fraying and improving long-term reliability in environments subject to vibration or temperature fluctuations.
Typical Applications:
- Industrial automation panels
- Control cabinets and PLC systems
- Networking equipment power input
- Test and measurement setups
- Laboratory and manufacturing environments
Compatibility:
The PCF-JP is designed to integrate seamlessly with ORing’s accessory ecosystem, including power adapters and DIN-rail supplies that accept ferrule or bare-wire connections.
### 5. Components & Accessories
Included Components:
- 1 × Power Cord (JP plug to ferrule terminal)
- Pre-installed ferrule terminals on all conductors
- Integrated strain relief at both ends
Compatible Accessories:
- Power Adapters:
- *PAA-121000* – 12VDC/1000mA, US plug
- *PAE-121000* – 12VDC/1000mA, EU plug
- *PAX-482500* – 48VDC/2500mA, 120W adapter (without power cord; compatible with PCF-JP)
- DIN-Rail Power Supplies:
- *DR-4512* – 45W, 12VDC/3.5A
- *DR-4524* – 45W, 24VDC/2A
- *DR-75-12* – 75W, 12VDC/6.3A
- *DR-75-24* – 75W, 24VDC/3.2A
- *DR-120-24* – 120W, 24VDC/5A
- *DR-120-48* – 120W, 48VDC/2.5A
- RF and Networking Accessories:
- RF cables (RFC series)
- WLAN antennas (RFA series)
- Fiber patch cords (FPC series)
Optional Add-ons:
- Cable management clips
- Ferrule replacement kits
- JP-to-IEC adapter for international compatibility
### 6. Installation & Setup
Installation Requirements:
- Standard AC outlet (100–240 VAC, 50/60 Hz)
- Compatible device with terminal block or ferrule input
- Proper grounding connection
Installation Steps:
1. Inspect the cable for any visible damage before use.
2. Connect the ferrule terminals to the device’s power input terminal block, ensuring correct polarity (L, N, G).
3. Tighten terminal screws securely to ensure firm contact.
4. Insert the JP plug into a compatible AC outlet.
5. Verify power delivery by checking device indicators or voltage readings.
Mounting Options:
- Can be routed through cable ducts or harnesses in control cabinets.
- Compatible with cable ties and strain relief clamps for secure installation.
Configuration:
No software or firmware configuration is required. The PCF-JP is a passive electrical component designed for direct power transmission.
### 7. Performance & Capabilities
- Voltage Range: 100–240 VAC, supporting both 50 Hz and 60 Hz systems.
- Current Capacity: Up to 10A continuous load, depending on conductor gauge and connected device.
- Power Handling: Suitable for devices up to 1000–1200 W (depending on voltage and current).
- Electrical Efficiency: Low contact resistance ensures minimal power loss.
- Thermal Performance: Maintains stable operation up to 85°C ambient temperature.
- Mechanical Strength: Withstands repeated bending and flexing without conductor fatigue.
- Environmental Resistance: Resistant to oil, moisture, and mild chemicals commonly found in industrial environments.
- Limitations:
- Not suitable for outdoor use without additional weatherproofing.
- Must not be used in explosive or hazardous environments unless certified for such use.
### 8. Standards & Compliance
The PCF-JP is designed and manufactured in accordance with international and regional safety and performance standards, ensuring reliable operation and regulatory compliance.
Applicable Standards:
- Electrical Safety: IEC 60320, JIS C 8303 (Japan plug standard)
- Insulation and Flame Resistance: UL94V-0 rated materials
- Environmental Compliance: RoHS Directive 2011/65/EU compliant
- Quality Management: Manufactured under ISO 9001-certified processes
- EMC and Safety Compatibility: Designed for use with CE-certified ORing devices
- PSE Certification: Meets Japan’s Electrical Appliance and Material Safety Law requirements
Industry Standards Alignment:
- Compatible with industrial automation and networking equipment conforming to IEC 61010 and IEC 60950 standards.
- Suitable for integration into systems requiring UL-listed power components.
### 9. Additional Information
Warranty:
- Standard 1-year limited warranty against manufacturing defects.
- Extended warranty options available through ORing authorized distributors.
Technical Support:
- Comprehensive support via ORing’s global service network.
- Online documentation, datasheets, and installation guides available at [www.oring-networking.com](http://www.oring-networking.com).
- Email and phone support for configuration and compatibility inquiries.
Maintenance:
- Periodic inspection recommended every 6–12 months for signs of wear or insulation damage.
- Clean terminals with dry cloth; avoid solvents or conductive cleaners.
- Replace immediately if insulation cracks or ferrule deformation is observed.
Product Updates:
- ORing periodically updates accessory specifications to align with new product releases and safety standards.
- Updated versions may include enhanced insulation materials or improved ferrule crimping for higher current capacity.
Environmental Considerations:
- Fully recyclable materials in compliance with WEEE Directive.
- Designed for long service life to minimize electronic waste.
### Summary
The PCF-JP Power Cord with Ferrule Terminal and JP Plug is a robust, industrial-grade power connection solution engineered for reliability, safety, and ease of integration. It bridges the gap between AC mains power and industrial devices requiring ferrule terminal connections, ensuring consistent power delivery in demanding environments.
Its compatibility with ORing’s extensive range of power adapters, DIN-rail power supplies, and networking equipment makes it an essential accessory for system integrators, automation engineers, and industrial network installers.
By combining high-quality materials, precise manufacturing, and compliance with international standards, the PCF-JP delivers dependable performance and long-term operational stability—hallmarks of ORing’s “Designed for Rugged Excellence” philosophy.
End of Product Summary – PCF-JP
### 1. Product Overview
Product Name: Power Cord with Ferrule Terminal, JP Plug
Model Number: PCF-JP
Article Number: PCF-JP
Series: ORing Accessories – Power Connectivity Series
Manufacturer: ORing Industrial Networking Corp.
Website: [www.oring-networking.com](http://www.oring-networking.com)
The PCF-JP is a high-quality industrial-grade power cord assembly designed for use with ORing’s range of industrial networking devices, power adapters, and DIN-rail power supplies. It features a Japan-standard (JP) AC plug on one end and ferrule terminals on the other, providing a secure, reliable, and maintenance-friendly connection for industrial and commercial power applications.
This product is part of ORing’s accessory ecosystem, which includes power adapters, DIN-rail power supplies, RF cables, antennas, and fiber patch cords—ensuring complete connectivity and power solutions for rugged industrial environments.
### 2. Key Features
- JP Plug Interface: Equipped with a Japan-standard AC plug compatible with 100–240 VAC power systems used in Japan and other regions adopting similar standards.
- Ferrule Terminal Ends: Pre-terminated ferrules ensure secure, corrosion-resistant, and vibration-proof connections to terminal blocks or power input connectors.
- Industrial-Grade Construction: Designed for high durability, mechanical strength, and electrical safety in industrial automation, networking, and control systems.
- Universal Compatibility: Fully compatible with ORing’s PAA, PAE, and PAX series power adapters, as well as DR-series DIN-rail power supplies.
- High Electrical Conductivity: Copper conductors with precision crimped ferrules minimize resistance and heat generation.
- Safety and Compliance: Manufactured to meet international electrical safety standards for insulation, grounding, and current capacity.
- Ease of Installation: Plug-and-play design simplifies integration into existing power systems without additional wiring or soldering.
- Compact and Flexible: Optimized cable length and flexibility for efficient cable management in control cabinets or rack-mounted systems.
- Temperature and Voltage Tolerance: Suitable for continuous operation in industrial temperature ranges and wide AC input voltages.
### 3. Technical Specifications
| Parameter | Specification |
|----------------|-------------------|
| Model | PCF-JP |
| Plug Type | Japan-standard AC plug (JP type) |
| Terminal Type | Ferrule terminal (pre-crimped) |
| Voltage Rating | 100–240 VAC (universal input range) |
| Current Rating | Typically supports up to 10A (depending on connected device) |
| Cable Type | 3-core power cable (Live, Neutral, Ground) |
| Conductor Material | High-purity copper |
| Insulation Material | PVC or equivalent industrial-grade insulation |
| Outer Jacket Color | Black |
| Cable Length | Standard 1.5 m (custom lengths available upon request) |
| Operating Temperature | -20°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Tolerance | 10–95% RH (non-condensing) |
| Weight | Approx. 150–200 g (depending on length) |
| Compliance | RoHS, CE, and Japan PSE certification (where applicable) |
| Flame Retardancy | UL94V-0 rated insulation |
| Mechanical Durability | >10,000 plug-in cycles |
| Cable Diameter | Approx. 6–8 mm (depending on conductor gauge) |
| Conductor Gauge | 18 AWG or 1.0 mm² typical |
### 4. Functionality
The PCF-JP functions as a power delivery interface between an AC mains outlet and an industrial device or power supply input. The JP plug connects to a standard Japanese AC socket, while the ferrule terminals connect directly to screw-type terminal blocks or input connectors on devices such as:
- DIN-Rail Power Supplies (e.g., DR-4512, DR-4524, DR-75-24, DR-120-24)
- Power Adapters (e.g., PAA-121000, PAE-121000, PAX-482500)
- Industrial Ethernet Switches
- Wireless Access Points
- Embedded Controllers
- Automation Gateways
The ferrule terminals ensure a secure and low-resistance connection, preventing wire fraying and improving long-term reliability in environments subject to vibration or temperature fluctuations.
Typical Applications:
- Industrial automation panels
- Control cabinets and PLC systems
- Networking equipment power input
- Test and measurement setups
- Laboratory and manufacturing environments
Compatibility:
The PCF-JP is designed to integrate seamlessly with ORing’s accessory ecosystem, including power adapters and DIN-rail supplies that accept ferrule or bare-wire connections.
### 5. Components & Accessories
Included Components:
- 1 × Power Cord (JP plug to ferrule terminal)
- Pre-installed ferrule terminals on all conductors
- Integrated strain relief at both ends
Compatible Accessories:
- Power Adapters:
- *PAA-121000* – 12VDC/1000mA, US plug
- *PAE-121000* – 12VDC/1000mA, EU plug
- *PAX-482500* – 48VDC/2500mA, 120W adapter (without power cord; compatible with PCF-JP)

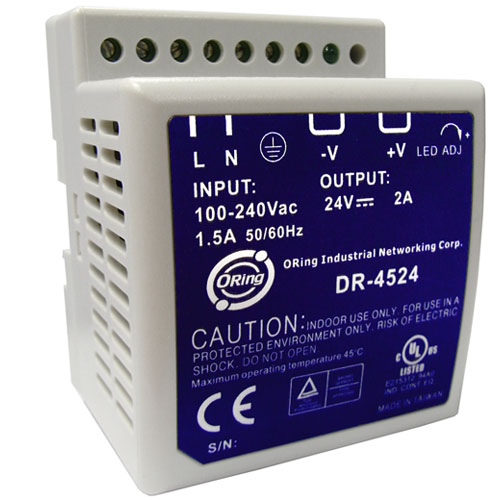

- DIN-Rail Power Supplies:
- *DR-4512* – 45W, 12VDC/3.5A
- *DR-4524* – 45W, 24VDC/2A
- *DR-75-12* – 75W, 12VDC/6.3A
- *DR-75-24* – 75W, 24VDC/3.2A
- *DR-120-24* – 120W, 24VDC/5A
- *DR-120-48* – 120W, 48VDC/2.5A
- RF and Networking Accessories:
- RF cables (RFC series)
- WLAN antennas (RFA series)
- Fiber patch cords (FPC series)
Optional Add-ons:
- Cable management clips
- Ferrule replacement kits
- JP-to-IEC adapter for international compatibility
### 6. Installation & Setup
Installation Requirements:
- Standard AC outlet (100–240 VAC, 50/60 Hz)
- Compatible device with terminal block or ferrule input
- Proper grounding connection
Installation Steps:
1. Inspect the cable for any visible damage before use.
2. Connect the ferrule terminals to the device’s power input terminal block, ensuring correct polarity (L, N, G).
3. Tighten terminal screws securely to ensure firm contact.
4. Insert the JP plug into a compatible AC outlet.
5. Verify power delivery by checking device indicators or voltage readings.
Mounting Options:
- Can be routed through cable ducts or harnesses in control cabinets.
- Compatible with cable ties and strain relief clamps for secure installation.
Configuration:
No software or firmware configuration is required. The PCF-JP is a passive electrical component designed for direct power transmission.
### 7. Performance & Capabilities
- Voltage Range: 100–240 VAC, supporting both 50 Hz and 60 Hz systems.
- Current Capacity: Up to 10A continuous load, depending on conductor gauge and connected device.
- Power Handling: Suitable for devices up to 1000–1200 W (depending on voltage and current).
- Electrical Efficiency: Low contact resistance ensures minimal power loss.
- Thermal Performance: Maintains stable operation up to 85°C ambient temperature.
- Mechanical Strength: Withstands repeated bending and flexing without conductor fatigue.
- Environmental Resistance: Resistant to oil, moisture, and mild chemicals commonly found in industrial environments.
- Limitations:
- Not suitable for outdoor use without additional weatherproofing.
- Must not be used in explosive or hazardous environments unless certified for such use.
### 8. Standards & Compliance
The PCF-JP is designed and manufactured in accordance with international and regional safety and performance standards, ensuring reliable operation and regulatory compliance.
Applicable Standards:
- Electrical Safety: IEC 60320, JIS C 8303 (Japan plug standard)
- Insulation and Flame Resistance: UL94V-0 rated materials
- Environmental Compliance: RoHS Directive 2011/65/EU compliant
- Quality Management: Manufactured under ISO 9001-certified processes
- EMC and Safety Compatibility: Designed for use with CE-certified ORing devices
- PSE Certification: Meets Japan’s Electrical Appliance and Material Safety Law requirements
Industry Standards Alignment:
- Compatible with industrial automation and networking equipment conforming to IEC 61010 and IEC 60950 standards.
- Suitable for integration into systems requiring UL-listed power components.
### 9. Additional Information
Warranty:
- Standard 1-year limited warranty against manufacturing defects.
- Extended warranty options available through ORing authorized distributors.
Technical Support:
- Comprehensive support via ORing’s global service network.
- Online documentation, datasheets, and installation guides available at [www.oring-networking.com](http://www.oring-networking.com).
- Email and phone support for configuration and compatibility inquiries.
Maintenance:
- Periodic inspection recommended every 6–12 months for signs of wear or insulation damage.
- Clean terminals with dry cloth; avoid solvents or conductive cleaners.
- Replace immediately if insulation cracks or ferrule deformation is observed.
Product Updates:
- ORing periodically updates accessory specifications to align with new product releases and safety standards.
- Updated versions may include enhanced insulation materials or improved ferrule crimping for higher current capacity.
Environmental Considerations:
- Fully recyclable materials in compliance with WEEE Directive.
- Designed for long service life to minimize electronic waste.
### Summary
The PCF-JP Power Cord with Ferrule Terminal and JP Plug is a robust, industrial-grade power connection solution engineered for reliability, safety, and ease of integration. It bridges the gap between AC mains power and industrial devices requiring ferrule terminal connections, ensuring consistent power delivery in demanding environments.
Its compatibility with ORing’s extensive range of power adapters, DIN-rail power supplies, and networking equipment makes it an essential accessory for system integrators, automation engineers, and industrial network installers.
By combining high-quality materials, precise manufacturing, and compliance with international standards, the PCF-JP delivers dependable performance and long-term operational stability—hallmarks of ORing’s “Designed for Rugged Excellence” philosophy.
End of Product Summary – PCF-JP
-
Product_Selection_Guide_Accessories.pdf
PDF Catalog
-
Oring-Accessories.pdf
PDF Catalog
Kein Zubehör vorhanden.
