POC-400 - Neousys
Atom® x6425E ultra-compact fanless with 1x 2.5Gb 2x 2.5G P
Industrial Computers sind eine spezielle Art von Computersystemen, die für den Einsatz in industriellen Anwendungen entwickelt wurden. Sie sind robust und zuverlässig, um die Anforderungen der industriellen Umgebung zu erfüllen. Embedded Systems sind eine spezielle Art von Computersystemen, die in ein Gerät integriert sind, um eine bestimmte Funktion auszuführen. Sie sind klein, leistungsstark und energieeffizient. Atom Powered Embedded sind speziell entwickelte Embedded Systems, die auf Intel Atom-Prozessoren basieren. Sie sind klein, leistungsstark und energieeffizient, wodurch sie ideal für den Einsatz in industriellen Anwendungen sind..
Beschreibung

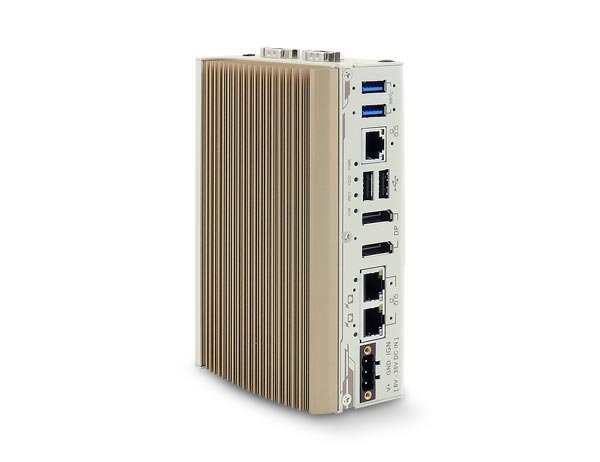

- Intel® Elkhart Lake Atom® x6425E Quad-Core 2.0/3.0 GHz 12 W ultra-compact fanless DIN-rail controller
- 1× DDR4-3200 SODIMM socket max. 32 GB
- 1× M.2 2280 SATA interface
- 1× M.2 2230 E key for WiFi/TPU/VPU
- 3× 2.5GBASE-T (2× PoE+ optional 50 W total)
- Intel® UHD Graphics with 2× DisplayPort 4096×2160@60 Hz
- 2× USB 3.1 Gen1 (5 Gbps) and 2× USB 2.0 (all screw-lock)
- 1× RS-232/422/485 (COM1) plus 3× RS-232 (COM2/3/4) or 1× RS-422/485 (COM2)
- 1× audio mic-in/speaker-out (optional)
- MezIO® expansion slot for additional I/O
- rugged -25 °C…+70 °C fanless operation
- DC input 8…35 V via 3-pin terminal block
- 56×108×153 mm DIN-rail case (wall-mount optional)
- 0.96 kg
- Neousys.
Details
- Hersteller: Neousys
- Herkunftsland: Taiwan R.O.C.
- Zollcode: 8471 5000 000
