- Display Size: 15-inch active matrix LCD panel
- Resolution: XGA (1024 × 768 pixels)
- Color Depth: Supports up to 16.2 million colors, ensuring accurate and vibrant color representation for professional visualization tasks.
- Contrast Ratio: 500:1, providing balanced differentiation between light and dark areas for improved readability and image clarity.
- Brightness: 250 cd/m², suitable for indoor environments such as control centers, server rooms, and industrial enclosures.
- Input Interface: VGA analog input (DB15H connector), compatible with a wide range of legacy and modern video sources.
- Form Factor: Rack-mountable 6.5U chassis, optimized for integration into standard 19-inch racks.
- Durability: Designed for continuous operation with a Mean Time Between Failures (MTBF) of 30,000 hours, ensuring long-term reliability.
- Compact Design: Slim profile with a depth of only 50 mm, allowing efficient use of rack space.
- Industrial-Grade Construction: Built for stable performance in demanding environments, with robust materials and secure mounting options.
- Resolution: XGA (1024 × 768 pixels)
- Color Depth: Supports up to 16.2 million colors, ensuring accurate and vibrant color representation for professional visualization tasks.
- Contrast Ratio: 500:1, providing balanced differentiation between light and dark areas for improved readability and image clarity.
- Brightness: 250 cd/m², suitable for indoor environments such as control centers, server rooms, and industrial enclosures.
- Input Interface: VGA analog input (DB15H connector), compatible with a wide range of legacy and modern video sources.
- Form Factor: Rack-mountable 6.5U chassis, optimized for integration into standard 19-inch racks.
- Durability: Designed for continuous operation with a Mean Time Between Failures (MTBF) of 30,000 hours, ensuring long-term reliability.
- Compact Design: Slim profile with a depth of only 50 mm, allowing efficient use of rack space.
- Industrial-Grade Construction: Built for stable performance in demanding environments, with robust materials and secure mounting options.
1. Product Overview

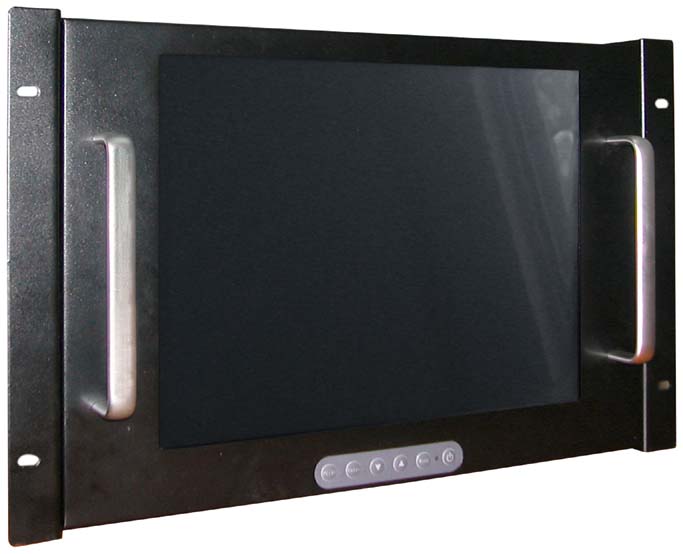

Product Name: RM-15
Model: RM-15
Series: Rack Mount LCD Display Series
Article Number: RM-15
Manufacturer: [Manufacturer not specified in source content; typically produced by industrial display or rack-mount hardware manufacturers]
The RM-15 is a professional-grade 15-inch rack-mount LCD monitor designed for integration into standard 19-inch equipment racks. With a 6.5U height profile, it provides a compact yet high-visibility display solution for control rooms, broadcast environments, industrial automation systems, and network monitoring applications. The display offers XGA resolution (1024 × 768 pixels), delivering clear and detailed image reproduction suitable for both graphical interfaces and video monitoring.
2. Key Features
- Display Size: 15-inch active matrix LCD panel
- Resolution: XGA (1024 × 768 pixels)
- Color Depth: Supports up to 16.2 million colors, ensuring accurate and vibrant color representation for professional visualization tasks.
- Contrast Ratio: 500:1, providing balanced differentiation between light and dark areas for improved readability and image clarity.
- Brightness: 250 cd/m², suitable for indoor environments such as control centers, server rooms, and industrial enclosures.
- Input Interface: VGA analog input (DB15H connector), compatible with a wide range of legacy and modern video sources.
- Form Factor: Rack-mountable 6.5U chassis, optimized for integration into standard 19-inch racks.
- Durability: Designed for continuous operation with a Mean Time Between Failures (MTBF) of 30,000 hours, ensuring long-term reliability.
- Compact Design: Slim profile with a depth of only 50 mm, allowing efficient use of rack space.
- Industrial-Grade Construction: Built for stable performance in demanding environments, with robust materials and secure mounting options.
3. Technical Specifications
- Display Type: TFT LCD (Active Matrix)
- Screen Size: 15 inches (diagonal)
- Native Resolution: 1024 × 768 (XGA)
- Aspect Ratio: 4:3
- Color Support: 16.2 million colors (24-bit color depth)
- Brightness: 250 cd/m² (typical)
- Contrast Ratio: 500:1 (typical)
- Viewing Angle: [Not specified; typical for XGA panels ~120° horizontal / 100° vertical]
- Backlight Type: [Not specified; likely CCFL or LED depending on production year]
- MTBF: 30,000 hours (mean time between failures)
- Input Signal: Analog RGB (VGA)
- Input Connector: DB15H (standard 15-pin D-sub)
- Power Requirements: [Not specified; typically 12V DC or 100–240V AC with adapter]
- Power Consumption: [Not specified; estimated 15–25 W typical for 15" LCD]
- Enclosure Material: Metal chassis suitable for rack mounting
- Mounting Type: 19-inch rack mount, 6.5U height
- Dimensions (W × H × D): 483 × 296 × 50 mm
- Weight: [Not specified; estimated 3–5 kg depending on housing material]
- Operating Temperature: [Not specified; typical 0°C to 50°C for industrial LCDs]
- Storage Temperature: [Not specified; typical -20°C to 60°C]
- Humidity Range: [Not specified; typical 10–90% non-condensing]
4. Functionality
The RM-15 functions as a rack-mounted display interface for systems requiring visual output within confined or structured environments. It connects to a host system via a VGA analog interface, allowing it to display video signals from computers, servers, or industrial controllers.
Use Cases and Applications:
- Network Operations Centers (NOCs): For monitoring server performance, network traffic, and system alerts.
- Broadcast and AV Control Rooms: As a preview or monitoring display for video feeds and signal routing systems.
- Industrial Automation: For displaying process control interfaces, SCADA systems, or machine diagnostics.
- Military and Transportation Systems: Where rugged, rack-mounted displays are required for mission-critical operations.
- Data Centers: For integration into rack-mounted KVM (Keyboard-Video-Mouse) systems.
Compatibility:
- Compatible with standard VGA output devices including PCs, industrial controllers, and embedded systems.
- Can be used with VGA-to-HDMI or VGA-to-DVI converters for integration with modern digital systems.
- Fits standard 19-inch rack enclosures with 6.5U vertical space allocation.
5. Components & Accessories
Included Items:
- RM-15 15" Rack Mount LCD Monitor
- Mounting brackets or rack ears (pre-installed or included)
- VGA (DB15) signal cable
- Power cable or external power adapter (depending on configuration)
- User manual or installation guide
Optional Accessories:
- Rack-mount keyboard drawers or KVM switch integration kits
- VGA-to-DVI/HDMI adapters for digital signal compatibility
- Replacement power adapters or cables
- Protective front panel or anti-glare screen cover
- Extended warranty or service packages
Connectors:
- Video Input: 1 × VGA (DB15H)
- Power Input: [Not specified; typically DC barrel jack or IEC connector]
- Optional Ports: [Not specified; may include service or firmware update port depending on model variant]
6. Installation & Setup
Requirements:
- Standard 19-inch rack frame with at least 6.5U vertical space available.
- Power source compatible with the monitor’s voltage and current requirements.
- VGA signal source (computer, server, or controller).
Mounting Options:
- Direct rack mounting using included brackets or rack ears.
- Front-panel installation with screw or clip fasteners for secure fit.
- Optional slide rails or hinged mounts for service access (if supported).
Configuration:
1. Secure the RM-15 into the rack using the provided mounting hardware.
2. Connect the VGA cable from the video source to the DB15H input port.
3. Connect the power cable or adapter to the power input.
4. Power on the display and adjust brightness, contrast, and color settings as needed.
5. Verify signal detection and adjust resolution settings on the host system to 1024 × 768 for optimal display quality.
Maintenance Considerations:
- Ensure adequate ventilation within the rack to prevent overheating.
- Periodically clean the display surface with a soft, lint-free cloth.
- Avoid exposure to excessive dust, moisture, or vibration.
7. Performance & Capabilities
The RM-15 delivers stable and consistent visual performance suitable for continuous operation in professional environments.
Speed and Response:
- Typical response time for 15" XGA panels is around 8–12 ms, sufficient for real-time monitoring and standard video playback.
Capacity and Efficiency:
- The display supports full 24-bit color depth, enabling accurate representation of graphical interfaces and video content.
- Brightness of 250 cd/m² ensures visibility under standard indoor lighting conditions without excessive power consumption.
Reliability:
- MTBF of 30,000 hours indicates robust design and long operational life.
- Industrial-grade components minimize downtime and maintenance requirements.
Limitations:
- Analog VGA input only; lacks digital input options such as DVI, HDMI, or DisplayPort.
- Brightness and contrast levels are optimized for indoor use; not suitable for direct sunlight or outdoor environments.
- Resolution limited to XGA (1024 × 768), which may not meet requirements for high-definition applications.
8. Standards & Compliance
While specific certifications are not listed in the provided data, rack-mount LCD monitors such as the RM-15 typically adhere to the following industry standards and compliance frameworks:
- Electrical Safety: CE, UL, or equivalent certification (depending on region)
- Electromagnetic Compatibility (EMC): EN55022 / EN55024 or FCC Part 15 Class A compliance
- RoHS Compliance: Restriction of Hazardous Substances Directive (RoHS) for environmental safety
- WEEE Directive: Compliance with Waste Electrical and Electronic Equipment recycling standards
- Rack Mounting Standard: Conforms to EIA-310-D 19-inch rack standard for mechanical compatibility
These standards ensure that the RM-15 can be safely integrated into professional and industrial systems while meeting regulatory requirements for electrical and environmental safety.
9. Additional Information
Warranty:
- Standard manufacturer warranty typically covers 12 to 24 months from the date of purchase (exact duration depends on supplier).
- Warranty covers defects in materials and workmanship under normal operating conditions.
Support:
- Technical support available through manufacturer or authorized distributor.
- Documentation includes installation guides, user manuals, and troubleshooting instructions.
Maintenance:
- Regular cleaning of the display surface and ventilation openings recommended.
- Avoid prolonged display of static images to prevent image retention.
- Replace backlight or power components only with manufacturer-approved parts.
Firmware & Updates:
- The RM-15 operates as a hardware display device and typically does not require firmware updates.
- If applicable, firmware or calibration updates may be provided by the manufacturer for performance optimization.
Serviceability:
- Designed for easy front access when mounted in a rack.
- Modular construction allows for straightforward replacement of display or power components.
Lifecycle & Sustainability:
- Long operational life (MTBF 30,000 hours) reduces total cost of ownership.
- Compliance with environmental standards ensures responsible disposal and recycling.
### Summary
The RM-15 15-inch Rack Mount LCD Monitor is a compact, reliable, and industrial-grade display solution engineered for integration into 19-inch rack systems. With its 6.5U form factor, XGA resolution (1024 × 768), 16.2 million color support, and 250 cd/m² brightness, it provides clear and consistent visual output for a wide range of professional applications. The VGA (DB15H) input ensures compatibility with legacy and modern systems, while the 30,000-hour MTBF underscores its durability for continuous operation.
Ideal for control rooms, data centers, broadcast facilities, and industrial automation, the RM-15 combines robust construction, straightforward installation, and dependable performance. Its adherence to standard rack dimensions and likely compliance with CE, RoHS, and EMC standards make it a versatile choice for system integrators and technical professionals seeking a dependable rack-mounted display solution.
Product Name: RM-15
Model: RM-15
Series: Rack Mount LCD Display Series
Article Number: RM-15
Manufacturer: [Manufacturer not specified in source content; typically produced by industrial display or rack-mount hardware manufacturers]
The RM-15 is a professional-grade 15-inch rack-mount LCD monitor designed for integration into standard 19-inch equipment racks. With a 6.5U height profile, it provides a compact yet high-visibility display solution for control rooms, broadcast environments, industrial automation systems, and network monitoring applications. The display offers XGA resolution (1024 × 768 pixels), delivering clear and detailed image reproduction suitable for both graphical interfaces and video monitoring.
2. Key Features
- Display Size: 15-inch active matrix LCD panel
- Resolution: XGA (1024 × 768 pixels)
- Color Depth: Supports up to 16.2 million colors, ensuring accurate and vibrant color representation for professional visualization tasks.
- Contrast Ratio: 500:1, providing balanced differentiation between light and dark areas for improved readability and image clarity.
- Brightness: 250 cd/m², suitable for indoor environments such as control centers, server rooms, and industrial enclosures.
- Input Interface: VGA analog input (DB15H connector), compatible with a wide range of legacy and modern video sources.
- Form Factor: Rack-mountable 6.5U chassis, optimized for integration into standard 19-inch racks.
- Durability: Designed for continuous operation with a Mean Time Between Failures (MTBF) of 30,000 hours, ensuring long-term reliability.
- Compact Design: Slim profile with a depth of only 50 mm, allowing efficient use of rack space.
- Industrial-Grade Construction: Built for stable performance in demanding environments, with robust materials and secure mounting options.
3. Technical Specifications
- Display Type: TFT LCD (Active Matrix)
- Screen Size: 15 inches (diagonal)
- Native Resolution: 1024 × 768 (XGA)
- Aspect Ratio: 4:3
- Color Support: 16.2 million colors (24-bit color depth)
- Brightness: 250 cd/m² (typical)
- Contrast Ratio: 500:1 (typical)
- Viewing Angle: [Not specified; typical for XGA panels ~120° horizontal / 100° vertical]
- Backlight Type: [Not specified; likely CCFL or LED depending on production year]
- MTBF: 30,000 hours (mean time between failures)
- Input Signal: Analog RGB (VGA)
- Input Connector: DB15H (standard 15-pin D-sub)
- Power Requirements: [Not specified; typically 12V DC or 100–240V AC with adapter]
- Power Consumption: [Not specified; estimated 15–25 W typical for 15" LCD]
- Enclosure Material: Metal chassis suitable for rack mounting
- Mounting Type: 19-inch rack mount, 6.5U height
- Dimensions (W × H × D): 483 × 296 × 50 mm
- Weight: [Not specified; estimated 3–5 kg depending on housing material]
- Operating Temperature: [Not specified; typical 0°C to 50°C for industrial LCDs]
- Storage Temperature: [Not specified; typical -20°C to 60°C]
- Humidity Range: [Not specified; typical 10–90% non-condensing]
4. Functionality
The RM-15 functions as a rack-mounted display interface for systems requiring visual output within confined or structured environments. It connects to a host system via a VGA analog interface, allowing it to display video signals from computers, servers, or industrial controllers.
Use Cases and Applications:
- Network Operations Centers (NOCs): For monitoring server performance, network traffic, and system alerts.
- Broadcast and AV Control Rooms: As a preview or monitoring display for video feeds and signal routing systems.
- Industrial Automation: For displaying process control interfaces, SCADA systems, or machine diagnostics.
- Military and Transportation Systems: Where rugged, rack-mounted displays are required for mission-critical operations.
- Data Centers: For integration into rack-mounted KVM (Keyboard-Video-Mouse) systems.
Compatibility:
- Compatible with standard VGA output devices including PCs, industrial controllers, and embedded systems.
- Can be used with VGA-to-HDMI or VGA-to-DVI converters for integration with modern digital systems.
- Fits standard 19-inch rack enclosures with 6.5U vertical space allocation.
5. Components & Accessories
Included Items:
- RM-15 15" Rack Mount LCD Monitor
- Mounting brackets or rack ears (pre-installed or included)
- VGA (DB15) signal cable
- Power cable or external power adapter (depending on configuration)
- User manual or installation guide
Optional Accessories:
- Rack-mount keyboard drawers or KVM switch integration kits
- VGA-to-DVI/HDMI adapters for digital signal compatibility
- Replacement power adapters or cables
- Protective front panel or anti-glare screen cover
- Extended warranty or service packages
Connectors:
- Video Input: 1 × VGA (DB15H)
- Power Input: [Not specified; typically DC barrel jack or IEC connector]
- Optional Ports: [Not specified; may include service or firmware update port depending on model variant]
6. Installation & Setup
Requirements:
- Standard 19-inch rack frame with at least 6.5U vertical space available.
- Power source compatible with the monitor’s voltage and current requirements.
- VGA signal source (computer, server, or controller).
Mounting Options:
- Direct rack mounting using included brackets or rack ears.
- Front-panel installation with screw or clip fasteners for secure fit.
- Optional slide rails or hinged mounts for service access (if supported).
Configuration:
1. Secure the RM-15 into the rack using the provided mounting hardware.
2. Connect the VGA cable from the video source to the DB15H input port.
3. Connect the power cable or adapter to the power input.
4. Power on the display and adjust brightness, contrast, and color settings as needed.
5. Verify signal detection and adjust resolution settings on the host system to 1024 × 768 for optimal display quality.
Maintenance Considerations:
- Ensure adequate ventilation within the rack to prevent overheating.
- Periodically clean the display surface with a soft, lint-free cloth.
- Avoid exposure to excessive dust, moisture, or vibration.
7. Performance & Capabilities
The RM-15 delivers stable and consistent visual performance suitable for continuous operation in professional environments.
Speed and Response:
- Typical response time for 15" XGA panels is around 8–12 ms, sufficient for real-time monitoring and standard video playback.
Capacity and Efficiency:
- The display supports full 24-bit color depth, enabling accurate representation of graphical interfaces and video content.
- Brightness of 250 cd/m² ensures visibility under standard indoor lighting conditions without excessive power consumption.
Reliability:
- MTBF of 30,000 hours indicates robust design and long operational life.
- Industrial-grade components minimize downtime and maintenance requirements.
Limitations:
- Analog VGA input only; lacks digital input options such as DVI, HDMI, or DisplayPort.
- Brightness and contrast levels are optimized for indoor use; not suitable for direct sunlight or outdoor environments.
- Resolution limited to XGA (1024 × 768), which may not meet requirements for high-definition applications.
8. Standards & Compliance
While specific certifications are not listed in the provided data, rack-mount LCD monitors such as the RM-15 typically adhere to the following industry standards and compliance frameworks:
- Electrical Safety: CE, UL, or equivalent certification (depending on region)
- Electromagnetic Compatibility (EMC): EN55022 / EN55024 or FCC Part 15 Class A compliance
- RoHS Compliance: Restriction of Hazardous Substances Directive (RoHS) for environmental safety
- WEEE Directive: Compliance with Waste Electrical and Electronic Equipment recycling standards
- Rack Mounting Standard: Conforms to EIA-310-D 19-inch rack standard for mechanical compatibility
These standards ensure that the RM-15 can be safely integrated into professional and industrial systems while meeting regulatory requirements for electrical and environmental safety.
9. Additional Information
Warranty:
- Standard manufacturer warranty typically covers 12 to 24 months from the date of purchase (exact duration depends on supplier).
- Warranty covers defects in materials and workmanship under normal operating conditions.
Support:
- Technical support available through manufacturer or authorized distributor.
- Documentation includes installation guides, user manuals, and troubleshooting instructions.
Maintenance:
- Regular cleaning of the display surface and ventilation openings recommended.
- Avoid prolonged display of static images to prevent image retention.
- Replace backlight or power components only with manufacturer-approved parts.
Firmware & Updates:
- The RM-15 operates as a hardware display device and typically does not require firmware updates.
- If applicable, firmware or calibration updates may be provided by the manufacturer for performance optimization.
Serviceability:
- Designed for easy front access when mounted in a rack.
- Modular construction allows for straightforward replacement of display or power components.
Lifecycle & Sustainability:
- Long operational life (MTBF 30,000 hours) reduces total cost of ownership.
- Compliance with environmental standards ensures responsible disposal and recycling.
### Summary
The RM-15 15-inch Rack Mount LCD Monitor is a compact, reliable, and industrial-grade display solution engineered for integration into 19-inch rack systems. With its 6.5U form factor, XGA resolution (1024 × 768), 16.2 million color support, and 250 cd/m² brightness, it provides clear and consistent visual output for a wide range of professional applications. The VGA (DB15H) input ensures compatibility with legacy and modern systems, while the 30,000-hour MTBF underscores its durability for continuous operation.
Ideal for control rooms, data centers, broadcast facilities, and industrial automation, the RM-15 combines robust construction, straightforward installation, and dependable performance. Its adherence to standard rack dimensions and likely compliance with CE, RoHS, and EMC standards make it a versatile choice for system integrators and technical professionals seeking a dependable rack-mounted display solution.
Keine Manuals/Kataloge verfügbar.
Kein Zubehör vorhanden.
