1. Product Overview
Product Name: Industrial Wireless LAN Access Point
Model: WAP-5002
Series: WAP-5000 Series
Article Number: WAP-5002
Manufacturer: SUNIX Co., Ltd. (Taiwan)

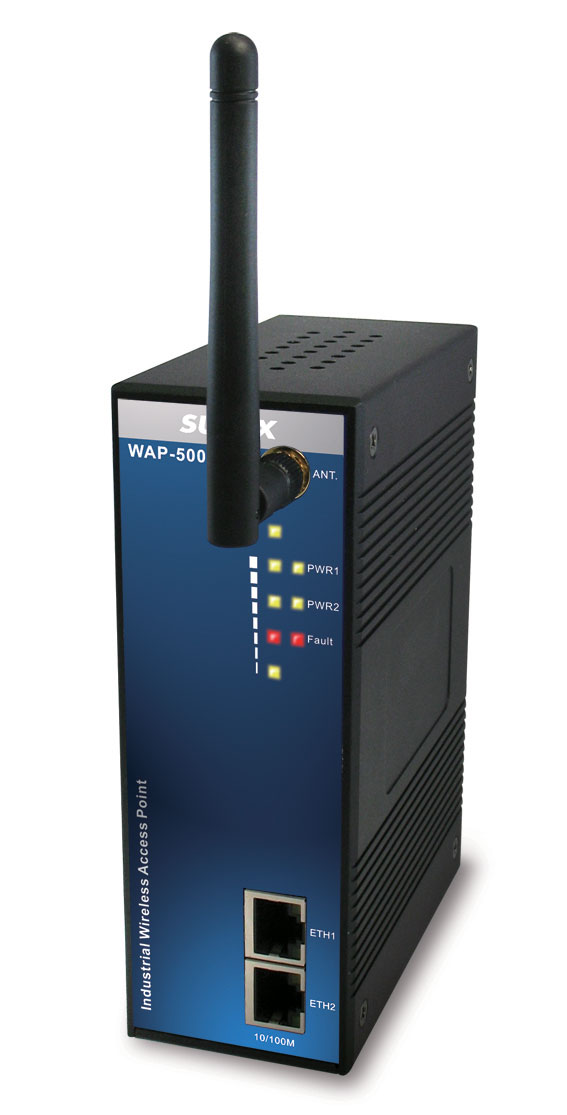

The SUNIX WAP-5002 is an industrial-grade IEEE 802.11b/g wireless LAN access point designed to provide robust, secure, and flexible wireless connectivity for industrial and automation environments. It integrates two 10/100Base-T(X) Ethernet ports in switch mode, enabling daisy-chain networking to minimize switch port usage. The device supports multiple operation modes—Access Point (AP), Bridge, and Repeater—allowing it to adapt to various network topologies. Built with a rugged metal enclosure and IP30 protection, the WAP-5002 is engineered for reliable operation in harsh industrial conditions.
2. Key Features
- IEEE 802.11b/g Wireless Connectivity: Supports data rates up to 54 Mbps, providing high-speed wireless communication for industrial networks.
- Multi-Mode Operation: Configurable as Access Point, Bridge, or Repeater, enabling flexible deployment in different network architectures.
- Dual Ethernet Ports: Two 10/100Base-T(X) RJ45 ports with built-in 1.5 kV magnetic isolation, supporting switch mode for daisy-chain connections.
- Industrial-Grade Design: Metal IP30 enclosure, DIN-rail and wall-mount options, and wide operating temperature range (-10°C to 55°C).
- High Security: Supports WEP (64/128-bit), WPA, WPA2, 802.1X, TKIP, and RADIUS authentication for secure wireless communication.
- Redundant Power Inputs: Dual 12–48 VDC inputs via 6-pin terminal block with reverse polarity protection and configurable relay output for alarm signaling.
- Comprehensive Management: Web-based configuration, SSH console, and Windows utility (WAP-Tools) for easy setup and monitoring.
- Event Notification: Supports Syslog, SNMP trap, email alerts, relay output, and beeper for system event warnings.
- PoE Compatibility (WAP-5002P variant): ETH2 port supports IEEE 802.3af Power Device (PD) standard, providing up to 8 W power input with 1 kV isolation.
- Secure Management: HTTPS and SSH protocols ensure encrypted remote configuration and monitoring.
- Long-Term Reliability: 5-year warranty and compliance with industrial EMC and environmental standards.
3. Technical Specifications
Wireless Interface:
- Standards: IEEE 802.11b/g
- Modulation:
- 802.11b: CCK, DQPSK, DBPSK
- 802.11g: OFDM with BPSK, QPSK, 16QAM, 64QAM
- Frequency Band:
- FCC (US): 2.412–2.462 GHz (11 channels)
- CE/ETSI (EU): 2.412–2.472 GHz (13 channels)
- Transmission Rate:
- 802.11b: 1/2/5.5/11 Mbps
- 802.11g: 6/9/12/18/24/36/48/54 Mbps
- Transmission Power: 16–18 dBm
- Receiver Sensitivity:
- -81 dBm @ 11 Mbps (PER < 8%)
- -64 dBm @ 54 Mbps (PER < 10%)
- Antenna Connector: Reverse SMA, 2.4 GHz antenna (2 dBi typical)
- Radio Type: DSSS (Direct Sequence Spread Spectrum)
LAN Interface:
- Ports: 2 × 10/100Base-T(X) RJ45 (Auto MDI/MDI-X)
- Protection: 1.5 kV magnetic isolation
- PoE (WAP-5002P only): IEEE 802.3af compliant PD on ETH2, 8 W max, 1 kV isolation
Power Requirements:
- Input Voltage: 12–48 VDC (dual redundant inputs)
- Connector: 6-pin removable terminal block
- Power Consumption: 6 W max (8 W for PoE model)
- Protection: Reverse polarity, overload, short-circuit
- Alarm Contact: 1 × relay output (1A @ 24 VDC)
Mechanical:
- Dimensions (W × D × H): 52 × 106 × 144 mm (without connectors)
- Enclosure: Metal, IP30 protection
- Mounting: DIN-rail and wall-mount options
- Weight: Approx. 0.8 kg
Environmental:
- Operating Temperature: -10°C to 55°C
- Storage Temperature: -20°C to 85°C
- Operating Humidity: 5%–95% RH (non-condensing)
Certifications & Standards:
- EMI: FCC Part 15, CISPR (EN55022) Class A
- EMS: EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS) Level 3
- Mechanical: IEC60068-2-27 (Shock), IEC60068-2-32 (Freefall), IEC60068-2-6 (Vibration)
- Regulatory: CE Class A, RoHS compliant
4. Functionality
The WAP-5002 functions as a wireless access point bridging wired and wireless networks in industrial environments. It supports three primary operation modes:
- Access Point (AP) Mode: Provides wireless connectivity for client devices, extending wired LAN access to wireless nodes.
- Bridge Mode: Enables LAN-to-LAN bridging using Wireless Distribution System (WDS), allowing two or more access points to interconnect without cabling.
- Repeater Mode: Extends wireless coverage by relaying signals between access points and clients.
Use Cases:
- Industrial automation and control systems (PLC, SCADA, HMI)
- Factory floor wireless networking
- Remote monitoring and data acquisition
- Mobile equipment connectivity (robots, AGVs)
- Temporary or hard-to-wire installations
Compatibility:
- Supports standard TCP/IP protocols (ICMP, IP, TCP, UDP, DHCP, ARP, DNS, SNMP, HTTPS, SSH)
- Compatible with Windows (NT/2000/XP/2003/Vista) and Linux systems via web or utility configuration
5. Components & Accessories
Included Items:
- WAP-5002 main unit
- 2.4 GHz antenna (2 dBi)
- DIN-rail mounting kit
- Wall-mount bracket
- 6 × M3×5 screws
- 6-pin terminal block connector
- Quick Installation Guide (QIG)
- CD-ROM with WAP-Tools utility and documentation
- Dust cover
Optional Accessories:
- External high-gain antenna (via reverse SMA)
- Power adapter (not included by default)
- Ethernet cables (Cat5e or higher)
Connectors:
- 2 × RJ45 Ethernet ports
- 1 × Reverse SMA antenna connector
- 6-pin terminal block (PWR1, PWR2, Relay)
- Reset button (3 sec reset, 5 sec factory default)
6. Installation & Setup
Mounting Options:
- DIN-Rail Installation:
1. Attach the metal spring clip to the DIN rail.
2. Push the device until it clicks into place.
- Wall Mounting:
1. Remove the DIN-rail kit.
2. Attach the wall-mount bracket using six screws.
3. Secure the unit to the wall surface.
Power Connection:
Connect 12–48 VDC to PWR1 and/or PWR2 terminals. The relay output can be wired for alarm signaling.
Network Setup:
- Default IP: 192.168.1.1
- Default login: admin / admin
- Configuration via:
- Web browser (HTTP/HTTPS)
- SSH console
- WAP-Tools Windows utility
Wireless Configuration:
- Set SSID, channel, and security mode (WEP/WPA/WPA2).
- Configure DHCP server/client as needed.
- Adjust advanced parameters (beacon interval, DTIM, RTS/fragmentation thresholds, transmit power).
LED Indicators:
- PWR1/PWR2: Power status (green/red)
- Fault: Alarm condition (amber)
- WLAN: Wireless link/activity (green)
- WLAN Strength: Signal level (1–4 LEDs)
- ETH1/ETH2: Link/activity (amber for 10 Mbps, green for 100 Mbps)
7. Performance & Capabilities
- Wireless Throughput: Up to 54 Mbps (802.11g)
- Coverage Range: Up to 300 m (outdoor line-of-sight), 45 m (indoor typical)
- Latency: Optimized for industrial control and data acquisition applications
- Redundancy:
- Dual power inputs for uninterrupted operation
- Dual Ethernet ports for network redundancy and daisy-chaining
- Reliability:
- Mean Time Between Failures (MTBF) > 100,000 hours
- Fault relay output for immediate failure notification
- Security:
- Authentication: 802.1X, RADIUS
- Encryption: WEP, WPA, WPA2, TKIP, AES
- Access Control: MAC filtering, IP filtering, static DHCP mapping
- Limitations:
- Operates only in 2.4 GHz band (no 5 GHz support)
- Maximum power consumption 6 W (non-PoE)
8. Standards & Compliance
Wireless Standards:
- IEEE 802.11b/g (Wi-Fi certified)
- IEEE 802.3af (PoE PD, WAP-5002P only)
Network Protocols:
- ICMP, IP, TCP, UDP, DHCP, BOOTP, ARP/RARP, DNS, SNMP MIB II, HTTPS, SSH, SSL
Security Standards:
- WEP (64/128-bit)
- WPA/WPA2 (TKIP/AES)
- IEEE 802.1X authentication
- RADIUS server integration
EMC & Safety Compliance:
- FCC Part 15 Class A
- EN55022 Class A (CISPR)
- EN61000-4-2/3/4/5/6 (ESD, RS, EFT, Surge, CS)
- IEC60068-2-27/32/6 (Shock, Freefall, Vibration)
- CE and RoHS compliant
9. Additional Information
Warranty:
5-year limited warranty covering manufacturing defects and hardware reliability.
Support & Maintenance:
- Firmware updates and utilities available at [www.sunix.com.tw](http://www.sunix.com.tw)
- Technical support via email: info@sunix.com.tw
- Regular firmware upgrades for enhanced performance and security
- User manuals and configuration guides provided on CD and online
Maintenance Recommendations:
- Periodically check antenna connections and cable integrity.
- Keep firmware updated to the latest version.
- Ensure adequate ventilation and avoid exposure to moisture or corrosive environments.
Firmware & Configuration Management:
- Backup and restore configuration files via web interface.
- Remote firmware upgrade supported (do not power off during upgrade).
- System logs and SNMP traps for proactive monitoring.
Summary:
The SUNIX WAP-5002 is a robust, feature-rich industrial wireless access point designed for mission-critical applications requiring secure, high-performance wireless connectivity. With its dual LAN ports, redundant power design, and comprehensive management capabilities, it provides a reliable bridge between wired and wireless networks in demanding industrial environments. Its compliance with IEEE 802.11b/g and IEEE 802.3af standards, combined with advanced security and redundancy features, makes it an ideal solution for factories, utilities, and automation systems seeking dependable wireless infrastructure.
