- **Processor Support:** Intel® Core™ i7-2710QE (2.1GHz, 6MB L2 Cache, 45W TDP), with options for i5-2510E, i3-2330E, and Celeron® B810. - **Chipset:** Intel® QM67 Express Chipset for enhanced I/O and graphics integration. - **Graphics:** Integrated Intel® HD Graphics with triple display output (HDMI, DVI-D, VGA). - **Memory:** Dual-channel DDR3 1066/1333MHz SO-DIMM, up to 8GB. - **Storage:** Two 2.5” SATA 6Gb/s drive bays supporting RAID 0/1; anti-shock mounting design. - **Expansion:** 1× PCIe x16 slot, 1× PCI slot (via riser card), and 1× Mini PCIe slot for wireless or SSD modules. - **Networking:** Dual Gigabit Ethernet ports (Intel® 82579LM and 82574L controllers) with Wake-on-LAN support. - **Serial Communication:** Four COM ports (1× RS-232/422/485, 3× RS-232). - **USB Connectivity:** Six USB 2.0 ports (2 front, 4 rear). - **Audio:** Realtek ALC892 HD Audio with Mic-in, Line-in, and Line-out. - **Power Supply:** Integrated 250W FlexATX AC PSU (100–240V AC input). - **Cooling:** Dual 6cm fans with removable air filters for easy maintenance. - **Mounting:** Wall-mount brackets included; optional rack or panel mounting. - **Environmental Tolerance:** Operating temperature 0°C to +50°C; storage -20°C to +75°C. - **Certifications:** CE, FCC Class A, RoHS compliant.

Hersteller: Adlink Technology Inc.

Kategorie: Adlink M-Series

- **EtherCAT Compliance:** Fully compliant with the EtherCAT communication standard for deterministic, high-speed industrial networking. - **Industrial IEC Standard Compliance:** Meets EN 61131-2 (shock and vibration) and EN 61000-6 (EMC protection) standards. - **Optimized for ADLINK Masters:** Designed for 250 µs cycle time operation with ADLINK EtherCAT masters. - **Comprehensive Module Range:** Includes digital input/output, analog input/output, bus coupler, power supply, and terminal modules. - **Modular and Slice-Type Design:** Enables flexible configuration and scalability for small or large distributed systems. - **Compact Form Factor:** Each module measures 100 mm × 68 mm × 12 mm, allowing dense installation in control cabinets. - **High Reliability:** Operates in industrial environments from 0°C to 55°C with 95% non-condensing humidity tolerance. - **CE Certified:** Ensures compliance with European safety and EMC directives. - **Environmental Responsibility:** RoHS and WEEE compliant, supporting sustainable manufacturing and disposal practices.

Hersteller: Adlink Technology Inc.

Kategorie: Motion Control / EtherCAT Additional Modules

- **High‑Density Analog Input:** 16 simultaneous analog input channels with 16‑bit resolution and up to 250 kS/s aggregate sampling rate. - **Digital I/O Flexibility:** 8 configurable digital input/output channels for control, triggering, or status monitoring. - **Embedded ARM Cortex‑A9 Processor:** Provides local computation, preprocessing, and autonomous operation without a host PC. - **Ethernet Connectivity:** Integrated Ethernet interface for remote configuration, data streaming, and networked DAQ deployment. - **Fanless Industrial Design:** Rugged, maintenance‑free construction suitable for continuous operation in harsh environments. - **Wide Power Range:** Accepts 6 – 36 V DC input for flexible integration into industrial power systems. - **Edge Computing Capability:** Supports local data filtering, FFT analysis, and condition monitoring at the device level to reduce network load. - **Compact Form Factor:** 183 × 110 × 84 mm enclosure optimized for control cabinets and distributed installations. - **Extended Temperature Range:** Operates reliably from 0 °C to 55 °C; storage from −20 °C to +70 °C. - **ADLINK Reliability:** Industrial‑grade components, long‑life design, and compliance with global EMC and safety standards.

Hersteller: Adlink Technology Inc.

Kategorie: Atom Powered Embedded

- **Standalone Ethernet DAQ:** Operates independently without a host PC, ideal for distributed monitoring. - **Edge Computing Capability:** Performs data filtering, FFT, and algorithmic processing locally to reduce network load. - **High‑Resolution Analog Inputs:** Four simultaneous 24‑bit channels with up to 128 kS/s sampling rate. - **IEPE Sensor Support:** 4 mA excitation current per channel for accelerometers and vibration sensors. - **Dual Gigabit Ethernet Ports:** Two 1 GbE RJ‑45 ports with cascading support for daisy‑chain networking. - **RESTful API and SDK:** REST API (C#, Python, JavaScript) and Streaming SDK (C/C++) for integration and continuous data streaming. - **Built‑in Web Console:** Browser‑based configuration interface for setup, monitoring, and mission management. - **Custom Filtering Algorithms:** User‑defined C/C++ algorithms can be uploaded and executed under Linux. - **Automatic Recovery:** System resumes previous state after power restoration. - **Compact, Fanless Design:** Metal IP30 housing suitable for DIN‑rail or wall mounting. - **Wide Power Input Range:** 9 – 30 VDC (typical 24 VDC) with max. 8.8 W consumption. - **Environmental Robustness:** Operates from 0 °C – 50 °C, vibration‑ and shock‑resistant, EMC‑compliant.

Hersteller: Adlink Technology Inc.

Kategorie: Atom Powered Embedded

- **Standalone Ethernet DAQ:** Operates independently without a host PC, ideal for distributed or remote installations. - **Edge Computing Capability:** Performs local data filtering, FFT, and algorithmic processing at the edge to reduce network load. - **High-Resolution Analog Input:** Four simultaneous 24-bit channels with up to 128 kS/s sampling rate. - **IEPE Sensor Support:** 4 mA excitation current per channel for accelerometers and vibration sensors. - **Dual Gigabit Ethernet Ports:** Two 1 GbE RJ-45 ports supporting cascading topology for simplified network deployment. - **RESTful API and SDK Support:** RESTful API (C#, Python, JavaScript) and Streaming SDK (C/C++) for integration and continuous data streaming. - **Built-in Web Console:** Browser-based configuration and monitoring interface with dashboard visualization. - **Custom Filtering Algorithms:** User-defined C/C++ algorithms can be uploaded and executed locally under Linux. - **Automatic Recovery:** System resumes previous operational state after power restoration. - **Compact, Fanless Design:** Metal IP30 housing suitable for DIN rail or wall mounting. - **Wide Power Input Range:** 9–30 VDC input with low power consumption (max. 8.8 W). - **Industrial-Grade Reliability:** Operating temperature 0–50°C, vibration resistance up to 5 Grms, and shock tolerance up to 100 G.

Hersteller: Adlink Technology Inc.

Kategorie: Atom Powered Embedded

- **Standalone Operation:** Functions independently without a host PC, ideal for distributed or remote installations. - **Edge Computing Capability:** Performs local data filtering, FFT, and algorithmic processing to reduce network load. - **High‑Resolution Analog Input:** 4 simultaneous 24‑bit channels with up to 128 kS/s sampling rate. - **IEPE Sensor Support:** 4 mA excitation current per channel for accelerometers and vibration sensors. - **Dual Gigabit Ethernet Ports:** Two 1 Gb RJ‑45 ports with cascading support for daisy‑chain networking. - **RESTful API and SDK:** REST API (C#, Python, JavaScript) and Streaming SDK (C/C++) for integration and continuous data streaming. - **Built‑in Web Console:** Browser‑based configuration, monitoring, and mission management interface. - **Custom Algorithm Support:** User‑defined filtering algorithms in C/C++ can be uploaded and executed at the edge. - **Automatic Recovery:** System resumes previous mission after power restoration. - **Compact, Rugged Design:** Metal IP30 housing, DIN‑rail or wall‑mountable, designed for industrial environments. - **Wide Power Input Range:** 9 – 30 VDC input with low power consumption (max 8.8 W). - **Environmental Robustness:** Operates from 0 °C – 50 °C, vibration‑ and shock‑resistant. - **Comprehensive EMC/EMI Compliance:** Meets EN61000‑6‑4/‑6‑2, FCC Part 15B Class A, CISPR 32 standards.

Hersteller: Adlink Technology Inc.

Kategorie: Atom Powered Embedded

COM Express Compact Size Type 6 module with 11th Gen Intel Core i3-1115GRE processor, dual-core, 3.0/3.9 GHz, Intel UHD graphics, DDR4 up to 3200 MT/s with IBECC support on GRE processors, PCIe Gen4 x4, configurable PCIe Gen3 lanes, 2.5GbE, SATA, USB, UART, GPIO. Ordering information specifies ETT -40° to 85°C.

Hersteller: Adlink Technology Inc.

Kategorie: Keine Kategorie

COM Express Compact Size Type 6 module with 11th Gen Intel Core i5-1145GRE processor, quad-core, 2.6/4.1 GHz, Intel Iris Xe graphics, DDR4 up to 3200 MT/s with IBECC support on GRE processors, PCIe Gen4 x4, configurable PCIe Gen3 lanes, 2.5GbE, SATA, USB, UART, GPIO. Ordering information specifies ETT -40° to 85°C.

Hersteller: Adlink Technology Inc.

Kategorie: Keine Kategorie

COM Express Compact Size Type 6 module with 11th Gen Intel Core i7-1185GRE processor, quad-core, 2.8/4.4 GHz, Intel Iris Xe graphics, DDR4 up to 3200 MT/s with IBECC support on GRE processors, PCIe Gen4 x4, configurable PCIe Gen3 lanes, 2.5GbE, SATA, USB, UART, GPIO. Ordering information specifies ETT -40° to 85°C.

Hersteller: Adlink Technology Inc.

Kategorie: Keine Kategorie

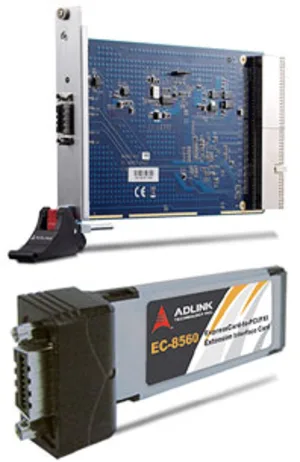

- **ExpressCard‑to‑PCI/PXI Expansion:** Enables laptops or compact PCs with ExpressCard/34 or ExpressCard/54 slots to control external PCI or PXI devices. - **High‑Speed PCI Express Interface:** Utilizes a PCI Express x1 link with 250 MB/s throughput per direction (2.5 Gbps signaling rate). - **Transparent Bridge Architecture:** No additional drivers or software required; devices in the extension chassis appear as if installed directly in the host system. - **Extended Distance Operation:** Supports cable lengths of 1 m, 3 m, or 7 m without signal degradation. - **Multi‑Voltage PCI Bus Support:** Compatible with both 5 V and 3.3 V PCI signaling environments. - **Full 32‑bit/33 MHz PCI Bus Operation:** Ensures compatibility with standard PCI and PXI modules. - **Hardware and Software Transparency:** Seamless integration with host BIOS and OS resource allocation. - **Compact and Portable Design:** Ideal for mobile test and measurement setups. - **Environmental Compliance:** Fully RoHS and WEEE compliant. - **Industrial‑Grade Reliability:** Designed for high‑density I/O, automation, and rugged field applications.

Hersteller: Adlink Technology Inc.

Kategorie: Bus Extensions

- **ExpressCard‑to‑PXI Control:** Enables laptops equipped with ExpressCard/34 or ExpressCard/54 slots to control PXI or PCI devices in an external chassis. - **High‑Speed PCI Express Interface:** Implements a PCI Express x1 link with a signaling rate of 2.5 Gbps per direction and a data throughput of 250 MB/s. - **Transparent Bridge Architecture:** No additional drivers or software required; devices in the extension chassis are recognized natively by the host BIOS. - **Extended Distance Operation:** Supports cable lengths of 1 m, 3 m, and 7 m using shielded twisted‑pair copper cables with high EMI immunity. - **Full PCI Compatibility:** Supports both 5 V and 3.3 V PCI buses, 32‑bit/33 MHz operation. - **Environmental Compliance:** Fully RoHS and WEEE compliant, designed for minimal environmental impact. - **Hardware Reliability:** Incorporates signal equalization and spread‑spectrum clock control to reduce EMI and maintain signal integrity over long distances. - **Ease of Integration:** Plug‑and‑play installation with automatic resource allocation by system BIOS. - **Versatile Applications:** Ideal for portable test and measurement, industrial automation, and field‑deployable instrumentation systems.

Hersteller: Adlink Technology Inc.

Kategorie: Bus Extensions

- **8 Additional Voltage Output Channels:** Expands the PCI‑6208V from 8 to 16 channels, forming the PCI‑6216V configuration. - **High‑Resolution Analog Output:** 16‑bit resolution with 15‑bit guaranteed monotonicity for precise voltage generation. - **Wide Output Range:** ±10 V bipolar output range suitable for a variety of analog control and signal generation tasks. - **Fast Response:** Typical 4 µs settling time for a 20 V step and 10 V/µs slew rate, ensuring rapid and stable output transitions. - **Low Error and High Accuracy:** Gain error within ±0.2% (maximum) and differential non‑linearity (DNL) of ±0.65 LSB typical. - **Stable Power‑On Behavior:** On‑board analog switches minimize power‑on glitches; outputs default to 0 V at startup. - **Compact and Modular Design:** Daughterboard form factor designed for direct connection to the PCI‑6208V main card. - **Industrial‑Grade Reliability:** Operating temperature range of 0 °C to 50 °C and humidity tolerance up to 95% non‑condensing. - **Compatibility:** Fully compatible with ADLINK’s PCI‑6208V and PCI‑6208A series cards and associated software libraries. - **Applications:** Ideal for automatic test equipment (ATE), process control, servo control, and signal generation systems.

Hersteller: Adlink Technology Inc.

Kategorie: D/A General Purpose PCI

- **8‑Channel Voltage‑to‑Current Conversion:** Converts eight independent ±10 V analog voltage outputs into current outputs. - **Programmable Output Ranges:** Software‑selectable current ranges of 0–20 mA, 4–20 mA, and 5–25 mA. - **High Resolution and Accuracy:** 15‑bit typical resolution with 14‑bit monotonicity; span error ±0.3 % typical. - **Fast Response:** Typical slew rate of 1.3 mA/µs and settling time of 17 µs for a 20 mA step. - **Precision Components:** Utilizes Burr‑Brown XTR110 or equivalent precision voltage‑to‑current transducers for linear, low‑noise conversion. - **Stable Power Supply:** On‑board DC‑to‑DC converter provides isolated ±15 V and +5 V rails for analog circuitry. - **Compact Daughterboard Design:** Mounts directly onto the PCI‑6208V main card to form the PCI‑6208A assembly. - **Industrial‑Grade Reliability:** Designed for continuous operation in 0 °C to 50 °C environments with 5–95 % non‑condensing humidity. - **Plug‑and‑Play PCI Interface:** Fully compatible with 32‑bit PCI bus architecture; automatic resource assignment via BIOS. - **Software Support:** Compatible with ADLINK DAQPilot, DAQMaster, and legacy PCIS‑DASK drivers; supports Windows and Linux environments.

Hersteller: Adlink Technology Inc.

Kategorie: D/A General Purpose PCI

Slim type floppy expansion kit for cPCI-3720 series

Hersteller: Adlink Technology Inc.

Kategorie: cPCI CPU P-III Level

flat cable 20pin 1m, Adlink

Hersteller: Adlink Technology Inc.

Kategorie: Cables and Accessories

flat cable 20pin 2m, Adlink

Hersteller: Adlink Technology Inc.

Kategorie: Cables and Accessories

- **50-Pin Flat Ribbon Design:** Supports parallel signal transmission for up to 50 discrete channels, ideal for digital I/O, analog I/O, and control signal routing. - **1.5-Meter Length:** Provides sufficient reach for internal or external connections between DAQ cards and terminal boards without excessive slack or signal degradation. - **High Signal Integrity:** Designed to minimize crosstalk and electromagnetic interference (EMI) through precise conductor spacing and uniform insulation thickness. - **Standard IDC Connectors:** Equipped with 50-pin insulation displacement connectors (IDC) on both ends, compatible with standard 50-pin headers used in ADLINK and other industrial I/O systems. - **Flexible PVC Insulation:** Ensures durability and flexibility for routing within enclosures or control cabinets. - **Optimized for ADLINK DAQ Systems:** Fully compatible with ADLINK’s PCI, PXI, and USB DAQ cards, as well as terminal boards such as ACLD-9182, ACLD-9185, and similar models. - **Plug-and-Play Integration:** No additional configuration required; simply connect between the DAQ card and the terminal board. - **Industrial-Grade Reliability:** Manufactured to meet ADLINK’s quality standards for signal transmission, mechanical endurance, and environmental resilience.

Hersteller: Adlink Technology Inc.

Kategorie: Cables and Accessories

flat cable 50pin both end 3m length, Adlink

Hersteller: Adlink Technology Inc.

Kategorie: Cables and Accessories

- **Dual‑Interface Connectivity:** Equipped with a 50‑pin IDC female connector on one end and a 50‑pin SCSI male connector on the other, enabling direct connection between internal board headers and external SCSI‑type interfaces. - **Flat Ribbon Construction:** The flat cable design ensures consistent impedance, minimal crosstalk, and easy routing within enclosures or control cabinets. - **1 Meter Length:** Provides sufficient reach for most rack‑mounted or benchtop configurations while minimizing signal degradation. - **High‑Density Signal Transmission:** Supports parallel data transfer across 50 conductors, suitable for high‑speed digital I/O and data acquisition applications. - **Industrial‑Grade Build:** Manufactured with durable materials to withstand mechanical stress, vibration, and temperature variations typical in industrial environments. - **Plug‑and‑Play Compatibility:** Designed for seamless integration with ADLINK DAQ cards, relay boards, and other modules using 50‑pin headers or SCSI connectors. - **Reliable Signal Integrity:** Precision‑terminated connectors and controlled cable geometry maintain low resistance and consistent electrical characteristics. - **Versatile Application Range:** Ideal for connecting measurement systems, control modules, and peripheral devices in test benches, automation systems, and embedded platforms.

Hersteller: Adlink Technology Inc.

Kategorie: Cables and Accessories

- **Channel Expansion:** Adds four additional composite video input channels to the RTV‑24 base board. - **High‑Performance Video Acquisition:** Supports real‑time capture of multiple analog video streams (PAL, NTSC, CCIR, EIA). - **Scalable Architecture:** Up to 16 total channels can be configured using multiple RTV‑E4 boards connected to the RTV‑24 via onboard 10‑pin headers. - **Flexible Video Formats:** Compatible with NTSC‑M, NTSC‑Japan, PAL‑B/D/G/H/I/M/N, and SECAM color standards, as well as CCIR and EIA monochrome formats. - **Programmable Image Processing:** Adjustable hue, brightness, contrast, and saturation; optional image scaling (down to 1:16) and cropping to region of interest. - **TTL‑Compatible I/O Lines:** 4 digital inputs, 4 outputs, and 4 software trigger lines with overload and ESD protection. - **Watchdog Timer:** Hardware watchdog for system reliability; automatically resets the host PC after a programmable inactivity timeout. - **User EEPROM:** 1 Kbit non‑volatile memory for user‑defined data storage. - **Software Support:** WDM drivers for Windows NT/98/2000/XP; compatible with VC++, VB, Borland C++ Builder, and Delphi. - **Utility Software:** Bundled ViewCreator utility for configuration, testing, and image capture verification. - **Compact PCI/PCI/PMC Compatibility:** Designed for integration with ADLINK’s RTV‑24 PCI frame grabber and compatible Angelo series boards.

Hersteller: Adlink Technology Inc.

Kategorie: Frame Grabber

- **Multi‑Channel Real‑Time Video Capture:** Supports simultaneous acquisition of up to four analog video channels in real time. Each channel can capture full‑frame color or monochrome video signals. - **Video Format Compatibility:** Accepts standard composite color formats (NTSC‑M, NTSC‑Japan, PAL‑B/D/G/H/I/M/N, SECAM) and monochrome formats (CCIR, EIA/RS‑170). - **Programmable Resolution and Scaling:** Supports square‑pixel resolutions (640×480 NTSC, 768×576 PAL) and broadcast resolutions. Images can be cropped or scaled down to 1/16 of original size. - **Adjustable Image Parameters:** Software‑controlled hue, brightness, contrast, and saturation (0–200%) adjustments with automatic chrominance gain control. - **Watchdog Timer:** Hardware watchdog monitors system activity and resets the host PC after a programmable timeout, ensuring fault‑tolerant operation. - **General Purpose I/O (GPIO):** 4 TTL‑compatible inputs, 4 outputs, and 4 software‑trigger lines for external synchronization, alarms, or control signals. - **Software Support:** WDM driver with DLL support for Visual C++, Visual Basic, Borland C++ Builder, and Delphi under Windows 98/NT/2000/XP. Includes **ViewCreator Utility** for configuration, testing, and image capture. - **User EEPROM:** 1 Kbit onboard EEPROM for user‑defined data storage. - **Channel Expansion:** Expandable up to 16 channels via onboard 10‑pin headers and ribbon cable extensions. - **Robust Design:** TTL I/O lines protected against overloads and ESD.

Hersteller: Adlink Technology Inc.

Kategorie: Frame Grabber

- **Low‑Power, Fanless Operation:** Utilizes a low‑voltage Intel Pentium III 800 MHz CPU with 512 KB on‑die Advanced Transfer Cache (ATC) for efficient, silent operation. - **Integrated Embedded SBC:** Based on the EBC‑P300 single‑board computer with Intel 815E AGP chipset and 82801BA ICH2 controller hub. - **Expandable Modular Design:** Supports one PMC (PCI Mezzanine Card) and up to three PC/104 expansion modules for motion control, vision, digital I/O, communication, and high‑speed link applications. - **Rugged Industrial Enclosure:** Compact, vibration‑resistant chassis with wall‑mounting kit; designed for harsh industrial environments. - **Comprehensive I/O Interfaces:** VGA, USB 1.1/2.0, IEEE 1394, Ethernet 10/100, COM ports, parallel port, GPIO, IDE, CompactFlash, PCMCIA, and floppy interfaces. - **Vision and Video Capture Options:** Conexant Fusion 878A video decoder supporting 4‑channel NTSC/PAL input (GEME‑V3000/X3000 variants). - **Wide Power Input Range:** AC 100–240 V or DC 10–30 V input options with integrated triple‑output power supply. - **Operating System Support:** Windows CE, Windows XP Embedded, and Linux. - **High Reliability:** Built‑in watchdog timer, hardware monitoring (temperature, voltage, battery), and ESD protection. - **Software Ecosystem:** Includes ADLINK’s All‑in‑One Automation CD with drivers, utilities, and libraries for motion, vision, and communication modules.

Hersteller: Adlink Technology Inc.

Kategorie: IPC Embedded System

- **4-Axis Motion Interface:** Supports up to four independent motion control axes, enabling simultaneous control of multiple motors or actuators. - **General-Purpose Design:** Compatible with a wide range of ADLINK motion control cards and third-party controllers using standard pin assignments. - **DIN-Rail Mountable:** Designed for easy installation on standard DIN rails, ensuring secure and organized mounting within control cabinets. - **Terminal Block Connectivity:** Provides screw-type terminal blocks for direct wiring of I/O signals, simplifying field connections and maintenance. - **Signal Distribution:** Facilitates clean and efficient routing of control signals such as pulse, direction, enable, limit, and home signals. - **High Signal Integrity:** Shortens wiring distances between controller and field devices, reducing noise and improving signal reliability. - **No Cable Included:** The board is supplied without a cable, allowing users to select or fabricate custom-length cables suited to their specific installation. - **Industrial-Grade Construction:** Built with durable materials and designed to withstand industrial operating conditions. - **Ease of Maintenance:** Clearly labeled terminals and signal indicators simplify troubleshooting and system diagnostics. - **Compatibility:** Optimized for ADLINK motion controllers such as PCI-8134, PCI-8164, and similar 4-axis motion control cards.

Hersteller: Adlink Technology Inc.

Kategorie: Digital Panels

- **Comprehensive GPIB Driver Suite:** The ADL-GPIB provides full driver support for ADLINK’s GPIB interface cards, ensuring reliable communication with a wide range of IEEE 488.1 and IEEE 488.2 compliant instruments. - **High Compatibility:** Supports multiple ADLINK GPIB hardware models, enabling seamless integration across various test and measurement setups. - **Optimized Performance:** Engineered for low-latency data transfer and efficient bus management, ensuring stable and high-speed communication between host systems and instruments. - **Cross-Platform Support:** Compatible with major operating systems commonly used in industrial and laboratory environments, including Windows and Linux distributions (depending on version). - **API and Programming Interface:** Provides a standardized programming interface compatible with VISA (Virtual Instrument Software Architecture) and other industry-standard APIs, allowing easy integration into existing test automation frameworks. - **Diagnostic and Utility Tools:** Includes GPIB configuration utilities, device scanning tools, and communication test functions for quick setup and troubleshooting. - **Backward Compatibility:** Maintains support for legacy ADLINK GPIB cards, ensuring long-term usability and simplified migration from older systems. - **Plug-and-Play Configuration:** Automatically detects installed ADLINK GPIB hardware and configures communication parameters for immediate operation. - **Robust Error Handling:** Built-in error detection and reporting mechanisms enhance system reliability and simplify debugging during development and testing. - **Scalable Architecture:** Supports multiple GPIB interfaces within a single system, allowing complex multi-instrument configurations.

Hersteller: Adlink Technology Inc.

Kategorie: ADLink Driver, Software

- **Processor Compatibility:** Supports Intel Pentium MMX, Low Power Pentium, AMD K6, K6-2, K6-3, and Cyrix MII CPUs ranging from 166 MHz to 400 MHz. - **Socket Type:** Socket 7 CPU interface. - **Chipset:** Intel 82430TX PCIset with 82371EB southbridge. - **Memory Support:** One 168-pin DIMM socket supporting up to 256 MB SDRAM. - **Display Interface:** Integrated C&T 69000 VGA/LCD controller with 2 MB SDRAM display memory, supporting simultaneous CRT and LCD output. - **Storage Interfaces:** Two Enhanced IDE channels supporting up to four devices (PIO Mode 3/4, Ultra DMA/33, ATAPI CD-ROM, LS-120, ZIP drives). - **DiskOnChip Socket:** Supports M-Systems flash disk (2 MB to 72 MB) for boot and storage. - **Serial Communication:** Two 16550 UART-compatible ports (COM1 RS-232, COM2 configurable as RS-232/422/485). - **Parallel Port:** High-speed bi-directional SPP/ECP/EPP parallel port with ESD protection. - **Ethernet:** Integrated Intel 82559 10/100 Mbps PCI Ethernet controller with Wake-on-LAN and Alert-on-LAN II support. - **Watchdog Timer:** Programmable 0–255 seconds/minutes for system recovery. - **Hardware Monitoring:** Winbond W83781D monitors CPU/system temperature, voltages, and fan speeds. - **Power Management:** BIOS-controlled green function, modem ring-on, and Windows 98 software-controlled power-off. - **Form Factor:** Half-size PICMG SBC, 185 mm x 122 mm. - **Operating Temperature:** 0°C to 70°C. - **Humidity Range:** 5% to 95% non-condensing. - **Power Supply:** AT or ATX compatible; +5V @ 17.5A (max), +12V @ 50 mA.

Hersteller: Adlink Technology Inc.

Kategorie: Slot-CPUs
