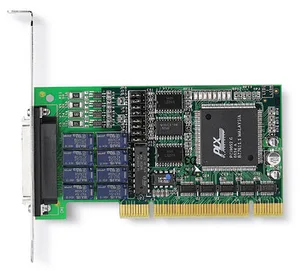

- **Bus Interface:** 32-bit 3.3 V/5 V PCI bus, fully compliant with PCI specification. - **Low-Profile Design:** Compact PCB (120 mm × 65 mm) suitable for space-constrained systems. - **Relay Outputs:** 8 channels of SPDT (Form C) relays, non-latching type. - **Isolated Digital Inputs:** 8 optically isolated, non-polarity input channels with optional RC filtering. - **High Isolation:** 5000 VRMS isolation between input channels and system ground. - **LED Indicators:** Onboard LEDs display the status of each relay output. - **Relay Readback:** Output status can be read back through software. - **Onboard Driving Circuits:** Integrated relay driver circuitry for reliable switching. - **Input Filtering:** Jumper-selectable AC-filter or non-filter mode for each input channel. - **Software Support:** Compatible with Windows and Linux drivers, including DAQPilot, PCIS-DASK, and DAQ-MTLB for MATLAB®. - **Industrial Reliability:** Designed for noisy environments and continuous operation. - **Extended Product Family:** Compatible with PCI-7251 expansion modules for scalable I/O configurations.

Hersteller: Adlink Technology Inc.

Kategorie: DIO Isolated PCI

- **High‑Speed Digital I/O:** 32 TTL‑compatible digital inputs and 32 TTL‑compatible digital outputs. Maximum transfer rate up to **12 MB/s** using bus‑mastering DMA. - **Universal PCI Compatibility:** Supports both **3.3 V and 5 V PCI signaling**, ensuring broad system compatibility. - **Low‑Profile Design:** Compact MD1 form factor (168 mm × 64 mm) ideal for small chassis and embedded PCs. - **Multiple Data Transfer Modes:** - Direct programmed I/O control - Internal timer pacer control - External clock mode - Handshaking mode (REQ/ACK) - **Bus‑Mastering DMA:** Enables high‑throughput, low‑latency data transfer without CPU overhead. - **Programmable Counter/Timer:** Integrated 82C54‑10 programmable interval timer with 4 MHz base clock for pacer generation and timing control. - **FIFO Buffers:** 32‑word (DWord) FIFO for both input and output channels to ensure smooth high‑speed data streaming. - **Isolation and Protection:** 16/16 isolated channels with 2.5 kV isolation protection (for specific configurations). - **Interrupt Support:** Multiple interrupt sources selectable by software (EO_ACK, EI_REQ, Timer 0/1/2). - **Software Support:** Comprehensive driver and library support for Windows and Linux, including PCIS‑DASK, LabVIEW®, HP‑VEE™, DASYLab™, InTouch™, ISaGRAF™, and OPC Server integration. - **Certifications:** CE and FCC Class A compliant for EMC/EMI performance.

Hersteller: Adlink Technology Inc.

Kategorie: DIO Non-Isolated PCI

- **Bus Interface:** 32-bit 3.3 V or 5 V PCI bus (low-profile PCI form factor). - **Channel Configuration:** 16 isolated digital inputs and 16 isolated digital outputs. - **Isolation Protection:** 2500 V RMS optical isolation between channels and host system. - **Output Type:** Darlington transistor open-collector outputs supporting up to 35 VDC. - **Input Range:** Non-polarity 0–24 VDC input range with 1.2 kΩ input resistance. - **Output Drive Capability:** - Sink current up to 500 mA per channel at 100% duty cycle. - 370 mA for all channels at 10% duty cycle. - 130 mA for all channels at 50% duty cycle. - **Throughput Rate:** 10 kHz for both input and output operations. - **Interrupt Support:** Two external interrupt sources on digital input channels (channel 0 and 1). - **Connector Type:** One 50-pin SCSI-II female connector for I/O interface. - **Compact Design:** Low-profile PCI form factor (120 mm × 65 mm). - **Software Compatibility:** Supports Windows and Linux operating systems with comprehensive driver and SDK support. - **Recommended Software:** AD-Logger, DAQBench, DAQPilot, and third-party integration with LabVIEW™ and MATLAB®. - **Operating Temperature Range:** 0°C to 60°C. - **Storage Temperature Range:** -20°C to 80°C. - **Humidity Tolerance:** 5% to 95% non-condensing.

Hersteller: Adlink Technology Inc.

Kategorie: DIO Isolated PCI

USB type A to type B cable 1m

Hersteller: Adlink Technology Inc.

Kategorie: External AD Converter

- **High‑Speed USB 2.0 Interface:** Full‑speed data transfer with plug‑and‑play connectivity. - **USB Bus‑Powered Operation:** Draws 5 V @ 400 mA directly from the USB port—no external power adapter required. - **16‑Channel Analog Input:** Supports 16 single‑ended or 8 pseudo‑differential voltage input channels. - **16‑Bit Resolution:** High‑precision analog‑to‑digital conversion using AD7610 or equivalent ADC. - **Sampling Rate:** Up to 250 kS/s per channel (multiplexed). - **Programmable Input Ranges:** ±10 V, ±2 V, ±1 V, ±200 mV. - **Removable Screw‑Down Terminals:** Two 20‑pin connectors for secure and flexible wiring. - **Lockable USB Cable:** Ensures stable connection in industrial environments. - **Digital I/O:** 8 × TTL digital inputs and 4 × TTL digital outputs. - **Triggering Options:** Software, external digital, and analog triggers with multiple trigger modes (post, delay, retrigger, gated). - **Software Support:** Compatible with Windows XP/Vista/7; drivers for VB.NET, VC++, Delphi, LabVIEW®, and MATLAB®. - **Included Utility:** U‑Test software for immediate data acquisition and signal testing. - **Mounting Flexibility:** Multi‑functional stand for desktop, DIN‑rail, or wall mounting. - **Auto‑Calibration:** Built‑in calibration circuitry for maintaining measurement accuracy. - **Compact Design:** 115 mm (W) × 150 mm (D) × 40 mm (H) (without connectors or stand).

Hersteller: Adlink Technology Inc.

Kategorie: USB Data Acquisition

- **High‑Speed USB 2.0 Interface:** Full‑speed data transfer with USB bulk transfer mode for continuous acquisition. - **USB Bus‑Powered Operation:** 5 V @ 400 mA from the USB port; no external power adapter required. - **16‑Channel Analog Input:** 16 SE or 8 pseudo‑differential voltage inputs, 16‑bit resolution, up to 250 kS/s sampling rate. - **2‑Channel Analog Output:** 16‑bit resolution, simultaneous update up to 1 MS/s, ±10 V output range. - **Programmable Function I/O:** 8 digital inputs, 4 digital outputs (TTL level), two 32‑bit general‑purpose timer/counters, and four PWM outputs. - **Flexible Triggering:** Supports software, external digital, and analog triggers with post, delay, retrigger, and gated modes. - **Removable Screw‑Down Terminals:** Two 20‑pin connectors for secure and easy wiring. - **Lockable USB Cable:** Prevents accidental disconnection during operation. - **Auto‑Calibration:** Built‑in self‑calibration circuitry (USB‑1901/1902) ensures long‑term accuracy. - **Mounting Flexibility:** Includes a multi‑function stand for desktop, DIN‑rail, or wall mounting. - **Software Support:** Compatible with Windows XP/Vista/7; drivers for VB, VC++, .NET, Delphi, LabVIEW®, and MATLAB®. - **Free Utility:** U‑Test software for instant testing, data collection, and FFT analysis without programming.

Hersteller: Adlink Technology Inc.

Kategorie: USB Data Acquisition

- **High-Speed USB 2.0 Interface:** Fully compliant with USB 2.0 specifications, ensuring fast data transfer and plug-and-play connectivity. - **USB Bus Powered:** Operates directly from the USB port (5 VDC @ 400 mA), eliminating the need for an external power supply. - **Isolated Digital I/O:** - 16 optically isolated digital input channels (bi-directional, non-polarity). - 16 optically isolated open-drain MOSFET digital output channels (5–35 VDC). - **Dual 32-bit Counters:** Two optically isolated frequency/event counters supporting up to 1 MHz input frequency. - **High Isolation Voltage:** 2500 Vrms isolation between channels and system ground for enhanced safety and noise immunity. - **Change-of-State (COS) Detection:** Hardware-based detection of input state transitions with software-selectable channels. - **Programmable Digital Filtering:** Software-configurable glitch filtering to eliminate transient noise on input lines. - **Programmable Power-Up Output State:** Ensures known output conditions upon power-up or reset. - **Removable Screw-Terminal Connectors:** Two 20-pin removable screw-down terminals simplify wiring and maintenance. - **Lockable USB Cable:** Prevents accidental disconnection in industrial environments. - **Multi-Mount Stand:** Supports desktop, DIN rail, or wall mounting configurations. - **Software Support:** Compatible with ADLINK’s UD-DASK, DAQPilot SDK, and U-Test utility for configuration, testing, and development. - **Environmental Compliance:** Fully RoHS and WEEE compliant, reflecting ADLINK’s commitment to environmental responsibility.

Hersteller: Adlink Technology Inc.

Kategorie: USB Data Acquisition

- **High-Resolution Data Acquisition:** 24-bit Sigma-Delta ADC with integrated anti-aliasing filter for superior accuracy and noise suppression. - **Simultaneous Sampling:** Four analog input channels (or two in the USB-2405/2AI variant) capable of simultaneous sampling up to 128 kS/s per channel. - **Flexible Input Configuration:** Supports differential or pseudo-differential input modes with software-selectable AC/DC coupling. - **IEPE Sensor Support:** Built-in 2 mA excitation current per channel for Integrated Electronic Piezoelectric (IEPE) sensors such as accelerometers and microphones. - **USB Bus Powered:** Operates directly from USB 2.0 power (5 V @ 400 mA), eliminating the need for external power supplies. - **Comprehensive Triggering:** Supports analog and digital trigger sources with multiple modes—post, pre, delay, middle, gated, and retriggering. - **Auto-Calibration:** Fully automated calibration with onboard reference voltage ensures long-term measurement stability. - **Software Integration:** Compatible with ADLINK’s U-Test utility, DAQPilot SDK, LabVIEW®, MATLAB®, and Visual Studio.NET environments. - **Compact and Portable:** Rugged aluminum enclosure with BNC connectors and removable spring terminals for flexible connectivity. - **Environmental Compliance:** Designed in accordance with RoHS and WEEE directives for environmental responsibility.

Hersteller: Adlink Technology Inc.

Kategorie: USB Data Acquisition

- **High-Resolution Data Acquisition:** 24-bit Sigma-Delta ADC with integrated anti-aliasing filter for superior accuracy and noise suppression. - **Simultaneous Sampling:** Four analog input channels capable of simultaneous sampling up to 128 kS/s per channel. - **Flexible Input Configuration:** Software-selectable AC or DC coupling; differential or pseudo-differential input modes. - **IEPE Sensor Support:** Built-in 2 mA excitation current per channel for Integrated Electronic Piezoelectric (IEPE) sensors such as accelerometers and microphones. - **USB Bus Powered:** Operates directly from the USB 2.0 interface (5 V @ 400 mA), simplifying deployment and portability. - **Comprehensive Triggering:** Supports analog and digital trigger sources with multiple trigger modes (post, delay, middle, gated, pre-trigger, and retrigger). - **Auto-Calibration:** Fully automated calibration system with onboard reference voltage and EEPROM storage for calibration constants. - **Software Integration:** Compatible with ADLINK’s U-Test utility, DAQPilot SDK, and UD-DASK driver suite. Supports LabVIEW®, MATLAB®, and Visual Studio.NET environments. - **Compact and Robust Design:** Aluminum enclosure with removable spring terminals and lockable USB connectors for secure installation.

Hersteller: Adlink Technology Inc.

Kategorie: USB Data Acquisition

- **High‑Resolution Measurement:** 24‑bit A/D resolution across four differential analog input channels. - **Simultaneous Sampling:** All four channels sample concurrently, ensuring synchronized data acquisition. - **Universal Input Capability:** Supports voltage, current, thermocouple, RTD (2‑, 3‑, 4‑wire), strain gauge, load cell, and resistance measurements. - **Built‑in Signal Conditioning:** Integrated excitation sources and cold junction compensation (CJC) for direct sensor interfacing. - **Sampling Rate:** Programmable from 20 samples per second (SPS) up to 2 kS/s per channel. - **USB 2.0 High‑Speed Interface:** Provides fast data transfer and plug‑and‑play connectivity. - **USB Bus Powered:** Operates entirely from the USB port (5 V @ 400 mA). - **Digital I/O Functionality:** 4 digital inputs and 2 digital outputs, TTL‑compatible, configurable as GPIO, timer/counter, or PWM. - **Removable Screw‑Down Terminals:** Simplifies wiring and maintenance. - **Lockable USB Cable:** Ensures secure connection in industrial environments. - **Multi‑Mount Stand:** Supports desktop, DIN‑rail, or wall mounting. - **Software Support:** Compatible with ADLINK UD‑DASK, DAQPilot SDK, and U‑Test utility. - **Operating Systems:** Windows 7, Vista, XP. - **Applications:** Automotive testing, laboratory research, biotech measurement, and general I/O control.

Hersteller: Adlink Technology Inc.

Kategorie: USB Data Acquisition

- **High-Speed USB 2.0 Interface:** Ensures fast data transfer and reliable communication with host systems. - **USB Bus Powered:** Operates directly from the USB port (5VDC @ 500mA), simplifying installation and portability. - **4 Simultaneous-Sampling Analog Inputs:** Each channel supports up to 2 MS/s sampling rate with true simultaneous acquisition. - **High Resolution:** 16-bit analog-to-digital conversion for precise signal measurement. - **Large Onboard FIFO:** 256M-sample FIFO buffer prevents data loss during high-speed acquisition or heavy CPU load. - **Programmable Input Range:** ±10V and ±2V ranges with programmable gain (1 or 5). - **500VDC Isolation:** Protects the host system and reduces ground-loop interference. - **Flexible Triggering:** Supports software, external digital, and analog triggers with multiple trigger modes (post, pre, delay, gate, retrigger). - **Digital I/O:** 8 digital inputs and 4 digital outputs (LVTTL level). - **Timer/Counter and PWM Outputs:** Two 32-bit general-purpose timers/counters and two PWM outputs (0.01 Hz–5 MHz). - **Removable Screw Terminals:** Dual 20-pin connectors for easy wiring and maintenance. - **Lockable USB Cable:** Ensures secure connection in industrial environments. - **Multi-Mount Stand:** Supports desktop, DIN rail, and wall mounting. - **Software Support:** Compatible with Windows 7/8 (x86/x64), with drivers for UD-DASK, DAQPilot (LabVIEW®), and DAQ-MTLB (MATLAB®). - **Utility Software:** U-Test application for immediate testing and data visualization.

Hersteller: Adlink Technology Inc.

Kategorie: USB Data Acquisition

- **USB 2.0 High-Speed Interface:** Fully compliant with USB 2.0 specifications for plug-and-play connectivity and high data throughput. - **Bus-Powered Operation:** Draws power directly from the USB port (5 V @ 400 mA), eliminating the need for an external power supply. - **8 Isolated Digital Inputs:** Optically isolated channels (2500 V RMS isolation) with bi-directional, non-polarity-sensitive inputs supporting 5–24 V logic levels or dry contact operation. - **8 Solid-State Relay Outputs:** Non-latching relays (4 × Form C and 4 × Form A) rated at 60 W/125 VA, 220 VDC/250 VAC, 2 A maximum switching current. - **2 × 32-bit Event/Frequency Counters:** Optical isolation, 1 MHz maximum input frequency, 0.1 Hz minimum, with configurable rising/falling edge detection. - **High Isolation Protection:** 2500 V RMS isolation between channels and system ground to prevent ground loops and protect against high-voltage transients. - **Programmable Digital Filter:** Software-configurable glitch filtering on input channels to reject transient noise. - **Change-of-State (COS) Detection:** Interrupt-driven detection of input state transitions for event monitoring. - **Programmable Power-Up Output State:** Ensures known output conditions at startup or reset. - **Removable Screw-Terminal Connectors:** Two 20-pin connectors for easy wiring and maintenance. - **Lockable USB Cable:** Prevents accidental disconnection in industrial environments. - **Multi-Mount Stand:** Supports desktop, DIN rail, and wall mounting configurations. - **Software Support:** Compatible with ADLINK UD-DASK, DAQPilot SDK, and U-Test utility for configuration, testing, and data acquisition. - **Environmental Compliance:** RoHS and WEEE compliant for environmentally responsible design and disposal.

Hersteller: Adlink Technology Inc.

Kategorie: USB Data Acquisition

- **USB 2.0 High‑Speed Interface:** Provides high‑throughput data transfer and plug‑and‑play connectivity. - **Bus‑Powered Operation:** Draws 5 V @ 400 mA directly from the USB port—no external power supply required. - **8‑Channel Current Input:** Measures 0–20 mA signals via built‑in 249.5 Ω precision resistors. - **16‑bit Resolution:** Ensures high‑accuracy analog‑to‑digital conversion. - **Sampling Rate:** Up to 250 kS/s (multiplexed, single channel). - **Dual 16‑bit Analog Outputs:** Two voltage output channels (±10 V) with 1 MS/s simultaneous update rate. - **Digital I/O:** 8 × TTL‑level digital inputs and 4 × TTL‑level digital outputs. - **Programmable Function I/O:** Configurable as digital I/O, 32‑bit timer/counter, or PWM generator. - **Triggering:** Supports software, external digital, and analog triggers with multiple trigger modes (post, delay, gated, retrigger). - **Removable Screw‑Down Terminals:** Two 20‑pin connectors simplify wiring and maintenance. - **Lockable USB Cable:** Prevents accidental disconnection during operation. - **Multi‑Mount Stand:** Supports desktop, DIN‑rail, or wall mounting. - **Software Support:** Compatible with ADLINK UD‑DASK, DAQPilot (LabVIEW®), and DAQ‑MTLB (MATLAB®). - **Free Utility:** U‑Test software for immediate data acquisition and device testing. - **Operating Systems:** Windows XP, Vista, and Windows 7 supported.

Hersteller: Adlink Technology Inc.

Kategorie: USB Data Acquisition

- **High‑Resolution Data Acquisition:** 24‑bit Sigma‑Delta ADC with integrated anti‑aliasing filter for superior dynamic range and low noise. - **Simultaneous Sampling:** Four analog input channels sample concurrently at rates from 1 kS/s to 128 kS/s per channel. - **Flexible Input Configuration:** Differential or pseudo‑differential input modes with ±10 V input range. - **Software‑Selectable Coupling:** AC or DC coupling selectable per channel for versatile signal conditioning. - **Integrated IEPE Excitation:** Built‑in 2 mA constant current excitation per channel for IEPE sensors (accelerometers, microphones). - **Triggering Flexibility:** Supports analog and digital trigger sources with multiple trigger modes (post, pre, delay, middle, gated, retrigger). - **Auto‑Calibration:** Fully automated calibration with onboard reference for long‑term accuracy and minimal drift. - **USB Bus Powered:** Operates directly from USB 2.0 port (5 V @ 400 mA), eliminating external power supplies. - **Compact OEM Design:** Delivered without enclosure for integration into custom systems or OEM equipment. - **Software Ecosystem:** Compatible with ADLINK U‑Test, DAQBench, DAQMaster, LabVIEW®, MATLAB®, and Visual Studio .NET. - **Environmental Compliance:** RoHS and WEEE compliant; designed for low environmental impact.

Hersteller: Adlink Technology Inc.

Kategorie: USB Data Acquisition

- **Multi‑function USB DAQ:** Combines analog input, analog output, digital I/O, and timer/counter functions in one compact module. - **USB 1.1 Compliant Interface:** Plug‑and‑play connectivity with 800 kB/s throughput; no external interface card required. - **Analog Inputs:** - 8 differential channels, 12‑bit resolution. - 4 channels can be sampled simultaneously. - Programmable input ranges (±10 V to ±1.25 V bipolar, 0–10 V to 0–1.25 V unipolar). - Up to 500 kS/s simultaneous sampling or 100 kS/s continuous multiplexed sampling. - 4 k‑sample FIFO buffer for continuous acquisition. - **Analog Outputs:** - 2 independent 12‑bit D/A channels. - ±10 V output range, 500 kS/s update rate. - 511‑sample (or 1023‑sample) FIFO per channel for waveform generation. - Hardware‑based continuous waveform output without USB bandwidth load. - **Isolated Digital I/O:** - 8 isolated digital inputs and 8 isolated digital outputs. - 1500 V–2500 V RMS isolation. - Darlington transistor outputs, 5–35 V external supply, up to 500 mA sink current. - **Timer/Counter:** - Two 16‑bit general‑purpose counters (8254‑compatible). - Programmable base clocks (1, 2, 4, 8 MHz). - External clock up to 2 MHz; 32 MHz pacer timer for A/D sampling. - **Auto‑Calibration:** Fully automatic internal calibration, no manual potentiometer adjustment. - **LED Indicators:** Power, driver status, and operation status (orange/red/green). - **Mechanical Flexibility:** Fits into a standard 5.25‑inch PC drive bay or operates as a portable USB module. - **Software Support:** Drivers and DLLs for Windows 98/Me/2000; compatible with Visual Basic®, Delphi™, and C++. - **Bundled Accessories:** USB cable, DIN‑68S terminal board, RCA probe cables, stand arm, and 12 V DC power adapter. - **Optional Accessory:** 5400 mAh rechargeable battery pack for portable operation.

Hersteller: Adlink Technology Inc.

Kategorie: External AD Converter

- **Full IEEE-488.1 and IEEE-488.2 Compliance:** Ensures compatibility with a wide range of GPIB instruments and systems. - **USB 2.0 Interface:** Provides plug-and-play connectivity for desktop and laptop computers without requiring external power. - **High Data Throughput:** Supports data transfer rates up to **1.2 MB/s** in programmed I/O mode. - **Large Onboard FIFO:** Equipped with a **32 KB FIFO buffer** for optimized read/write operations and reduced latency. - **Driver and API Compatibility:** Fully compatible with **NI-488.2** driver software and supports **VISA** libraries for seamless integration with existing instrument drivers. - **Cross-Platform Software Support:** Works with **Visual Studio .NET**, **Borland C++ Builder**, **LabVIEW™**, **MATLAB®**, and **Delphi**. - **Interactive Diagnostic Utility:** Includes ADLINK GPIB Utility for testing, configuration, and troubleshooting. - **No External Power Supply Required:** Draws power directly from the USB port. - **Compact and Portable Design:** Ideal for mobile test setups and field applications. - **LED Indicators:** - **Ready (Green):** Device active and connected. - **Active (Amber, blinking):** Data transfer in progress. - **Backward Compatibility:** Command set (e.g., ibdev, ibrd, ibwrt) compatible with ADLINK PCI-3488 series without recompilation. - **Supports up to 14 Instruments:** Can control multiple GPIB devices in linear, star, or mixed topologies.

Hersteller: Adlink Technology Inc.

Kategorie: IEEE (GPIB) Cards

- **Dual-Band Wi-Fi Connectivity:** Supports IEEE 802.11 a/b/g/n/ac standards, enabling operation in both 2.4 GHz and 5 GHz frequency bands for optimal performance and reduced interference. - **2T2R MIMO Architecture:** Two transmit and two receive chains enhance throughput, signal stability, and range, ensuring robust wireless performance even in challenging environments. - **Integrated Bluetooth Functionality:** Compatible with Bluetooth versions v2.1, v3.0, v4.1, and v4.2, allowing seamless connection with a wide range of Bluetooth-enabled devices such as sensors, peripherals, and mobile equipment. - **Realtek RTL8822BU Chipset:** Utilizes a high-efficiency Realtek chipset known for low power consumption, stable connectivity, and broad driver support across multiple operating systems. - **PCB Antenna Design:** Features an integrated dual-band PCB antenna optimized for 2x2 MIMO operation, providing consistent signal strength and minimizing external antenna requirements. - **Compact Form Factor:** Measuring only 60 mm in length, 25 mm in width, and 9 mm in height, the dongle is ideal for space-constrained applications. - **Wide Operating Temperature Range:** Designed to function reliably in environments ranging from -20°C to +55°C, suitable for industrial and embedded use. - **Plug-and-Play USB Interface:** Simplifies integration with host systems, reducing setup time and eliminating the need for complex wiring.

Hersteller: Adlink Technology Inc.

Kategorie: Atom Powered Embedded

- **Comprehensive Windows Support:** Compatible with Microsoft Windows 3.11, Windows 95/98, Windows NT 4.0, and Windows 2000. - **Dynamic-Link Library Architecture:** Provides DLL-based APIs for seamless integration with Windows programming environments such as Microsoft Visual C/C++, Visual Basic, and Borland C++. - **Multi-Card Support:** Enables simultaneous operation of multiple NuDAQ ISA cards with independent initialization and switching functions. - **Unified Function Naming Convention:** Consistent function syntax across all supported cards (e.g., `W_8111_AD_Set_Channel`) simplifies cross-card development. - **High-Performance Data Acquisition:** Supports analog-to-digital (A/D) and digital-to-analog (D/A) conversions, digital I/O, and timer/counter operations with interrupt and DMA transfer capabilities. - **Hardware Abstraction:** Provides a software layer that abstracts low-level hardware operations, allowing developers to focus on application logic. - **Extensive Function Library:** Includes hundreds of functions for initialization, configuration, data acquisition, and control of each supported card. - **Backward Compatibility:** Maintains consistent function names and behavior across Windows 3.x, 9x, and NT/2000 environments. - **Sample Programs and Utilities:** Includes example source code in C/C++ and Visual Basic, along with driver registry and DMA configuration utilities. - **Error Handling and Status Codes:** Returns standardized error codes for diagnostics and debugging.

Hersteller: Adlink Technology Inc.

Kategorie: ADLink Driver, Software

- **Comprehensive Windows Support:** Compatible with Windows 3.11, 95/98, NT 4.0, and 2000. - **Dynamic-Link Library Architecture:** Provides DLL-based APIs for seamless integration with Windows applications. - **Multi-Language Compatibility:** Supports Microsoft Visual C/C++, Visual Basic, Borland C++, and Delphi. - **Hardware Abstraction:** Offers unified function naming conventions across all supported cards for consistent programming. - **Interrupt and Timer/Counter Operations:** Enables interrupt-driven I/O and timer-based event handling. - **Multi-Card System Support:** Allows initialization and control of up to eight cards simultaneously. - **Backward Compatibility:** Supports legacy ACL-722, ACL-724, ACL-725, and ACL-725B cards through equivalent function mapping. - **Sample Programs Included:** Ready-to-run examples for both Visual Basic and C/C++ environments. - **Integrated Utilities:** Includes driver registry and configuration tools for Windows NT/2000 environments. - **Error Handling and Status Codes:** Comprehensive return codes for debugging and system validation.

Hersteller: Adlink Technology Inc.

Kategorie: ADLink Driver, Software

- **Comprehensive Driver Support:** Provides 32‑bit and 64‑bit Windows kernel drivers for ADLINK PCI, PCIe, and cPCI DAQ cards, supporting both AMD64 and Intel x86‑64 architectures. - **Operating System Compatibility:** Supports Windows 98/NT/2000/XP/Server 2003/Vista (x32/x64), Windows 7/8/10 (32‑bit and 64‑bit editions). Ensures 32‑bit applications run on 64‑bit Windows via WOW64 subsystem. - **Full Hardware Functionality:** Enables complete access to ADLINK DAQ card features including analog input/output, digital I/O, counter/timer operations, pattern generation, and buffered data acquisition. - **Kernel‑Level Event Handling:** Provides kernel‑level event notification and memory mapping for high‑performance, low‑latency data acquisition. - **User‑Defined Callbacks:** Supports asynchronous data acquisition with user‑defined callback functions for event‑driven applications. - **CodeCreator Utility:** Automatically generates C source code templates to accelerate application development. - **Comprehensive API Library:** Unified Application Programming Interface (API) across all supported cards ensures portability and reduces learning curve. - **.NET Framework Support:** Includes native DLL access for C# and VB.NET, compatible with Microsoft Visual Studio .NET 2003/2005 and later. - **Sample Programs and Tutorials:** Extensive examples in Visual C/C++, Visual Basic, Delphi, C#, and VB.NET for rapid prototyping. - **Digital Signature Compliance:** All 64‑bit drivers are digitally signed for Windows Vista and later, ensuring secure installation and system stability. - **MAPS Core Integration:** PCIS‑DASK, D2K‑DASK, WD‑DASK, UD‑DASK, and DAS‑DASK are unified under the MAPS Core driver framework for simplified deployment.

Hersteller: Adlink Technology Inc.

Kategorie: ADLink Driver, Software

- **Comprehensive Windows Driver & SDK:** Provides full driver and API support for ADLINK DAQ/DAQe/PXI-2000 series cards, enabling complete control of analog, digital, and timing functions. - **Wide OS Compatibility:** Supports Windows 7/8/10, as well as legacy systems including Windows NT, 98, 2000, and XP. Ensures 32-bit applications can run on 64-bit Windows editions. - **32-/64-bit Kernel Drivers and APIs:** Includes both 32-bit and 64-bit kernel-level drivers and APIs for seamless integration with modern and legacy systems. - **User-Defined Callbacks:** Supports asynchronous data acquisition with user-defined callback functions for event-driven programming. - **Comprehensive Function Library:** Includes function groups for analog input/output, digital I/O, timers/counters, SSI bus control, and calibration. - **High-Performance Data Transfer:** Utilizes bus mastering DMA for efficient, high-speed data transfer between DAQ hardware and system memory. - **Double-Buffered Continuous Data Acquisition:** Supports circular buffer operation for continuous, non-stop data streaming without data loss. - **Sample Programs and Tutorials:** Includes complete examples and tutorials for Microsoft Visual C/C++, Visual Basic, and Delphi environments. - **MAPS Core Integration:** D2K-DASK, along with UD-DASK, WD-DASK, PCIS-DASK, and DAS-DASK, is now unified under the MAPS Core driver framework for simplified deployment.

Hersteller: Adlink Technology Inc.

Kategorie: ADLink Driver, Software

- **Comprehensive Windows Driver API:** Provides a full-featured programming interface for ADLINK PCI/PXI-9820 and PXI-98xx digitizer modules. - **Wide OS Compatibility:** Supports both 32-bit and 64-bit editions of Windows 7, Windows 8, and Windows 10. - **Cross-Architecture Support:** Ensures that 32-bit applications can run seamlessly on 64-bit Windows operating systems. - **Dual Kernel and API Architecture:** Includes both 32-bit and 64-bit Windows kernel drivers and corresponding 32-bit/64-bit APIs for flexible development and deployment. - **Asynchronous Data Acquisition:** Supports user-defined callback functions for asynchronous data acquisition, enabling real-time event-driven data handling. - **Comprehensive Development Resources:** Comes with a complete tutorial and sample programs to accelerate application development and integration. - **Full Digitizer Functionality:** Provides access to the complete feature set of ADLINK’s digitizer product line, including configuration, triggering, sampling, and data transfer functions. - **Kernel-Level Event and Address Mapping:** Offers low-level event handling and memory mapping for sophisticated, high-performance applications requiring direct hardware interaction. - **Unified Driver Framework:** Integrated into ADLINK’s MAPS Core driver package, simplifying driver management and ensuring long-term software support.

Hersteller: Adlink Technology Inc.

Kategorie: ADLink Driver, Software
