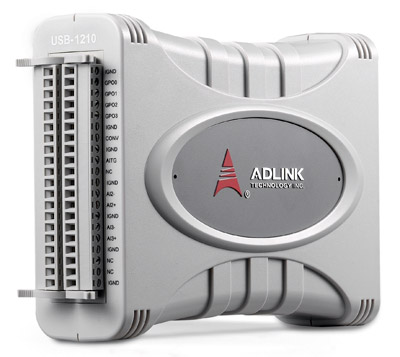

USB-1210
USB Bus Powered 4*Chan 2MS/s 16bit simultanouos Module
1772,00 EUR
inkl. Umsatzsteuer 2.108,68 EUR
- High-Speed USB 2.0 Interface: Ensures fast data transfer and reliable communication with host systems.
- USB Bus Powered: Operates directly from the USB port (5VDC @ 500mA), simplifying installation and portability.
- 4 Simultaneous-Sampling Analog Inputs: Each channel supports up to 2 MS/s sampling rate with true simultaneous acquisition.
- High Resolution: 16-bit analog-to-digital conversion for precise signal measurement.
- Large Onboard FIFO: 256M-sample FIFO buffer prevents data loss during high-speed acquisition or heavy CPU load.
- Programmable Input Range: ±10V and ±2V ranges with programmable gain (1 or 5).
- 500VDC Isolation: Protects the host system and reduces ground-loop interference.
- Flexible Triggering: Supports software, external digital, and analog triggers with multiple trigger modes (post, pre, delay, gate, retrigger).
- Digital I/O: 8 digital inputs and 4 digital outputs (LVTTL level).
- Timer/Counter and PWM Outputs: Two 32-bit general-purpose timers/counters and two PWM outputs (0.01 Hz–5 MHz).
- Removable Screw Terminals: Dual 20-pin connectors for easy wiring and maintenance.
- Lockable USB Cable: Ensures secure connection in industrial environments.
- Multi-Mount Stand: Supports desktop, DIN rail, and wall mounting.
- Software Support: Compatible with Windows 7/8 (x86/x64), with drivers for UD-DASK, DAQPilot (LabVIEW®), and DAQ-MTLB (MATLAB®).
- Utility Software: U-Test application for immediate testing and data visualization.
- USB Bus Powered: Operates directly from the USB port (5VDC @ 500mA), simplifying installation and portability.
- 4 Simultaneous-Sampling Analog Inputs: Each channel supports up to 2 MS/s sampling rate with true simultaneous acquisition.
- High Resolution: 16-bit analog-to-digital conversion for precise signal measurement.
- Large Onboard FIFO: 256M-sample FIFO buffer prevents data loss during high-speed acquisition or heavy CPU load.
- Programmable Input Range: ±10V and ±2V ranges with programmable gain (1 or 5).
- 500VDC Isolation: Protects the host system and reduces ground-loop interference.
- Flexible Triggering: Supports software, external digital, and analog triggers with multiple trigger modes (post, pre, delay, gate, retrigger).
- Digital I/O: 8 digital inputs and 4 digital outputs (LVTTL level).
- Timer/Counter and PWM Outputs: Two 32-bit general-purpose timers/counters and two PWM outputs (0.01 Hz–5 MHz).
- Removable Screw Terminals: Dual 20-pin connectors for easy wiring and maintenance.
- Lockable USB Cable: Ensures secure connection in industrial environments.
- Multi-Mount Stand: Supports desktop, DIN rail, and wall mounting.
- Software Support: Compatible with Windows 7/8 (x86/x64), with drivers for UD-DASK, DAQPilot (LabVIEW®), and DAQ-MTLB (MATLAB®).
- Utility Software: U-Test application for immediate testing and data visualization.
Comprehensive Product Summary: ADLINK USB-1210 High-Speed USB DAQ Module
### 1. Product Overview
Product Name: USB-1210
Model: USB-1210
Series: USB DAQ Series
Article Number: USB-1210
Manufacturer: ADLINK Technology, Inc.
Part Number: 50-1Z162-1000
Manual Revision: 2.00 (July 31, 2014)
The ADLINK USB-1210 is a high-performance, 16-bit, 4-channel simultaneous-sampling USB data acquisition (DAQ) module designed for high-speed analog signal measurement and control applications. It operates via a USB 2.0 high-speed interface and is fully bus-powered, eliminating the need for an external power supply. The module integrates advanced analog-to-digital conversion, digital I/O, and timing functions in a compact, rugged form factor suitable for laboratory, industrial, and research environments.
### 2. Key Features
- High-Speed USB 2.0 Interface: Ensures fast data transfer and reliable communication with host systems.
- USB Bus Powered: Operates directly from the USB port (5VDC @ 500mA), simplifying installation and portability.
- 4 Simultaneous-Sampling Analog Inputs: Each channel supports up to 2 MS/s sampling rate with true simultaneous acquisition.
- High Resolution: 16-bit analog-to-digital conversion for precise signal measurement.
- Large Onboard FIFO: 256M-sample FIFO buffer prevents data loss during high-speed acquisition or heavy CPU load.
- Programmable Input Range: ±10V and ±2V ranges with programmable gain (1 or 5).
- 500VDC Isolation: Protects the host system and reduces ground-loop interference.
- Flexible Triggering: Supports software, external digital, and analog triggers with multiple trigger modes (post, pre, delay, gate, retrigger).
- Digital I/O: 8 digital inputs and 4 digital outputs (LVTTL level).
- Timer/Counter and PWM Outputs: Two 32-bit general-purpose timers/counters and two PWM outputs (0.01 Hz–5 MHz).
- Removable Screw Terminals: Dual 20-pin connectors for easy wiring and maintenance.
- Lockable USB Cable: Ensures secure connection in industrial environments.
- Multi-Mount Stand: Supports desktop, DIN rail, and wall mounting.
- Software Support: Compatible with Windows 7/8 (x86/x64), with drivers for UD-DASK, DAQPilot (LabVIEW®), and DAQ-MTLB (MATLAB®).
- Utility Software: U-Test application for immediate testing and data visualization.
### 3. Technical Specifications
Analog Input:
- Resolution: 16-bit
- Channels: 4 differential, simultaneous-sampling
- Max Sampling Rate: 2 MS/s per channel
- Programmable Gain: 1, 5
- Input Range: ±10V, ±2V
- Offset Error: ±1 mV (gain=1), ±0.2 mV (gain=5)
- Gain Error: ±0.01% FSR typical, ±0.02% FSR max
- Bandwidth (-3 dB): 600 kHz
- CMRR (1 kHz): 80 dB (gain=1), 90 dB (gain=5)
- SFDR (10 kHz): 98 dB
- SINAD (10 kHz): 89 dB
- THD (10 kHz): -100 dB
- SNR (10 kHz): 89 dB
- ENOB: 14.3 bits
- FIFO Buffer: 256M samples
- Input Coupling: DC
- Overvoltage Protection: ±35V (power on), ±15V (power off)
- Input Impedance: 1 GΩ
Triggering:
- Sources: Software, external digital, analog (from one AI channel)
- Modes: Post, pre, delay, middle, gate, retrigger
- External A/D Conversion Source: Supported via CONV pin
Digital I/O:
- 8 DI / 4 DO (LVTTL level)
- Input Voltage: Logic low ≤ 0.8V, logic high ≥ 2.0V
- Output Voltage: Logic low ≤ 0.5V, logic high ≥ 2.6V
- Max Output Current: 10 mA per channel
Timer/Counter:
- Two 32-bit general-purpose timers/counters
- Base Clock: 80 MHz internal, up to 10 MHz external
- Modes: Event counting, pulse-width, period measurement, PWM generation, edge separation
- PWM Output: 0.01 Hz–5 MHz, duty cycle 1–99%
General:
- Interface: USB 2.0 High-Speed
- Isolation: 500VDC
- Power: 5VDC @ 500mA (USB bus powered)
- Dimensions: 114 mm (H) × 156.5 mm (L) × 41.3 mm (W)
- Operating Temperature: 0–55°C
- Storage Temperature: -20–70°C
- Humidity: 5–95% non-condensing
- Weight: Approx. 0.6 kg (without stand)
- I/O Connectors: Two 20-pin removable screw terminals
### 4. Functionality
The USB-1210 functions as a high-speed, simultaneous-sampling data acquisition module. Each of its four analog input channels is connected to an independent ADC, allowing true parallel sampling at up to 2 MS/s per channel. The module’s FPGA-based architecture manages timing, triggering, and data buffering, ensuring deterministic performance and minimal latency.
Use Cases and Applications:
- Automotive testing and sensor data logging
- High-speed transient signal capture
- Laboratory and medical instrumentation
- Industrial process monitoring
- I/O control and automation systems
Compatibility:
- Operating Systems: Windows 7/8 (x86/x64)
- Software Environments: LabVIEW®, MATLAB®, C/C++ via UD-DASK SDK
- Communication Interface: USB 2.0 (Hi-Speed, 480 Mbps)
### 5. Components & Accessories
Included Items:
- USB-1210 module
- Two 20-pin removable screw terminal blocks
- 2-meter USB Type-A to Mini-B cable (lockable connector)
- Multi-function stand (desktop, rail, wall mount)
- Rail-mount kit
- ADLINK All-in-One software CD
- User’s manual
Optional Accessories:
- RST-20P: Additional pair of 20-pin removable screw terminals
- USB-2M-L: 2-meter USB cable with lockable connector
### 6. Installation & Setup
Requirements:
- USB 2.0 port capable of supplying 500mA @ 5V
- Windows 7/8 operating system
- UD-DASK or DAQPilot driver installed prior to connection
Mounting Options:
- Desktop: Use the included stand for stable placement.
- DIN Rail: Attach the rail-mount kit to the stand and snap onto a standard DIN rail.
- Wall Mount: Secure the stand using four 3.4 mm screws through pre-drilled holes.
Configuration:
- Device ID rotary switch (1–8) allows multiple modules to coexist on one system.
- All other parameters (sampling rate, input range, trigger mode) are software-configurable.
Connection Procedure:
1. Install the ADLINK driver package.
2. Connect the USB-1210 to a USB 2.0 port using the provided cable.
3. Wait for the firmware to load (LED changes from amber to green).
4. Verify detection in Windows Device Manager under “ADLINK USBDAQ-1210 Device.”
### 7. Performance & Capabilities
Analog Performance:
- True simultaneous sampling ensures phase accuracy across channels.
- 16-bit resolution provides fine granularity for precision measurements.
- 256M-sample FIFO enables sustained high-speed acquisition without data loss.
- Programmable gain and input range allow adaptation to various signal amplitudes.
Digital and Timing Performance:
- 8 DI / 4 DO channels support LVTTL logic for control and monitoring.
- Two 32-bit timers/counters support event counting, frequency measurement, and PWM generation.
- PWM outputs provide flexible control signals for actuators or modulation testing.
Efficiency and Limitations:
- Fully bus-powered operation simplifies deployment but limits total current draw to 500mA.
- USB 2.0 interface provides sufficient bandwidth for 4×2MS/s 16-bit data streams.
- Operating temperature limited to 55°C; suitable for laboratory and light industrial environments.
### 8. Standards & Compliance
- Electrical Isolation: 500VDC between USB bus and analog/digital I/O
- Environmental Compliance:
- RoHS (Restriction of Hazardous Substances)
- WEEE (Waste Electrical and Electronic Equipment)
- Safety: Designed for CE and FCC compliance (industrial EMC standards)
- Software Standards: Compatible with major DAQ frameworks (LabVIEW®, MATLAB®, C/C++)
ADLINK emphasizes environmental responsibility and ensures that all manufacturing processes and materials meet EU environmental directives.
### 9. Additional Information
Warranty & Support:
- Standard manufacturer warranty (contact ADLINK for regional terms).
- Technical support available via global ADLINK offices and online resources.
- Firmware and driver updates provided through ADLINK’s official website.
Maintenance:
- The module is factory-calibrated; periodic auto-calibration recommended for optimal accuracy.
- Auto-calibration uses internal reference voltages—no external equipment required.
- Calibration constants stored in onboard EEPROM (factory and user banks).
Service Contacts:
- Headquarters: ADLINK Technology, Inc., New Taipei City, Taiwan
- Regional Offices: USA, China (Shanghai, Beijing, Shenzhen), Japan, Korea, Singapore, India, Israel, France, Germany, UK
Environmental & Safety Notes:
- Operate within specified temperature and humidity limits.
- Avoid exposure to moisture, vibration, or excessive heat.
- Disconnect USB cable before servicing or reconfiguration.
### Summary
The ADLINK USB-1210 is a compact, high-precision, and high-speed USB data acquisition module engineered for demanding measurement and control applications. With four simultaneous 16-bit analog input channels sampling at 2 MS/s each, robust 500VDC isolation, and a large 256M-sample FIFO buffer, it ensures reliable, lossless data capture even under heavy system load. Its integrated digital I/O, timer/counter, and PWM capabilities make it a versatile tool for both laboratory research and industrial automation.
The USB-1210’s plug-and-play USB 2.0 interface, bus-powered operation, and flexible mounting options make it ideal for portable and embedded DAQ systems. Comprehensive software support—including UD-DASK SDK, DAQPilot for LabVIEW®, and U-Test utility—enables rapid deployment and seamless integration into existing workflows.
In summary, the ADLINK USB-1210 delivers a balanced combination of speed, precision, and usability, making it a reliable choice for engineers, researchers, and system integrators seeking a robust, high-performance USB-based data acquisition solution.
### 1. Product Overview
Product Name: USB-1210
Model: USB-1210
Series: USB DAQ Series
Article Number: USB-1210
Manufacturer: ADLINK Technology, Inc.
Part Number: 50-1Z162-1000
Manual Revision: 2.00 (July 31, 2014)
The ADLINK USB-1210 is a high-performance, 16-bit, 4-channel simultaneous-sampling USB data acquisition (DAQ) module designed for high-speed analog signal measurement and control applications. It operates via a USB 2.0 high-speed interface and is fully bus-powered, eliminating the need for an external power supply. The module integrates advanced analog-to-digital conversion, digital I/O, and timing functions in a compact, rugged form factor suitable for laboratory, industrial, and research environments.
### 2. Key Features
- High-Speed USB 2.0 Interface: Ensures fast data transfer and reliable communication with host systems.
- USB Bus Powered: Operates directly from the USB port (5VDC @ 500mA), simplifying installation and portability.
- 4 Simultaneous-Sampling Analog Inputs: Each channel supports up to 2 MS/s sampling rate with true simultaneous acquisition.
- High Resolution: 16-bit analog-to-digital conversion for precise signal measurement.
- Large Onboard FIFO: 256M-sample FIFO buffer prevents data loss during high-speed acquisition or heavy CPU load.
- Programmable Input Range: ±10V and ±2V ranges with programmable gain (1 or 5).
- 500VDC Isolation: Protects the host system and reduces ground-loop interference.
- Flexible Triggering: Supports software, external digital, and analog triggers with multiple trigger modes (post, pre, delay, gate, retrigger).
- Digital I/O: 8 digital inputs and 4 digital outputs (LVTTL level).
- Timer/Counter and PWM Outputs: Two 32-bit general-purpose timers/counters and two PWM outputs (0.01 Hz–5 MHz).
- Removable Screw Terminals: Dual 20-pin connectors for easy wiring and maintenance.
- Lockable USB Cable: Ensures secure connection in industrial environments.
- Multi-Mount Stand: Supports desktop, DIN rail, and wall mounting.
- Software Support: Compatible with Windows 7/8 (x86/x64), with drivers for UD-DASK, DAQPilot (LabVIEW®), and DAQ-MTLB (MATLAB®).
- Utility Software: U-Test application for immediate testing and data visualization.
### 3. Technical Specifications
Analog Input:
- Resolution: 16-bit
- Channels: 4 differential, simultaneous-sampling
- Max Sampling Rate: 2 MS/s per channel
- Programmable Gain: 1, 5
- Input Range: ±10V, ±2V
- Offset Error: ±1 mV (gain=1), ±0.2 mV (gain=5)
- Gain Error: ±0.01% FSR typical, ±0.02% FSR max
- Bandwidth (-3 dB): 600 kHz
- CMRR (1 kHz): 80 dB (gain=1), 90 dB (gain=5)
- SFDR (10 kHz): 98 dB
- SINAD (10 kHz): 89 dB
- THD (10 kHz): -100 dB
- SNR (10 kHz): 89 dB
- ENOB: 14.3 bits
- FIFO Buffer: 256M samples
- Input Coupling: DC
- Overvoltage Protection: ±35V (power on), ±15V (power off)
- Input Impedance: 1 GΩ
Triggering:
- Sources: Software, external digital, analog (from one AI channel)
- Modes: Post, pre, delay, middle, gate, retrigger
- External A/D Conversion Source: Supported via CONV pin
Digital I/O:
- 8 DI / 4 DO (LVTTL level)
- Input Voltage: Logic low ≤ 0.8V, logic high ≥ 2.0V
- Output Voltage: Logic low ≤ 0.5V, logic high ≥ 2.6V
- Max Output Current: 10 mA per channel
Timer/Counter:
- Two 32-bit general-purpose timers/counters
- Base Clock: 80 MHz internal, up to 10 MHz external
- Modes: Event counting, pulse-width, period measurement, PWM generation, edge separation
- PWM Output: 0.01 Hz–5 MHz, duty cycle 1–99%
General:
- Interface: USB 2.0 High-Speed
- Isolation: 500VDC
- Power: 5VDC @ 500mA (USB bus powered)
- Dimensions: 114 mm (H) × 156.5 mm (L) × 41.3 mm (W)
- Operating Temperature: 0–55°C
- Storage Temperature: -20–70°C
- Humidity: 5–95% non-condensing
- Weight: Approx. 0.6 kg (without stand)
- I/O Connectors: Two 20-pin removable screw terminals
### 4. Functionality
The USB-1210 functions as a high-speed, simultaneous-sampling data acquisition module. Each of its four analog input channels is connected to an independent ADC, allowing true parallel sampling at up to 2 MS/s per channel. The module’s FPGA-based architecture manages timing, triggering, and data buffering, ensuring deterministic performance and minimal latency.
Use Cases and Applications:
- Automotive testing and sensor data logging
- High-speed transient signal capture
- Laboratory and medical instrumentation
- Industrial process monitoring
- I/O control and automation systems
Compatibility:
- Operating Systems: Windows 7/8 (x86/x64)
- Software Environments: LabVIEW®, MATLAB®, C/C++ via UD-DASK SDK
- Communication Interface: USB 2.0 (Hi-Speed, 480 Mbps)
### 5. Components & Accessories
Included Items:
- USB-1210 module
- Two 20-pin removable screw terminal blocks
- 2-meter USB Type-A to Mini-B cable (lockable connector)
- Multi-function stand (desktop, rail, wall mount)
- Rail-mount kit
- ADLINK All-in-One software CD
- User’s manual
Optional Accessories:
- RST-20P: Additional pair of 20-pin removable screw terminals
- USB-2M-L: 2-meter USB cable with lockable connector
### 6. Installation & Setup
Requirements:
- USB 2.0 port capable of supplying 500mA @ 5V
- Windows 7/8 operating system
- UD-DASK or DAQPilot driver installed prior to connection
Mounting Options:
- Desktop: Use the included stand for stable placement.
- DIN Rail: Attach the rail-mount kit to the stand and snap onto a standard DIN rail.
- Wall Mount: Secure the stand using four 3.4 mm screws through pre-drilled holes.
Configuration:
- Device ID rotary switch (1–8) allows multiple modules to coexist on one system.
- All other parameters (sampling rate, input range, trigger mode) are software-configurable.
Connection Procedure:
1. Install the ADLINK driver package.
2. Connect the USB-1210 to a USB 2.0 port using the provided cable.
3. Wait for the firmware to load (LED changes from amber to green).
4. Verify detection in Windows Device Manager under “ADLINK USBDAQ-1210 Device.”
### 7. Performance & Capabilities
Analog Performance:
- True simultaneous sampling ensures phase accuracy across channels.
- 16-bit resolution provides fine granularity for precision measurements.
- 256M-sample FIFO enables sustained high-speed acquisition without data loss.
- Programmable gain and input range allow adaptation to various signal amplitudes.
Digital and Timing Performance:
- 8 DI / 4 DO channels support LVTTL logic for control and monitoring.
- Two 32-bit timers/counters support event counting, frequency measurement, and PWM generation.
- PWM outputs provide flexible control signals for actuators or modulation testing.
Efficiency and Limitations:
- Fully bus-powered operation simplifies deployment but limits total current draw to 500mA.
- USB 2.0 interface provides sufficient bandwidth for 4×2MS/s 16-bit data streams.
- Operating temperature limited to 55°C; suitable for laboratory and light industrial environments.
### 8. Standards & Compliance
- Electrical Isolation: 500VDC between USB bus and analog/digital I/O
- Environmental Compliance:
- RoHS (Restriction of Hazardous Substances)
- WEEE (Waste Electrical and Electronic Equipment)
- Safety: Designed for CE and FCC compliance (industrial EMC standards)
- Software Standards: Compatible with major DAQ frameworks (LabVIEW®, MATLAB®, C/C++)
ADLINK emphasizes environmental responsibility and ensures that all manufacturing processes and materials meet EU environmental directives.
### 9. Additional Information
Warranty & Support:
- Standard manufacturer warranty (contact ADLINK for regional terms).
- Technical support available via global ADLINK offices and online resources.
- Firmware and driver updates provided through ADLINK’s official website.
Maintenance:
- The module is factory-calibrated; periodic auto-calibration recommended for optimal accuracy.
- Auto-calibration uses internal reference voltages—no external equipment required.
- Calibration constants stored in onboard EEPROM (factory and user banks).
Service Contacts:
- Headquarters: ADLINK Technology, Inc., New Taipei City, Taiwan
- Regional Offices: USA, China (Shanghai, Beijing, Shenzhen), Japan, Korea, Singapore, India, Israel, France, Germany, UK
Environmental & Safety Notes:
- Operate within specified temperature and humidity limits.
- Avoid exposure to moisture, vibration, or excessive heat.
- Disconnect USB cable before servicing or reconfiguration.
### Summary
The ADLINK USB-1210 is a compact, high-precision, and high-speed USB data acquisition module engineered for demanding measurement and control applications. With four simultaneous 16-bit analog input channels sampling at 2 MS/s each, robust 500VDC isolation, and a large 256M-sample FIFO buffer, it ensures reliable, lossless data capture even under heavy system load. Its integrated digital I/O, timer/counter, and PWM capabilities make it a versatile tool for both laboratory research and industrial automation.
The USB-1210’s plug-and-play USB 2.0 interface, bus-powered operation, and flexible mounting options make it ideal for portable and embedded DAQ systems. Comprehensive software support—including UD-DASK SDK, DAQPilot for LabVIEW®, and U-Test utility—enables rapid deployment and seamless integration into existing workflows.
In summary, the ADLINK USB-1210 delivers a balanced combination of speed, precision, and usability, making it a reliable choice for engineers, researchers, and system integrators seeking a robust, high-performance USB-based data acquisition solution.
-
USB-1210_datasheet_20140731.pdf
PDF Catalog
