USB-1210

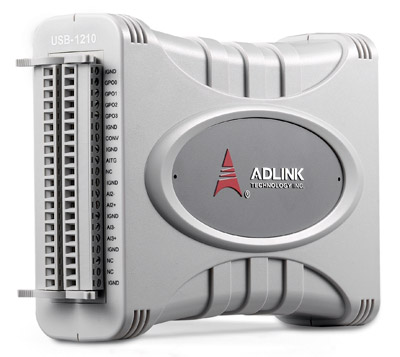

USB-1210 - Adlink Technology Inc.

USB Bus Powered 4*Chan 2MS/s 16bit simultanouos Module

Network systems are used to connect remote IO devices and USB data acquisition devices for data collection and analysis. This enables the user to access, monitor and control the data from any location. It is an efficient way to collect and process data from multiple sources..
1.772,00 €
incl. VAT 2.108,68 €

Description

  • USB bus powered 4 chan 2MS/s simultanouos sampling input module
  • 256MS FIFO
  • 16bit resolution/±2/10V programmable input range
  • removable 2*20pin screw down terminal
  • lockable USB cable for secure connect
  • 8*DI/4*DO TTL level
  • 5VDC@500mA USB bus powered
  • 114*156,5*41,3mm (w/o connector or stand)
  • Adlink

Details

  • Width: 114 mm
  • Height: 156.5 mm
  • Depth: 41.3 mm
  • Weight: 1.75kg
  • Manufacturer: Adlink Technology Inc.
  • Part number: 91-19016-0030
  • Country of Origin: Taiwan R.O.C.
  • Customs code: 8473 3020 000

Data Sheets

Manuals

Downloads

Accessories

  • RST-20P
    One pair of 20-pin removable screw terminals
  • USB-2M-L
    2 M USB Type A to USB Mini-B cable with lockable connector
