Optional accessory for compatible products

Optional product accessory. Compatibility depends on the product model and configuration.

Manufacturer: Neousys Technology

Category: Vision & Video

Optional accessory for compatible products

Optional product accessory. Compatibility depends on the product model and configuration.

Manufacturer: Neousys Technology

Category: Vision & Video

Optional accessory for compatible products

Optional product accessory. Compatibility depends on the product model and configuration.

Manufacturer: Neousys Technology

Category: Vision & Video

Optional accessory for compatible products

Optional product accessory. Compatibility depends on the product model and configuration.

Manufacturer: Neousys Technology

Category: Vision & Video

Optional accessory for compatible products

Optional product accessory. Compatibility depends on the product model and configuration.

Manufacturer: Neousys Technology

Category: Vision & Video

Optional accessory for compatible products

Optional product accessory. Compatibility depends on the product model and configuration.

Manufacturer: Neousys Technology

Category: Vision & Video

Optional accessory for compatible products

Optional product accessory. Compatibility depends on the product model and configuration.

Manufacturer: Neousys Technology

Category: Vision & Video

Optional accessory for compatible products

Optional product accessory. Compatibility depends on the product model and configuration.

Manufacturer: Neousys Technology

Category: Vision & Video

Optional accessory for compatible products

Optional product accessory. Compatibility depends on the product model and configuration.

Manufacturer: Neousys Technology

Category: Vision & Video

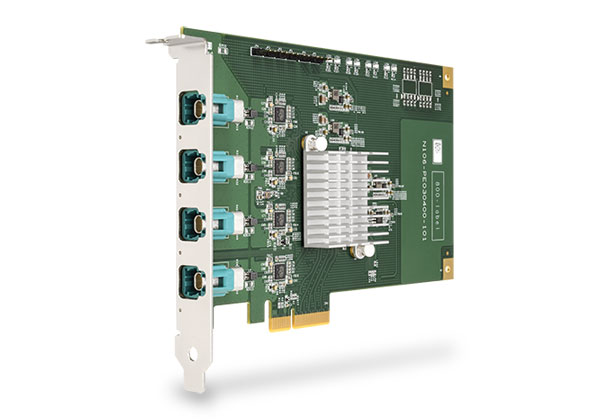

4-port 100/1000BASE-T1 automotive Ethernet card with Gen2 x4 PCIe interface

Wide-temperature, fanless PCIe card with four IEEE 802.3bw/bp 100/1000BASE-T1 H-MTD ports. It uses four Marvell 88Q2221M transceivers, supports software-configurable master/slave operation, and provides hardware PTP timestamping for IEEE 1588 V1/V2 and IEEE 802.1AS. The card requires a PCIe Gen2 x4 interface and supports up to 15 m UTP cabling. Dimensions are 167.7 x 111 mm; fanless operating temperature is -25°C to 70°C.

Manufacturer: Neousys Technology

Category: Vision & Video

Fanless dual-port 10GbE PCIe adapter with RoCEv2 for wide-temperature operation.

Non-PoE wide-temperature PCIe Gen3 x4 network adapter with two 10GBASE-T ports based on the Broadcom BCM57416 controller. It supports 10G/1G links, RoCEv2 RDMA, throughput above 9.62 Gbps and 9.6 KB jumbo frames. The single-slot card accepts low-profile or standard-height brackets and operates from -25°C to 70°C fanlessly with airflow.

Manufacturer: Neousys Technology

Category: Vision & Video

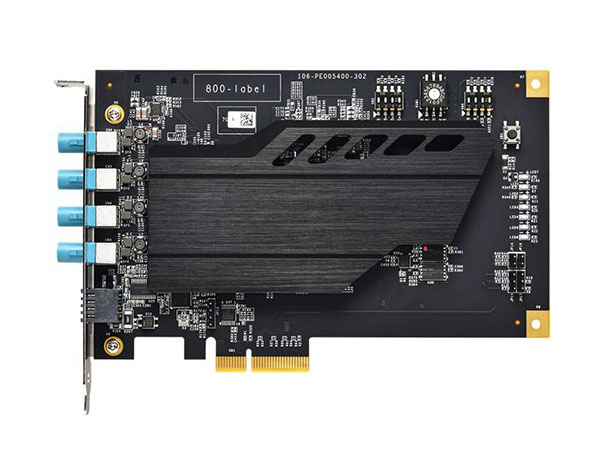

Fanless 4-port GMSL2 PCIe frame grabber for automotive cameras

Fanless, single-slot, half-length frame grabber with PCIe Gen2 x4 interface and four GMSL2 FAKRA Z camera inputs. Supports selected 8MP, 5MP, 3MP and 2MP automotive cameras, including up to four 5MP cameras at 30 FPS or four 2MP cameras at 60 FPS. Includes one isolated GPS PPS input, one mirrored GPS PPS output for daisy-chaining and one RS-232 port. Operates from -40°C to 70°C and draws power directly from the PCIe connector.

Manufacturer: Neousys Technology

Category: Vision & Video

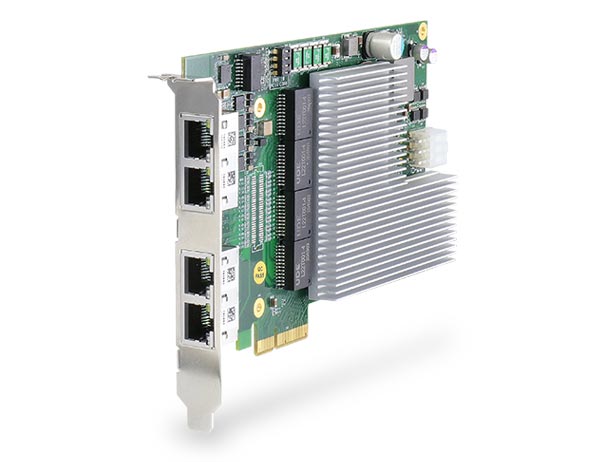

4-port 2.5GbE PCIe adapter with IEEE 802.3bt PoE++ and up to 90 W per port.

PCIe x4 Gen2 network adapter with four RJ-45 2.5GBASE-T ports, each driven by an Intel I226-IT controller. Supports 2.5G, 1G, 100M and 10M Ethernet, 9.5 kB jumbo frames, teaming and IEEE 1588. IEEE 802.3bt Type 3/4 PSE supplies up to 90 W on a single port and is compatible with IEEE 802.3at and 802.3af powered devices. Operating range is 0°C to 50°C in 802.3bt mode or 0°C to 55°C in 802.3at mode, both with airflow.

Manufacturer: Neousys Technology

Category: Vision & Video

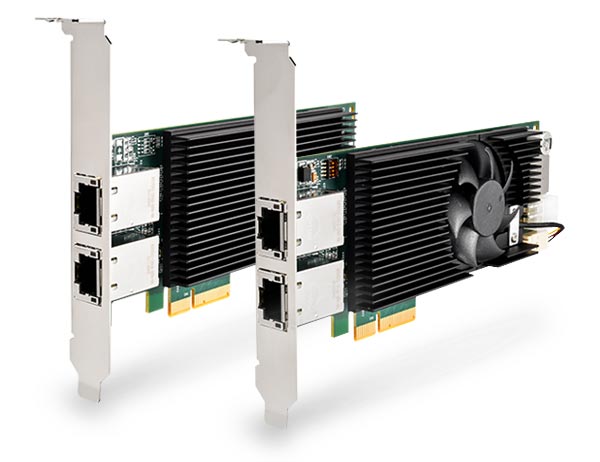

Rugged dual-port 10GbE PCIe adapter with RoCEv2 and 90 W PoE++ per port.

Wide-temperature PCIe Gen3 x4 network adapter with two 10GBASE-T ports based on the Broadcom BCM57416 controller. It supports 10G/1G links, RoCEv2 RDMA, 9.6 KB jumbo frames and IEEE 802.3bt PoE++ with up to 90 W per port and 180 W total. Low-profile or standard-height installation; -25°C to 70°C operation with required airflow.

Manufacturer: Neousys Technology

Category: Vision & Video

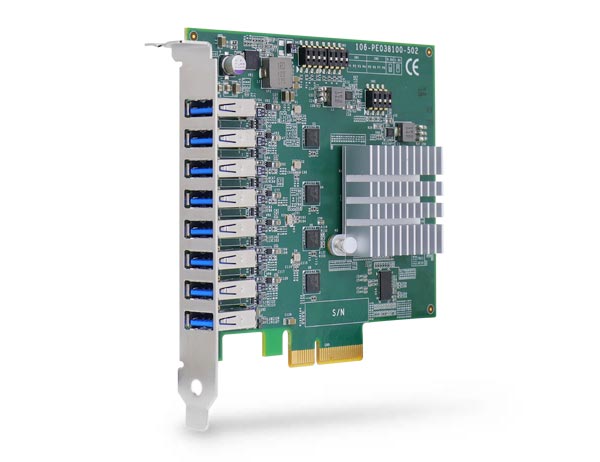

Industrial 8-port USB 3.1 Gen1 frame grabber card with four independent controllers.

Industrial PCIe frame grabber card with eight panel-accessible USB 3.1 Gen1 Type-A ports, four Fresco FL1100SX xHCI controllers and an x4 PCI Express Gen2 interface. It delivers up to 400 MB/s sustained transfer per port with four cameras or 1600 MB/s total with eight cameras. Each port supplies regulated 5 V with a configurable 900 mA or 1800 mA current limit. Software-controlled power cycling is supported on ports 0, 2, 3, 4, 5, 6 and 7.

Manufacturer: Neousys Technology

Category: Vision & Video

- **Quad‑Channel Real‑Time Video Capture:** Simultaneous acquisition of four analog video inputs using four Connexant 878A encoders. Each channel supports full‑frame, real‑time capture at 30 fps (NTSC) or 25 fps (PAL). - **Multi‑Format Video Compatibility:** Supports standard composite color formats (NTSC‑M, NTSC‑Japan, PAL‑B/D/G/H/I/M/N, SECAM) and monochrome standards (CCIR, EIA/RS‑170). - **Programmable Resolution and Scaling:** Adjustable capture resolution including square‑pixel (640 × 480 NTSC, 768 × 576 PAL) and broadcast resolutions. Hardware scaling down to 1:16 and region‑of‑interest cropping supported. - **Image Adjustment Controls:** Software‑configurable hue, brightness, contrast, and saturation (0–200 %) with automatic chrominance gain control. - **Channel Extension Capability:** Expandable up to 8 video channels via 10‑pin ribbon cable headers for additional inputs. - **Status Indication:** On‑board LEDs provide per‑channel video status feedback. - **User EEPROM:** 1 Kbit non‑volatile memory for user‑defined data storage. - **Watchdog Timer:** Hardware watchdog monitors system activity and can reset the host PC after a programmable timeout, ensuring fault‑tolerant operation. - **Software Support:** WDM drivers for Windows 98/NT/2000/XP; compatible with Visual C++, Visual Basic, Borland C++ Builder, and Delphi. Includes ViewCreator utility for configuration and testing. - **I/O and Triggering:** TTL‑compatible general‑purpose I/O lines (4 in/4 out/4 software triggers) with overload and ESD protection. Programmable trigger pulse width from 60 µs to 16 ms. - **API and SDK:** Comprehensive function library for image capture, configuration, GPIO control, EEPROM access, watchdog, and software triggering.

Manufacturer: Adlink Technology Inc.

Category: Frame Grabber

- **Quad‑Channel Real‑Time Video Capture:** Simultaneous acquisition of four independent analog video inputs using four Connexant 878A digitizers. - **Multi‑Format Compatibility:** Supports NTSC‑M, NTSC‑Japan, PAL‑B/D/G/H/I/M/N, SECAM, CCIR, and EIA (RS‑170) standards. - **Programmable Resolution and Scaling:** Supports full, CIF, and QCIF resolutions with programmable region‑of‑interest (ROI) cropping and down‑scaling up to 1:16 ratio. - **Color and Image Adjustments:** Adjustable hue (NTSC only), brightness, contrast, and saturation (0–200% range). Automatic chrominance gain control ensures consistent color balance. - **TTL‑Compatible General‑Purpose I/O:** Four digital inputs, four digital outputs, and four software‑trigger lines. Each line is individually configurable and protected against overload and ESD. - **Watchdog Timer:** Hardware watchdog monitors system activity and can automatically reset the host PC after a programmable timeout, ensuring fault‑tolerant operation. - **EEPROM Support:** 1 Kbit user‑programmable EEPROM for storing configuration or user data. - **Channel Extension Capability:** Expandable up to eight video channels via 10‑pin ribbon cable headers. - **Software Support:** WDM drivers for Windows 98/NT/2000/XP with APIs for VC++, VB, Borland C++ Builder, and Delphi. Includes ViewCreator utility for configuration, testing, and image capture. - **Form Factor:** 32/64‑bit, 33/66 MHz CompactPCI 6U board, suitable for industrial and embedded systems.

Manufacturer: Adlink Technology Inc.

Category: Frame Grabber

- **Multi‑Channel Real‑Time Video Capture:** Supports simultaneous acquisition of up to four analog video channels in real time. Each channel can capture full‑frame color or monochrome video signals. - **Video Format Compatibility:** Accepts standard composite color formats (NTSC‑M, NTSC‑Japan, PAL‑B/D/G/H/I/M/N, SECAM) and monochrome formats (CCIR, EIA/RS‑170). - **Programmable Resolution and Scaling:** Supports square‑pixel resolutions (640×480 NTSC, 768×576 PAL) and broadcast resolutions. Images can be cropped or scaled down to 1/16 of original size. - **Adjustable Image Parameters:** Software‑controlled hue, brightness, contrast, and saturation (0–200%) adjustments with automatic chrominance gain control. - **Watchdog Timer:** Hardware watchdog monitors system activity and resets the host PC after a programmable timeout, ensuring fault‑tolerant operation. - **General Purpose I/O (GPIO):** 4 TTL‑compatible inputs, 4 outputs, and 4 software‑trigger lines for external synchronization, alarms, or control signals. - **Software Support:** WDM driver with DLL support for Visual C++, Visual Basic, Borland C++ Builder, and Delphi under Windows 98/NT/2000/XP. Includes **ViewCreator Utility** for configuration, testing, and image capture. - **User EEPROM:** 1 Kbit onboard EEPROM for user‑defined data storage. - **Channel Expansion:** Expandable up to 16 channels via onboard 10‑pin headers and ribbon cable extensions. - **Robust Design:** TTL I/O lines protected against overloads and ESD.

Manufacturer: Adlink Technology Inc.

Category: Frame Grabber

- **Four-Channel Real-Time Video Capture:** Simultaneous acquisition of up to four analog video streams in real time via composite BNC inputs. - **MPEG4 Software Compression:** High-quality MPEG4 encoding and decoding with adjustable bitrate and frame rate for optimized storage and transmission. - **Flexible Video Format Support:** Compatible with NTSC, PAL, CCIR, and EIA standards; supports resolutions from QCIF (160×120) to 4CIF (640×480 NTSC / 768×576 PAL). - **Motion Detection:** Configurable up to four detection zones per frame with adjustable sensitivity and programmable actions. - **TCP/IP Streaming:** Real-time video transmission over IP networks with flow rate monitoring. - **Watchdog Timer:** Hardware watchdog for system reliability; automatically resets the host PC after inactivity timeout. - **General Purpose I/O (GPIO):** Four TTL-compatible inputs, four outputs, and four software trigger lines for external control and event signaling. - **Software Development Kit (SDK):** Includes WDM drivers and a comprehensive function library for C++, Visual Basic, Delphi, and Borland C++ Builder. - **ViewCreator Utility:** GUI-based configuration and testing tool for video capture, encoding, and I/O control. - **Scalable Architecture:** Expandable up to 16 channels using optional RTV-E4 extension boards. - **EEPROM Integration:** 1 Kbit user EEPROM for storing configuration or identification data. - **System Protection:** Unique hardware ID for software licensing and system integration security.

Manufacturer: Adlink Technology Inc.

Category: Frame Grabber

- **Four‑Channel Real‑Time MPEG‑4 Hardware Encoding:** Supports simultaneous capture and compression of four analog video inputs at full D1 resolution (NTSC 640×480 @ 30 fps × 4 = 120 fps total; PAL 768×576 @ 25 fps × 4 = 100 fps total). - **Adjustable Video Quality and Bitrate Control:** Programmable GOP structures (I, IP, IBP, IBBP) with constant or variable bitrate (CBR/VBR) from 1 Kbps to 40 Mbps. Frame and bit rates can be tuned for bandwidth‑limited or remote streaming environments. - **Real‑Time Raw Data Preview:** Hardware‑assisted live preview in single‑channel full‑D1 or four‑channel quad‑display mode without CPU overhead. - **Integrated Video Decoder and Playback Support:** Software decoding for playback or remote monitoring without requiring the PCI‑MPG24 card installed on the client system. - **AVI File Recording:** Encoded streams can be saved directly to standard AVI containers for playback in Microsoft Media Player or other DirectShow‑compliant players. - **TTL‑Compatible Digital I/O:** Four TTL inputs and four outputs for event triggering, alarm signaling, or external device control. Over‑voltage and ESD protection included. - **Hardware Watchdog Timer:** Monitors host application activity and automatically resets the system after a programmable timeout—ideal for unattended or remote installations. - **On‑Board Memory:** 64 MB SDRAM buffer for frame storage and smooth streaming. - **User EEPROM:** 1 Kbit non‑volatile memory for integrator‑defined data or system identification. - **Software Support:** Microsoft DirectX 9.0, Visual Studio .NET, VC++, Borland C++ Builder; sample applications and the “ViewCreator” utility included. - **Operating System Compatibility:** Windows 2000 Professional (SP4) and Windows XP Professional (SP2).

Manufacturer: Adlink Technology Inc.

Category: Frame Grabber

- **Quad‑Channel Real‑Time Video Capture:** Simultaneous acquisition of four composite analog video inputs using four Conexant 878A encoders. - **Multi‑Input Expansion:** Supports up to 16 video inputs when combined with three RTV‑E4 channel extension boards. - **Video Format Compatibility:** Accepts standard composite color (PAL, NTSC, SECAM) and monochrome (CCIR, EIA/RS‑170) video signals. - **Programmable Resolution and Scaling:** Supports full broadcast and square‑pixel resolutions (640×480 NTSC, 768×576 PAL) with programmable scaling down to 1:16 and region‑of‑interest cropping. - **Color and Image Adjustments:** Adjustable hue (NTSC), contrast (0–200%), brightness, and saturation (0–200% for U/V). Automatic chrominance gain control ensures consistent image quality. - **Watchdog Timer:** Hardware watchdog monitors system activity and resets the PC after a programmable timeout, ensuring fault‑tolerant operation in remote or unattended systems. - **General Purpose I/O (GPIO):** 4 TTL‑compatible inputs, 4 outputs, and 4 software‑trigger lines for external synchronization, event signaling, or alarm integration. - **Software Support:** WDM driver package compatible with Microsoft Windows NT/98/2000/XP. Includes DLLs for VC++, VB, Borland C++ Builder, and Delphi. Bundled **ViewCreator Utility** for configuration, testing, and image capture. - **User EEPROM:** 1 Kbit onboard EEPROM for user‑defined data storage. - **Compact PCI Form Factor:** 32‑bit, 33/66 MHz PCI bus, half‑size board (173 mm × 107 mm).

Manufacturer: Adlink Technology Inc.

Category: Frame Grabber

- **Dual 3G-SDI Input Channels:** Supports simultaneous capture of two independent 3G-SDI video streams. - **High-Resolution Video Capture:** Up to 1920×1080p at 60 fps, supporting 3G/HD/SD-SDI standards. - **Color Accuracy:** 12-bit 4:4:4 (1080i/60fps) and 10-bit 4:2:2 (1080p/60fps) color formats for superior image fidelity. - **Low Latency, Uncompressed Streaming:** Ensures real-time video acquisition without compression artifacts. - **Long-Distance Transmission:** Supports up to 100 meters over 75Ω coaxial cable without signal degradation. - **Integrated Audio Capture:** Two-channel embedded digital audio per SDI input. - **RS-485 and Digital I/O:** Two RS-485 ports and 4-channel digital input/output for external device control. - **DirectShow Compatibility:** Fully compliant with Microsoft DirectShow for seamless integration with Windows-based applications. - **Software Utility:** Bundled with ADLINK ViewCreator Pro™ for configuration, testing, and debugging without programming. - **LED Indicators:** Four status LEDs for signal detection and channel activity. - **PCI Express x4 Interface:** Compliant with PCIe Gen2 x4, compatible with x4, x8, and x16 slots. - **Environmental Robustness:** Wide operating temperature range and RoHS/WEEE compliance.

Manufacturer: Adlink Technology Inc.

Category: Frame Grabber

- **PCI Express x4 Interface:** High-bandwidth serial interconnect for fast image data transfer. - **Camera Link Compatibility:** Supports one channel Base, Medium, or Full configuration Camera Link cameras. - **High-Speed Data Transfer:** Up to 640 MB/s per channel throughput. - **Pixel Clock Rate:** Supports acquisition pixel clock rates up to 85 MHz. - **Onboard Memory:** 128 MB of 200 MHz DDR SDRAM for image buffering and DMA operations. - **FPGA-Based Design:** Provides flexible image acquisition, pre-processing, and real-time control. - **Trigger and Encoder Support:** - Programmable TTL/RS-422 line/page triggers. - RS-422 A/B/Z phase encoder input with up/down counter. - TTL digital I/O for external control. - **External Communication:** RS-232 serial port for camera control and configuration. - **Comprehensive Software Support:** - Windows XP/XP Embedded compatibility. - API libraries for VC++ 6.0, VB 6.0, and Borland C++ Builder 6.0. - **Utility Software:** CamCreator utility for camera configuration, testing, and debugging. - **RoHS Compliant:** Environmentally friendly design meeting EU directives. - **LED Indicators:** Status LEDs for DMA, FIFO, and PCIe lane activity.

Manufacturer: Adlink Technology Inc.

Category: Frame Grabber

- **PCI Express® x4 Interface:** Fully compliant with PCIe x4 standard, ensuring high bandwidth and low latency data transfer. - **Dual-Channel Camera Link® Support:** Simultaneous acquisition from two independent base-configuration cameras or one medium-configuration camera. - **PoCL™ (Power over Camera Link):** Supplies +12 VDC (max 1 A per channel) directly through the Camera Link cable, with automatic detection and overcurrent protection. - **High-Speed Data Transfer:** Supports pixel clock rates up to 85 MHz and data throughput up to 512 MB/s (dual base) or 320 MB/s (single medium). - **Onboard Memory:** 128 MB of 200 MHz DDR SDRAM for image buffering and high-speed acquisition. - **64-bit Memory Addressing:** Supports large memory addressing for high-resolution imaging. - **Digital I/O and Triggering:** - 4 TTL digital inputs and 4 TTL digital outputs - 2 trigger inputs and 2 exposure outputs - RS-422 encoder input (A/B/Z phase) - **Software Support:** Compatible with Windows® XP/Vista (32/64-bit) and includes ADLINK’s CamCreator™ utility for camera configuration, testing, and debugging. - **API and SDK:** Comprehensive function library for C/C++, C#, VB.NET, and Borland C++ Builder. - **Compact Form Factor:** 167.65 mm (W) × 111.15 mm (L), suitable for standard PC chassis. - **Applications:** Ideal for machine vision, industrial inspection, medical imaging, and scientific research.

Manufacturer: Adlink Technology Inc.

Category: Frame Grabber

- **PCI Express® x4 Interface:** Fully compliant with PCIe x4 specification, ensuring high‑bandwidth data transfer between the frame grabber and host memory. - **Dual‑Channel Camera Link® Support:** Simultaneous acquisition from two independent base‑configuration cameras or one medium‑configuration camera. - **PoCL™ (Power over Camera Link):** Supplies +12 V DC (max 1 A per channel) directly through the Camera Link connector, eliminating separate power cabling. - **High Data Throughput:** Supports image transfer rates up to 512 MB/s (dual base) or 320 MB/s (single medium). - **128 MB DDR SDRAM Buffer:** 200 MHz DDR memory for image acquisition buffering and smooth data streaming. - **Flexible Triggering and I/O:** 4 TTL digital I/O lines, 2 trigger inputs, 2 exposure outputs, and encoder inputs (RS‑422 A/B/Z). - **64‑bit Memory Addressing:** Compatible with modern 64‑bit operating systems and large memory spaces. - **Comprehensive Software Support:** Windows® XP/Vista (32/64‑bit) drivers, WDM driver package, and CamCreator™ configuration utility. - **Developer SDK:** Full API library for C/C++, C#, VB.NET, and Borland C++ Builder, including Camera Link serial communication functions. - **Compact Form Factor:** 167.65 mm × 111.15 mm PCB suitable for standard PCIe slots. - **Industrial Reliability:** Operating temperature 0 °C – 50 °C, humidity 5 – 90 % RH NC.

Manufacturer: Adlink Technology Inc.

Category: Frame Grabber
