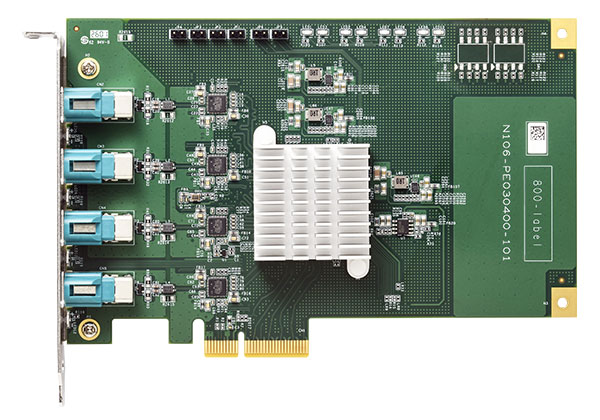

PCIe-AE304bp
4-port 100/1000BASE-T1 automotive Ethernet card with Gen2 x4 PCIe interface
Wide-temperature, fanless PCIe card with four IEEE 802.3bw/bp 100/1000BASE-T1 H-MTD ports. It uses four Marvell 88Q2221M transceivers, supports software-configurable master/slave operation, and provides hardware PTP timestamping for IEEE 1588 V1/V2 and IEEE 802.1AS. The card requires a PCIe Gen2 x4 interface and supports up to 15 m UTP cabling. Dimensions are 167.7 x 111 mm; fanless operating temperature is -25°C to 70°C.
- Bus Interface PCI Express Gen2 x4
- Automotive Ethernet Ports 4 ports
- Ethernet Standards IEEE 802.3bw and IEEE 802.3bp
- Supported Link Speeds 100 and 1000 Mbps
- PHY Transceivers 4x Marvell 88Q2221M
- Master/Slave Configuration Software-configurable
- PTP Timestamping Hardware timestamping
- Time Synchronization Standards IEEE 1588 V1/V2 and IEEE 802.1AS
- Synchronization Accuracy Sub-microsecond
- Connector H-MTD, Z-code
- Maximum Cable Length 15 m
- Cable Type Unshielded twisted pair (UTP)
- Form Factor Single-slot, half-length PCIe card
- Width 167.7 mm
- Height 111 mm
- Connector 4x H-MTD, Z-code
- Dimensions 167.7 mm (W) x 111 mm (H)
- Operating Temperature -25 to 70 °C
- Storage Temperature -40 to 85 °C
- Operating Mode Fanless
- Relative Humidity 10 to 90, non-condensing %
- Operating Temperature -25°C to 70°C, fanless
- EMC Compliance CE; FCC Class A; EN 55032; EN 55035
- Supported Operating System Linux Ubuntu
- Key Features 4x IEEE 802.3bw/bp 100/1000BASE-T1 ports; Software-configurable master/slave mode; Hardware PTP timestamping; IEEE 1588 V1/V2 and IEEE 802.1AS support; PCIe Gen2 x4 interface; Single-slot half-length design; Fanless wide-temperature operation; Ubuntu Linux support
-
